320100-R201-001消声器前段总成 500F、氧传感器安装角度向上23°,配辉虎触媒(50g,123*6 件 — Genuine 凯越 Part
凯越oem
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)

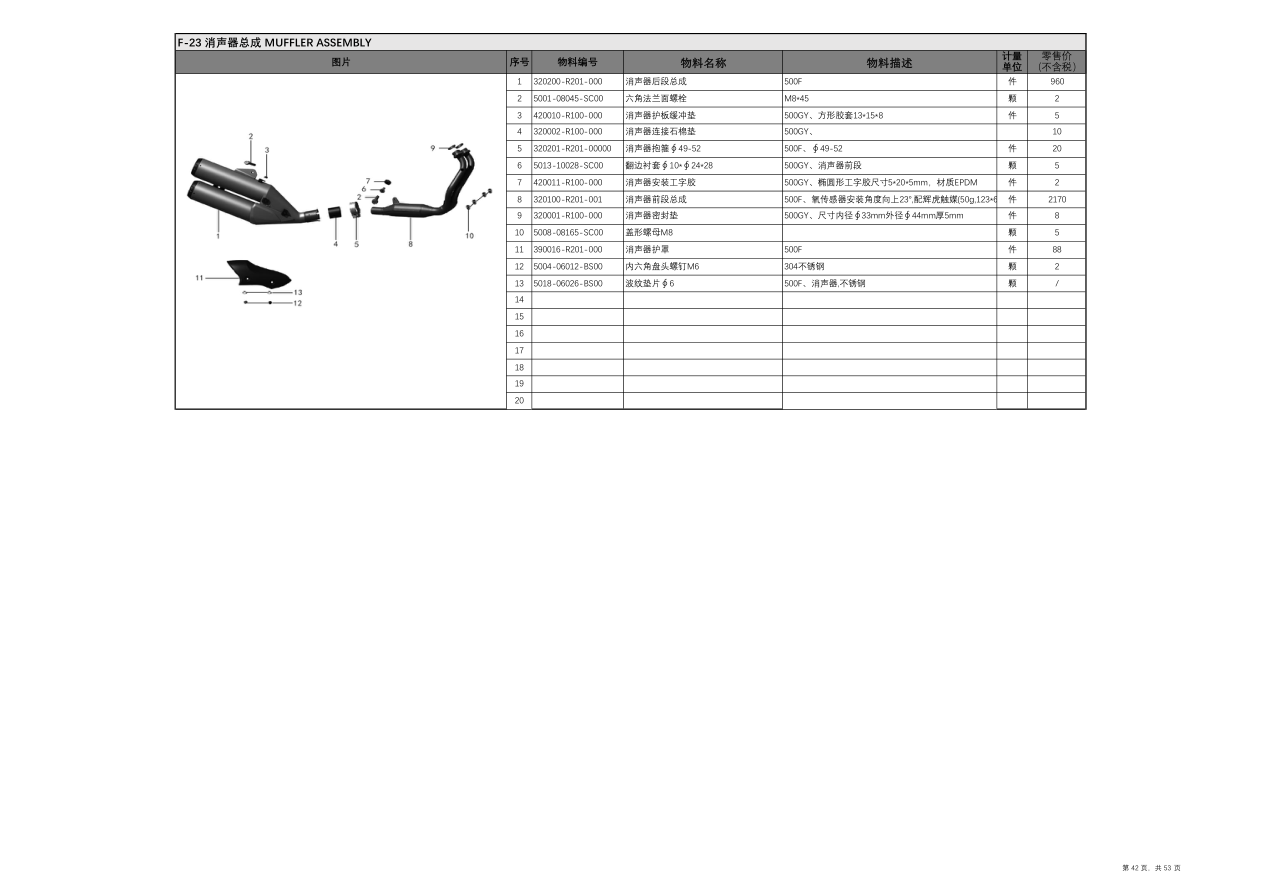

Location in exploded diagrams
Other parts on this diagram — 未分组
- #5 320201-R201-00000 — 消声器抱箍∮49-52
- #1 320200-R201-000 — 消声器后段总成
- #2 5001-08045-SC00 — 六角法兰面螺栓
- #3 420010-R100-000 — 消声器护板缓冲垫 500GY、方形胶套13*15*8 件
- #4 320002-R100-000 — 消声器连接石棉垫
- #6 5013-10028-SC00 — 翻边衬套∮10*∮24*28 500GY、消声器前段 颗
- #7 420011-R100-000 — 消声器安装工字胶 500GY、椭圆形工字胶尺寸5*20*5mm，材质EPDM 件
- #9 320001-R100-000 — 消声器密封垫 500GY、尺寸内径∮33mm外径∮44mm厚5mm 件
- #10 5008-08165-SC00 — 盖形螺母M8 颗
- #11 390016-R201-000 — 消声器护罩
- #12 5004-06012-BS00 — 内六角盘头螺钉M6 304不锈钢 颗
- #13 5018-06026-BS00 — 波纹垫片∮6 500F、消声器,不锈钢 颗
