11192MA1000Sym Jet 14 125 LC E5 CRANK CASE GASKET — Genuine Sym Part
Symoem
Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

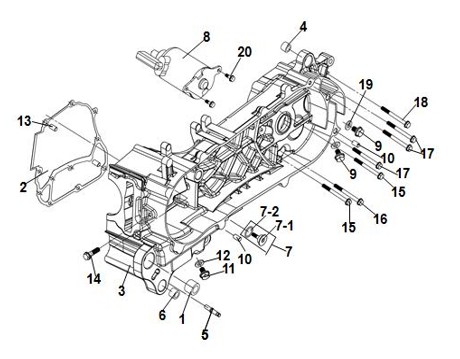

Location in exploded diagrams
Other parts on this diagram — Left Crank Case
- 960010601608 — Sym Jet 14 125 LC E5 FLANGE BOLT 6X16
- 90474M9Q000 — Sym Jet 14 125 LC E5 WASHER 8MM
- 90474333000KD — Sym Jet 14 125 LC E5 WASHER 8MM
- 957010806800 — Sym Jet 14 125 LC E5 Flange bolt 8*68
- 957010806500 — Sym Jet 14 125 LC E5 Flange bolt 8*65
- 957010806000 — Sym Jet 14 125 LC E5 BOLT,FLANGE,8X60
- 957010805500 — Sym Jet 14 125 LC E5 FLANGE BOLT 8*55
- 960010601208 — Sym Jet 14 125 LC E5 FLANGE BOLT SH 6X12
- 9430108140 — Sym Jet 14 125 LC E5 DOWEL PIN 8*14
- 9410912000 — Sym Jet 14 125 LC E5 DRAIN PLUG WASHER 12MM
- 9280012000 — Sym Jet 14 125 LC E5 DRAIN PLUG BOLT 12MM
- 90703HC4000 — Sym Jet 14 125 LC E5 DOWEL PIN 10*14
- 9430110140 — Sym Jet 14 125 LC E5 DOWEL PIN 10X14
- 90703M8Q000 — Sym Jet 14 125 LC E5 DOWEL PIN 10*14
- 90103H68000KD — Sym Jet 14 125 LC E5 SPECIAL BOLT 8MM
- 90103KN8000 — Sym Jet 14 125 LC E5 SPECIAL BOLT 8MM
- 31200ARA000 — Sym Jet 14 125 LC E5 START MOTOR
- 91301GR0004 — Sym Jet 14 125 LC E5 O-RING 15.5X1.5
- 91304M9Q000 — Sym Jet 14 125 LC E5 O RING 15.2*1.5
- 91301GR0003 — Sym Jet 14 125 LC E5 O-RING 15.5*1.5
- 14531M9Q000 — Sym Jet 14 125 LC E5 CAM CHAIN TENSIONER PIVOT
- 11205F6A300 — Sym Jet 14 125 LC E5 MAIN STAND BUSH
- 11204ABA000 — Sym Jet 14 125 LC E5 SPRING HOOK PIN
- 11203GC7300 — Sym Jet 14 125 LC E5 RR. CUSH UND BUSH RUBBER
