Verified fitment — 9 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (9)
- 2020–2024 Fiddle 125 E5 (2020 – 2024)
- 2025–2026 Fugue 125 E5+ (2025 – 2026)
- 2021–2024 Jet 14 125 LC E5 (2021 – 2024)
- 2022–2024 Jet 4 RX 125 E5 (2022 – 2024)
- 2025–2026 Jet 4 RX 125 E5+ (2025 – 2026)
- 2021–2024 Jet X 125 E5 (2021 – 2024)
- 2025 Jet X 125 E5+ (2025 – 0)
- 2021–2024 Orbit III 125 E5 (2021 – 2024)
- 2025–2026 Orbit III 125 E5+ (2025 – 2026)

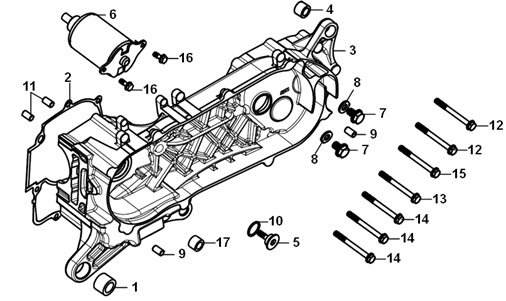

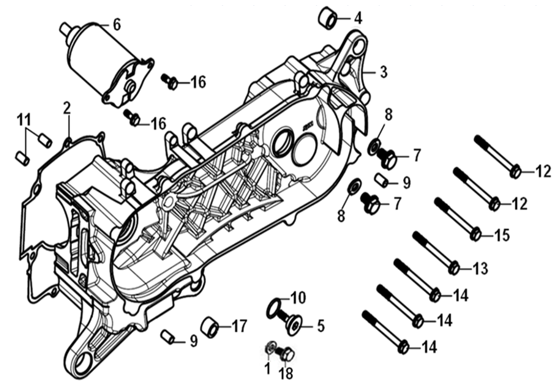

Location in exploded diagrams
Other parts on this diagram — Left Crankcase Assy
- 957010806500 — Sym Fiddle 125 E5 Flange bolt 8*65
- 957010806000 — Sym Fiddle 125 E5 BOLT,FLANGE,8X60
- 957010805500 — Sym Fiddle 125 E5 FLANGE BOLT 8*55
- 9459127000 — Sym Fiddle 125 E5 CLIP 2*70
- 960010601608 — Sym Fiddle 125 E5 FLANGE BOLT 6X16
- 9430108140 — Sym Fiddle 125 E5 DOWEL PIN 8*14
- 9410912000 — Sym Fiddle 125 E5 DRAIN PLUG WASHER 12MM
- 9280012000 — Sym Fiddle 125 E5 DRAIN PLUG BOLT 12MM
- 91301GR0004 — Sym Fiddle 125 E5 O-RING 15.5X1.5
- 91304M9Q000 — Sym Fiddle 125 E5 O RING 15.2*1.5
- 91301GR0003 — Sym Fiddle 125 E5 O-RING 15.5*1.5
- 90703HC4000 — Sym Fiddle 125 E5 DOWEL PIN 10*14
- 9430110140 — Sym Fiddle 125 E5 DOWEL PIN 10X14
- 90703M8Q000 — Sym Fiddle 125 E5 DOWEL PIN 10*14
- 90474M9Q000 — Sym Fiddle 125 E5 WASHER 8MM
- 90474333000KD — Sym Fiddle 125 E5 WASHER 8MM
- 90103H68000KD — Sym Fiddle 125 E5 SPECIAL BOLT 8MM
- 90103KN8000 — Sym Fiddle 125 E5 SPECIAL BOLT 8MM
- 31200F6CA00 — Sym Fiddle 125 E5 START MOTOR
- 31200F6C000 — Sym Fiddle 125 E5 START MOTOR
- 14531M9Q000 — Sym Fiddle 125 E5 CAM CHAIN TENSIONER PIVOT
- 11203GC7300 — Sym Fiddle 125 E5 RR. CUSH UND BUSH RUBBER
- 11203M9Q300 — Sym Fiddle 125 E5 RR. CUSHION RUBBER BUSH
- 11200XB1000 — Sym Fiddle 125 E5 L. crank case COMP.
