Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 38.92 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 35.99 | listing | cfmoto.quadzillaparts.co.uk |

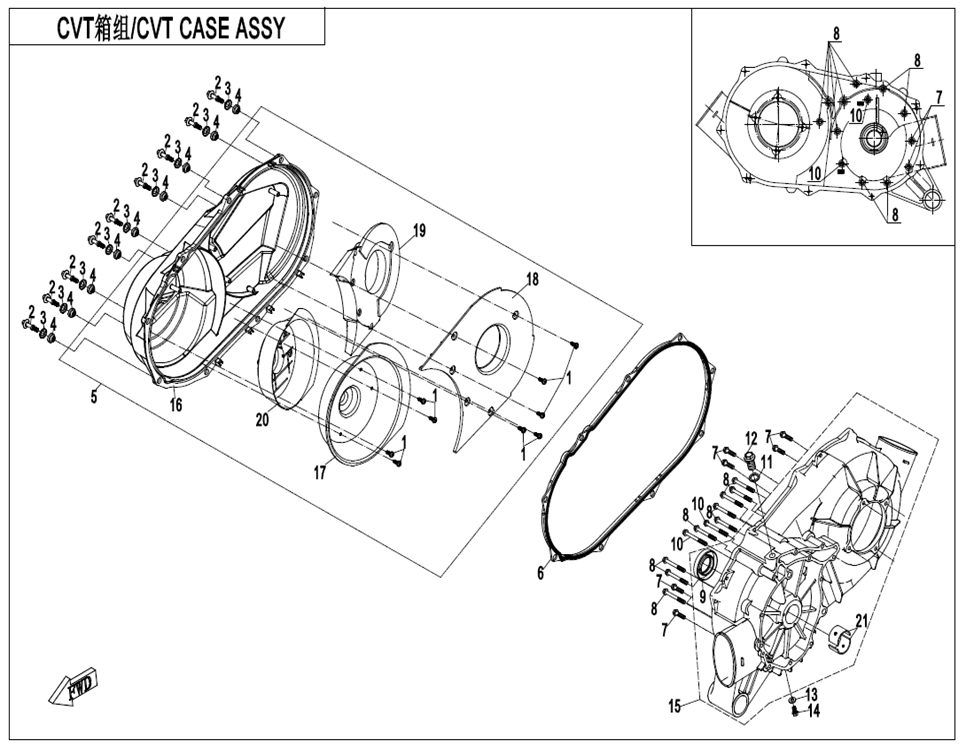

Location in exploded diagrams
Other parts on this diagram — E01-3 Cvt Cvt Case Assy
- #16 0180-011006 — Gasket 14 14
- #18 0JY0-013102-00021 — Plain Bearing, Cvt Blue
- #01 0JY0-013201-00002 — Cvt Case Cover Bolt
- #22 0010-080013-0010 — Bolt M6X22 Galvanized Trivalent Chromium
- #11 0010-060009 — Washer 6 6
- #17 0JWA-013202 — Front Heat Insulator
- #04 0800-021103 — Rubber Washer Cap
- #14 0JY0-013201-00003 — Cvt Cover Bolt
- #09 0010-013010-0010 — Bolt M6X50 Galvanized Trivalent Chromium
- #10 0010-021019-0010 — Bolt M6X12 Galvanized Trivalent Chromium
- #18 0JWA-013203 — Rear Heat Insulator
- #08 0JY0-013103 — Oil Seal 32X55X10
- #34 0010-021018-0010 — Bolt M6X55 Galvanized Trivalent Chromium
- #19 0JWA-013205 — Insulated Sponge 2
- #03 0800-021102 — Rubber Mat
- #12 0JWA-013100-00001 — Cvt Case Assy
- #20 0JWA-013204 — Insulated Sponge 1
- #05 0JWA-013200 — Cvt Case Cover Assy
- #18 0JY0-013102-00011 — Plain Bearing, Cvt Red
- #10 30110-480160010 — Self-Tapping Screw St4.8X16@Color Zinc Trivalent Chromium
- #05 0JY0-013002 — Seal Ring,Cvt Case Cover
- #15 0180-068001-00100 — Hollow Bolt M14X1.5 M14X1.5
- #04 0JWA-013201-10000 — Cvt Case Cover
