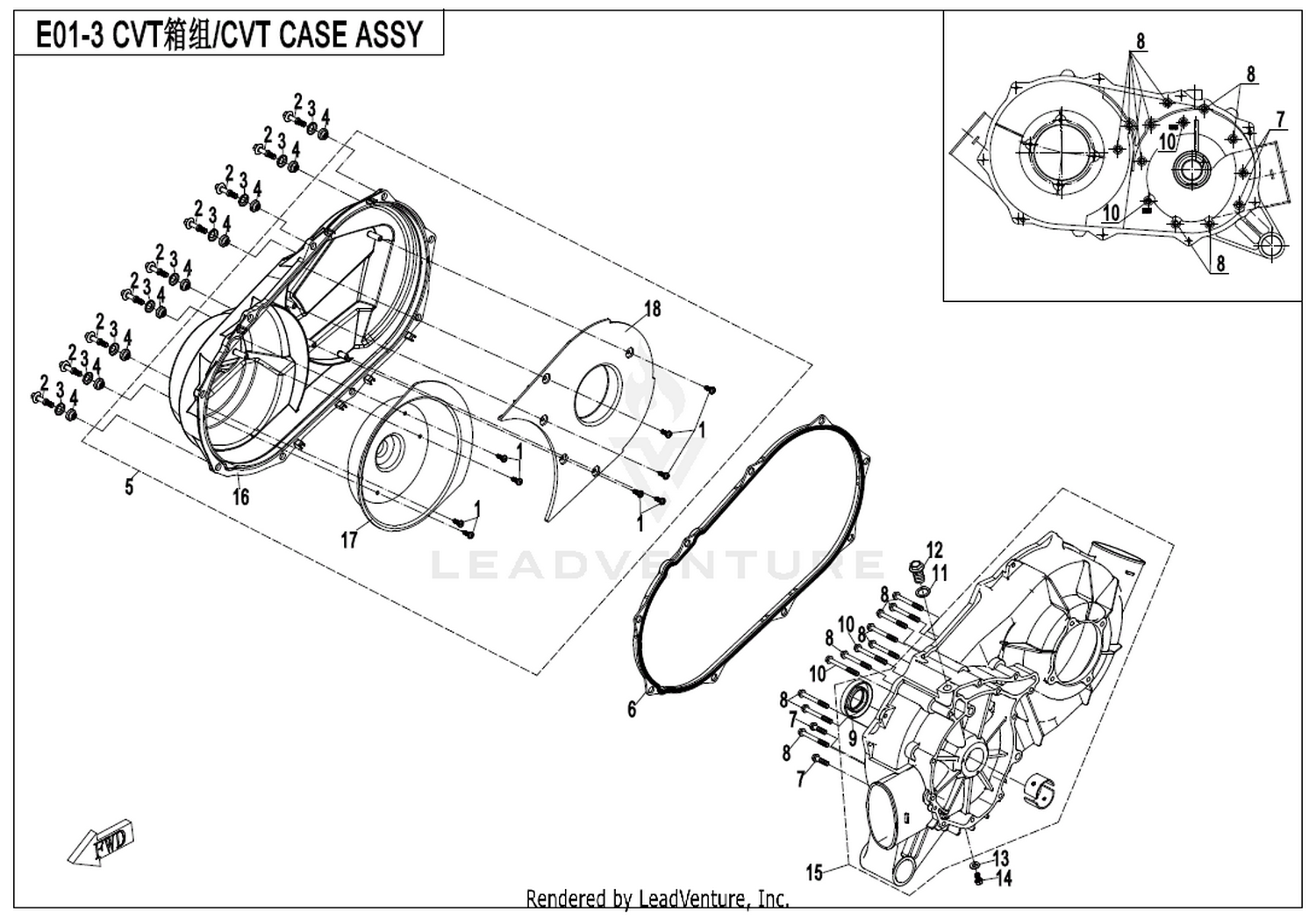

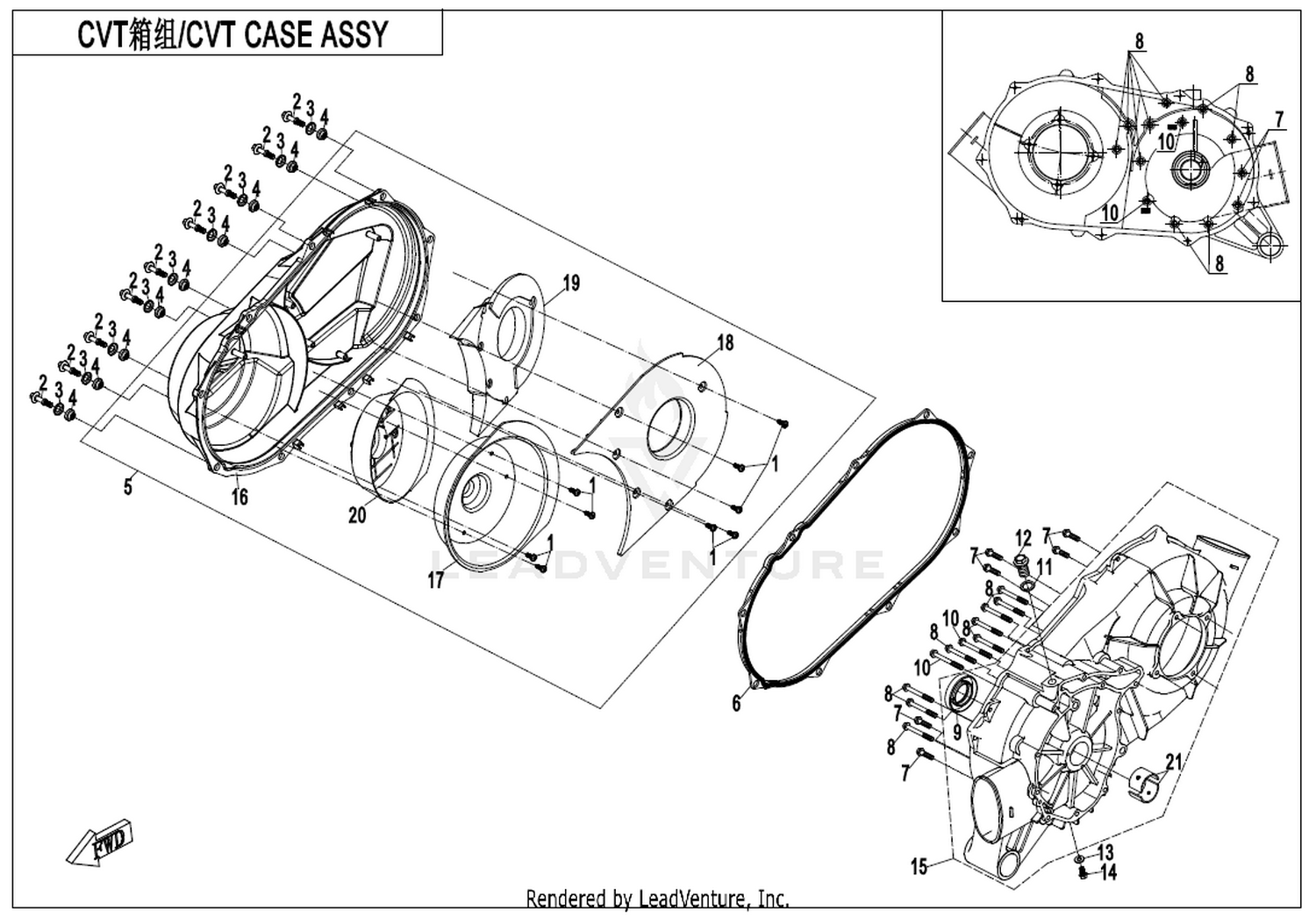

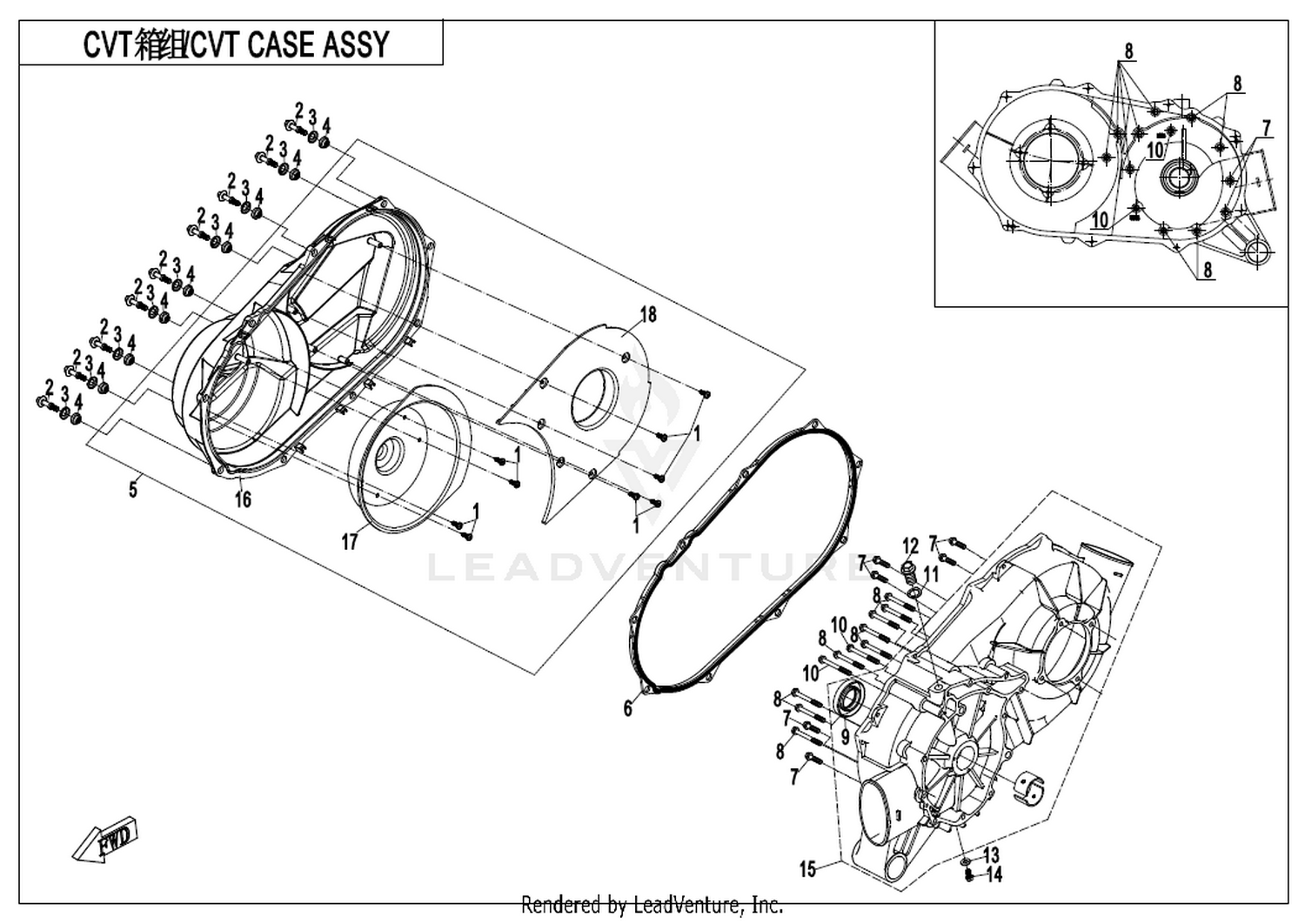

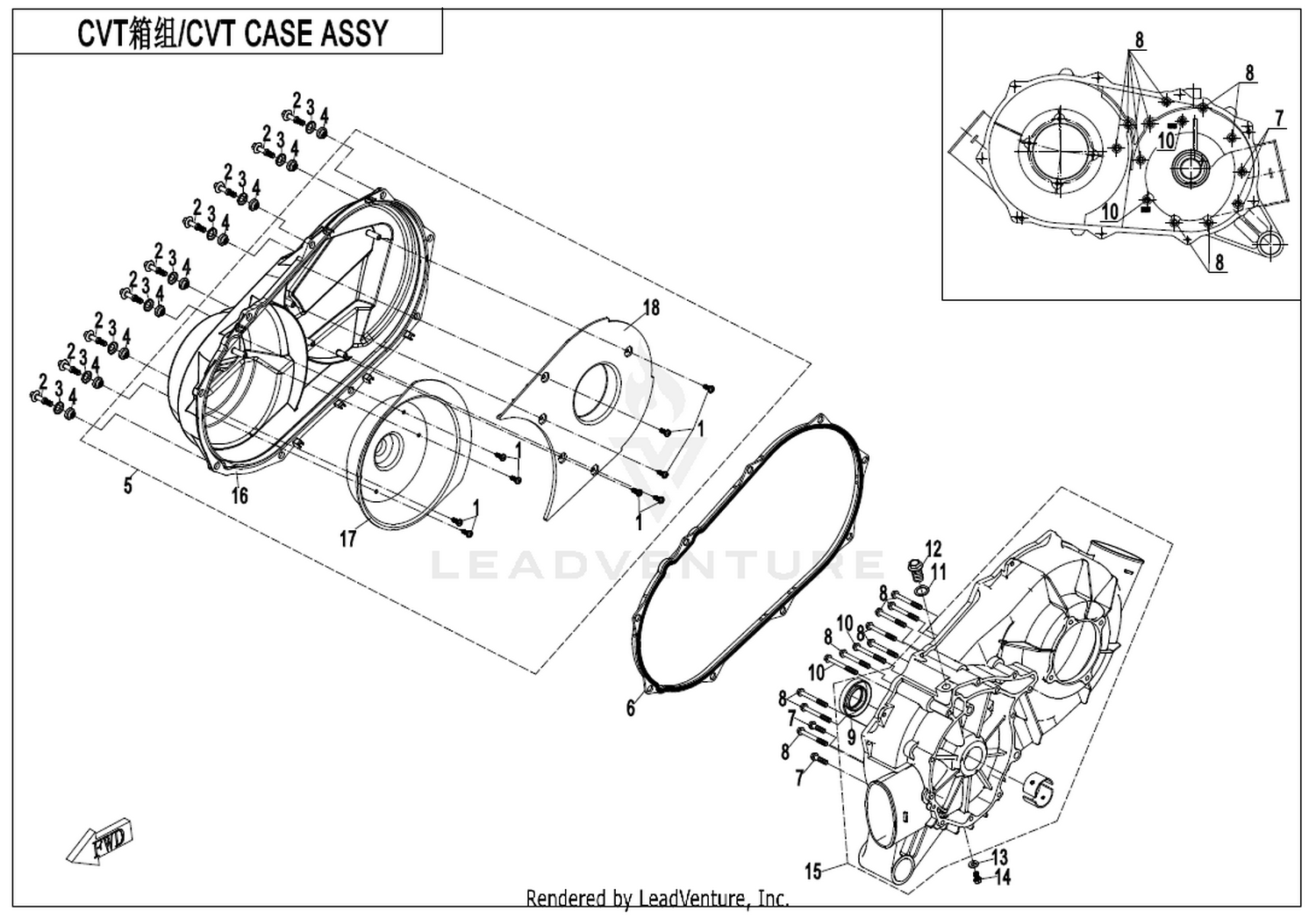

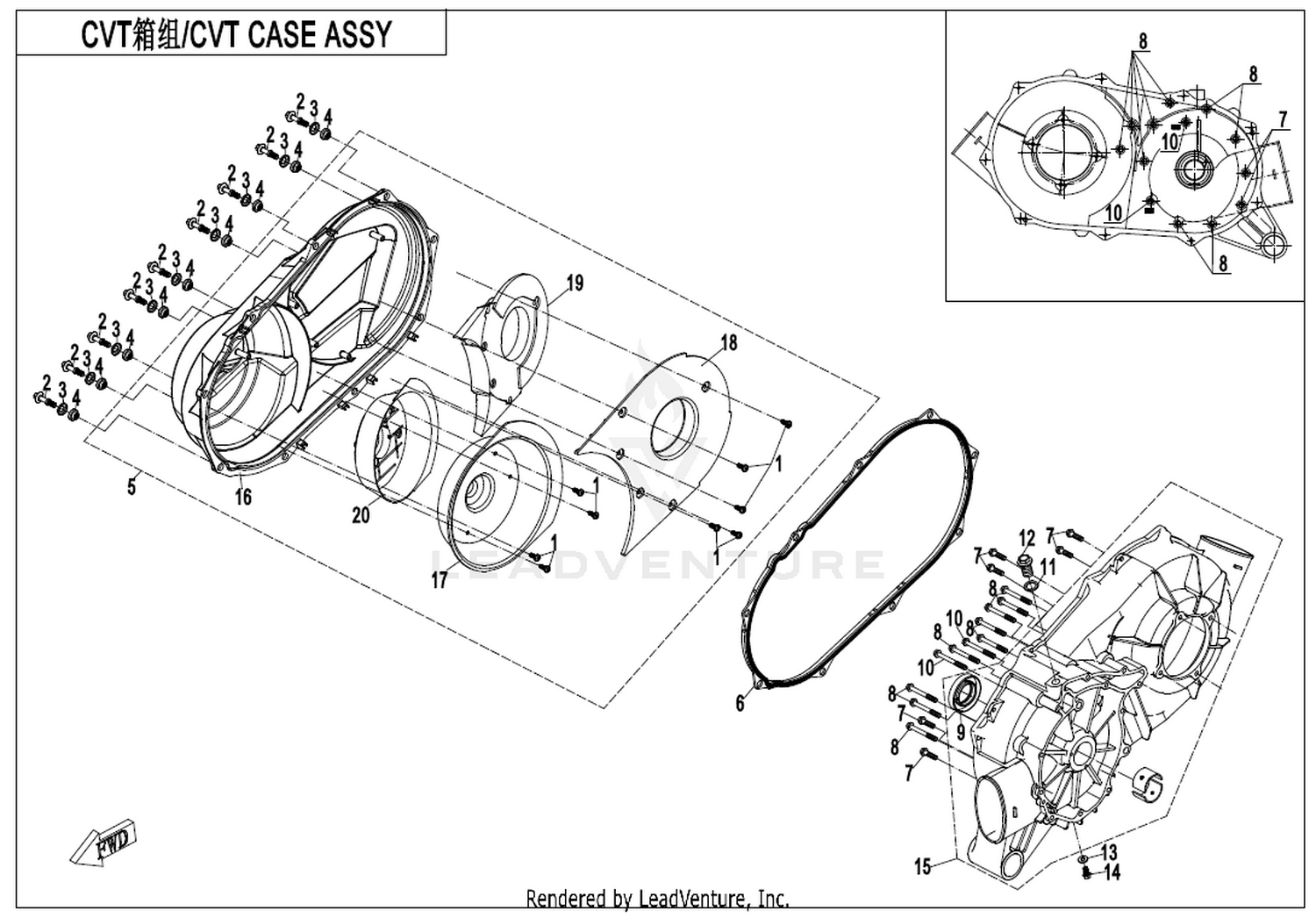

Location in exploded diagrams












Other parts on this diagram — Cvt Case Assy
- #16 0180-011006 — Gasket 14 14
- #17 0JWA-013202 — Front Heat Insulator
- #05 0JY0-013002 — Seal Ring,Cvt Case Cover
- #15 0180-068001-00100 — Hollow Bolt M14X1.5 M14X1.5
- #18 0JWA-013203 — Rear Heat Insulator
- #10 30110-480160010 — Self-Tapping Screw St4.8X16@Color Zinc Trivalent Chromium
- #22 0010-080013-0010 — Bolt M6X22 Galvanized Trivalent Chromium
- #11 0010-060009 — Washer 6 6
- #14 0JY0-013201-00003 — Cvt Cover Bolt
- #09 0010-013010-0010 — Bolt M6X50 Galvanized Trivalent Chromium
- #01 0010-080010-00001 — Bolt M6×10
- #04 0800-021103 — Rubber Washer Cap
- #08 0JY0-013103 — Oil Seal 32X55X10
- #12 0JWA-013100-00001 — Cvt Case Assy
- #03 0800-021102-10000 — Rubber Washer
- #34 0010-021018-0010 — Bolt M6X55 Galvanized Trivalent Chromium
- #04 0JWA-013201-10000 — Cvt Case Cover
