Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (2)
Location in exploded diagrams

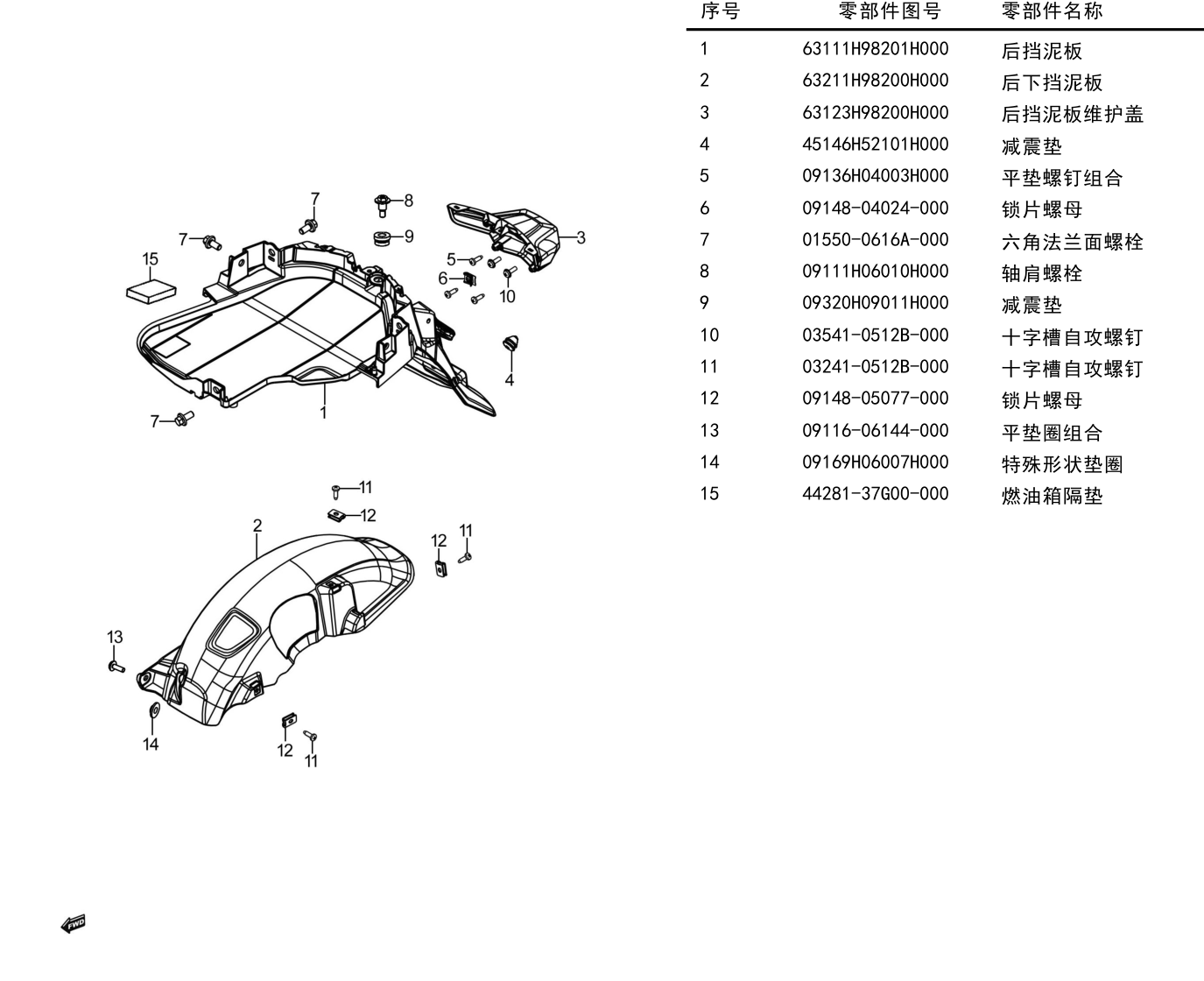

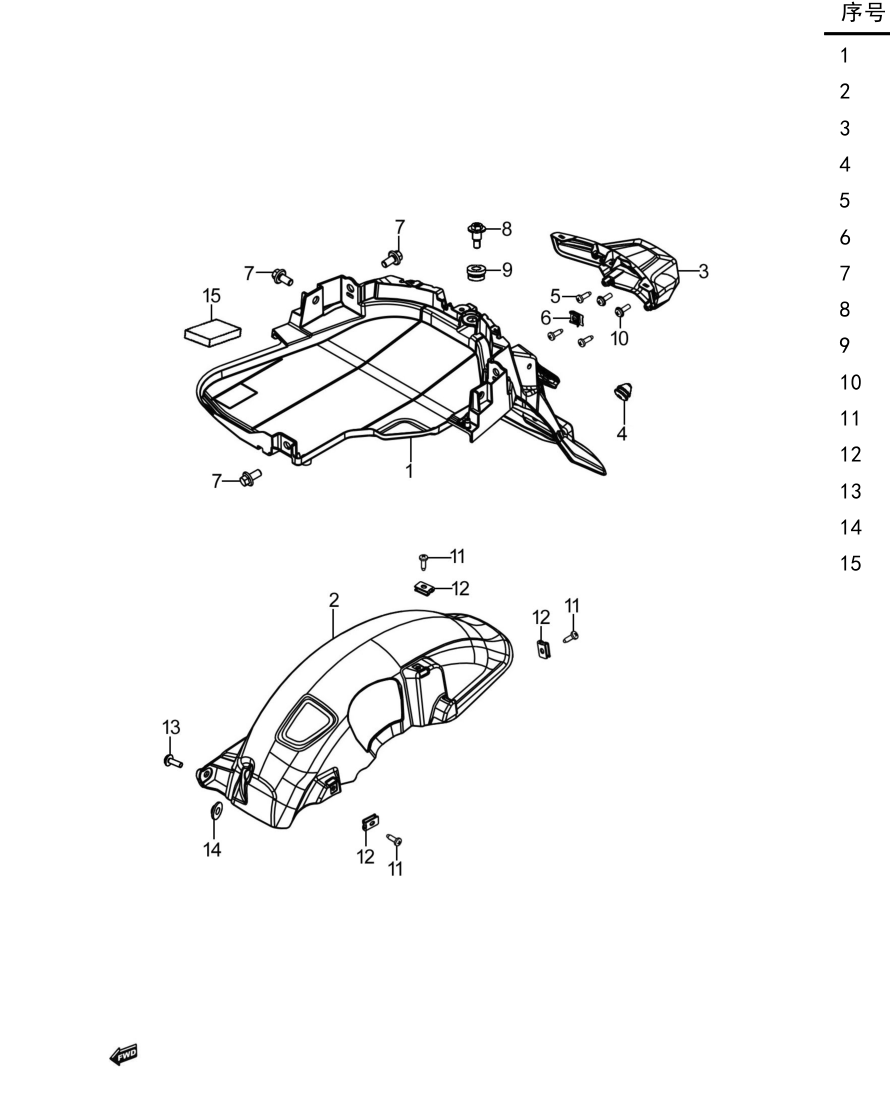

Other parts on this diagram — 后挡泥板组
- #1 63111H98201H000 — 后挡泥板
- #2 63211H98200H000 — 后下挡泥板
- #3 63123H98200H000 — 后挡泥板维护盖
- #4 45146H52101H000 — 减震垫
- #5 09136H04003H000 — 平垫螺钉组合
- #6 09148-04024-000 — 锁片螺母
- #7 01550-0616A-000 — 六角法兰面螺栓
- #8 09111H06010H000 — 轴肩螺栓
- #9 09320H09011H000 — 减震垫
- #10 03541-0512B-000 — 十字槽自攻螺钉
- #11 03241-0512B-000 — 十字槽自攻螺钉
- #12 09148-05077-000 — 锁片螺母
- #13 09116-06144-000 — 平垫圈组合
- #15 44281-37G00-000 — 燃油箱隔垫
