Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)

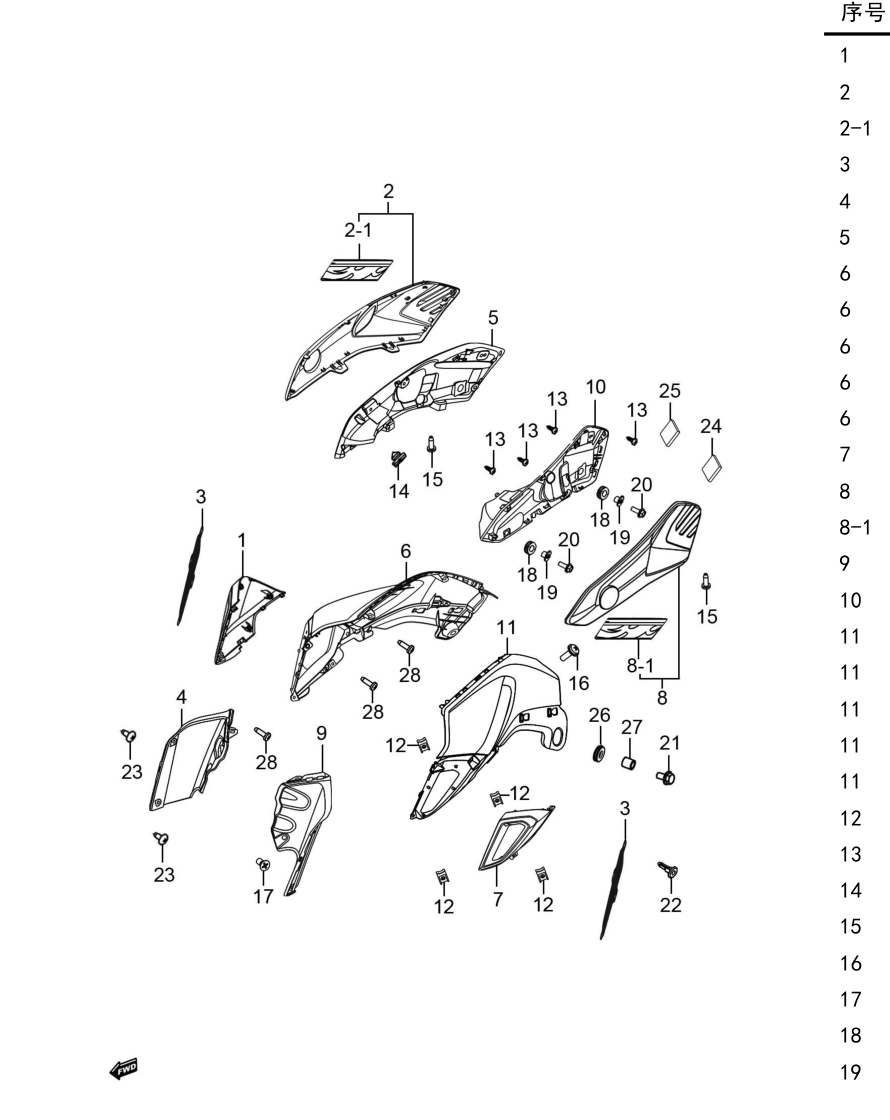

Location in exploded diagrams
Other parts on this diagram — 护罩组
- #1 44171H2K000H511 — 燃油箱右装饰盖(哑光黑)
- #2 44017H2K060HF02 — 燃油箱右下装饰盖组合(F02)
- #2-1 68111H2K000HUB1 — 燃油箱右装饰盖贴条
- #3 44173H2K000H000 — 燃油箱右护罩装饰网
- #4 44271H2K000H000 — 燃油箱右前盖
- #5 44272H2K000H000 — 燃油箱右下盖
- #6 44192H2K000H517 — 燃油箱右盖(星光黑)
- #6 44192H2K000H912 — 燃油箱右盖(冰川白)
- #6 44192H2K000H107 — 燃油箱右盖(钻豹红)
- #6 44192H2K000H628 — 燃油箱右盖(海神蓝)
- #6 44192H2K000H612 — 燃油箱右盖(温莎蓝)
- #7 44181H2K000H511 — 燃油箱左装饰盖(哑光黑)
- #11 44193H2K000H612 — 燃油箱左盖(温莎蓝)
- #12 09148-05077-000 — 锁片螺母
- #13 03241-0512B-000 — 十字槽自攻螺钉
- #14 09321H09002H000 — 减震垫
- #15 03541-0516B-000 — 十字槽自攻螺钉
- #17 09139H06024H000 — 特殊形状螺钉
- #18 09320H09004H000 — 减震垫
- #19 09180H06008H000 — 衬套
- #20 01550-0616A-000 — 六角法兰面螺栓
- #21 09116-06167-000 — 平垫螺栓组合
- #22 48292-32GH0-000 — 膨胀销扣
- #23 03241-0516B-000 — 十字槽自攻螺钉
