Verified fitment — 9 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

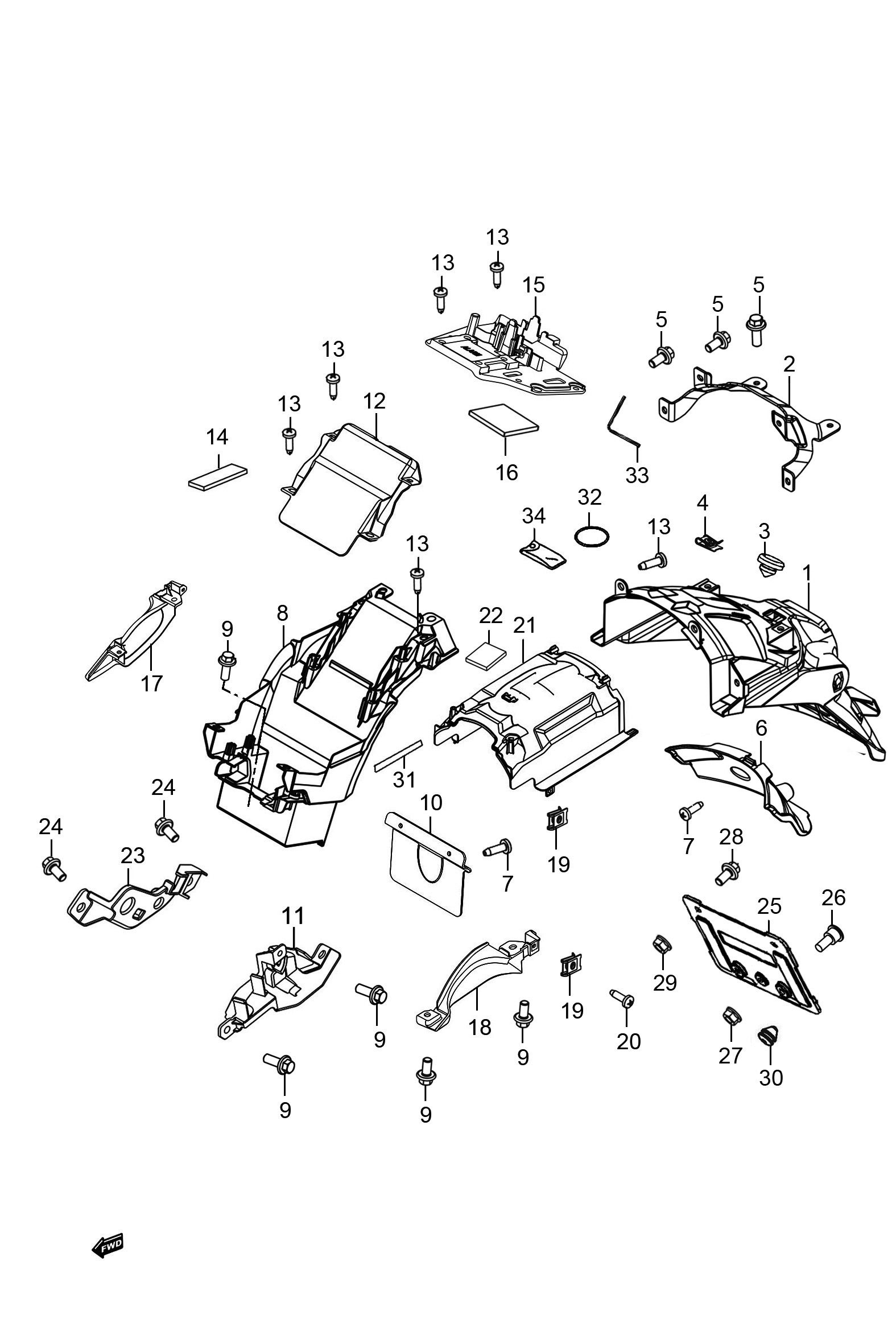

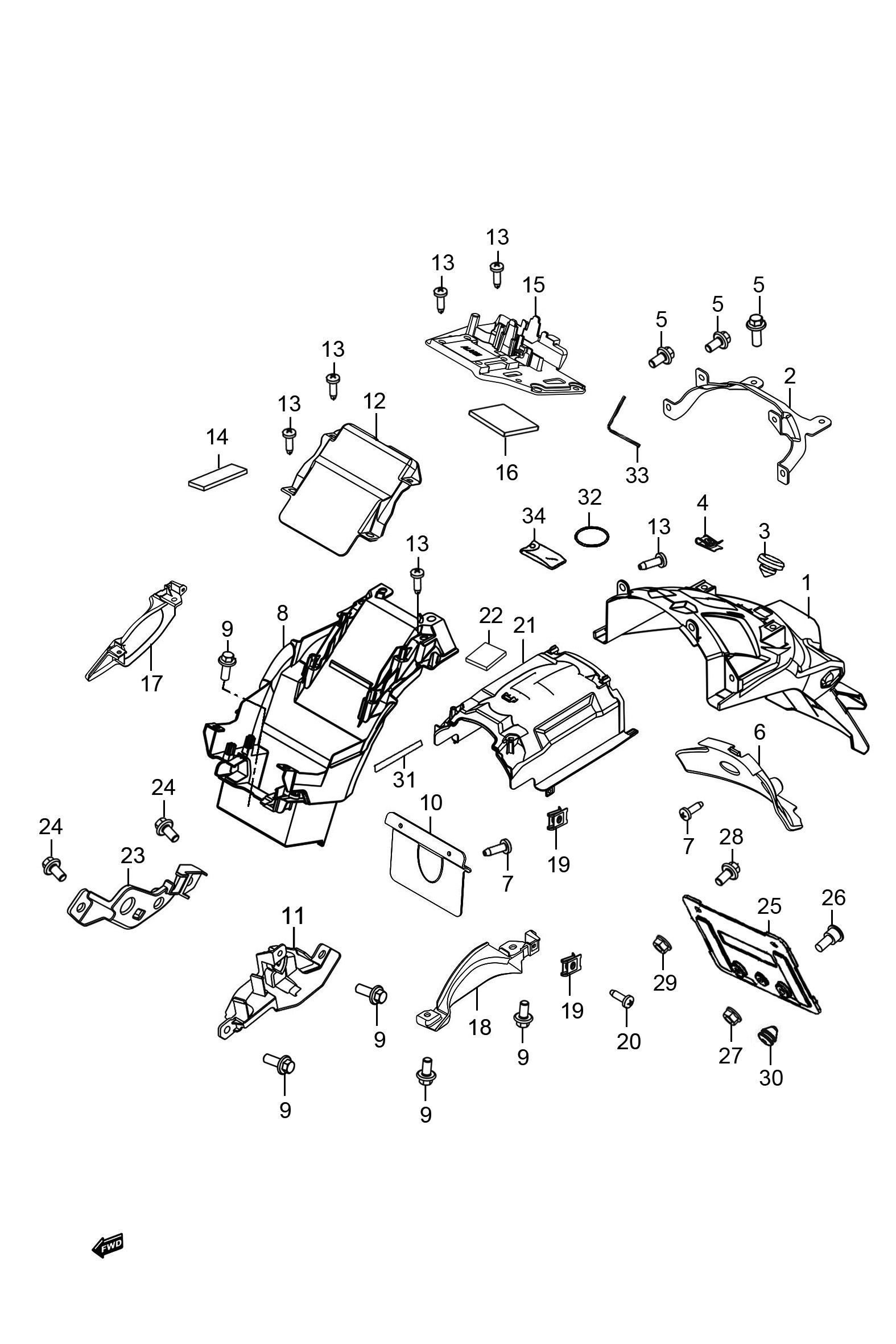

Location in exploded diagrams
Other parts on this diagram — 后挡泥板组
- #1 63111H3C100H000 — 后挡泥板
- #2 63121H3C100H000 — 后挡泥板支架
- #4 35157H22501H000 — 螺母夹
- #6 63151H3C100H000 — 后挡泥板内衬板
- #7 03541-0516A-000 — 十字槽球头自攻钉
- #8 63112H3A001H000 — 后挡泥板前部
- #9 09111-06106-000 — 轴肩螺栓
- #10 63325H3A000H000 — 后挡泥板防尘板
- #11 63124H3A000H000 — 电器安装支架
- #12 92311H3A000H000 — ECU盖板
- #13 35151-21J00-000 — 前照灯螺钉
- #15 48125H3A000H000 — 蓄电池盒盖
- #17 63115H3A000H000 — 后挡泥板右装饰盖
- #18 63125H3A000H000 — 后挡泥板左装饰盖
- #19 09148-05077-000 — 锁片螺母
- #21 63114H3A000H000 — 后挡泥板中部
- #23 47119H3A000H000 — 线束固定板
- #24 09111-06107-000 — 轴肩螺栓
- #25 35927H2H001H000 — 后牌照支架
- #26 09139-05085-000 — 车架侧罩安装螺钉
- #27 08316-1005B-000 — 六角法兰面螺母
- #28 01550-0612B-000 — 六角法兰面螺栓
- #29 08316-1006B-000 — 六角法兰面螺母
- #30 45146H52101H000 — 减震垫
