Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

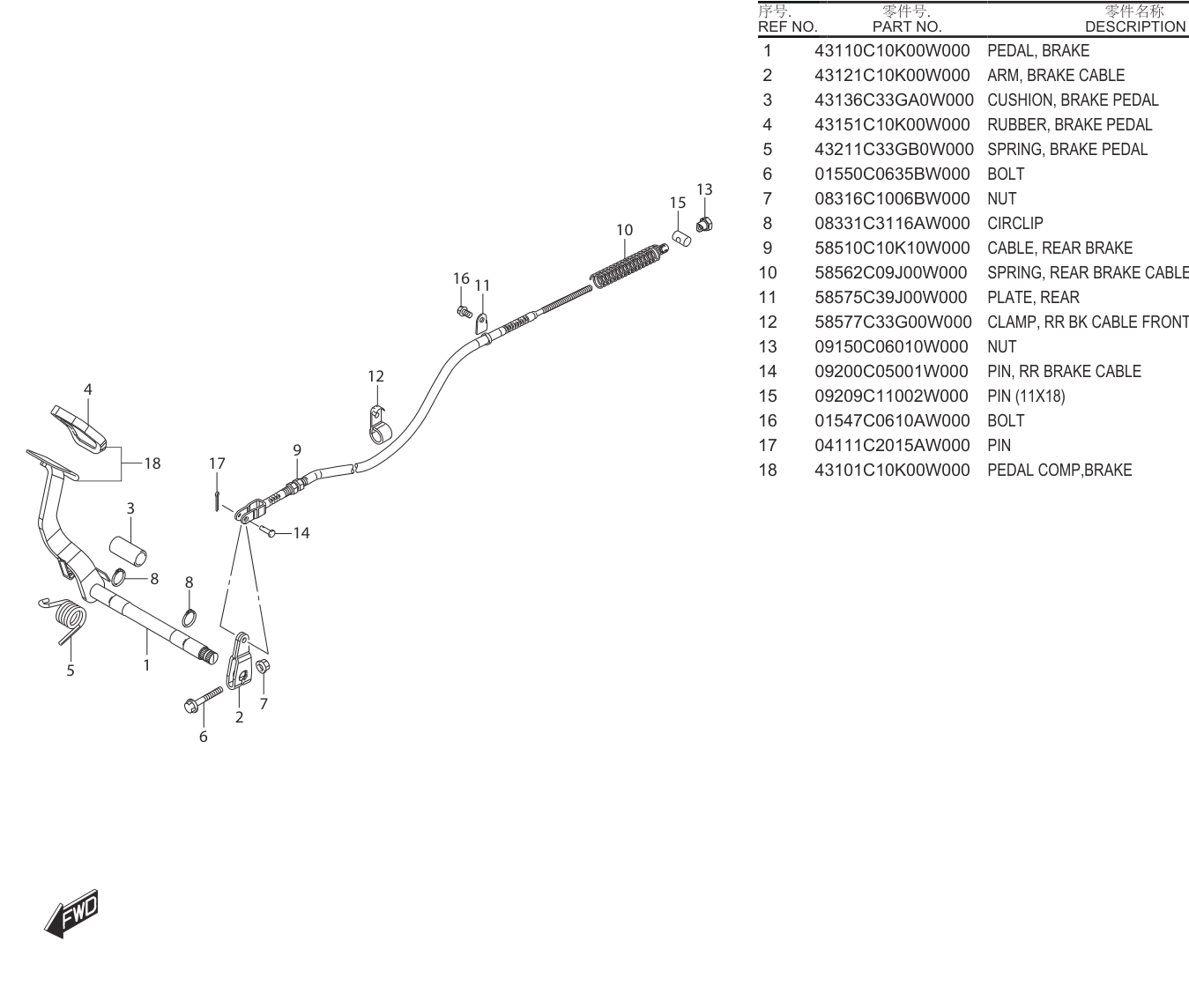

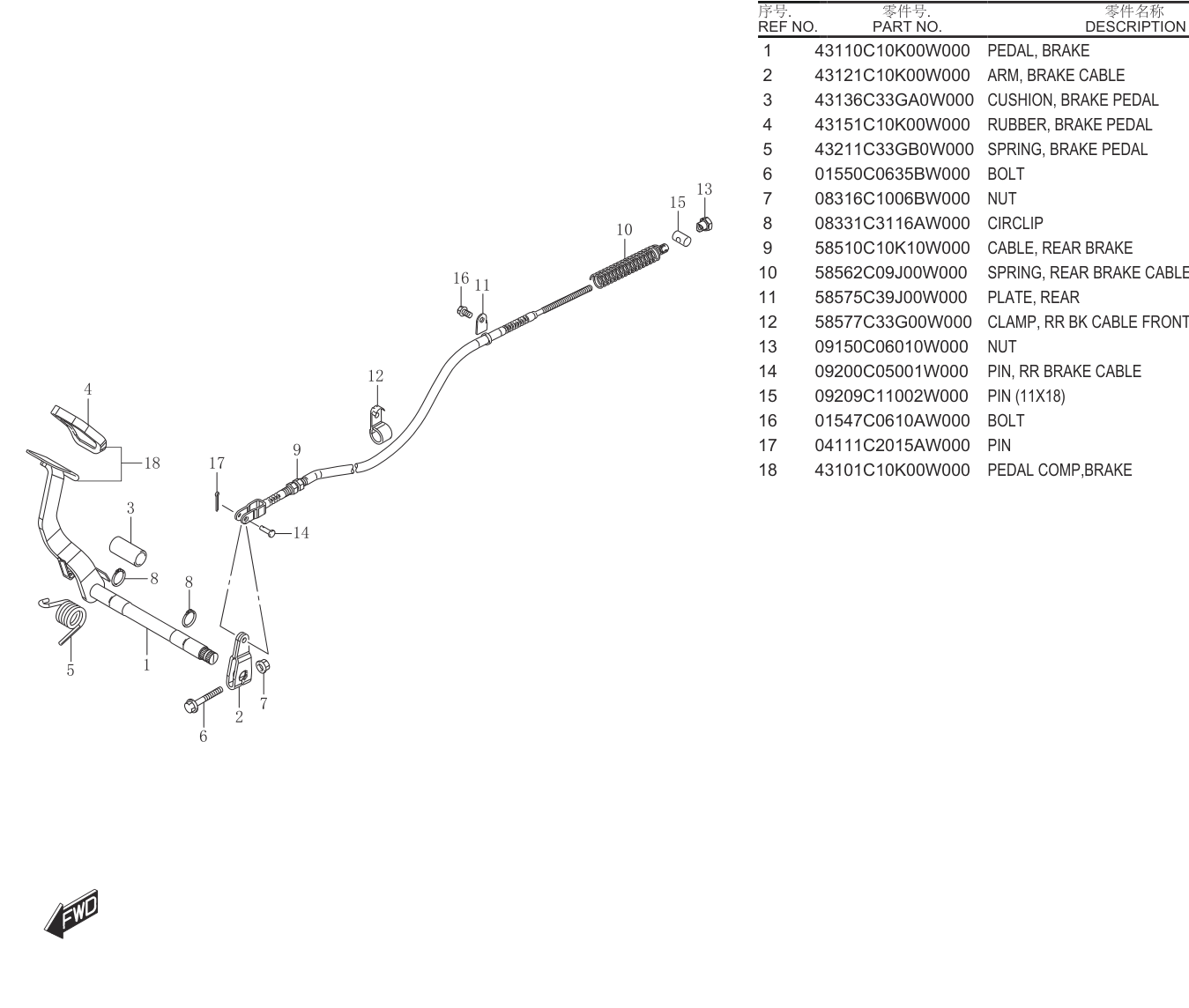

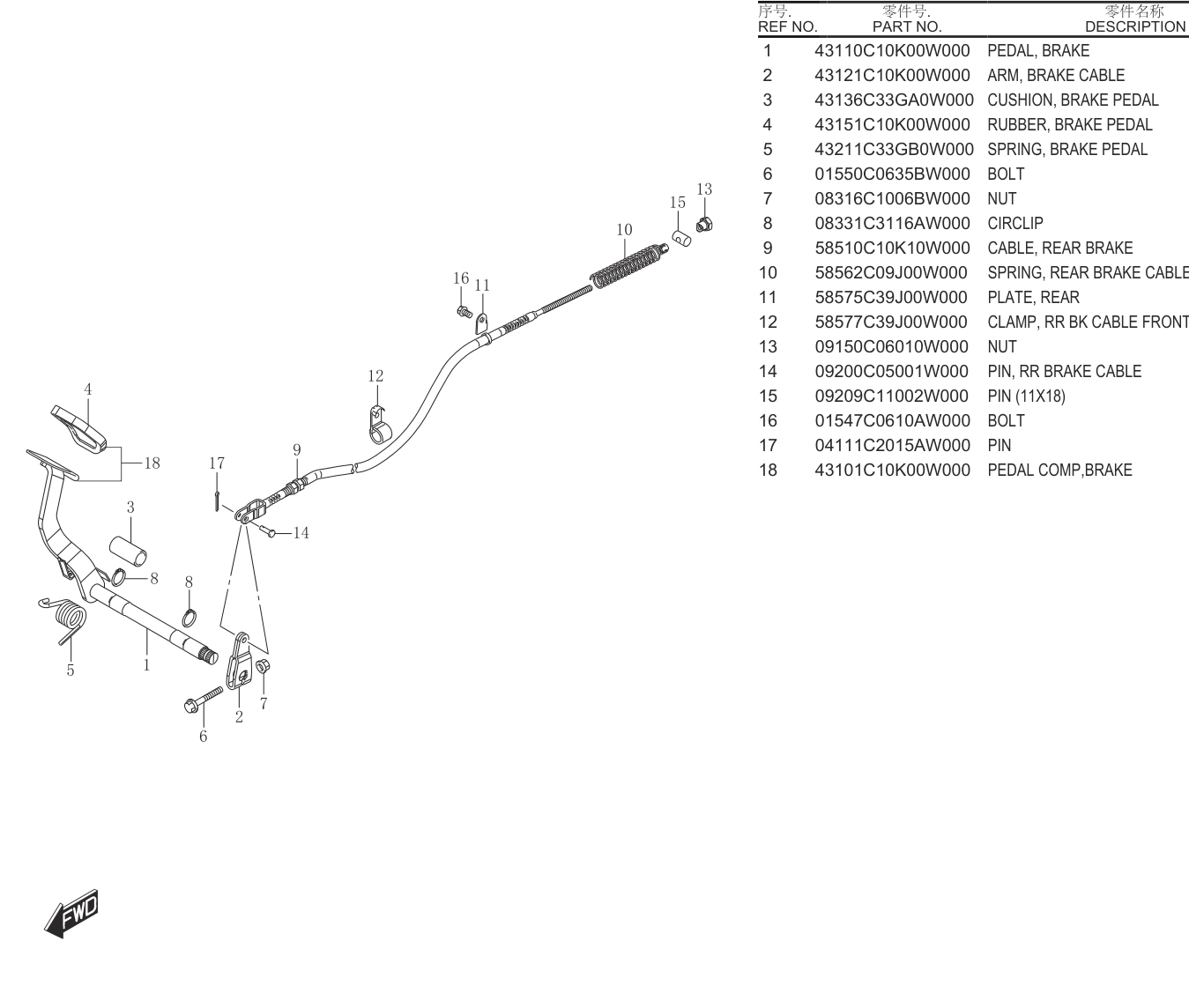

Location in exploded diagrams
Other parts on this diagram — 后制动踏板
- #1 43110C10K00W000 — PEDAL, BRAKE
- #2 43121C10K00W000 — ARM, BRAKE CABLE 3 43136C33GA0W000 CUSHION, BRAKE PEDAL 1
- #4 43151C10K00W000 — RUBBER, BRAKE PEDAL 5 43211C33GB0W000 SPRING, BRAKE PEDAL 1
- #6 01550C0635BW000 — BOLT
- #7 08316C1006BW000 — NUT
- #9 58510C10K10W000 — CABLE, REAR BRAKE
- #10 58562C09J00W000 — SPRING, REAR BRAKE CABLE
- #11 58575C39J00W000 — PLATE, REAR
- #12 58577C33G00W000 — CLAMP, RR BK CABLE FRONT
- #13 09150C06010W000 — NUT
- #14 09200C05001W000 — PIN, RR BRAKE CABLE
- #15 09209C11002W000 — PIN (11X18)
- #16 01547C0610AW000 — BOLT
- #17 04111C2015AW000 — PIN
