Location in exploded diagrams

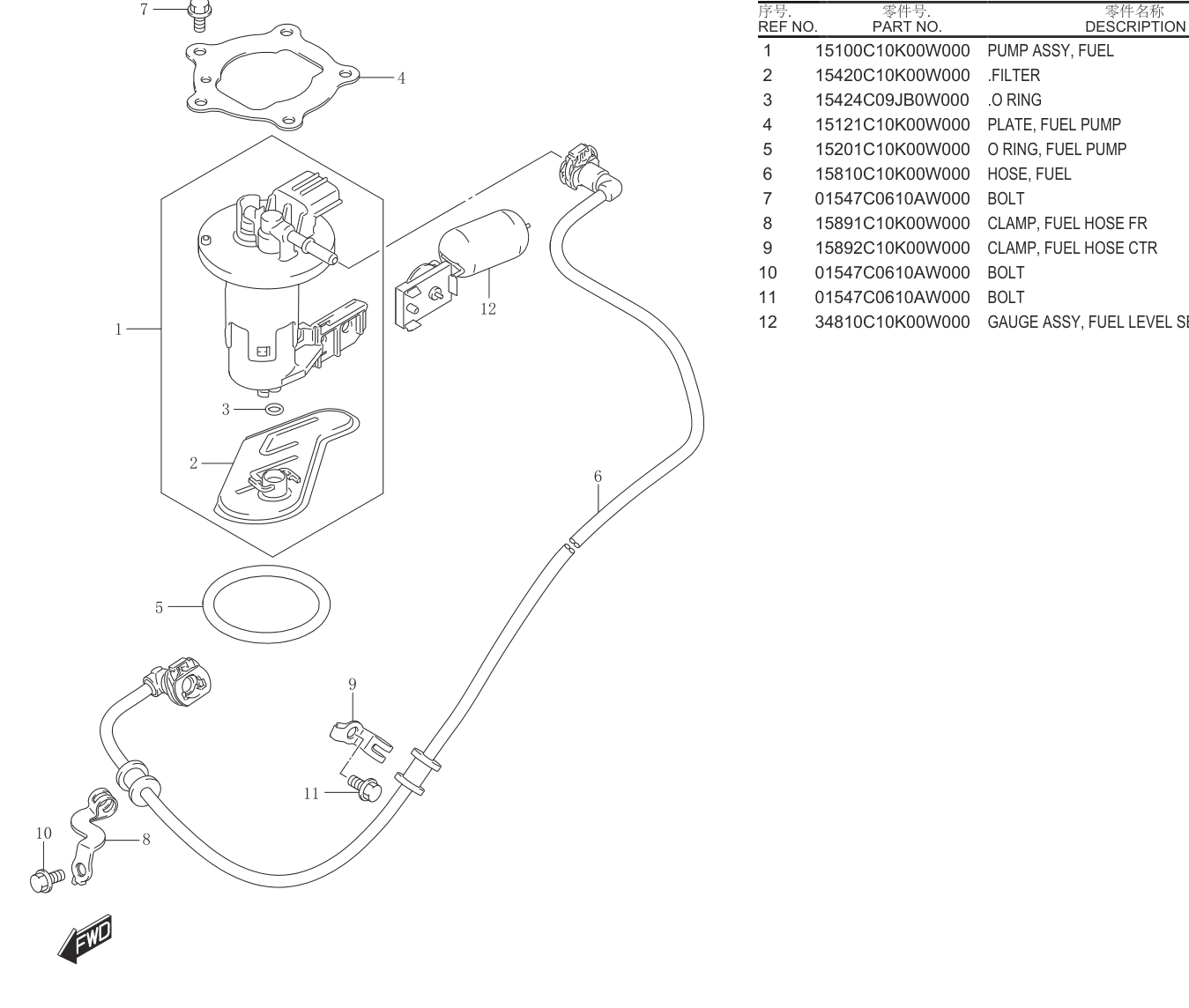

Other parts on this diagram — 燃油泵
- #1 15100-10K00-000 — PUMP ASSY, FUEL 2-1 15420-10K00-000 .FILTER 1
- #3 15424C09JB0W000 — .O RING
- #4 15121-10K00-000 — PLATE, FUEL PUMP
- #5 15201-10K00-000 — O RING, FUEL PUMP
- #6 15810-10K00-000 — HOSE, FUEL
- #8 15891-10K00-000 — CLAMP, FUEL HOSE FR
- #9 15892-10K00-000 — CLAMP, FUEL HOSE CTR
- #12 34810C45K01W000 — GAUGE ASSY, FUEL LEVEL SENDER
