Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)

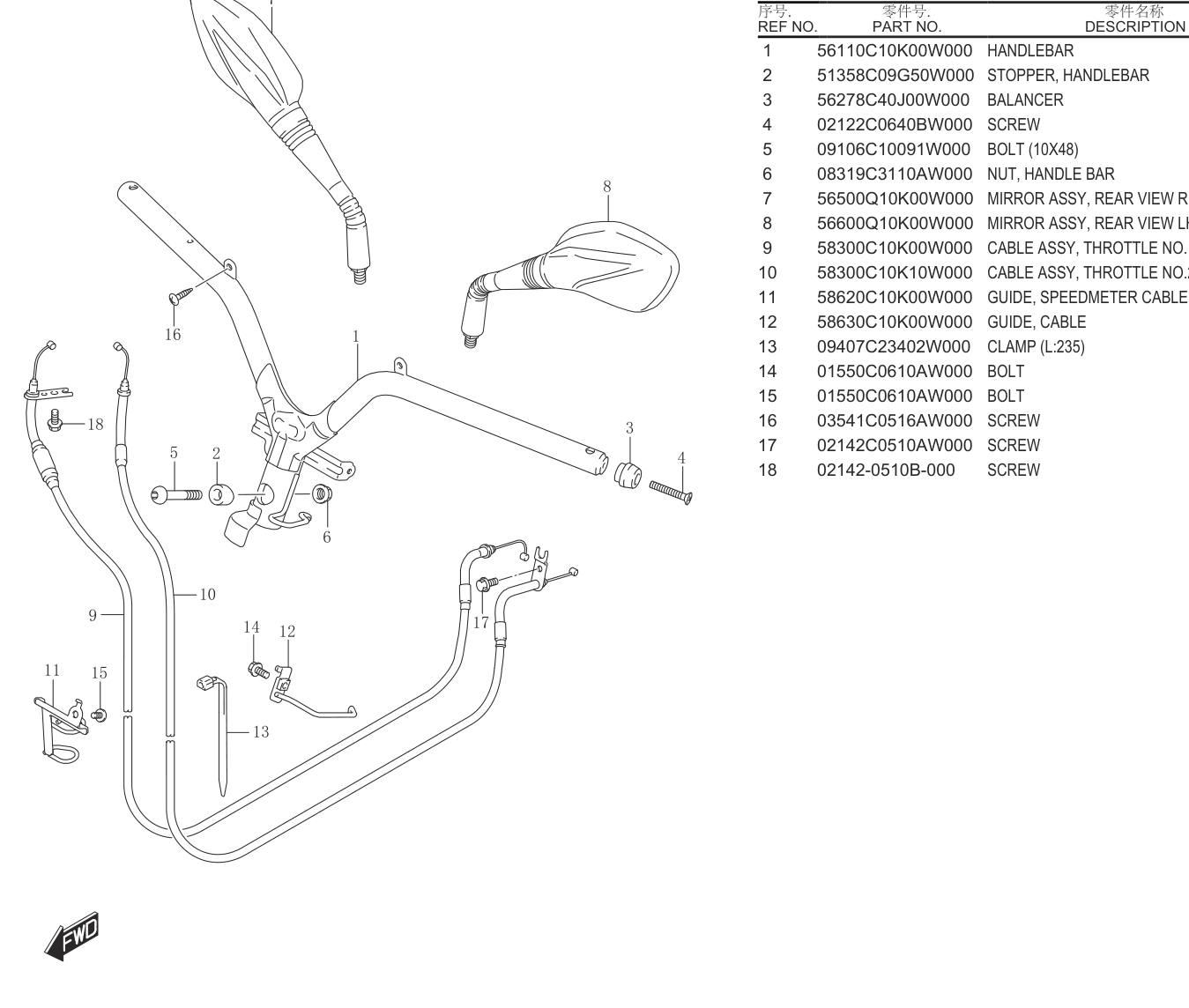

Location in exploded diagrams
Other parts on this diagram — 车把组合
- #1 56110C10K00W000 — HANDLEBAR
- #2 51358C09G50W000 — STOPPER, HANDLEBAR
- #3 56278C40J00W000 — BALANCER
- #4 02122C0640BW000 — SCREW
- #5 09106C10091W000 — BOLT (10X48)
- #6 08319C3110AW000 — NUT, HANDLE BAR
- #7 56500Q10K00W000 — MIRROR ASSY, REAR VIEW RH
- #8 56600Q10K00W000 — MIRROR ASSY, REAR VIEW LH
- #9 58300C10K00W000 — CABLE ASSY, THROTTLE NO.1
- #10 58300C10K10W000 — CABLE ASSY, THROTTLE NO.2
- #11 58620C10K10W000 — GUIDE, FRONT BRAKE CABLE
- #12 58630C10K00W000 — GUIDE, CABLE
- #13 09407C23402W000 — CLAMP (L:235)
- #14 01550C0610AW000 — BOLT
- #16 03541C0516AW000 — SCREW
- #18 02142-0510B-000 — SCREW
- #19 58110C10K00W000 — CABLE, FRONT BRAKE
- #20 09209C11002W000 — PIN (11X18)
- #21 09150C06010W000 — NUT
