Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)
Location in exploded diagrams

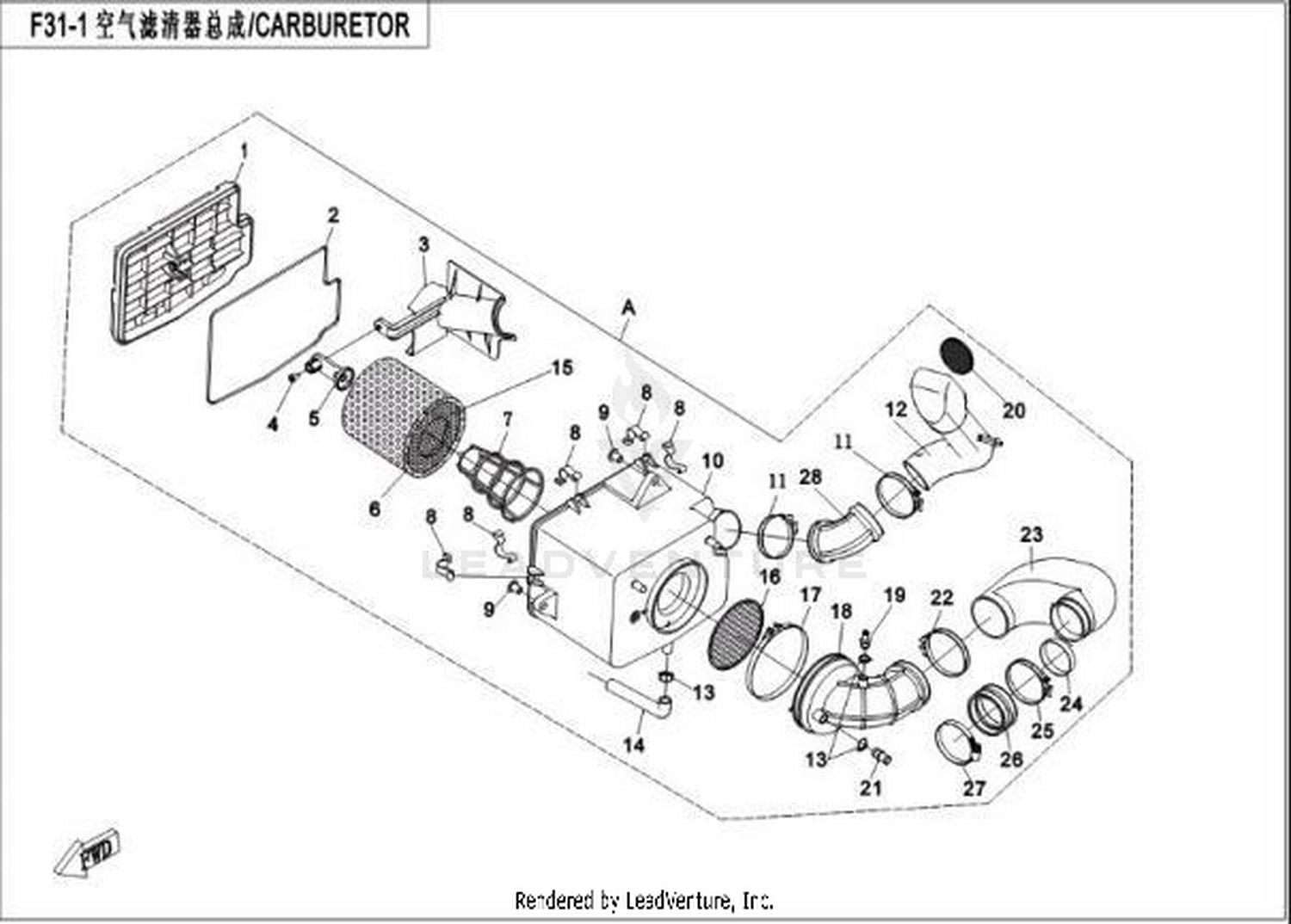

Other parts on this diagram — Air Filter Assy 1
- #0A 060C-110000-2000 — Air Filter Assy
- #12 060C-110022 — Pipe,Air Intake
- #19 060C-110017 — Joint, Exhaust Pipe
- #26 060C-110015 — Exhaust Joint
- #01 060C-110011 — Air Filter Upper Cover
- #07 0180-112002 — Support, Filter Element
- #13 30601-114040 — Clamp A14 A14
- #21 060C-110018 — Idle Air Outlet Joint
- #27 060C-110002 — Clamp D50-70
- #02 060C-110010 — Seal Ring
- #07 0180-110003 — Clasp
- #14 060C-110006 — Oil Storage Hose
- #22 060C-110004 — Clamp 70
- #03 060C-110012 — Air Intake Guide
- #09 060C-110009 — Sleeve
- #16 0180-110007 — Backfire Arrester
- #23 060C-110003 — U Pipe
- #11 30110-420160010 — Self-Tapping Screw St4.2×16
- #10 060C-110013 — Air Filter Housing
- #17 0180-110006 — Clamp
- #24 060C-110019 — Ring Gasket
- #05 0180-112003-1000 — Filter Element Bracket
- #11 0180-111002 — Clamp
- #18 060C-110005 — Exhaust Pipe
