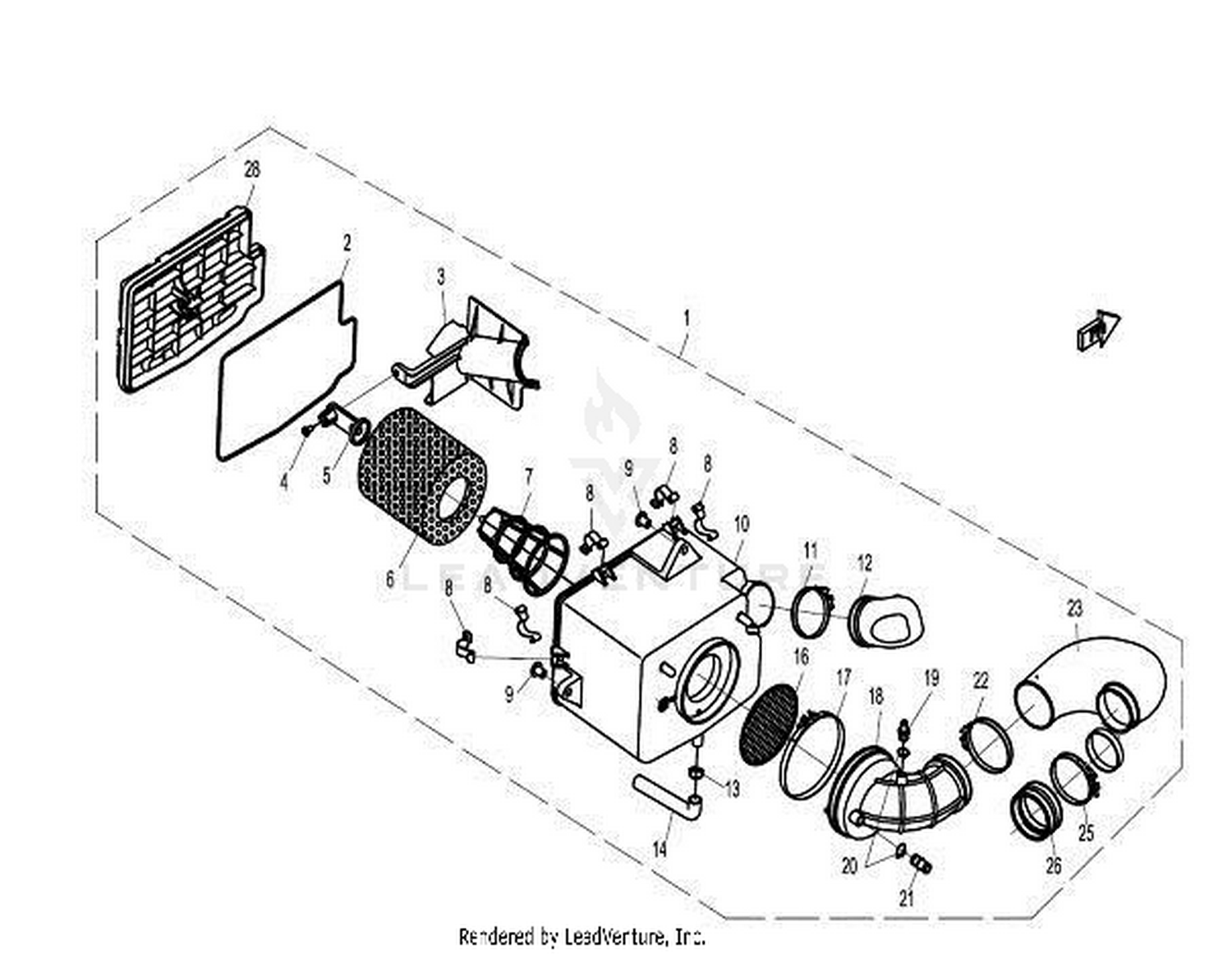

Location in exploded diagrams
Other parts on this diagram — Air Filter Assy
- #0A 060C-110000-2000 — Air Filter Assy
- #17 30601-117010 — Clamp A17
- #14 30601-115020 — Clamp A15 A15
- #29 060C-110007 — Plug
- #02 060C-110010 — Seal Ring
- #07 0180-110003 — Clasp
- #14 060C-110006 — Oil Storage Hose
- #22 060C-110004 — Clamp 70
- #03 060C-110012 — Air Intake Guide
- #09 060C-110009 — Sleeve
- #16 0180-110007 — Backfire Arrester
- #23 060C-110003 — U Pipe
- #11 30110-420160010 — Self-Tapping Screw St4.2×16
- #10 060C-110013 — Air Filter Housing
- #17 0180-110006 — Clamp
- #25 060C-110016 — Clamp 65
- #05 0180-112003-1000 — Filter Element Bracket
- #11 0180-111002 — Clamp
- #18 060C-110005 — Exhaust Pipe
- #26 060C-110015 — Exhaust Joint
- #06 0180-1120A0 — Filter Element Assy
- #12 060C-110001 — Air Intake Port
- #21 060C-110018 — Idle Air Outlet Joint
- #01 060C-110011 — Air Filter Upper Cover
