2023 CF MOTO CF650-8F — Engine parts
EE market87 genuine parts12 diagrams
Subgroups
Part numbers
Every genuine engine part fitted to the 2023 CF MOTO CF650-8F. Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|
| 30503-060800N | O-RING 60x3.10 | REAR WHEEL - F11-A | Enquire | |

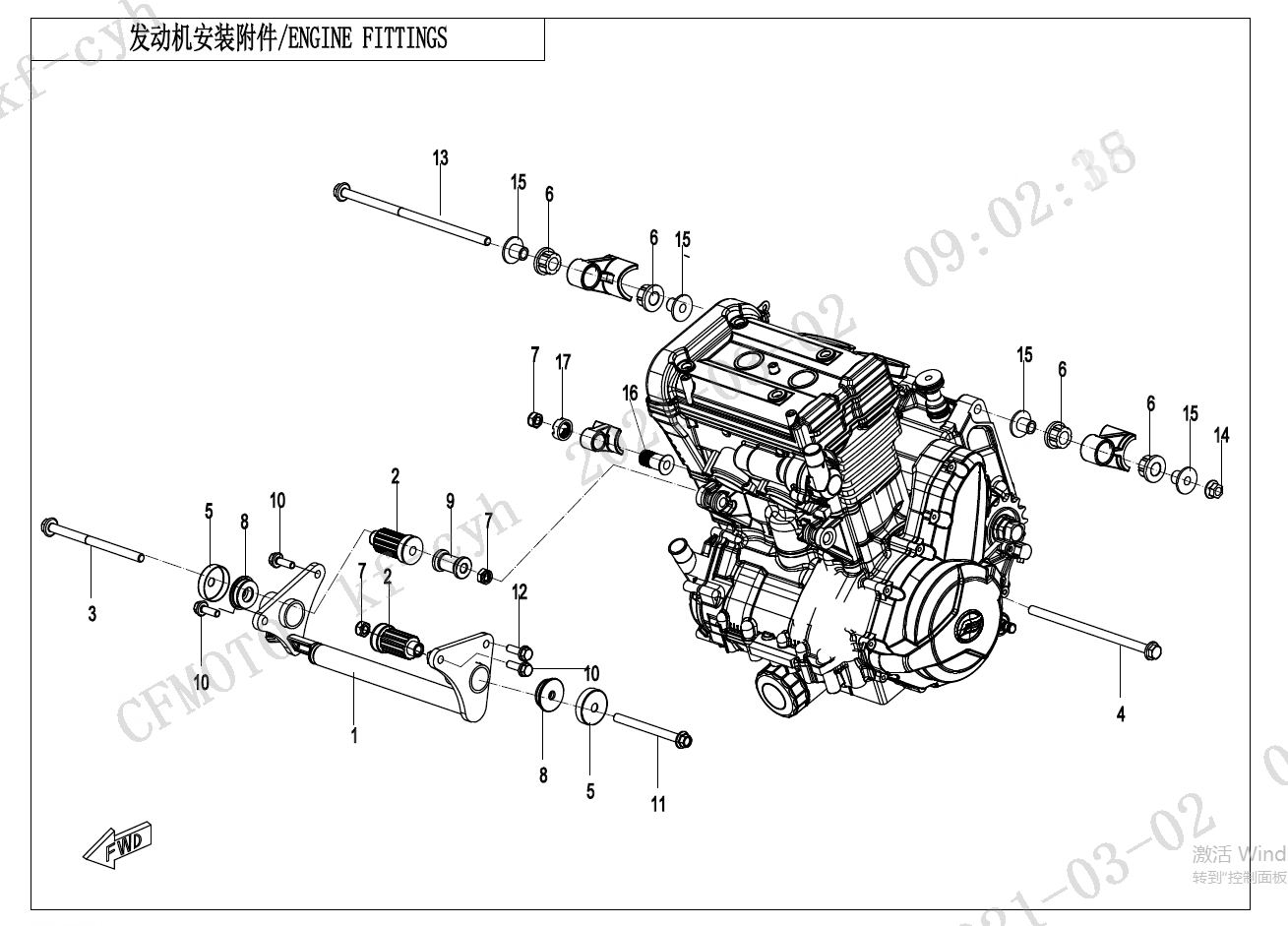

| 6NT1-000210-0BB00 | FRONT BRACKET, ENGINE | ENGINE FITTINGS - F00 | Enquire | |
| 6NT1-000281 | REAR UPPER RUBBER, ENGINE | ENGINE FITTINGS - F00 | Enquire | |
| 6NT1-000221 | FRONT RH BUSHING, ENGINE | ENGINE FITTINGS - F00 | Enquire | |
| 30001-102110110 | BOLT | ENGINE FITTINGS - F00 | Enquire | |
| 6NT1-000282 | REAR UPPER RUBBER BUSHING, ENGINE | ENGINE FITTINGS - F00 | Enquire | |
| 6NT1-000291 | REAR LOWER THREAD SLEEVE, ENGINE | ENGINE FITTINGS - F00 | Enquire | |
| 30102-060020810 | SCREW | LOCK KIT - F01 | Enquire | |
| 30110-421130010 | SELF-TAPPING SCREW | LOCK KIT - F01 | Enquire | |
| A000-020600 | CLAMP 2 | MUFFLER - F02-A | Enquire | |
| A000-020500 | CLAMP ASSY 1 | MUFFLER - F02-A | Enquire | |
| 6NQ#-000205-6001 | CHAIN GUARD SCREW | MUFFLER - F02-A | Enquire | |
| A000-040702 | INNER HEX SCREW M6x12 | FRAME - F03 | Enquire | |
| A000-030001 | LH CLAMP, MAIN CABLE | FRAME - F03 | Enquire | |
| 30112-050016440 | SCREW ASSY | PLASTICS 1 - F04-1 | Enquire | |
| 30110-481130010 | SELF-TAPPING SCREW | PLASTICS 1 - F04-1 | Enquire | |
| 6NTG-200424 | INNER HEX SCREW M6x25 | PLASTICS 1 - F04-1 | Enquire | |
| A000-060002 | CHAIN GUARD SCREW | PLASTICS 1 - F04-1 | Enquire | |
| 9060-040310 | CLAMP ASSY | PLASTICS 2 - F04-2 | Enquire | |
| 8080-041130 | EXPANSION RIVET ASSY | PLASTICS 2 - F04-2 | Enquire | |
| 30110-420095010 | SELF-TAPPING SCREW | PLASTICS 2 - F04-2 | Enquire | |
| 30110-480160010 | SELF-TAPPING SCREW | PLASTICS 3 - F04-3 | Enquire | |
| 0180-014010 | WIRE CLAMP | PLASTICS 4 - F04-4 | Enquire | |
| 30110-420250010 | SELF-TAPPING SCREW | PLASTICS 4 - F04-4 | Enquire | |
| 6NQ#-000203-6001 | INNER HEX SCREW M6x20 | PLASTICS 4 - F04-4 | Enquire | |
| 6NQ#-000206-6001 | INNER HEX SCREW M6x16 | PLASTICS 4 - F04-4 | Enquire | |
| 30102-080030860 | SCREW | FRONT SUSPENSION - F05 | Enquire | |
| 6NTA-050003 | LOCK SCREW, UPPER TRIPLE CLAMP | FRONT SUSPENSION - F05 | Enquire | |
| 6NQ0-050001-0BP00 | UPPER TRIPLE CLAMP | FRONT SUSPENSION - F05 | Enquire | |
| A000-050018 | INNER HEX SCREW M8x35 | FRONT SUSPENSION - F05 | Enquire | |
| A000-050100-10000 | STEERING BEARING ASSY | FRONT SUSPENSION - F05 | Enquire | |
| A000-0501A0 | STEERING BEARING ASSY | FRONT SUSPENSION - F05 | Enquire | |
| A000-0503A0 | LOWER TRIPLE CLAMP | FRONT SUSPENSION - F05 | Enquire | |
| A000-050011 | RUBBER PLUG 2 | FRONT SUSPENSION - F05 | Enquire | |
| 30403-02800 | NEEDLE BEARING | REAR SUSPENSION - F06 | Enquire | |
| A000-060201-0BB0 | CHAIN ADJUSTER GUARD | REAR SUSPENSION - F06 | Enquire | |
| 30400-02004 | BEARING | REAR SUSPENSION - F06 | Enquire | |
| 30800-04205 | CIRCLIP FOR HOLE 42 | REAR SUSPENSION - F06 | Enquire | |
| 30500-030800N | OIL SEAL | REAR SUSPENSION - F06 | Enquire | |
| A010-100208-00001 | RUBBER PLUG, CLUTCH LEVER | REAR SUSPENSION - F06 | Enquire | |
| 30501-030800N | OIL SEAL | FRONT WHEEL - F07-A | Enquire | |
| 30102-060075870 | SCREW | STEERING SYSTEM - F10-B | Enquire | |
| A000-100002 | CLUTCH CABLE CLIP | STEERING SYSTEM - F10-B | Enquire | |
| 30020-102025410 | STUD | REAR WHEEL - F11-A | Enquire | |
| 30800-05205 | CIRCLIP FOR HOLE | REAR WHEEL - F11-A | Enquire | |
| 30501-028800N | OIL SEAL | REAR WHEEL - F11-A | Enquire | |
| 30903-0403510 | COTTER PIN | REAR WHEEL - F11-A | Enquire | |
| 6070-120400 | CLAMP(Φ14.5) | FUEL TANK - F12 | Enquire | |
| A000-170201 | SEAL RING | FUEL TANK - F12 | Enquire | |
| 30601-111010 | CLAMP | FUEL TANK - F12 | Enquire | |
| 30102-080025810 | SCREW | REAR HANDRAIL@^FOOTREST - F14 | Enquire | |
| 30105-050025410 | SCREW | REAR HANDRAIL@^FOOTREST - F14 | Enquire | |
| 30121-080035860 | SCREW | REAR HANDRAIL@^FOOTREST - F14 | Enquire | |
| 0700-065404 | FOOT PEDAL RUBBER SLEEVE | REAR HANDRAIL@^FOOTREST - F14 | Enquire | |
| 30802-00605 | SPLIT WASHER | REAR HANDRAIL@^FOOTREST - F14 | Enquire | |
| 30802-00603 | SPLIT WASHER 6 | REAR HANDRAIL@^FOOTREST - F14 | Enquire | |
| 30802-00905 | SPLIT WASHER 9 | REAR HANDRAIL@^FOOTREST - F14 | Enquire | |
| 6NQ0-140001 | PIN Dia 12, FRONT FOOTREST | REAR HANDRAIL@^FOOTREST - F14 | Enquire | |
| 30118-420095010 | SELF-TAPPING SCREW | ELECTRIC SYSTEM - F15 | Enquire | |
| 30102-060016810 | SCREW | ELECTRIC SYSTEM - F15 | Enquire | |
| 30105-040012470 | SCREW 4.8 | DASHBOARD - F17-A | Enquire | |
| 6KJ0-180302 | RESERVOIR CAP | COOLING SYSTEM - F18 | Enquire | |
| 30601-212530 | CLAMP B12.5 | COOLING SYSTEM - F18 | Enquire | |
| 30601-210530 | CLAMP | COOLING SYSTEM - F18 | Enquire | |
| 30112-060012410 | SCREW COMP M6X12 | COOLING SYSTEM - F18 | Enquire | |
| A000-180400 | WATER FILLING PORT CAP ASSY | COOLING SYSTEM - F18 | Enquire | |
| A000-180006 | CLAMP B30 | COOLING SYSTEM - F18 | Enquire | |
| 30601-207050 | CLAMP B7 | COOLING SYSTEM - F18 | Enquire | |
| 30102-060025870 | SCREW | TOOLS - F20 | Enquire | |
| 30102-080045810 | SCREW | SIDE BOXES(PLASTIC) - F22 | Enquire | |
| 30601-108010 | CLAMP | FUEL VAPORIZATION SYSTEM - F36 | Enquire | |
| 30601-109010 | CLAMP | FUEL VAPORIZATION SYSTEM - F36 | Enquire | |
| 30601-112010 | CLAMP | FUEL VAPORIZATION SYSTEM - F36 | Enquire | |
| 0700-111002 | SEAL RING | AIR FILTER - F41 | Enquire | |
| 30110-480200040 | SELF-TAPPING SCREW ST4.8x20-F-H | AIR FILTER - F41 | Enquire | |
| 30601-124020 | CLAMP | AIR FILTER - F41 | Enquire | |
| 30601-110010 | CLAMP | AIR FILTER - F41 | Enquire | |
| 0700-111011 | AIR INLET PIPE CLAMP ASSY | AIR FILTER - F41 | Enquire | |
| 30601-118010 | CLAMP | AIR FILTER - F41 | Enquire | |
| 30112-050012410 | SCREW ASSY M5X12 | AIR FILTER - F41 | Enquire | |
| 30102-050008900 | INNER HEX SCREW | LOCK KIT - F01 | Enquire | |
| 30102-050025900 | INNER HEX SCREW | LOCK KIT - F01 | Enquire | |
| 30102-060012810 | SCREW | FRAME - F03 | Enquire | |
| 30110-420160010 | SELF-TAPPING SCREW | PLASTICS 2 - F04-2 | Enquire | |
| 30006-060030870 | BOLT | PLASTICS 4 - F04-4 | Enquire | |
| 30501-035800N | OIL SEAL | REAR WHEEL - F11-A | Enquire | |
| 30105-050014410 | SCREW | REAR HANDRAIL@^FOOTREST - F14 | Enquire |
Exploded diagrams — Engine
Browse the catalogue interactively
Open Engine in the interactive 2023 CF MOTO CF650-8F catalogue to drill into diagrams, check availability and add parts to your cart.
