2023 CF MOTO CF650-8F — Filters parts
EE market11 genuine parts4 diagrams
Subgroups
Part numbers
Every genuine filters part fitted to the 2023 CF MOTO CF650-8F. Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|
| 9010-120310 | RUBBER LINER, FUEL TANK | SEAT - F13 | Enquire | |

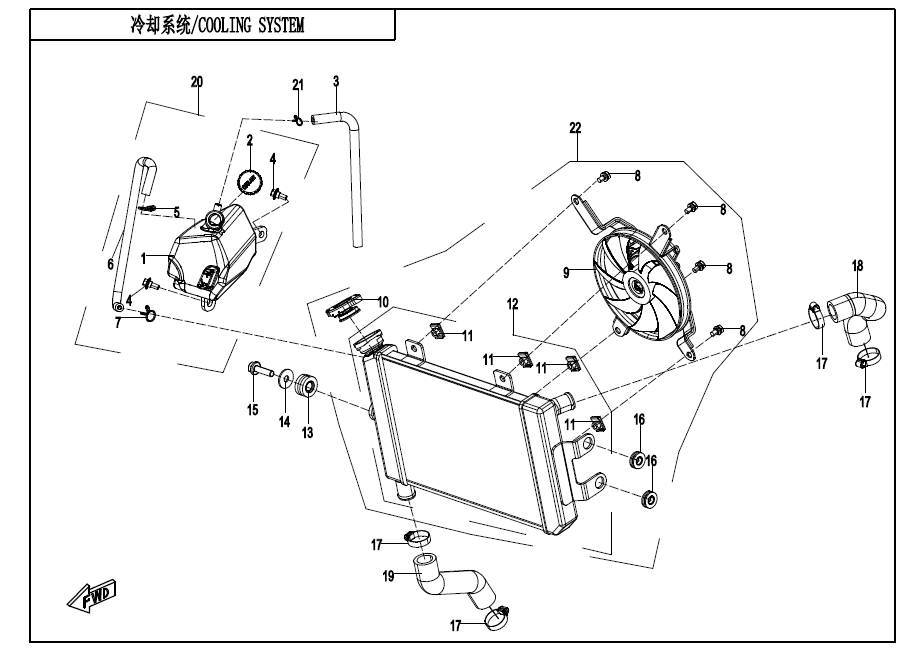

| 6090-360003 | CANISTER VACUUM PIPE | COOLING SYSTEM - F18 | Enquire | |

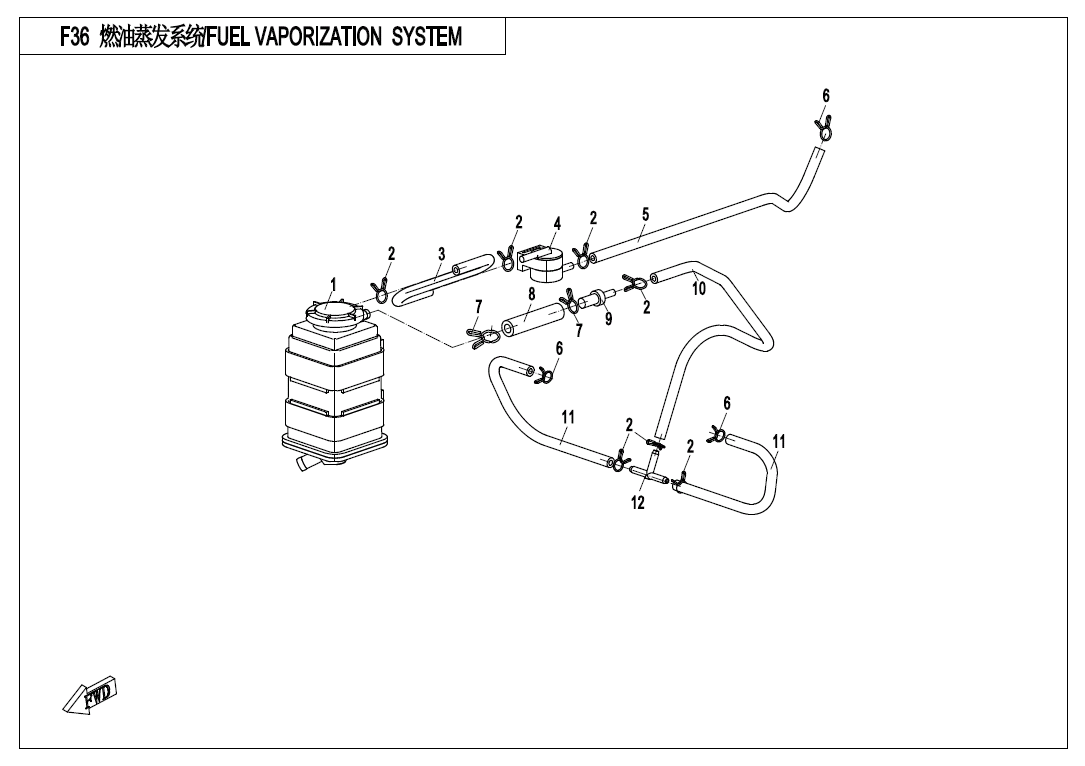

| 8010-180018 | JOINT, HEAT TRANSMIT PIPE | FUEL VAPORIZATION SYSTEM - F36 | Enquire | |
| 6NTV-360001-D000 | FUEL DESORPTION PIPE | FUEL VAPORIZATION SYSTEM - F36 | Enquire | |

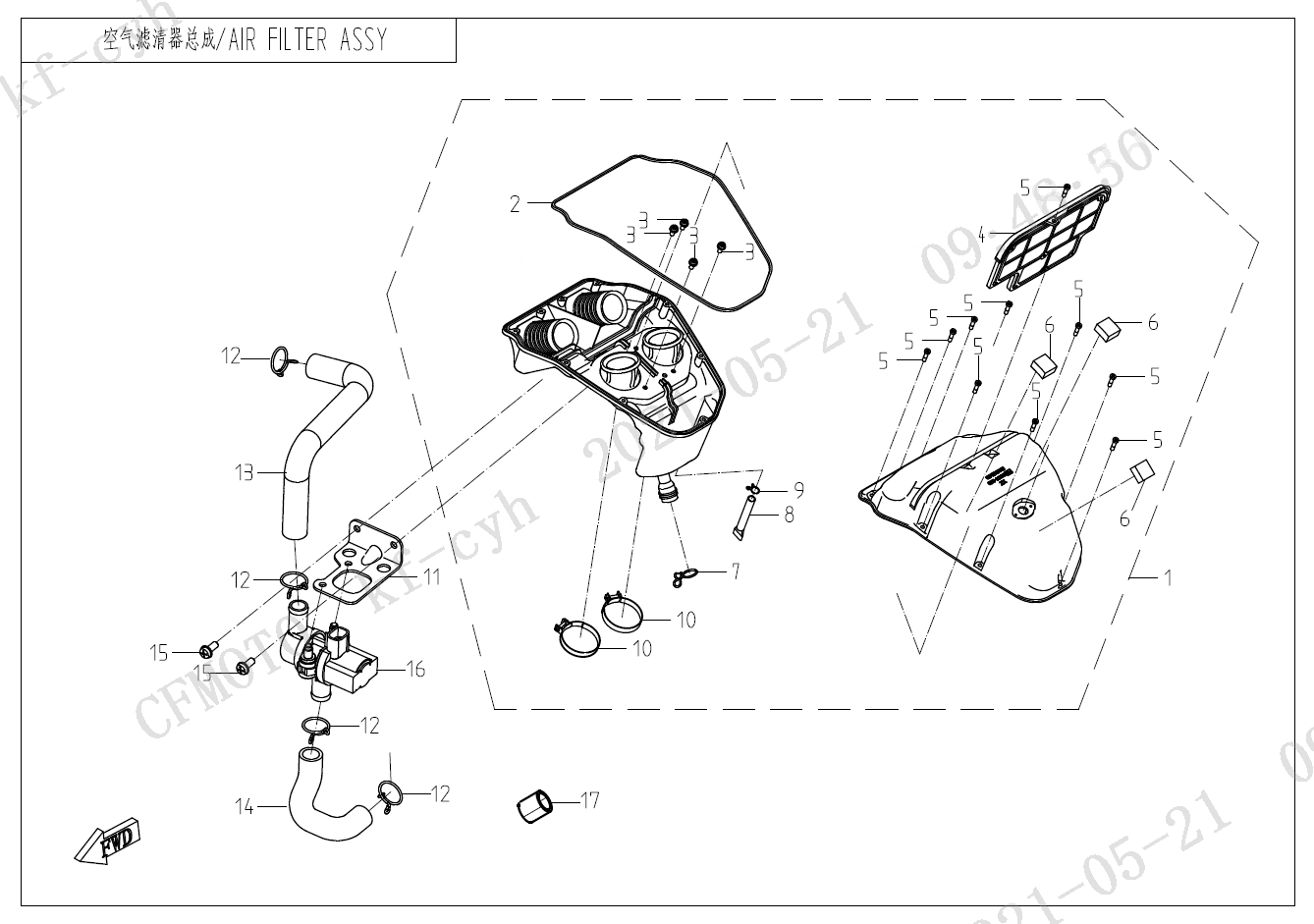

| 0HTV-111000-3001 | AIR FILTER | AIR FILTER - F41 | Enquire | |
| 0HTC-111100 | FILTER ELEMENT | AIR FILTER - F41 | Enquire | |
| 0HU0-110010 | BRACKET, SECONDARY GULP VALVE | AIR FILTER - F41 | Enquire | |
| 0HU0-110002-10000 | AIR OUTLET PIPE, GULP VALVE | AIR FILTER - F41 | Enquire | |
| 0HU0-110001-10000 | AIR INLET PIPE, GULP VALVE | AIR FILTER - F41 | Enquire | |
| 0HU0-179000 | GULP VLAVE | AIR FILTER - F41 | Enquire | |
| 0HTC-140005 | RESTRICTION PLU | AIR FILTER - F41 | Enquire |
Exploded diagrams — Filters
Browse the catalogue interactively
Open Filters in the interactive 2023 CF MOTO CF650-8F catalogue to drill into diagrams, check availability and add parts to your cart.
