2022 CF MOTO CF650-3FOEM parts & exploded diagrams
EE market536 parts15 groups12+ diagrams
Vehicle #2031
- CC
- —
- HP
- —
- 年款
- —
Exploded diagrams — 2022 CF MOTO CF650-3F
Part numbers on the 2022 CF MOTO CF650-3F
Each number has a dedicated cross-reference & fitment page.
- 6NTV-021100-B001 — EXHAUST PIPE ASSY

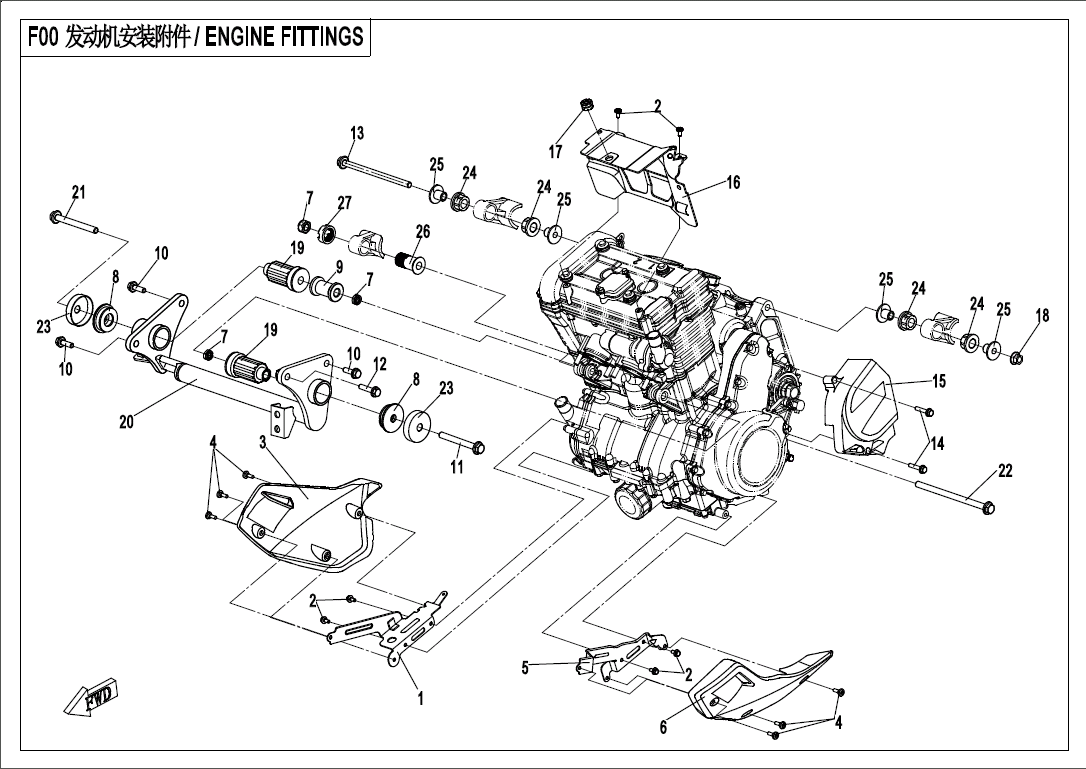

- 6NT1-000120 — RH BRACKET, LOWER BASE PLATE
- 6NT1-043201 — RH PANEL,ENGINE
- A000-060002 — CHAIN GUARD SCREW
- 6NT1-000110 — LH BRACKET, LOWER BASE PLATE
- 6NT1-043101 — LH PANEL,ENGINE
- 30203-102110 — NUT M10x1.25
- 6NT1-000250 — FRONT LH CUSHION RUBBER 2, ENGINE
- 6NT1-000221 — FRONT RH BUSHING, ENGINE
- 30001-102110110 — BOLT
- 30006-080028810 — BOLT
- 6NT1-000131 — ENGINE REAR UPPER SHAFT
- 6NTG-000102 — GUARD, SMALL SPROCKET
- 6NT1-042701 — MIDDLE FENDER(REAR), WATER TANK
- 5020-031001 — RUBBER SLEEVE, FRONT LICENSE BRACKET
- 6NT1-000240 — FRONT LH CUSHION RUBBER 1, ENGINE
- 6NT1-000210-0BB00 — FRONT BRACKET, ENGINE
- 30001-102150110 — BOLT M10x1.25x150
- 6NT1-000141 — REAR LOWER SHAFT, ENGINE
- 6NT1-000231 — FRONT DUST COVER, ENGINE
- 6NT1-000281 — REAR UPPER RUBBER, ENGINE
- 6NT1-000282 — REAR UPPER RUBBER BUSHING, ENGINE
- 6NT1-000291 — REAR LOWER THREAD SLEEVE, ENGINE
- 6NT1-000292 — NUT M18
- 6NTV-011000-B201-M1 — LOCK KIT
- 30105-050012410 — SCREW
- 30102-060020810 — SCREW
- 6NT1-010010 — SEAT CABLE
- A000-010600 — LOCK SEAT, SEAT
- 6KMV-011020-B001 — KEY
- 0700-022012 — GASKET, EXHAUST PIPE
- 8010-020001 — NUT M8, MUFFLER JOINT
- 6NTV-021100-B002 — EXHAUST PIPE ASSY
- 6NQV-021001-B000 — SEAL SLEEVE 1, GRAPHITE
- A000-020600 — CLAMP 2
- 6NTV-021200-B002 — MUFFLER ASSY Replacing: 6NTV-021200-B001 - MUFFLER BODY ASSY
- A000-020005 — BUSHING
- A000-020004 — DAMPER, MUFFLER
- 30204-080810 — LOCK NUT
- A000-020006 — SHAFT, MUFFLER

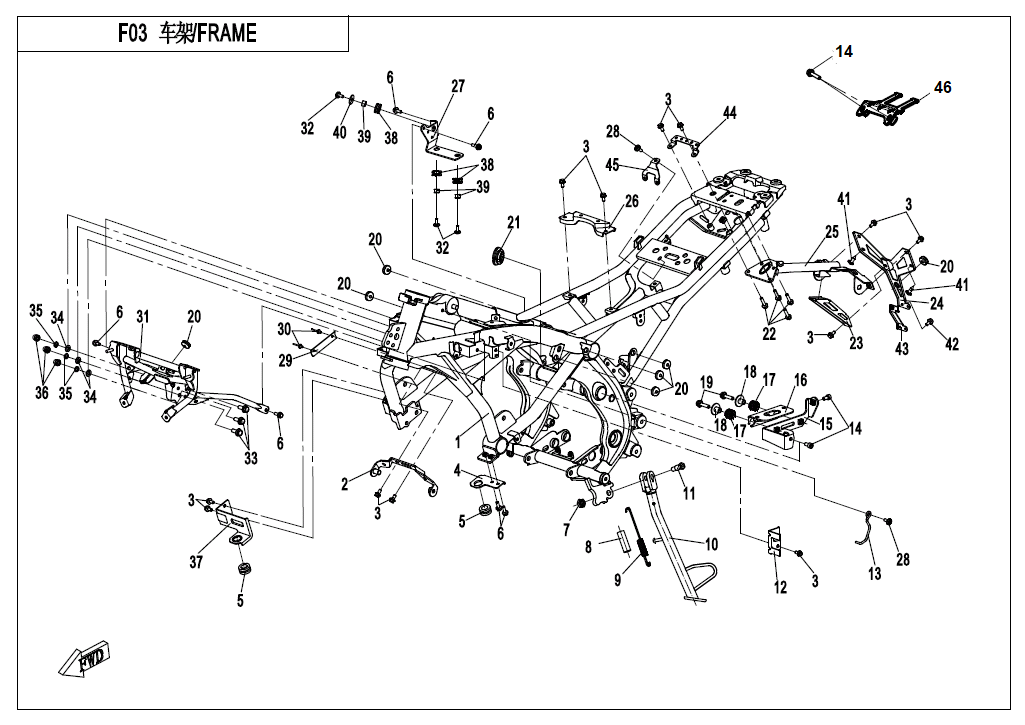

- 6NTV-031000-B200-0BP00 — FRAME ASSY MAUD SPIRIT BLACK
- 6NTV-031000-B201-0BP00 — FRAME ASSY MAUD SPIRIT BLACK
- 6NTG-030160 — UPPER BRACKET, RADIATOR
- 6NT1-030031 — LH LOWER BRACKET, RADIATOR
- A000-180005 — RADIATOR SHOCK ABSORBER RUBBER 2
- 30208-102810 — NUT
- A000-030004 — SPRING COLLAR, SIDE STAND
- A000-030210 — SIDE STAND SPRING ASSY
- 6NT1-030190 — SIDE STAND ASSY
- A000-030006 — SIDE BRACKET BOLT
- 6NT1-030001 — BRACKET, CANISTER
- A000-030001 — LH CLAMP, MAIN CABLE
- A000-030120 — BRACKET, REGULATOR
- A000-030130 — BRACKET 2, REGULATOR
- 5020-031002 — RUBBER SLEEVE LINER
- A000-040302 — RUBBER DAMPER
- 8080-040064 — FRONT FENDER DAMPER
- 6KJ0-030601-0BP00 — BRACKET, REAR LICENSE
- 6KJ0-030200-0BB0 — BRACKET, REAR LICENCE
- 6NT1-030100-0BB00 — BRACKET, REAR FENDER PLASTIC POWDER
