2023 CF MOTO 800MTOEM parts & exploded diagrams
MY market873 parts16 groups12+ diagrams
Vehicle #1958
- CC
- —
- HP
- —
- 年款
- —
Exploded diagrams — 2023 CF MOTO 800MT
Part numbers on the 2023 CF MOTO 800MT
Each number has a dedicated cross-reference & fitment page.
- F00-B-03 — 6WWV-046801-5000
- F00-B-04 — 9010-160102
- F00-B-05 — 9010-160101
- F00-B-06 — 30006-060016810
- F00-B-08 — 6WWV-000130-5000
- F00-B-09 — 30102-060016810
- F00-B-11 — 30102-080040810
- F00-B-12 — 6WWV-0001A0-5000
- 6WWV-011000-5000 — LOCK KIT
- 30102-050025900 — INNER HEX SCREW
- 30102-050008900 — INNER HEX SCREW
- 30102-080020810 — SCREW
- 30006-060022810 — BOLT
- 6WWV-010010-5000 — SEAT CABLE
- 6KMV-011020-B001 — KEY

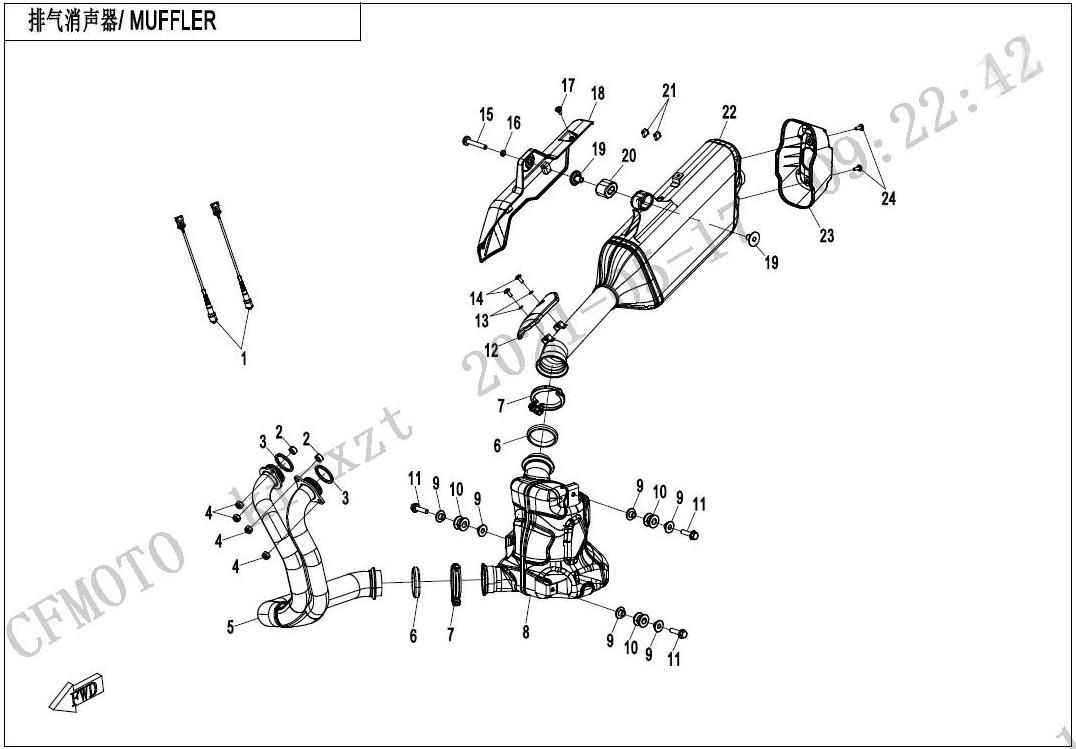

- 0HU0-176000 — OXYGEN SENSOR
- 6WWV-020001-5000 — BUSHING, EXHAUST PORT
- 6WWV-020004-5000 — SEAL GASKET, EXHAUST
- 6L30-020005 — LOCK NUT
- K-51010086100 — SELF-LOCKING NUT M8 CU
- 6WWV-021100-5001 — EXHAUST PIPE ASSY
- 6L30-021001 — SEAL SLEEVE 1, GRAPHITE
- 6L30-021010 — CALMP 1
- C63605058100 — CLAMP
- 6WWV-021200-5002 — FRONT MUFFLER BODY ASSY
- 6WWV-020002-5001 — BUSHING, MUFFLER BODY
- 6WWV-020003-5000 — RUBBER SLEEVE, MUFFLER BODY
- 30006-080030810 — BOLT
- 6WWV-021003-5000 — REAR COVER, EXHAUST PIPE
- 30303-050042 — WASHER
- 6NTA-040202 — INNER HEX SCREW
- 6L30-020003 — INNER HEX SCREW M8x52
- 6WWV-021004-5000 — BUSHING, GUARD
- 6WWV-046502-5000 — STEPPED SCREW M5
- 6WWV-021001-5000 — GUARD, MUFFLER
- 6L30-020006 — T-TYPE BUSHING
- C90705169000 — BUSH 8.5x11x29
- 6L30-020001 — DAMPING SLEEVE, MUFFLER
- 6GU#-021005-6000 — GUARD RUBBER SLEEVE
- 6WWV-021300-5001 — REAR MUFFLER BODY
- 6WWV-021002-5000 — REAR COVER, MUFFLER
- 6WWV-047102-5000 — INNER HEX SCREW M5x14
- A000-040302 — RUBBER DAMPER
- 30006-080014810 — BOLT

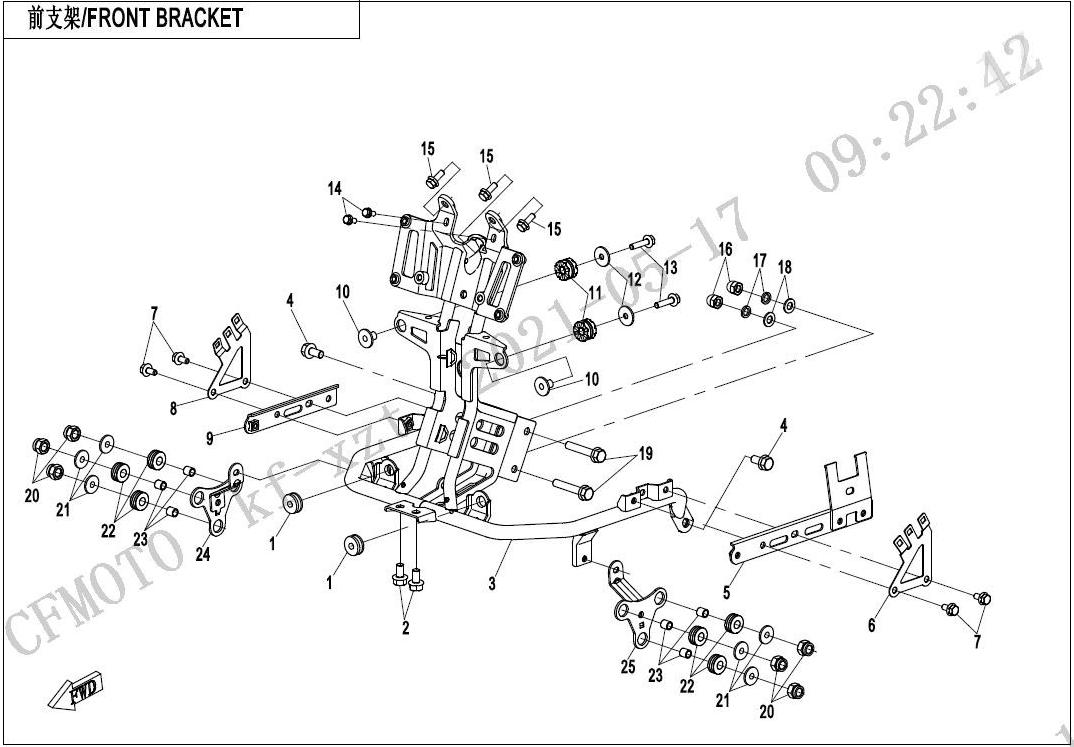

- 6WWV-030300-5002 — FRONT BRACKET ASSY
- 30006-080016810 — BOLT
- 6WWV-030400-5000 — LH CONNECTING BRACKET, FRONT BRACKET
- 6WWV-030110-5000 — LH BRACKET, CONNECTORS
- 30006-060012870 — BOLTM6x12
- 6WWV-030120-5000 — RH BRACKET, CONNECTORS
- 6WWV-030500-5000 — RH CONNECTING BRACKET, FRONT BRACKET
- 5020-031002 — RUBBER SLEEVE LINER
- 5020-031001 — RUBBER SLEEVE, FRONT LICENSE BRACKET
- 30301-060412 — WASHER
- 30006-060025810 — BOLT
- 30006-050012810 — BOLT
- 30006-060016810 — BOLT
- 30206-080510 — NUT M8
- 30303-080112 — WASHER
- 30306-080112 — WASHER
