2023 CF MOTO 700CL-X ADVENTUREOEM parts & exploded diagrams
MY market834 parts15 groups12+ diagrams
Vehicle #1952
- CC
- —
- HP
- —
- 年款
- —
Exploded diagrams — 2023 CF MOTO 700CL-X ADVENTURE
Part numbers on the 2023 CF MOTO 700CL-X ADVENTURE
Each number has a dedicated cross-reference & fitment page.
- 30006-102110110 — BOLT
- A000-000201 — BUSHING, ENGINE
- 30203-102110 — NUT M10x1.25
- 6GU#-030002-6000 — ENGINE MOUNTING SHAFT
- 30204-102810 — NUT
- 6GUV-011000-6002 — LOCK KIT
- 30102-050012810 — SCREW
- 30006-060016810 — BOLT
- 6KJ0-010001 — BOLT
- 6GU#-010010-6000 — SEAT CABLE
- 30102-050008900 — INNER HEX SCREW
- 30102-050025900 — INNER HEX SCREW
- 6KMV-011020-B001 — KEY
- 0700-022012 — GASKET, EXHAUST PIPE
- 0HU0-176000 — OXYGEN SENSOR
- 6GU#-021100-6100 — EXHAUST PIPE ASSY
- 8010-020001 — NUT M8, MUFFLER JOINT
- 6L30-021010 — CALMP 1
- 6L30-021001 — SEAL SLEEVE 1, GRAPHITE
- 6GUV-021200-7001 — FRONT MUFFLER
- 30204-080810 — LOCK NUT
- 6GU#-020002-6001 — BUSHING
- A000-020004 — DAMPER, MUFFLER
- 30006-080035810 — BOLT
- 6GU#-020001-6000 — MUFFLER MOUNTING SHAFT
- 6GU#-021500-6002 — CLAMP 2
- 6GU#-021003-6000 — SEAL SLEEVE 2, GRAPHITE
- 6GUV-021300-8000 — TAIL MUFFLER
- 6GU#-021005-6000 — GUARD RUBBER SLEEVE
- 6GUV-021004-7000 — GUARD, MUFFLER
- 6NTA-040202 — INNER HEX SCREW

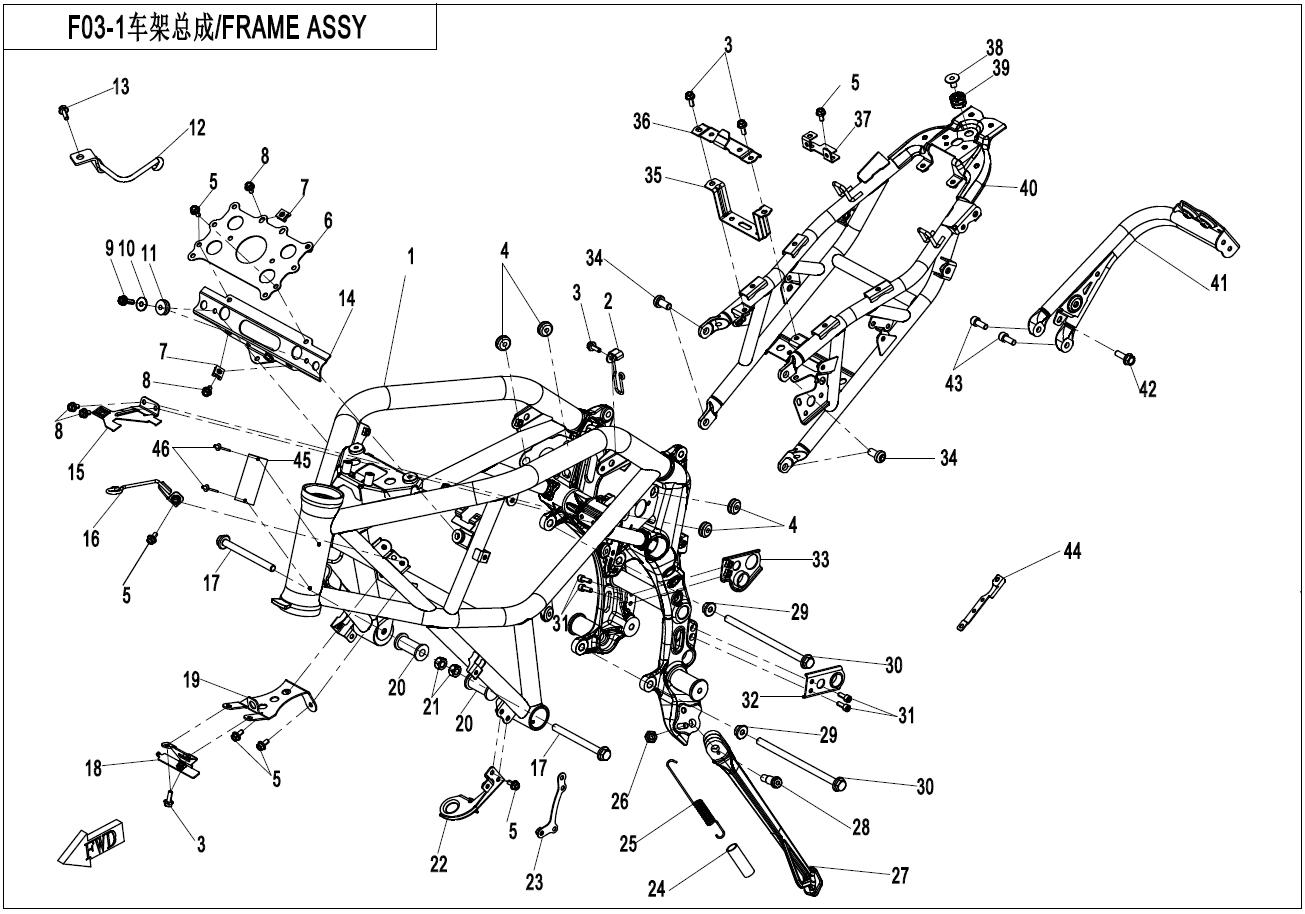

- 6GUV-031000-6004-0BY00 — FRAME (NANO BLACK)
- 6GU#-030110-6000 — WIRE CLIP, REAR BRAKE FLUID HOSE
- 30006-060016870 — BOLTM6x16
- 6GUV-043801-8000 — DAMPING RUBBER SLEEVE
- 30006-060010810 — BOLT
- 6GU#-030020-6000 — BRACKET, ECU
- 8030-040800-00001 — NUT CLIP M6
- 30006-060012870 — BOLTM6x12
- 30006-060020870 — BOLTM6x20
- 6GU#-030150-6001 — LIMIT BRACKET
- 9010-160101 — HEADLIGHT RUBBER DAMPER
- 6GU#-030130-6000 — BRACKET, CLUTCH CABLE
- 30006-050012810 — BOLT
- 6GU#-030050-6000 — BRACKET, AIR FILTER
- 6GU#-030006-6000 — BRACKET, ROLL-OVER VALVE
- 6GUV-030140-6002 — LIMIT BRACKET
- 6GUV-030060-8000 — LOCK BRACKET, FRONT BRAKE FLUID HOSE
- 6GU#-030040-6000 — BRACKET, ABS
- 6GU#-030090-6000 — BRACKET, RADIATOR
- 6WWV-030006-5000 — SIDE STAND SPRING
- A000-030004 — SPRING COLLAR, SIDE STAND
- 30208-102810 — NUT
- 6GUV-030005-8000 — SIDE BRACKET
- 6GU#-030008-6000 — SIDE BRACKET BOLT
- 30102-060016810 — SCREW
- 6GU#-030070-6000 — LH BRACKET, MUFFLER
- 6GU#-030080-6000 — RH BRACKET, MUFFLER
- 6GU#-030007-6000 — VICE VEHICLE BOLT
- 6GU#-030010-6000 — BRACKET, FUEL TANK
