2023 豪爵 AFR AFR125 CBS版 — Crankcase & Crankshaft parts
CN market23 genuine parts9 diagrams
Subgroups
Part numbers
Every genuine crankcase & crankshaft part fitted to the 2023 豪爵 AFR AFR125 CBS版. Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|
| 11325H29000H000 | 曲轴箱通气管 | 曲轴箱组 | Enquire | |
| 24751-11E00-000 | 后轮轴轴承挡板 | 曲轴箱组 | Enquire | |
| 11430H29Y14H000 | 齿轮箱盖组合 | 曲轴箱盖组 | Enquire | |
| 09262H20006H000 | 球形轴承 | 曲轴箱盖组 | Enquire | |
| 08110-62030-000 | 滚珠轴承 | 曲轴箱盖组 | Enquire | |
| 09262H15004H000 | 球形轴承 | 曲轴箱盖组 | Enquire | |
| 12200H29022H000 | 曲轴总成 | 曲轴组 | Enquire | |
| 09262-35080-000 | 向心球轴承 | 曲轴组 | Enquire | |

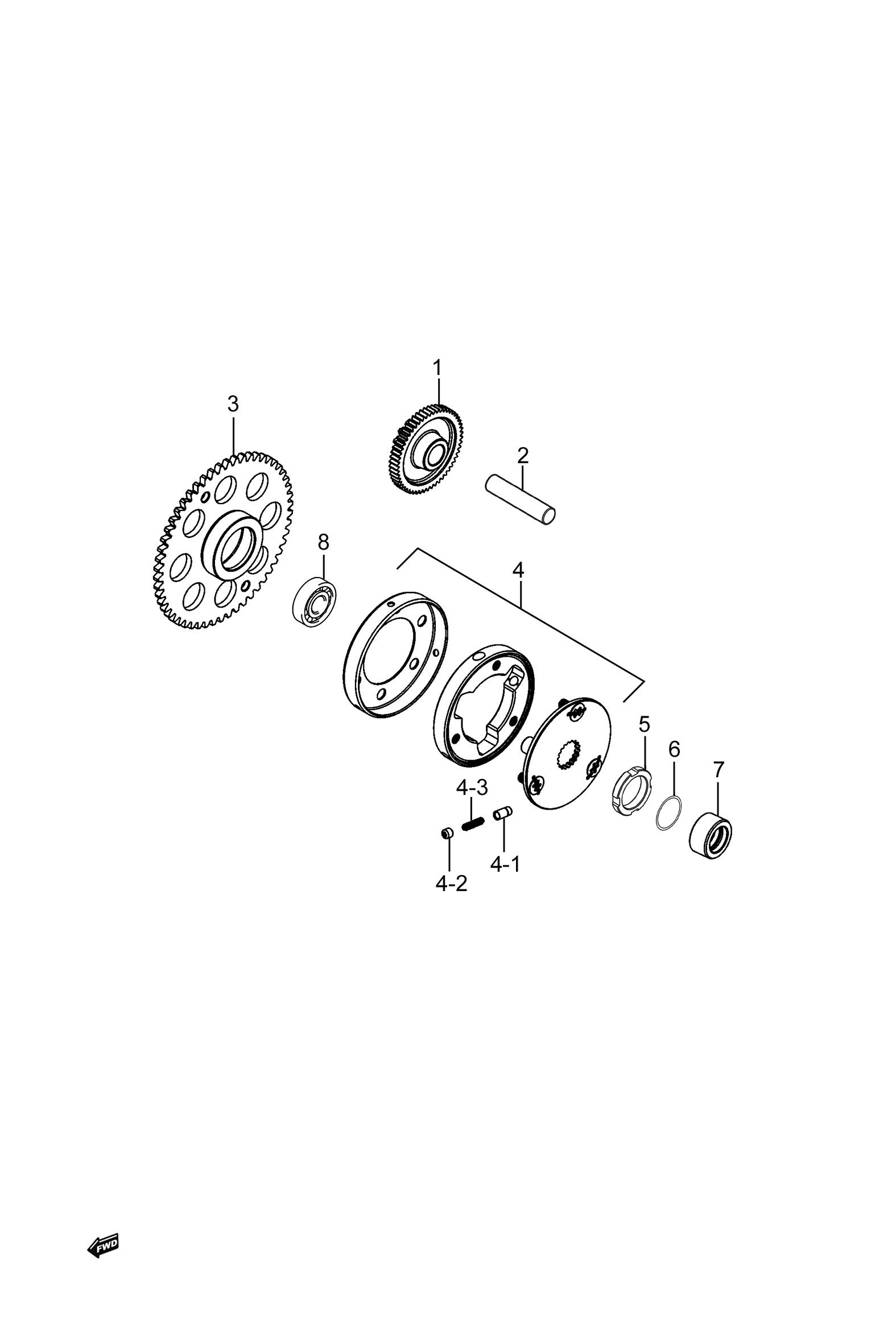

| 09262H20005H000 | 球形轴承 | 起动离合器组 | Enquire | |
| 09262-15L04-000 | 球形轴承 | 凸轮摇臂、气门组 | Enquire | |
| 08113-69050-000 | 滚珠轴承 | 凸轮摇臂、气门组 | Enquire | |

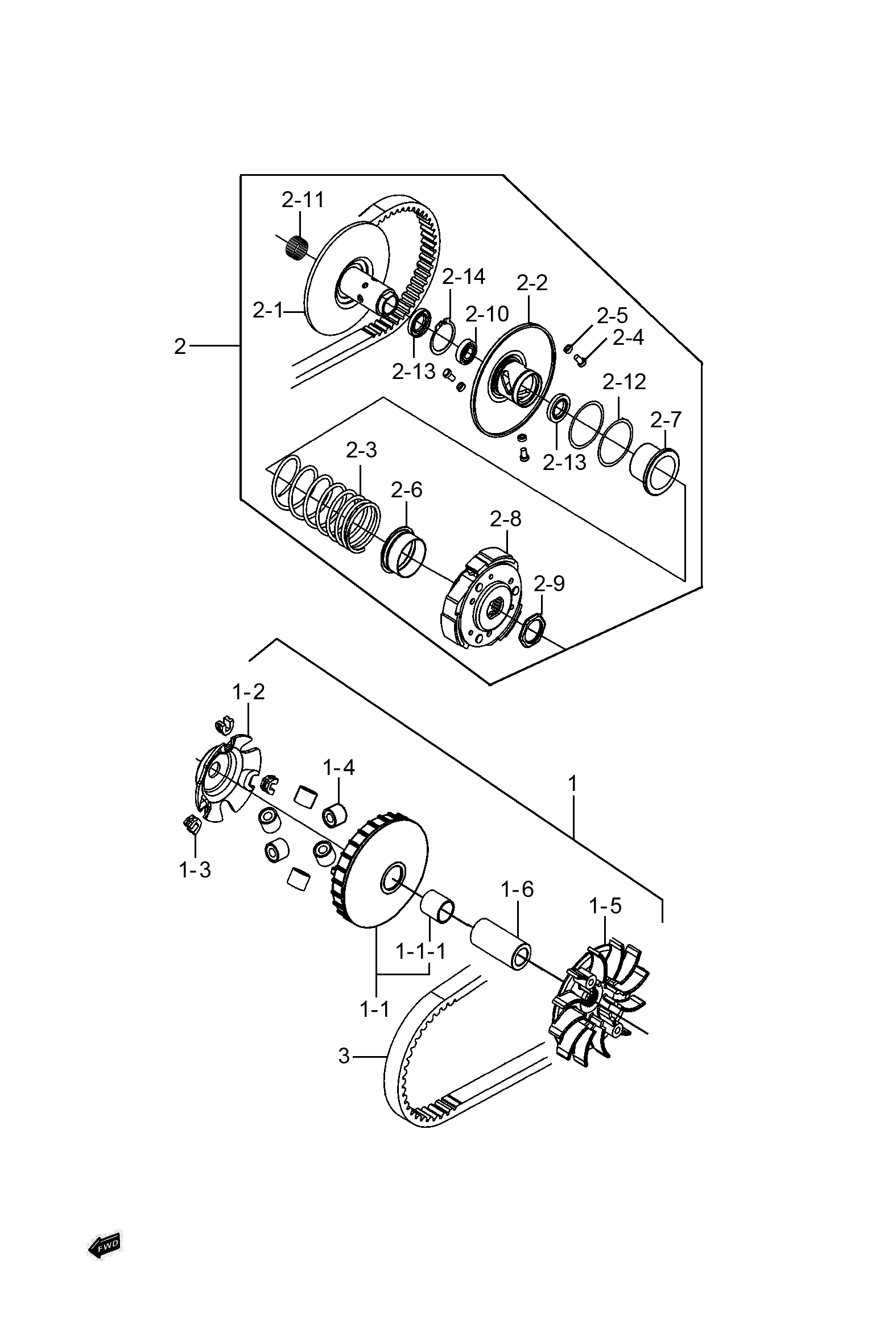

| 09262H15017H000 | 球形轴承 | 变速器组Ⅰ | Enquire | |
| 09263H20002H000 | 滚针轴承 | 变速器组Ⅰ | Enquire | |
| 09262-22051-000 | 球形轴承 | 变速器组Ⅱ | Enquire | |
| 09262H12010H000 | 球形轴承 | 变速器组Ⅱ | Enquire | |
| 09262H15008H000 | 球形轴承 | 变速器组Ⅱ | Enquire | |
| 09262H12013H000 | 球形轴承 | 变速器组Ⅱ | Enquire | |

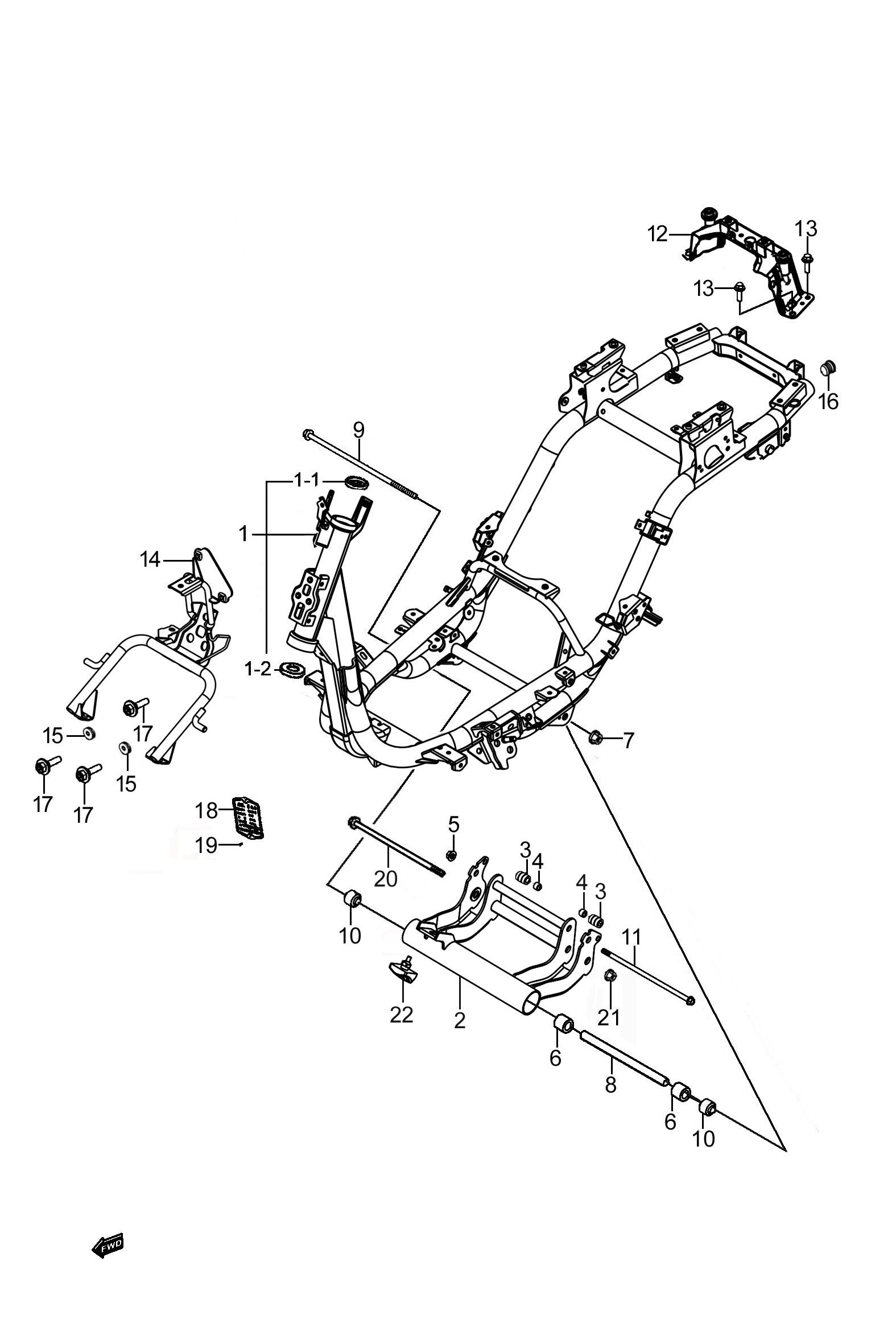

| 51611H2A201H000 | 上转向轴承内座圈 | 车架组 | Enquire | |
| 51612H7D000H000 | 下转向轴承内座圈 | 车架组 | Enquire | |
| 51600H7DY00H000 | 转向轴承组合 | 前叉组 | Enquire | |
| 51621H2A200H000 | 上转向轴承外座圈 | 前叉组 | Enquire | |
| 51622H7D000H000 | 转向轴承下外座圈 | 前叉组 | Enquire | |
| 11484H29000H000 | 齿轮箱盖密封垫 | 曲轴箱盖组 | Enquire |
Exploded diagrams — Crankcase & Crankshaft
