2019 铃木(豪爵铃木) DL DL250 黑油箱网状贴花 — Seals & Gaskets parts
CN market25 genuine parts12 diagrams
Subgroups
Part numbers
Every genuine seals & gaskets part fitted to the 2019 铃木(豪爵铃木) DL DL250 黑油箱网状贴花. Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|
| 13295-29900-000 | O型环 | 节气门组 | Enquire | |
| 09280-04004-000 | O形圈 | 曲轴箱组 | Enquire | |
| 09289-05L02-000 | 油封 | 凸轮摇臂、气门组 | Enquire | |
| 15201-48H00-000 | 燃油泵O形圈 | 节气门组 | Enquire | |
| 17863-48H00-000 | 气缸体进水接头O形圈 | 散热器组 | Enquire | |
| 09280-18011-000 | O形圈 | 散热器组 | Enquire | |
| 09280-23L01-000 | O形圈 | 机油泵组 | Enquire | |
| 23117-48H00-000 | 离合器分离油封挡圈 | 离合器组 | Enquire | |
| 09285-10L01-000 | 油封 | 离合器组 | Enquire | |
| 09283-30L01-000 | 油封 | 变速器组 | Enquire | |
| 24741-48H00-000 | 主轴油封限位板 | 变速器组 | Enquire | |
| 09280-21008-000 | O形密封圈 | 变速器组 | Enquire | |
| 09283-14L01-000 | 油封 | 变档机构组 | Enquire | |
| 31153-05530-000 | 起动电机油封 | 起动电机组 | Enquire | |
| 31156-25H00-000 | 起动电机O形圈 | 起动电机组 | Enquire | |
| 31264-05530-000 | O形密封圈 | 起动电机组 | Enquire | |
| 31361-05530-000 | 起动电机卡环 | 起动电机组 | Enquire | |
| 09280-24003-000 | O形密封圈 | 起动电机组 | Enquire | |
| 51644-48H01-000 | 转向柱下密封圈 | 前叉组 | Enquire | |

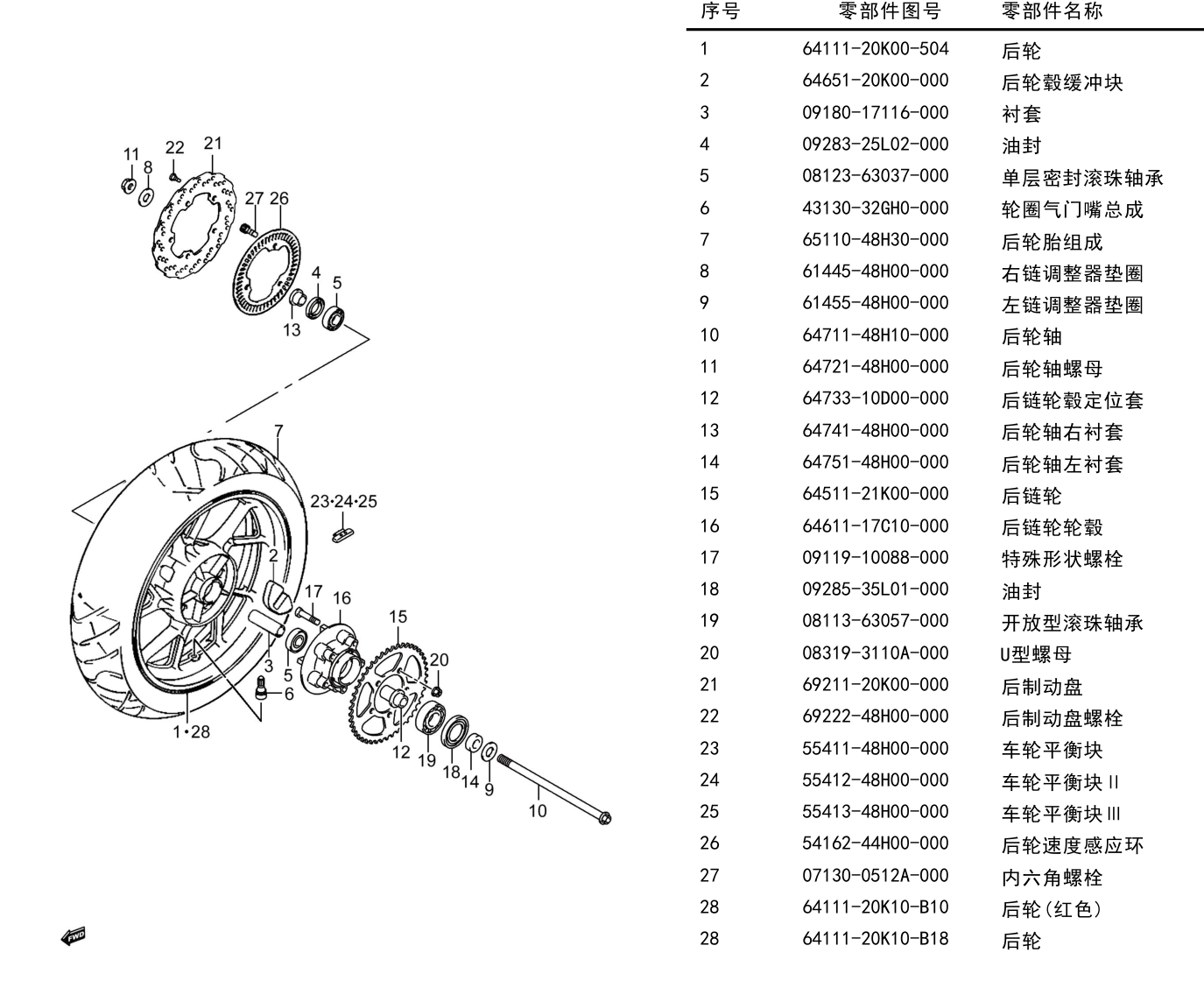

| 09283-25L02-000 | 油封 | 后轮组 | Enquire | |
| 09285-35L01-000 | 油封 | 后轮组 | Enquire | |
| 09280-30L01-000 | O形圈 | 气缸头、气缸头盖组 | Enquire | |
| 09280-26005-000 | O形圈 | 变档机构组 | Enquire | |
| 09280-33004-000 | O形密封圈 | 曲轴箱盖组 | Enquire | |
| 15722-29G00-000 | 喷油器油封 | 节气门组 | Enquire |
Exploded diagrams — Seals & Gaskets
Browse the catalogue interactively
Open Seals & Gaskets in the interactive 2019 铃木(豪爵铃木) DL DL250 黑油箱网状贴花 catalogue to drill into diagrams, check availability and add parts to your cart.
