2018 铃木(豪爵铃木) DL DL250 ABS版 — Steering System parts
CN market29 genuine parts6 diagrams
Subgroups
Part numbers
Every genuine steering system part fitted to the 2018 铃木(豪爵铃木) DL DL250 ABS版. Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|
| 09111-06063-000 | 前挡泥板活动螺栓 | 散热器组 | Enquire | |
| 37011-20K43-000 | 开关组合 | 车体导线组 | Enquire | |
| 53111-21K00-000 | 前挡泥板 | 前挡泥板组 | Enquire | |
| 53145-21K00-000 | 前挡泥板减震垫 | 前挡泥板组 | Enquire | |
| 56276-45F00-000 | 车把管平衡器衬套 | 车把管组 | Enquire | |
| 56277-48H00-000 | 车把管平衡器螺钉 | 车把管组 | Enquire | |
| 56278-21K00-000 | 车把平衡器 | 车把管组 | Enquire | |
| 57346-31J00-000 | 手柄盖衬套 | 车把管组 | Enquire | |
| 56272-25H00-000 | 车把平衡器内膨胀块 | 车把管组 | Enquire | |
| 56273-48H00-000 | 车把管平衡器螺母 | 车把管组 | Enquire | |
| 56500-48H10-000 | 右后视镜总成 | 车把管组 | Enquire | |
| 56600-48H10-000 | 左后视镜总成 | 车把管组 | Enquire | |
| 09200-06071-000 | 带孔销 | 车把管组 | Enquire | |
| 37200-48HA0-000 | 右手把开关总成 | 手把开关组 | Enquire | |
| 37400-48HA0-000 | 左手把开关总成 | 手把开关组 | Enquire | |
| 57110-48H00-000 | GRIP, THROTTLE | 手把开关组 | Enquire | |
| 57211-48H00-000 | GRIP, LH | 手把开关组 | Enquire | |
| 57500-21K10-000 | 离合器手柄总成 | 手把开关组 | Enquire | |
| 57431-10D20-000 | 手柄轴螺栓 | 手把开关组 | Enquire | |
| 57560-48H00-000 | 离合器开关总成 | 手把开关组 | Enquire | |
| 57621-48H11-000 | 离合器手柄 | 手把开关组 | Enquire | |
| 01547-0620B-000 | 六角法兰面螺栓 | 手把开关组 | Enquire | |
| 08319-2106A-000 | U型螺母 | 手把开关组 | Enquire | |
| 09180-06346-000 | 衬套 | 手把开关组 | Enquire | |
| 51821-21K00-000 | 前照灯罩衬套 | 手把前罩组 | Enquire | |
| 51822-21K00-000 | 螺栓 | 手把前罩组 | Enquire | |
| 53135-48H00-000 | 前挡泥板前安装螺钉 | 前挡泥板组 | Enquire | |
| 56111-48HD0-000 | 车把管 | 车把管组 | Enquire | |
| 56272-45F10-000 | 车把管平衡器膨胀管 | 车把管组 | Enquire |

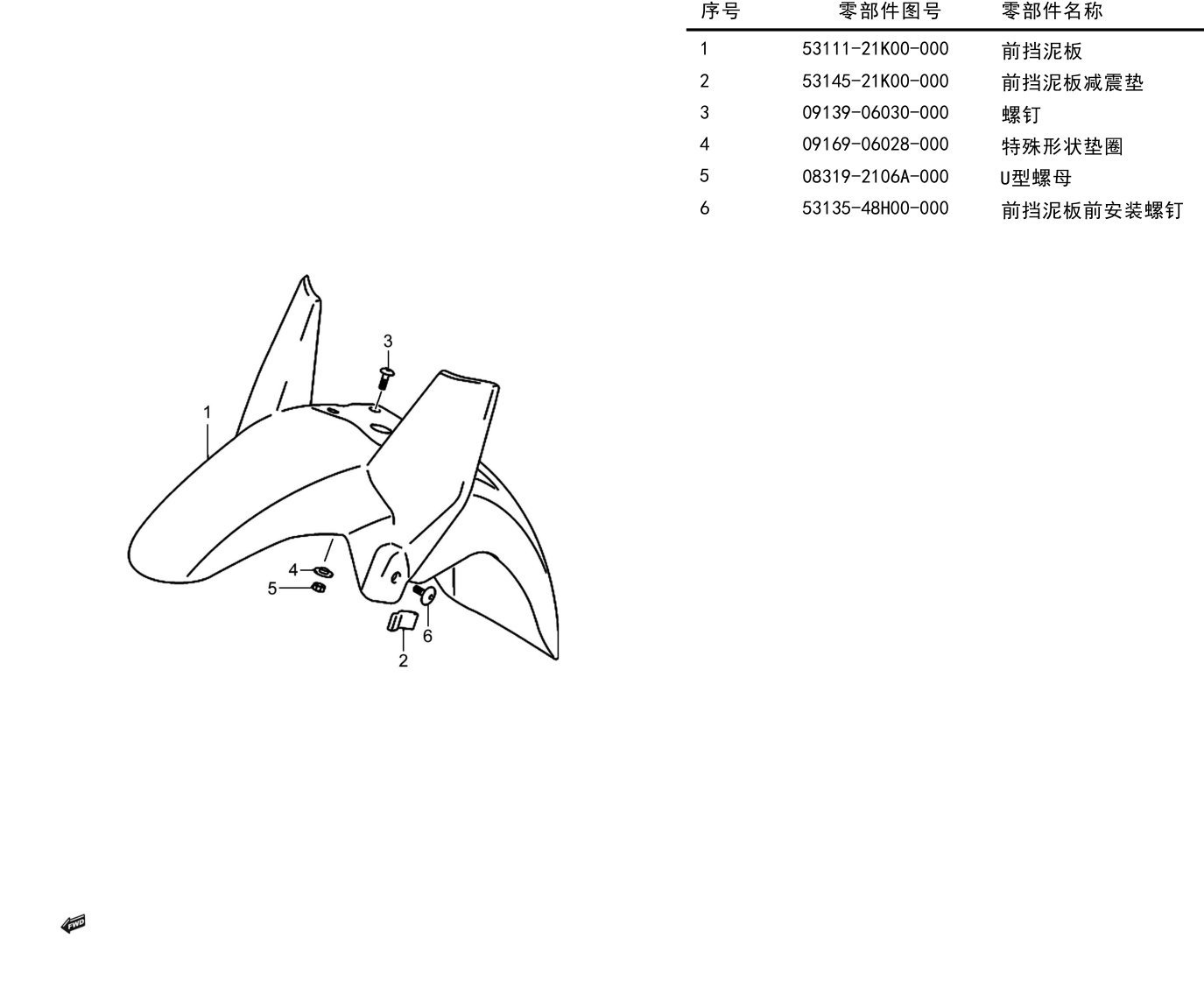

Exploded diagrams — Steering System
