2023 豪爵 AFR AFR125 — Filters parts

CN market32 genuine parts12 diagrams

Subgroups

Part numbers

Every genuine filters part fitted to the 2023 豪爵 AFR AFR125. Each number opens its cross-reference & fitment page.

Part number	Description	Diagram	Price
11328H2C200H000	通气管接头	曲轴箱组	Enquire
11489H29020H000	齿轮箱通气软管	曲轴箱组	Enquire
11386H29001H000	CVT冷却进气导管罩	曲轴箱盖组	Enquire

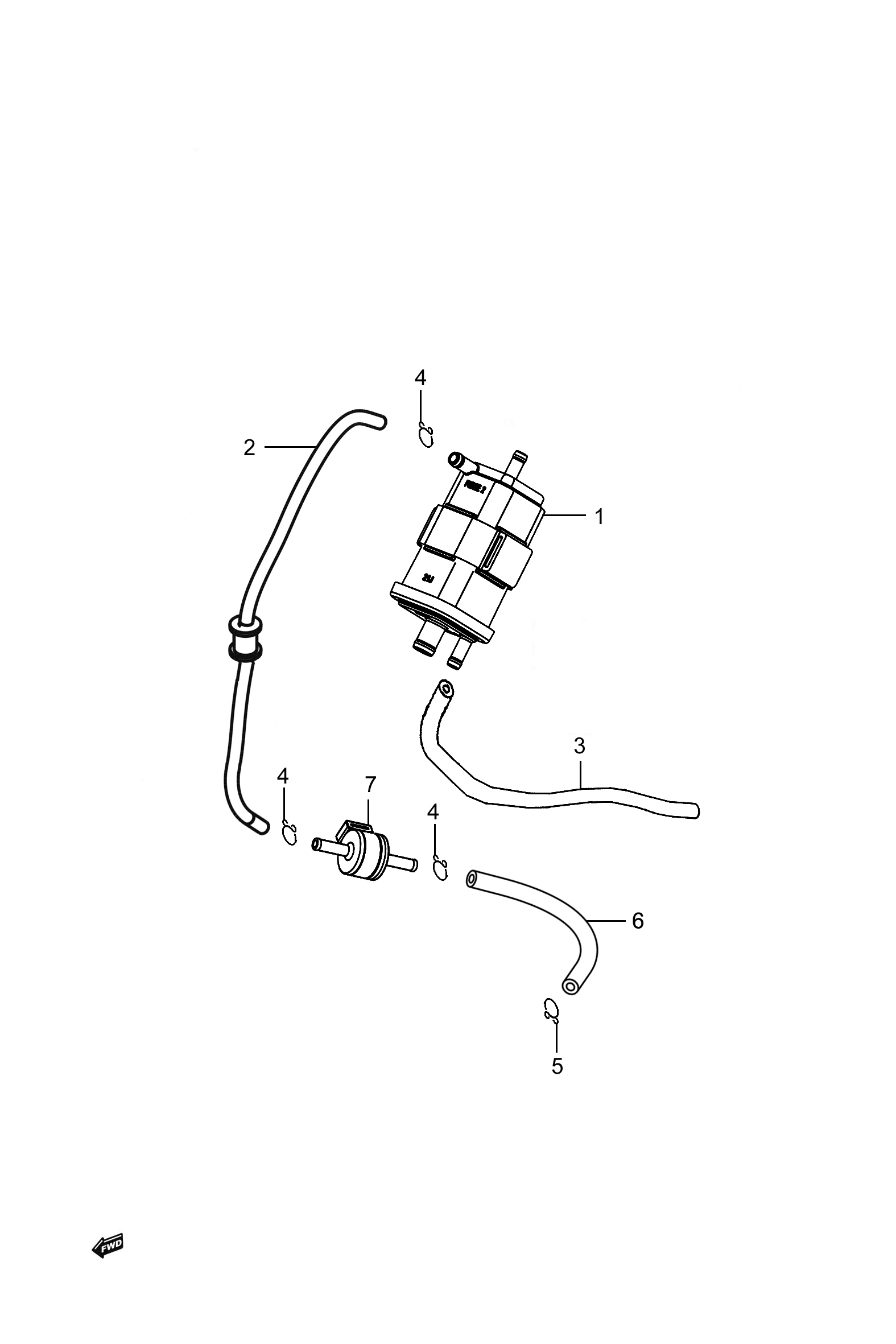

18561H7W000H000	炭罐脱附管	燃油汽化组	Enquire
18568H30J00H000	炭罐漏水口管	燃油汽化组	Enquire
18562H29001H000	炭罐脱附管Ⅱ	燃油汽化组	Enquire

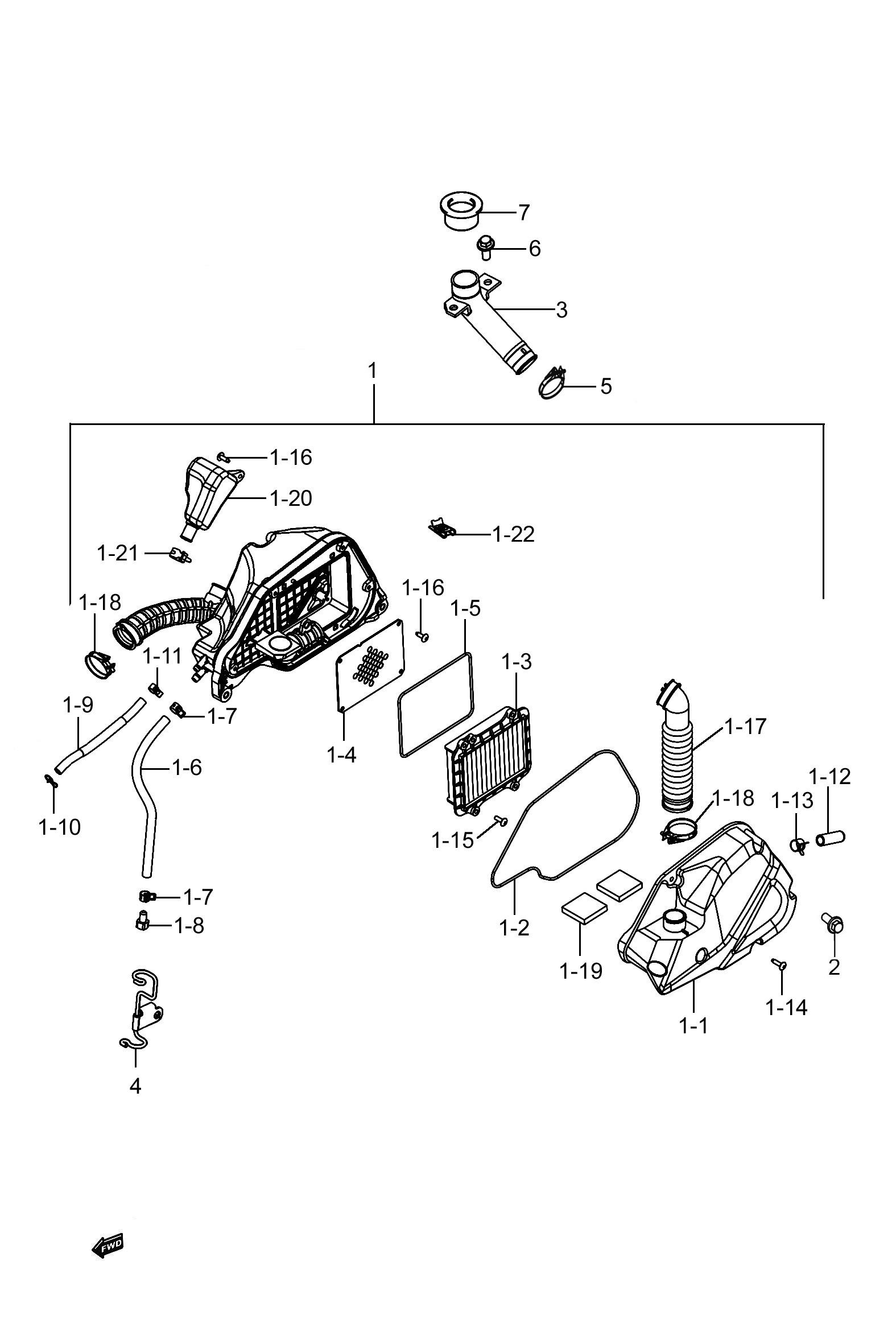

13074H7V100H000	空滤器组合	空滤器组	Enquire
13741H7M000H000	空滤器盖	空滤器组	Enquire
13723H7M000H000	空滤器密封条Ⅰ	空滤器组	Enquire
13780H29000H000	空滤器滤芯组成	空滤器组	Enquire
13724H29000H000	空滤器密封条Ⅱ	空滤器组	Enquire
13878H29000H000	积油管	空滤器组	Enquire
13850H29001H000	通气管组成	空滤器组	Enquire
03541-0520A-000	十字槽球头自攻钉	空滤器组	Enquire
02142-0516A-000	.SCREW	空滤器组	Enquire
03541-0516A-000	十字槽球头自攻钉	空滤器组	Enquire
13891H7M000H000	空滤器进气管	空滤器组	Enquire
13170H7A200H000	出气管卡箍	空滤器组	Enquire
13786H29000H000	空滤器初滤芯	空滤器组	Enquire
13886H7M000H000	谐振腔	空滤器组	Enquire
09116H06009H000	平垫螺栓组合	空滤器组	Enquire
13714H7M000H000	空滤器进气接头管	空滤器组	Enquire
13885H29000H000	集油管管夹	空滤器组	Enquire
13893H34H00H000	进气管防尘垫	空滤器组	Enquire
44486H7D000H000	溢流管管夹	电器组	Enquire

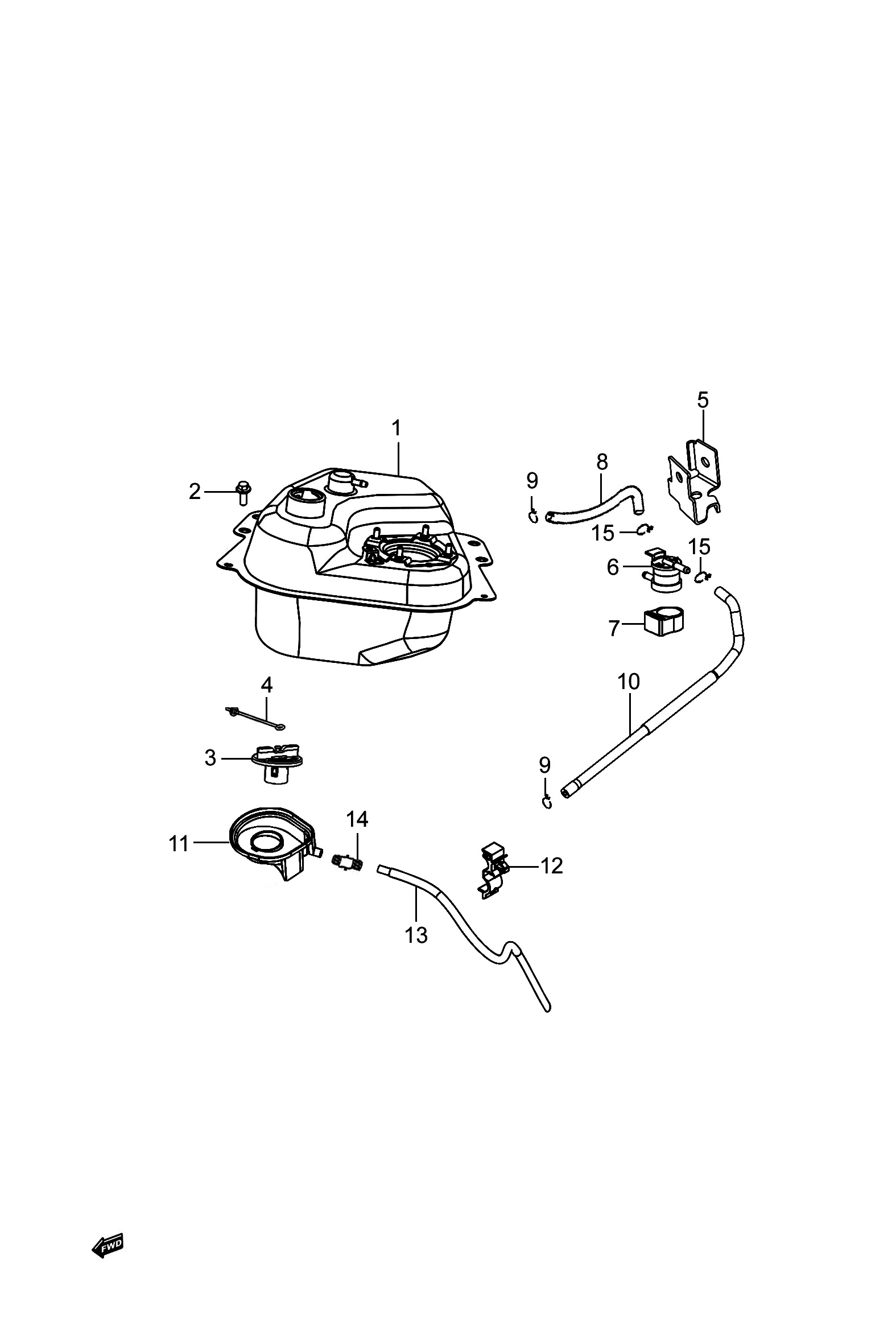

09401-10410-000	管夹	燃油箱组	Enquire
44435H7D002H000	倾倒截止阀至炭罐软管	燃油箱组	Enquire
44423H7V000H000	溢流管	燃油箱组	Enquire
09367H07001H000	软管接头	燃油箱组	Enquire
92216H04H00H000	空滤器进气接头管防尘垫	座垫组	Enquire
13111H29000H000	进气管	气缸头、气缸头盖组	Enquire
13128H7A200H000	进气管隔热垫	气缸头、气缸头盖组	Enquire
