2020 铃木(轻骑铃木) UY UY125 百年纪念版 — Filters parts
CN market22 genuine parts5 diagrams
Subgroups
Part numbers
Every genuine filters part fitted to the 2020 铃木(轻骑铃木) UY UY125 百年纪念版. Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|
| 13700-10K00-000 | CLEANER ASSY, AIR | 空滤器 | Enquire | |
| 13740-10K00-000 | .CAP, AIR CLEANER | 空滤器 | Enquire | |
| 13891-10K00-000 | ..TUBE, INLET | 空滤器 | Enquire | |
| 13780-10K00-000 | .FILTER,AIR | 空滤器 | Enquire | |
| 13786-10K00-000 | .PREFILTER | 空滤器 | Enquire | |
| 09401-14101-000 | .CLIP 10-1 13853-10K00-000 .TUBE, BREATHER 1 | 空滤器 | Enquire | |
| 13871-29J00-000 | .PLUG, DRAIN | 空滤器 | Enquire | |
| 02142-0516A-000 | .SCREW | 空滤器 | Enquire | |
| 13738C10K00W000 | GUARD, DUST INTAKE OUTER | 空滤器 | Enquire | |
| 13739C10K00W000 | GUARD, DUST INTAKE INNER | 空滤器 | Enquire | |
| 35186C45HA0W000 | .TUBE | 前大灯 | Enquire | |

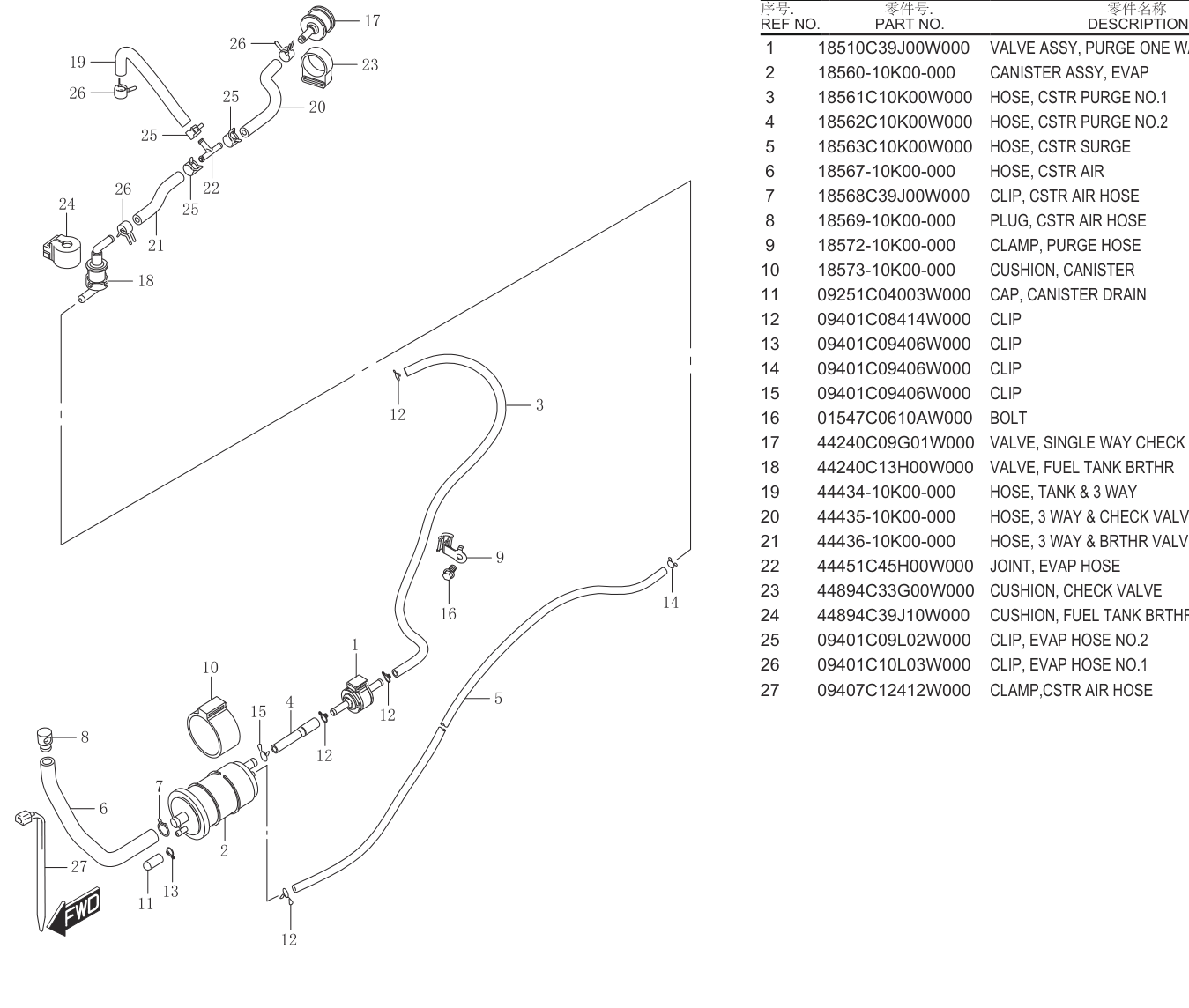

| 18561C10K00W000 | HOSE, CSTR PURGE NO.1 | 燃油系统 | Enquire | |
| 18562C10K00W000 | HOSE, CSTR PURGE NO.2 | 燃油系统 | Enquire | |
| 18563C10K00W000 | HOSE, CSTR SURGE | 燃油系统 | Enquire | |
| 18568C39J00W000 | CLIP, CSTR AIR HOSE | 燃油系统 | Enquire | |
| 18573-10K00-000 | CUSHION, CANISTER | 燃油系统 | Enquire | |
| 09401C08414W000 | CLIP | 燃油系统 | Enquire | |
| 44240C09G01W000 | VALVE, SINGLE WAY CHECK | 燃油系统 | Enquire | |
| 44240C13H00W000 | VALVE, FUEL TANK BRTHR | 燃油系统 | Enquire | |
| 44434-10K00-000 | HOSE, TANK & 3 WAY | 燃油系统 | Enquire | |
| 44451C45H00W000 | JOINT, EVAP HOSE | 燃油系统 | Enquire | |
| 13111C10K00W000 | PIPE, INTAKE | 汽缸头 | Enquire |
Exploded diagrams — Filters
Browse the catalogue interactively
Open Filters in the interactive 2020 铃木(轻骑铃木) UY UY125 百年纪念版 catalogue to drill into diagrams, check availability and add parts to your cart.
