2023 春风 公务车 — Engine parts
CN market238 genuine parts12 diagrams
Subgroups
Crankcase & Crankshaft · 36Cylinder Head & Parts · 25Seals & Gaskets · 48Lubrication System · 4Belt/Chain Drive · 14Engine Hardware · 203
Part numbers
Every genuine engine part fitted to the 2023 春风 公务车. Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|
| 0010-090006-00001 | SCREW | 节气门阀体和喷油器 THROTTLE&INJECTOR | Enquire | |

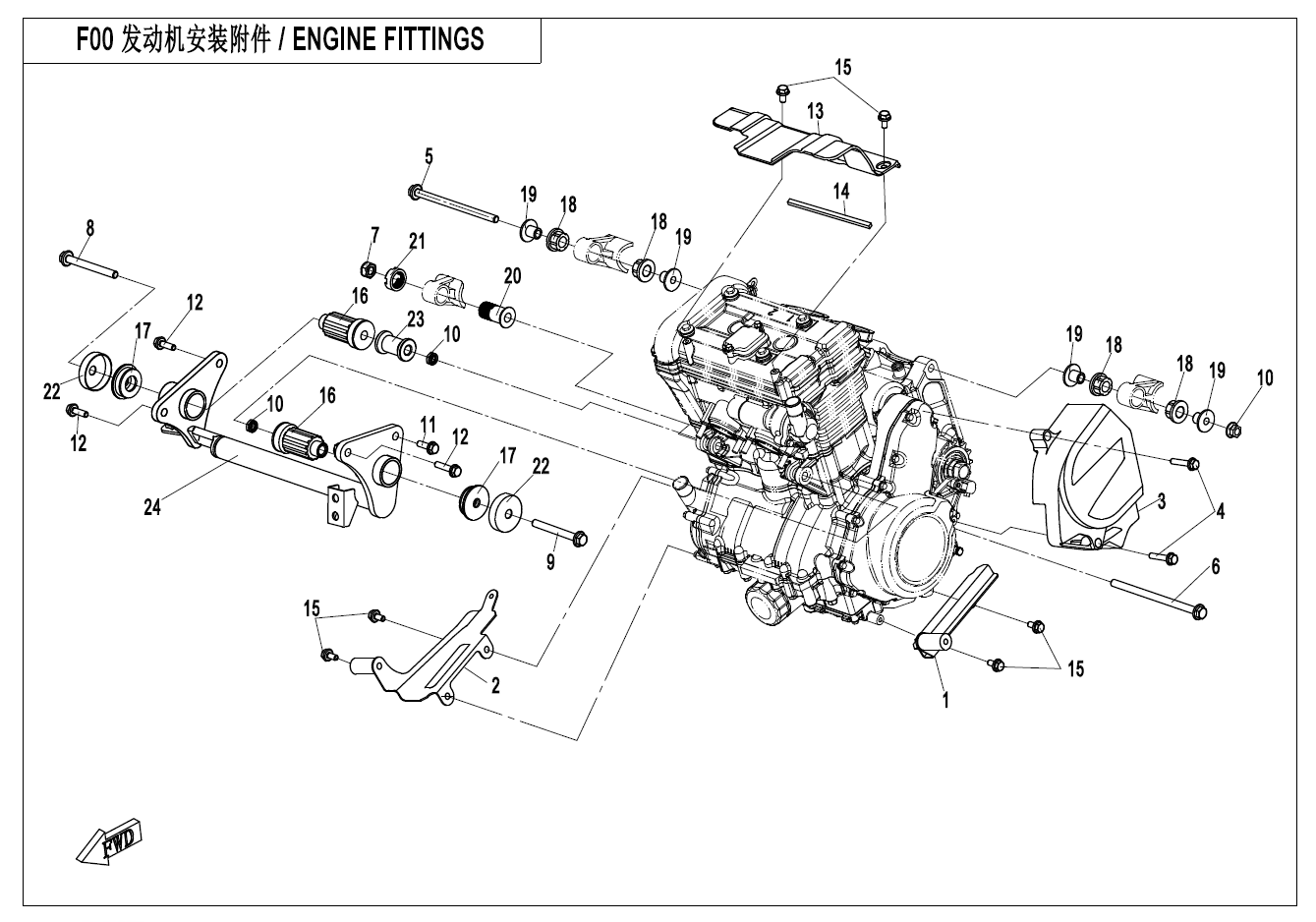

| 6NTA-000103 | VENT COVER | 发动机安装附件 ENGINE FITTINGS | Enquire | |
| 30110-420130010 | SELF-TAPPING SCREW_ST4.2x13 | 锁具 LOCK KIT | Enquire | |
| 30110-421130010 | SELF-TAPPING SCREW | 塑料件1 PLASTIC 1 | Enquire | |
| 6NTG-040102 | CLAMP | 塑料件1 PLASTIC 1 | Enquire | |
| 30110-481130010 | SELF-TAPPING SCREW | 塑料件2 PLASTIC 2 | Enquire | |
| A000-040703 | INNER HEX SCREW | 塑料件4 PLASTICS 4 | Enquire | |

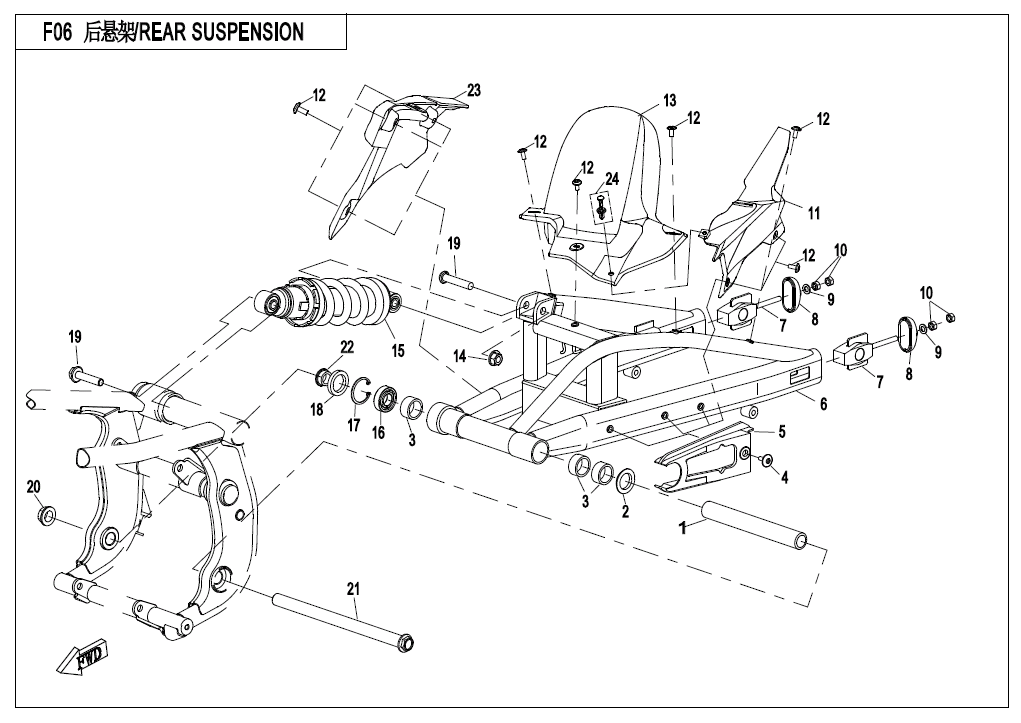

| A000-060201-0BB0 | CHAIN ADJUSTER GUARD | 后悬架 REAR SUSPENSION | Enquire | |
| 6NTA-040202 | INNER HEX SCREW | 油箱 FUEL TANK | Enquire | |
| A010-220502 | TIE BAND BUCKLE | 左边箱 SIDE BOXES,LH | Enquire | |
| 30105-050012410 | SCREW | 左边箱 SIDE BOXES,LH | Enquire | |

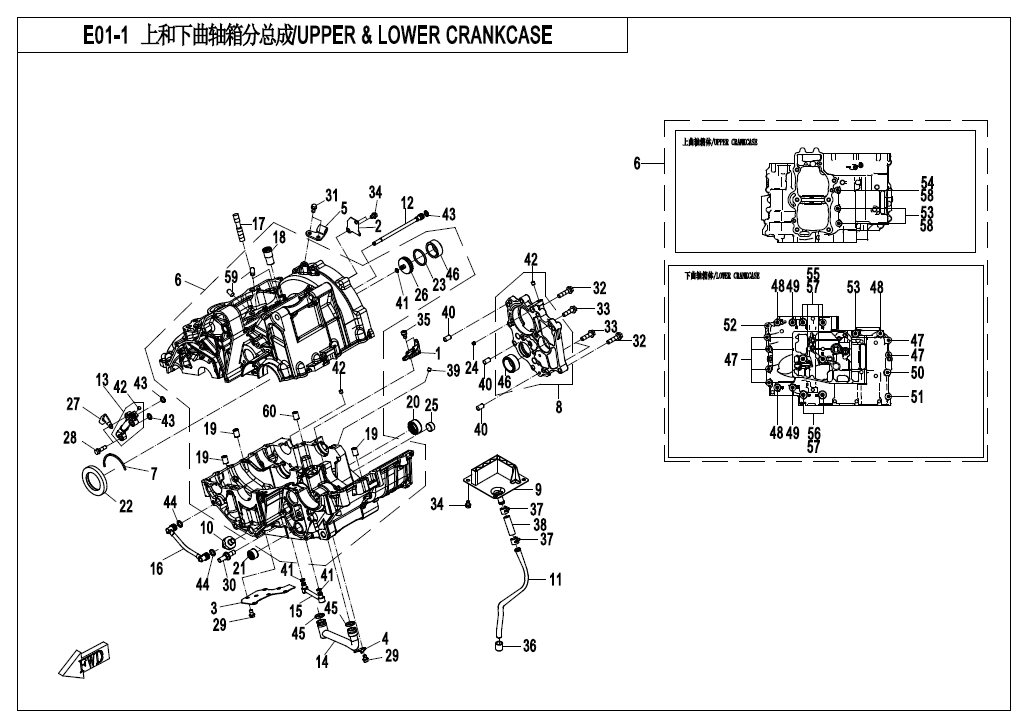

| 0700-012105-00001 | PLUG, MAIN OIL RAIL | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 30110-420160010 | SELF-TAPPING SCREW | 右边箱 SIDE BOXES,RH | Enquire | |
| 30601-113010 | CLAMP | 燃油蒸发系统 FUEL VAPORIZATION SYSTEM | Enquire | |

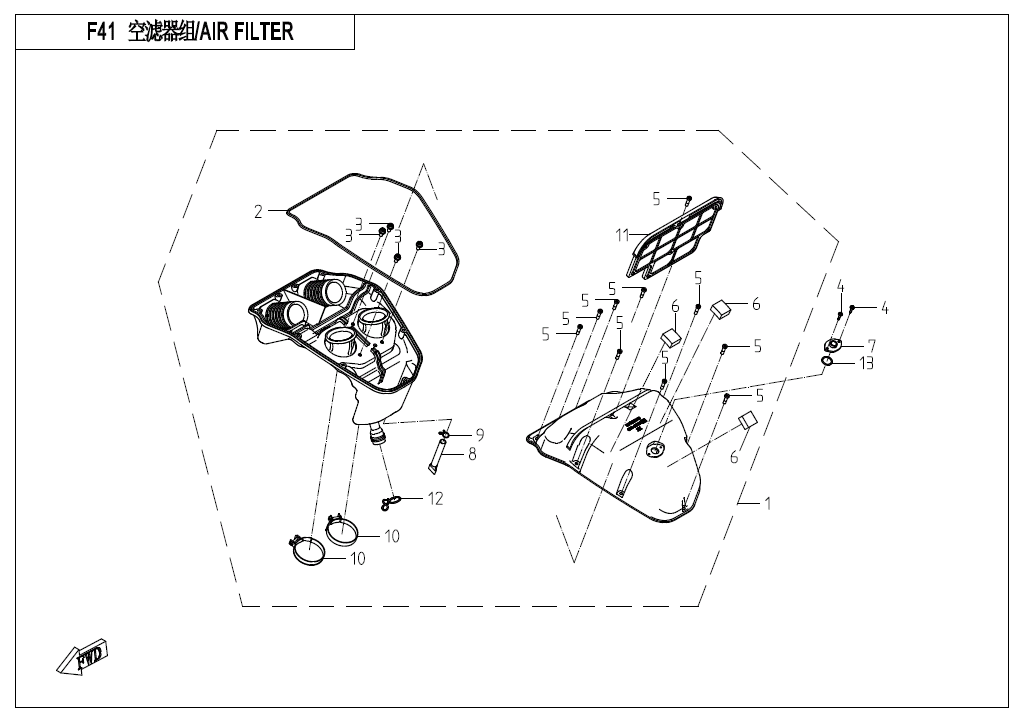

| 30110-480200040 | SELF-TAPPING SCREW ST4.8x20-F-H | 空滤器组 AIR FILTER | Enquire | |
| 30601-124020 | CLAMP | 空滤器组 AIR FILTER | Enquire | |
| 30410-01000 | ROLLER 10x14 | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0180-014010 | WIRE CLAMP | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0010-021019-0010 | BOLT M6x12 | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-012104-00002 | SCREW PLUG M6, OIL PASSAGE | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-022018 | SOLID PIN 8x14 | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 01A0-056004 | DOWEL PIN Φ6×12 | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0180-023002 | O-SEAL RING | 右&左侧盖分总成 RIGHT&LEFT SIDE COVER | Enquire | |
| 0700-015001-00001 | OIL PAN | 油底壳分总成 OIL PAN | Enquire | |
| 0700-015001-0BY03 | OIL PAN | 油底壳分总成 OIL PAN | Enquire | |
| 0010-080010-0010 | BOLT M6x10 | 油底壳分总成 OIL PAN | Enquire | |

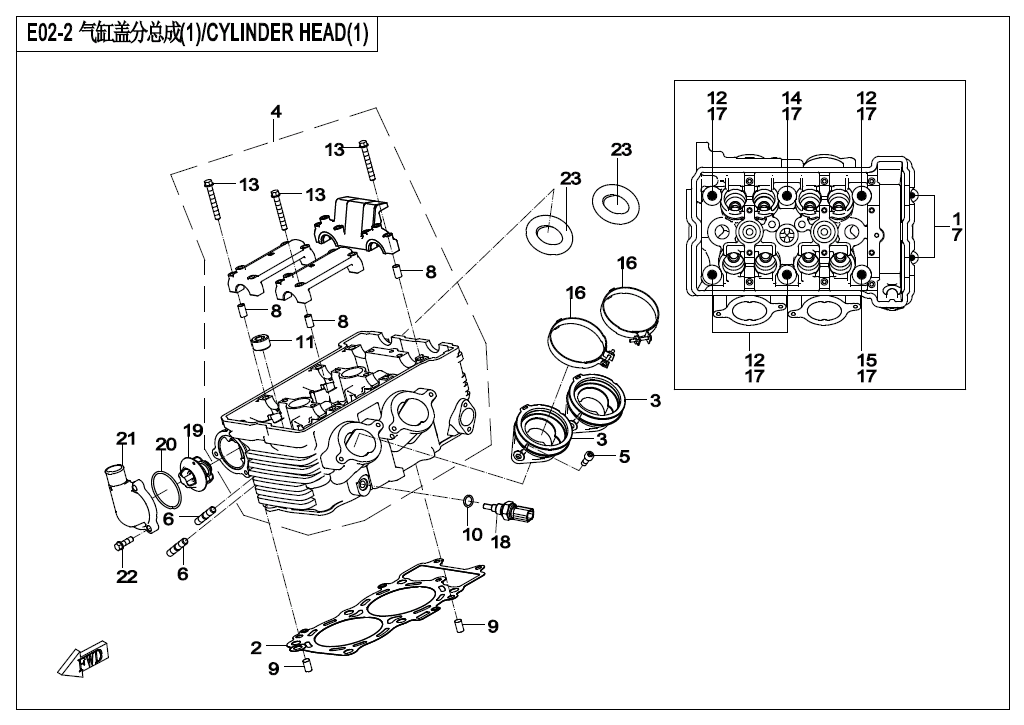

| 0700-022200-1B200 | CYLINDER HEAD ASSY | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0010-080008 | DOWEL PIN | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-022013-00001 | CYLINDER HEAD BOLT M10x158 | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 018B-022810 | COOLANT TEMP. SENSOR | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0010-023010-0010 | BOLT M6x20 | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-022004 | LOCK CLIP, VALVE | 气缸盖分总成(2) CYLINDER HEAD(2) | Enquire | |
| 0700-022400-1000 | SEAL RING, VALVE STEM | 气缸盖分总成(2) CYLINDER HEAD(2) | Enquire | |
| 0700-023002-0001 | CYLINDER BODY GASKET | 气缸体分总成 CYLINDER BODY | Enquire | |

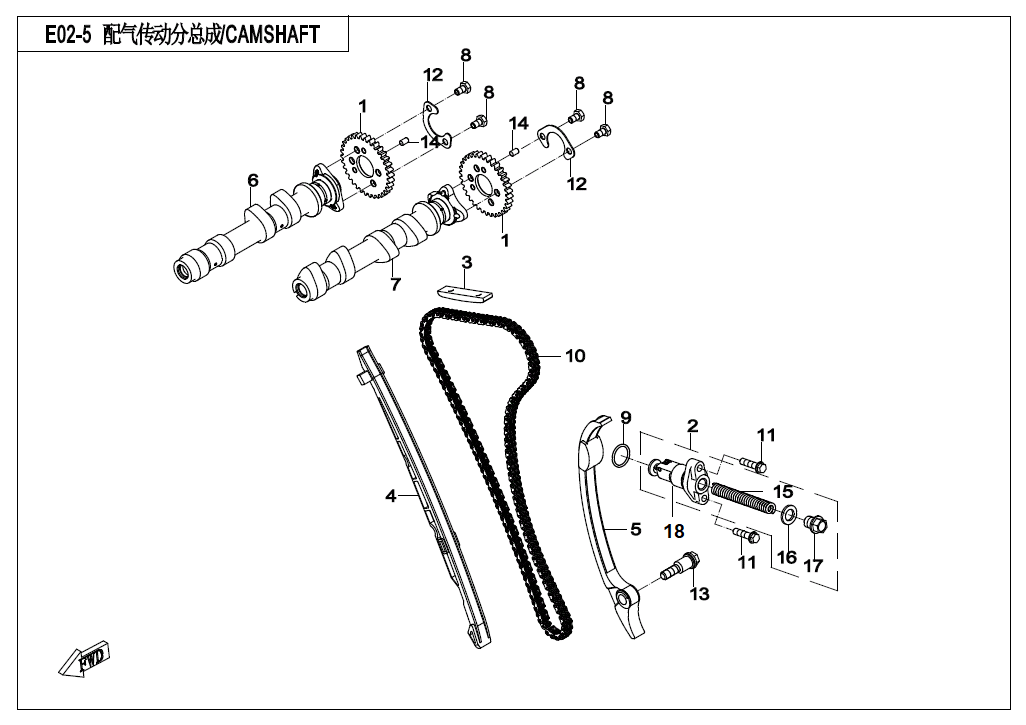

| 0700-024003 | RETAINER | 配气传动分总成 CAMSHAFT | Enquire | |
| 0060-030003-00001 | INNER HEX BOLT | 磁电机总成 MAGNETO | Enquire | |
| 0700-040001-20000 | BOLT M12x1.25x45 | 磁电机总成 MAGNETO | Enquire | |
| 0700-041100-10000 | CRANKSHAFT ASSY | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0700-041200-40012 | CONNECTING ROD ASSY | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0700-041001-30010 | CONNECTING ROD PLAIN BEARING | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |

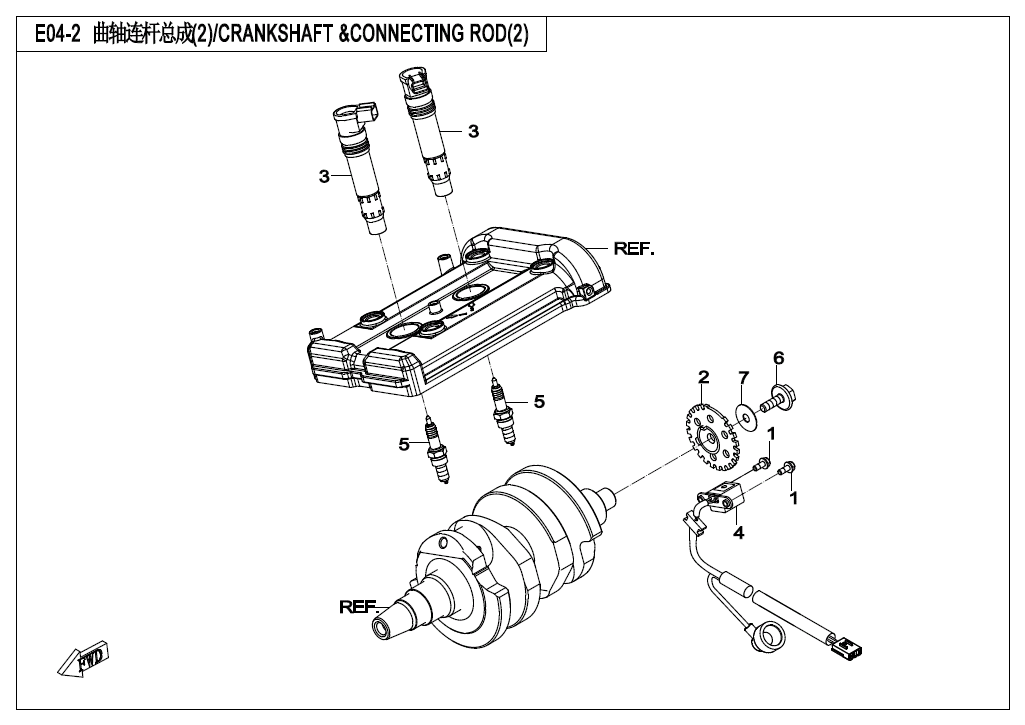

| 0700-040005-10000 | PULSING ROTOR, CRANKCASE | 曲轴连杆总成(2) CRANKSHAFT &CONNECTING ROD(2) | Enquire | |
| 070V-012400-1300 | MAGNETO STATOR ASSY | 曲轴连杆总成(2) CRANKSHAFT &CONNECTING ROD(2) | Enquire | |
| 0700-040003-00001 | BOLT M8x23 | 曲轴连杆总成(2) CRANKSHAFT &CONNECTING ROD(2) | Enquire | |
| 0180-014009-00001 | SCREW, PRESS PLATE | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |

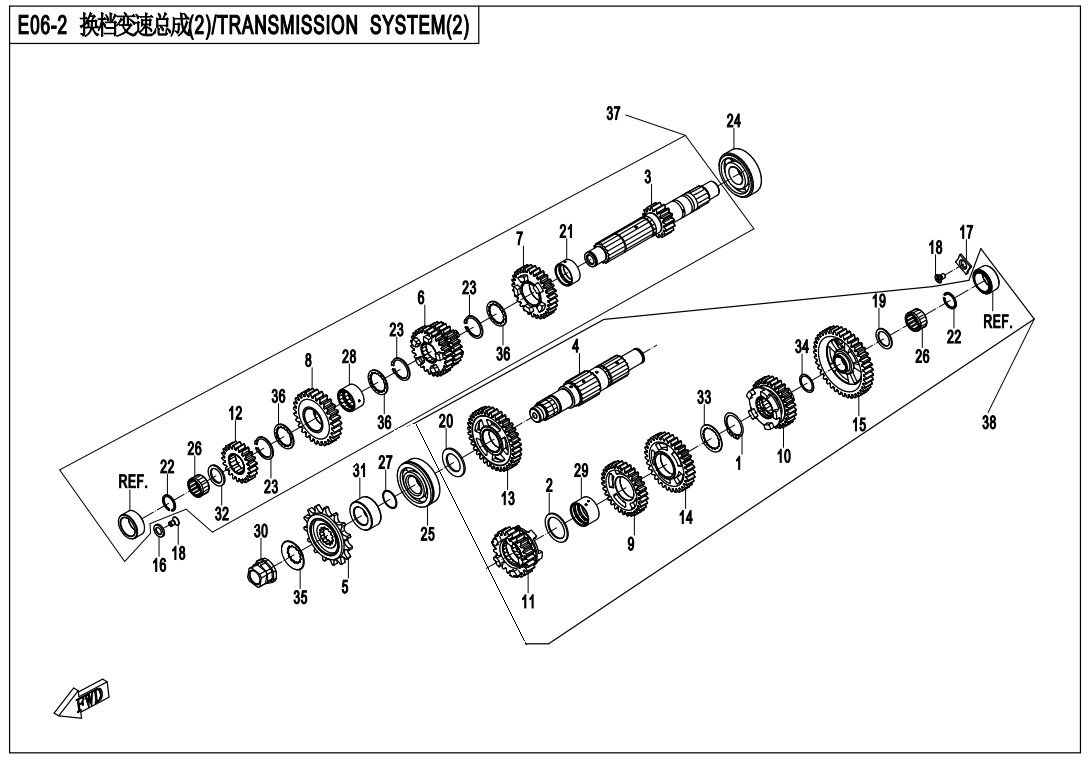

| 0700-061016 | CIRCLIPS FOR SHAFT20 | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 0700-066002 | BEARING 25x62x17 | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 30499-02004 | NEEDLE BEARING | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 0800-062205 | O-RING | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 0700-070200 | OIL FILTER | 润滑系统 LUBRICATION SYSTEM | Enquire | |
| 30406-00400 | ROLLER PIN | 润滑系统 LUBRICATION SYSTEM | Enquire | |

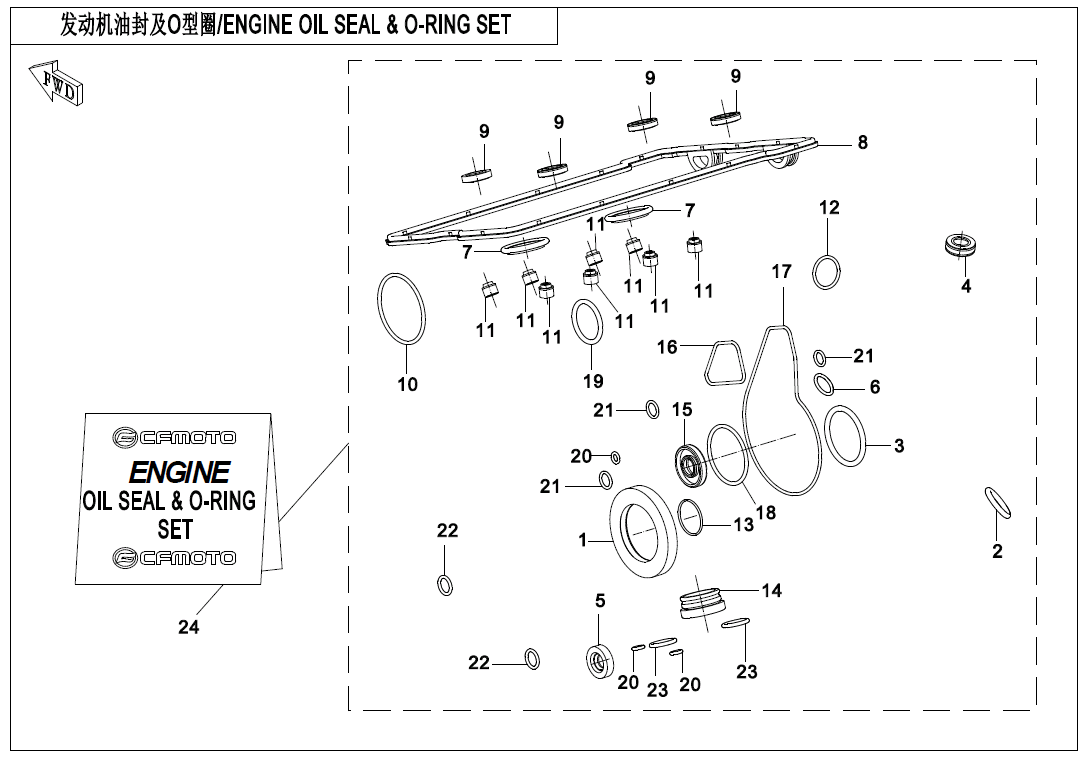

| 0700-021400-00010 | SEAL RING, CYLINDER HEAD COVER | 发动机油封及O型圈 ENGINE OIL SEAL&O-RING SET | Enquire | |
| 0700-012701 | O-SEAL RING | 发动机油封及O型圈 ENGINE OIL SEAL&O-RING SET | Enquire | |
| 0700-012500 | SWITCH, OIL PRESSURE | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-011102-00001 | STUD M10x57 | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 30403-02200 | BEARING | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 30403-01300 | BEARING | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-010200 | COUNTERSHAFT OIL SEAL | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-011112 | O-RING | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-066006-00002 | OIL LIMIT PLUG | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-011106 | PLUG, UPPER CRANKCASE | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-066004-00001 | BOLT M7x30 | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-066007-00001 | BOLT M7x26 | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-011105-00002 | BOLT | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-012012-00001 | SCREW | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-012012-00002 | SCREW | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 30601-211550 | CLAMP | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-012201 | O-RING | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-066005 | PLUG 6 | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-011202 | O-SEAL RING | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-070003 | O-RING | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-012007-00001 | BOLT M7x40 | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-012004-00001 | BOLT M8x60 | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-012003-00001 | BOLT M8x73 | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-012011-00001 | BOLT M8x50 | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-012009-00001 | BOLT M7x34 | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-012005-00001 | BOLT M7x47 | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-011001-00001 | BOLT | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-011002-00001 | BOLT M8x120 | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-012001 | BOLT M9x113 | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-012008-00001 | BOLT M9x83 | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-013008 | OIL FILLING PLUG | 右&左侧盖分总成 RIGHT&LEFT SIDE COVER | Enquire | |
| 30128-060016830 | SCREW | 右&左侧盖分总成 RIGHT&LEFT SIDE COVER | Enquire | |
| 30403-01200 | BEARING | 右&左侧盖分总成 RIGHT&LEFT SIDE COVER | Enquire | |
| 0010-080009 | OIL SEAL | 右&左侧盖分总成 RIGHT&LEFT SIDE COVER | Enquire | |
| 0700-065220 | OIL SEAL | 右&左侧盖分总成 RIGHT&LEFT SIDE COVER | Enquire | |
| 01A0-013005 | O-SEAL RING | 右&左侧盖分总成 RIGHT&LEFT SIDE COVER | Enquire | |
| 0700-013003-10000 | HOLE CAP, TIMING INSPECTION | 右&左侧盖分总成 RIGHT&LEFT SIDE COVER | Enquire | |
| 0010-021017-0010 | BOLT M6x25 | 右&左侧盖分总成 RIGHT&LEFT SIDE COVER | Enquire | |
| 0700-014003 | WIRE CLIP | 右&左侧盖分总成 RIGHT&LEFT SIDE COVER | Enquire | |
| 0700-022236 | PLUG, PT1/2 | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-022204 | HEX FLANGE BOLT M6x45 | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-022014-10001 | CYLINDER HEAD BOLT | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-022015-00002 | CYLINDER HEAD BOLT | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-022330 | CLAMP, AIR INLET PIPE | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-022500-0001 | THERMOSTAT | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-022011 | O-RING | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-023003-00001 | BOLT M8x43 | 气缸体分总成 CYLINDER BODY | Enquire | |
| 0700-023003-00002 | BOLT | 气缸体分总成 CYLINDER BODY | Enquire | |
| 0700-023005 | RESTRICTION PLUG | 气缸体分总成 CYLINDER BODY | Enquire | |
| 0700-024200-0001 | TIMING CHAIN | 配气传动分总成 CAMSHAFT | Enquire | |
| 30406-00501 | ROLLER NEEDLE P5x7.8 | 配气传动分总成 CAMSHAFT | Enquire | |
| 0700-024104 | TENSION SPRING | 配气传动分总成 CAMSHAFT | Enquire | |
| 0700-024107 | SPRING SEAT BOLT | 配气传动分总成 CAMSHAFT | Enquire | |
| 0700-061003 | CIRCLIP 20 | 离合器总成 CLUTCH | Enquire | |
| 0700-066010-00001 | SCREW, BEARING PLATE | 换档变速总成(1) TRANSMISSION SYSTEM(1) | Enquire | |
| 30400-02504 | BEARING | 换档变速总成(1) TRANSMISSION SYSTEM(1) | Enquire | |
| 30128-060040830 | SCREW | 换档变速总成(1) TRANSMISSION SYSTEM(1) | Enquire | |
| 0700-061009 | CIRCLIPS FOR SHAFT28 | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 0700-010100 | BEARING 25x62x17, COUNTERSHAFT | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 0700-070002-00001 | SCREW M6x9 | 润滑系统 LUBRICATION SYSTEM | Enquire | |
| 0700-024001 | O-RING | 发动机油封及O型圈 ENGINE OIL SEAL&O-RING SET | Enquire | |
| 30001-102110110 | BOLT | 发动机安装附件 ENGINE FITTINGS | Enquire | |
| 9060-040310 | CLAMP ASSY | 后悬架 REAR SUSPENSION | Enquire | |
| 30601-111010 | CLAMP | 油箱 FUEL TANK | Enquire | |
| 0060-111015 | O-SEAL RING | 空滤器组 AIR FILTER | Enquire | |
| 0700-011104 | BREATHER GUARD | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-0100A0-1B20 | CRANKCASE ASSY | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-010001 | RING 62, BEARING | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-0660A0 | GEARSHIFT COVER ASSY | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0700-011410 | BREATHER ASSY | 上&下曲轴箱分总成 UPPER & LOWER CRANKCASE | Enquire | |
| 0110-013030 | O-RING | 右&左侧盖分总成 RIGHT&LEFT SIDE COVER | Enquire | |
| 01A0-012003 | O-RING | 右&左侧盖分总成 RIGHT&LEFT SIDE COVER | Enquire | |
| 0700-015002 | OIL STRAINER | 油底壳分总成 OIL PAN | Enquire | |
| 0700-015006 | DRAIN BOLT, M12x22 | 油底壳分总成 OIL PAN | Enquire | |

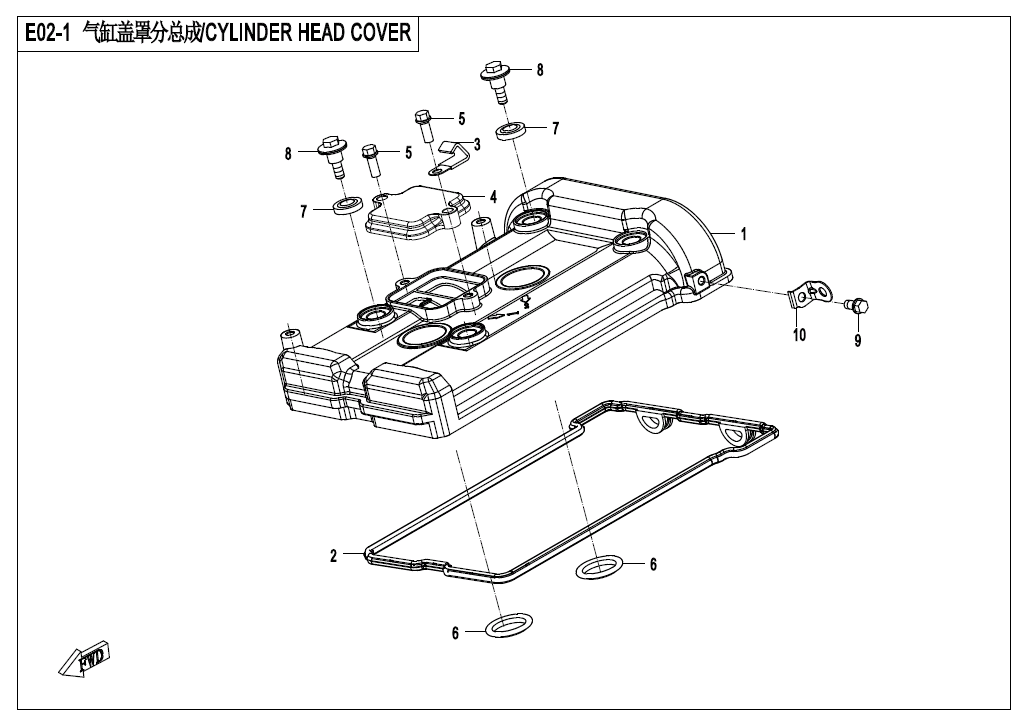

| 0700-021001-3B201 | CYLINDER HEAD COVER | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0700-021300 | SPARK PLUG HOLE SEAL RING | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0700-021200 | CYLINDER HEAD COVER BOLT SEAL RING | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0700-021002 | BRACKET, CLUTCH CABLE | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0HU0-022002 | INNER HEX SCREW M6x30 | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-022200-1B201 | CYLINDER HEAD | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 30102-060016810 | SCREW | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0180-022003-00001 | STUD | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-024002-0001 | TIMING SPROCKET | 配气传动分总成 CAMSHAFT | Enquire | |
| 0700-024100-10000 | TENSIONER | 配气传动分总成 CAMSHAFT | Enquire | |
| 0700-024006 | CHAIN GUIDE | 配气传动分总成 CAMSHAFT | Enquire | |
| 0700-024500 | CAMSHAFT, EXHAUST | 配气传动分总成 CAMSHAFT | Enquire | |
| 0700-024400 | CAMSHAFT, AIR INLET | 配气传动分总成 CAMSHAFT | Enquire | |
| 30004-060010150 | BOLT M6x10 | 配气传动分总成 CAMSHAFT | Enquire | |
| 0700-024110 | TENSIONER ASSY | 配气传动分总成 CAMSHAFT | Enquire | |
| 0110-090009-00002 | INNER HEX SCREW | 磁电机总成 MAGNETO | Enquire | |
| 0700-041203-10000 | CONNECTING ROD BOLT | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0700-041200-40022 | CONNECTING ROD ASSY | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0700-041200-40032 | CONNECTING ROD ASSY | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0700-011003-00011 | MAIN PLAIN BEARING | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0700-011003-00021 | MAIN PLAIN BEARING | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0700-041001-30000 | CONNECTING ROD PLAIN BEARING | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0700-041001-30020 | CONNECTING ROD PLAIN BEARING | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0700-041001-30030 | CONNECTING ROD PLAIN BEARING | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0700-041001-30040 | CONNECTING ROD PLAIN BEARING | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0700-041001-30050 | CONNECTING ROD PLAIN BEARING | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0700-012013-00002 | BOLT | 曲轴连杆总成(2) CRANKSHAFT &CONNECTING ROD(2) | Enquire | |
| 0700-040005 | PULSING ROTOR, CRANKCASE | 曲轴连杆总成(2) CRANKSHAFT &CONNECTING ROD(2) | Enquire | |
| 0700-012400-00001 | PICK UP ASSY | 曲轴连杆总成(2) CRANKSHAFT &CONNECTING ROD(2) | Enquire | |
| 0700-170200 | SPARK PLUG | 曲轴连杆总成(2) CRANKSHAFT &CONNECTING ROD(2) | Enquire | |
| 0700-040003 | BOLT M8x23 | 曲轴连杆总成(2) CRANKSHAFT &CONNECTING ROD(2) | Enquire | |
| 30801-03005 | CIRCLIP30 S=1.5 | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 0700-012106-00002 | OIL FILTER BOLT | 润滑系统 LUBRICATION SYSTEM | Enquire | |
| 0MQ0-173100 | IDLE STEPPING MOTOR | 节气门阀体和喷油器 THROTTLE&INJECTOR | Enquire | |
| 6NTG-000110 | LH BRACKET, LOWER BASE PLATE | 发动机安装附件 ENGINE FITTINGS | Enquire | |
| 6NTG-000120 | RH BRACKET, LOWER BASE PLATE | 发动机安装附件 ENGINE FITTINGS | Enquire | |
| 30006-060035810 | BOLT | 发动机安装附件 ENGINE FITTINGS | Enquire | |
| 5020-040018 | FRONT STORAGE BOX SEAL STRAP | 发动机安装附件 ENGINE FITTINGS | Enquire | |
| 6NT1-000281 | REAR UPPER RUBBER, ENGINE | 发动机安装附件 ENGINE FITTINGS | Enquire | |
| 6NT1-000282 | REAR UPPER RUBBER BUSHING, ENGINE | 发动机安装附件 ENGINE FITTINGS | Enquire | |
| 6NT1-000291 | REAR LOWER THREAD SLEEVE, ENGINE | 发动机安装附件 ENGINE FITTINGS | Enquire | |
| 6NT1-000221 | FRONT RH BUSHING, ENGINE | 发动机安装附件 ENGINE FITTINGS | Enquire | |
| 6NT1-000210-0BB00 | FRONT BRACKET, ENGINE | 发动机安装附件 ENGINE FITTINGS | Enquire | |
| 30102-050008900 | INNER HEX SCREW | 锁具 LOCK KIT | Enquire | |
| 30102-050025900 | INNER HEX SCREW | 锁具 LOCK KIT | Enquire | |
| 30102-060020810 | SCREW | 锁具 LOCK KIT | Enquire | |
| A000-030002 | RH CLAMP, MAIN CABLE | 车架 FRAME | Enquire | |
| A000-030001 | LH CLAMP, MAIN CABLE | 车架 FRAME | Enquire | |
| 30102-060012810 | SCREW | 车架 FRAME | Enquire | |
| 30105-060012410 | SCREW | 塑料件1 PLASTIC 1 | Enquire | |
| 6NTG-200424 | INNER HEX SCREW M6x25 | 塑料件2 PLASTIC 2 | Enquire | |
| A000-060002 | CHAIN GUARD SCREW | 塑料件2 PLASTIC 2 | Enquire | |
| A000-040702 | INNER HEX SCREW M6x12 | 塑料件2 PLASTIC 2 | Enquire | |
| A000-050005 | RUBBER PLUG 1 | 前悬架 FRONT SUSPENSION | Enquire | |
| 6NTA-050003 | LOCK SCREW, UPPER TRIPLE CLAMP | 前悬架 FRONT SUSPENSION | Enquire | |
| A000-050018 | INNER HEX SCREW M8x35 | 前悬架 FRONT SUSPENSION | Enquire | |
| A000-050100 | STEERING BEARING ASSY | 前悬架 FRONT SUSPENSION | Enquire | |
| A000-050011 | RUBBER PLUG 2 | 前悬架 FRONT SUSPENSION | Enquire | |
| A000-050100-10000 | STEERING BEARING ASSY | 前悬架 FRONT SUSPENSION | Enquire | |
| 30403-02800 | NEEDLE BEARING | 后悬架 REAR SUSPENSION | Enquire | |
| 30400-02004 | BEARING | 后悬架 REAR SUSPENSION | Enquire | |
| 30800-04205 | CIRCLIP FOR HOLE 42 | 后悬架 REAR SUSPENSION | Enquire | |
| 30500-030800N | OIL SEAL | 后悬架 REAR SUSPENSION | Enquire | |
| 30501-030800N | OIL SEAL | 前轮 FRONT WHEEL | Enquire | |
| 30102-080025810 | SCREW | 后制动器 REAR BRAKE | Enquire | |
| A010-100208-00001 | RUBBER PLUG, CLUTCH LEVER | 转向系统(加热握把) STEERING SYSTEM | Enquire | |
| 30805-02005 | CIRCLIP 20 | 转向系统(加热握把) STEERING SYSTEM | Enquire | |
| 30102-080030810 | SCREW | 转向系统(加热握把) STEERING SYSTEM | Enquire | |
| A000-040202 | INNER HEX SCREW M5x14 | 转向系统(加热握把) STEERING SYSTEM | Enquire | |
| 6NTA-100118-0V100 | CLIP | 转向系统(加热握把) STEERING SYSTEM | Enquire | |
| A000-100002 | CLUTCH CABLE CLIP | 转向系统(加热握把) STEERING SYSTEM | Enquire | |
| 30020-102025410 | STUD | 后轮 REAR WHEEL | Enquire | |
| 30501-035800N | OIL SEAL | 后轮 REAR WHEEL | Enquire | |
| 30800-05205 | CIRCLIP FOR HOLE | 后轮 REAR WHEEL | Enquire | |
| 30501-028800N | OIL SEAL | 后轮 REAR WHEEL | Enquire | |
| 30903-0403510 | COTTER PIN | 后轮 REAR WHEEL | Enquire | |
| 30503-060000N | O-RING | 后轮 REAR WHEEL | Enquire | |
| 6070-120400 | CLAMP(Φ14.5) | 油箱 FUEL TANK | Enquire | |
| A000-170201 | SEAL RING | 油箱 FUEL TANK | Enquire | |
| 6KJ0-130102 | RUBBER DAMPER | 座垫 SEAT | Enquire | |
| 30102-102035810 | SCREW | 脚蹬 FOOTRES | Enquire | |
| 6KJ0-180302 | RESERVOIR CAP | 冷却系统 COOLING SYSTEM | Enquire | |
| 30601-212530 | CLAMP B12.5 | 冷却系统 COOLING SYSTEM | Enquire | |
| 30601-207050 | CLAMP B7 | 冷却系统 COOLING SYSTEM | Enquire | |
| A000-180400 | WATER FILLING PORT CAP ASSY | 冷却系统 COOLING SYSTEM | Enquire | |
| A000-180006 | CLAMP B30 | 冷却系统 COOLING SYSTEM | Enquire | |
| 30102-060020700 | SCREW | 随车工具 TOOLS | Enquire | |
| 6NTA-201413-10000 | CONNECTING ROD 1 | 随车工具 TOOLS | Enquire | |
| 6NTA-201414-10000 | CONNECTING ROD 2 | 随车工具 TOOLS | Enquire | |
| 30110-420250010 | SELF-TAPPING SCREW | 左边箱 SIDE BOXES,LH | Enquire | |
| 30110-420320010 | SELF-TAPPING SCREW | 左边箱 SIDE BOXES,LH | Enquire | |
| 30102-060040500 | SCREW | 警具 POLICE TOOLS | Enquire | |
| 30102-080040810 | SCREW M8x40 | 警具 POLICE TOOLS | Enquire | |
| 30102-050020810 | SCREW | 警具 POLICE TOOLS | Enquire | |
| 30102-080020810 | SCREW | 警具 POLICE TOOLS | Enquire | |
| 30102-050016810 | SCREW | 警具 POLICE TOOLS | Enquire | |
| 6NT4-259023 | SEALING RING, SIDE BOX | 警具 POLICE TOOLS | Enquire | |
| 30128-050016700 | SCREW M5x16 | 警具 POLICE TOOLS | Enquire | |
| 30102-030010830 | INNER HEX SCREW M3x10 | 警具 POLICE TOOLS | Enquire | |
| 30128-040012830 | SCREW M4x12 | 警具 POLICE TOOLS | Enquire | |
| 30102-040025700 | SCREW M4x25 | 警具 POLICE TOOLS | Enquire | |
| 30503-025800N | O-RING | 警具系统(4G图传设备) PLLICE TOOLS | Enquire | |
| 6NTJ-253036 | MOUNTING BRACKET, 4G NETWORK CAMERA | 警具系统(4G图传设备) PLLICE TOOLS | Enquire | |
| 6NTJ-253037 | MOUNTING BRACKET, 4G NETWORK CAMERA | 警具系统(4G图传设备) PLLICE TOOLS | Enquire | |
| 6NTJ-253034 | SCREW | 警具系统(4G图传设备) PLLICE TOOLS | Enquire | |
| A010-100102 | INNER HEX SCREW M4x8 | 警具系统(电台) POLICE TOOL | Enquire | |
| 6NTG-252800 | ANTENNA CLIP | 警具系统(电台) POLICE TOOL | Enquire | |
| 30601-109010 | CLAMP | 燃油蒸发系统 FUEL VAPORIZATION SYSTEM | Enquire | |
| 30601-108010 | CLAMP | 燃油蒸发系统 FUEL VAPORIZATION SYSTEM | Enquire | |
| 30601-112010 | CLAMP | 燃油蒸发系统 FUEL VAPORIZATION SYSTEM | Enquire | |
| 0700-111002 | SEAL RING | 空滤器组 AIR FILTER | Enquire | |
| 0700-110001 | PLUG,UPPER HOUSING | 空滤器组 AIR FILTER | Enquire | |
| 30601-110010 | CLAMP | 空滤器组 AIR FILTER | Enquire | |
| 0700-111011 | AIR INLET PIPE CLAMP ASSY | 空滤器组 AIR FILTER | Enquire |
Exploded diagrams — Engine
Browse the catalogue interactively
Open Engine in the interactive 2023 春风 公务车 catalogue to drill into diagrams, check availability and add parts to your cart.
