2022 春风 公务车 — Engine parts
CN market223 genuine parts12 diagrams
Subgroups
Crankcase & Crankshaft · 27Cylinder Head & Parts · 25Seals & Gaskets · 42Lubrication System · 2Belt/Chain Drive · 13Engine Hardware · 191
Part numbers
Every genuine engine part fitted to the 2022 春风 公务车. Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|
| A000-020600 | CLAMP 2 | 消声器 MUFFLER | Enquire | |
| 6NT1-000281 | REAR UPPER RUBBER, ENGINE | 发动机安装附件 ENGINE FITTINGS | Enquire | |
| 30102-060012810 | SCREW | 车架 FRAME | Enquire | |
| 30110-481130010 | SELF-TAPPING SCREW | 塑料件1 PLASTICS 1 | Enquire | |
| A000-060002 | CHAIN GUARD SCREW | 塑料件1 PLASTICS 1 | Enquire | |
| 9060-040310 | CLAMP ASSY | 塑料件2 PLASTICS 2 | Enquire | |
| 30110-420160010 | SELF-TAPPING SCREW | 塑料件2 PLASTICS 2 | Enquire | |

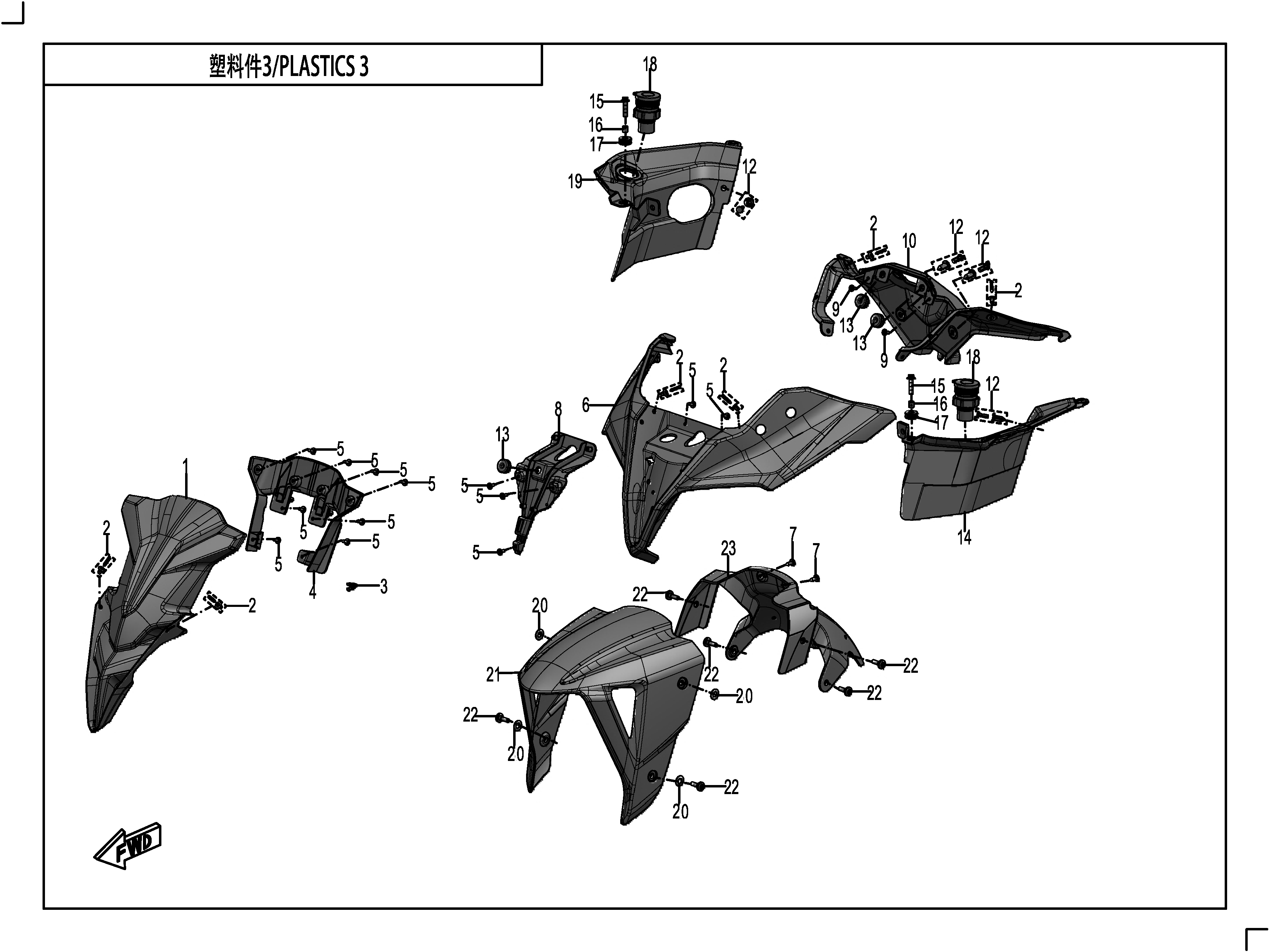

| 8080-041130 | EXPANSION RIVET ASSY | 塑料件3 PLASTICS 3 | Enquire | |
| 30110-421130010 | SELF-TAPPING SCREW | 塑料件3 PLASTICS 3 | Enquire | |

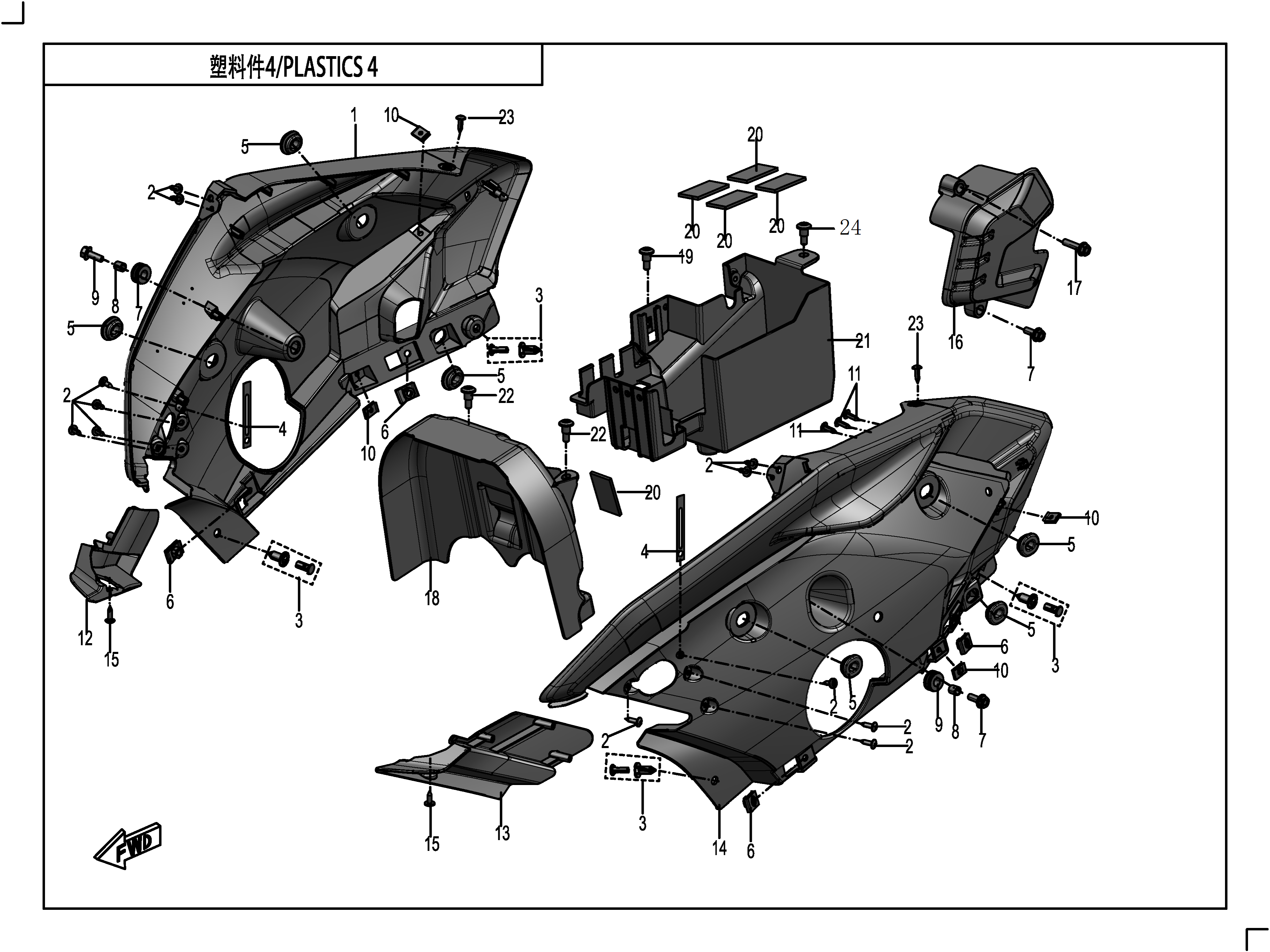

| 6NQ#-000203-6001 | INNER HEX SCREW M6x20 | 塑料件4 PLASTICS 4 | Enquire | |
| 30110-420095010 | SELF-TAPPING SCREW | 塑料件5 PLASTICS 5 | Enquire | |
| A000-050018 | INNER HEX SCREW M8x35 | 前悬架 FRONT SUSPENSION | Enquire | |
| 30500-030800N | OIL SEAL | 后悬架 REAR SUSPENSION | Enquire | |
| 30601-111010 | CLAMP | 油箱 FUEL TANK | Enquire | |

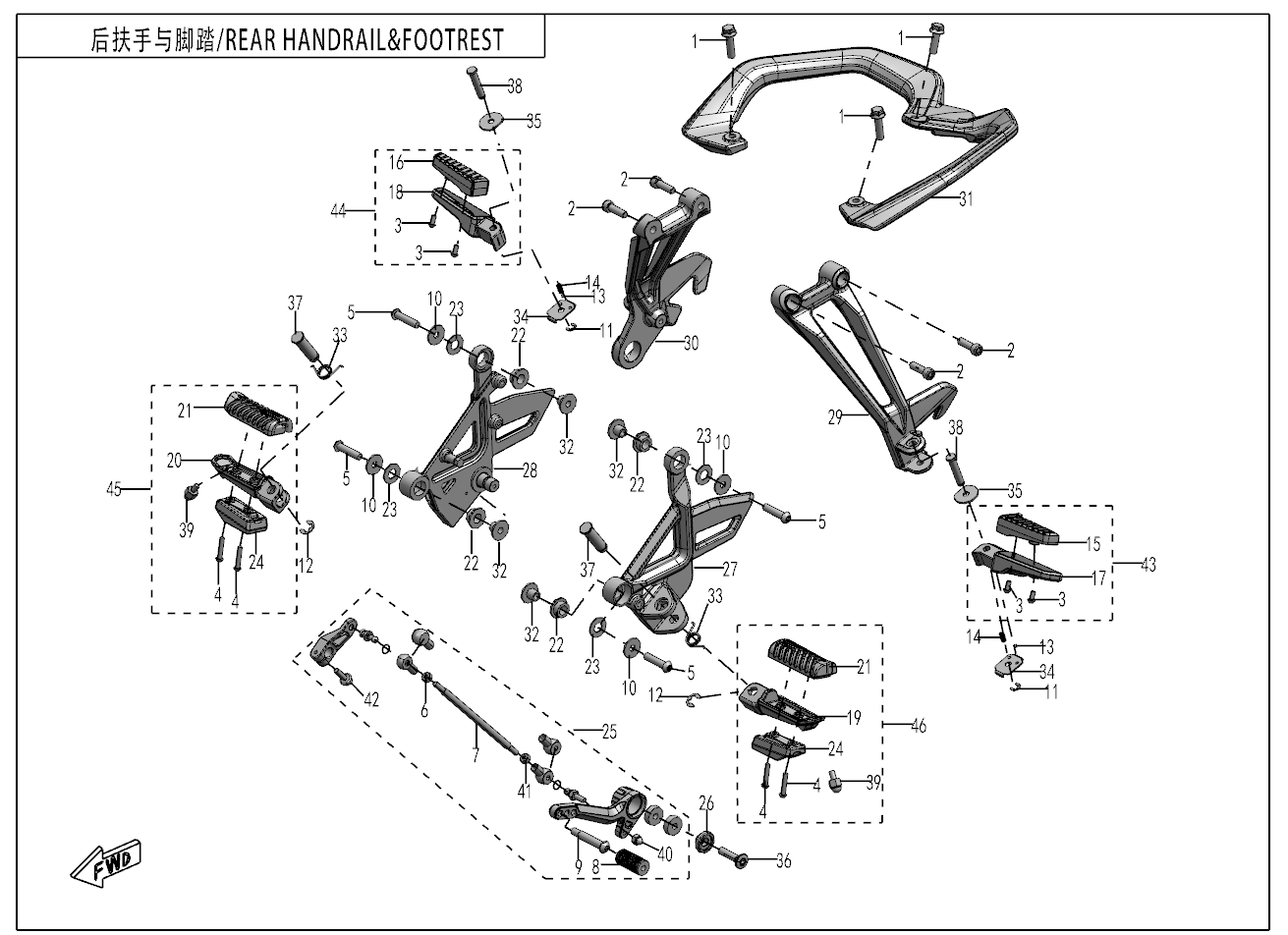

| 30121-080035860 | SCREW | 后扶手与脚蹬 REAR HANDRAIL&FOOTREST | Enquire | |
| 30601-212530 | CLAMP B12.5 | 冷却系统 COOLING SYSTEM | Enquire | |
| 30601-210530 | CLAMP | 冷却系统 COOLING SYSTEM | Enquire | |
| A000-180400 | WATER FILLING PORT CAP ASSY | 冷却系统 COOLING SYSTEM | Enquire | |
| 30102-060025870 | SCREW | 随车工具 TOOLS | Enquire | |
| 6NQ#-200300-6000-23 | DAMPPER PLUG | 随车工具 TOOLS | Enquire | |
| 30601-109010 | CLAMP | 燃油蒸发系统 FUEL EVAPORATION SYSTEM | Enquire | |

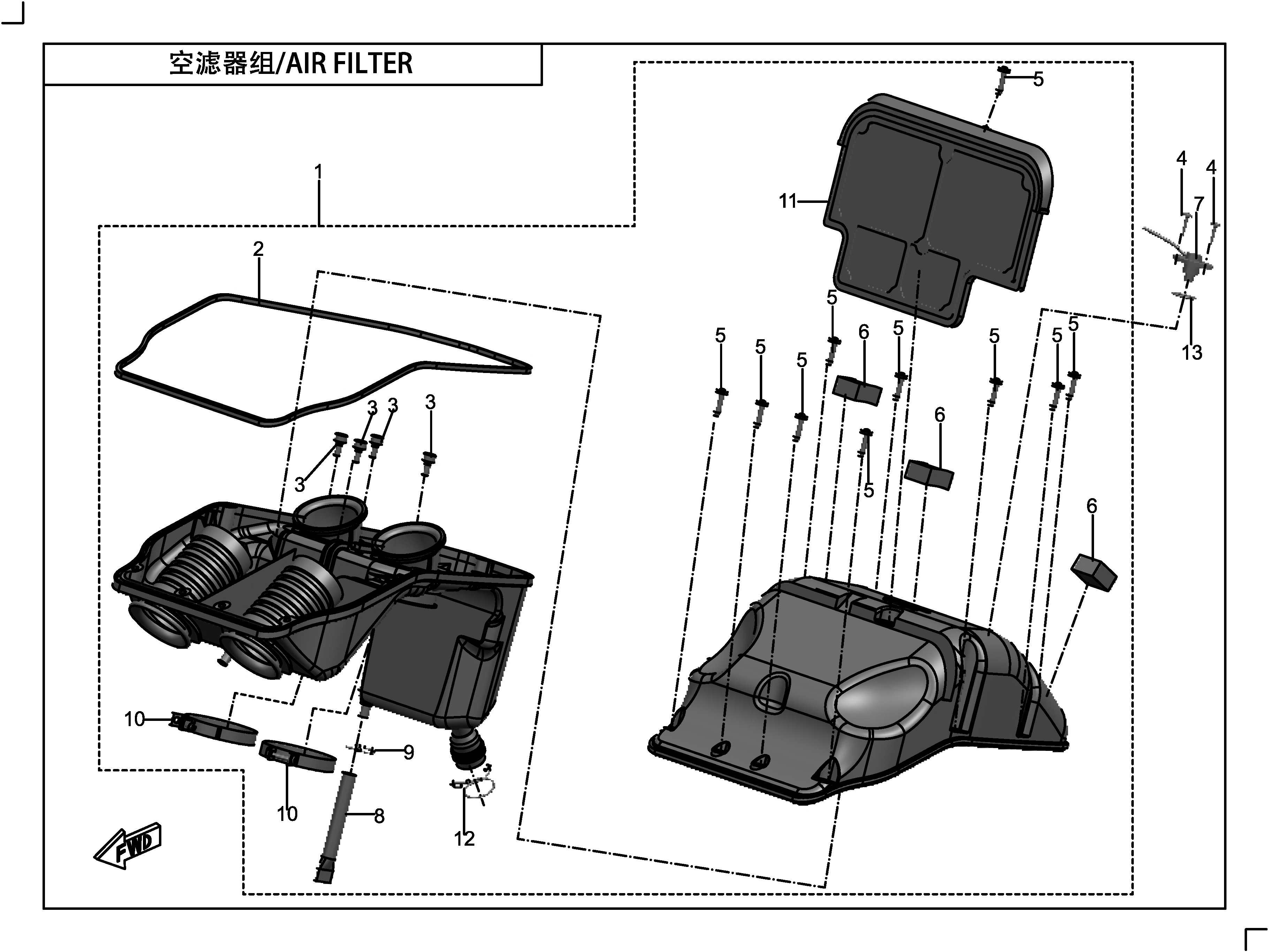

| 30102-060012840 | INNER HEX SCREW | 空滤器组 AIR FILTER | Enquire | |
| 30110-480200040 | SELF-TAPPING SCREW ST4.8x20-F-H | 空滤器组 AIR FILTER | Enquire | |

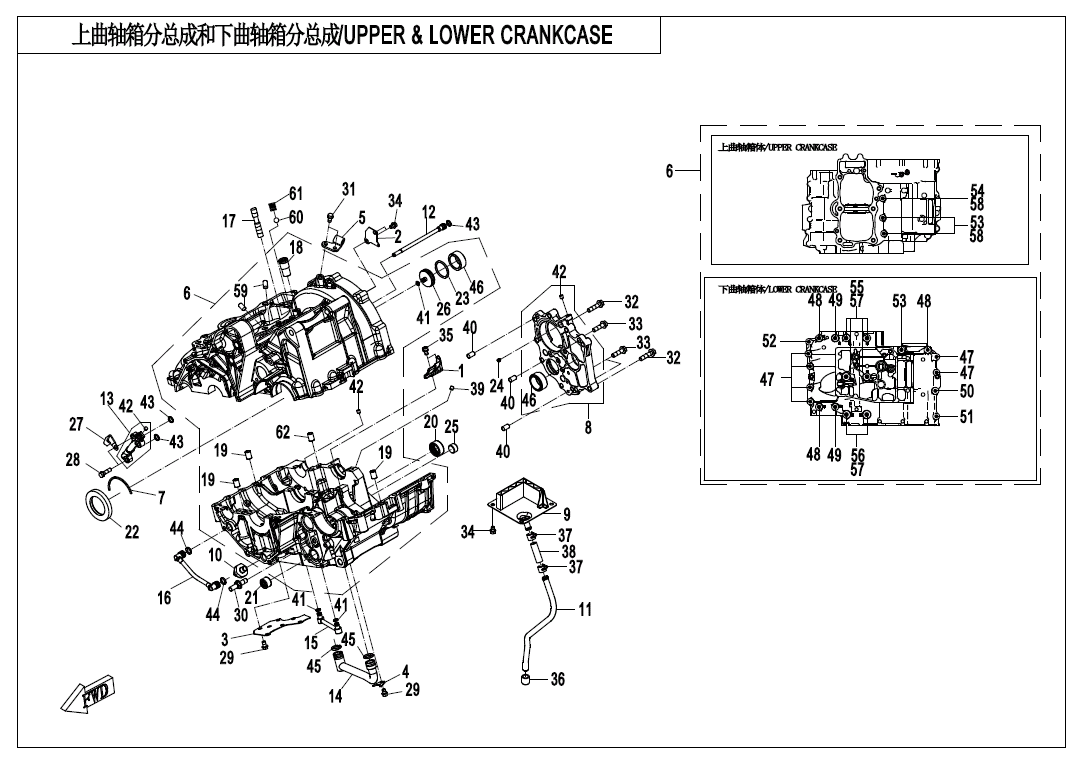

| 30410-01000 | ROLLER 10x14 | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-012105-00001 | PLUG, MAIN OIL RAIL | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0180-014010 | WIRE CLAMP | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0010-021019-0010 | BOLT M6x12 | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-022018 | SOLID PIN 8x14 | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 01A0-056004 | DOWEL PIN Φ6×12 | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0010-023010-0010 | BOLT M6x20 | 右侧盖分总成和左侧盖分总成 RIGHT&LEFT SIDE COVER | Enquire | |
| 0110-013030 | O-RING | 右侧盖分总成和左侧盖分总成 RIGHT&LEFT SIDE COVER | Enquire | |
| 01A0-012003 | O-RING | 右侧盖分总成和左侧盖分总成 RIGHT&LEFT SIDE COVER | Enquire | |
| 0700-013008 | OIL FILLING PLUG | 右侧盖分总成和左侧盖分总成 RIGHT&LEFT SIDE COVER | Enquire | |
| 0010-080008 | DOWEL PIN | 右侧盖分总成和左侧盖分总成 RIGHT&LEFT SIDE COVER | Enquire | |
| 30403-01200 | BEARING | 右侧盖分总成和左侧盖分总成 RIGHT&LEFT SIDE COVER | Enquire | |
| 0700-066005 | PLUG 6 | 右侧盖分总成和左侧盖分总成 RIGHT&LEFT SIDE COVER | Enquire | |
| 0180-023002 | O-SEAL RING | 右侧盖分总成和左侧盖分总成 RIGHT&LEFT SIDE COVER | Enquire | |
| 0700-015001-00001 | OIL PAN | 油底壳分总成 OIL PAN | Enquire | |
| 0010-080010-0010 | BOLT M6x10 | 油底壳分总成 OIL PAN | Enquire | |

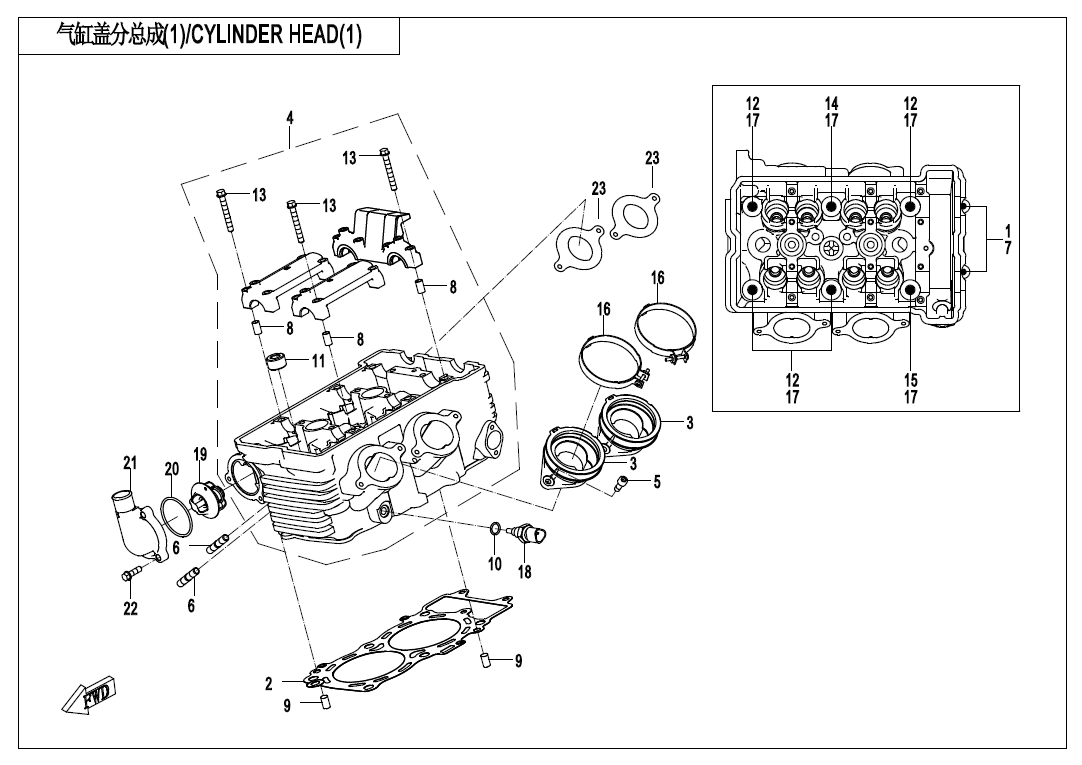

| 0MQ0-022200-0B200 | CYLINDER HEAD ASSY | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0180-022003-00001 | STUD | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-022013-00001 | CYLINDER HEAD BOLT M10x158 | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 018B-022810 | COOLANT TEMP. SENSOR | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0MQ0-022500 | THERMOSTAT | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-022400-1000 | SEAL RING, VALVE STEM | 气缸盖分总成(2) CYLINDER HEAD(2) | Enquire | |
| 0700-023002-0001 | CYLINDER BODY GASKET | 气缸体分总成 CYLINDER BODY | Enquire | |
| 0700-024003 | RETAINER | 配气传动分总成 CAMSHAFT | Enquire | |
| 0060-030003-0030 | INNER HEX BOLT | 磁电机组 MAGNETO ASSY | Enquire | |
| 0700-040001-20000 | BOLT M12x1.25x45 | 磁电机组 MAGNETO ASSY | Enquire | |

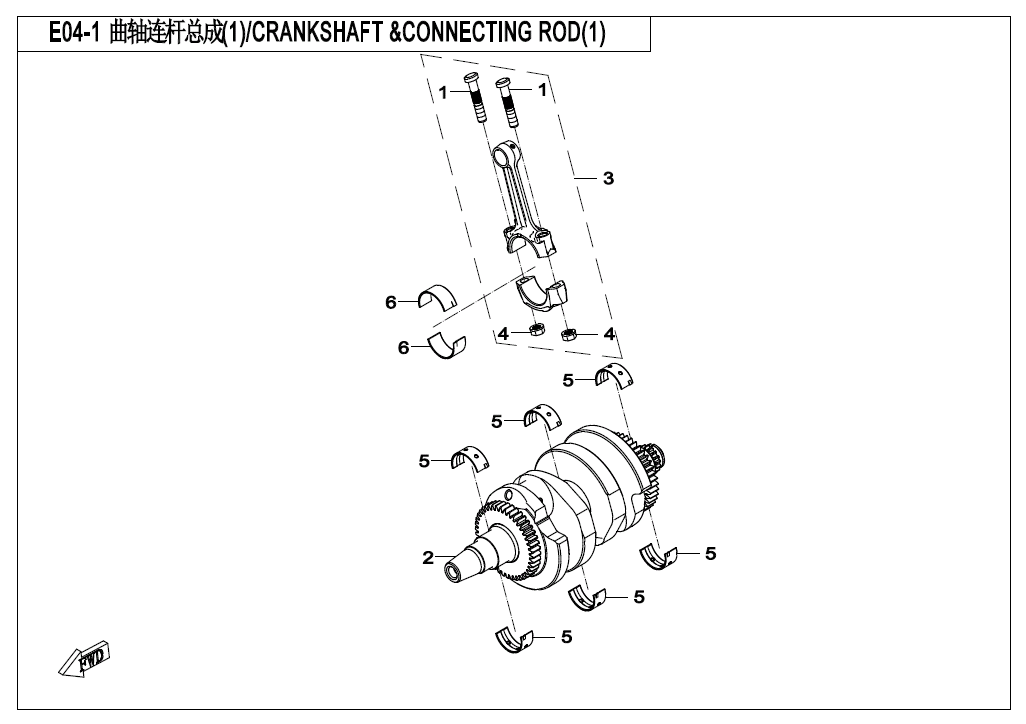

| 0700-011003-00011 | MAIN PLAIN BEARING | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0700-040005-10000 | PULSING ROTOR, CRANKCASE | 曲轴连杆总成(2) CRANKSHAFT&CONNECTING ROD(2) | Enquire | |
| 0180-014009-00001 | SCREW, PRESS PLATE | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 0700-061016 | CIRCLIPS FOR SHAFT20 | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 0700-066002 | BEARING 25x62x17 | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 30499-02004 | NEEDLE BEARING | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 0800-062205 | O-RING | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 0010-021017-0010 | BOLT M6x25 | 润滑系统总成 LUBRICATION SYSTEM | Enquire | |
| 30406-00400 | ROLLER PIN | 润滑系统总成 LUBRICATION SYSTEM | Enquire | |

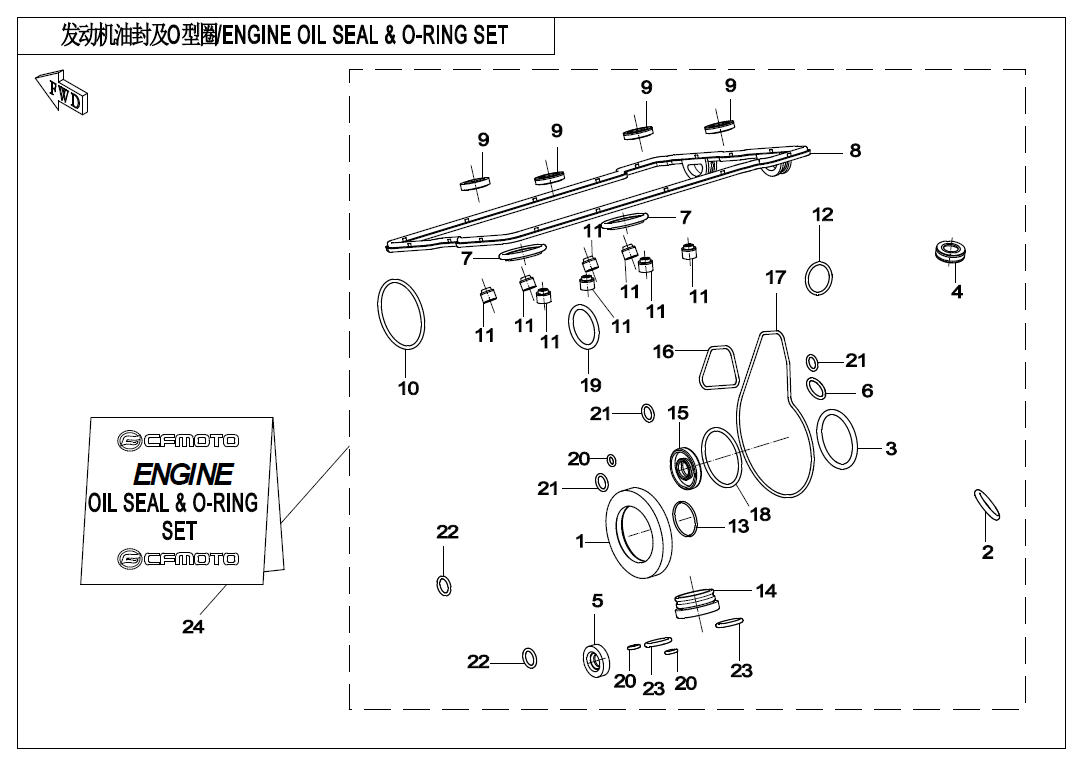

| 0700-021400-00010 | SEAL RING, CYLINDER HEAD COVER | 发动机油封及O型圈 ENGING OILSEAL&O-RING SET | Enquire | |
| 0700-012701 | O-SEAL RING | 发动机油封及O型圈 ENGING OILSEAL&O-RING SET | Enquire | |
| 0700-070003 | O-RING | 发动机油封及O型圈 ENGING OILSEAL&O-RING SET | Enquire | |
| 0700-012500 | SWITCH, OIL PRESSURE | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-011102-00001 | STUD M10x57 | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 30403-02200 | BEARING | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 30403-01300 | BEARING | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-010200 | COUNTERSHAFT OIL SEAL | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-011112 | O-RING | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-066006-00001 | OIL LIMIT PLUG | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-011106 | PLUG, UPPER CRANKCASE | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-066004-00001 | BOLT M7x30 | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-066007-00001 | BOLT M7x26 | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-011105-00001 | BOLT M6x8 | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-012012-00001 | SCREW | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-012012-00002 | SCREW | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 30601-211550 | CLAMP | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-012104-00001 | SCREW PLUG M6, OIL RAIL | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-012201 | O-RING | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-011202 | O-SEAL RING | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-012007-00001 | BOLT M7x40 | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-012004-00001 | BOLT M8x60 | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-012003-00001 | BOLT M8x73 | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-012011-00001 | BOLT M8x50 | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-012009-00001 | BOLT M7x34 | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-012005-00001 | BOLT M7x47 | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-011001-00001 | BOLT | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-011002-00001 | BOLT M8x120 | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-012001 | BOLT M9x113 | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-012008-00001 | BOLT M9x83 | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 3120016 | STEEL BALL | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 30128-060016830 | SCREW | 右侧盖分总成和左侧盖分总成 RIGHT&LEFT SIDE COVER | Enquire | |
| 0700-014003 | WIRE CLIP | 右侧盖分总成和左侧盖分总成 RIGHT&LEFT SIDE COVER | Enquire | |
| 0700-022236 | PLUG, PT1/2 | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-022204 | HEX FLANGE BOLT M6x45 | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-022014-10001 | CYLINDER HEAD BOLT | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-022015-00001 | CYLINDER HEAD BOLT | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-022330 | CLAMP, AIR INLET PIPE | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-022011 | O-RING | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-022009-1B200 | THERMOSTAT CAP | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-023003-00001 | BOLT M8x43 | 气缸体分总成 CYLINDER BODY | Enquire | |
| 0700-023005 | RESTRICTION PLUG | 气缸体分总成 CYLINDER BODY | Enquire | |
| 0700-024200-0001 | TIMING CHAIN | 配气传动分总成 CAMSHAFT | Enquire | |
| 30406-00501 | ROLLER NEEDLE P5x7.8 | 配气传动分总成 CAMSHAFT | Enquire | |
| 0700-061003 | CIRCLIP 20 | 离合器总成 CLUTCH | Enquire | |
| 0700-066010-00001 | SCREW, BEARING PLATE | 换档变速总成(1) TRANSMISSION SYSTEM(1) | Enquire | |
| 30400-02504 | BEARING | 换档变速总成(1) TRANSMISSION SYSTEM(1) | Enquire | |
| 0700-061009 | CIRCLIPS FOR SHAFT28 | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 0700-010100 | BEARING 25x62x17, COUNTERSHAFT | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 0700-070002-00001 | SCREW M6x9 | 润滑系统总成 LUBRICATION SYSTEM | Enquire | |
| 0700-024001 | O-RING | 发动机油封及O型圈 ENGING OILSEAL&O-RING SET | Enquire | |
| 30001-102110110 | BOLT | 发动机安装附件 ENGINE FITTINGS | Enquire | |
| 6NQ#-000205-6001 | CHAIN GUARD SCREW | 消声器 MUFFLER | Enquire | |
| 6NTG-200424 | INNER HEX SCREW M6x25 | 塑料件1 PLASTICS 1 | Enquire | |
| 30110-420250010 | SELF-TAPPING SCREW | 塑料件4 PLASTICS 4 | Enquire | |
| 30006-060030870 | BOLT | 塑料件4 PLASTICS 4 | Enquire | |
| 6NQ#-000206-6001 | INNER HEX SCREW M6x16 | 后悬架 REAR SUSPENSION | Enquire | |
| 0060-111015 | O-SEAL RING | 空滤器组 AIR FILTER | Enquire | |
| 6NQJ-250027 | FOAM MAT 2 | 警具(灭火器) POLICE TOOLS | Enquire | |
| 6NQJ-220103 | MAT 2 | 警具(深圳交警铁眼2.0) POLICE TOOLS | Enquire | |
| 0700-011104 | BREATHER GUARD | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-010001 | RING 62, BEARING | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-0660A0 | GEARSHIFT COVER ASSY | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0700-011410 | BREATHER ASSY | 上曲轴箱分总成和下曲轴箱分总成 UPPER&LOWER CRANKCASE | Enquire | |
| 0010-080009 | OIL SEAL | 右侧盖分总成和左侧盖分总成 RIGHT&LEFT SIDE COVER | Enquire | |
| 0700-065220 | OIL SEAL | 右侧盖分总成和左侧盖分总成 RIGHT&LEFT SIDE COVER | Enquire | |
| 01A0-013005 | O-SEAL RING | 右侧盖分总成和左侧盖分总成 RIGHT&LEFT SIDE COVER | Enquire | |
| 0700-013003-10000 | HOLE CAP, TIMING INSPECTION | 右侧盖分总成和左侧盖分总成 RIGHT&LEFT SIDE COVER | Enquire | |
| 0700-015002 | OIL STRAINER | 油底壳分总成 OIL PAN | Enquire | |
| 0700-015006 | DRAIN BOLT, M12x22 | 油底壳分总成 OIL PAN | Enquire | |

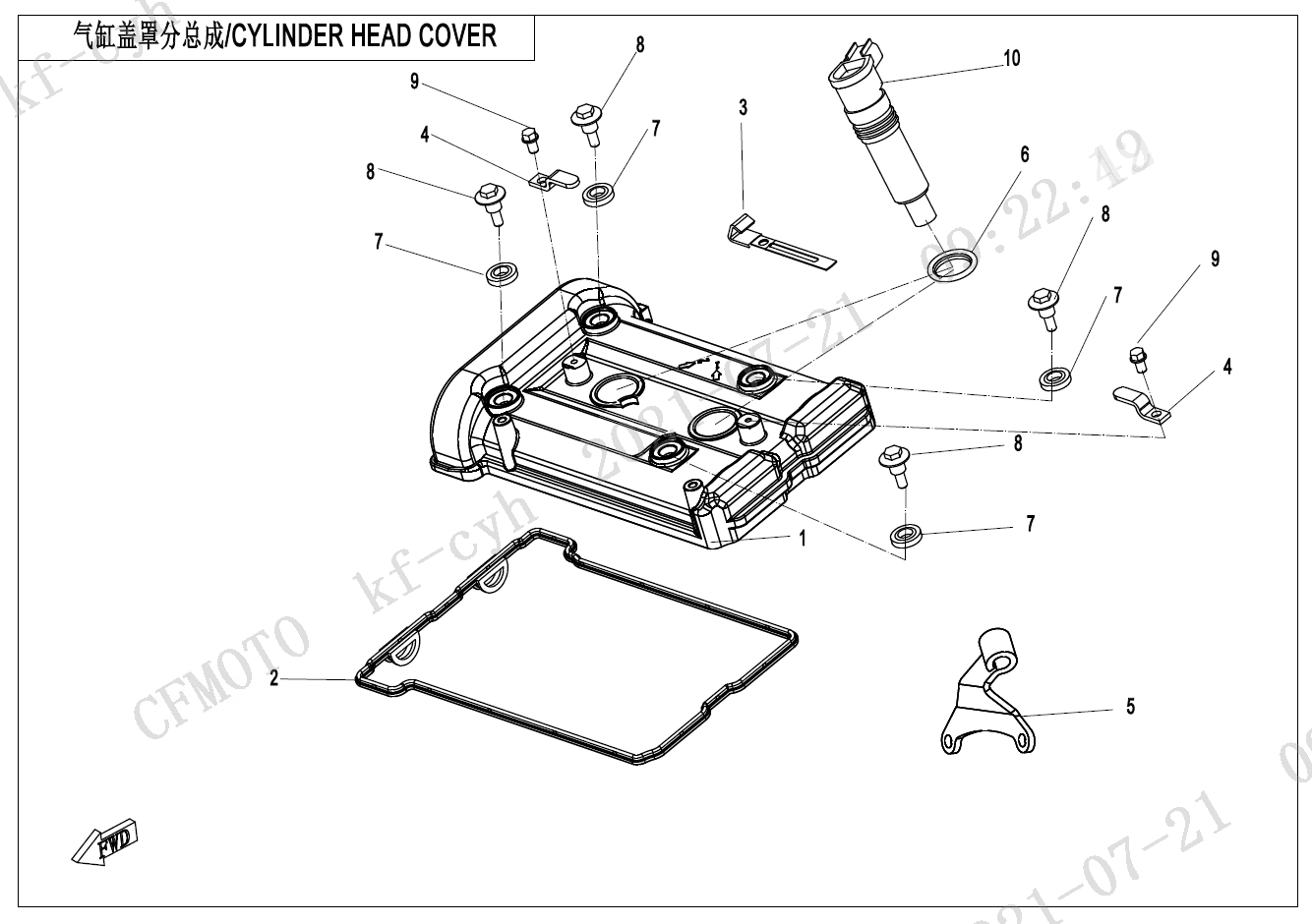

| 0700-021001-3B201 | CYLINDER HEAD COVER | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0700-021400 | CYLINDER HEAD COVER SEAL RING | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0700-021002 | BRACKET, CLUTCH CABLE | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0700-021300 | SPARK PLUG HOLE SEAL RING | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0700-021200 | CYLINDER HEAD COVER BOLT SEAL RING | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0700-021003-00001 | CYLINDER HEAD COVER BOLT | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0HU0-022002 | INNER HEX SCREW M6x30 | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0MQ0-022100 | CYLINDER HEAD GASKET ASSY | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 30102-060016810 | SCREW | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-022004 | LOCK CLIP, VALVE | 气缸盖分总成(2) CYLINDER HEAD(2) | Enquire | |
| 0700-024002-0001 | TIMING SPROCKET | 配气传动分总成 CAMSHAFT | Enquire | |
| 30004-060010150 | BOLT M6x10 | 配气传动分总成 CAMSHAFT | Enquire | |
| 0700-041203-10000 | CONNECTING ROD BOLT | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0700-041204 | NUT, CONNECTING ROD | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0700-011003-00021 | MAIN PLAIN BEARING | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0700-041001-30010 | CONNECTING ROD PLAIN BEARING | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0700-041001-30020 | CONNECTING ROD PLAIN BEARING | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0700-041001-30030 | CONNECTING ROD PLAIN BEARING | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0700-041001-30040 | CONNECTING ROD PLAIN BEARING | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0700-041001-30050 | CONNECTING ROD PLAIN BEARING | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0700-170200 | SPARK PLUG | 曲轴连杆总成(2) CRANKSHAFT&CONNECTING ROD(2) | Enquire | |
| 0700-040003-00001 | BOLT M8x23 | 曲轴连杆总成(2) CRANKSHAFT&CONNECTING ROD(2) | Enquire | |
| 30801-03005 | CIRCLIP30 S=1.5 | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 0MQ0-173100 | IDLE STEPPING MOTOR | 节气门阀体和喷油器 THROTTLE&INJECTOR | Enquire | |
| 6NT1-000210-0BB00 | FRONT BRACKET, ENGINE | 发动机安装附件 ENGINE FITTINGS | Enquire | |
| 6NT1-000221 | FRONT RH BUSHING, ENGINE | 发动机安装附件 ENGINE FITTINGS | Enquire | |
| 6NT1-000282 | REAR UPPER RUBBER BUSHING, ENGINE | 发动机安装附件 ENGINE FITTINGS | Enquire | |
| 6NT1-000291 | REAR LOWER THREAD SLEEVE, ENGINE | 发动机安装附件 ENGINE FITTINGS | Enquire | |
| 30102-050008900 | INNER HEX SCREW | 锁具 LOCK KIT | Enquire | |
| 30102-050025900 | INNER HEX SCREW | 锁具 LOCK KIT | Enquire | |
| CFCV-CAC002-2000-M1 | CLIP | 锁具 LOCK KIT | Enquire | |
| 30102-050012810 | SCREW | 锁具 LOCK KIT | Enquire | |
| A000-020500 | CLAMP ASSY 1 | 消声器 MUFFLER | Enquire | |
| A000-040702 | INNER HEX SCREW M6x12 | 车架 FRAME | Enquire | |
| A000-030001 | LH CLAMP, MAIN CABLE | 车架 FRAME | Enquire | |
| 30110-480160010 | SELF-TAPPING SCREW | 塑料件3 PLASTICS 3 | Enquire | |
| 30102-080030860 | SCREW | 前悬架 FRONT SUSPENSION | Enquire | |
| 6NTA-050003 | LOCK SCREW, UPPER TRIPLE CLAMP | 前悬架 FRONT SUSPENSION | Enquire | |
| A000-050100-10000 | STEERING BEARING ASSY | 前悬架 FRONT SUSPENSION | Enquire | |
| A000-0501A0 | STEERING BEARING ASSY | 前悬架 FRONT SUSPENSION | Enquire | |
| A000-050011 | RUBBER PLUG 2 | 前悬架 FRONT SUSPENSION | Enquire | |
| 30403-02800 | NEEDLE BEARING | 后悬架 REAR SUSPENSION | Enquire | |
| 30400-02004 | BEARING | 后悬架 REAR SUSPENSION | Enquire | |
| 30800-04205 | CIRCLIP FOR HOLE 42 | 后悬架 REAR SUSPENSION | Enquire | |
| 30501-030800N | OIL SEAL | 前轮 FRONT WHEEL | Enquire | |
| 30102-060075870 | SCREW | 转向系统 STEERING SYSTEM | Enquire | |
| A000-100002 | CLUTCH CABLE CLIP | 转向系统 STEERING SYSTEM | Enquire | |
| 30020-102025410 | STUD | 后轮 REAR WHEEL | Enquire | |
| 30501-035800N | OIL SEAL | 后轮 REAR WHEEL | Enquire | |
| 30800-05205 | CIRCLIP FOR HOLE | 后轮 REAR WHEEL | Enquire | |
| 30501-028800N | OIL SEAL | 后轮 REAR WHEEL | Enquire | |
| 30903-0403510 | COTTER PIN | 后轮 REAR WHEEL | Enquire | |
| 30503-060800N | O-RING 60x3.10 | 后轮 REAR WHEEL | Enquire | |
| 6070-120400 | CLAMP(Φ14.5) | 油箱 FUEL TANK | Enquire | |
| A000-170201 | SEAL RING | 油箱 FUEL TANK | Enquire | |
| 30102-080025810 | SCREW | 后扶手与脚蹬 REAR HANDRAIL&FOOTREST | Enquire | |
| 30105-050014410 | SCREW | 后扶手与脚蹬 REAR HANDRAIL&FOOTREST | Enquire | |
| 30105-050025410 | SCREW | 后扶手与脚蹬 REAR HANDRAIL&FOOTREST | Enquire | |
| 0700-065404 | FOOT PEDAL RUBBER SLEEVE | 后扶手与脚蹬 REAR HANDRAIL&FOOTREST | Enquire | |
| 30802-00605 | SPLIT WASHER | 后扶手与脚蹬 REAR HANDRAIL&FOOTREST | Enquire | |
| 30802-00905 | SPLIT WASHER 9 | 后扶手与脚蹬 REAR HANDRAIL&FOOTREST | Enquire | |
| 6NQ0-140001 | PIN Dia 12, FRONT FOOTREST | 后扶手与脚蹬 REAR HANDRAIL&FOOTREST | Enquire | |
| 30118-420095010 | SELF-TAPPING SCREW | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 6KJ0-180302 | RESERVOIR CAP | 冷却系统 COOLING SYSTEM | Enquire | |
| 6NQJ-250026 | FOAM MAT 1 | 警具(灭火器) POLICE TOOLS | Enquire | |
| 30112-060012430 | SCREW ASSY | 冷却系统 COOLING SYSTEM | Enquire | |
| A000-180006 | CLAMP B30 | 冷却系统 COOLING SYSTEM | Enquire | |
| 30601-207050 | CLAMP B7 | 冷却系统 COOLING SYSTEM | Enquire | |
| 30102-080030810 | SCREW | 警具 POLICE TOOLS | Enquire | |
| A000-040703 | INNER HEX SCREW | 警具 POLICE TOOLS | Enquire | |
| 30102-080020810 | SCREW | 警具 POLICE TOOLS | Enquire | |
| 30102-060040500 | SCREW | 警具 POLICE TOOLS | Enquire | |
| 30107-080018410 | SCREW | 警具(保险杠、左右边箱、边箱支架) POLICE TOOLS | Enquire | |
| 6NT4-259023 | SEALING RING, SIDE BOX | 警具(保险杠、左右边箱、边箱支架) POLICE TOOLS | Enquire | |
| 30102-080070810 | SCREW | 警具(保险杠、左右边箱、边箱支架) POLICE TOOLS | Enquire | |
| 30102-080035810 | SCREW | 警具(保险杠、左右边箱、边箱支架) POLICE TOOLS | Enquire | |
| 30102-060030810 | SCREW | 警具(保险杠、左右边箱、边箱支架) POLICE TOOLS | Enquire | |
| 6NTJ-250100-10000 | STRAPPING TAPE ASSY I | 警具(灭火器) POLICE TOOLS | Enquire | |
| 6NQJ-256204 | SEAL RING, SIDE BOX | 警具(双路4G图传设备+边箱) POLICE TOOLS | Enquire | |
| 6NQJ-220104 | LOWER MAT | 警具(双路4G图传设备+边箱) POLICE TOOLS | Enquire | |
| 6NQJ-220102 | MAT I | 警具(双路4G图传设备+边箱) POLICE TOOLS | Enquire | |
| 30105-060010440 | SCREW M6x10 | 警具(双路4G图传设备+边箱) POLICE TOOLS | Enquire | |
| 30110-420130040 | SELF-TAPPING SCREW | 警具(单路4G视屏图传) POLICE TOOLS | Enquire | |
| 30102-040016700 | SCREW M4x16 | 警具(单路4G视屏图传) POLICE TOOLS | Enquire | |
| 30105-040016410 | SCREW | 警具系统(尾箱组合) POLICE TOOLS | Enquire | |
| 30107-050012410 | SCREW | 警具系统(尾箱组合) POLICE TOOLS | Enquire | |
| 30006-060035810 | BOLT | 警具系统(尾箱组合) POLICE TOOLS | Enquire | |
| 6NQ3-250025-0B200 | CUSHION BLOCK, CAMERA | 警具系统(智慧铁骑套件) | Enquire | |
| 30601-108010 | CLAMP | 燃油蒸发系统 FUEL EVAPORATION SYSTEM | Enquire | |
| 30601-112010 | CLAMP | 燃油蒸发系统 FUEL EVAPORATION SYSTEM | Enquire | |
| 0700-111002 | SEAL RING | 空滤器组 AIR FILTER | Enquire | |
| 0700-110001 | PLUG,UPPER HOUSING | 空滤器组 AIR FILTER | Enquire | |
| 30601-110030 | CLAMP | 空滤器组 AIR FILTER | Enquire | |
| 0700-111011 | AIR INLET PIPE CLAMP ASSY | 空滤器组 AIR FILTER | Enquire | |
| 30601-124020 | CLAMP | 空滤器组 AIR FILTER | Enquire |
Exploded diagrams — Engine
Browse the catalogue interactively
Open Engine in the interactive 2022 春风 公务车 catalogue to drill into diagrams, check availability and add parts to your cart.
