2023 春风 SR 450SR-S 单摇臂 — Filters parts
CN market9 genuine parts6 diagrams
Subgroups
Part numbers
Every genuine filters part fitted to the 2023 春风 SR 450SR-S 单摇臂. Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|
| 9060-180029 | RADIATOR SLEEVE TUBE | 车架-1 FRAME-1 | Enquire | |
| 0SQV-072001-1000 | OIL COOLER WATER OUTLET PIPE | 润滑系统总成 LUBRICATION SYSTEM | Enquire | |
| 0SQV-072002-1000 | WATER INLET PIPE, OIL COOLER | 润滑系统总成 LUBRICATION SYSTEM | Enquire | |

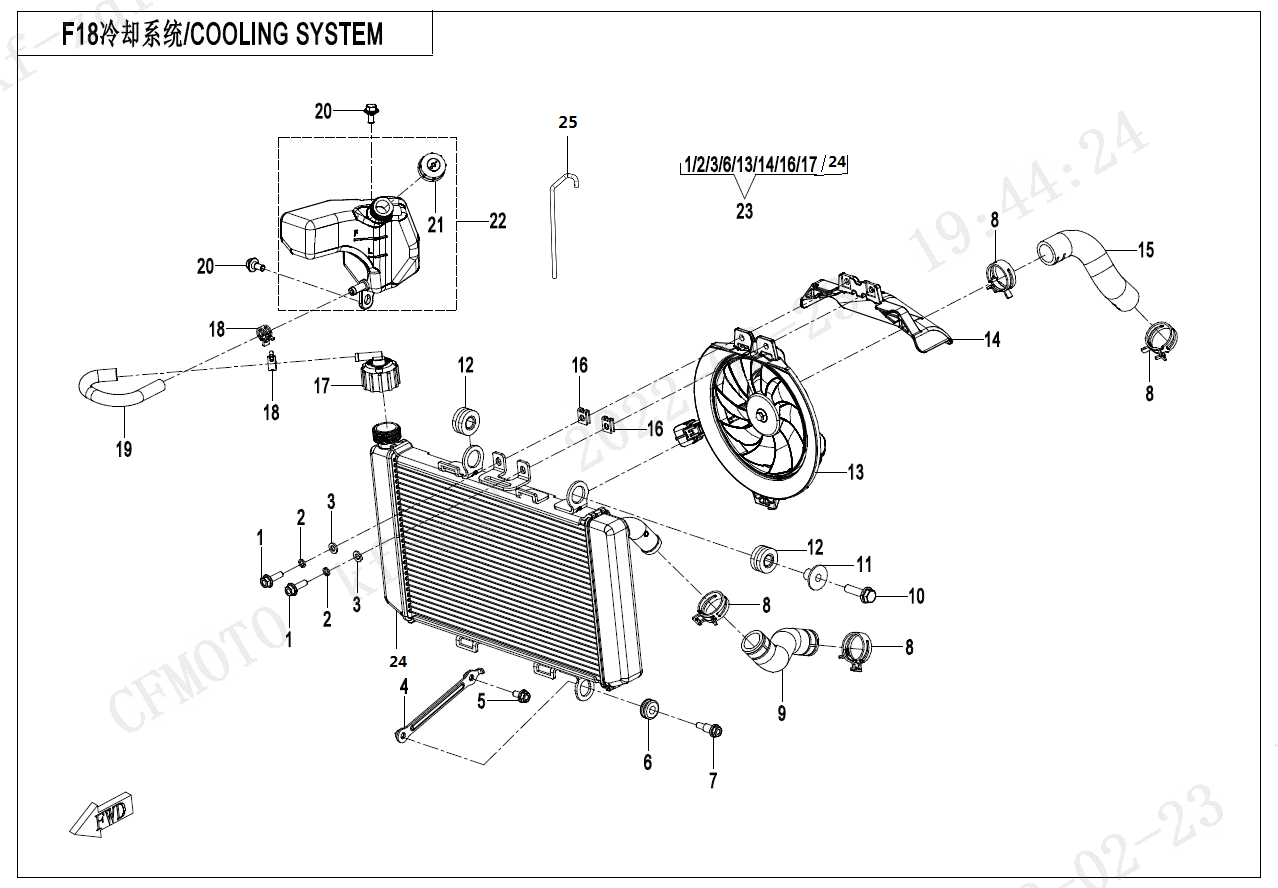

| 6AQV-180003-1000 | RESERVOIR CONNECTING PIPE | 冷却系统 COOLING SYSTEM | Enquire | |

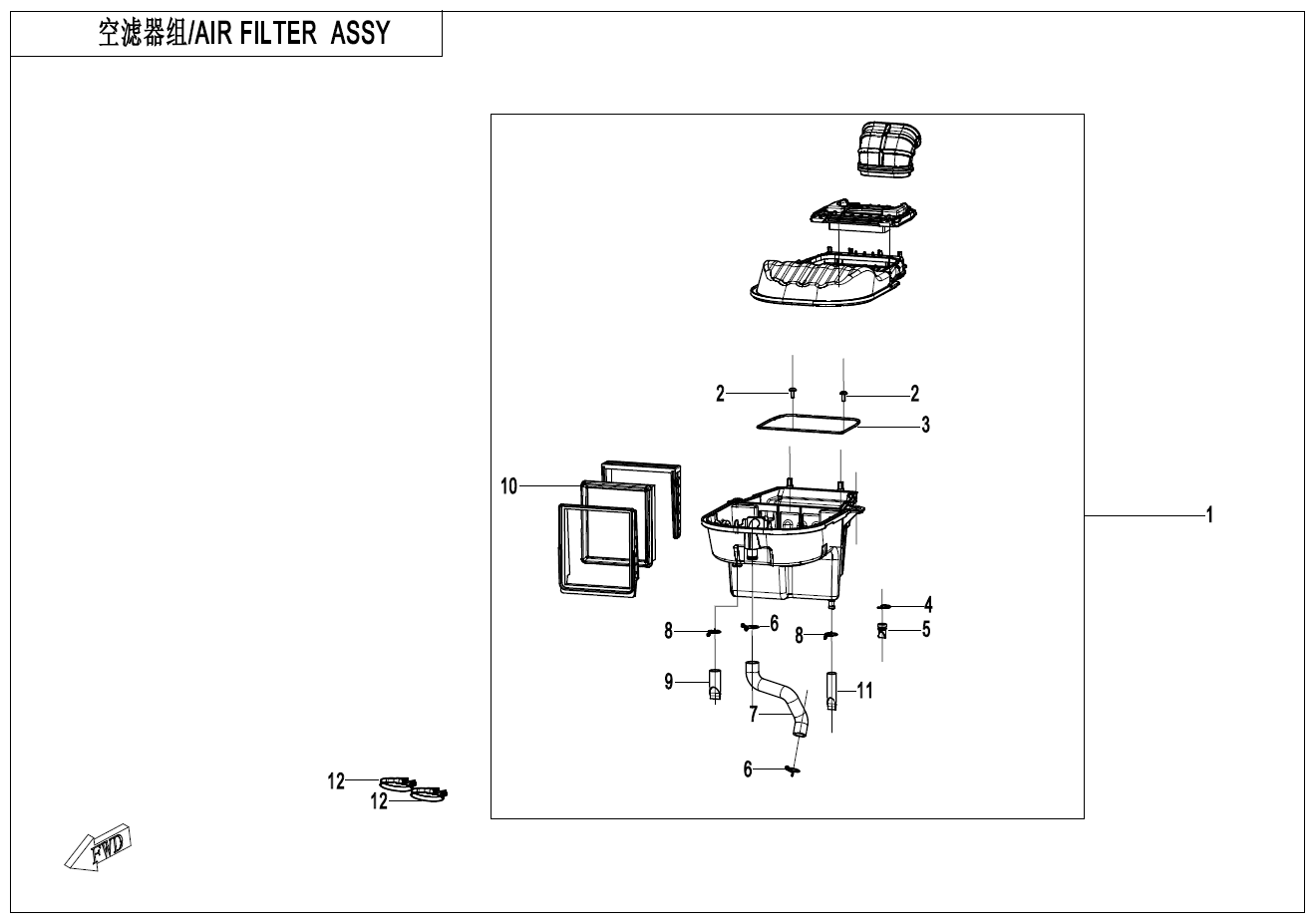

| 0SQV-110000-1001 | AIR FILTER ASSY | 空滤器组 AIR FILTER ASSY | Enquire | |

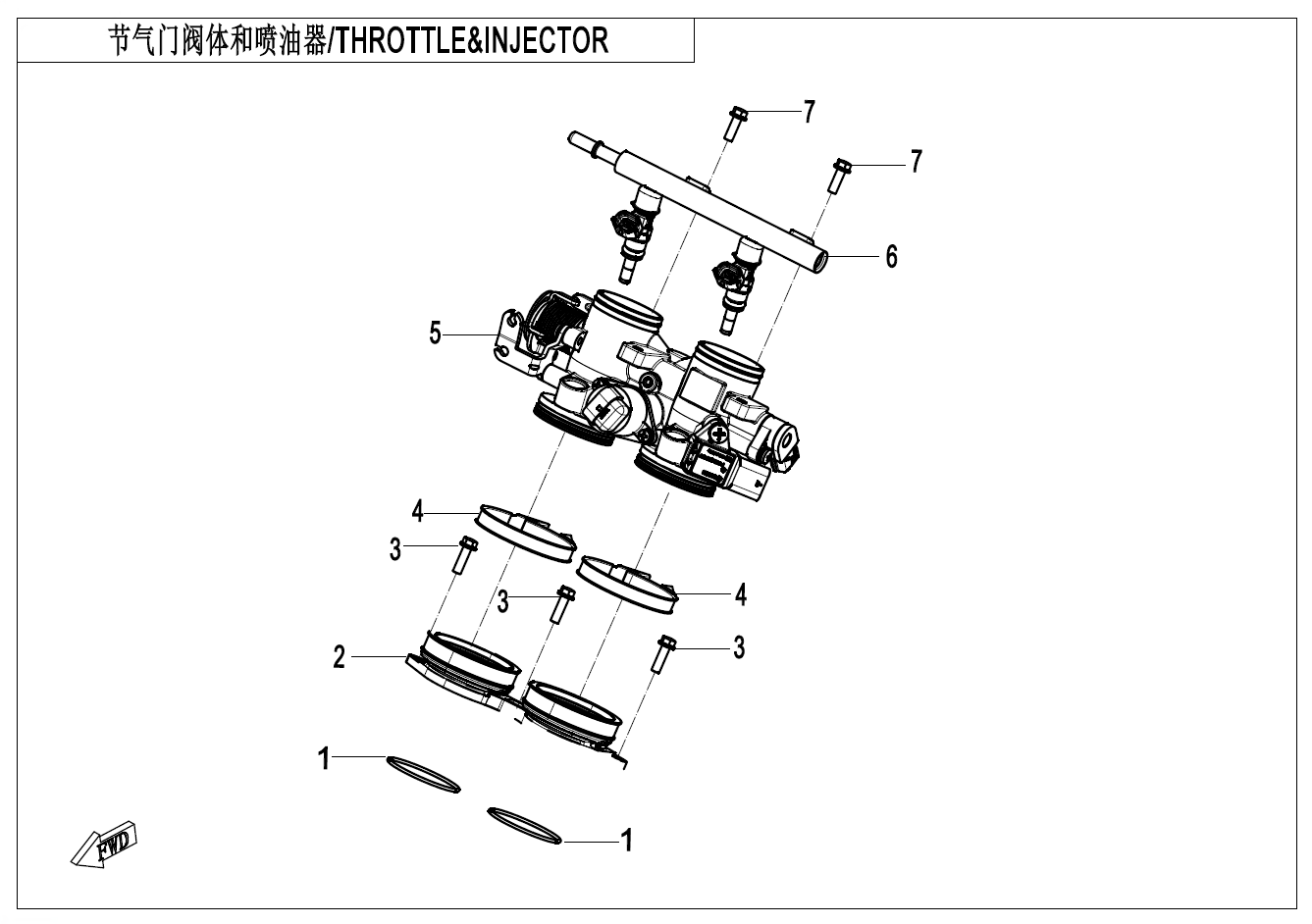

| 0SQV-173200-1001 | FUEL INJECTOR ASSY | 节气门阀体和喷油器 THROTTLE&INJECTOR | Enquire | |

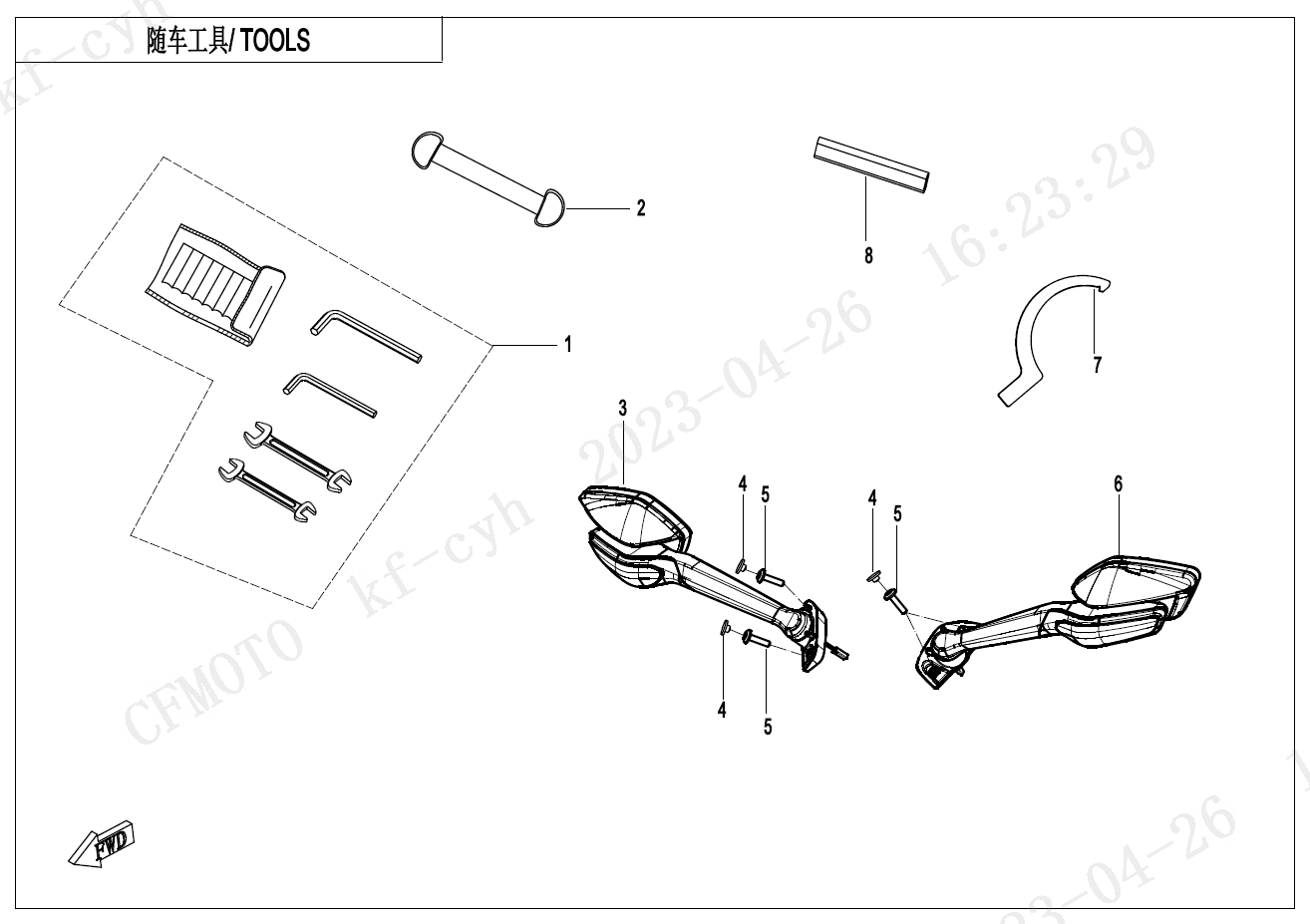

| 6KMV-203002-2000-M1 | PIPE | 随车工具 TOOLS | Enquire | |
| 0SQV-112000-1000 | FILTER ELEMENT | 空滤器组 AIR FILTER ASSY | Enquire | |
| 0SQV-110000-1000-21 | VALVE | 空滤器组 AIR FILTER ASSY | Enquire |
Exploded diagrams — Filters
Browse the catalogue interactively
Open Filters in the interactive 2023 春风 SR 450SR-S 单摇臂 catalogue to drill into diagrams, check availability and add parts to your cart.
