2024 春风 MT 450MT — Engine parts
CN market200 genuine parts12 diagrams
Subgroups
Crankcase & Crankshaft · 40Cylinder Head & Parts · 16Seals & Gaskets · 25Lubrication System · 4Belt/Chain Drive · 11Engine Hardware · 153
Part numbers
Every genuine engine part fitted to the 2024 春风 MT 450MT. Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|
| 6WWV-046702-5000 | INNER HEX SCREW M6x12 | 消声器 MUFFLER | Enquire | |
| 30110-421130010 | SELF-TAPPING SCREW | 塑料件1 PLASTICS 1 | Enquire | |
| 30102-080020810 | SCREW | 锁具 LOCK KIT | Enquire | |
| CFCV-CAC002-2000-M1 | CLIP | 锁具 LOCK KIT | Enquire | |
| 6AQV-021500-1000 | CLAMP KIT | 消声器 MUFFLER | Enquire | |
| 6WWV-046802-5000 | INNER HEX SCREW M6x16 | 消声器 MUFFLER | Enquire | |
| 6WWV-047102-5000 | INNER HEX SCREW M5x14 | 前支架 FRONT BRACKET | Enquire | |
| 6WWV-046602-5000 | INNER HEX STEPPED SCREW M6x14 | 塑料件1 PLASTICS 1 | Enquire | |
| 30110-481130010 | SELF-TAPPING SCREW | 塑料件1 PLASTICS 1 | Enquire | |
| 9060-040310 | CLAMP ASSY | 塑料件1 PLASTICS 1 | Enquire | |
| 30110-480160070 | SELF-TAPPING SCREW | 塑料件2 PLASTICS 2 | Enquire | |
| 6WWV-046502-5000 | STEPPED SCREW M5 | 塑料件4 PLASTICS 4 | Enquire | |
| 30110-420130070 | SELF-TAPPING SCREW | 塑料件4 PLASTICS 4 | Enquire | |
| 8080-041130 | EXPANSION RIVET ASSY | 塑料件5 PLASTICS 5 | Enquire | |
| 30102-080025810 | SCREW | 前悬架(春风蓝) FRONT SUSPENSION(ZEPHYR BLUE) | Enquire | |
| 6L30-050002 | LOCK SCREW, UPPER TRIPLE CLAMP | 前悬架(春风蓝) FRONT SUSPENSION(ZEPHYR BLUE) | Enquire | |
| 6L30-050200 | STEERING BEARING ASSY | 前悬架(春风蓝) FRONT SUSPENSION(ZEPHYR BLUE) | Enquire | |
| 6WWV-050011-5000 | INNER HEX SCREW M8x30 | 前悬架(几何灰) FRONT SUSPENSION(TUNDRA GREY) | Enquire | |
| 6WWV-060030-5000-10 | OIL SEAL | 后悬架 REAR SUSPENSION | Enquire | |
| 6NT1-060003 | DUST CAP, SMALL | 后悬架 REAR SUSPENSION | Enquire | |
| 30105-040030410 | SCREW | 转向系统 STEERING SYSTEM | Enquire | |
| 6WWV-050009-5000 | SCREW M8x25 | 转向系统 STEERING SYSTEM | Enquire | |
| 30601-111010 | CLAMP | 油箱 FUEL TANK | Enquire | |
| 30006-060035810 | BOLT | 油箱 FUEL TANK | Enquire | |
| CFCV-CBC005-2000-M1 | CLIP | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 0SQV-022008-1000 | CYLINDER HEAD BOLT | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 6GU#-150001-6000-M1 | CLASP | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 30601-229060 | CLAMP | 冷却系统 COOLING SYSTEM | Enquire | |
| 30601-212570 | CLAMP | 冷却系统 COOLING SYSTEM | Enquire | |
| 6AQV-180110-4000 | RESERVOIR COVER ASSY | 冷却系统 COOLING SYSTEM | Enquire | |
| 6GUV-181010-6001 | WATER FILLING PORT CAP ASSY | 冷却系统 COOLING SYSTEM | Enquire | |

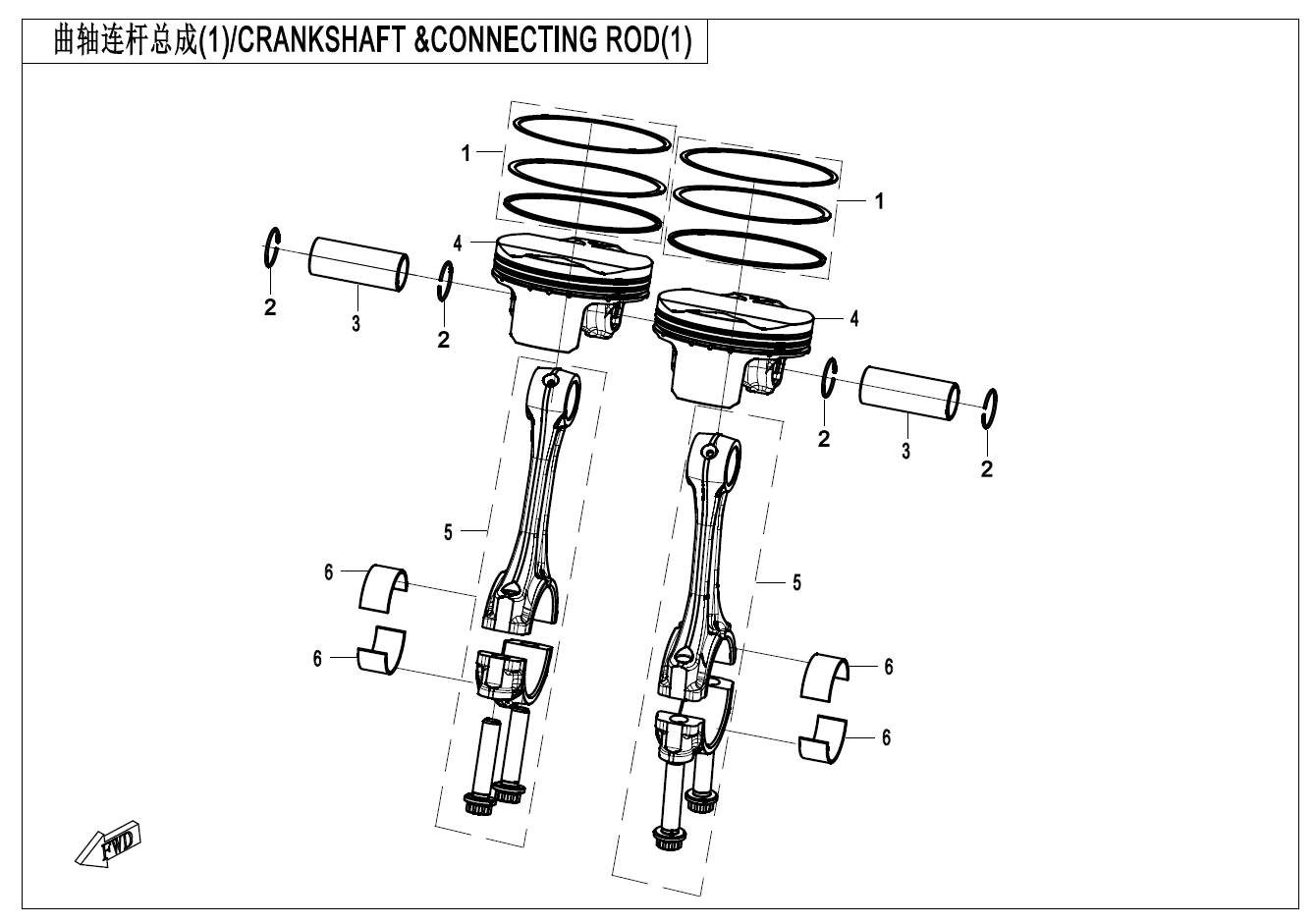

| 0110-040006-0050 | CIRCLIP, PISTON PIN | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 30601-109010 | CLAMP | 燃油蒸发系统 FUEL VAPORIZATION SYSTEM | Enquire | |
| 30601-110010 | CLAMP | 燃油蒸发系统 FUEL VAPORIZATION SYSTEM | Enquire | |
| 30601-112010 | CLAMP | 燃油蒸发系统 FUEL VAPORIZATION SYSTEM | Enquire | |
| 0SQV-110000-5000-21 | SEAL RING | 空滤器组 AIR FILTER ASSY | Enquire | |

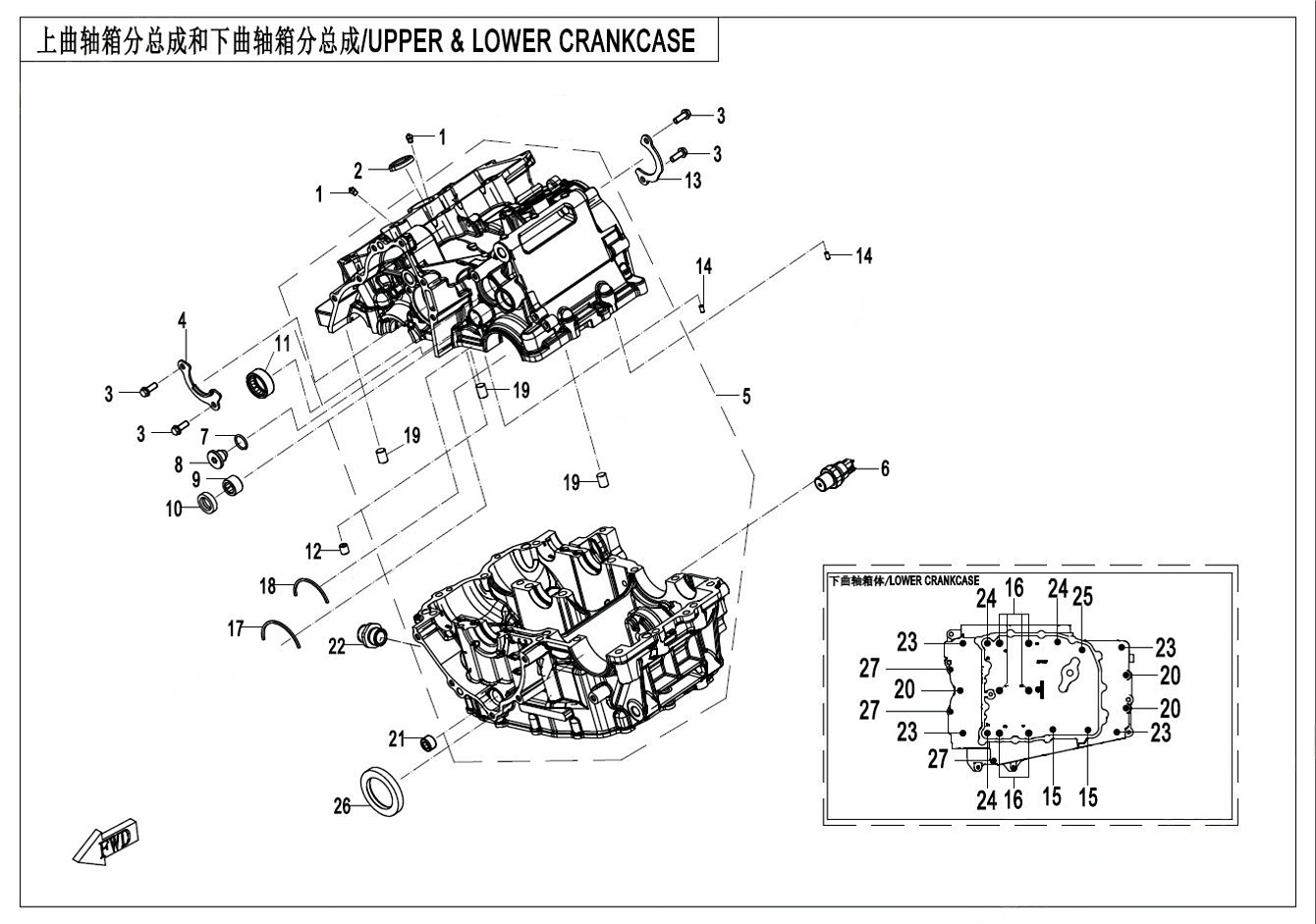

| 0SQV-011102-1000 | OIL NOZZLE | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-012400-1000 | OIL PRESSURE SWITCH | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-011103-1000 | RESTRICTION PLUG | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-011004-1000 | BEARING RETAINER | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-012600-1000 | BOLT ASSY | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-010001-1001 | COUNTERSHAFT OIL SEAL 40x58x8 | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0700-013008 | OIL FILLING PLUG | 左&右侧盖组 LEFT& RIGHT SIDE COVER | Enquire | |
| 0110-013030 | O-RING | 左&右侧盖组 LEFT& RIGHT SIDE COVER | Enquire | |
| 01A0-012003 | O-RING | 左&右侧盖组 LEFT& RIGHT SIDE COVER | Enquire | |
| 0SQV-022011-1000 | BOLT | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0010-022020-00002 | BOLT | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 018B-022810 | COOLANT TEMP. SENSOR | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0180-022003-00001 | STUD | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-021200 | CYLINDER HEAD COVER BOLT SEAL RING | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0DM0-022008-00001 | CYLINDER HEAD DAMPING BOLT | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |

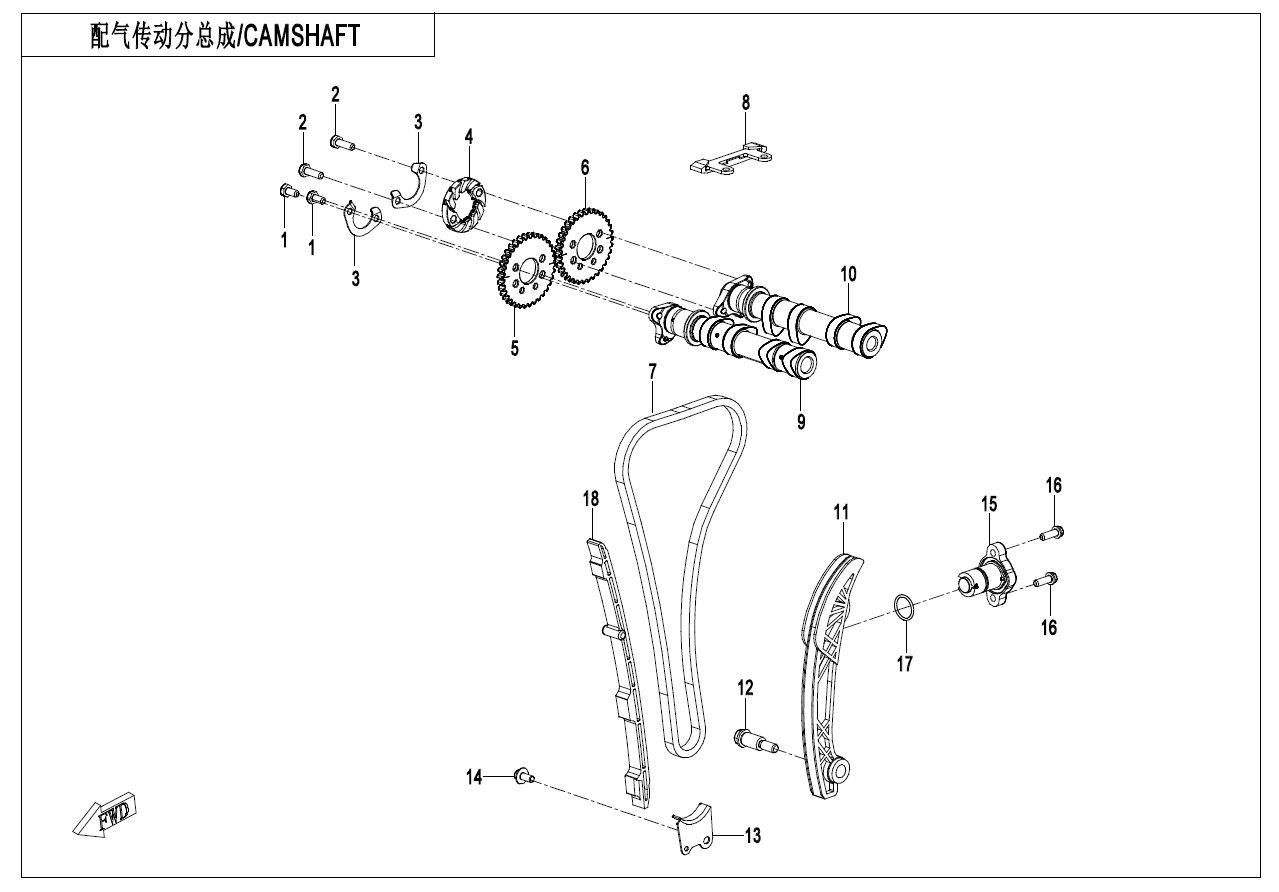

| 0SQV-024002-1000 | AIR OUTLET TIMING SPROCKET | 配气传动分总成 CAMSHAFT | Enquire | |
| 0SQV-024001-1000 | AIR INLET TIMING SPROCKET | 配气传动分总成 CAMSHAFT | Enquire | |
| 0010-023010-0010 | BOLT M6x20 | 配气传动分总成 CAMSHAFT | Enquire | |
| 0SQV-024401-1000 | HYDRAULIC TENSIONER SEAL RING | 配气传动分总成 CAMSHAFT | Enquire | |
| 0SQV-024003-1001 | CHAIN GUIDE | 配气传动分总成 CAMSHAFT | Enquire | |
| 0010-030002-00001 | BOLT | 磁电机总成 MAGNETO | Enquire | |
| 0SQV-040008-1000 | PISTON PIN | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0SQV-042000-1001-Q0-00001 | CONNECTING ROD | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0SQV-042000-1001-Q0-00002 | CONNECTING ROD | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0SQV-040009-1000-Q0-00001 | CONNECTING ROD BEARING | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |

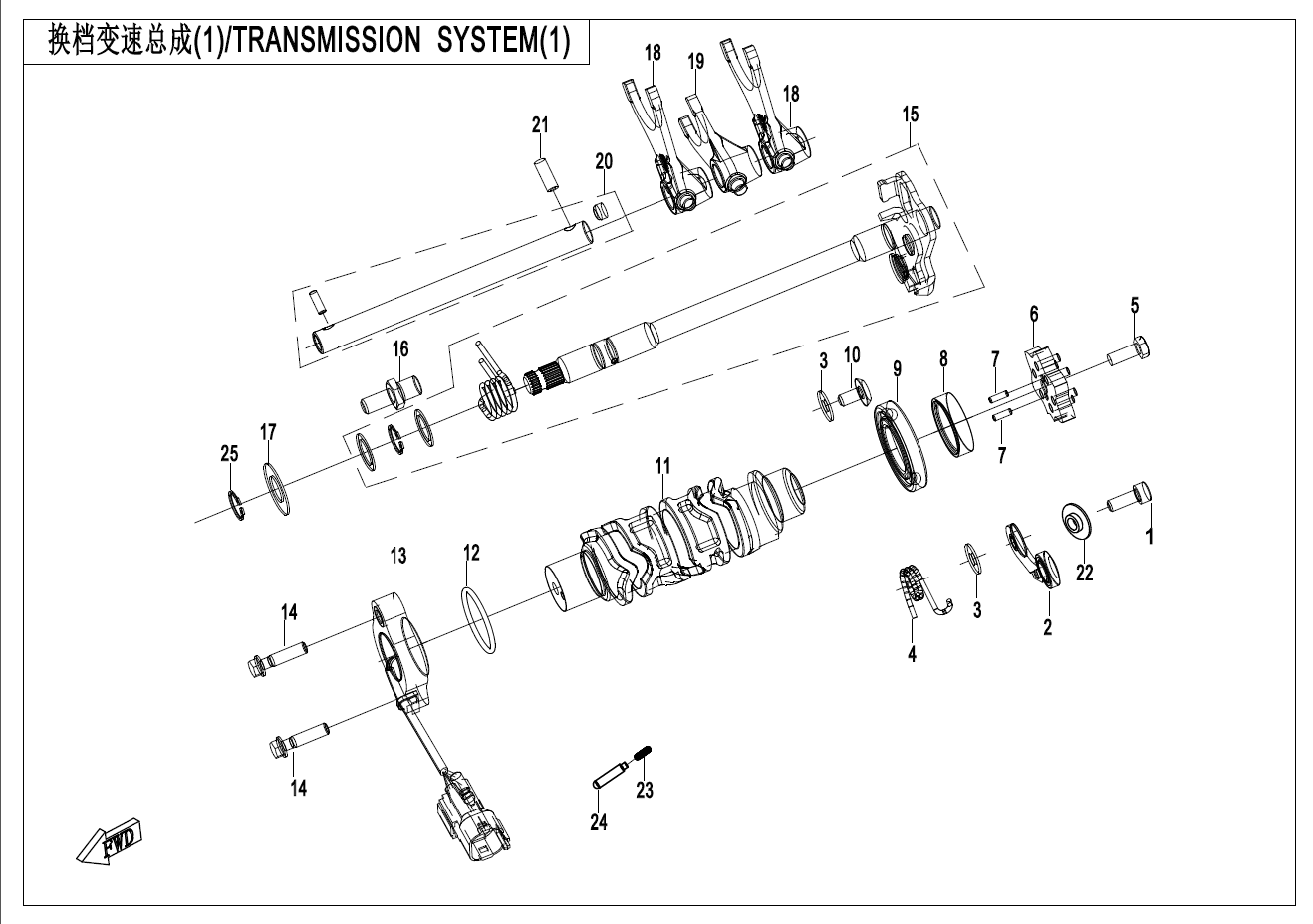

| 30102-060016810 | SCREW | 换档变速总成(1) TRANSMISSION SYSTEM(1) | Enquire | |

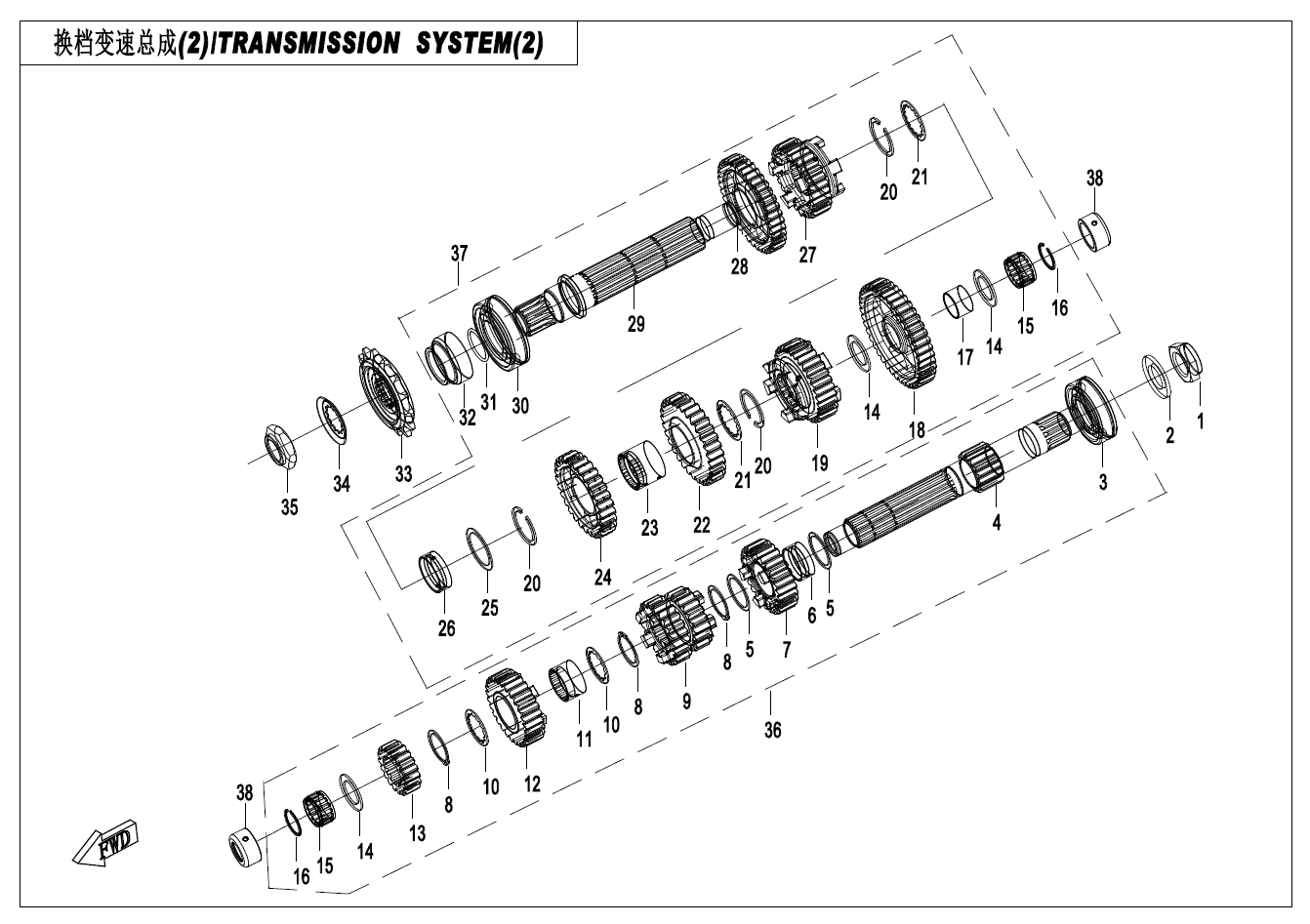

| 0SQV-061012-1000 | BEARING, MAIN SHAFT | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 30499-02004 | NEEDLE BEARING | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 0700-061016 | CIRCLIPS FOR SHAFT20 | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 0SQV-062003-1000 | 62x28 | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 0SQV-060011-1000 | BEARING SLEEVE | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 30801-01100 | CIRCLIPS FOR SHAFT | 机油泵总成 OIL PUMP | Enquire | |
| 0SQV-072003-1000 | OIL COOLER SEAL RING | 机油泵总成 OIL PUMP | Enquire | |
| 0010-021017-0010 | BOLT M6x25 | 起动系统总成 STARTING SYSTEM | Enquire | |
| 0SQV-011002-1000-Q0-00001 | BALANCER SHAFT BEARING | 平衡轴总成 BALANCER SHAFT | Enquire | |
| 0SQV-011002-1000-Q0-00002 | BALANCER SHAFT BEARING | 平衡轴总成 BALANCER SHAFT | Enquire | |
| 0MQ0-173100 | IDLE STEPPING MOTOR | 节气门阀体和喷油器 THROTTLE&INJECTOR | Enquire | |
| 1F30-011600 | OIL SEAL | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 30403-02500 | NEEDLE BEARING | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-011106-1000 | RH BEARING PLATE | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-011003-1000 | BEARING RETAINER | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-012002-1000 | BOLT | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-012500-1000 | BOLT ASSY | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-022200-1000 | CONNECTOR ASSY | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 1F30-024016 | SURFACE OIL SEAL | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0SQV-022001-1000-10-0HB00 | THERMOSTAT CAP | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0SQV-022100-1005-0HB00 | CYLINDER HEAD ASSY | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0SQV-022100-1006-0HB00 | CYLINDER HEAD ASSY | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-012105-00001 | PLUG, MAIN OIL RAIL | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-066005 | PLUG 6 | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0SQV-024500-2000 | AIR INTAKE CAMSHAFT ASSY | 配气传动分总成 CAMSHAFT | Enquire | |
| 0SQV-024008-1000 | TIMING CHAIN PLATE | 配气传动分总成 CAMSHAFT | Enquire | |
| 0010-021019-0010 | BOLT M6x12 | 配气传动分总成 CAMSHAFT | Enquire | |
| 0SQV-024400-1001 | HYDRAULIC TENSIONOR ASSY | 配气传动分总成 CAMSHAFT | Enquire | |
| 0SQV-042000-1002-Q0-00001 | CONNECTING ROD ASSY | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0SQV-042000-1002-Q0-00002 | CONNECTING ROD ASSY | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |

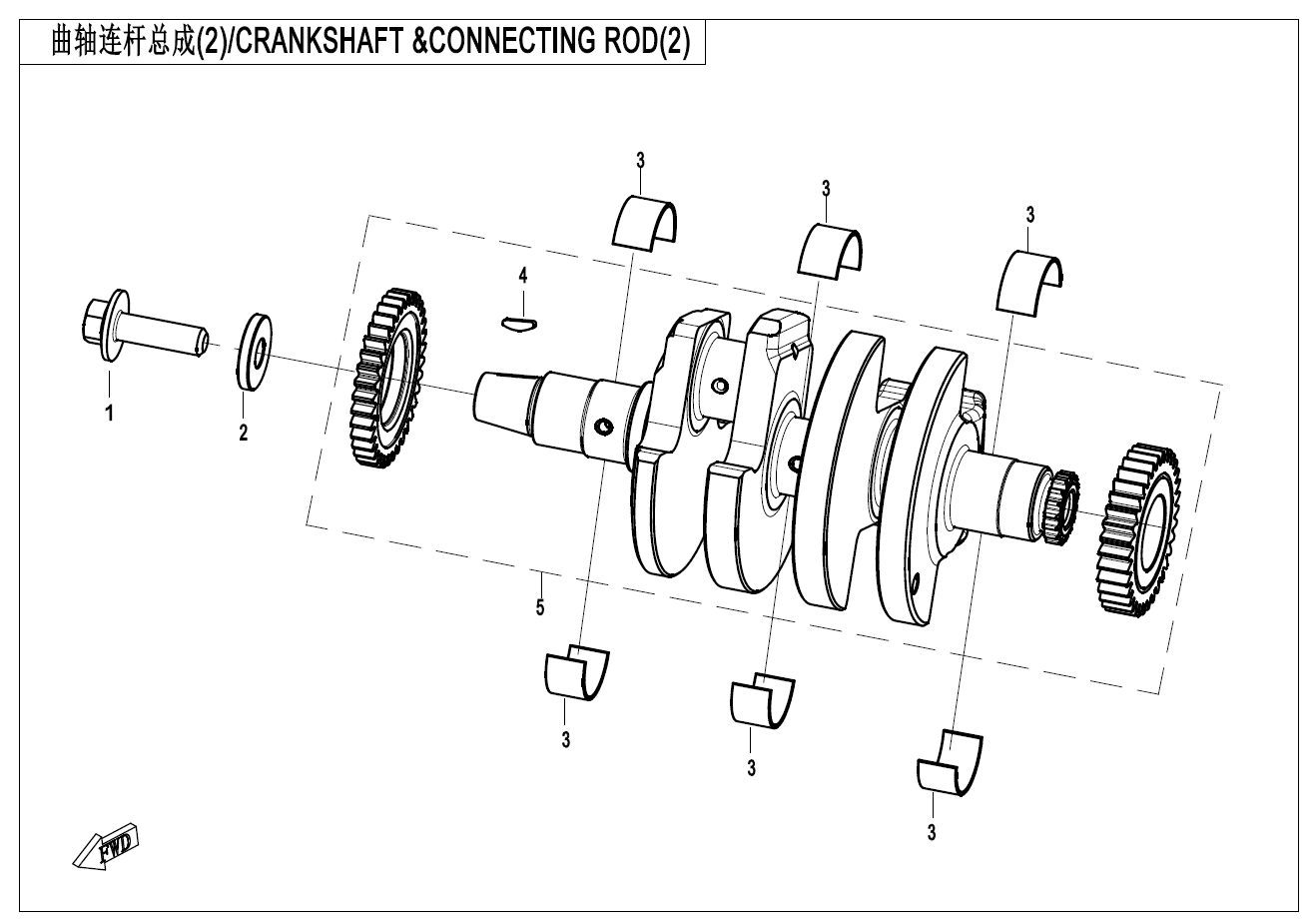

| 0180-040007 | WOODRUFF KEY | 曲轴连杆总成(2) CRANKSHAFT &CONNECTING ROD(2) | Enquire | |
| 0SQV-041000-1000-Q0-00001 | CRANKSHAFT ASSY | 曲轴连杆总成(2) CRANKSHAFT &CONNECTING ROD(2) | Enquire | |
| 0SQV-041000-1000-Q0-00002 | CRANKSHAFT ASSY | 曲轴连杆总成(2) CRANKSHAFT &CONNECTING ROD(2) | Enquire | |
| 0SQV-041000-1000-Q1-00001 | CRANKSHAFT ASSY | 曲轴连杆总成(2) CRANKSHAFT &CONNECTING ROD(2) | Enquire | |
| 0SQV-041000-1000-Q1-00002 | CRANKSHAFT ASSY | 曲轴连杆总成(2) CRANKSHAFT &CONNECTING ROD(2) | Enquire | |
| 0700-061003 | CIRCLIP 20 | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 30801-02805 | CIRCLIPS FOR SHAFT 28 | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 6AQV-020022-6000 | SCREW | 消声器 MUFFLER | Enquire | |
| 6AQV-030007-6000 | INNER HEX SCREW M10×30 | 主车架(低挡泥板) MAIN FRAME(LOW FENDER) | Enquire | |
| 6WWV-047002-5000 | INNER HEX SCREW M6x25 | 塑料件3(低挡泥板) PLASTICS 3(LOW FENDER) | Enquire | |
| 6AQV-050300-6000 | LOWER TRIPLE CLAMP ASSY | 前悬架(春风蓝) FRONT SUSPENSION(ZEPHYR BLUE) | Enquire | |
| 6AQV-070109-6000-22 | SCREW | 前轮 FRONT WHEEL | Enquire | |
| 6AQV-070104-6000-20 | OIL SEAL | 前轮 FRONT WHEEL | Enquire | |
| 30121-080035860 | SCREW | 制动系统 BRAKE SYSTEM | Enquire | |
| 0SQV-110000-5000-23 | CLAMP | 空滤器组 AIR FILTER ASSY | Enquire | |
| 0SQV-110000-5000-24 | CLAMP | 空滤器组 AIR FILTER ASSY | Enquire | |
| 0SQV-011104-1000 | FILLER SEAL RING | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-011105-1000 | LH BEARING PLATE | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-01FZ01-1003-0HB00 | CRANKCASE ASSY | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-011107-1000 | O-RING | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 30403-01400 | NEEDLE BEARING | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 1F30-011600-10000 | OIL SEAL | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-012700-1000 | BOLT ASSY | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-012200-1000 | BOLT ASSY | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 30410-01000 | ROLLER 10x14 | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-012003-1000 | BOLT | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0700-012106-00002 | OIL FILTER BOLT | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0700-012201 | O-RING | 左&右侧盖组 LEFT& RIGHT SIDE COVER | Enquire | |
| 0SQV-013001-1000 | RETAINER | 左&右侧盖组 LEFT& RIGHT SIDE COVER | Enquire | |
| 30403-01200 | BEARING | 左&右侧盖组 LEFT& RIGHT SIDE COVER | Enquire | |
| 0010-080009 | OIL SEAL | 左&右侧盖组 LEFT& RIGHT SIDE COVER | Enquire | |
| 0180-014010 | WIRE CLAMP | 左&右侧盖组 LEFT& RIGHT SIDE COVER | Enquire | |
| 0DM0-011006 | O-RING | 左&右侧盖组 LEFT& RIGHT SIDE COVER | Enquire | |
| 0SQV-015001-1001-0HB00 | OIL PAN | 油底壳 OIL PAN | Enquire | |
| 0180-011500 | MAGNETIC DRAIN BOLT | 油底壳 OIL PAN | Enquire | |
| 0700-021003-00001 | CYLINDER HEAD COVER BOLT | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0SQV-021010-1001-0BP00 | CYLINDER HEAD COVER ASSY | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0SQV-021002-1000 | CYLINDER HEAD COVER SEAL RING | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0HU0-021002-00001 | GULP PIN | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0SQV-170200-1000 | SPARK PLUG ASSY | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0SQV-022105-1000 | BOLT | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0SQV-022106-1001 | HEX FLANGE BOLT | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0DM0-022201-10000 | DOWEL PIN | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0MQ0-022500 | THERMOSTAT | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0SQV-022002-1000 | THERMOSTAT CAP SEAL RING | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-022004 | LOCK CLIP, VALVE | 气缸盖分总成(2) CYLINDER HEAD(2) | Enquire | |
| 0700-022400-1000 | SEAL RING, VALVE STEM | 气缸盖分总成(2) CYLINDER HEAD(2) | Enquire | |
| 0SQV-023001-1000-0HB00 | CYLINDER BODY | 气缸盖分总成(3) CYLINDER HEAD(3) | Enquire | |
| 30004-060012150 | BOLT | 配气传动分总成 CAMSHAFT | Enquire | |
| 1F30-024012 | BOLT | 配气传动分总成 CAMSHAFT | Enquire | |
| 0700-024003 | RETAINER | 配气传动分总成 CAMSHAFT | Enquire | |
| 0SQV-024013-1001 | CENTRIFUGAL WHEEL | 配气传动分总成 CAMSHAFT | Enquire | |
| 0SQV-024200-1000 | TIMING CHAIN | 配气传动分总成 CAMSHAFT | Enquire | |
| 0SQV-024600-2000 | EXHAUST CAMSHAFT ASSY | 配气传动分总成 CAMSHAFT | Enquire | |
| 0180-030001-00001 | BOLT | 磁电机总成 MAGNETO | Enquire | |
| 0SQV-040009-1000-Q0-00002 | CONNECTING ROD BEARING | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0SQV-040009-1000-Q0-00003 | CONNECTING ROD BEARING | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0SQV-040001-1000 | BOLT | 曲轴连杆总成(2) CRANKSHAFT &CONNECTING ROD(2) | Enquire | |
| 0SQV-011001-1000-Q0-00001 | MAIN BEARING | 曲轴连杆总成(2) CRANKSHAFT &CONNECTING ROD(2) | Enquire | |
| 0SQV-011001-1000-Q0-00002 | MAIN BEARING | 曲轴连杆总成(2) CRANKSHAFT &CONNECTING ROD(2) | Enquire | |
| 0SQV-011001-1000-Q0-00003 | MAIN BEARING | 曲轴连杆总成(2) CRANKSHAFT &CONNECTING ROD(2) | Enquire | |
| 30400-01207 | ROLLER BEARING | 离合器总成(FCC) CLUTCH(FCC) | Enquire | |
| 0SQV-060012-1000 | O-RING | 换档变速总成(1) TRANSMISSION SYSTEM(1) | Enquire | |
| 0SQV-060015-1001 | LOCATING PIN | 换档变速总成(1) TRANSMISSION SYSTEM(1) | Enquire | |
| 30801-01405 | CIRCLIPS FOR SHAFT | 换档变速总成(1) TRANSMISSION SYSTEM(1) | Enquire | |
| 30406-00303 | NEEDLE BEARING | 换档变速总成(1) TRANSMISSION SYSTEM(1) | Enquire | |
| 30400-02505 | BEARING | 换档变速总成(1) TRANSMISSION SYSTEM(1) | Enquire | |
| 0800-062205 | O-RING | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 0DM0-062017 | CIRCLIPS FOR SHAFT 25 | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 30406-00400 | ROLLER PIN | 机油泵总成 OIL PUMP | Enquire | |
| 0SQV-073100-1000 | FILTER ASSY | 机油泵总成 OIL PUMP | Enquire | |
| 0700-070200 | OIL FILTER | 机油泵总成 OIL PUMP | Enquire | |
| 30406-00402 | ROLLER NEEDLE P4x21.8 | 机油泵总成 OIL PUMP | Enquire | |
| 0SQV-081009-1000 | O-RING | 水泵总成 WATER PUMP | Enquire | |
| 0SQV-080002-1000 | O-RING | 水泵总成 WATER PUMP | Enquire | |
| 30102-060012810 | SCREW | 起动系统总成 STARTING SYSTEM | Enquire | |
| 0SQV-011002-1000-Q0-00003 | BALANCER SHAFT BEARING | 平衡轴总成 BALANCER SHAFT | Enquire | |
| 30400-02010 | ROLLER BEARING | 平衡轴总成 BALANCER SHAFT | Enquire | |
| 0SQV-022009-1000 | O-RING | 节气门阀体和喷油器 THROTTLE&INJECTOR | Enquire | |
| 0SQV-022410-1000 | CLAMP | 节气门阀体和喷油器 THROTTLE&INJECTOR | Enquire | |
| 0NYV-170700-1000 | T-MAP | 节气门阀体和喷油器 THROTTLE&INJECTOR | Enquire | |
| 0SQV-0221B0 | CYLINDER HEAD KIT | 气缸盖套件 CYLINDER HEAD KIT | Enquire | |
| 30102-050008900 | INNER HEX SCREW | 锁具 LOCK KIT | Enquire | |
| 30102-050025900 | INNER HEX SCREW | 锁具 LOCK KIT | Enquire | |
| 6WWV-030013-5000 | SCREW M8X16 | 主车架(低挡泥板) MAIN FRAME(LOW FENDER) | Enquire | |
| 6AQV-030009-6000 | SCREW | 副车架 REAR FRAME | Enquire | |
| 6AQV-050001-6000 | UPPER TRIPLE CLAMP | 前悬架(春风蓝) FRONT SUSPENSION(ZEPHYR BLUE) | Enquire | |
| 30403-02200 | BEARING | 后悬架 REAR SUSPENSION | Enquire | |
| 30102-060016870 | SCREW | 制动系统 BRAKE SYSTEM | Enquire | |
| 30102-080060810 | SCREW | 转向系统 STEERING SYSTEM | Enquire | |
| 30137-250120010 | SCREW | 转向系统 STEERING SYSTEM | Enquire | |
| 30105-040008470 | SCREW | 转向系统 STEERING SYSTEM | Enquire | |
| 30800-05205 | CIRCLIP FOR HOLE | 后轮 REAR WHEEL | Enquire | |
| 6AQV-110300-1000-21 | OIL SEAL | 后轮 REAR WHEEL | Enquire | |
| 6AQV-110104-6000-20 | OIL SEAL | 后轮 REAR WHEEL | Enquire | |
| 6AQV-110109-6000-22 | LOCKING SCREW | 后轮 REAR WHEEL | Enquire | |
| 6070-120400 | CLAMP(Φ14.5) | 油箱 FUEL TANK | Enquire | |
| 30903-0322210 | COTTER PIN | 后扶手与脚蹬 REAR HANDRAIL&FOOTREST | Enquire | |
| 30105-050014470 | SCREW | 后扶手与脚蹬 REAR HANDRAIL&FOOTREST | Enquire | |
| 30802-00603 | SPLIT WASHER 6 | 后扶手与脚蹬 REAR HANDRAIL&FOOTREST | Enquire | |
| 6AQV-150001-1000-M1 | CLIP | 电器系统 ELECTRIC SYSTEM | Enquire | |
| 6WWV-180009-5000 | THREADED DAMPING RUBBER | 冷却系统 COOLING SYSTEM | Enquire | |
| 30601-108010 | CLAMP | 燃油蒸发系统 FUEL VAPORIZATION SYSTEM | Enquire | |
| 0SQV-110000-5000-22 | CLAMP | 空滤器组 AIR FILTER ASSY | Enquire | |
| 0SQV-110000-5000-20 | CLAMP | 空滤器组 AIR FILTER ASSY | Enquire | |
| 0120-110003 | CLAMP 52 | 空滤器组 AIR FILTER ASSY | Enquire | |
| 6NTA-040202 | INNER HEX SCREW | 空滤器组 AIR FILTER ASSY | Enquire | |
| 30601-117010 | CLAMP | 空滤器组 AIR FILTER ASSY | Enquire |
Exploded diagrams — Engine
Browse the catalogue interactively
Open Engine in the interactive 2024 春风 MT 450MT catalogue to drill into diagrams, check availability and add parts to your cart.
