2024 春风 SR 450SR 双摇臂 — Final Drive parts
CN market6 genuine parts2 diagrams
Subgroups
Part numbers
Every genuine final drive part fitted to the 2024 春风 SR 450SR 双摇臂. Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|

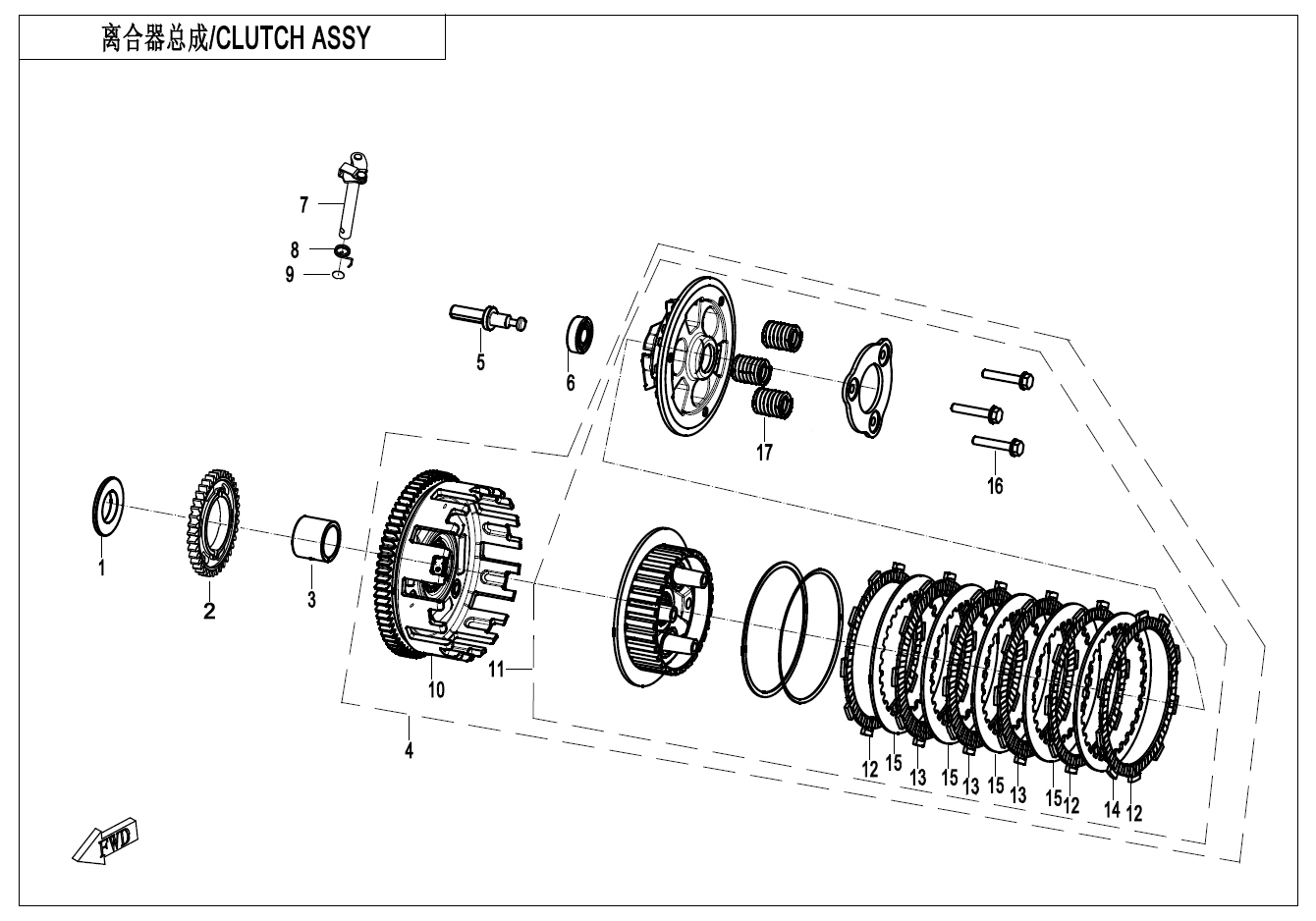

| 0SQV-051100-1002 | PRIMARY DRIVEN GEAR ASSY | 离合器总成(FCC) CLUTCH(FCC) | Enquire | |
| 0DMB-051205 | DRIVEN DISC 1 | 离合器总成(FCC) CLUTCH(FCC) | Enquire | |
| 0DMB-051207 | DRIVEN DISC 2 | 离合器总成(FCC) CLUTCH(FCC) | Enquire | |

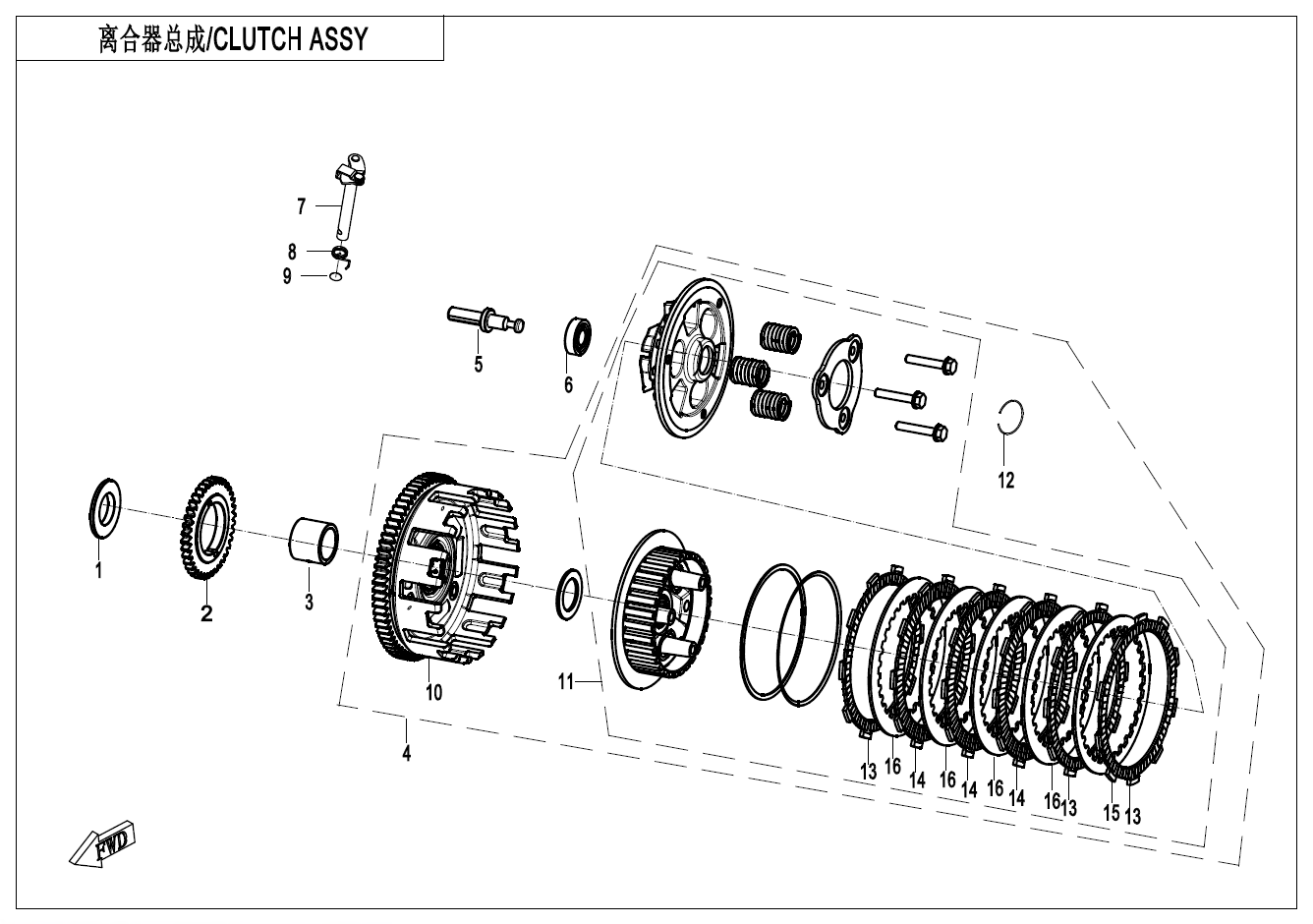

| 0SQV-051100-1000-M1 | PRIMARY DRIVEN PULLEY ASSY | 离合器总成(重庆长兴) CLUTCH(CHONGQIN CHANGXIN) | Enquire | |
| 0SQV-051213-1000-M1 | DRIVEN DISC 1 | 离合器总成(重庆长兴) CLUTCH(CHONGQIN CHANGXIN) | Enquire | |
| 0SQV-051214-1000-M1 | DRIVEN DISC 2 | 离合器总成(重庆长兴) CLUTCH(CHONGQIN CHANGXIN) | Enquire |
Exploded diagrams — Final Drive
