2023 春风 SR 450SR 双摇臂 — Engine parts
CN market222 genuine parts12 diagrams
Subgroups
Crankcase & Crankshaft · 47Cylinder Head & Parts · 19Seals & Gaskets · 33Lubrication System · 8Belt/Chain Drive · 22Engine Hardware · 188
Part numbers
Every genuine engine part fitted to the 2023 春风 SR 450SR 双摇臂. Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|
| 30102-050008900 | INNER HEX SCREW | 锁具 LOCK KIT | Enquire | |
| 30102-050025900 | INNER HEX SCREW | 锁具 LOCK KIT | Enquire | |
| 30102-050012810 | SCREW | 锁具 LOCK KIT | Enquire | |
| 6AQV-030093-1000 | INNER HEX SCREW | 车架-1 FRAME-1 | Enquire | |
| 6AQV-030092-1000 | ADJUSTING SCREW, ENGINE | 车架-1 FRAME-1 | Enquire | |
| 6WWV-030011-5000 | INNER HEX SCREW M10x45 | 车架-1 FRAME-1 | Enquire | |
| 30110-481130010 | SELF-TAPPING SCREW | 塑料件1 PLASTICS 1 | Enquire | |
| 6WWV-046602-5000 | INNER HEX STEPPED SCREW M6x14 | 塑料件3 PLASTICS 3 | Enquire | |
| 30110-481130070 | SELF-TAPPING SCREW | 塑料件3 PLASTICS 3 | Enquire | |
| 6WWV-046502-5000 | STEPPED SCREW M5 | 塑料件3 PLASTICS 3 | Enquire | |
| 6GU#-060204-6001-M1 | A-ARM OIL SEAL | 后悬架 REAR SUSPENSION | Enquire | |
| 6WWV-047102-5000 | INNER HEX SCREW M5x14 | 塑料件3 PLASTICS 3 | Enquire | |

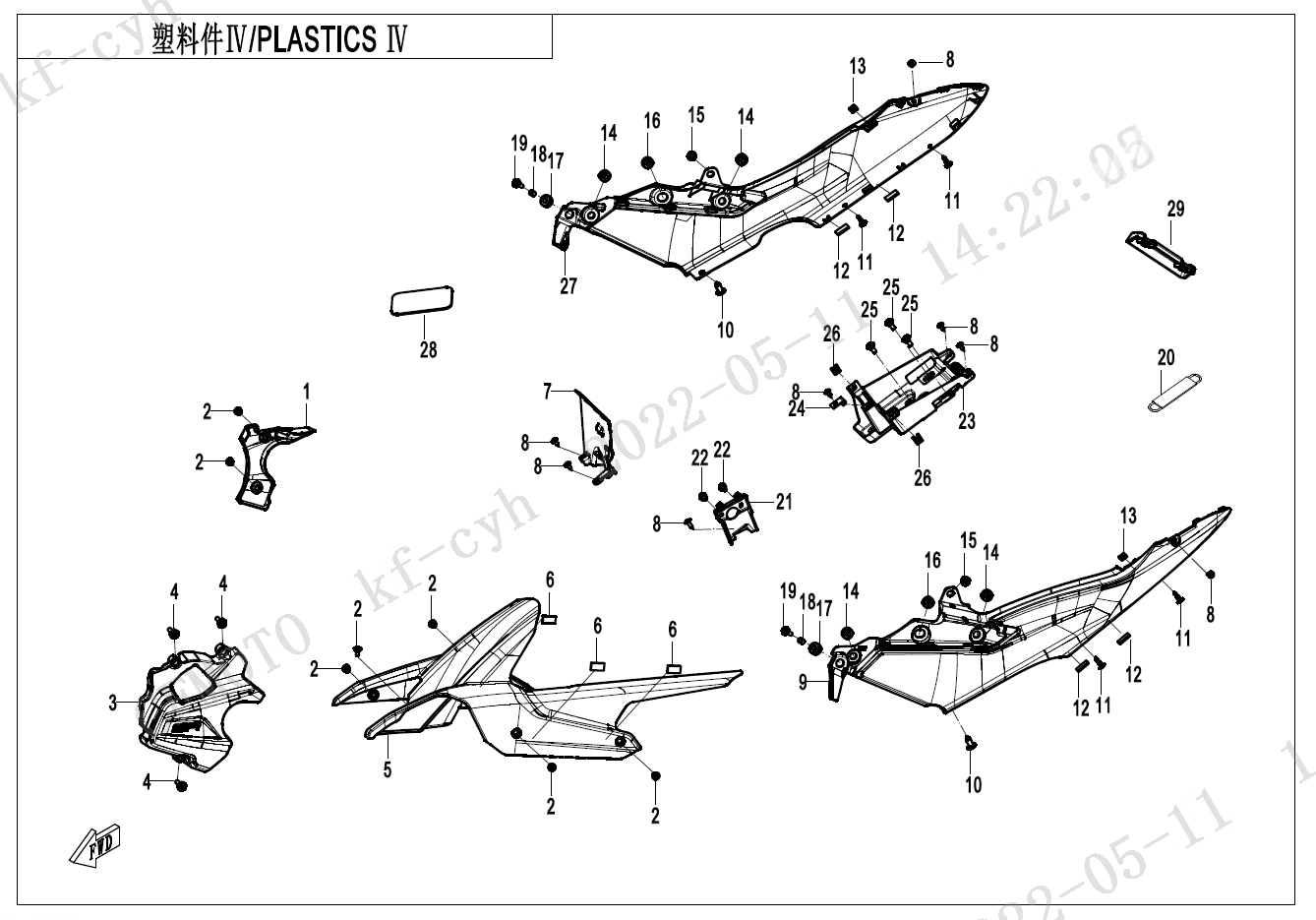

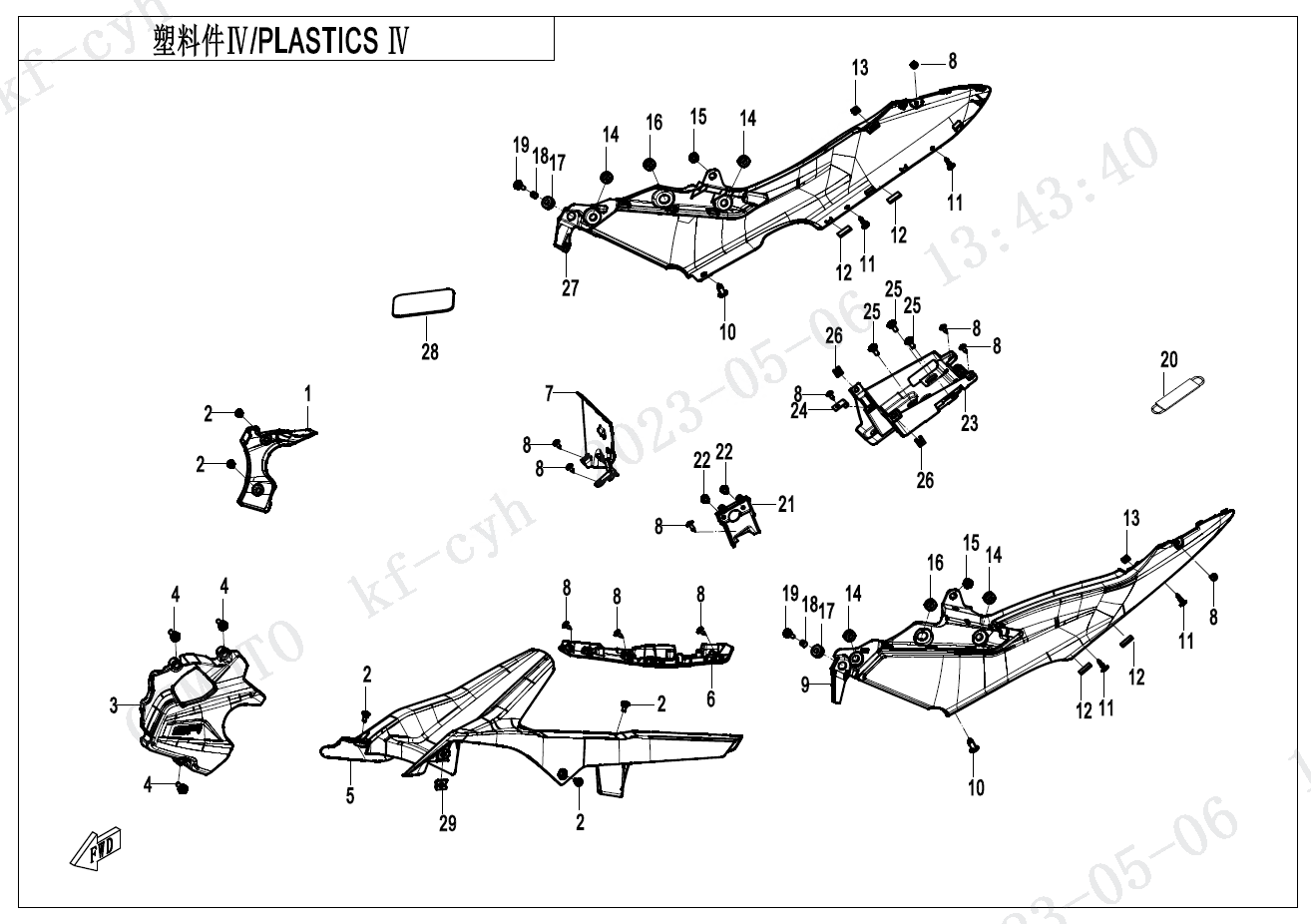

| 6WWV-046701-5000 | INNER HEX SCREW | 塑料件4 PLASTICS 4 | Enquire | |
| 6KM#-160420-8001 | SPONGE MAT | 塑料件4 PLASTICS 4 | Enquire | |
| 9060-040310 | CLAMP ASSY | 塑料件4 PLASTICS 4 | Enquire | |

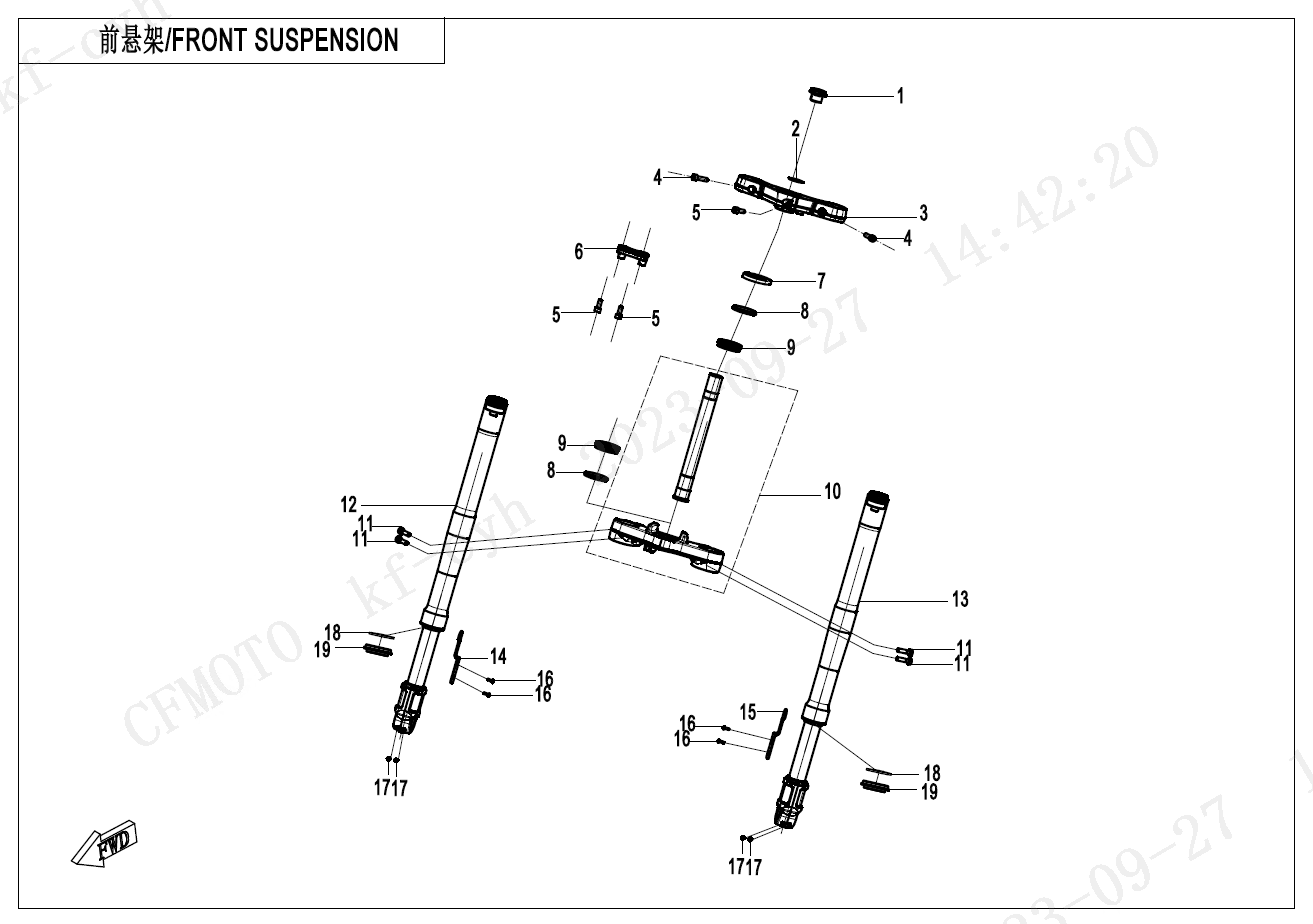

| 6WWV-050011-5000 | INNER HEX SCREW M8x30 | 前悬架 FRONT SUSPENSION | Enquire | |
| 30102-080025700 | SCREW | 前悬架 FRONT SUSPENSION | Enquire | |
| 6AQV-050500-1000-27 | DUST CAP | 前悬架 FRONT SUSPENSION | Enquire | |
| 6WWV-060030-5000 | OIL SEAL | 后悬架 REAR SUSPENSION | Enquire | |
| 6GU#-060302-6000-M1 | OIL SEAL, TIE-ROD | 后悬架 REAR SUSPENSION | Enquire | |
| 6AQV-070200-1000-20 | OIL SEAL | 前轮 FRONT WHEEL | Enquire | |
| A000-040702 | INNER HEX SCREW M6x12 | 制动总成(瑞立ABS) BRAKE SYSTEM(RUILI ABS) | Enquire | |
| 30105-040030410 | SCREW | 转向系统 STEERING SYSTEM | Enquire | |
| 6AQV-180110-1000 | RESERVOIR CAP | 冷却系统 COOLING SYSTEM | Enquire | |
| 30601-109010 | CLAMP | 燃油蒸发系统 FUEL VAPORIZATION SYSTEM | Enquire | |

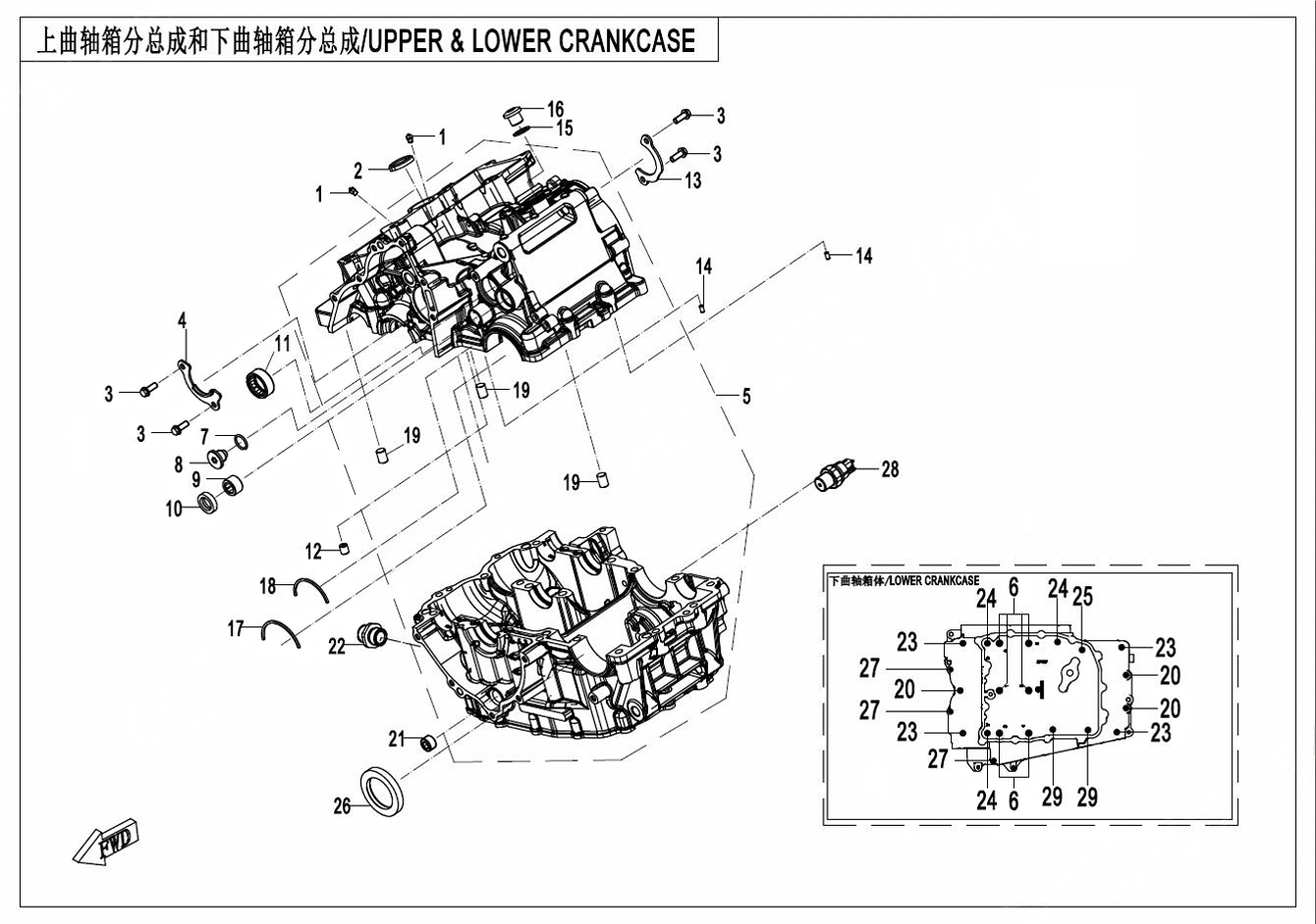

| 0SQV-011104-1000 | FILLER SEAL RING | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-011107-1000 | O-RING | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-011004-1000 | BEARING RETAINER | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 30410-01000 | ROLLER 10x14 | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-012003-1000 | BOLT | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-012600-1000 | BOLT ASSY | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |

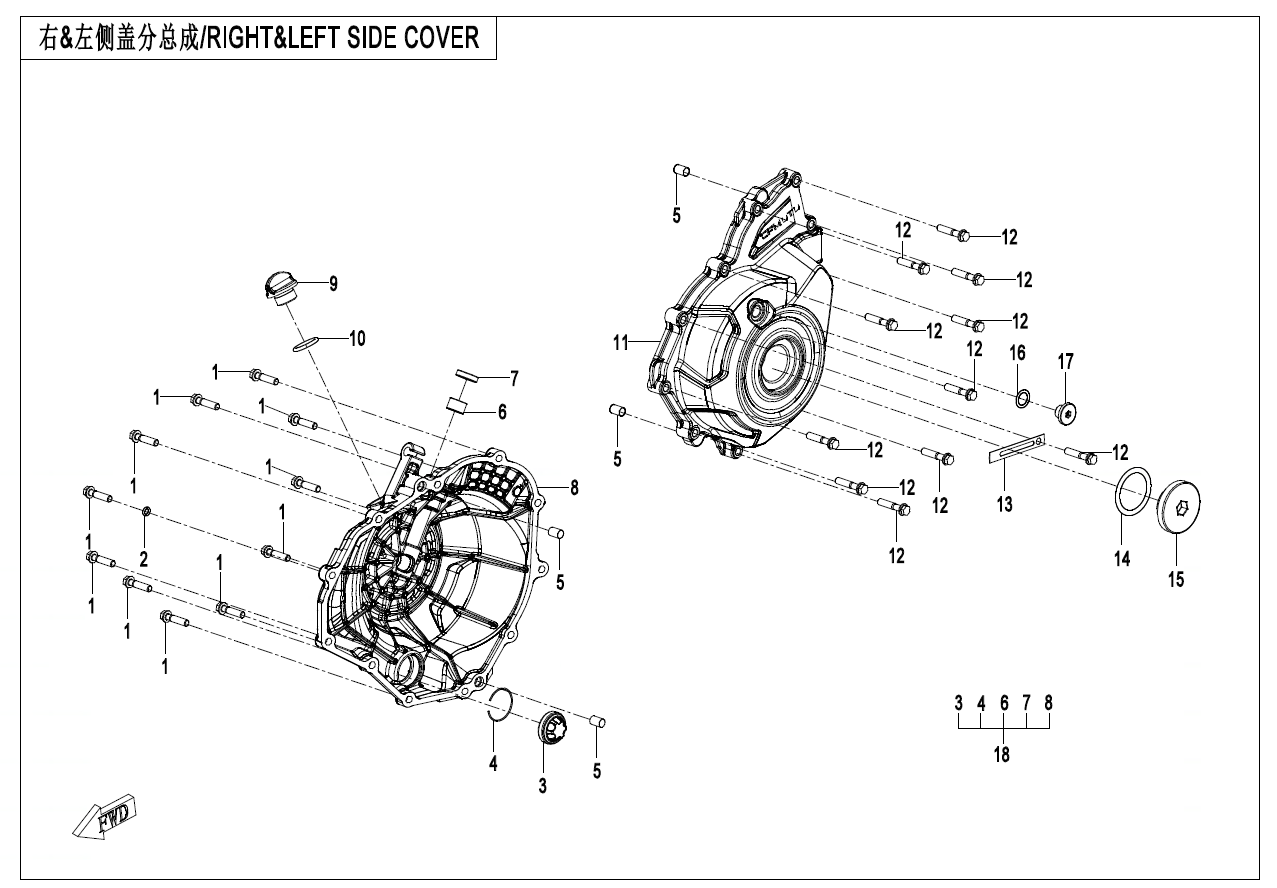

| 01A0-012003 | O-RING | 左&右侧盖组 LEFT& RIGHT SIDE COVER | Enquire | |
| 0DM0-011006 | O-RING | 左&右侧盖组 LEFT& RIGHT SIDE COVER | Enquire | |
| 0SQV-015001-1001-0BP00 | OIL PAN | 油底壳 OIL PAN | Enquire | |
| 0010-021017-0010 | BOLT M6x25 | 油底壳 OIL PAN | Enquire | |
| 0SQV-022011-1000 | BOLT | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0MQ0-022500 | THERMOSTAT | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0SQV-022002-1000 | THERMOSTAT CAP SEAL RING | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0180-022003-00001 | STUD | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-021200 | CYLINDER HEAD COVER BOLT SEAL RING | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0DM0-022008-00001 | CYLINDER HEAD DAMPING BOLT | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |

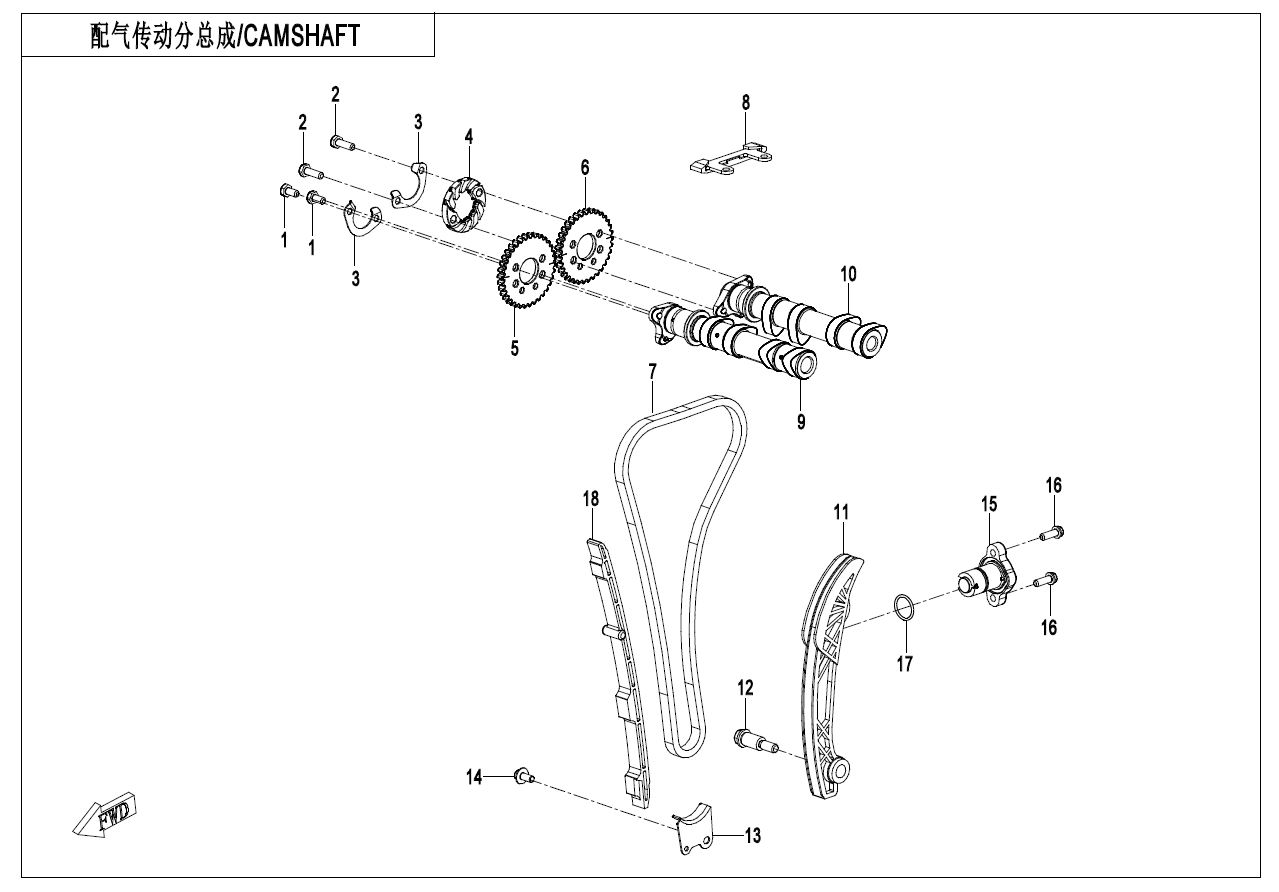

| 0SQV-024001-1000 | AIR INLET TIMING SPROCKET | 配气传动分总成 CAMSHAFT | Enquire | |
| 0010-023010-0010 | BOLT M6x20 | 配气传动分总成 CAMSHAFT | Enquire | |
| 0SQV-024401-1000 | HYDRAULIC TENSIONER SEAL RING | 配气传动分总成 CAMSHAFT | Enquire | |
| 0SQV-024003-1001 | CHAIN GUIDE | 配气传动分总成 CAMSHAFT | Enquire | |
| 0180-030001-00001 | BOLT | 磁电机总成 MAGNETO | Enquire | |
| 0110-040006-0050 | CIRCLIP, PISTON PIN | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0SQV-011001-1000-Q0-00001 | MAIN BEARING | 曲轴连杆总成(2) CRANKSHAFT &CONNECTING ROD(2) | Enquire | |
| 30400-01207 | ROLLER BEARING | 离合器总成(重庆长兴) CLUTCH(CHONGQIN CHANGXIN) | Enquire | |
| 30102-060016810 | SCREW | 换档变速总成(1) TRANSMISSION SYSTEM(1) | Enquire | |
| 30801-01405 | CIRCLIPS FOR SHAFT | 换档变速总成(1) TRANSMISSION SYSTEM(1) | Enquire | |

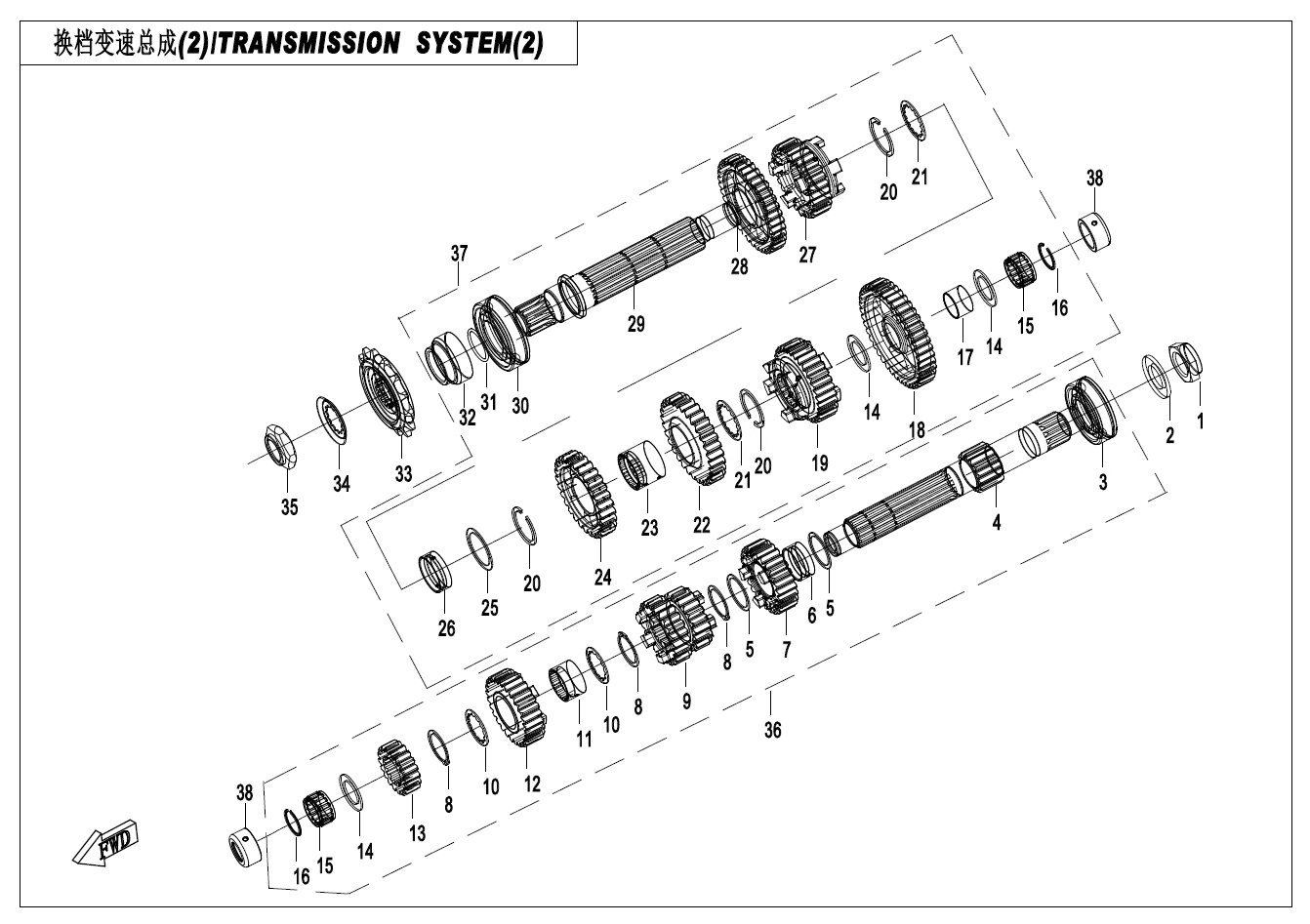

| 0800-062205 | O-RING | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 30801-01100 | CIRCLIPS FOR SHAFT | 润滑系统总成 LUBRICATION SYSTEM | Enquire | |
| 0700-070200 | OIL FILTER | 润滑系统总成 LUBRICATION SYSTEM | Enquire | |
| 0180-014010 | WIRE CLAMP | 水泵总成 WATER PUMP | Enquire | |
| 0SQV-022009-1000 | O-RING | 节气门阀体和喷油器 THROTTLE&INJECTOR | Enquire | |
| CFCV-CAC002-2000-M1 | CLIP | 锁具 LOCK KIT | Enquire | |
| 1F30-011600 | OIL SEAL | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 30403-02500 | NEEDLE BEARING | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-011106-1000 | RH BEARING PLATE | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0180-021008-00001 | BOLT | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-011003-1000 | BEARING RETAINER | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-012002-1000 | BOLT | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-012500-1000 | BOLT ASSY | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-010001-1000 | COUNTERSHAFT OIL SEAL | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-022200-1000 | CONNECTOR ASSY | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 1F30-024016 | SURFACE OIL SEAL | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0SQV-022001-1000-0BP00 | THERMOSTAT CAP | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0SQV-022001-1000-0D300 | THERMOSTAT CAP | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0SQV-022100-1001-0BP00 | CYLINDER HEAD | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0SQV-022100-1001-0D300 | CYLINDER HEAD | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0SQV-022100-1003-0BP00 | CYLINDER HEAD ASSY | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-012105-00001 | PLUG, MAIN OIL RAIL | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-066005 | PLUG 6 | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0SQV-024500-1000 | CAMSHAFT, AIR INTAKE | 配气传动分总成 CAMSHAFT | Enquire | |
| 0SQV-024500-1001 | CAMSHAFT, AIR INLET | 配气传动分总成 CAMSHAFT | Enquire | |
| 0SQV-024008-1000 | TIMING CHAIN PLATE | 配气传动分总成 CAMSHAFT | Enquire | |
| 0010-021019-0010 | BOLT M6x12 | 配气传动分总成 CAMSHAFT | Enquire | |
| 0SQV-024400-1000 | HYDRAULIC TENSIONER | 配气传动分总成 CAMSHAFT | Enquire | |
| 0SQV-024400-1001 | HYDRAULIC TENSIONOR ASSY | 配气传动分总成 CAMSHAFT | Enquire | |
| 0SQV-024003-1000 | CHAIN GUIDE | 配气传动分总成 CAMSHAFT | Enquire | |
| 0180-040007 | WOODRUFF KEY | 曲轴连杆总成(2) CRANKSHAFT &CONNECTING ROD(2) | Enquire | |
| 30499-02004 | NEEDLE BEARING | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 0700-061016 | CIRCLIPS FOR SHAFT20 | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 0700-061003 | CIRCLIP 20 | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 30801-02805 | CIRCLIPS FOR SHAFT 28 | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 0SQV-061012-1000 | BEARING, MAIN SHAFT | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 0SQV-062003-1000 | 62x28 | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 0SQV-060011-1000 | BEARING SLEEVE | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 0DM0-062017 | CIRCLIPS FOR SHAFT 25 | 换档变速总成(2) TRANSMISSION SYSTEM(2) | Enquire | |
| 0SQV-061012-1000-10 | MAIN SHAFT BEARING | 换档变速总成(2)-舍弗勒 TRANSMISSION SYSTEM(2)-SCHAEFFLER | Enquire | |
| 0SQV-062003-1000-10 | COUNTERSHAFT BEARING | 换档变速总成(2)-舍弗勒 TRANSMISSION SYSTEM(2)-SCHAEFFLER | Enquire | |
| 0SQV-072200-1001-M1 | TIE BAND | 润滑系统总成 LUBRICATION SYSTEM | Enquire | |
| 0SQV-0221A0 | CYLINDER HEAD KIT | 气缸盖套件 CYLINDER HEAD KIT | Enquire | |
| 6WWV-046902-5000 | INNER HEX SCREW M6x20 | 消声器 MUFFLER | Enquire | |
| 6WWV-047002-5000 | INNER HEX SCREW M6x25 | 塑料件4 PLASTICS 4 | Enquire | |
| 6AQV-0503A0 | LOWER TRIPLE CLAMP | 前悬架 FRONT SUSPENSION | Enquire | |
| 30121-080025160 | SCREW | 制动总成(瑞立ABS) BRAKE SYSTEM(RUILI ABS) | Enquire | |
| 30400-00880 | BEARING | 制动总成(瑞立ABS) BRAKE SYSTEM(RUILI ABS) | Enquire | |
| 6100-120005 | INNER HEX SCREW M6x8 | 制动总成(瑞立ABS) BRAKE SYSTEM(RUILI ABS) | Enquire | |
| A000-040703 | INNER HEX SCREW | 制动总成(瑞立ABS) BRAKE SYSTEM(RUILI ABS) | Enquire | |
| 30121-080035160 | SCREW | 脚蹬 FOOTREST | Enquire | |
| 0SQV-011102-1000 | OIL NOZZLE | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-011105-1000 | LH BEARING PLATE | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-01FZ01-1002-0BP00 | CRANKCASE ASSY | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-01FZ01-1002-0D300 | CRANKCASE | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-012200-1000 | BOLT ASSY | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 30403-01400 | NEEDLE BEARING | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-011103-1000 | RESTRICTION PLUG | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0700-012106-00002 | OIL FILTER BOLT | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-012400-1000 | OIL PRESSURE SWITCH | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0SQV-012700-1000 | BOLT ASSY | 上&下曲轴箱组件 UPPER & LOWER CRANKCASE ASSY | Enquire | |
| 0700-012201 | O-RING | 左&右侧盖组 LEFT& RIGHT SIDE COVER | Enquire | |
| 0SQV-013001-1000 | RETAINER | 左&右侧盖组 LEFT& RIGHT SIDE COVER | Enquire | |
| 30403-01200 | BEARING | 左&右侧盖组 LEFT& RIGHT SIDE COVER | Enquire | |
| 0010-080009 | OIL SEAL | 左&右侧盖组 LEFT& RIGHT SIDE COVER | Enquire | |
| 0700-013008 | OIL FILLING PLUG | 左&右侧盖组 LEFT& RIGHT SIDE COVER | Enquire | |
| 0110-013030 | O-RING | 左&右侧盖组 LEFT& RIGHT SIDE COVER | Enquire | |
| 0SQV-015001-1000-0BP00 | OIL PAN | 油底壳 OIL PAN | Enquire | |
| 0SQV-015001-1000-0D300 | OIL PAN | 油底壳 OIL PAN | Enquire | |
| 0180-011500 | MAGNETIC DRAIN BOLT | 油底壳 OIL PAN | Enquire | |
| 0700-021003-00001 | CYLINDER HEAD COVER BOLT | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0SQV-021010-1000-0BP00 | CYLINDER HEAD COVER | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0SQV-021010-1000-0D300 | CYLINDER HEAD COVER | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0SQV-021002-1000 | CYLINDER HEAD COVER SEAL RING | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0HU0-021002 | GULP PIN | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0SQV-170200-1000 | SPARK PLUG ASSY | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0SQV-022105-1000 | BOLT | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0SQV-022106-1000 | HEX FLANGE BOLT M6x45 | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0010-080008 | DOWEL PIN | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0DM0-022201-10000 | DOWEL PIN | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0SQV-022008-1000 | CYLINDER HEAD BOLT | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 018B-022810 | COOLANT TEMP. SENSOR | 气缸盖分总成(1) CYLINDER HEAD(1) | Enquire | |
| 0700-022004 | LOCK CLIP, VALVE | 气缸盖分总成(2) CYLINDER HEAD(2) | Enquire | |
| 0700-022400-1000 | SEAL RING, VALVE STEM | 气缸盖分总成(2) CYLINDER HEAD(2) | Enquire | |
| 0SQV-023001-1000-0BP00 | CYLINDER BODY | 气缸盖分总成(3) CYLINDER HEAD(3) | Enquire | |
| 0SQV-023001-1000-0D300 | CYLINDER | 气缸盖分总成(3) CYLINDER HEAD(3) | Enquire | |
| 30004-060012150 | BOLT | 配气传动分总成 CAMSHAFT | Enquire | |
| 1F30-024012 | BOLT | 配气传动分总成 CAMSHAFT | Enquire | |
| 0700-024003 | RETAINER | 配气传动分总成 CAMSHAFT | Enquire | |
| 0SQV-024013-1000 | CENTRIFUGAL WHEEL | 配气传动分总成 CAMSHAFT | Enquire | |
| 0SQV-024013-1001 | CENTRIFUGAL WHEEL | 配气传动分总成 CAMSHAFT | Enquire | |
| 0SQV-024002-1000 | AIR OUTLET TIMING SPROCKET | 配气传动分总成 CAMSHAFT | Enquire | |
| 0SQV-024200-1000 | TIMING CHAIN | 配气传动分总成 CAMSHAFT | Enquire | |
| 0SQV-024600-1000 | CAMSHAFT, AIR EXHAUST | 配气传动分总成 CAMSHAFT | Enquire | |
| 0SQV-024600-1001 | CAMSHAFT, AIR EXHAUST | 配气传动分总成 CAMSHAFT | Enquire | |
| 0010-030002-00001 | BOLT | 磁电机总成 MAGNETO | Enquire | |
| 0SQV-040008-1000 | PISTON PIN | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0SQV-042000-1001-Q0-00001 | CONNECTING ROD | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0SQV-042000-1001-Q0-00002 | CONNECTING ROD | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0SQV-040009-1000-Q0-00001 | CONNECTING ROD BEARING | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0SQV-040009-1000-Q0-00002 | CONNECTING ROD BEARING | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0SQV-040009-1000-Q0-00003 | CONNECTING ROD BEARING | 曲轴连杆总成(1) CRANKSHAFT &CONNECTING ROD(1) | Enquire | |
| 0SQV-040001-1000 | BOLT | 曲轴连杆总成(2) CRANKSHAFT &CONNECTING ROD(2) | Enquire | |
| 0SQV-011001-1000-Q0-00002 | MAIN BEARING | 曲轴连杆总成(2) CRANKSHAFT &CONNECTING ROD(2) | Enquire | |
| 0SQV-011001-1000-Q0-00003 | MAIN BEARING | 曲轴连杆总成(2) CRANKSHAFT &CONNECTING ROD(2) | Enquire | |
| 0SQV-041000-1001 | CRANKSHAFT ASSY | 曲轴连杆总成(2) CRANKSHAFT &CONNECTING ROD(2) | Enquire | |
| 0SQV-041000-1002 | CRANKSHAFT ASSY | 曲轴连杆总成(2) CRANKSHAFT &CONNECTING ROD(2) | Enquire | |
| 0SQV-060012-1000 | O-RING | 换档变速总成(1) TRANSMISSION SYSTEM(1) | Enquire | |
| 0SQV-060015-1001 | LOCATING PIN | 换档变速总成(1) TRANSMISSION SYSTEM(1) | Enquire | |
| 30406-00303 | NEEDLE BEARING | 换档变速总成(1) TRANSMISSION SYSTEM(1) | Enquire | |
| 30400-02505 | BEARING | 换档变速总成(1) TRANSMISSION SYSTEM(1) | Enquire | |
| 30406-00400 | ROLLER PIN | 润滑系统总成 LUBRICATION SYSTEM | Enquire | |
| 0SQV-073100-1000 | FILTER ASSY | 润滑系统总成 LUBRICATION SYSTEM | Enquire | |
| 0SQV-072100-1000 | OIL COOLER | 润滑系统总成 LUBRICATION SYSTEM | Enquire | |
| 0SQV-072003-1000 | OIL COOLER SEAL RING | 润滑系统总成 LUBRICATION SYSTEM | Enquire | |
| 0SQV-028002-1000-M1 | CLAMP | 润滑系统总成 LUBRICATION SYSTEM | Enquire | |
| 30406-00402 | ROLLER NEEDLE P4x21.8 | 润滑系统总成 LUBRICATION SYSTEM | Enquire | |
| 0SQV-081009-1000 | O-RING | 水泵总成 WATER PUMP | Enquire | |
| 0SQV-080002-1000 | O-RING | 水泵总成 WATER PUMP | Enquire | |
| 30102-060012810 | SCREW | 起动系统总成 STARTING SYSTEM | Enquire | |
| 0SQV-011002-1000-Q0-00001 | BALANCER SHAFT BEARING | 平衡轴总成 BALANCER SHAFT | Enquire | |
| 0SQV-011002-1000-Q0-00002 | BALANCER SHAFT BEARING | 平衡轴总成 BALANCER SHAFT | Enquire | |
| 0SQV-011002-1000-Q0-00003 | BALANCER SHAFT BEARING | 平衡轴总成 BALANCER SHAFT | Enquire | |
| 30400-02010 | ROLLER BEARING | 平衡轴总成 BALANCER SHAFT | Enquire | |
| 0SQV-022410-1000 | CLAMP | 节气门阀体和喷油器 THROTTLE&INJECTOR | Enquire | |
| 6AQV-021500-1000 | CLAMP KIT | 消声器 MUFFLER | Enquire | |
| 30121-060016700 | SCREW | 变档杆 GEARSHIFT LEVER | Enquire | |
| 8080-041130 | EXPANSION RIVET ASSY | 塑料件1 PLASTICS 1 | Enquire | |
| 6AQV-050004-1000 | GUARD, LOWER TRIPLE CLAMP | 塑料件1 PLASTICS 1 | Enquire | |
| 30110-350130010 | SELF-TAPPING SCREW | 塑料件2 PLASTICS 2 | Enquire | |
| 6WWV-046702-5000 | INNER HEX SCREW M6x12 | 塑料件5 PLASTICS 5 | Enquire | |
| 30110-421130010 | SELF-TAPPING SCREW | 塑料件6 PLASTICS 6 | Enquire | |
| 6L30-050002 | LOCK SCREW, UPPER TRIPLE CLAMP | 前悬架 FRONT SUSPENSION | Enquire | |
| 6AQV-050001-1001-0VR00 | UPPER TRIPLE CLAMP | 前悬架 FRONT SUSPENSION | Enquire | |
| 30102-080030860 | SCREW | 前悬架 FRONT SUSPENSION | Enquire | |
| 30102-080020810 | SCREW | 前悬架 FRONT SUSPENSION | Enquire | |
| 6L30-050200 | STEERING BEARING ASSY | 前悬架 FRONT SUSPENSION | Enquire | |
| 6WWV-060030-5000-10 | OIL SEAL | 后悬架 REAR SUSPENSION | Enquire | |
| 30403-02200 | BEARING | 后悬架 REAR SUSPENSION | Enquire | |
| 30403-01680 | NEEDLE BEARING | 后悬架 REAR SUSPENSION | Enquire | |
| 30403-01880 | NEEDLE BEARING | 后悬架 REAR SUSPENSION | Enquire | |
| 30403-02280 | NEEDLE BEARING | 后悬架 REAR SUSPENSION | Enquire | |
| 30102-060016870 | SCREW | 制动总成(瑞立ABS) BRAKE SYSTEM(RUILI ABS) | Enquire | |
| 30102-080025810 | SCREW | 转向系统 STEERING SYSTEM | Enquire | |
| 30102-060025870 | SCREW | 转向系统 STEERING SYSTEM | Enquire | |
| 30800-05205 | CIRCLIP FOR HOLE | 后轮 REAR WHEEL | Enquire | |
| 6AQV-110300-1000-21 | OIL SEAL | 后轮 REAR WHEEL | Enquire | |
| 30500-027800N | OIL SEAL | 后轮 REAR WHEEL | Enquire | |
| 30006-060035810 | BOLT | 油箱 FUEL TANK | Enquire | |
| 30601-111010 | CLAMP | 油箱 FUEL TANK | Enquire | |
| 6070-120400 | CLAMP(Φ14.5) | 油箱 FUEL TANK | Enquire | |
| 6GU#-000201-6000 | INNER HEX SCREW M6x25 | 座垫(标准) SEAT(STANDARD) | Enquire | |
| 6AQV-140620-1000 | LIMIT SCREW | 脚蹬 FOOTREST | Enquire | |
| 30903-0322210 | COTTER PIN | 脚蹬 FOOTREST | Enquire | |
| 30802-00603 | SPLIT WASHER 6 | 脚蹬 FOOTREST | Enquire | |
| 6WWV-046801-5000 | SCREW | 灯具 LIGHTS | Enquire | |
| 30110-480160010 | SELF-TAPPING SCREW | 灯具 LIGHTS | Enquire | |
| 6WWV-180008-5000 | BOLT | 冷却系统 COOLING SYSTEM | Enquire | |
| 30601-229060 | CLAMP | 冷却系统 COOLING SYSTEM | Enquire | |
| 6GUV-181010-6001 | WATER FILLING PORT CAP ASSY | 冷却系统 COOLING SYSTEM | Enquire | |
| 30601-212570 | CLAMP | 冷却系统 COOLING SYSTEM | Enquire | |
| 6KM#-200003-8001 | PLUG | 随车工具 TOOLS | Enquire | |
| 30102-060020870 | INNER HEX SCREW M6x20 | 随车工具 TOOLS | Enquire | |
| 30601-110010 | CLAMP | 燃油蒸发系统 FUEL VAPORIZATION SYSTEM | Enquire | |
| 30601-112010 | CLAMP | 燃油蒸发系统 FUEL VAPORIZATION SYSTEM | Enquire | |
| 30601-108010 | CLAMP | 燃油蒸发系统 FUEL VAPORIZATION SYSTEM | Enquire | |
| 0120-110003 | CLAMP 52 | 空滤器组 AIR FILTER ASSY | Enquire | |
| 6NTA-040202 | INNER HEX SCREW | 空滤器组 AIR FILTER ASSY | Enquire | |
| 0SQV-110000-1000-20 | SEAL RING | 空滤器组 AIR FILTER ASSY | Enquire | |
| 30601-118010 | CLAMP | 空滤器组 AIR FILTER ASSY | Enquire | |
| 30601-117010 | CLAMP | 空滤器组 AIR FILTER ASSY | Enquire |
Exploded diagrams — Engine
Browse the catalogue interactively
Open Engine in the interactive 2023 春风 SR 450SR 双摇臂 catalogue to drill into diagrams, check availability and add parts to your cart.
