2025 春风 SR 250SR-S 冠军版纪念版 — Brake System parts
CN market44 genuine parts7 diagrams
Subgroups
Disc Brake · 18Dynamic Stability/ABS · 5Brake Fluid Reservoir & Parts · 3Brake Master Cylinder · 2Brake Pedal · 1Brake Lever · 1Brake Light Switch · 1Brake Hardware · 13Brake Assembly · 2
Part numbers
Every genuine brake system part fitted to the 2025 春风 SR 250SR-S 冠军版纪念版. Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|

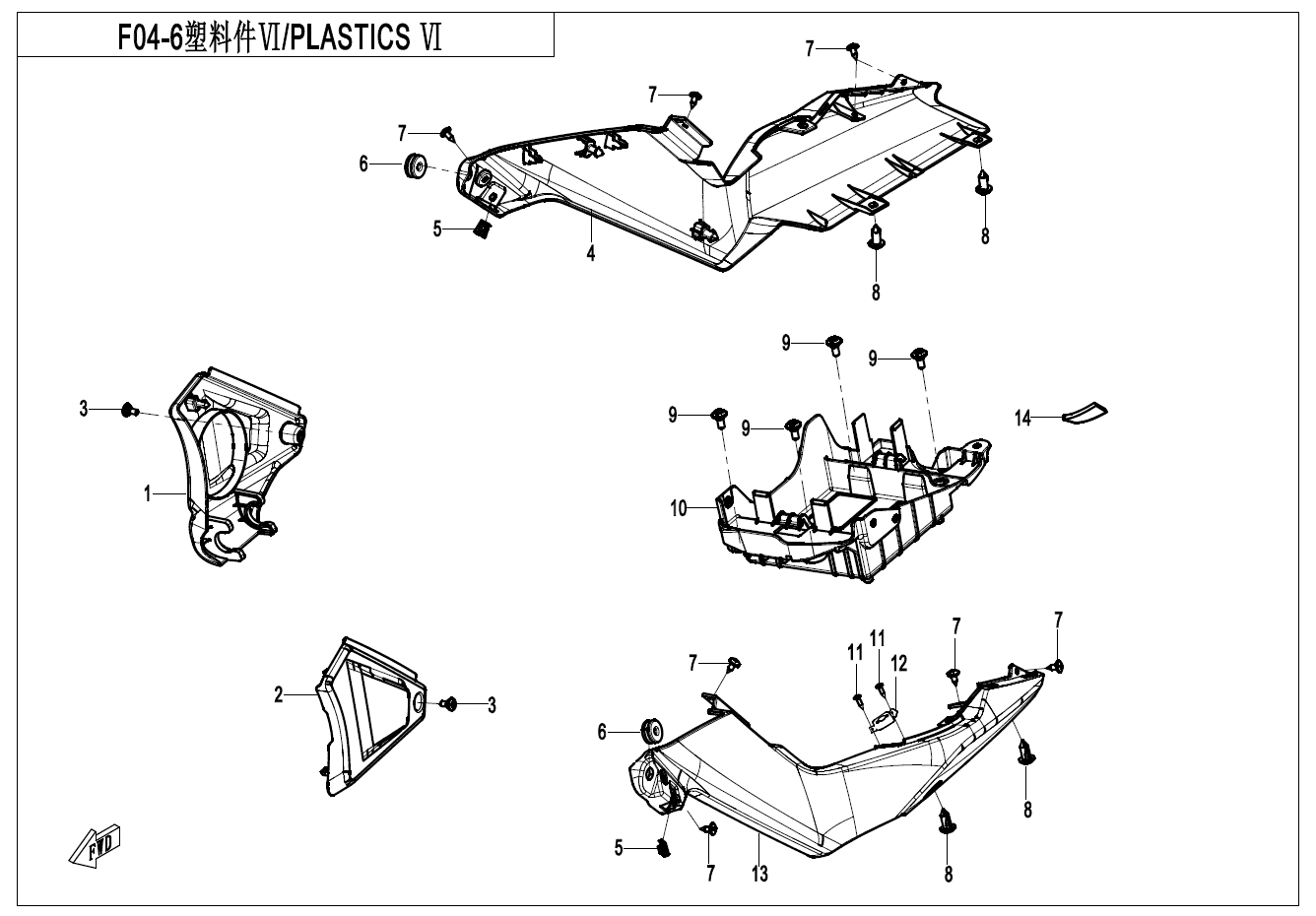

| 9010-120008 | SPONGE PAD, FUEL TANK | 塑料件Ⅵ PLASTICS 6 | Enquire | |

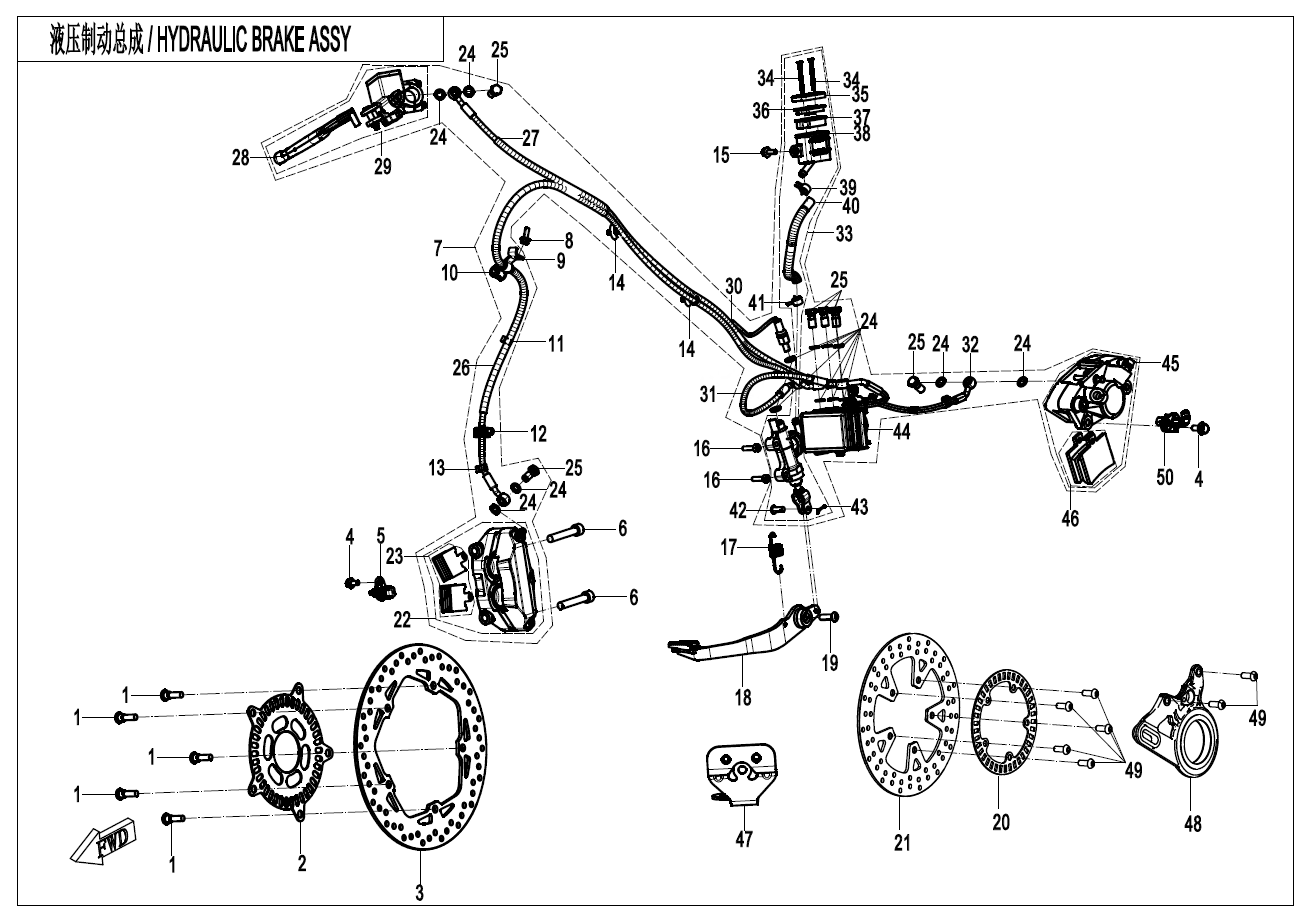

| 6KJ0-080005 | FRONT BRAKE DISC BOLT | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KM#-080001-8000 | OIL HOSE CLIP | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KMV-080007-2000 | REAR GEAR RING | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KMV-081200-3001-M1 | FRONT BRAKE CALIPER ASSY | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| EAEV-0813A0 | BRAKE PAD ASSY | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KMV-081040-2002 | REAR CALIPER OIL OUTLET HOSE | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KMV-091200-2000-M1 | REAR BRAKE MASTER CYLINDER | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KM0-091204-20000 | RESERVOIR | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KMV-081500-3101-M2 | MAB EXECUTION UNIT | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KMV-080005-2000 | BRACKET, CALIPER | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |

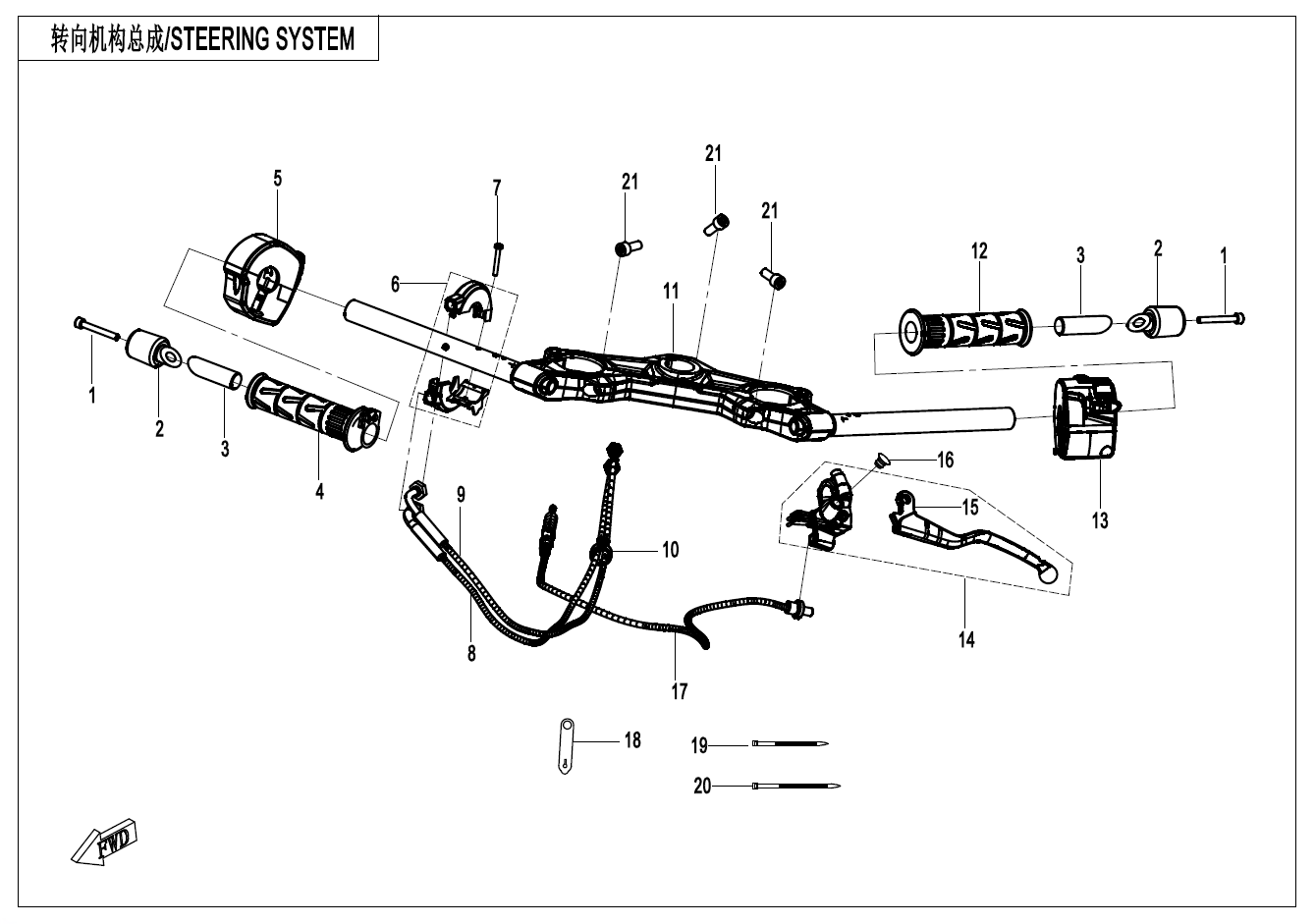

| 6KM#-100002-8000 | CLUTCH LEVER PLUG | 转向系统 STEERING SYSTEM | Enquire | |
| 30006-060025810 | BOLT | 冷却系统 COOLING SYSTEM | Enquire | |

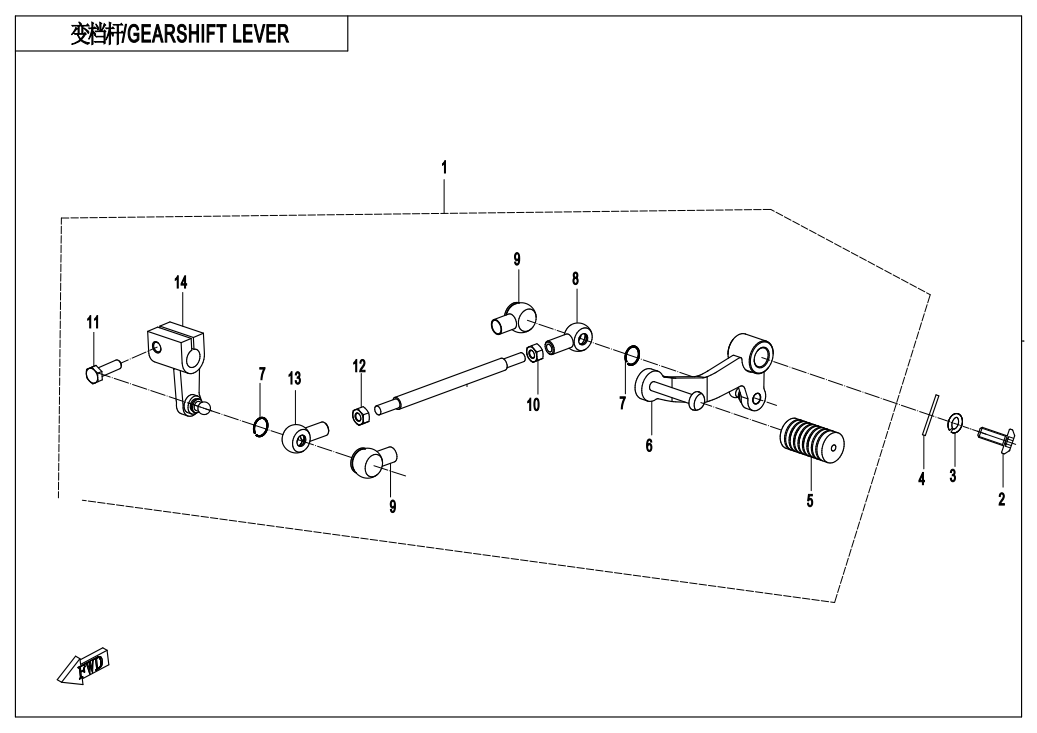

| A000-080006-10000 | GASKET 1 | 变档杆 GEARSHIFT LEVER | Enquire | |
| 6KJ0-080003-00001 | BRAKE HOSE CLIP | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KM#-080002-8000 | RUBBER OIL HOSE CLIP | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6NTG-080005 | RETURN SPRING | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KMV-080300-3000 | REAR BRAKE PEDAL ASSY | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KJ0-080004 | INDUCTION PLATE, COUNTER | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KM#-081000-8100-20 | WASHER | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KM#-080103-8101 | PIPE BOLT | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KMV-081100-B000-20 | BRAKE HANDLE | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KMV-081100-3000-M1 | HAND BRAKE MASTER CYLINDER | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KMV-081700-3000-M1 | HYDRAULIC SWITCH ASSY | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KMV-081030-3000 | REAR CALIPER OIL INLET HOSE | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| A000-080229-2000 | SCREW, FLUID RESERVOIR CAP | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KM0-091201-20000 | FLUID RESERVOIR CAP | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KM0-091202-20000 | FLUID RESERVOIR SEALING LINER | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KM0-091203-20000 | FLUID RESERVOIR SEALING GASKET | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KM0-091215-20000 | HOSE CLIP 1 | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KM0-091220-30000 | RESERVOIR HOSE | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| A000-080213-2000 | CLIP | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 30904-0602240 | PIN SHAFT | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 30903-0201640 | COTTER PIN | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KMV-091100-2001-M1 | REAR BRAKE CALIPER ASSY | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KMV-091108-20A0 | REAR BRAKE PAD ASSY | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KMV-030070-2000 | BRACKET, ABS | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6GUV-080001-7000 | SCREW | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KMV-080004-8500-M1 | SPEED SENSOR | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6GU#-081800-6002-M1 | RPM SENSOR, FRONT WHEEL | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 30102-102060810 | SCREW | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KMV-082000-3102-M1 | MAB HYDRAULIC BRAKE ASSY | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 6KM#-080003-8100 | RUBBER OIL HOSE CLIP 1 | MAB液压制动总成(瑞立) MAB BRAKE ASSY(RUILI) | Enquire | |
| 7030-150005 | TIE BAND | 电器系统 ELECTRIC SYSTEM | Enquire |
