2025 春风 SR 250SR — Engine parts
CN market158 genuine parts12 diagrams
Subgroups
Crankcase & Crankshaft · 28Cylinder Head & Parts · 19Seals & Gaskets · 32Lubrication System · 5Belt/Chain Drive · 12Engine Hardware · 134
Part numbers
Every genuine engine part fitted to the 2025 春风 SR 250SR. Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|
| 9060-040310 | CLAMP ASSY | 塑料件2 PLASTICS2 | Enquire | |
| 0010-023010-0010 | BOLT M6x20 | 发动机安装附件 ENGINE FITTINGS | Enquire | |
| 30118-420095010 | SELF-TAPPING SCREW | 塑料件1 PLASTICS1 | Enquire | |
| 6KM#-040032-8001 | DECO RING, IGNITION LOCK | 塑料件2 PLASTICS2 | Enquire | |
| 6KM#-040082-8000 | SCREW KIT M5 | 塑料件2 PLASTICS2 | Enquire | |
| 6WWV-047002-5000 | INNER HEX SCREW M6x25 | 塑料件2 PLASTICS2 | Enquire | |
| 6WWV-046602-5000 | INNER HEX STEPPED SCREW M6x14 | 塑料件3 PLASTICS3 | Enquire | |
| 6WWV-046902-5000 | INNER HEX SCREW M6x20 | 塑料件4 PLASTICS4 | Enquire | |

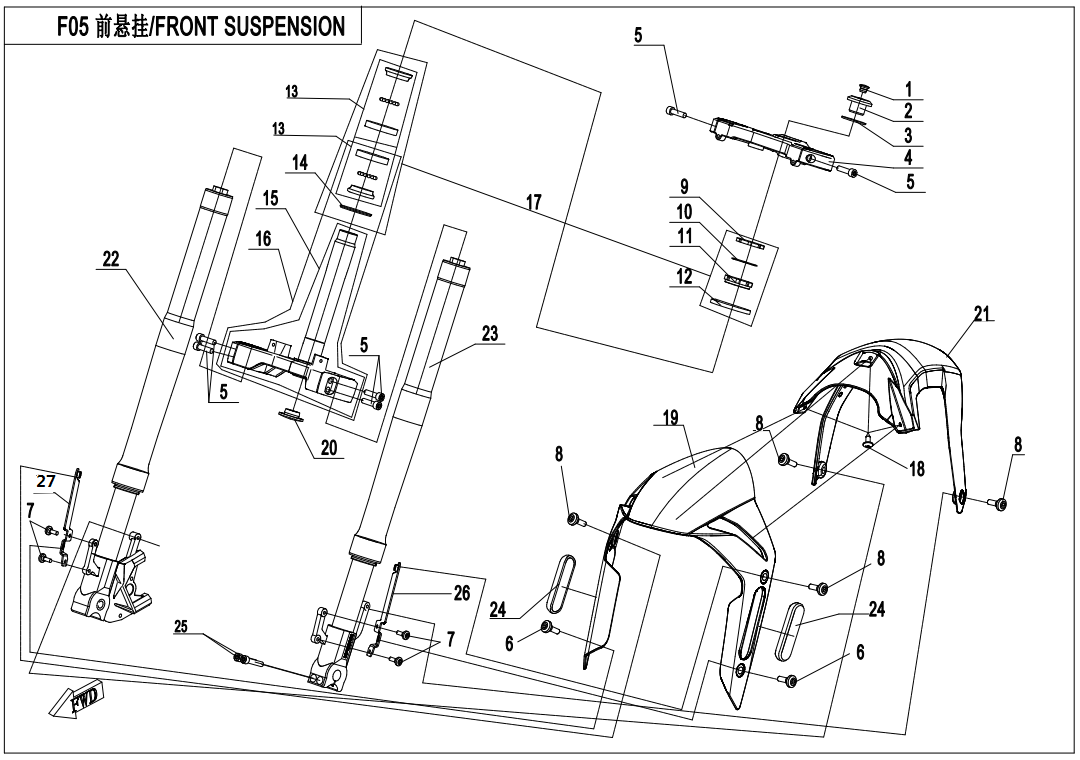

| A000-050005 | RUBBER PLUG 1 | 前悬架 FRONT SUSPENSION | Enquire | |
| 6KM#-040702-8000 | SCREW | 前悬架 FRONT SUSPENSION | Enquire | |
| 6KJ0-0503A0-0BP00 | LOWER TRIPLE CLAMP ASSY | 前悬架 FRONT SUSPENSION | Enquire | |
| 30102-060012810 | SCREW | 脚蹬 FOOTREST | Enquire | |
| 30110-481130010 | SELF-TAPPING SCREW | 灯具 LIGHTS | Enquire | |
| 30601-108010 | CLAMP | 燃油蒸发系统 FUEL VAPORIZATION SYSTEM | Enquire | |
| 30601-109010 | CLAMP | 燃油蒸发系统 FUEL VAPORIZATION SYSTEM | Enquire | |
| 30499-01702 | BEARING | 右曲轴箱分总成 RIGHT CRANKCASE | Enquire | |
| 01A0-012010-00001 | SCREW | 右曲轴箱分总成 RIGHT CRANKCASE | Enquire | |
| 01A0-012003 | O-RING | 左曲轴箱分总成 LEFT CRANKCASE | Enquire | |
| 30499-01508 | BEARING | 左曲轴箱分总成 LEFT CRANKCASE | Enquire | |
| 0DM0-011006 | O-RING | 左曲轴箱分总成 LEFT CRANKCASE | Enquire | |
| 0DM0-013011-20000 | BRACKET, CLUTCH CABLE | 右侧盖分总成(拉索版) RIGHT SIDE COVER(CABLE VERSION) | Enquire | |
| 30102-050012810 | SCREW | 左侧盖分总成 LEFT SIDE COVER | Enquire | |
| 0A80-014005 | WIRE PRESS PLATE | 左侧盖分总成 LEFT SIDE COVER | Enquire | |

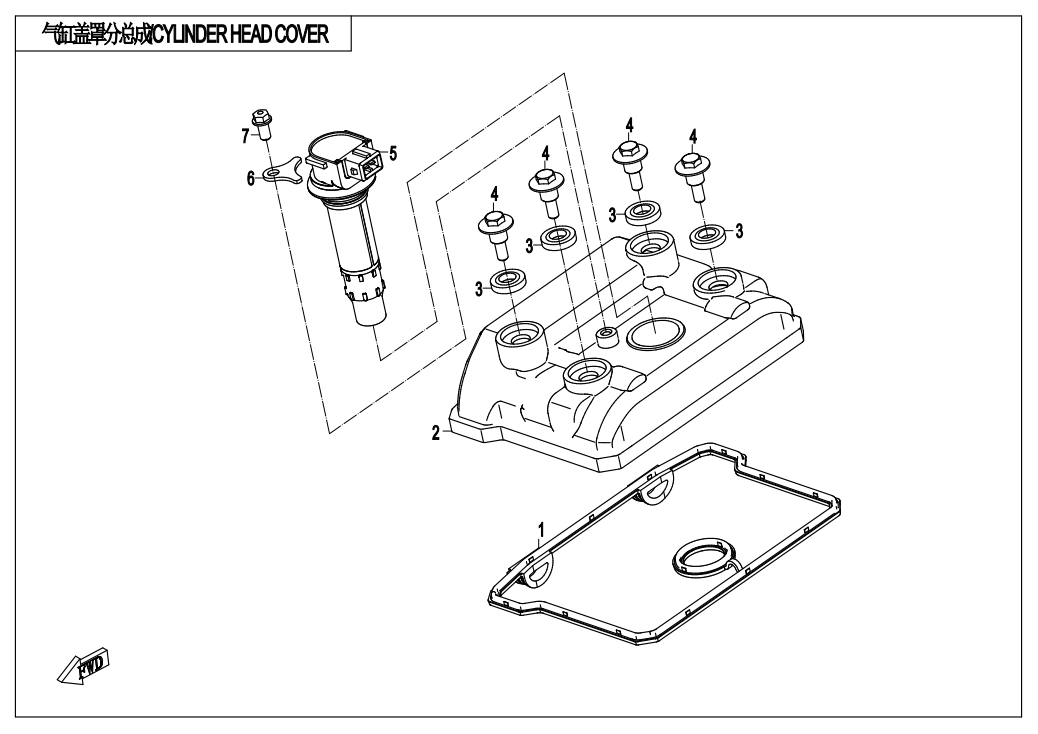

| 0DM0-021001-0HB00 | CYLINDER HEAD COVER | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0700-021200 | CYLINDER HEAD COVER BOLT SEAL RING | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0700-021003-00001 | CYLINDER HEAD COVER BOLT | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0010-021019-0010 | BOLT M6x12 | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |

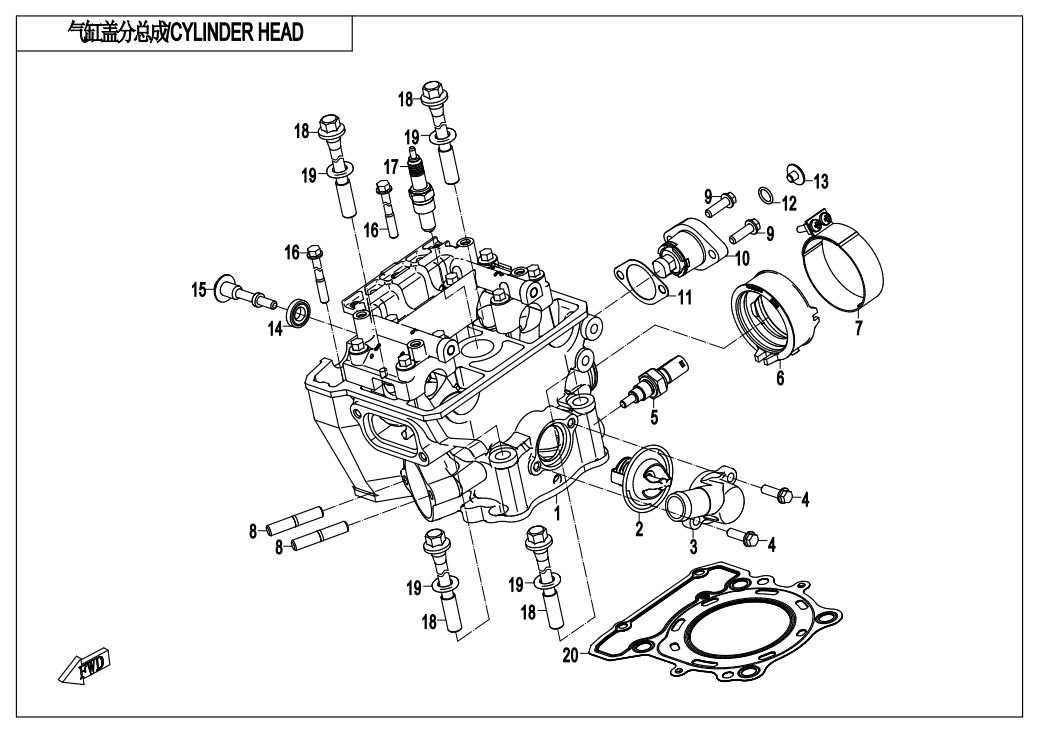

| 0DM0-022005-0BP00 | THERMOSTAT CAP | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 018B-022810 | COOLANT TEMP. SENSOR | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0060-022001 | O-SEAL RING | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0DM0-022008-00001 | CYLINDER HEAD DAMPING BOLT | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0700-022013-00001 | CYLINDER HEAD BOLT M10x158 | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0110-040006-0050 | CIRCLIP, PISTON PIN | 气缸和活塞 CYLINDER & PISTON | Enquire | |
| 0DM0-024200-10001 | AIR EXHAUST CAMSHAFT ASSY | 配气传动分总成 CAMSHAFT | Enquire | |
| 0DM0-024100-10001 | AIR INLET CAMSHAFT ASSY | 配气传动分总成 CAMSHAFT | Enquire | |

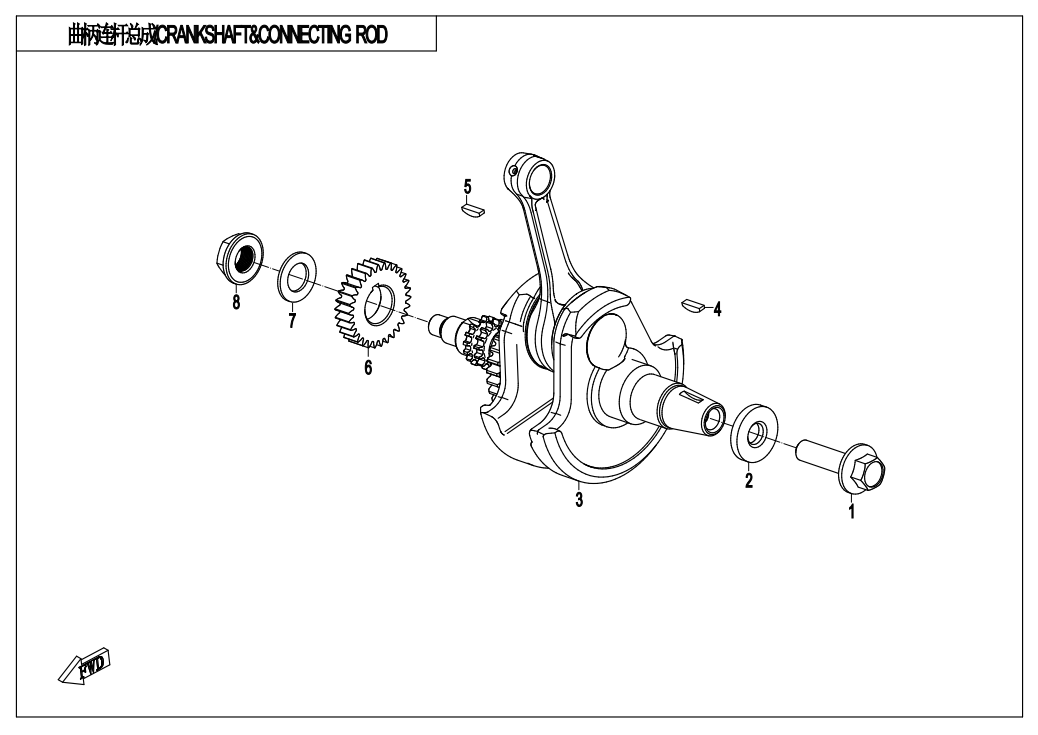

| 0DM0-041000-00014 | CRANK CONNECTING ROD SUB ASSY | 曲轴连杆总成 CRANKSHAFT&CONNECTING ROD | Enquire | |
| 30400-01207 | ROLLER BEARING | 离合器总成(滑动离合-FCC) CLUTCH(SLIPPING CLUTCH -FCC ) | Enquire | |
| 0DM0-062017 | CIRCLIPS FOR SHAFT 25 | 换档变速总成(2) TRANSMISSION(2) | Enquire | |
| 01A0-013005 | O-SEAL RING | 水泵总成 WATER PUMP | Enquire | |
| 0010-021017-0010 | BOLT M6x25 | 起动系统 STARTING SYSTEM | Enquire | |
| 0DM0-022300 | CLAMP, CONNECTING PIPE | 节气门体和喷油器(德洛托电喷) THROTTLE&INJECTOR | Enquire | |
| 30105-050012890 | SCREW M5x12 | 右曲轴箱分总成 RIGHT CRANKCASE | Enquire | |
| 0A70-013004 | PLUG | 右曲轴箱分总成 RIGHT CRANKCASE | Enquire | |
| 30800-01405 | CIRCLIP FOR HOLE | 右曲轴箱分总成 RIGHT CRANKCASE | Enquire | |
| 0DM0-012002 | RESTRICTION PLUG | 右曲轴箱分总成 RIGHT CRANKCASE | Enquire | |
| 0180-011500 | MAGNETIC DRAIN BOLT | 左曲轴箱分总成 LEFT CRANKCASE | Enquire | |
| 30800-04005 | CIRCLIP FOR HOLE | 左曲轴箱分总成 LEFT CRANKCASE | Enquire | |
| 0DM0-011007 | OIL SEAL | 左曲轴箱分总成 LEFT CRANKCASE | Enquire | |
| 0DM0-011050 | BEARING 17x27x13 | 左曲轴箱分总成 LEFT CRANKCASE | Enquire | |
| 30499-02201 | BEARING | 左曲轴箱分总成 LEFT CRANKCASE | Enquire | |
| 30499-03501 | BEARING | 左曲轴箱分总成 LEFT CRANKCASE | Enquire | |

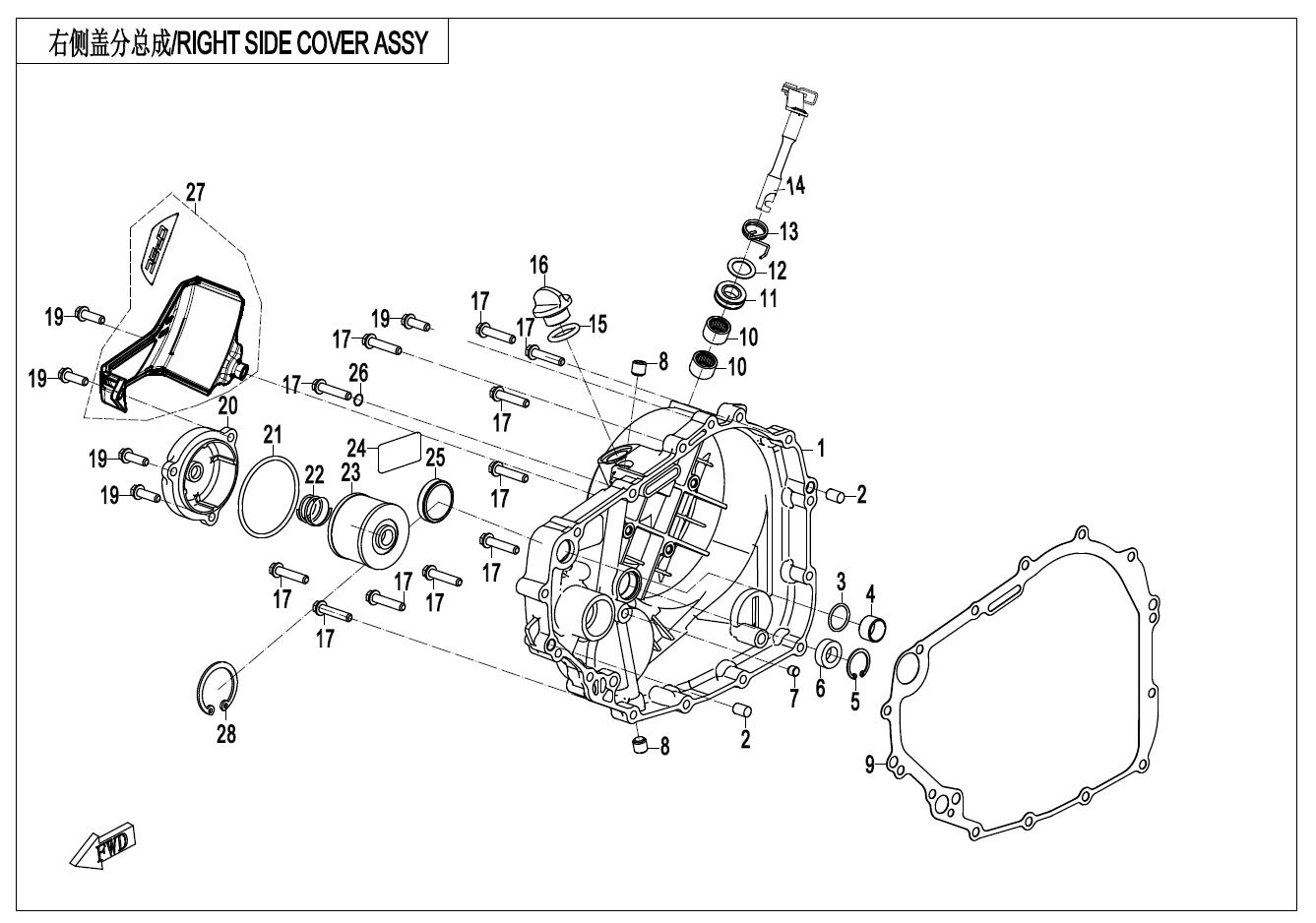

| 30403-01200 | BEARING | 右侧盖分总成(滑动离合-FCC) RIGHT SIDE COVER(SLIPPING CLUTCH-FCC ) | Enquire | |
| 0010-080009 | OIL SEAL | 右侧盖分总成(滑动离合-FCC) RIGHT SIDE COVER(SLIPPING CLUTCH-FCC ) | Enquire | |
| 0110-013030 | O-RING | 右侧盖分总成(滑动离合-FCC) RIGHT SIDE COVER(SLIPPING CLUTCH-FCC ) | Enquire | |
| 0700-013008 | OIL FILLING PLUG | 右侧盖分总成(滑动离合-FCC) RIGHT SIDE COVER(SLIPPING CLUTCH-FCC ) | Enquire | |
| 30502-057000F | O-RING 57x3 | 右侧盖分总成(滑动离合-FCC) RIGHT SIDE COVER(SLIPPING CLUTCH-FCC ) | Enquire | |
| 0DM0-013200 | OIL FILTER ASSY, ENGINE | 右侧盖分总成(滑动离合-FCC) RIGHT SIDE COVER(SLIPPING CLUTCH-FCC ) | Enquire | |
| 0700-012201 | O-RING | 右侧盖分总成(滑动离合-FCC) RIGHT SIDE COVER(SLIPPING CLUTCH-FCC ) | Enquire | |
| 0DM0-024500-10001 | TENSIONER ASSY | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0JYA-023001-00001 | HEX FLANGE BOLT M6x6 | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0010-011016-00001 | BOLT | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0700-170200 | SPARK PLUG | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0DM0-022100 | CYLINDER HEAD GASKET ASSY | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0700-022004 | LOCK CLIP, VALVE | 配气传动分总成 CAMSHAFT | Enquire | |
| 0700-022400-1000 | SEAL RING, VALVE STEM | 配气传动分总成 CAMSHAFT | Enquire | |
| 0DM0-024100-10000 | CAMSHAFT, AIR INTAKE | 配气传动分总成 CAMSHAFT | Enquire | |
| 0DM0-050002 | BEARING SEAT | 离合器总成(拉索版) CLUTCH(CABLE VERSION) | Enquire | |
| 30400-00802 | BEARING | 离合器总成(拉索版) CLUTCH(CABLE VERSION) | Enquire | |
| 30406-00304 | ROLLER NEEDLE | 机油泵总成 OIL PUMP | Enquire | |
| 6NQ#-000206-6001 | INNER HEX SCREW M6x16 | 变档杆 GEARSHIFT LEVER | Enquire | |
| 6KMV-050001-8102 | UPPER TRIPLE CLAMP | 前悬架 FRONT SUSPENSION | Enquire | |
| 6KM#-160420-8001 | SPONGE MAT | 灯具 LIGHTS | Enquire | |
| 6KM#-160410-8000 | SPONGE MAT | 灯具 LIGHTS | Enquire | |
| 0DNV-012010-4000-0BP00 | RH CRANKCASE ASSY | 右曲轴箱分总成 RIGHT CRANKCASE | Enquire | |
| 30499-02506 | BEARING | 右曲轴箱分总成 RIGHT CRANKCASE | Enquire | |
| 30499-03001 | BEARING | 右曲轴箱分总成 RIGHT CRANKCASE | Enquire | |
| 30499-02010 | BEARING | 右曲轴箱分总成 RIGHT CRANKCASE | Enquire | |
| 0DM0-011010-2BP00 | LH CRANKCASE ASSY | 左曲轴箱分总成 LEFT CRANKCASE | Enquire | |
| 0DNV-011010-4000-0BP00 | LH CRANKCASE ASSY | 左曲轴箱分总成 LEFT CRANKCASE | Enquire | |
| 0700-065220 | OIL SEAL | 左曲轴箱分总成 LEFT CRANKCASE | Enquire | |
| 30403-01300 | BEARING | 左曲轴箱分总成 LEFT CRANKCASE | Enquire | |
| 30502-018000F | O-RING | 右侧盖分总成(滑动离合-FCC) RIGHT SIDE COVER(SLIPPING CLUTCH-FCC ) | Enquire | |
| 30800-02205 | CIRCLIP FOR HOLE | 右侧盖分总成(滑动离合-FCC) RIGHT SIDE COVER(SLIPPING CLUTCH-FCC ) | Enquire | |
| 0DM0-013007 | OIL SEAL,CRANKCASE | 右侧盖分总成(滑动离合-FCC) RIGHT SIDE COVER(SLIPPING CLUTCH-FCC ) | Enquire | |
| 0DM0-021100 | CYLINDER HEAD COVER SEAL RING ASSY | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0DM0-021001-0HA00 | CYLINDER HEAD COVER | 气缸盖罩分总成 CYLINDER HEAD COVER | Enquire | |
| 0DM0-022200-1BP00 | CYLINDER BODY ASSY | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0DM0-022400 | THERMOSTAT ASSY | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0DM0-022005-0B200 | THERMOSTAT CAP | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0DMV-022009-2100 | COOLANT TEMP. SENSOR | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0180-022003-00002 | STUD | 气缸盖分总成 CYLINDER COVER | Enquire | |
| 0DM0-023001-10000 | SEAL GASKET, CYLINDER | 气缸和活塞 CYLINDER & PISTON | Enquire | |
| 0DM0-023100-0BP11 | CYLINDER BODY ASSY | 气缸和活塞 CYLINDER & PISTON | Enquire | |
| 0DM0-023100-0BP21 | CYLINDER BODY ASSY | 气缸和活塞 CYLINDER & PISTON | Enquire | |
| 0DM0-024002 | STOPPER, CHAIN GUIDE | 配气传动分总成 CAMSHAFT | Enquire | |
| 0DM0-024008 | CHAIN GUIDE | 配气传动分总成 CAMSHAFT | Enquire | |
| 0DMB-024002 | TENSIONER PLATE | 配气传动分总成 CAMSHAFT | Enquire | |
| 0DM0-024300 | TIMING CHAIN | 配气传动分总成 CAMSHAFT | Enquire | |
| 0DM0-024200-10000 | CAMSHAFT, AIR EXHAUST | 配气传动分总成 CAMSHAFT | Enquire | |
| 0060-030003-00001 | INNER HEX BOLT | 磁电机总成(苏州巩诚) MAGNETO(SZGC) | Enquire | |
| 0700-040001-20000 | BOLT M12x1.25x45 | 曲轴连杆总成 CRANKSHAFT&CONNECTING ROD | Enquire | |
| 0DM0-041000-00024 | CRANK CONNECTING ROD SUB ASSY | 曲轴连杆总成 CRANKSHAFT&CONNECTING ROD | Enquire | |
| 0010-040006 | WOODRUFF KEY | 曲轴连杆总成 CRANKSHAFT&CONNECTING ROD | Enquire | |
| 0DM0-040009 | WOODRUFF KEY | 曲轴连杆总成 CRANKSHAFT&CONNECTING ROD | Enquire | |
| 0DM0-040002 | OUTPUT GEAR | 曲轴连杆总成 CRANKSHAFT&CONNECTING ROD | Enquire | |
| 0DM0-040003 | CIRCLIP16 | 曲轴连杆总成 CRANKSHAFT&CONNECTING ROD | Enquire | |
| 30406-00303 | NEEDLE BEARING | 换档变速总成(1) TRANSMISSION(1) | Enquire | |
| 0A70-060014 | O-RING | 换档变速总成(1) TRANSMISSION(1) | Enquire | |
| 0010-030002-00001 | BOLT | 换档变速总成(1) TRANSMISSION(1) | Enquire | |
| 30801-01405 | CIRCLIPS FOR SHAFT | 换档变速总成(1) TRANSMISSION(1) | Enquire | |
| 0DM0-061012 | CIRCLIPS FOR SHAFT 20 | 换档变速总成(2) TRANSMISSION(2) | Enquire | |
| 30406-00300 | ROLLER NEEDLE | 机油泵总成 OIL PUMP | Enquire | |
| 30102-060016810 | SCREW | 起动系统 STARTING SYSTEM | Enquire | |
| 0DM0-173002 | CIRCLIP | 节气门体和喷油器 THROTTLE&INJECTOR | Enquire | |
| 0DM0-173001 | FUEL INJECTOR CAP | 节气门体和喷油器 THROTTLE&INJECTOR | Enquire | |
| 0700-012013-00002 | BOLT | 节气门体和喷油器 THROTTLE&INJECTOR | Enquire | |
| 0DMV-171000-2100 | FUEL INJECTOR | 节气门体和喷油器(德洛托电喷) THROTTLE&INJECTOR | Enquire | |
| 0DMV-170010-2100 | FUEL INJECTOR CAP | 节气门体和喷油器(德洛托电喷) THROTTLE&INJECTOR | Enquire | |
| 30102-050025900 | INNER HEX SCREW | 锁具 LOCK KIT | Enquire | |
| 30102-050008900 | INNER HEX SCREW | 锁具 LOCK KIT | Enquire | |
| 30105-050012410 | SCREW | 锁具 LOCK KIT | Enquire | |
| 30805-01005 | CIRCLIP 10 | 变档杆 GEARSHIFT LEVER | Enquire | |
| 30110-421130010 | SELF-TAPPING SCREW | 塑料件1 PLASTICS1 | Enquire | |
| 6NQ#-000205-6001 | CHAIN GUARD SCREW | 塑料件3 PLASTICS3 | Enquire | |
| 30110-420130070 | SELF-TAPPING SCREW | 塑料件4 PLASTICS4 | Enquire | |
| A000-050003 | FIXING SCREW, UPPER TRIPLE CLAMP | 前悬架 FRONT SUSPENSION | Enquire | |
| 30102-080030860 | SCREW | 前悬架 FRONT SUSPENSION | Enquire | |
| A000-050100-10000 | STEERING BEARING ASSY | 前悬架 FRONT SUSPENSION | Enquire | |
| 6KJ0-050300-0BP00 | FORNT FORK AND LOWER TRIPLE CLAMP ASSY | 前悬架 FRONT SUSPENSION | Enquire | |
| A000-050011 | RUBBER PLUG 2 | 前悬架 FRONT SUSPENSION | Enquire | |
| 30102-080040810 | SCREW M8x40 | 前悬架 FRONT SUSPENSION | Enquire | |
| 8030-040020-1000 | SCREW M6x17.5 | 后悬架 REAR SUSPENSION | Enquire | |
| 6KMV-070100-3000-20 | OIL SEAL | 前轮 FRONT WHEEL | Enquire | |
| 30102-060045870 | SCREW | 转向系统 STEERING SYSTEM | Enquire | |
| 30102-060025870 | SCREW | 转向系统 STEERING SYSTEM | Enquire | |
| 30500-027800N | OIL SEAL | 后轮 REAR WHEEL | Enquire | |
| 6070-120400 | CLAMP(Φ14.5) | 油箱 FUEL TANK | Enquire | |
| 30601-111010 | CLAMP | 油箱 FUEL TANK | Enquire | |
| 6KM0-130106 | DAMPING RUBBER SLEEVE | 座垫 SEAT | Enquire | |
| 6NQ0-140001 | PIN Dia 12, FRONT FOOTREST | 脚蹬 FOOTREST | Enquire | |
| 30102-050030860 | SCREW | 脚蹬 FOOTREST | Enquire | |
| 30105-050014470 | SCREW | 脚蹬 FOOTREST | Enquire | |
| 30802-00603 | SPLIT WASHER 6 | 脚蹬 FOOTREST | Enquire | |
| 30102-080030810 | SCREW | 脚蹬 FOOTREST | Enquire | |
| 0180-014010 | WIRE CLAMP | 脚蹬 FOOTREST | Enquire | |
| 0010-136100 | WATER FILLING PORT CAP ASSY | 冷却系统 COOLING SYSTEM | Enquire | |
| 30605-127060 | CLAMP | 冷却系统 COOLING SYSTEM | Enquire | |
| 6KM#-181001-8001 | DAMPER RUBBER MAT | 冷却系统 COOLING SYSTEM | Enquire | |
| 30601-113010 | CLAMP | 冷却系统 COOLING SYSTEM | Enquire | |
| 6KM#-200003-8001 | PLUG | 随车工具 TOOLS | Enquire | |
| 30601-112010 | CLAMP | 燃油蒸发系统 FUEL VAPORIZATION SYSTEM | Enquire | |
| 30601-110010 | CLAMP | 燃油蒸发系统 FUEL VAPORIZATION SYSTEM | Enquire | |

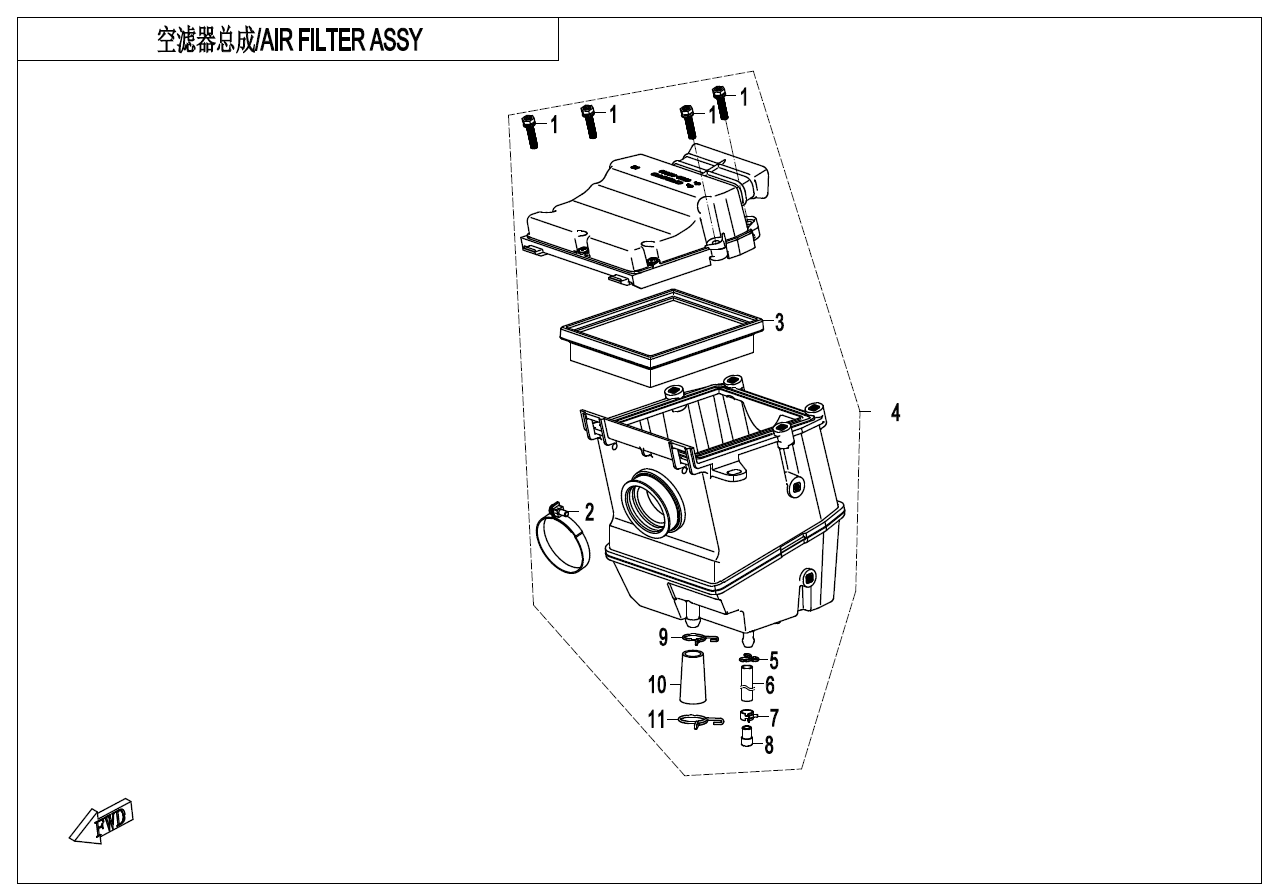

| 30114-060025470 | SCREW ASSY | 空滤器 AIR FILTER | Enquire | |
| 0DM0-110200 | CLAMP ASSY | 空滤器 AIR FILTER | Enquire | |
| 30601-210530 | CLAMP | 空滤器 AIR FILTER | Enquire | |
| 0DM0-110012 | PLUG, OIL STORAGE HOSE | 空滤器 AIR FILTER | Enquire | |
| 30601-116520 | CLAMP A16.5 | 空滤器 AIR FILTER | Enquire | |
| 30601-120030 | CLAMP A20 | 空滤器 AIR FILTER | Enquire |
Exploded diagrams — Engine
Browse the catalogue interactively
Open Engine in the interactive 2025 春风 SR 250SR catalogue to drill into diagrams, check availability and add parts to your cart.
