2025 CF MOTO CF800-11HOEM parts & exploded diagrams
EE market644 parts15 groups12+ diagrams
Vehicle #2093
- CC
- —
- HP
- —
- 年款
- —
Exploded diagrams — 2025 CF MOTO CF800-11H
Part numbers on the 2025 CF MOTO CF800-11H
Each number has a dedicated cross-reference & fitment page.
- 6WWV-011000-8001 — LOCK KIT
- 30102-050030900 — SCREW
- 6KMV-011020-B001 — KEY
- 30102-050012810 — SCREW
- 6WWV-011001-5000 — SEAT LOCK BRACKET PANEL
- 6WWV-011010-5001 — SOCKET, SEAT LOCK
- 30102-080020810 — SCREW
- 6AQV-011012-1000 — SEAT CABLE
- 8010-150003 — TIE BAND
- CFCV-CAC002-2000-M1 — CLIP
- K-51010086100 — SELF-LOCKING NUT M8 CU

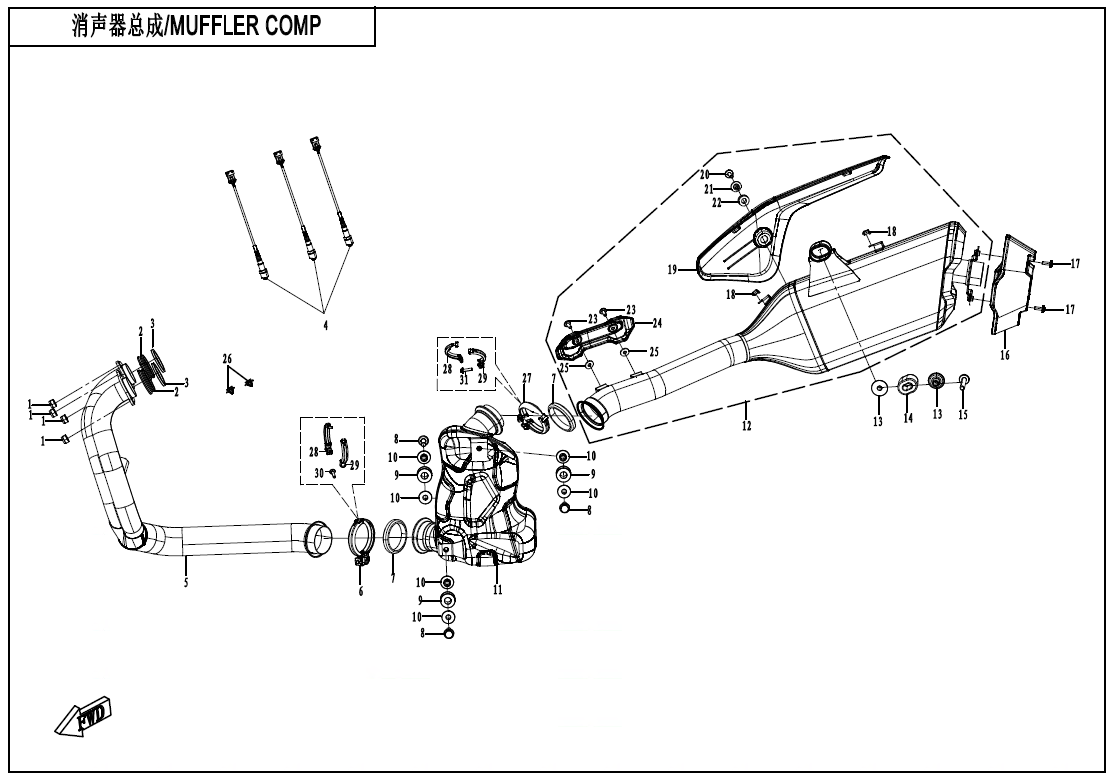

- 6WWV-020004-5000 — SEAL GASKET, EXHAUST
- C90705005000 — Exhaust Gasket 36.5X44.5X3.5
- 6WWV-020001-5000 — BUSHING, EXHAUST PORT
- 6KMV-004100-M300 — OXYGEN SENSOR
- 6WWV-021100-5H00 — Exhaust Pipe Assy
- C63605058100 — CLAMP
- 6L30-021001 — SEAL SLEEVE 1, GRAPHITE
- 6WWV-020003-5000 — RUBBER SLEEVE, MUFFLER BODY
- 6WWV-020002-5001 — BUSHING, MUFFLER BODY
- 6WWV-021300-5H00 — Muffler Body Assy
- 6WWV-021300-8002 — MUFFLER BODY ASSY
- C90705169000 — BUSH 8.5x11x29
- 6L30-020001 — DAMPING SLEEVE, MUFFLER
- 6L30-020003 — INNER HEX SCREW M8x52
- 6WWV-021040-8000 — REAR COVER, MUFFLER
- 6WWV-047102-5000 — INNER HEX SCREW M5x14
- 6GU#-021005-6000 — GUARD RUBBER SLEEVE
- 6WWV-021010-8002 — MUFFLER GUARD
- 6WWV-046802-5000 — INNER HEX SCREW M6x16
- 6WWV-021003-8000 — GUARD T-BUSHING
- 6WWV-021004-8000 — GUARD RUBBER SLEEVE
- 6GU#-021312-6000 — SCREW
- 6WWV-021020-8000 — MUFFLER GUARD
- 6WWV-021006-8000 — GUARD HEAT INSULATOR
- 6WWV-004101-5H01 — CONNECTING CLASP
- C63605058300 — CLAMP
- C63605058120 — Exhaust Clamp Part 2
- C63605058030 — Exhaust Clamp Part 1 Cpl
- C0000250802500 — Internal Hexagon Flange Bolt M8X25
- C0000250802700 — Hh Collar Screw M8X27

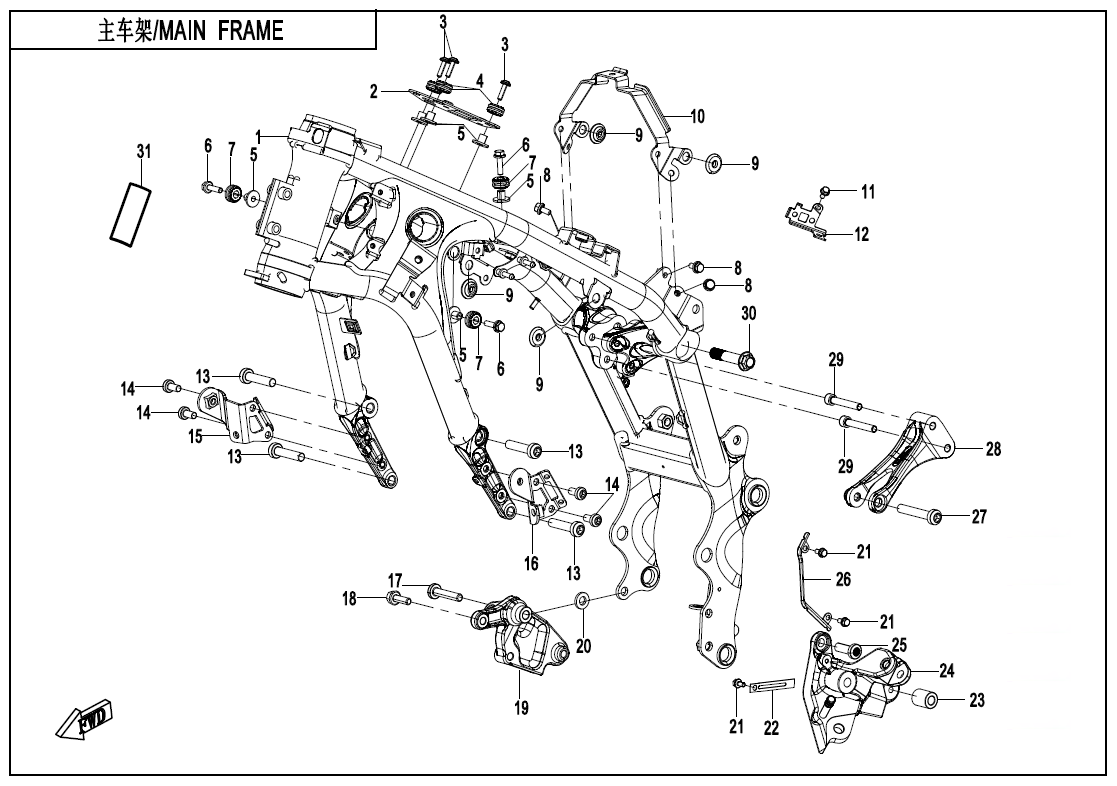

- 6WWV-033000-8001-0BP00 — FRONT FRAME ASSY MAUD SPIRIT BLACK
- 6WWV-033000-8002-0BP00 — Main Frame Assy Maud Spirit Black
- 6WWV-030001-5000 — BRACKET, 6D SENSOR
- 6WWV-046902-5000 — INNER HEX SCREW M6x20
- 6WWV-030019-5000 — RUBBER BUSHING
- 9060-180029 — RADIATOR SLEEVE TUBE
- 6KM#-181001-8001 — DAMPER RUBBER MAT
- 6KMV-041112-3000 — M6 RUBBER SLEEVE
- 6WWV-030110-8002 — SEAT FRONT BRACKET
- 6WWV-046702-5000 — INNER HEX SCREW M6x12
- 6WWV-030170-8000 — BRACKET, MAGNETIC VALVE
- 6WWV-030011-5000 — INNER HEX SCREW M10x45
- 6WWV-030013-5000 — SCREW M8X16
- 6WWV-000120-8000 — FRONT PANEL BRACKET RH SEAT
- 6WWV-000120-8001 — FRONT PANEL BRACKET RH SEAT
- 6WWV-000110-8000 — FRONT PANEL BRACKET LH SEAT
- C0000351004500S — AH COLLAR SCREW M10X45 T45 SS
- 6WWV-030020-8000-0BP00 — FRONT FOOTREST RH BRACKET MAUD SPIRIT BLACK
- 6WWV-030005-8000 — FRONT FOOTREST BRACKET BUSHING
