2024 CF MOTO CF700-2D — Electrical System parts

EE market43 genuine parts8 diagrams

Subgroups

Headlight & Parts · 4Lights · 3Relay · 7Controller/ECU · 29

Part numbers

Every genuine electrical system part fitted to the 2024 CF MOTO CF700-2D. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
6GUV-011000-9101LOCK KIT (NEBULA WHITE)LOCK KIT - F01Enquire
6GUV-011000-9101-10LOCK KIT (ZIRCON BLACK)LOCK KIT - F01Enquire
6GU#-010010-6000SEAT CABLELOCK KIT - F01Enquire
6GUV-060502-9000-0VR00RH CHAIN ADJUSTING BLOCKREAR SUSPENSION - F06Enquire
6GUV-060502-9000-0BU00RH CHAIN ADJUSTING BLOCK JET BLACKREAR SUSPENSION - F06Enquire
6GUV-060501-9000-0BU00LH CHAIN ADJUSTING BLOCK JET BLACKREAR SUSPENSION - F06Enquire
6GUV-060501-9000-0VR00LH CHAIN ADJUSTING BLOCKREAR SUSPENSION - F06Enquire
6GU#-100600-6002CABLE, CLUTCHSTEERING SYSTEM - F10Enquire
6GUV-170200-8100-M1FUEL LEVEL SENSORFUEL TANK - F12Enquire
6GUV-150100-9102MAIN CABLEELECTRIC SYSTEM - F15Enquire
1080-150700BATTERY TIE BANDELECTRIC SYSTEM - F15Enquire
31021100BATTERYELECTRIC SYSTEM - F15Enquire
6KMV-151500-3000SIDE STAND SWITCHELECTRIC SYSTEM - F15Enquire
8010-090005BOLT M6x16ELECTRIC SYSTEM - F15Enquire
01AA-177000REGULATORELECTRIC SYSTEM - F15Enquire
801F-100101TIE BANDELECTRIC SYSTEM - F15Enquire
6GU#-150200-6000POSITIVE CABLE, STARTER MOTORELECTRIC SYSTEM - F15Enquire
6GU#-150300-6000NEGATIVE CABLE, STARTER MOTORELECTRIC SYSTEM - F15Enquire
6GU#-150500-6001USB POWER OUTLET SOCKETELECTRIC SYSTEM - F15Enquire
6WWV-150410-5000-10VEHICLE CONTROL UNITELECTRIC SYSTEM - F15Enquire
6GU#-150700-6000POSITIVE CABLE, STARTER RELAYELECTRIC SYSTEM - F15Enquire
SN1V-691100-1301-11T-BOX NFAELECTRIC SYSTEM - F15Enquire
SN1V-691100-1201-11T-BOX AUST ONLYELECTRIC SYSTEM - F15Enquire
SN1V-691100-1401-11T-BOX NFAELECTRIC SYSTEM - F15Enquire
SN1V-691100-1501-11T-BOX NFAELECTRIC SYSTEM - F15Enquire
SN1V-691100-1601-11T-BOX NFAELECTRIC SYSTEM - F15Enquire
6KJ0-150600ROLL-OVER SENSORELECTRIC SYSTEM - F15Enquire
9010-150310-10001STARTER RELAYELECTRIC SYSTEM - F15Enquire
CFCV-150524-2000-M1AUXILIARY RELAYELECTRIC SYSTEM - F15Enquire
KNL0-150600HORNELECTRIC SYSTEM - F15Enquire
6GU#-156000-6000WIRE PROTECTORELECTRIC SYSTEM - F15Enquire
6GU#-150430-6000EARTH WIRE, ENGINEELECTRIC SYSTEM - F15Enquire
6WWV-150420-5000-10VEHICLE CONTROL UNIT BUSHINGELECTRIC SYSTEM - F15Enquire
6GU#-160410-6002LH FRONT TURN LIGHTLIGHTS - F16Enquire
6GU#-160420-6002RH FRONT TURN LIGHTLIGHTS - F16Enquire
6GUV-160110-9101HEADLIGHTLIGHTS - F16Enquire
6GUV-160110-9101-10HEADLIGHTLIGHTS - F16Enquire
6GUV-160110-9100HEADLIGHTLIGHTS - F16Enquire
6GUV-160110-9100-10HEADLIGHTLIGHTS - F16Enquire
6GUV-160200-7300TAIL LIGHTLIGHTS - F16Enquire
6GUV-171000-9100LCDDASHBOARD - F17Enquire
30006-050016810BOLTPLASTICS2 - F04-2Enquire
30006-080016870BOLTELECTRIC SYSTEM - F15Enquire

Exploded diagrams — Electrical System

2024 CF MOTO CF700-2D ELECTRIC SYSTEM - F15 exploded diagram
ELECTRIC SYSTEM - F15 · 25

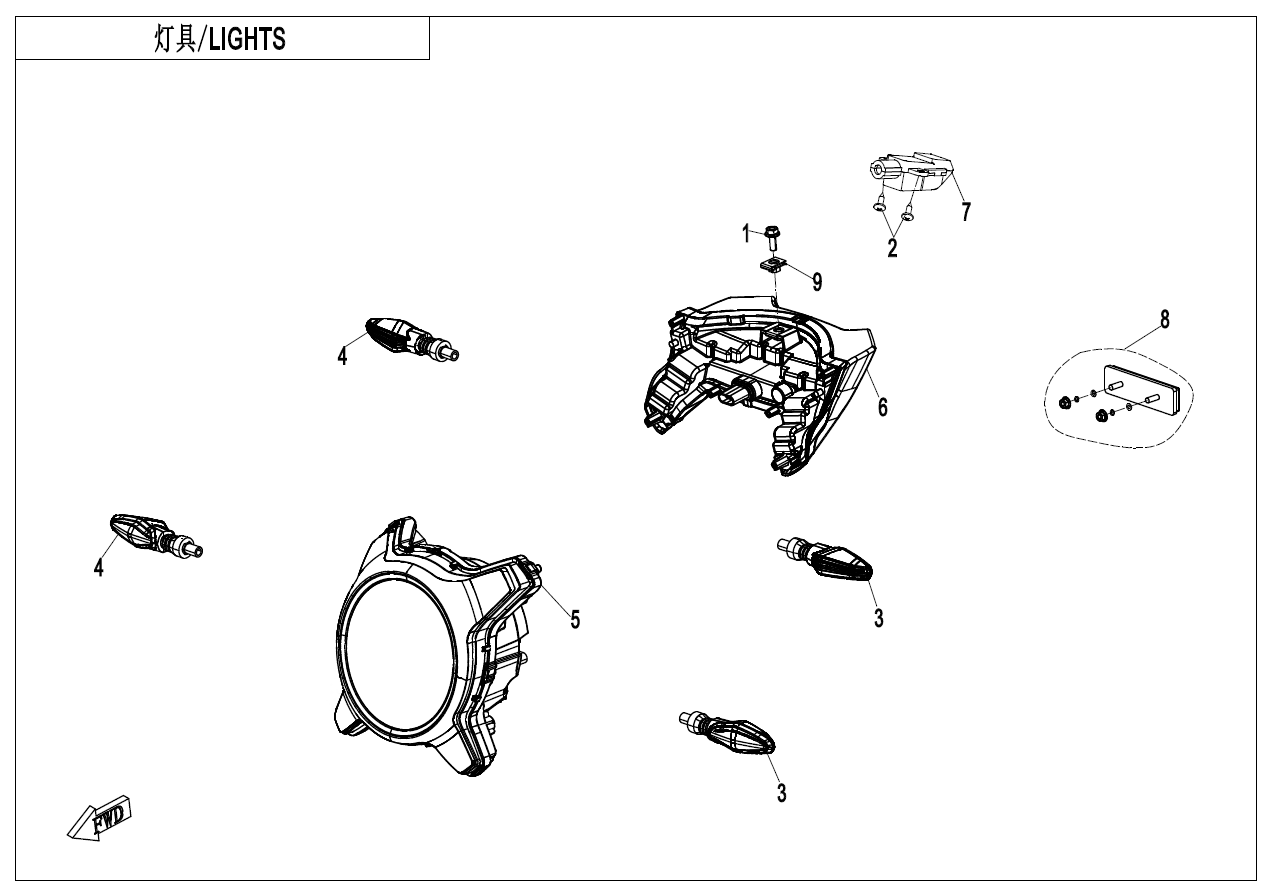

2024 CF MOTO CF700-2D LIGHTS - F16 exploded diagram
LIGHTS - F16 · 7
2024 CF MOTO CF700-2D REAR SUSPENSION - F06 exploded diagram
REAR SUSPENSION - F06 · 4
2024 CF MOTO CF700-2D LOCK KIT - F01 exploded diagram
LOCK KIT - F01 · 3

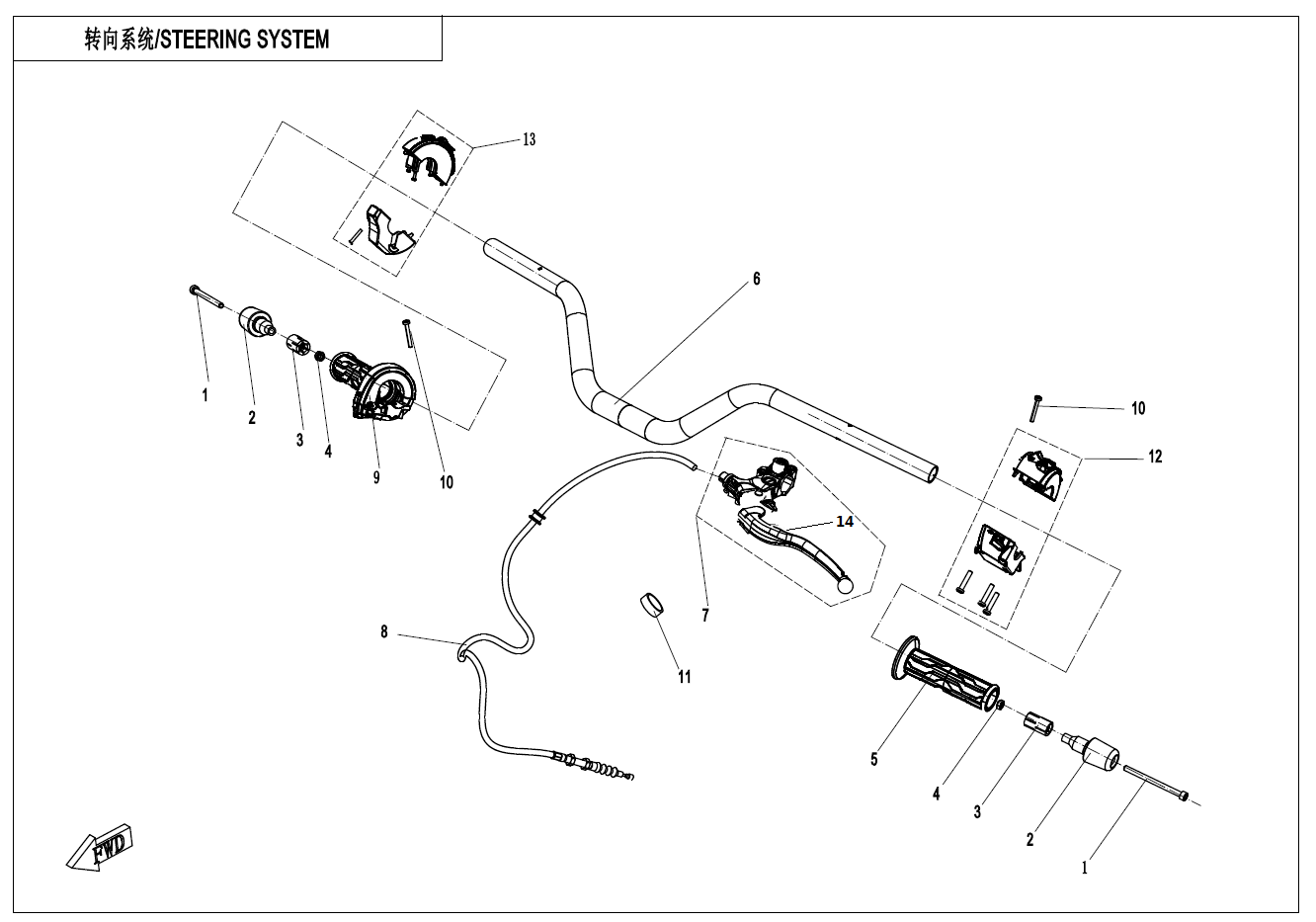

2024 CF MOTO CF700-2D STEERING SYSTEM - F10 exploded diagram
STEERING SYSTEM - F10 · 1
2024 CF MOTO CF700-2D FUEL TANK - F12 exploded diagram
FUEL TANK - F12 · 1

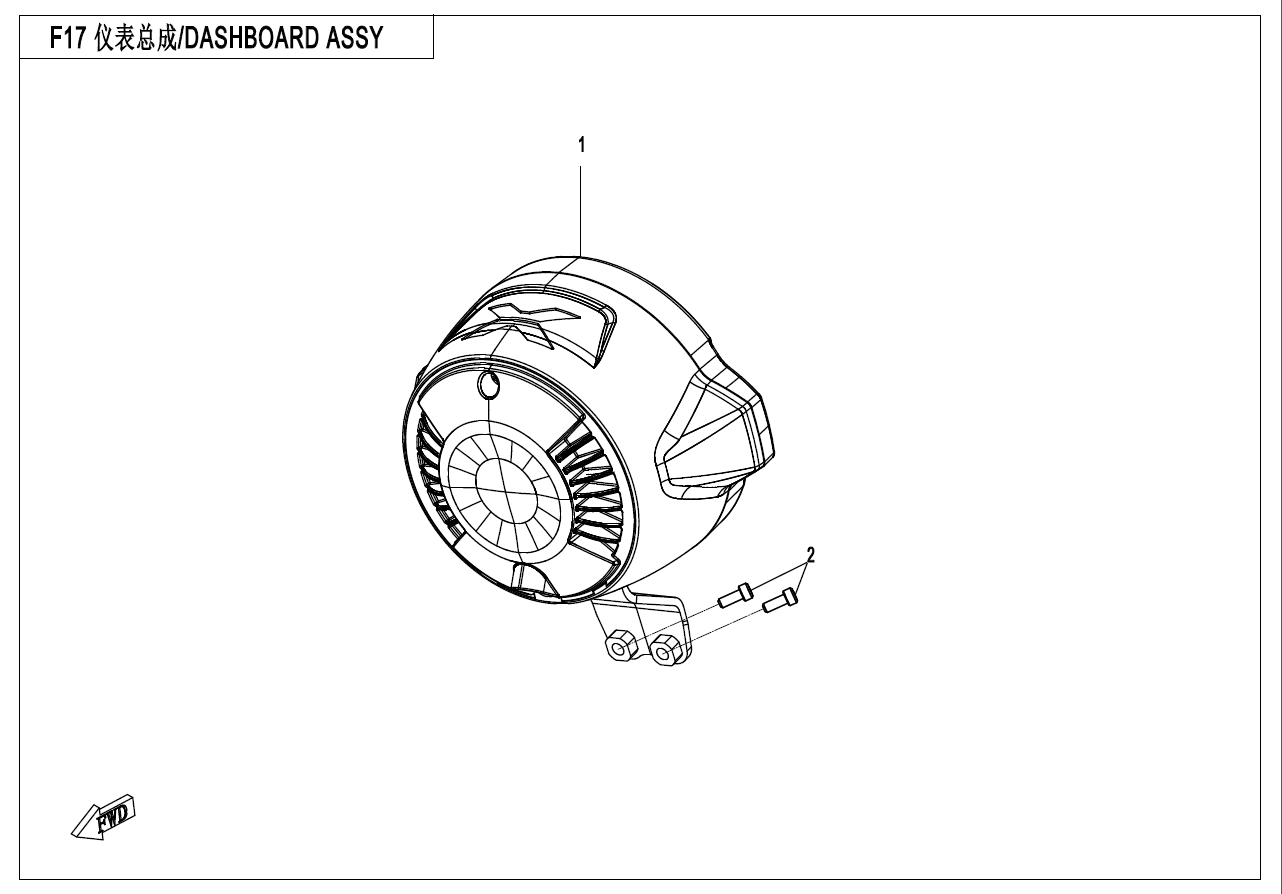

2024 CF MOTO CF700-2D DASHBOARD - F17 exploded diagram
DASHBOARD - F17 · 1
2024 CF MOTO CF700-2D PLASTICS2 - F04-2 exploded diagram
PLASTICS2 - F04-2 · 1
