2024 CF MOTO 1250 TRGOEM parts & exploded diagrams
MY market910 parts14 groups12+ diagrams
Vehicle #1962
- CC
- —
- HP
- —
- 年款
- —
Parts by assembly group
Exploded diagrams
Part numbers on this vehicle
Each number has a dedicated cross-reference & fitment page.

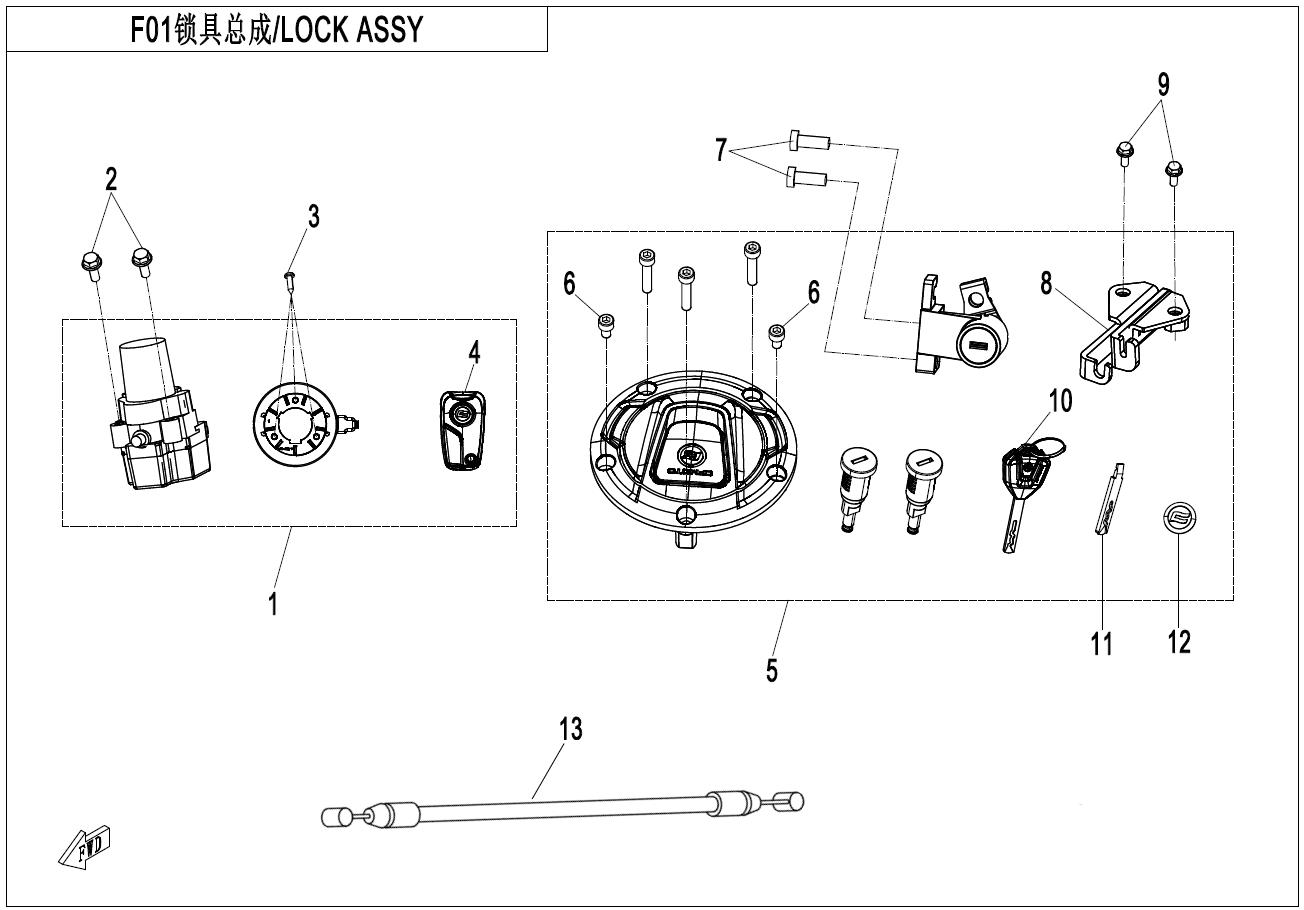

- 6GUA-011100-7000 — KEYLESS-GO LOCK KIT
- 1F30-022009 — AIR INLET PIPE
- 30102-080020810 — SCREW
- 30118-420130010 — SELF-TAPPING SCREW. ST4.2X13
- 6L32-011200 — LOCK KIT
- 30102-050008900 — INNER HEX SCREW
- 30105-050012410 — SCREW
- A000-010600 — LOCK SEAT, SEAT
- 30006-060012870 — BOLTM6x12
- 6KMV-011020-B001 — KEY
- 6L32-011200-4000-22 — KEY CARD
- 6WWV-011150-5100 — KEY ROUND LABEL
- 6NT1-010010 — SEAT CABLE

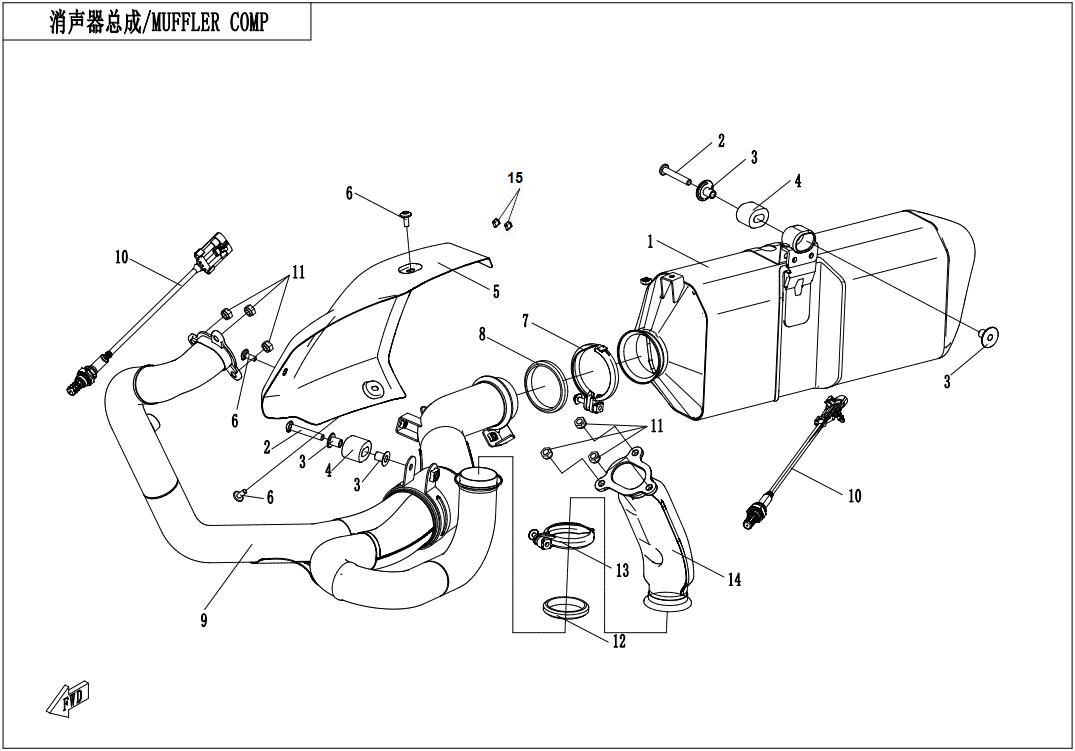

- 6L30-021300-30000 — MUFFLER BODY ASSY
- 6L30-020003 — INNER HEX SCREW M8x52
- 6L30-020006 — T-TYPE BUSHING
- 6L30-020001 — DAMPING SLEEVE, MUFFLER
- 6L30-020040 — MUFFLER DECO GUARD
- 6NQ#-000206-6001 — INNER HEX SCREW M6x16
- 6L30-021020 — CLAMP 2
- 6L30-021002 — GRAPHITE SEAL SLEEVE 2
- 6L30-021200-30000 — EXHAUST PIPE ASSY
- 0HU0-176000 — OXYGEN SENSOR
- 6L30-020005 — LOCK NUT
- 6L30-021001 — SEAL SLEEVE 1, GRAPHITE
- 6L30-021010 — CALMP 1
- 6L30-021100-10000 — SECOND CYLINDER EXHAUST PIPE ASSY
- 6GU#-021005-6000 — GUARD RUBBER SLEEVE
- 6L3V-030400-4200-0BP00 — FRONT BRACKET (MAUD SPIRIT BLACK)
- 6L30-030006 — RH POLICE LIGHT BRACKET (PLASTIC POWDER)
- 6L30-030005 — LH POLICE LIGHT BRACKET (PLASTIC POWDER)
- 30102-080016810 — INNER HEX SCREW
- 5020-031002 — RUBBER SLEEVE LINER
- 5020-031001 — RUBBER SLEEVE, FRONT LICENSE BRACKET
- 30301-060412 — WASHER
- 30204-060810 — NUT
- 6L3V-030030-4200 — LH FRONT PANEL BRACKET ASSY
- 6L30-030040 — RH FRONT PANEL BRACKET ASSY
- 30102-060016810 — SCREW
- 30006-080016810 — BOLT

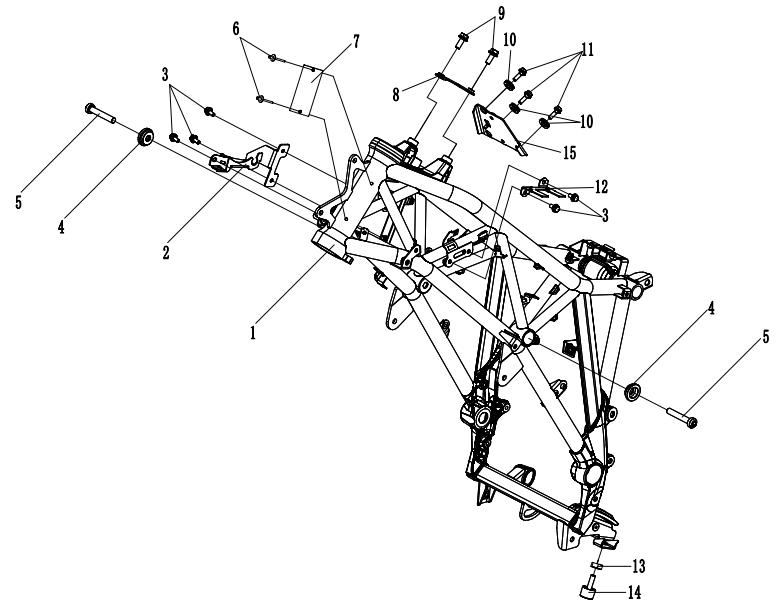

- 6L32-031000-0BP00 — MAIN FRAME ASSY (MAUD SPIRIT BLACK)
- 6L30-080007 — MSC CONTROLLER BRACKET
- 6L30-030007 — BUSHING
- 6L30-030091 — BOLT M10x60
- 30902-0401320 — RIVET
- 6FIA-190012 — VEHICLE PLATE
- 6KJC-190012-8000 — VIN PLATE
- 6L30-030800 — FUEL TANK PANEL FRONT BRACKET
- 30006-080035810 — BOLT
- 9010-160101 — HEADLIGHT RUBBER DAMPER
- 30006-060020870 — BOLTM6x20
- 6L30-030008-10000 — CANISTER BRACKET
- 30200-080810 — NUT
- 6L30-030080 — DAMPING MATE ASSY
- 6L30-030010 — 6D SENSOR BRACKET
- 6L30-000120-0BP00 — RH ENGINE GUARD BRAKCET (MAUD SPIRIT BLACK)
- 6L30-000110-0BP00 — LH ENGINE GUARD BRAKCET (MAUD SPIRIT BLACK)
- 6L30-000002-0BP00 — SIDE BRACKET BRACKET (MAUD SPIRIT BLACK)
- 6L30-000004 — SIDE STAND SWITCH COLUMN
- 30208-102810 — NUT
