2023 CF MOTO 700CL-X SPORTOEM parts & exploded diagrams
MY market867 parts15 groups12+ diagrams
Vehicle #1955
- CC
- —
- HP
- —
- 年款
- —
Parts by assembly group
Exploded diagrams
Part numbers on this vehicle
Each number has a dedicated cross-reference & fitment page.
- 0HU0-050004 — TIE-ROD

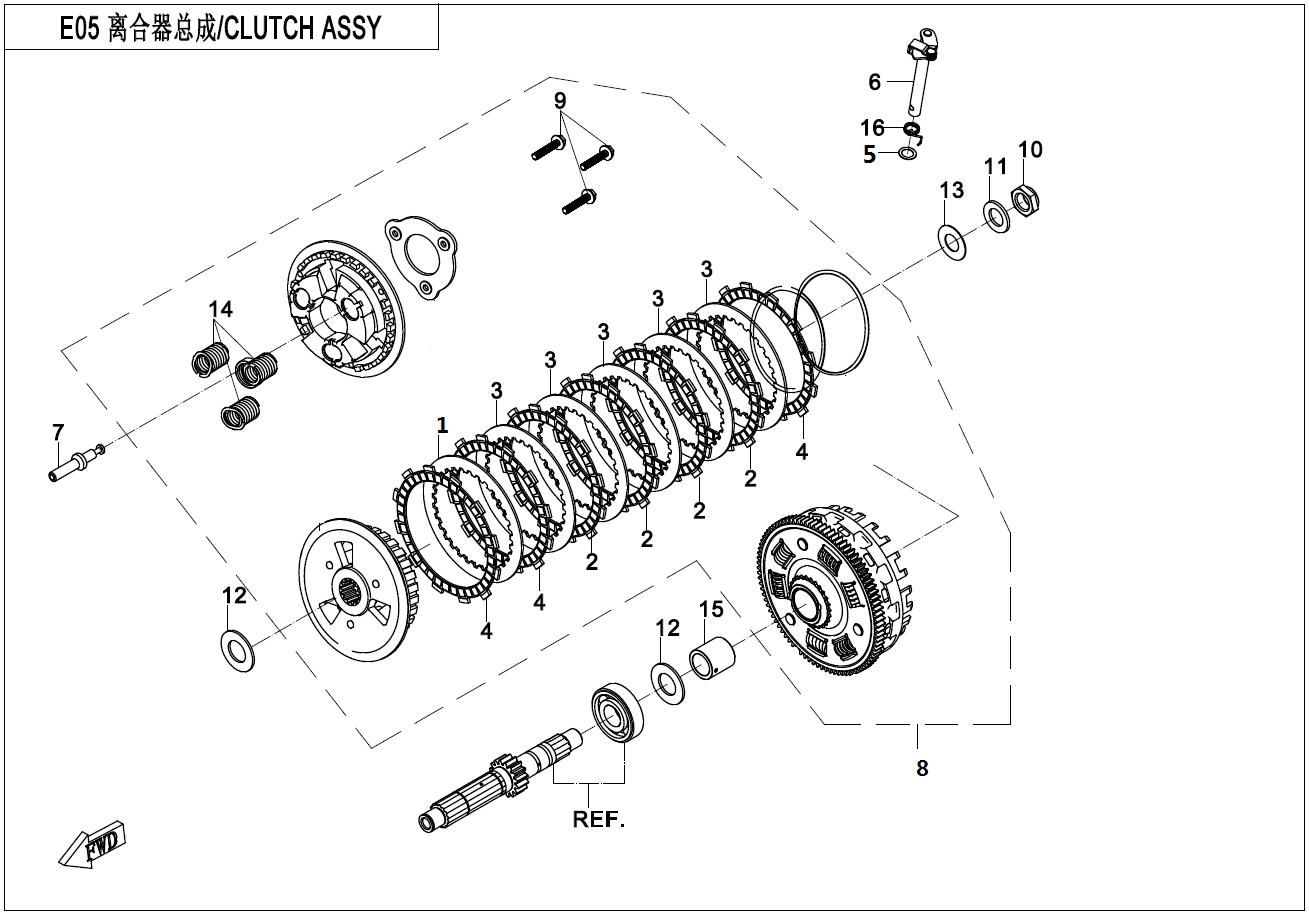

- 0HU0-051000-10010 — CLUTCH SUB ASSY (MARK A)
- 0HU0-051000-10020 — CLUTCH SUB ASSY (MARK B)
- 0HU0-051006 — BOLT M6X35
- 0700-061002-00002 — NUT
- 0700-061003 — CIRCLIP 20
- 0700-061005 — WASHER
- 0A70-011007 — WASHER
- 0HU0-051004 — SPRING
- 0700-061004-00010 — SHAFT SLEEVE, CLUTCH
- 0HU0-013006 — SPRING, CLUTCH CONTROL LEVER

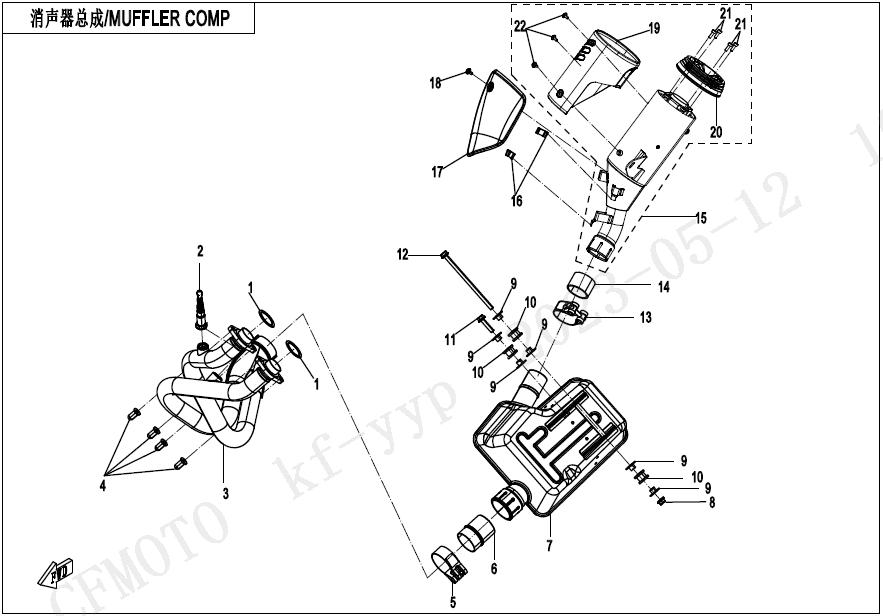

- 6GU#-021100-6000 — EXHAUST PIPE
- 6GU#-021100-6100 — EXHAUST PIPE ASSY
- 8010-020001 — NUT M8, MUFFLER JOINT
- 6GU#-021400-6002 — CLAMP 1
- 6L30-021010 — CALMP 1
- 6GU#-021002-6000 — SEAL SLEEVE 1, GRAPHITE
- 6L30-021001 — SEAL SLEEVE 1, GRAPHITE
- 6GUV-021200-7000 — FRONT MUFFLER BODY
- 30204-080810 — LOCK NUT
- 6GU#-020002-6001 — BUSHING
- A000-020004 — DAMPER, MUFFLER
- 30006-080035810 — BOLT
- 6GU#-020001-6000 — MUFFLER MOUNTING SHAFT
- 6GU#-021500-6002 — CLAMP 2
- 6GU#-021003-6000 — SEAL SLEEVE 2, GRAPHITE
- 6GU#-021300-6001 — REAR MUFFLER BODY ASSY
- 6GU#-021005-6000 — GUARD RUBBER SLEEVE
- 6GUV-021004-7000 — GUARD, MUFFLER
- 6NTA-040202 — INNER HEX SCREW
- 6GU#-021311-6000 — DECO GUARD, TAIL
- 6GU#-021307-6001 — REAR COVER, MUFFLER
- 30102-050016870 — SCREW
- 6GU#-021312-6000 — SCREW

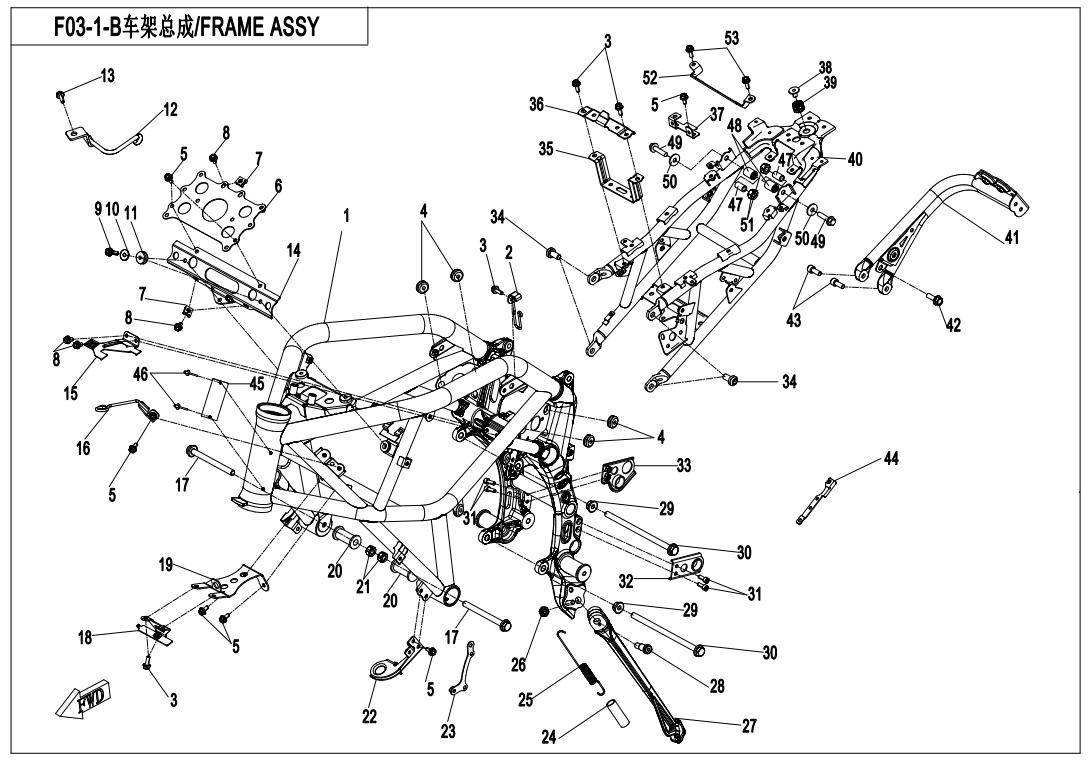

- F03-1-B-03 — 30006-060016870
- F03-1-B-05 — 30006-060010810
- F03-1-B-06 — 6GU#-030020-6000
- F03-1-B-07 — 8030-040800-00001
- F03-1-B-08 — 30006-060012870
- F03-1-B-11 — 9010-160101
- F03-1-B-12 — 6GU#-030130-6000
- F03-1-B-13 — 30006-050012810
- F03-1-B-14 — 6GU#-030050-6000
- F03-1-B-15 — 6GU#-030006-6000
- F03-1-B-16 — 6GUV-030140-6002
- F03-1-B-17 — 30006-102110110
- F03-1-B-18 — 6GU#-030060-6000
- F03-1-B-19 — 6GU#-030040-6000
- F03-1-B-20 — A000-000201
- F03-1-B-21 — 30203-102110
- F03-1-B-22 — 6GU#-030090-6000
- F03-1-B-23 — 6GU#-030030-6000
- F03-1-B-24 — 6WWV-030006-5000
- F03-1-B-26 — 30208-102810
- F03-1-B-27 — 6GU#-030005-6000
- F03-1-B-28 — 6GU#-030008-6000
- F03-1-B-29 — 30204-102810
- F03-1-B-30 — 6GU#-030002-6000
- F03-1-B-31 — 30102-060016810
- F03-1-B-33 — 6GU#-030080-6000
