2025 CF MOTO 675 NKOEM parts & exploded diagrams
MY market809 parts16 groups12+ diagrams
Vehicle #1951
- CC
- —
- HP
- —
- 年款
- —
Exploded diagrams — 2025 CF MOTO 675 NK
Part numbers on the 2025 CF MOTO 675 NK
Each number has a dedicated cross-reference & fitment page.
- 30102-050008900 — INNER HEX SCREW
- 30102-050025900 — INNER HEX SCREW
- 6KMV-011020-B001 — KEY
- 30102-080025810 — SCREW
- CFCV-CAC002-2000-M1 — CLIP
- 30102-050012810 — SCREW
- 6GUV-010010-5600 — SEAT CABLE
- 6GU#-010320-6000 — SEAT LOCK SEAT
- 30006-060022810 — BOLT
- 6L30-020005 — LOCK NUT
- 6090-020010 — EXHAUST PORT GASKET
- 6AQV-011000-4000 — LOCK KIT
- 0HTV-061009-7000 — MAIN SHAFT 5TH GEAR
- 6GUV-021000-5602 — EXHAUST MUFFLER ASSY
- 0HU0-176000 — OXYGEN SENSOR
- 6WWV-020002-5001 — BUSHING, MUFFLER BODY
- 6WWV-020003-5000 — RUBBER SLEEVE, MUFFLER BODY
- 30006-080035810 — BOLT
- 6GUV-021010-3000 — MUFFLER GUARD ASSY
- 6WWV-046702-5000 — INNER HEX SCREW M6x12
- 30306-060800 — WASHER
- 30303-060900 — WASHER
- 6GUV-021006-5600 — SCREW M6X12
- 6AQV-021004-3000 — GUARD RUBBER SLEEVE
- 6AQV-021004-3001 — GUARD RUBBER SLEEVE
- 6GUV-030270-3000 — DASHBOARD BRACKET
- 30006-060012810 — BOLT
- 6GUV-030210-3001 — HEADLIGHT UPPER BRACKET ASSY
- 30102-060012810 — SCREW
- 6KM0-120010 — T-TYPE BUSHING ASSY
- 6KWV-030003-1000 — HEADLIGHT BRACKET SLEEVE
- 30301-060470 — WASHER
- 6WWV-047002-5000 — INNER HEX SCREW M6x25
- 6GUV-030220-3000 — HEADLIGHT LOWER BRACKET
- 30902-0401320 — RIVET
- 6FIA-190012 — VEHICLE PLATE

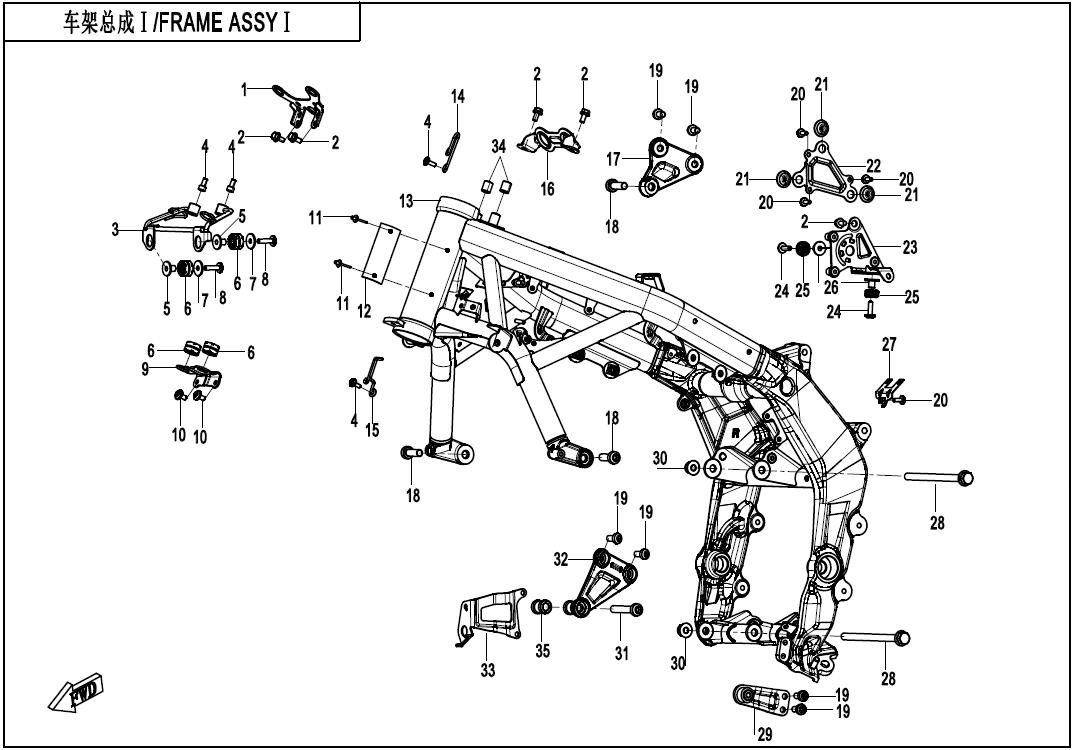

- 6GUV-033000-3003-0BP00 — Main Frame Assy Maud Spirit Black
- 6GUV-030001-3000 — BRAKE RH CABLE HOOK
- 6GUV-030002-3001 — BRAKE LH CABLE HOOK
- 6GUV-030006-5600 — FUEL TANK BRACKET
- 6GUV-030022-5600 — ENGINE UPPER RH BRACKET
- 6AQV-030007-6000 — INNER HEX SCREW M10×30
- 6WWV-030013-5000 — SCREW M8X16
- 6WWV-047102-5000 — INNER HEX SCREW M5x14
- 6KMV-041112-3000 — M6 RUBBER SLEEVE
- 6GUV-030007-5600 — ABS DECO GUARD BRACKET
- 6GUV-030720-5600 — ABS BRACKET
- 6WWV-046902-5000 — INNER HEX SCREW M6x20
- 6WWV-030019-5000 — RUBBER BUSHING
- 9060-180029 — RADIATOR SLEEVE TUBE
- 6GUV-030015-5600 — CONNECTOR ADAPTER BRACKET
- 30006-102155110 — BOLT
- 6GUV-030710-3000 — GEARSHIFT LEVER BRACKET
- 30204-102810 — NUT
- 6L30-030091 — BOLT M10x60
- 6GUV-030021-5600 — ENGINE UPPER LH BRACKET
- 6GUV-030280-3000 — HORN BRACKET
- 6KWV-030004-1000 — POWER LOCK BUSHING
- 6AQV-030004-1000 — BUSHING, ENGINE
- 6AQV-030092-1000 — ADJUSTING SCREW, ENGINE
