2023 CF MOTO 250SROEM parts & exploded diagrams
MY market826 parts17 groups12+ diagrams
Vehicle #1944
- CC
- —
- HP
- —
- 年款
- —
Parts by assembly group
Exploded diagrams
Part numbers on this vehicle
Each number has a dedicated cross-reference & fitment page.

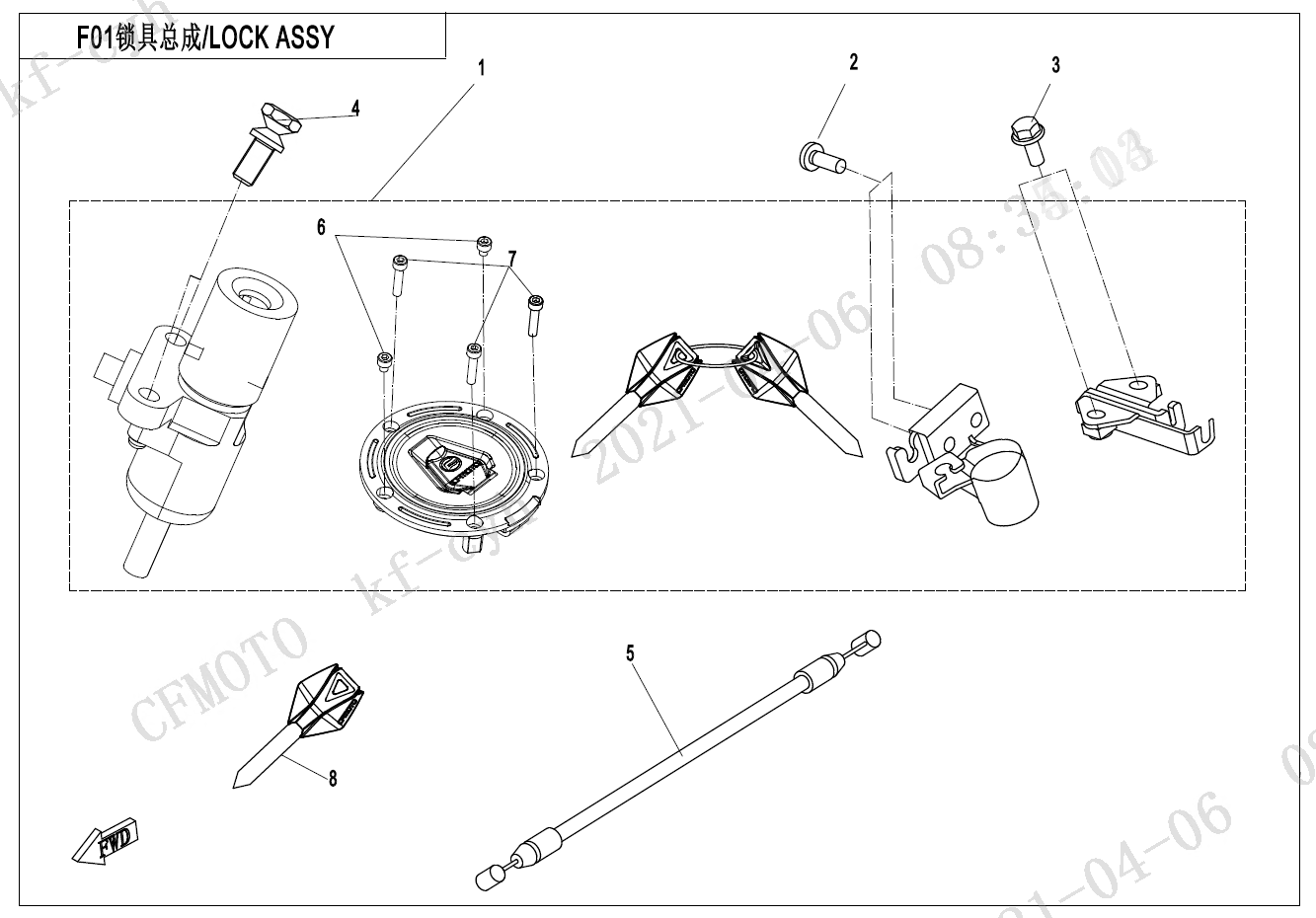

- 6KM#-011000-8003 — LOCK KIT Replacing: 6KM#-011000-8002 - LOCK KIT
- 30105-050012410 — SCREW
- 30006-060012810 — BOLT
- 6KJ0-010001 — BOLT
- 6KM#-010010-8000 — SEAT CABLE
- 30102-050008900 — INNER HEX SCREW
- 30102-050025900 — INNER HEX SCREW
- 6NQ0-011001-0MP00 — KEY
- 6KMV-011000-8601 — LOCK KIT Replacing: 6KMV-011000-8600 - LOCK KIT
- 30006-060012870 — BOLTM6x12
- 6KMV-011020-B001 — KEY

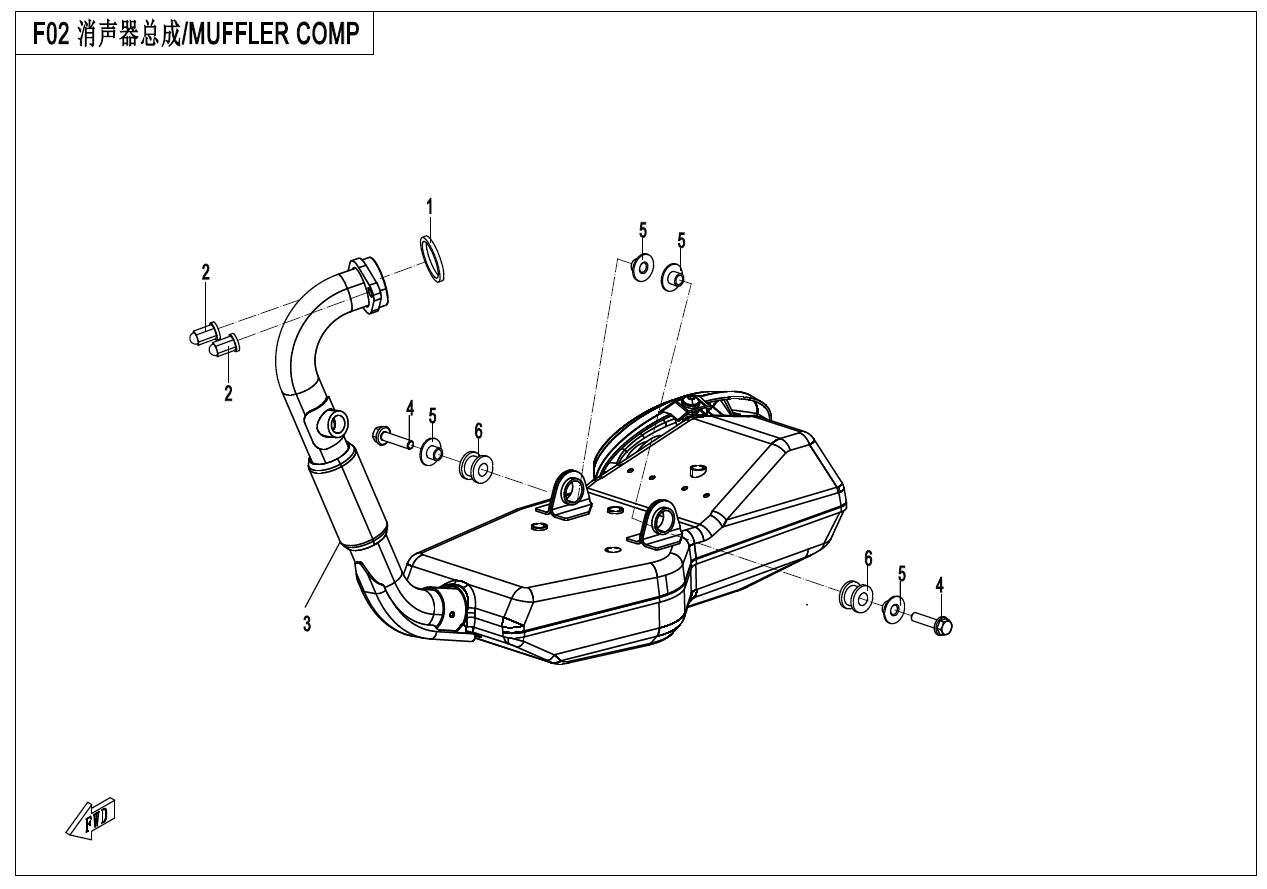

- 6KM0-020010 — SEAL WASHER, EXHAUST PORT
- 8010-020001 — NUT M8, MUFFLER JOINT
- 6KM#-021000-8001 — MUFFLER ASSY
- 30006-080035810 — BOLT
- A000-020005 — BUSHING
- A000-020004 — DAMPER, MUFFLER

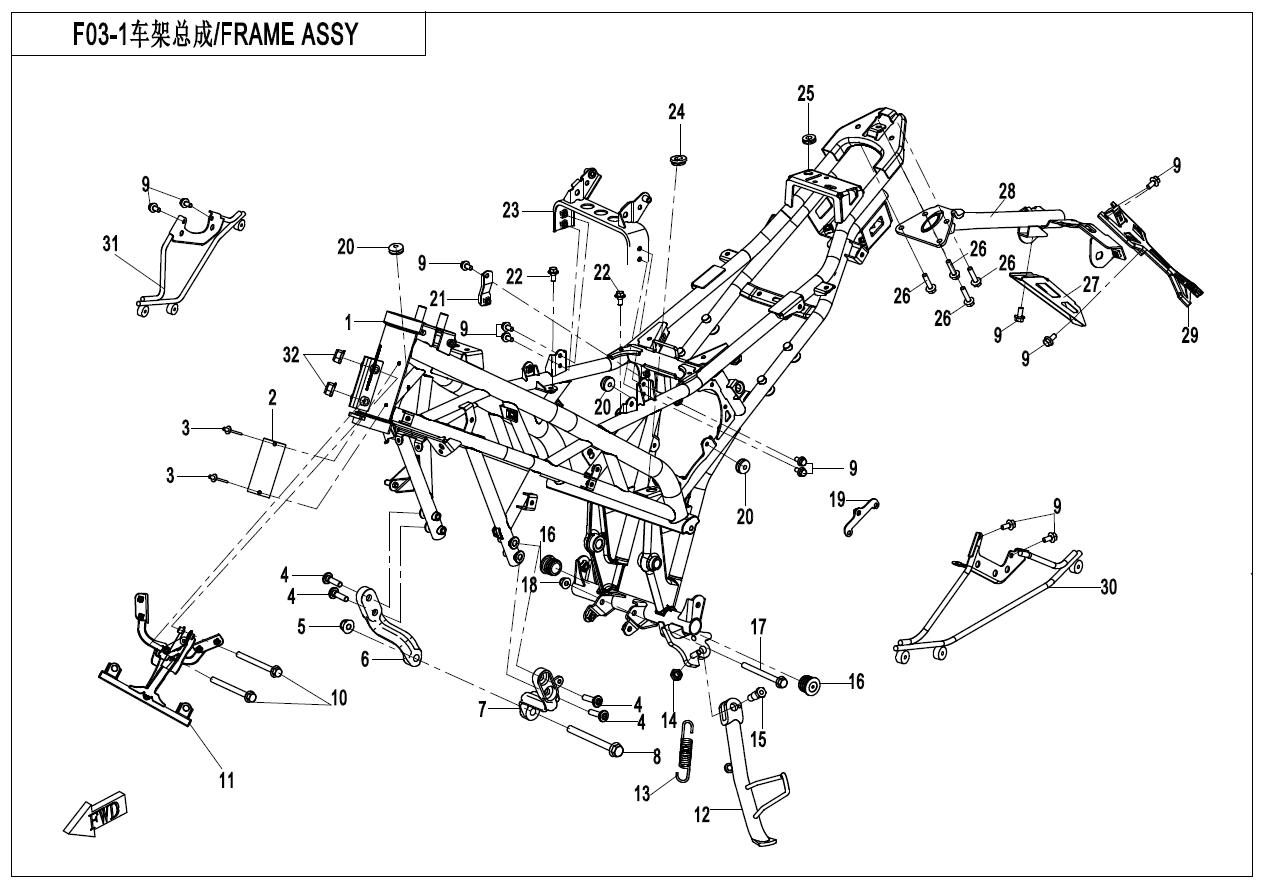

- 6KMV-031000-8008-01-0VG00 — FRAME ASSY
- 6KMV-031000-8008-01-0BP00 — FRAME ASSY MAUD SPIRIT BLACK
- 30902-0401320 — RIVET
- 6KM0-140107 — BOLT
- 30204-102810 — NUT
- 6KM0-030006-1B200 — RH MOUNTING BRACKET, ENGINE
- 6KM0-030005-1B200 — LH MOUNTING BRACKET, ENGINE
- 30006-102110110 — BOLT
- 30006-060025810 — BOLT
- 6KM#-030400-8001-0B200 — FRONT BRACKET
- 6KM0-030310-0B200 — SIDE BRACKET ASSY MATTE BLACK
- 6090-030006 — SIDE BRACKET SPRING
- 30208-102010 — NUT
- A000-030006 — SIDE BRACKET BOLT
- 6KJ0-030503 — RUBBER PLUG
- 30006-080090810 — BOLT
- 30204-080810 — LOCK NUT
- 6KM0-030030-0B200 — BRACKET, CANISTER
- A000-040302 — RUBBER DAMPER
- 6KM0-030050-0B200 — ABS BRACKET
- 8010-000004 — BOLT M6x14
- 6KM0-030100-2B200 — REAR MOUNTING ASSY,FUEL TANK
- 8080-040064 — FRONT FENDER DAMPER
- 5BY0-040010 — RUBBER SLEEVE
- 30006-080045810 — BOLT
- 6KJ0-030601-0BP00 — BRACKET, REAR LICENSE
- 6NT1-030100-0BP00 — REAR FENDER BRACKET ASSY
- 6KM#-030110-8000-0BP00 — BRAKCET, REAR LICENSE
- 6KM#-030040-8002-0B200 — LH BRACKET, DEFLECTOR
- 6KM#-030050-8002-0B200 — RH BRACKET, DEFLECTOR
- 30206-080510 — NUT M8
- 6KM#-140700-8000 — GEARSHIFT PEDAL ASSY
- 6NQ#-000206-6001 — INNER HEX SCREW M6x16
- 30303-060112 — WASHER
- A000-080006-10000 — GASKET 1
- 6090-033601 — FOOT PEDAL SLEEVE
- 30200-060810 — NUT
- 30006-060020810 — BOLT

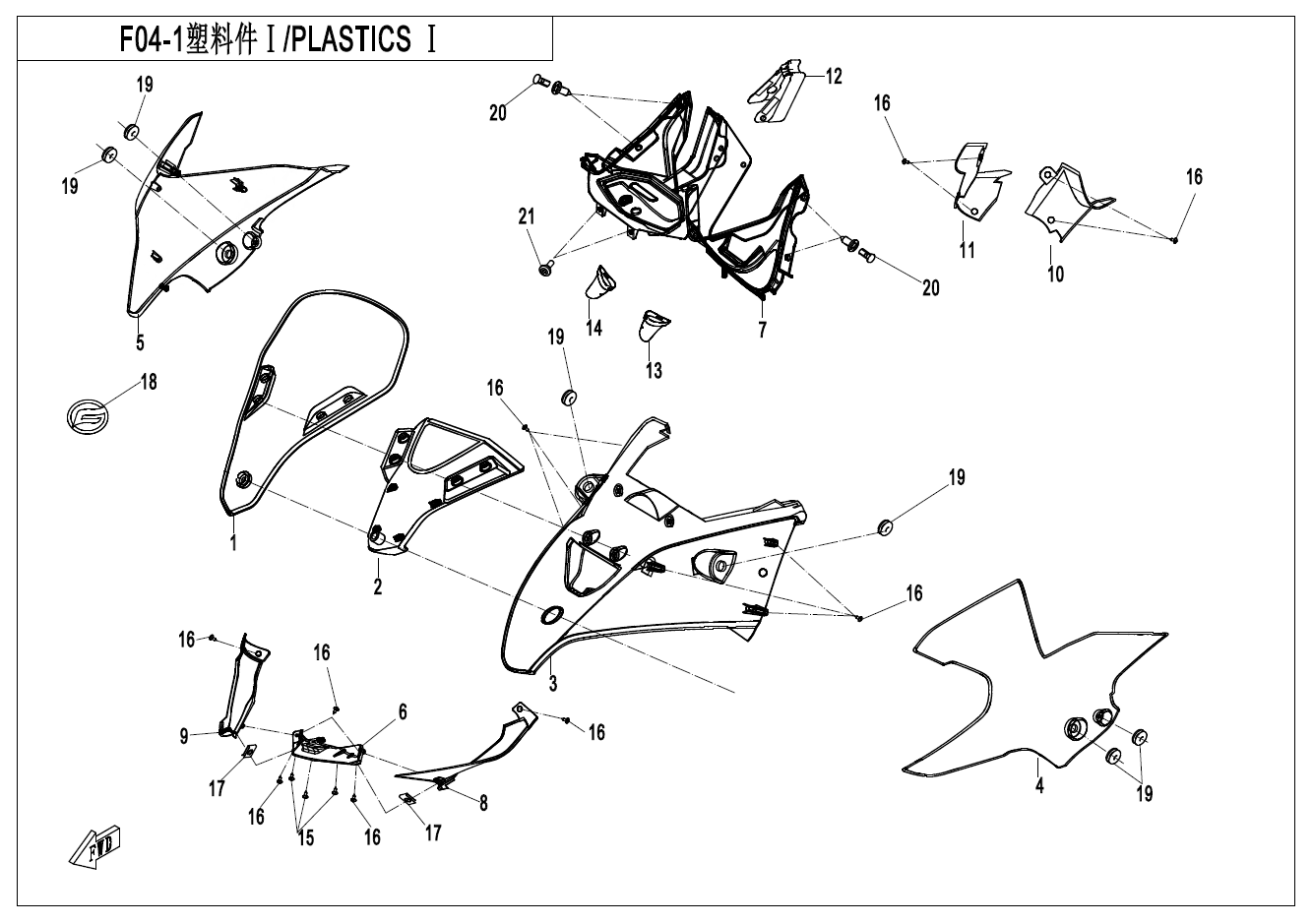

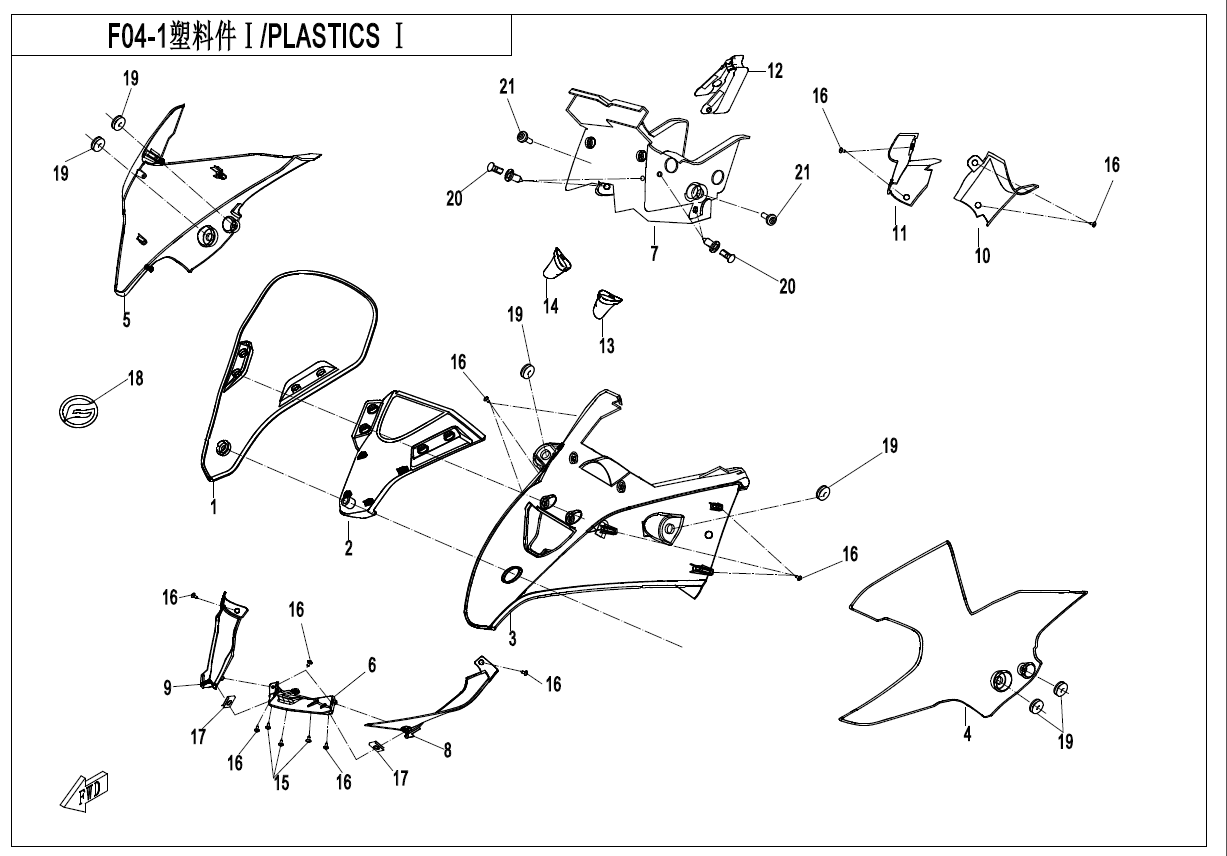

- 6KMV-040002-8500 — WINDSHIELD
- 6KM#-040003-8001 — DECO PART, UPPER GUARD
- 6KM#-040001-8001-0VF00 — UPPER GUARD, HEADLIGHT (MERCURY SILVER)
- 6KM#-040001-8001-0VE00 — UPPER GUARD, HEADLIGHT (NEBULA WHITE)
- 6KM#-040005-8003-0VE00 — LH GUARD, HEADLIGHT (NEBULA WHITE)
