2023 CF MOTO 450SROEM parts & exploded diagrams
MY market813 parts16 groups12+ diagrams
Vehicle #1939
- CC
- —
- HP
- —
- 年款
- —
Parts by assembly group
Exploded diagrams
Part numbers on this vehicle
Each number has a dedicated cross-reference & fitment page.
- 6WWV-030080-8000 — CLIP
- 30006-050012810 — BOLT
- 6AQV-120001-1000 — FUEL FILTER BRACKET

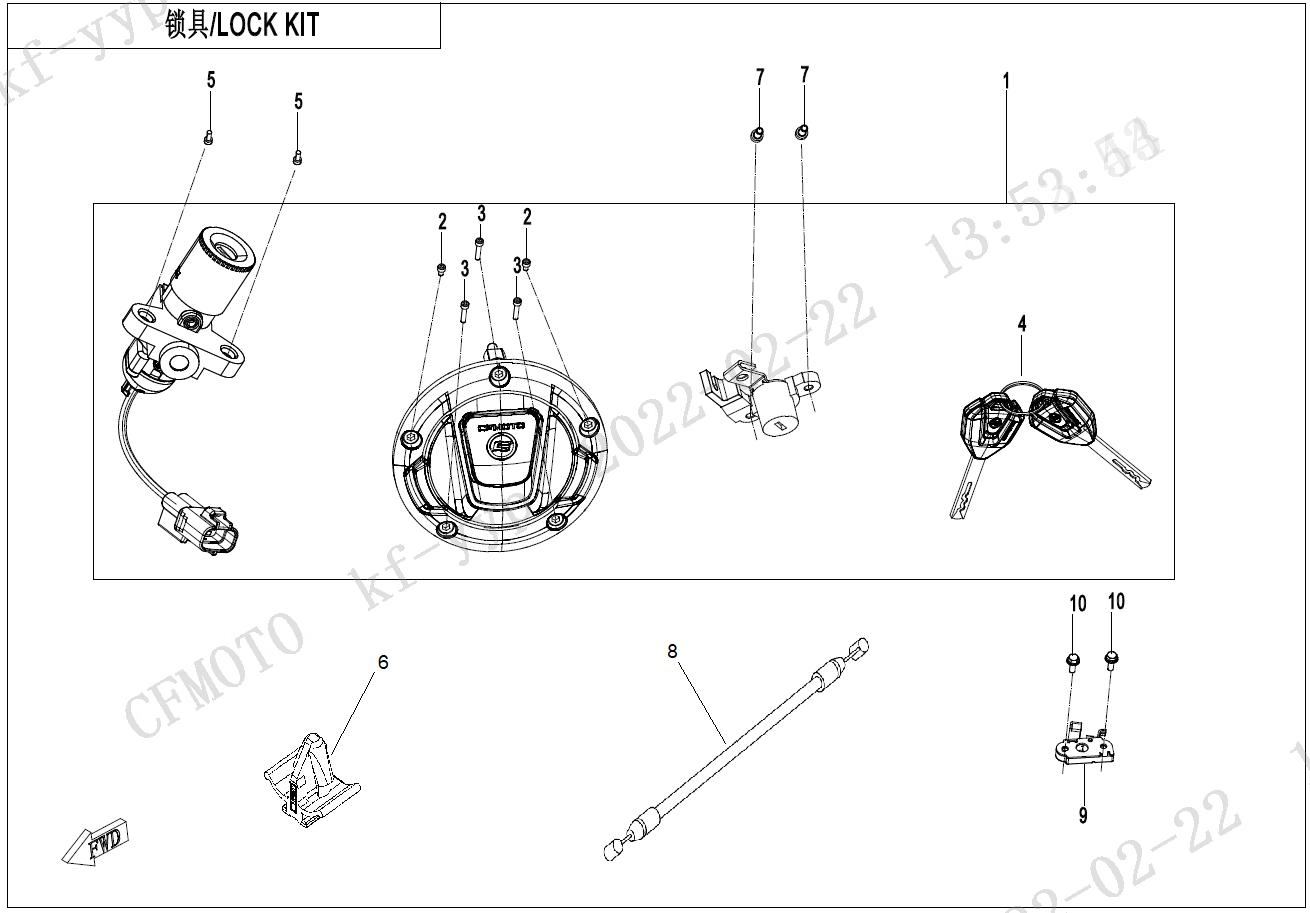

- 6AQV-011000-1002 — LOCK KIT
- 30102-050008900 — INNER HEX SCREW
- 30102-050025900 — INNER HEX SCREW
- 6KMV-011020-B001 — KEY
- 6KJ0-010001 — BOLT
- CFCV-CAC002-2000-M1 — CLIP
- 30102-050012810 — SCREW
- 6AQV-011012-1000 — SEAT CABLE
- 6GU#-010320-6000 — SEAT LOCK SEAT
- 30006-060022810 — BOLT

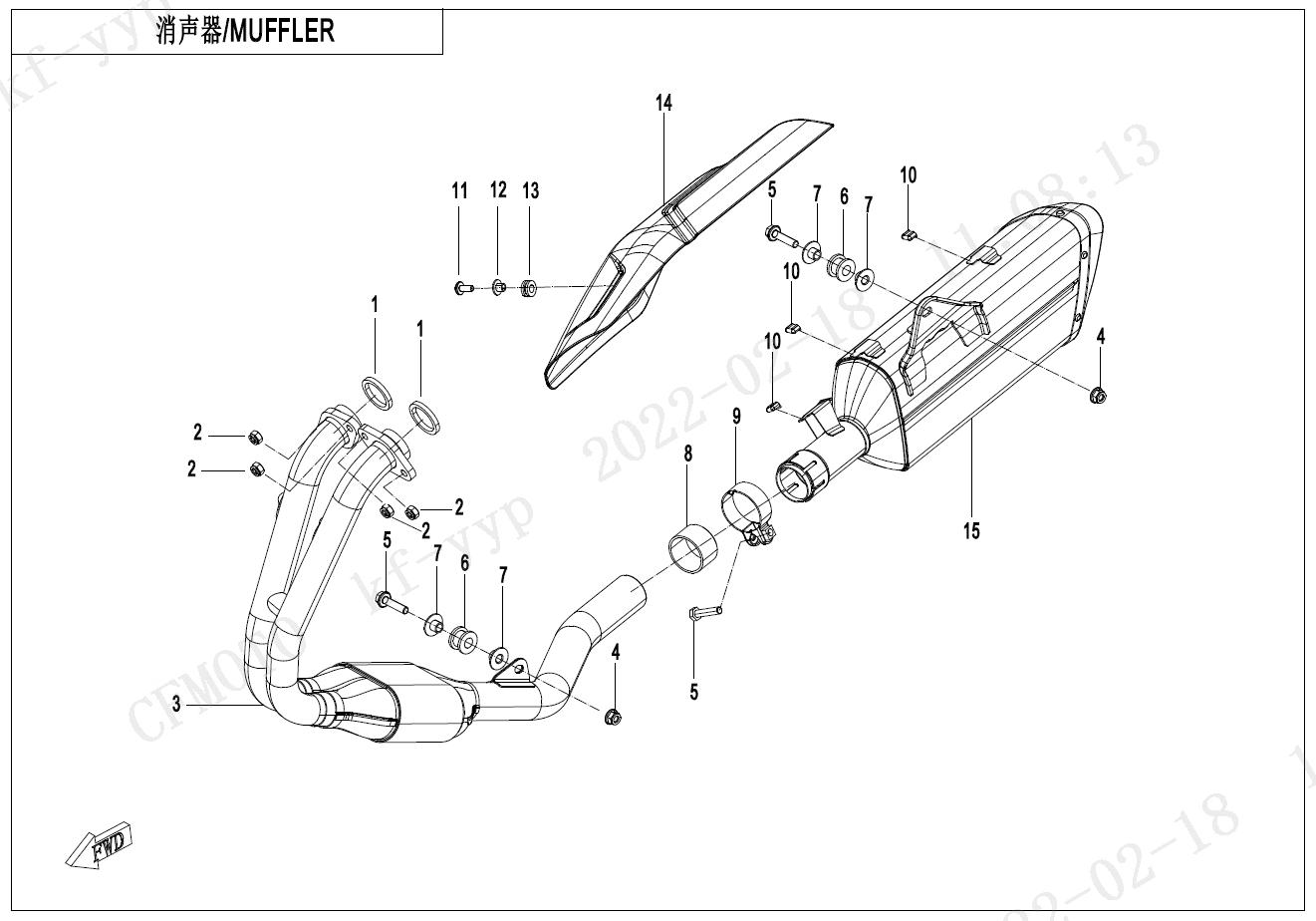

- 6090-020010 — EXHAUST PORT GASKET
- 6L30-020005 — LOCK NUT
- 6AQV-021100-1002 — EXHAUST PIPE ASSY
- 30204-080810 — LOCK NUT
- 30006-080035810 — BOLT
- A000-020004 — DAMPER, MUFFLER
- A000-020005 — BUSHING
- 6AQV-021400-1000 — GRAPHITE SEAL BUSHING
- 6AQV-021500-1000 — CLAMP KIT
- 6GU#-021005-6000 — GUARD RUBBER SLEEVE
- 6WWV-046802-5000 — INNER HEX SCREW M6x16
- 6AQV-021002-1000 — BUSHING
- 6AQV-021003-1000 — GUARD RUBBER SLEEVE
- 6AQV-021001-1000 — GUARD, MUFFLER
- 6AQV-021200-1003 — MUFFLER ASSY
- 6AQV-030400-1500 — HEADLIGHT BRACKET ASSY
- 6090-040303 — BUSHING
- 6090-040302 — CUSHION SLEEVE
- 9010-160101 — HEADLIGHT RUBBER DAMPER
- 6L30-030092 — BOLT M10x22
- 6AQV-030030-1000 — RH GUARD ASSY
- 6AQV-030008-1000 — BRACKET, LH GUARD
- 30006-060010810 — BOLT
- 6AQV-030005-1000 — LH BRACKET, LOWER GUARD
- 6AQV-030006-1000 — RH BRACKET, LOWER GUARD
- A000-030004 — SPRING COLLAR, SIDE STAND
- A000-030210 — SIDE STAND SPRING ASSY
- 6AQV-030600-1001-0BP00 — SIDE STAND
- 6080-030004 — BOLT
- 30208-102010 — NUT
- 30001-102170110 — BOLT
- 30001-102150110 — BOLT M10x1.25x150
- 6AQV-030093-1000 — INNER HEX SCREW
- 6NT1-000292 — NUT M18
- 6AQV-030092-1000 — ADJUSTING SCREW, ENGINE
- 6AQV-030004-1000 — BUSHING, ENGINE
- 6WWV-030011-5000 — INNER HEX SCREW M10x45
- 30006-060012810 — BOLT
- 30006-060016810 — BOLT
- 6WWV-030019-5000 — RUBBER BUSHING
- 9060-180029 — RADIATOR SLEEVE TUBE
- 6AQV-030010-1000 — ABS BRACKET
- 6AQV-030040-1000 — FRONT BRACKET, FUEL TANK

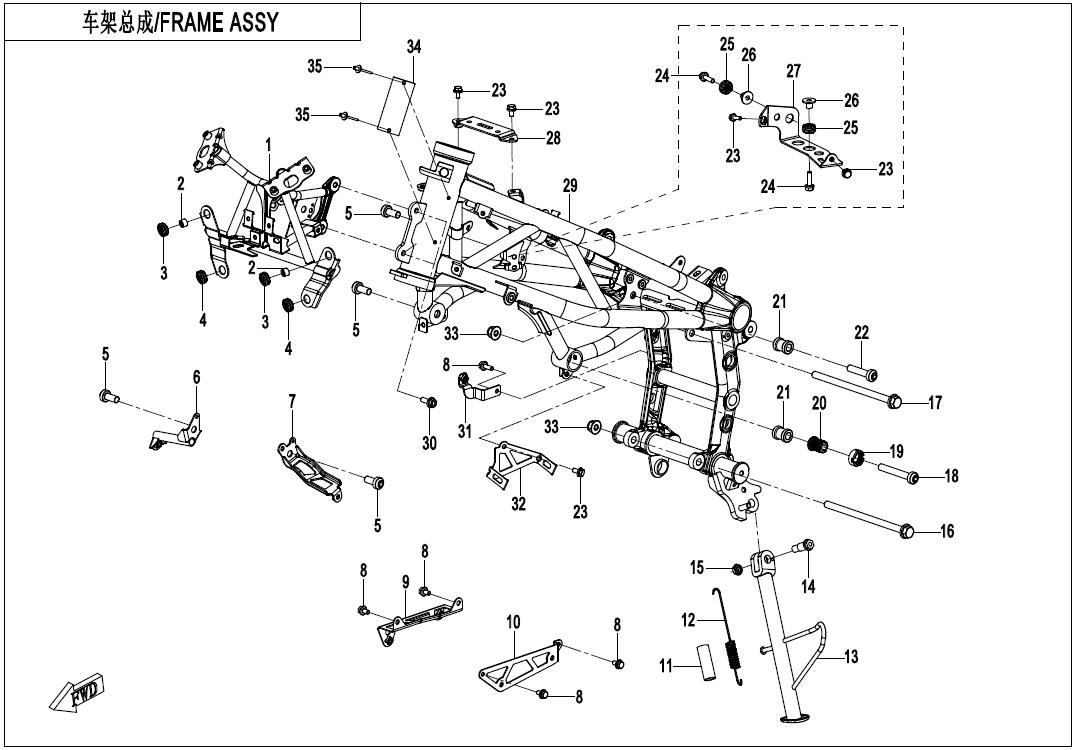

- 6AQV-031000-1005-10-0BP00 — FRONT FRAME ASSY
- 30006-080020810 — BOLT
- 6AQV-030007-1001 — BRACKET, BRAKE FLUID RESERVOIR
- 6AQV-030003-1000 — CANSITER ADAPTER BRACKET
