2024 CF MOTO 450NKOEM parts & exploded diagrams
MY market767 parts15 groups12+ diagrams
Vehicle #1938
- CC
- —
- HP
- —
- 年款
- —
Parts by assembly group
Exploded diagrams
Part numbers on this vehicle
Each number has a dedicated cross-reference & fitment page.
- F19-A-02 — 6AQV-190111-4000-11
- F19-A-03 — 6AQV-190101-4000-11
- F19-A-04 — 6AQV-190102-4000-11
- F19-A-05 — 6KWV-190106-1000-10
- F19-A-06 — 6AQV-190103-4000-11
- F19-A-07 — 6AQV-190104-4000-11
- F19-A-08 — 6KWV-190107-1000-11
- F19-A-09 — 6AQV-190112-4001-10
- F19-A-10 — 6AQV-190105-4002-11
- F19-A-11 — 6AQV-190106-4001-11
- F19-A-12 — 6AQV-190100-4003-11
- F19-B-02 — 6AQV-190102-4000-10
- F19-B-03 — 6AQV-190103-4000-10
- F19-B-04 — 6AQV-190104-4000-10
- F19-B-05 — 6AQV-190105-4002-10
- F19-B-06 — 6AQV-190106-4001-10
- F19-B-07 — 6KWV-190106-1000-11
- F19-B-08 — 6AQV-190107-4000-10
- F19-B-09 — 6AQV-190108-4000-10
- F19-B-10 — 6AQV-190109-4000-10
- F19-B-11 — 6AQV-190111-4000-10
- F19-B-12 — 6KWV-190107-1000-11
- F19-B-13 — 6AQV-190112-4001-10
- F19-B-14 — 6AQV-190100-4003-10
- F19-C-02 — 6AQV-190102-4000-12
- F19-C-03 — 6AQV-190103-4000-12
- F19-C-04 — 6AQV-190104-4000-12
- F19-C-05 — 6AQV-190105-4002-10
- F19-C-06 — 6AQV-190106-4001-10
- F19-C-07 — 6KWV-190106-1000-11
- F19-C-08 — 6AQV-190107-4000-10
- F19-C-09 — 6AQV-190108-4000-10
- F19-C-10 — 6AQV-190109-4000-12
- F19-C-11 — 6AQV-190111-4000-12
- F19-C-12 — 6KWV-190107-1000-11
- F19-C-13 — 6AQV-190112-4001-10
- F19-C-14 — 6AQV-190100-4001-12
- E05-A-02 — 0SQV-050005-1001
- E05-A-03 — 0SQV-050002-1000
- E05-A-04 — 0SQV-051000-1001-Q0-00001
- E05-A-06 — 30400-01207
- E05-A-07 — 0SQV-050100-1002
- E05-A-10 — 0SQV-051100-1002
- E05-A-12 — 0DMB-051220
- E05-A-17 — 0SQV-051205-1000
- 6AQV-011000-4000 — LOCK KIT
- 30102-050008900 — INNER HEX SCREW
- 30102-050025900 — INNER HEX SCREW
- 6KMV-011020-B001 — KEY
- 30102-080030810 — SCREW
- CFCV-CAC002-2000-M1 — CLIP
- 30102-050012810 — SCREW
- 6AQV-011012-1000 — SEAT CABLE
- 6GU#-010320-6000 — SEAT LOCK SEAT
- 30006-060022810 — BOLT
- 6090-020010 — EXHAUST PORT GASKET
- 6L30-020005 — LOCK NUT

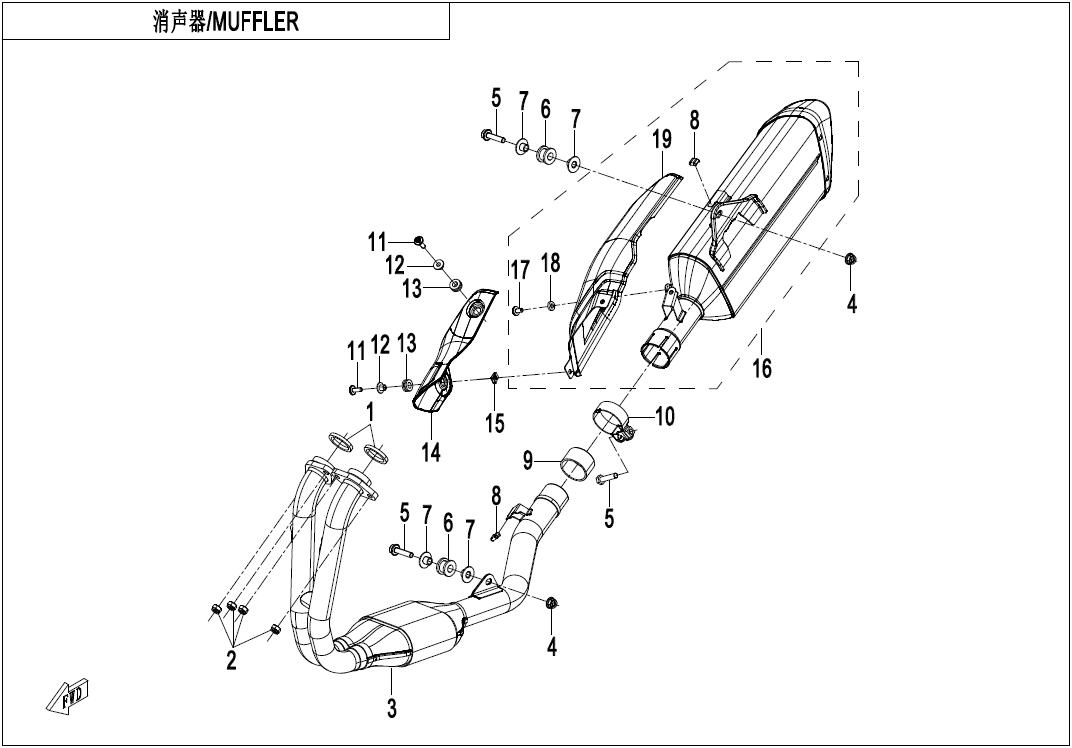

- 6AQV-021100-4000 — EXHAUST PIPE ASSY
- 30204-080810 — LOCK NUT
- 30006-080035810 — BOLT
