2024 CF MOTO 450CLCOEM parts & exploded diagrams
MY market696 parts16 groups12+ diagrams
Vehicle #1936
- CC
- —
- HP
- —
- 年款
- —
Parts by assembly group
Exploded diagrams
Part numbers on this vehicle
Each number has a dedicated cross-reference & fitment page.

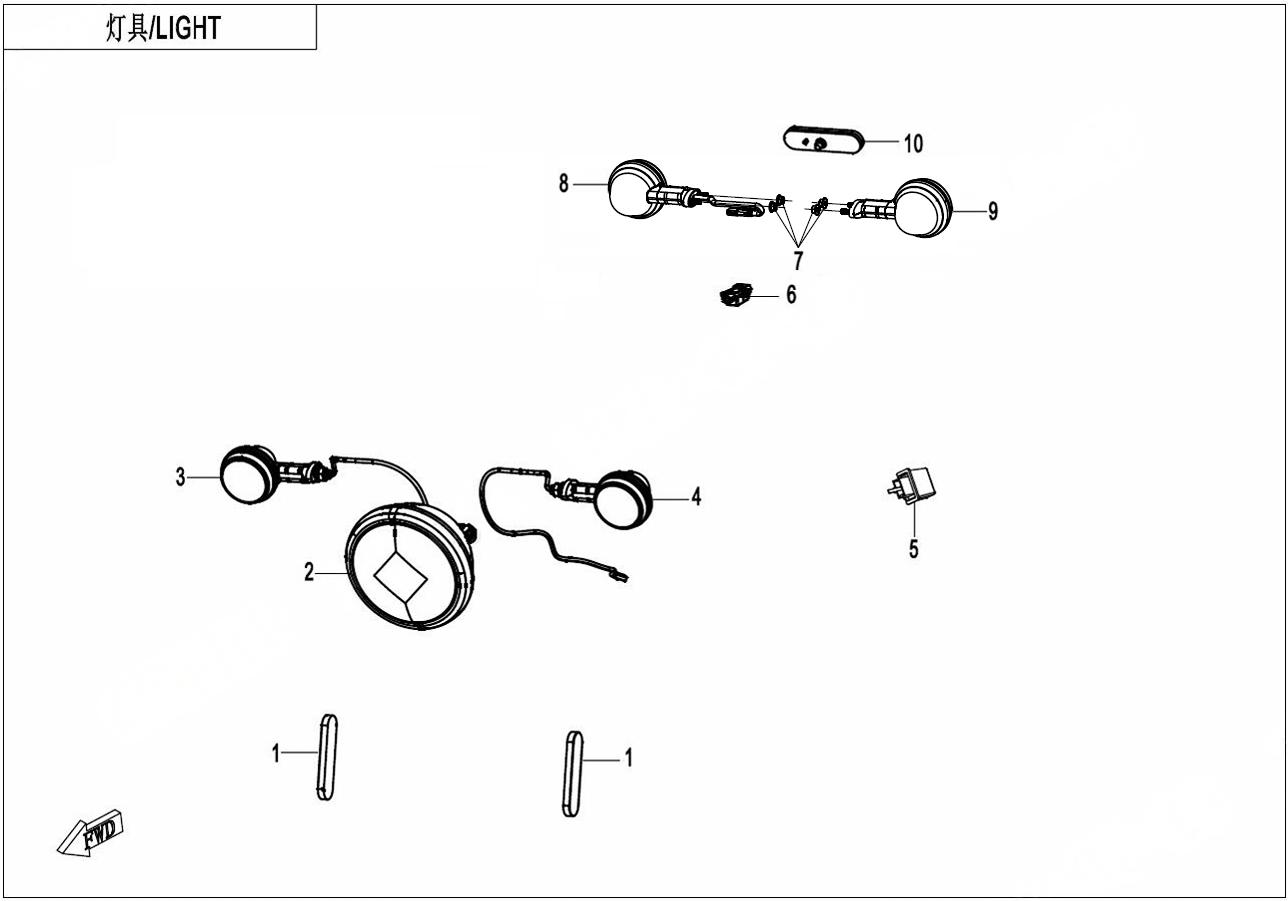

- 6AQV-160510-7101 — FRONT LH TURN LIGHT ASSEMBLY
- 6AQV-161000-7100 — FLASHER
- 6GUV-160600-6200 — LICENSE LIGHT
- 30202-050110 — NUT
- 6AQV-160540-7101 — REAR RH TURN LIGHT ASSEMBLY
- 6AQV-160530-7101 — REAR LH TURN LIGHT ASSEMBLY
- 9AWV-160910-2C01-M1 — REAR REFLECTOR

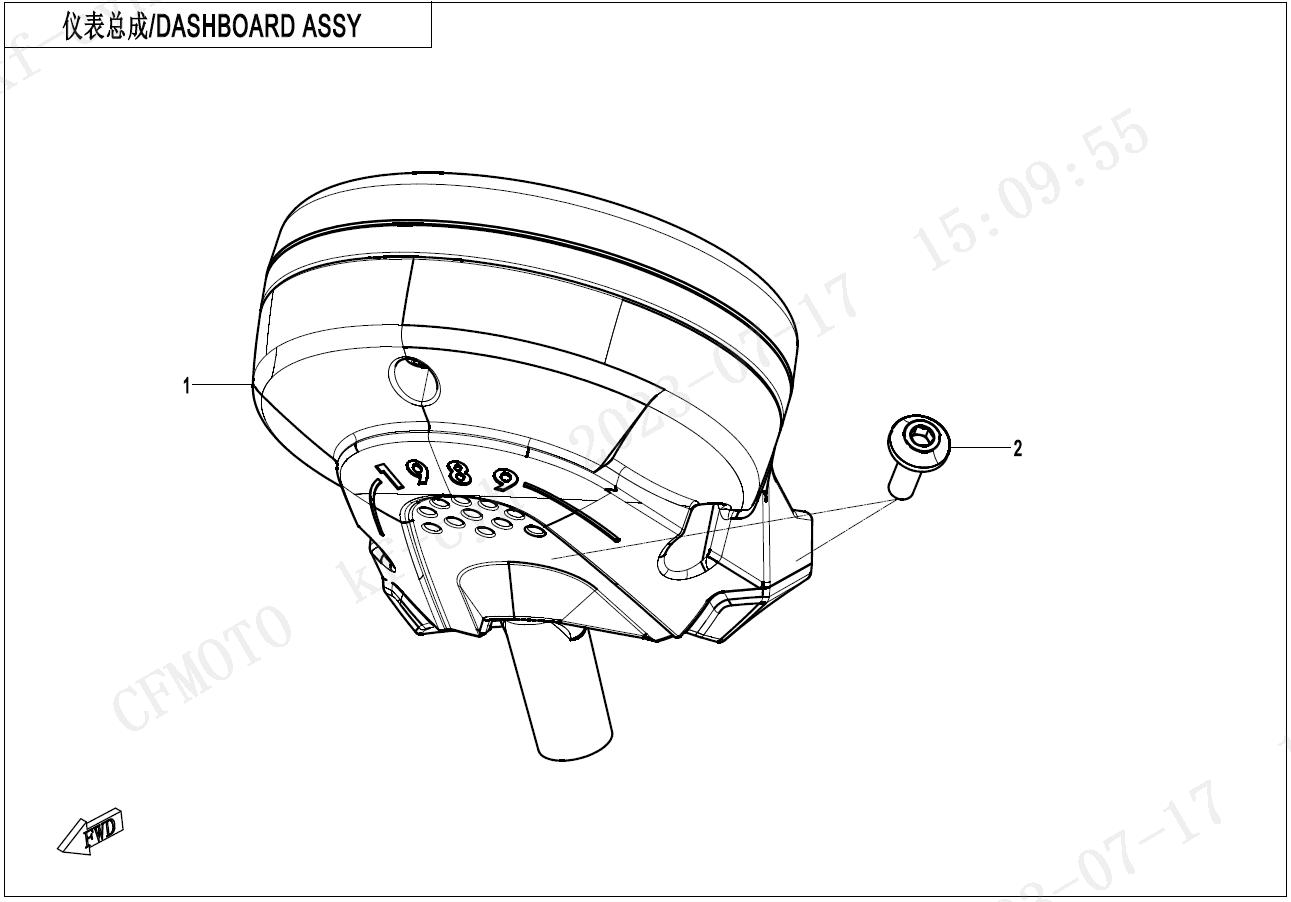

- 6AQV-171000-7101 — DASHBOARD

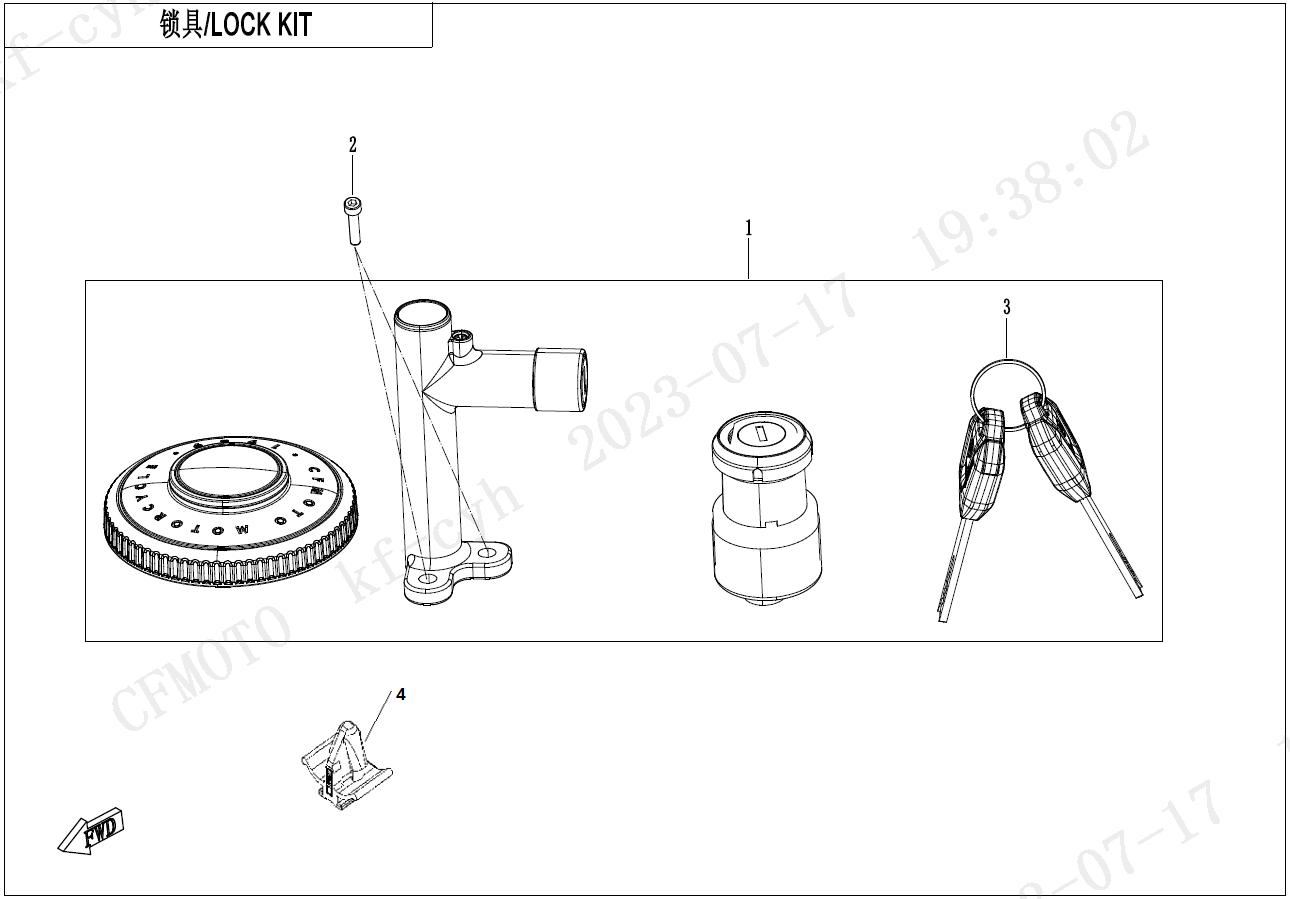

- 6AQV-011000-7101 — LOCK KIT
- 30102-060016870 — SCREW
- 6AQV-011020-7100 — KEY
- CFCV-CAC002-2000-M1 — CLIP

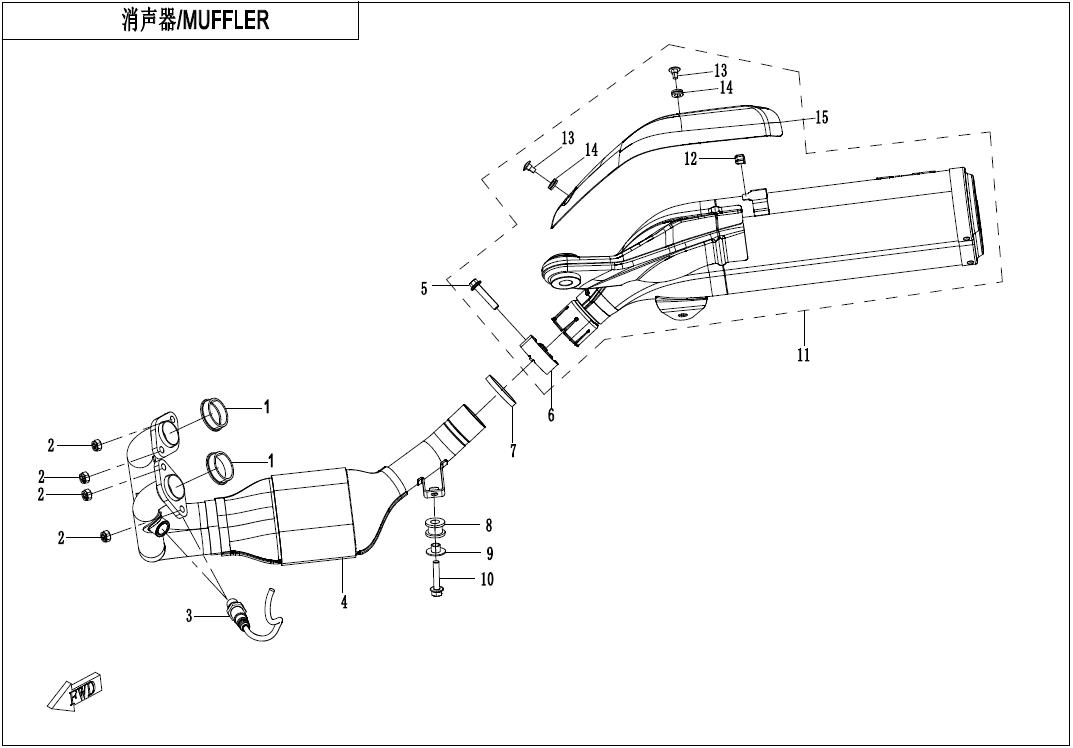

- 6090-020010 — EXHAUST PORT GASKET
- 6L30-020005 — LOCK NUT
- 0HU0-176000 — OXYGEN SENSOR
- 6AQV-021100-7101-0D700 — EXHAUST PIPE ASSY
- 30006-080035810 — BOLT
- 6AQV-021500-1000 — CLAMP KIT
- 6AQV-021400-1000 — GRAPHITE SEAL BUSHING
- 6KJ0-020003 — BUSHING, MUFFLER
- 6KJ0-020004 — BUSHING, MUFFLER
- 30006-080040810 — BOLT
- 6AQV-021300-7102 — MUFFLER ASSY
- 6GU#-021005-6000 — GUARD RUBBER SLEEVE
- 6AQV-021005-3000 — SCREW
- 6AQV-021004-3001 — GUARD RUBBER SLEEVE
- 6AQV-021020-7101 — MUFFLER GUARD 2

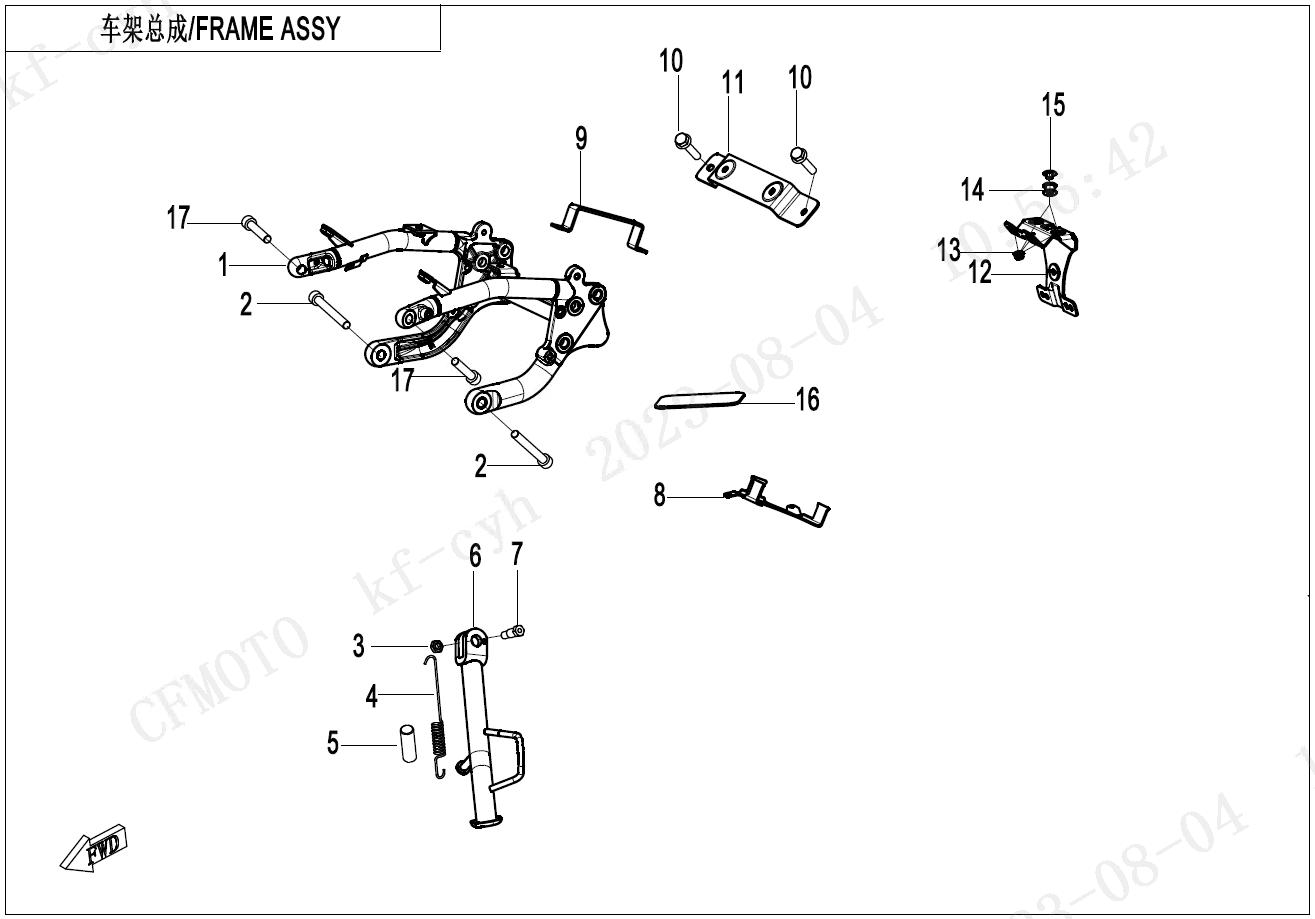

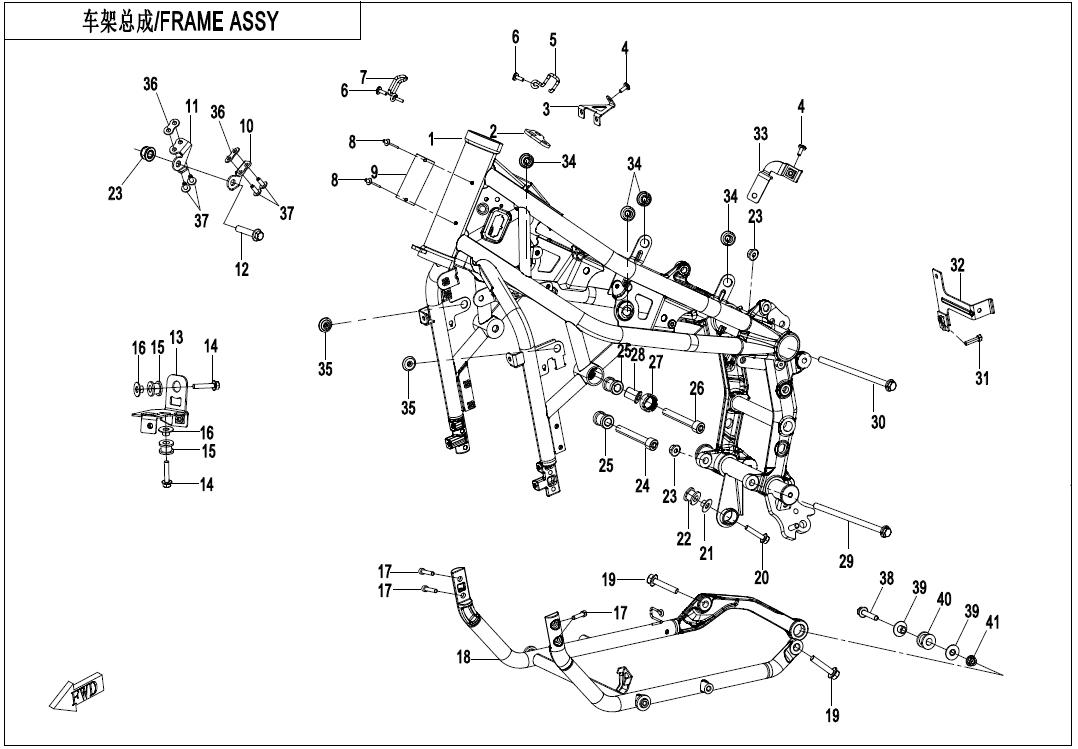

- 6AQV-033000-7104-0BP00 — FRONT FRAME ASSY
- 6AQV-033098-7100 — DEAD BOLT PLATE
- 6AQV-030290-7100 — ROLL-OVER SENSOR BRACKET
- 30006-060012870 — BOLTM6x12
- 6AQV-030480-7100 — THROTTLE CABLE CLIP
- 6WWV-047102-5000 — INNER HEX SCREW M5x14
- 6AQV-030470-7100 — CABLE CLIP
- 30902-0401320 — RIVET
- 6FIA-190012 — VEHICLE PLATE
- 6KMV-030210-M300 — HEADLIGHT LH BRACKET
- 6KMV-030220-M300 — HEADLIGHT RH BRACKET
- 30006-102045810 — BOLT
- 6AQV-030250-7100 — ABS BRACKET
- 30006-060016870 — BOLTM6x16
- 6WWV-030019-5000 — RUBBER BUSHING
- 9060-180029 — RADIATOR SLEEVE TUBE
- 30102-080020870 — SCREW
- 6AQV-030700-7100-0BP00 — BOTTOM BRACKET
- 30006-080030870 — BOLT
- 30006-080045810 — BOLT
- 30204-102810 — NUT
- 6WWV-030011-5000 — INNER HEX SCREW M10x45
- 6AQV-030004-1000 — BUSHING, ENGINE
- 6AQV-030093-1000 — INNER HEX SCREW
- 6NT1-000292 — NUT M18
- 6AQV-030092-1000 — ADJUSTING SCREW, ENGINE
- 30001-102170110 — BOLT
- 30001-102150110 — BOLT M10x1.25x150
- 30102-060016810 — SCREW
- 6AQV-030350-7100 — REGULATOR BRACKET
- 6AQV-030003-4000 — FLUID RESERVOIR BRACKET
- 6KWV-041114-1000 — RUBBER HEAD
- 6KMV-041112-3000 — M6 RUBBER SLEEVE
