2023 CF MOTO 250NK — Crankcase & Crankshaft parts

MY market22 genuine parts9 diagrams

Subgroups

Crankcase · 4Crankcase/Engine Cover · 4Crankshaft · 3Engine Bearing · 13

Part numbers

Every genuine crankcase & crankshaft part fitted to the 2023 CF MOTO 250NK. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
A000-050100-10000STEERING BEARING ASSYFRONT SUSPENSIONEnquire
0DM0-012000RH CRANKCASE SUB ASSYCRANKCASE ASSYEnquire
0DM0-011000LH CRANKCASE SUB ASSYCRANKCASE ASSYEnquire
0DM0-012010-0B203RH CRANKCASE ASSY, MATTE BLACKRIGHT CRANKCASEEnquire
30498-01500ROLLER BEARING 15X42X13RIGHT CRANKCASEEnquire
30499-02506BEARINGRIGHT CRANKCASEEnquire
30499-03001BEARINGRIGHT CRANKCASEEnquire
30499-02010BEARINGRIGHT CRANKCASEEnquire
30499-01700BEARING 6303RIGHT CRANKCASEEnquire
0DM0-011010-0B203LH CRANKCASE ASSY MATTE BLACKLEFT CRANKCASEEnquire
30403-01300BEARINGLEFT CRANKCASEEnquire
0DM0-011050BEARING 17x27x13LEFT CRANKCASEEnquire
30499-02201BEARINGLEFT CRANKCASEEnquire
30499-03501BEARINGLEFT CRANKCASEEnquire
0DM0-041000-00014CRANK CONNECTING ROD SUB ASSYCRANKSHAFT & CONNECTING RODEnquire
0DM0-041000-00024CRANK CONNECTING ROD SUB ASSYCRANKSHAFT & CONNECTING RODEnquire
0010-040006WOODRUFF KEYCRANKSHAFT & CONNECTING RODEnquire
0DM0-040009WOODRUFF KEYCRANKSHAFT & CONNECTING RODEnquire
0DM0-040002OUTPUT GEARCRANKSHAFT & CONNECTING RODEnquire
30406-00303NEEDLE BEARINGTRANSMISSION (1)Enquire
30400-01207ROLLER BEARINGWATER PUMPEnquire
0DM0-173200-10000STEPPER MOTORTHROTTLE & INJECTOREnquire

Exploded diagrams — Crankcase & Crankshaft

2023 CF MOTO 250NK RIGHT CRANKCASE exploded diagram
RIGHT CRANKCASE · 6
2023 CF MOTO 250NK LEFT CRANKCASE exploded diagram
LEFT CRANKCASE · 6
2023 CF MOTO 250NK CRANKSHAFT & CONNECTING ROD exploded diagram
CRANKSHAFT & CONNECTING ROD · 5

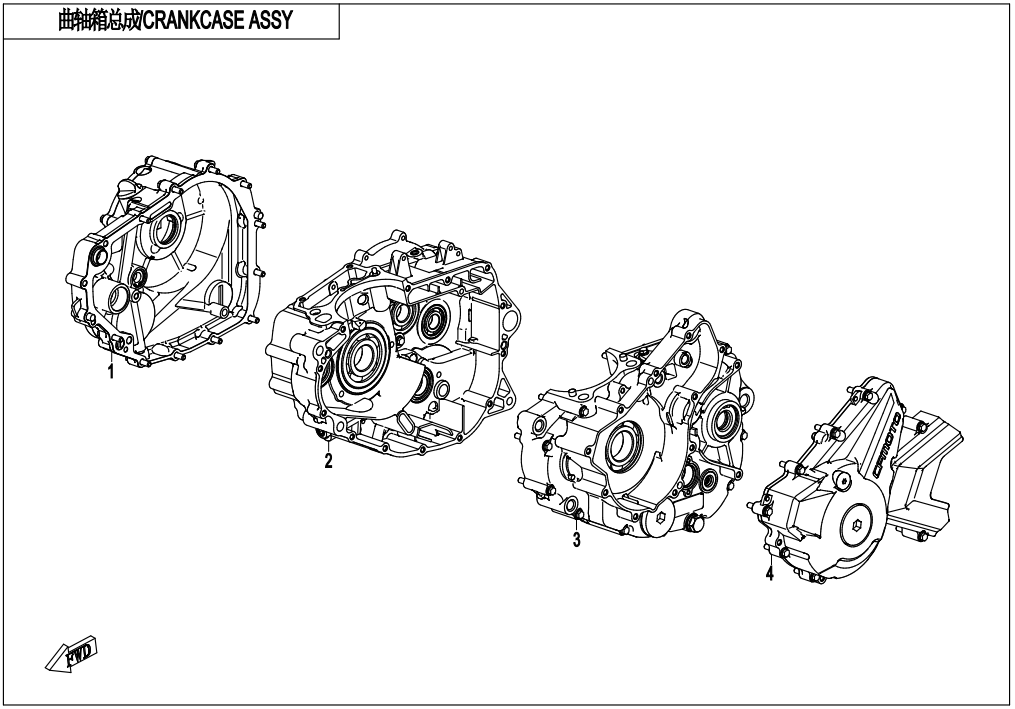

2023 CF MOTO 250NK CRANKCASE ASSY exploded diagram
CRANKCASE ASSY · 2
2023 CF MOTO 250NK FRONT SUSPENSION exploded diagram
FRONT SUSPENSION · 1

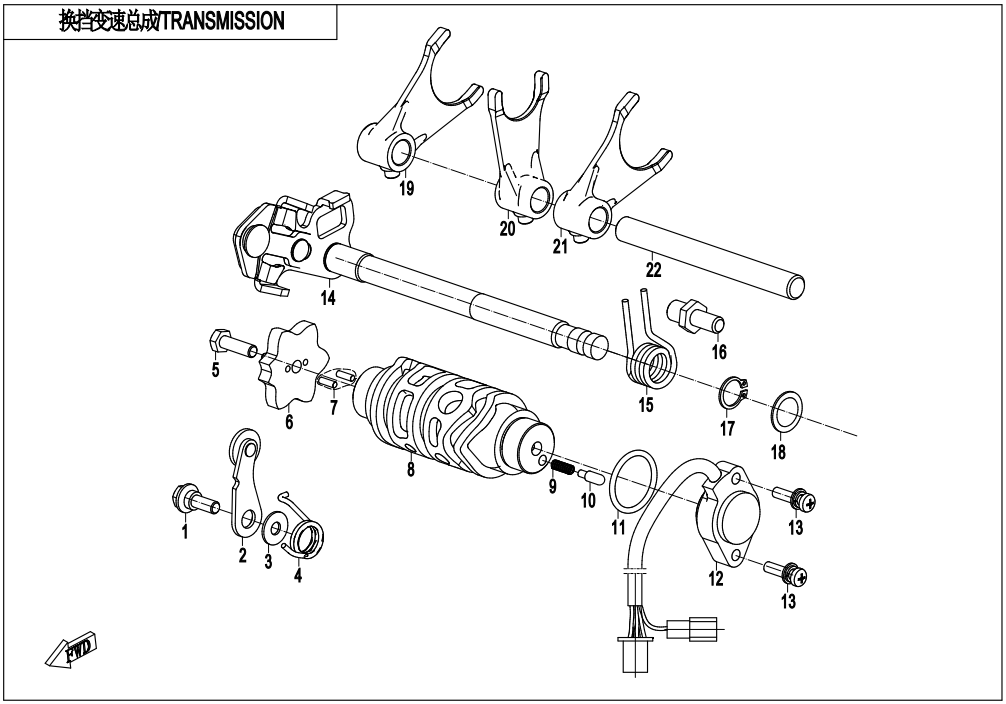

2023 CF MOTO 250NK TRANSMISSION (1) exploded diagram
TRANSMISSION (1) · 1

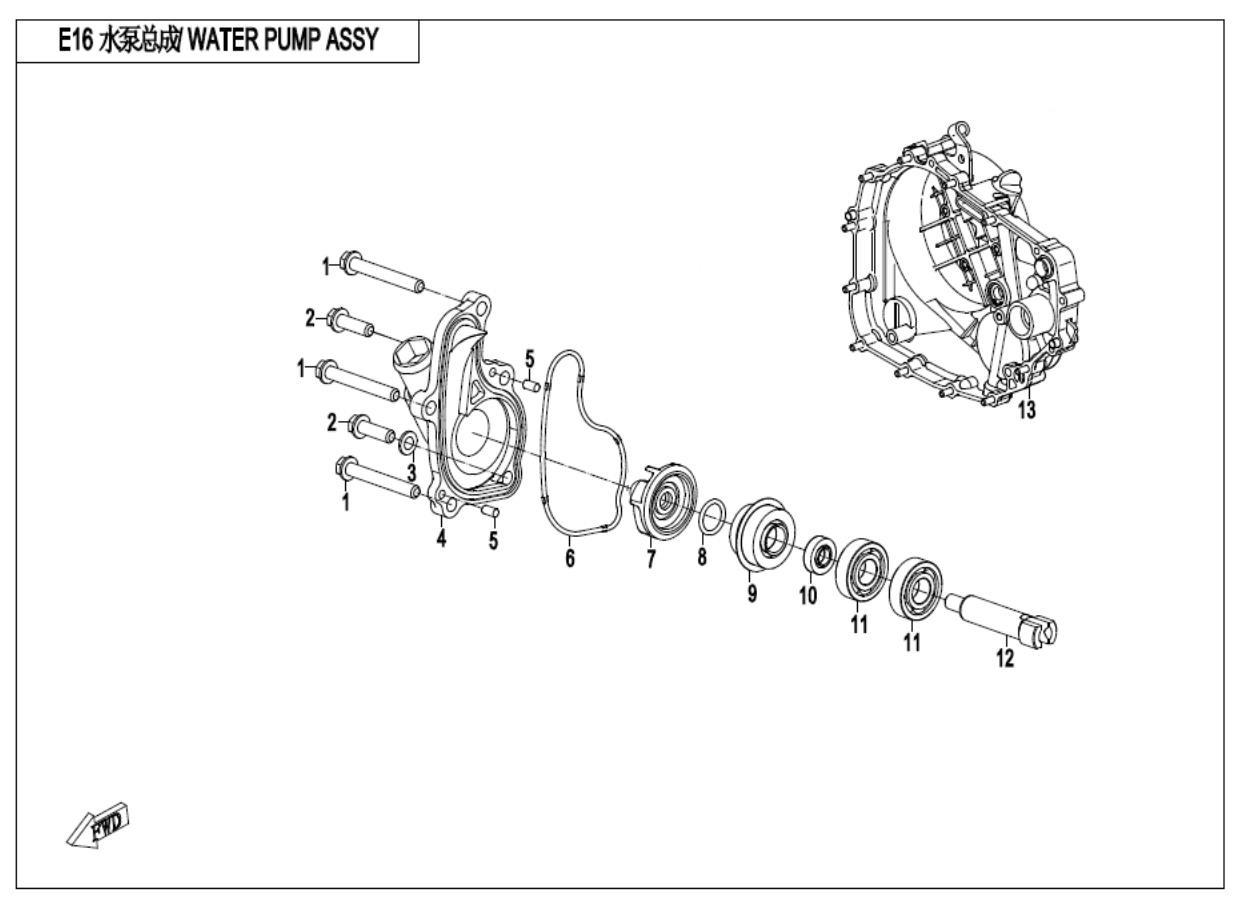

2023 CF MOTO 250NK WATER PUMP exploded diagram
WATER PUMP · 1

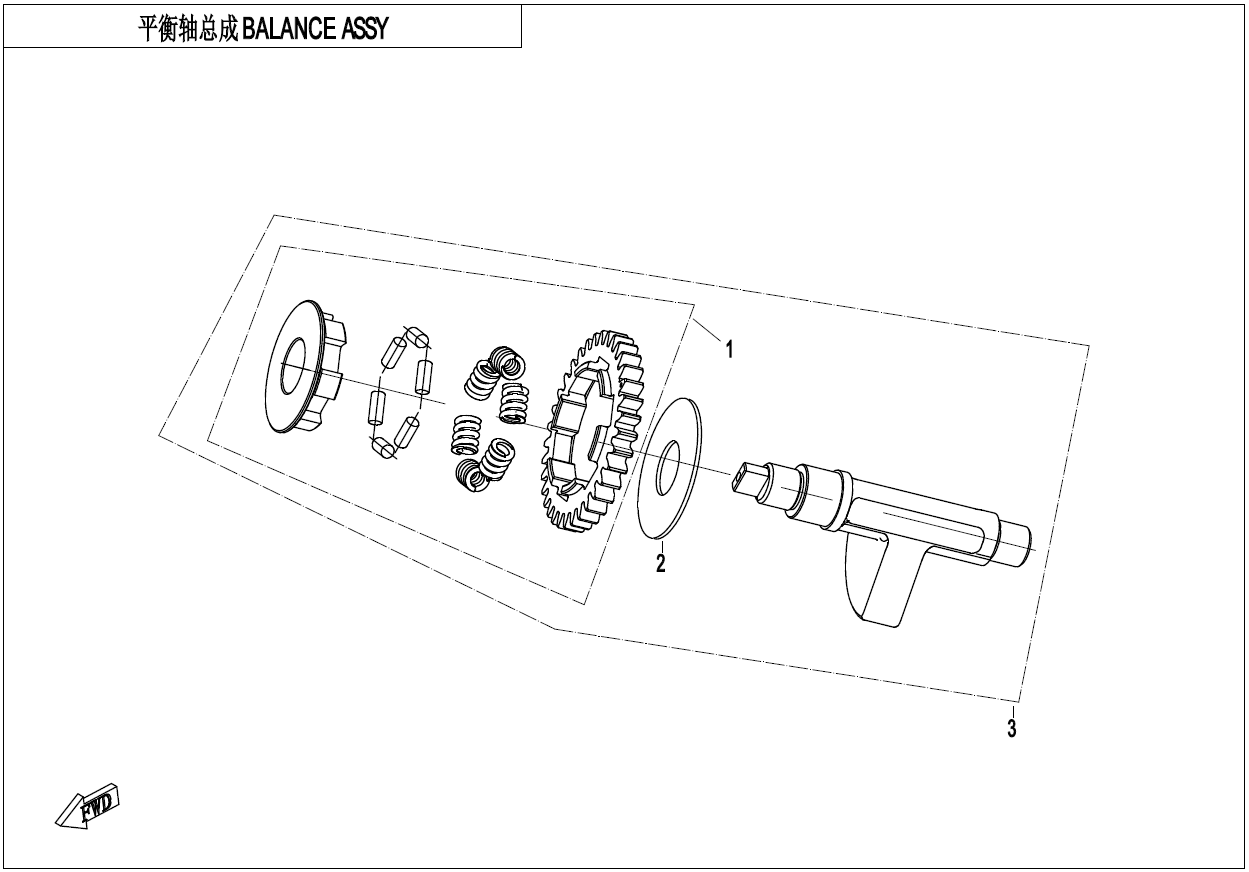

2023 CF MOTO 250NK BALANCER SHAFT exploded diagram
BALANCER SHAFT · 1
2023 CF MOTO 250NK THROTTLE & INJECTOR exploded diagram
THROTTLE & INJECTOR · 1
