2023 CF MOTO 250NK — Electrical System parts

MY market50 genuine parts12 diagrams

Subgroups

Headlight & Parts · 2Lights · 5Alternator & Parts · 7Relay · 3Controller/ECU · 31Starter System · 2

Part numbers

Every genuine electrical system part fitted to the 2023 CF MOTO 250NK. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
6KM#-010100-6000LOCK KIT Replacing: 6KM0-010100 - LOCK KITLOCK KITEnquire
6KM0-010010SEAT CABLELOCK KITEnquire
6KM0-044401SEAT, SEAT LOCK/ 3Enquire
6KJ0-050012LIMIT WIRE, FRONT BRAKE HOSEFRONT SUSPENSIONEnquire
6KJ0-050011FIXING WIRE, FRONT BRAKE HOSEFRONT SUSPENSIONEnquire
6KM0-170200-10001FUEL LEVEL SENSORFUEL TANKEnquire
6KM0-170200-20001FUEL LEVEL SENSORFUEL TANKEnquire
806A-151302FUSE 10AELECTRIC SYSTEMEnquire
806A-151305FUSE 15AELECTRIC SYSTEMEnquire
6KIV-161000-2000FLASHERELECTRIC SYSTEMEnquire
6100-150500RUBBER SLEEVE, FLASHERELECTRIC SYSTEMEnquire
6KMV-151200-8501SIDE STAND SWITCHELECTRIC SYSTEMEnquire
8010-090005BOLT M6x16ELECTRIC SYSTEMEnquire
0DMA-174000ECUELECTRIC SYSTEMEnquire
6050-150500ELECTRIC HORNELECTRIC SYSTEMEnquire
30006-080014810BOLTELECTRIC SYSTEMEnquire
6KJ0-150600ROLL-OVER SENSORELECTRIC SYSTEMEnquire
0A80-177000-00001REGULATORELECTRIC SYSTEMEnquire
6KM0-150030-10000STARTER MOTOR NEGATIVE CABLEELECTRIC SYSTEMEnquire
6FI3-170300-10000GEAR CONTROL UNITELECTRIC SYSTEMEnquire
6KMV-152700-6400GEAR CONTROL UNITELECTRIC SYSTEMEnquire
6KJ0-150500RELAY, STARTERELECTRIC SYSTEMEnquire
9010-150002AUXILIARY RELAY RUBBER RINGELECTRIC SYSTEMEnquire
9010-150350AUXILIARY RELAYELECTRIC SYSTEMEnquire
31020902BATTERYELECTRIC SYSTEMEnquire
1080-150700BATTERY TIE BANDELECTRIC SYSTEMEnquire
6090-150500DIODE, STARTERELECTRIC SYSTEMEnquire
6KM0-150020POSITIVE CABLE, STARTER MOTORELECTRIC SYSTEMEnquire
6KM0-160400-00004FRONT TURN LIGHT, LHLIGHTSEnquire
6KM#-160500-8000RH FRONT TURN LIGHTLIGHTSEnquire
6KM#-160400-8000LH FRONT TURN LIGHTLIGHTSEnquire
6KM0-160500-00004FRONT RH TURN LIGHTLIGHTSEnquire
6KM0-160200REAR TAIL LIGHTLIGHTSEnquire
6KM0-160100-00002HEADLIGHT Replacing: 6KM0-160100 - HEADLIGHTLIGHTSEnquire
0DM0-014004FIXING PAD, HARNESSLEFT SIDE COVEREnquire
0DM0-178000IGNITION COILCYLINDER HEAD COVEREnquire
0010-080013-0010BOLT M6x22CYLINDER COVEREnquire
0DM0-024005CHAIN GUIDE BLOCKCAMSHAFTEnquire
0DM0-031000-00001MAGNETO ROTOR ASSYMAGNETOEnquire
0DM0-032000MAGNETO STATORMAGNETOEnquire
0DM0-030001CABLE FIX BRACKET, TRIGGERMAGNETOEnquire
0DM0-090007SPACER RINGSTARTING SYSTEMEnquire
0DM0-092000-00001GEAR ASSY, STARTING MOTORSTARTING SYSTEMEnquire
0DM0-091000OVERRIDING CLUTCH ASSYSTARTING SYSTEMEnquire
0DM0-090004BUSHING, MIDDLE GEARSTARTING SYSTEMEnquire
0DM0-090002-00001STARTING GEARSTARTING SYSTEMEnquire
0DM0-090006DUAL GEARSTARTING SYSTEMEnquire
0DM0-093000STARTING MOTORSTARTING SYSTEMEnquire
0A80-173100THROTTLE POSITION SENSORTHROTTLE & INJECTOREnquire
0JY0-175000T-MAPTHROTTLE & INJECTOREnquire

Exploded diagrams — Electrical System

2023 CF MOTO 250NK ELECTRIC SYSTEM exploded diagram
ELECTRIC SYSTEM · 21

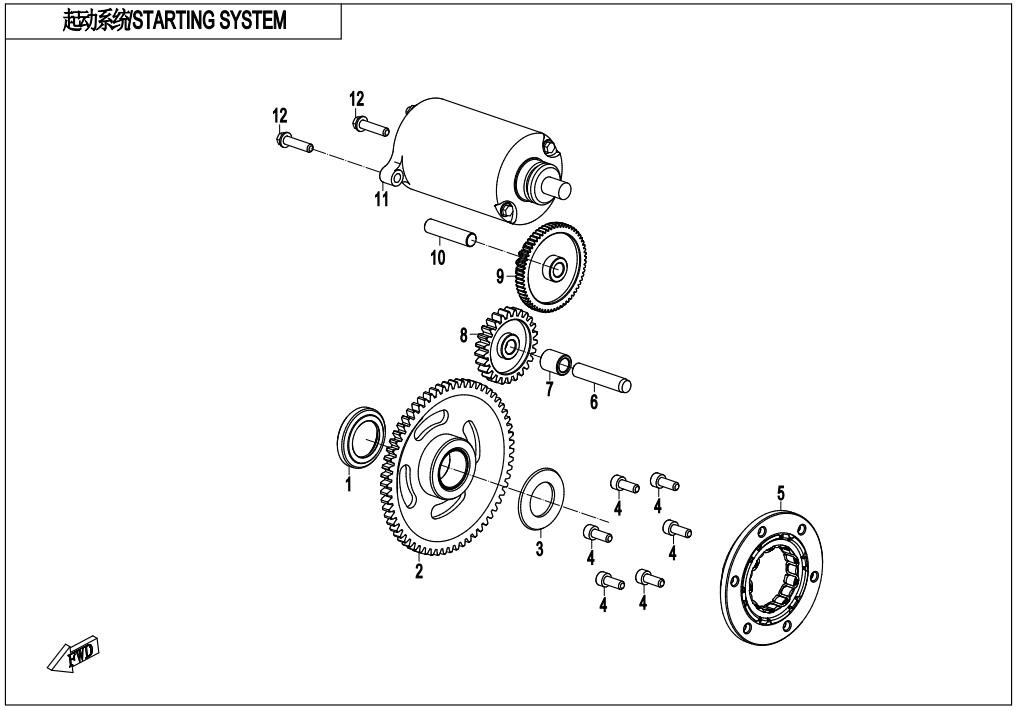

2023 CF MOTO 250NK STARTING SYSTEM exploded diagram
STARTING SYSTEM · 7

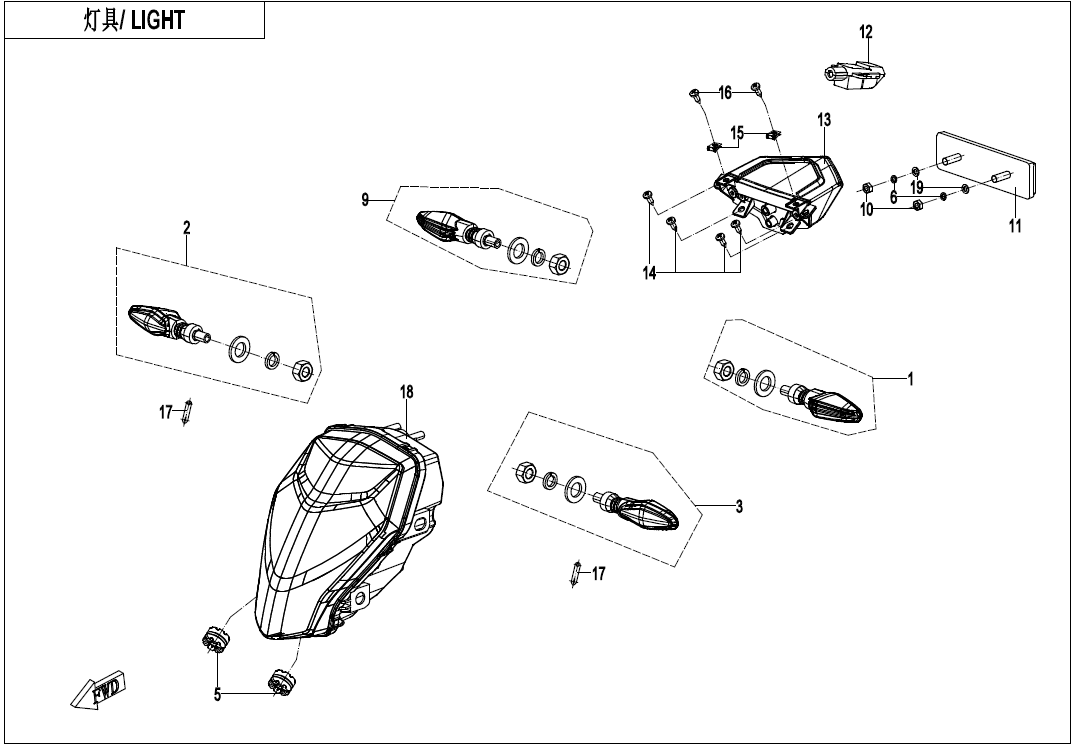

2023 CF MOTO 250NK LIGHTS exploded diagram
LIGHTS · 6

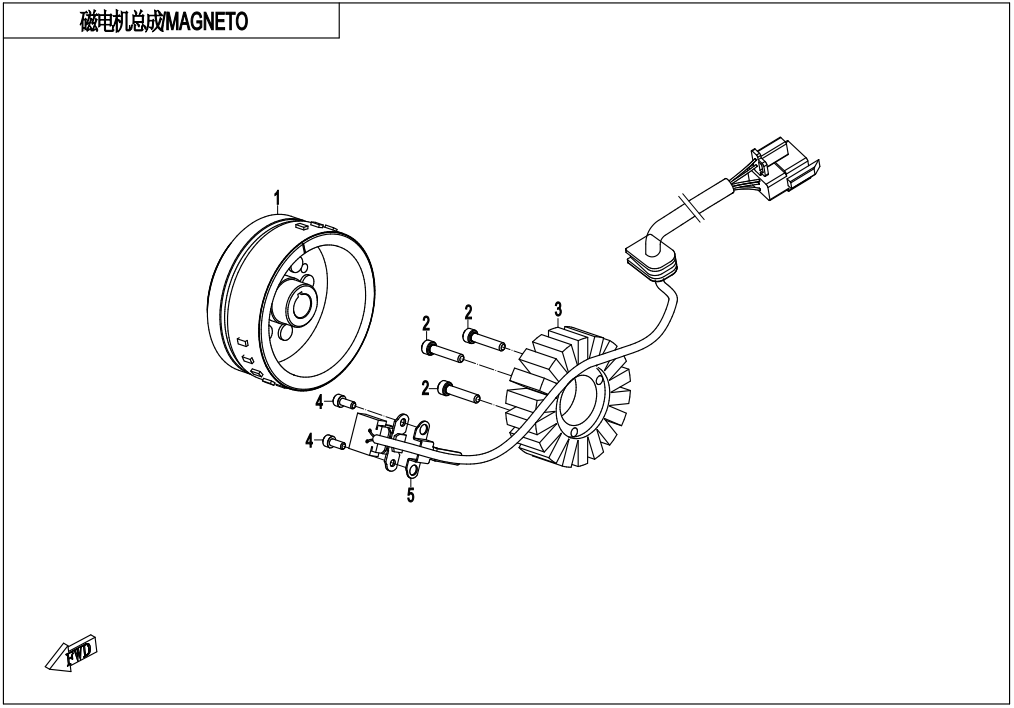

2023 CF MOTO 250NK MAGNETO exploded diagram
MAGNETO · 3
2023 CF MOTO 250NK LOCK KIT exploded diagram
LOCK KIT · 2
2023 CF MOTO 250NK FRONT SUSPENSION exploded diagram
FRONT SUSPENSION · 2
2023 CF MOTO 250NK FUEL TANK exploded diagram
FUEL TANK · 2
2023 CF MOTO 250NK THROTTLE & INJECTOR exploded diagram
THROTTLE & INJECTOR · 2

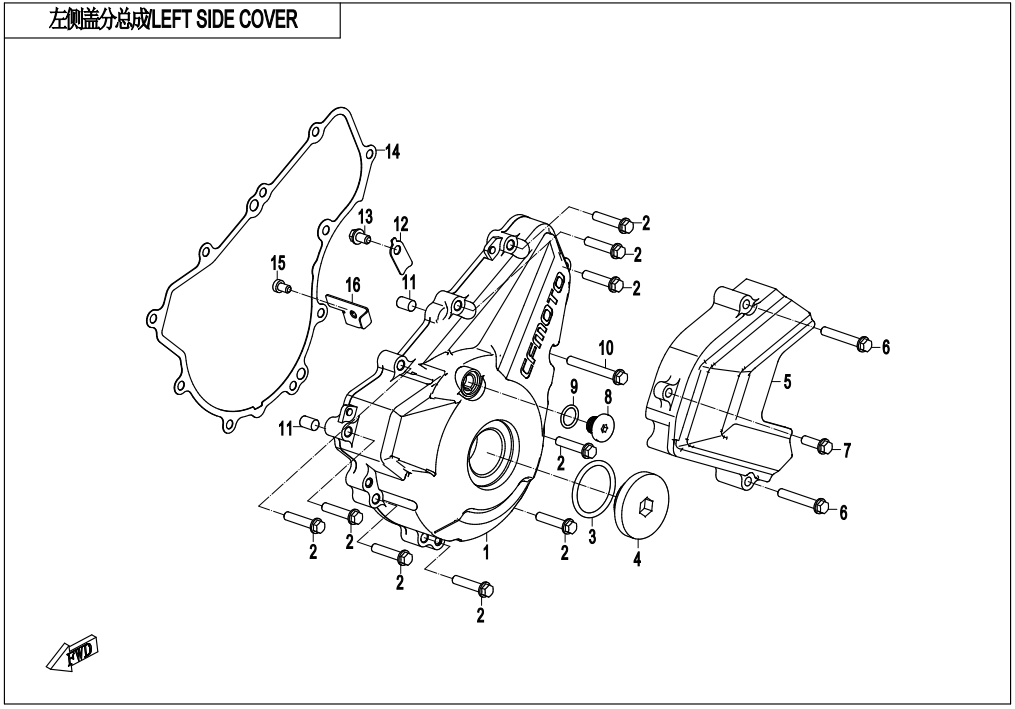

2023 CF MOTO 250NK LEFT SIDE COVER exploded diagram
LEFT SIDE COVER · 1

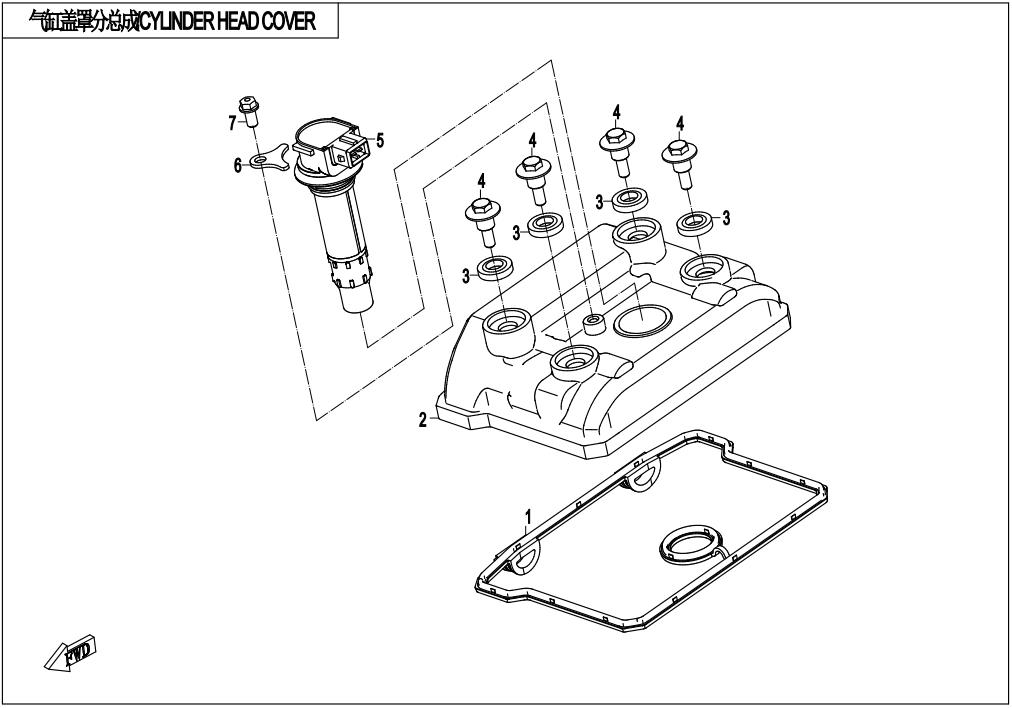

2023 CF MOTO 250NK CYLINDER HEAD COVER exploded diagram
CYLINDER HEAD COVER · 1
2023 CF MOTO 250NK CYLINDER COVER exploded diagram
CYLINDER COVER · 1
2023 CF MOTO 250NK CAMSHAFT exploded diagram
CAMSHAFT · 1
