CFMOTO X8 2013 — Engine parts

UK market199 genuine parts12 diagrams

Subgroups

Crankcase & Crankshaft · 38Cylinder Head & Parts · 30Air Supply System · 2Seals & Gaskets · 35Lubrication System · 5Belt/Chain Drive · 13Engine Hardware · 155

Part numbers

Every genuine engine part fitted to the CFMOTO X8 2013. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
01A0-110003CLAMP D68Air Filter Assy 1Enquire
30601-117010CLAMPAir Filter Assy 1Enquire
0800-024003-00002BOLT, TIMING SPROCKET Replacing: 0800-024003 - BOLT, TIMING CHAINCamshaft Of Cylinder 1 AssyEnquire

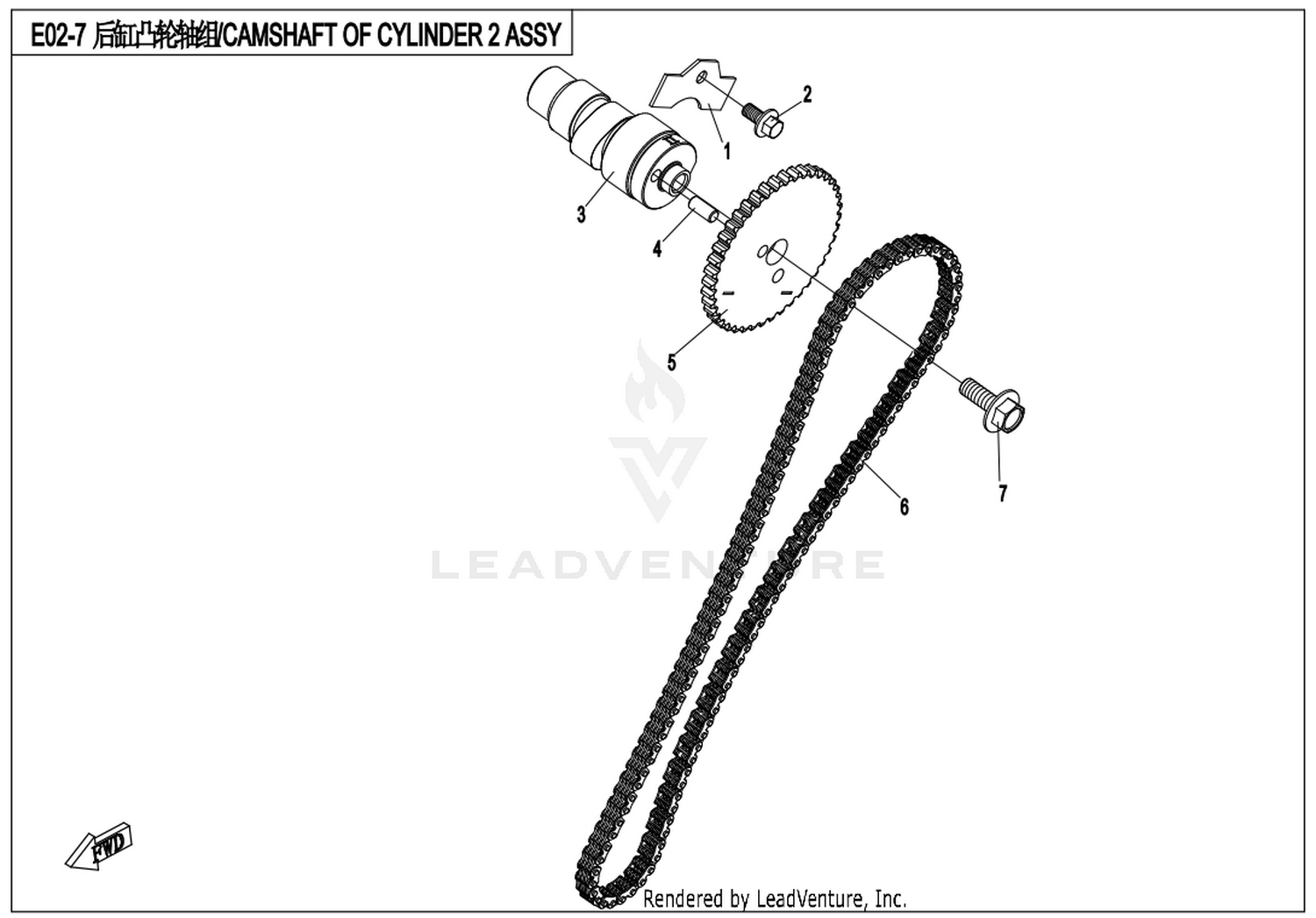

0800-024006TIMING SPROCKETCamshaft Of Cylinder 2 AssyEnquire

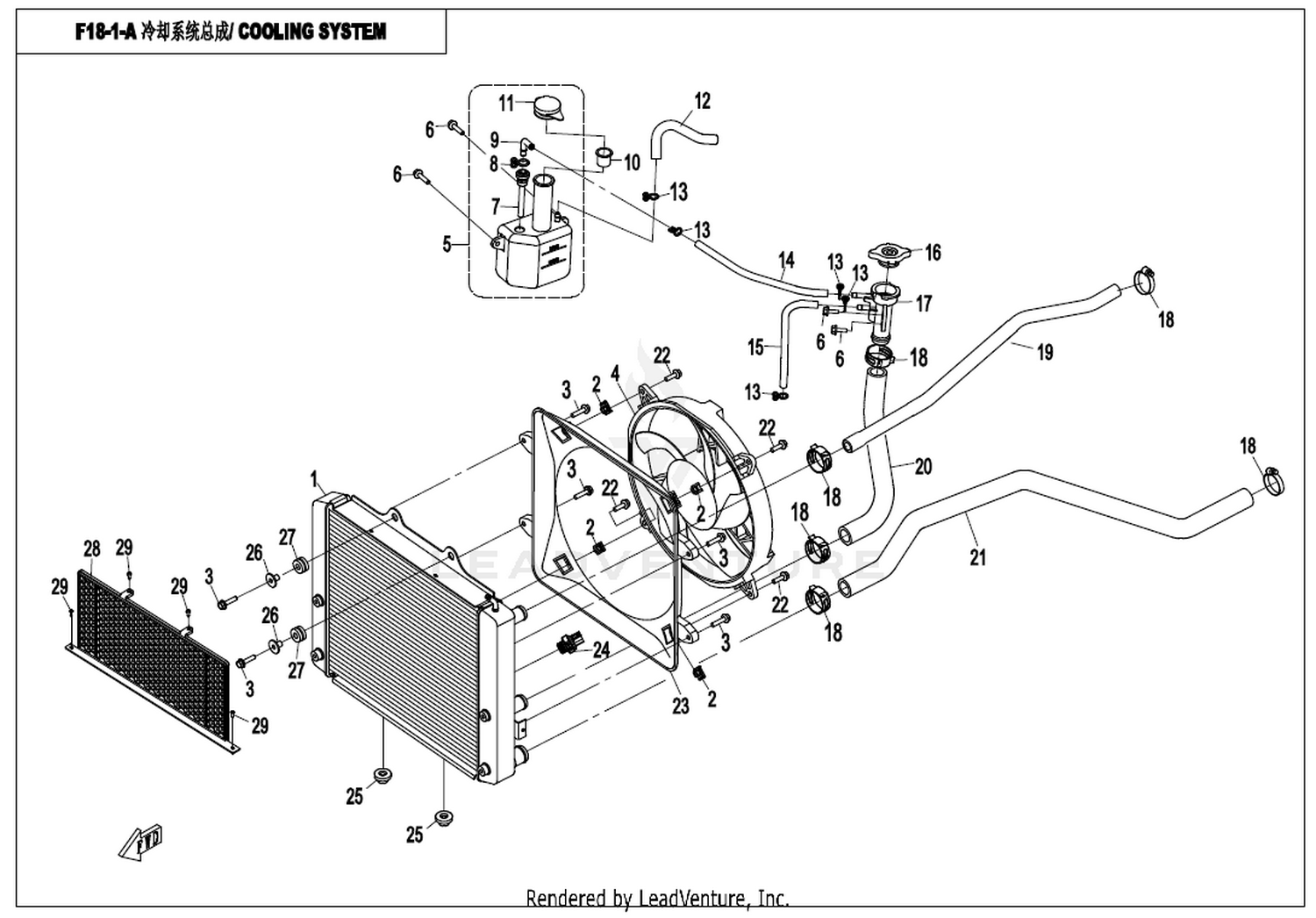

30601-111010CLAMPCooling System(Water)Enquire

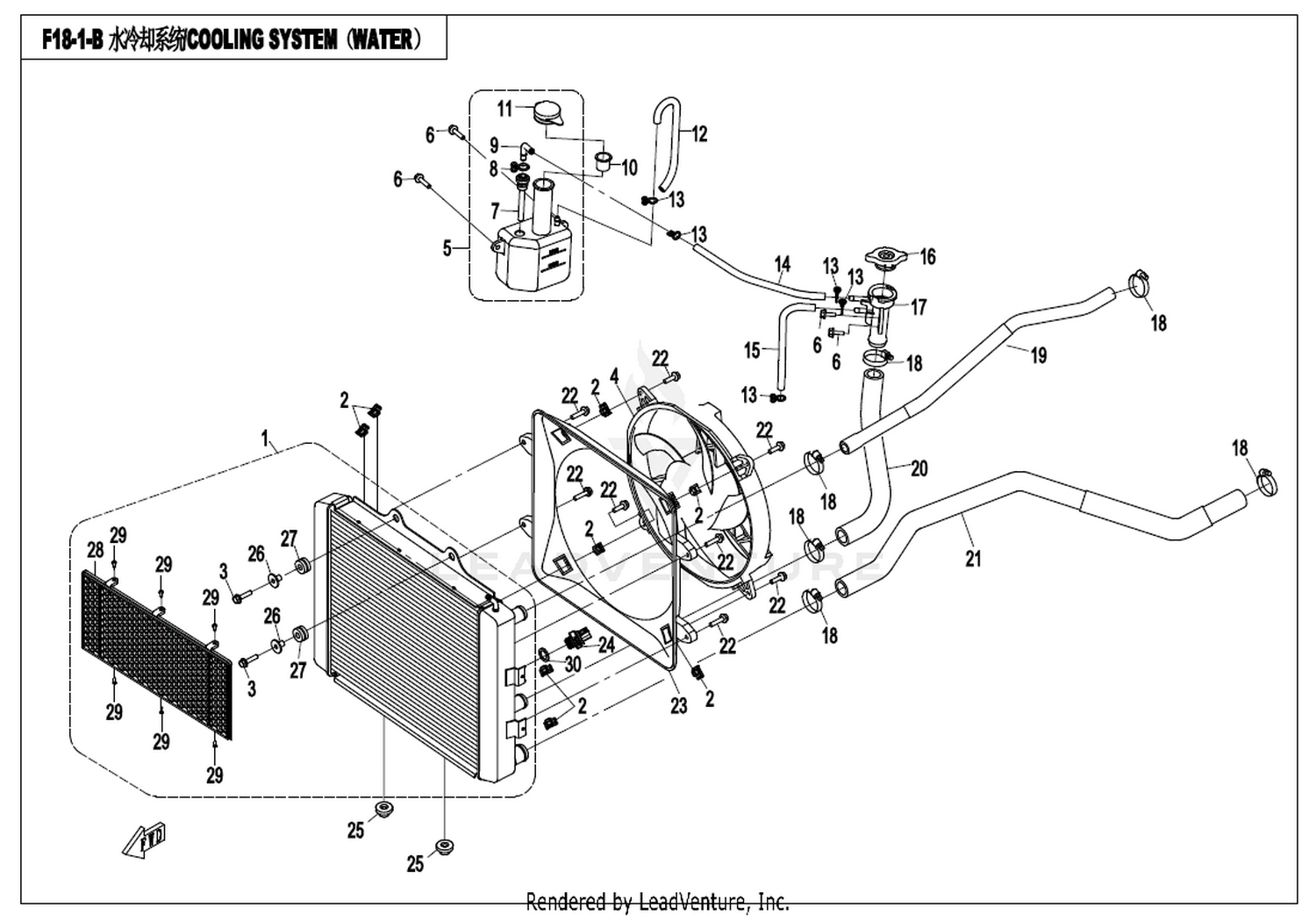

8010-180024Water Filling Port Cap AssyCooling System(Water)(Russia)Enquire
0800-040006-00032CRANKSHAFT CONNECTING ROD, PLAIN BEARING, BLUE Replacing: 0800-040006-0003 - PLAIN BEARING, CONNECTING ROD BLUE THICKCrankshaft & Connecting Rod & Piston AssyEnquire
0800-040005CIRCLIP, PISTON PINCrankshaft & Connecting Rod & Piston AssyEnquire
9010-000105A-TYPE SCREW CLAMP 78-101Cvt Air Pipe & Side CoverEnquire
0800-013103BEARING RETAINER, CVTCvt Case AssyEnquire
0800-023100-0001CYLINDER BODY MARK 1Cylinder AssyEnquire

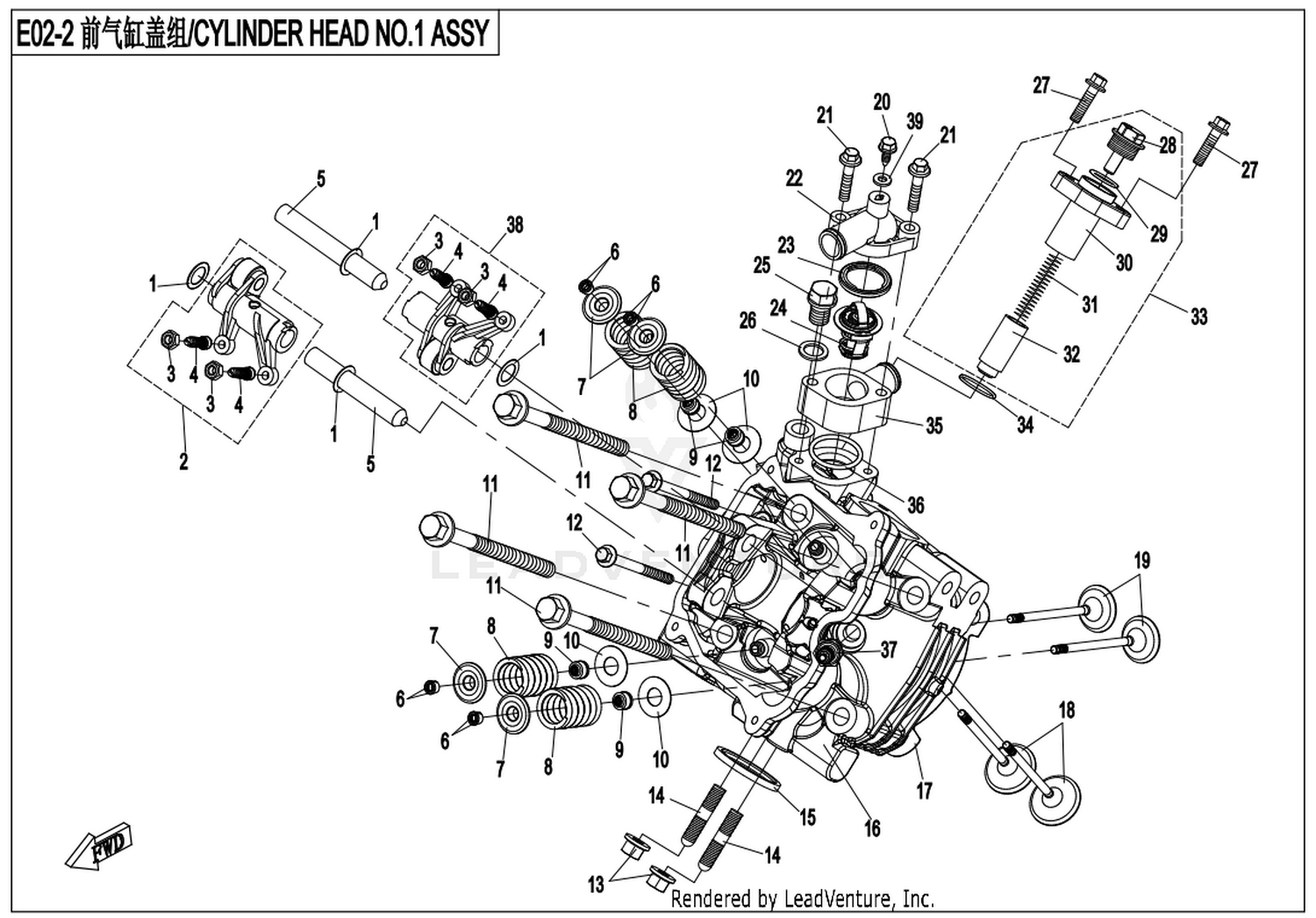

0800-022510ADJUST SCREWCylinder Head No.1 AssyEnquire
0800-022600-20000ROCKER ARM ASSY, AIR EXHAUSTCylinder Head No.1 AssyEnquire
0800-022013-10000THERMOSTAT CAP Replacing: 0800-022013 - THERMOSTAT CAPCylinder Head No.1 AssyEnquire
0800-022402SCREW PLUG, TENSIONERCylinder Head No.1 AssyEnquire
0800-022017SEAL RING, TENSIONERCylinder Head No.1 AssyEnquire

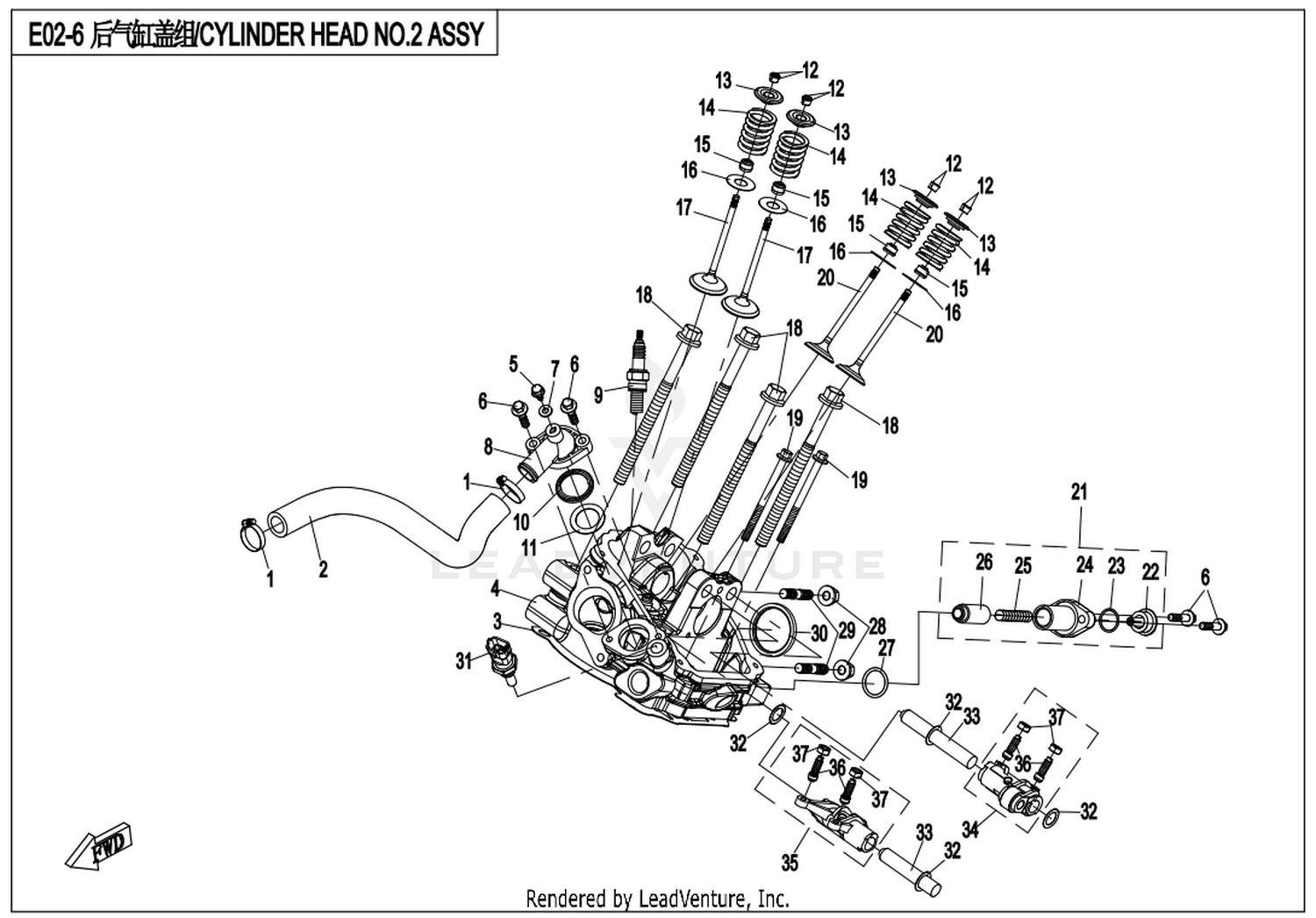

0010-021017-0010BOLT M6x25Cylinder Head No.2 AssyEnquire
0800-022003-00001BOLT, CYLINDER Replacing: 0800-022003 - BOLT, CYLINDERCylinder Head No.2 AssyEnquire
0800-022401HOUSING, CHAIN TENSIONERCylinder Head No.2 AssyEnquire

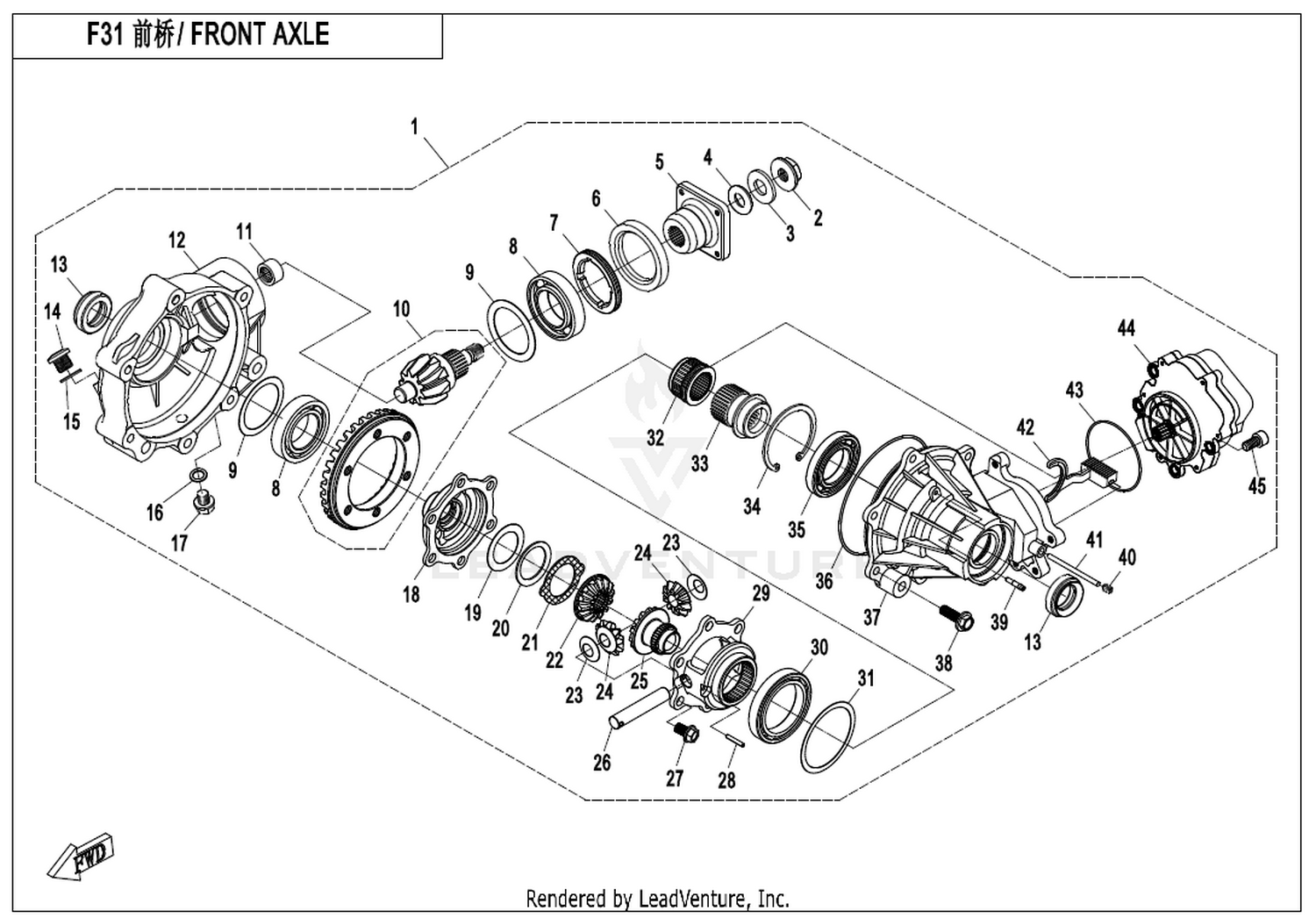

30800-06200CIRCLIP FOR HOLE 62Front AxleEnquire
30130-080010810SCREWFront AxleEnquire
30601-108010CLAMPFuel Tank (Metal)Enquire
7020-120006CLAMP D16.6AFuel Tank (Metal)Enquire
0010-022020-00002BOLTGear ShiftingEnquire
30006-060010840BOLT M6X10HandlebarEnquire
30112-060016410SCREW COMP M6X16 Replacing: 30112-060016440 - SCREW COMP M6X16HandlebarEnquire
0800-025004JOINT PIPE, MANIFOLDIntake Manifold AssyEnquire
0800-011300-0004OIL FILTER ELEMENT Replacing: 0800-011300-00030 - OIL FILTER, ENGINELeft Crankcase AssyEnquire

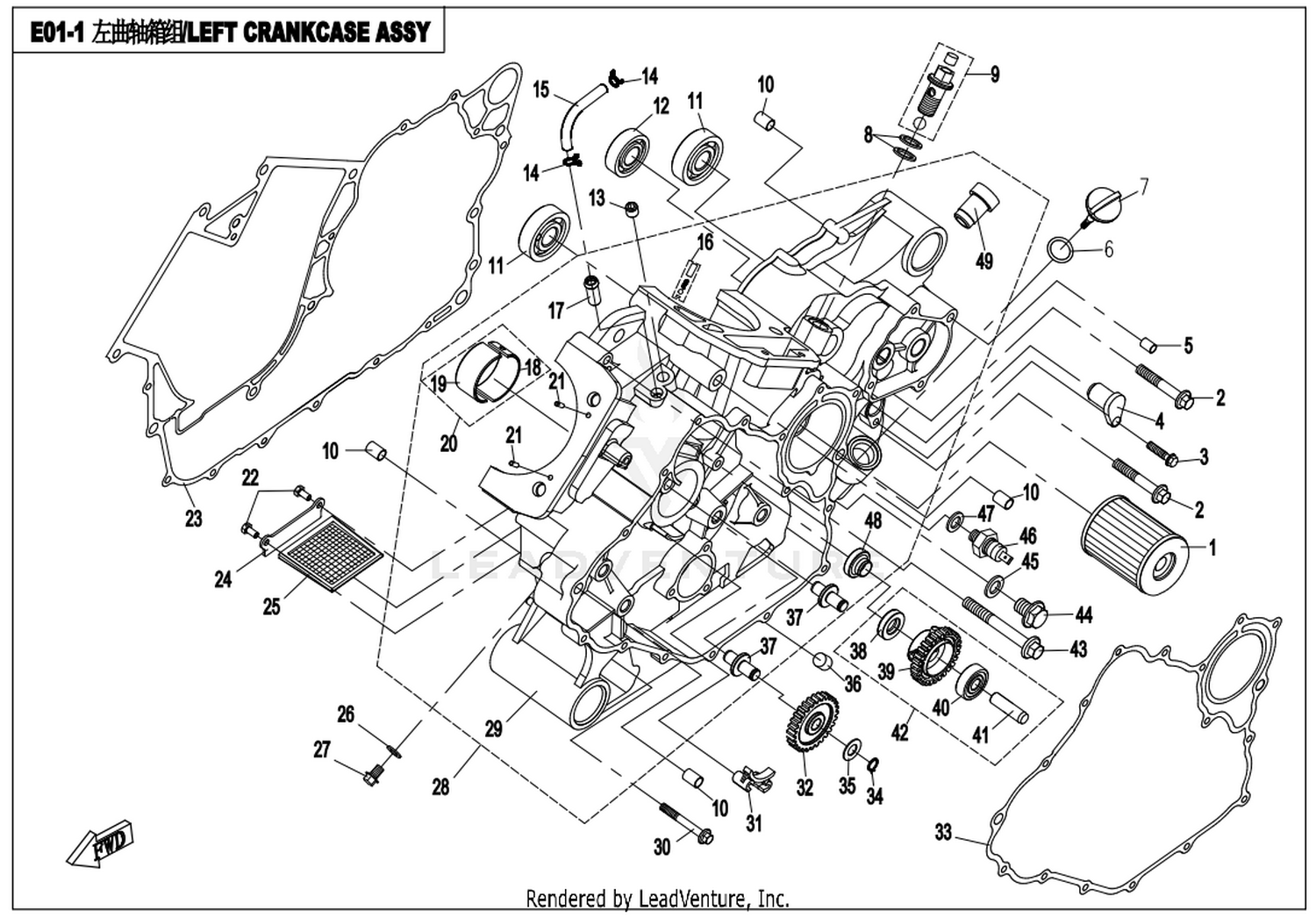

01A0-012010-00001SCREWLeft Crankcase AssyEnquire
0800-011103-00021PLAIN BEARING 2, BLUELeft Crankcase AssyEnquire
0800-011004IDLE GEAR, BREATHERLeft Crankcase AssyEnquire
0800-011203-10000OIL SEALLeft Crankcase AssyEnquire
0110-013005-00001DRAIN SCREW PLUG M12X1.5X15Left Crankcase AssyEnquire
0800-011106SLEEVE, GEARSHIFTLeft Crankcase AssyEnquire
30102-080020810SCREWMagneto AssyEnquire
9060-040310CLAMP ASSYMiddle PlasticsEnquire
0010-030002-00001BOLTOil Pump AssyEnquire

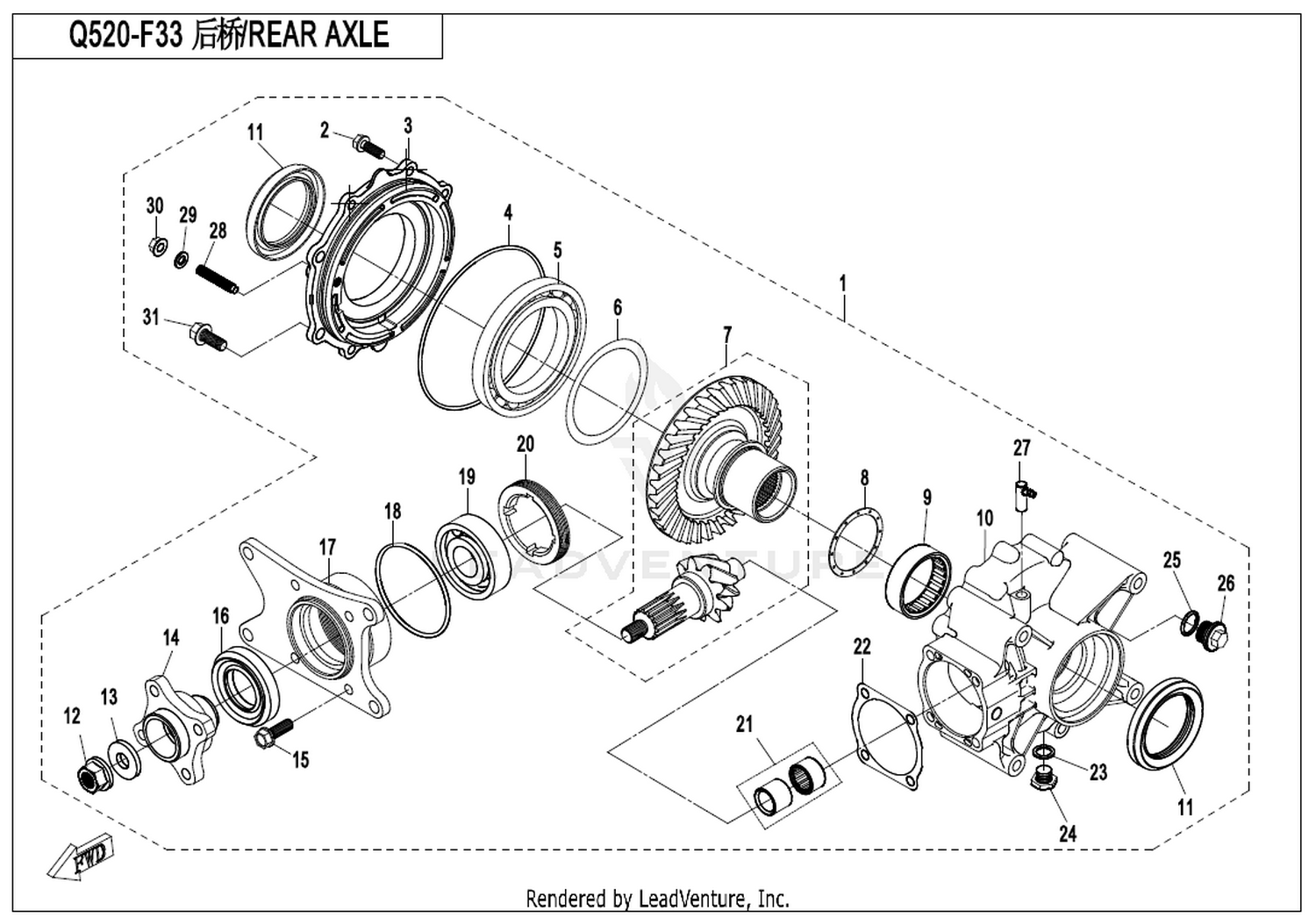

0180-334002O-RING 151X3Rear AxleEnquire
0180-331007OIL SEAL 35X61X9Rear AxleEnquire
0180-332004O-RING 19X2.5Rear AxleEnquire
9010-0600A0REAR BEARING CARRIER ASSY Replacing: 9010-060001 - REAR BEARING CARRIERRear SuspensionEnquire
0130-011109-0010BOLT M8X60Right Crankcase AssyEnquire
0180-023002O-SEAL RINGRight Crankcase AssyEnquire
30502-032800NO-RING 32X18Steering SystemEnquire
9010-400102-10000COTTER PIN Replacing: 9010-400102 - COTTER PINTowbarEnquire
30402-02402NEEDLE BEARING, K24X29X13Transmission System(1)Enquire
0180-062104-0010LIMITATOR, BEARINGTransmission System(2)Enquire
0110-080005Oil Seal 10X20X5Water Pump AssyEnquire
30801-01405CIRCLIPS FOR SHAFTBrake SystemEnquire

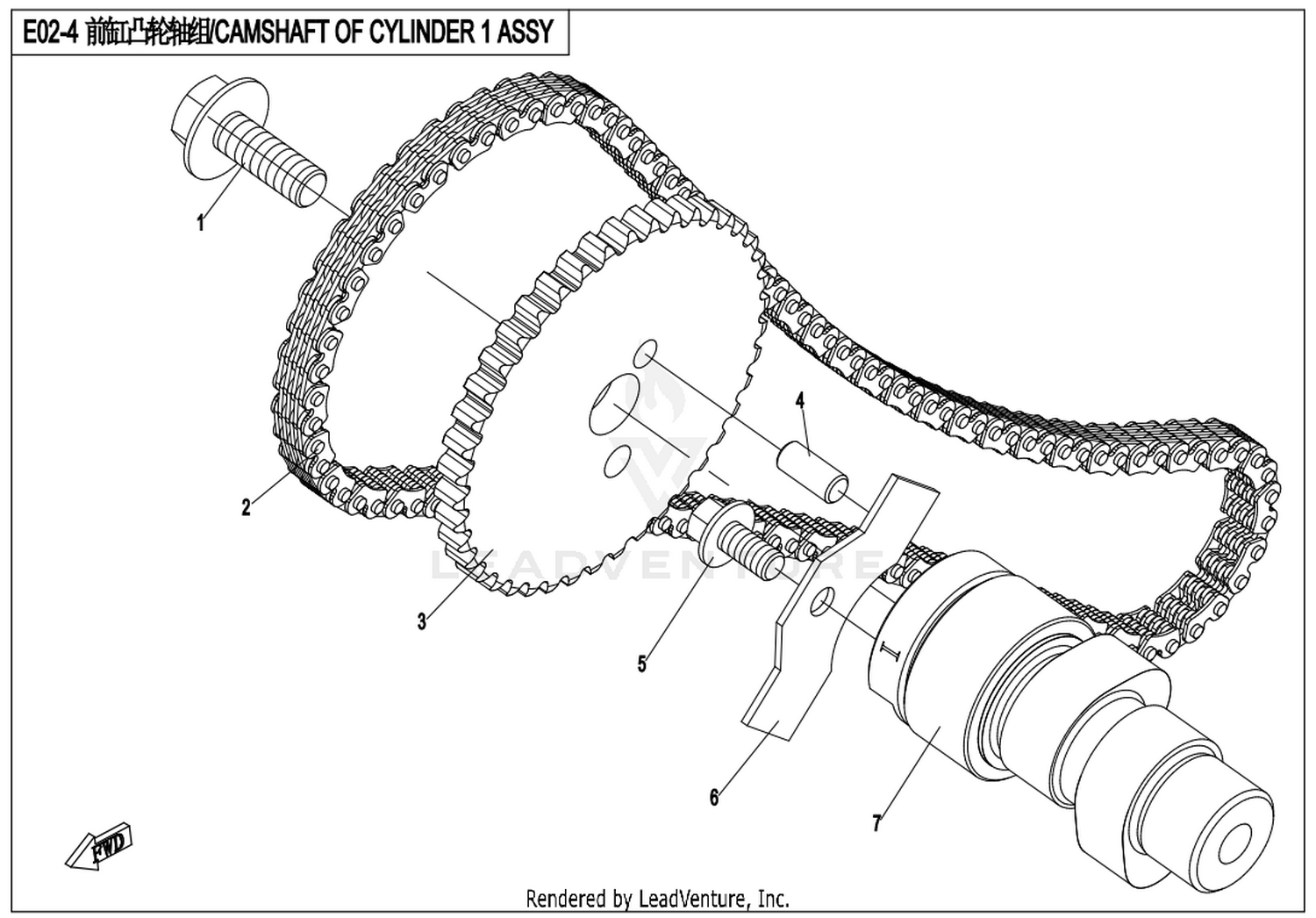

0800-024100TIMING CHAINCamshaft Of Cylinder 1 AssyEnquire
9030-180007CLIP, OIL PIPECooling System(Oil)(Russia)Enquire
30601-113010CLAMPCooling System(Water)Enquire
8010-180023CAP, RESERVOIR TANKCooling System(Water)(Russia)Enquire
30110-420095040Needs DescriptionCooling System(Water)(Russia)Enquire
0800-040006-00022CRANKSHAFT CONNECTING ROD, PLAIN BEARING, BLACK Replacing: 0800-040006-0002 - PLAIN BEARING, CONNECTING ROD BLACK@MIDDLECrankshaft & Connecting Rod & Piston AssyEnquire
30499-04000BEARING 6208Cvt Case AssyEnquire
0180-011005DOWEL PIN 13X18Cvt Case AssyEnquire
30105-060012410SCREWCvt Cover AssyEnquire
0800-023100-0002CYLINDER BODY MARK 2Cylinder AssyEnquire
0800-021002-00001SEAL RING, CYLINDER HEAD COVERCylinder Head Cover AssyEnquire
0800-023000CYLINDER BODY ASSYCylinder Head & Cylinder AssyEnquire
0010-022802SEAL RINGCylinder Head No.1 AssyEnquire
0800-022407O-RING 17X1.45Cylinder Head No.1 AssyEnquire
0800-022012SEAT,THERMOSTATCylinder Head No.1 AssyEnquire
30603-125020Clamp D25Cylinder Head No.2 AssyEnquire
0800-022009-00001BOLT 6X80Cylinder Head No.2 AssyEnquire
0800-026200WATER TEMPERATURE SENSORCylinder Head No.2 AssyEnquire
30105-050030410SCREW M5X30 Replacing: 30105-050030440 - SCREW M5X30Electric System(Eps)Enquire
0180-312006O-RING 14X6.8Front AxleEnquire
0180-313007-0050PINFront AxleEnquire
0180-310002PIN SHAFTFront AxleEnquire
9010-270203-00001WIRE CIRCLIP Replacing: 9010-270203 - WIRE CIRCLIPFront WheelEnquire
6070-120400CLAMP(Φ14.5)Fuel Tank (Metal)Enquire
30903-0162010COTTER PINHandlebarEnquire
0800-025003AUXILIARY AIR INLET MANIFOLDIntake Manifold AssyEnquire
0040-012006-0010BOLT M8X50 Replacing: 0040-012006-0030 - BOLT M8X50Left Crankcase AssyEnquire
30601-112010CLAMPLeft Crankcase AssyEnquire
0800-011201GEAR, BREATHERLeft Crankcase AssyEnquire
0180-011500MAGNETIC DRAIN BOLTLeft Crankcase AssyEnquire
30110-420160010SELF-TAPPING SCREWLightsEnquire
30102-060012810SCREWMufflerEnquire
30801-01005Circlips For Shaft 10Oil Pump AssyEnquire
0180-334003OIL SEAL SD465X90X9NSRear AxleEnquire
30110-421130010SELF-TAPPING SCREWRear PlasticsEnquire
30800-01405CIRCLIP FOR HOLERight Crankcase AssyEnquire
0800-011102-00021PLAIN BEARING 1, BLUE Replacing: 0800-011102-0002 - PLAIN BEARING 1 BLUE THICKRight Crankcase AssyEnquire
30801-02905CIRCLIPS FOR SHAFT 29Transmission System(1)Enquire
0800-062205O-RINGTransmission System(2)Enquire
30400-03500BEARING 6207C3Transmission System(2)Enquire
0180-061007-0050CIRCLIP 25Transmission System(2)Enquire
30124-080025810SCREW M8X25Transmission System(2)Enquire
0800-024004-10000HOLDING STRIP, CAMSHAFTCamshaft Of Cylinder 2 AssyEnquire
0180-054004-0003CIRCLIPClutch AssyEnquire
9010-180007CLAMP, WATER HOSECooling System(Water)(Russia)Enquire
0800-040006-00012CRANKSHAFT CONNECTING ROD, PLAIN BEARING, RED Replacing: 0800-040006-0001 - PLAIN BEARING, CONNECTING ROD RED THINCrankshaft & Connecting Rod & Piston AssyEnquire
0800-013104OIL SEAL 34X55X9Cvt Case AssyEnquire
0800-013110AIR GUIDE, CVTCvt Case AssyEnquire
0180-013206-0010LIMITATOR, OIL SEALCvt Cover AssyEnquire
0800-023004GUIDE, TENSIONERCylinder AssyEnquire
0800-023002-00001GASKET, CYLINDERCylinder AssyEnquire
0800-021001CYLINDER HEAD COVERCylinder Head Cover AssyEnquire
0800-022000-30000CYLINDER HEAD 1, SUB ASSY (COMPLETE)Cylinder Head & Cylinder AssyEnquire
0800-022700THERMOSTATCylinder Head No.1 AssyEnquire
30502-028000NO-RING 28X265Cylinder Head No.1 AssyEnquire
0800-026001WATER OUTLET HOSE CYLINDER 2Cylinder Head No.2 AssyEnquire
0800-022410PLUNGER, CHAIN TENSIONERCylinder Head No.2 AssyEnquire
30800-02505CIRCLIP FOR HOLE A-D25Drivetrain SystemEnquire
0180-310005O-RING 141X2.4Front AxleEnquire
A000-040703INNER HEX SCREWHandlebarEnquire
080V-025002-1000SEAL RING, MANIFOLD Replacing: 0800-025002 - SEAL RING, MANIFOLDIntake Manifold AssyEnquire
0800-011500JOINT BOLT ASSYLeft Crankcase AssyEnquire
30400-01003BEARING 6200-RS/P6Left Crankcase AssyEnquire
30400-02800BEARINGLeft Crankcase Cover AssyEnquire
30110-480160010SELF-TAPPING SCREWLightsEnquire
A000-060002CHAIN GUARD SCREWMiddle PlasticsEnquire
0180-331004O-RING 64.5X3Rear AxleEnquire
9GQ0-050710BEARING, HUB Replacing: 30499-03080 - BEARING HUB DAC3055WRear SuspensionEnquire
0180-073002O-RING 10X2.3Right Crankcase AssyEnquire
30011-060030820STUDRight Crankcase AssyEnquire
30406-00500ROLLER NEEDLE P5X11.8Right Crankcase AssyEnquire
0800-011103-00011PLAIN BEARING 2, REDRight Crankcase AssyEnquire
30401-03000NEEDLE BEARING NK30/20Starting SystemEnquire
7020-100600BEARING, OUTER SPHERICAL 205Steering SystemEnquire
0180-065002OIL SEAL SD15X25X5Transmission System(3)Enquire
0180-064002-00001LOCK SCREW T25Transmission System(3)Enquire
0800-024002-00001DOWEL PIN, SPROCKET Replacing: 0800-024002 - DOWEL PIN, SPROCKETCamshaft Of Cylinder 1 AssyEnquire
0010-021019-0010BOLT M6x12Camshaft Of Cylinder 2 AssyEnquire
0800-011006-00001SCREW PLUGCvt Case AssyEnquire
0180-013207OIL SEALCvt Cover AssyEnquire
0800-023001-00002SCREW, TENSIONER PLATE Replacing: 0800-023001 - SCREW, TENSIONER PLATE NLA USE 0800-023001-00002Cylinder AssyEnquire
0800-021000CYLINDER HEAD COVER ASSYCylinder Head & Cylinder AssyEnquire
0800-022015-00001SCREW PLUG M12X1.5 Replacing: 0800-022015 - SCREW PLUG M12X1.5Cylinder Head No.1 AssyEnquire
0800-022800SPARK PLUG DCPR8E (NGK)Cylinder Head No.1 AssyEnquire
0800-022400-10000TENSIONER Replacing: 0800-022400 - TENSIONERCylinder Head No.2 AssyEnquire
0180-312002OIL SEAL 48X65X9Front AxleEnquire
0180-311001OIL SEAL 24X38X8Front AxleEnquire
0010-060011-0010BOLT PLUG OIL DRAIN M10X1.25 Replacing: 0010-060011-0030 - DRAIN PLUG CFMOTOFront AxleEnquire
0180-310001O-RING 81.2X1.9Front AxleEnquire
9010-050800-20000LOWER BALL PIN ASSY Replacing: 9010-050800-1000 - LOWER BALL PIN ASSYFront SuspensionEnquire
30903-0252610COTTER PIN. 2.5X26Front SuspensionEnquire
0130-011400PLUG, SEALLeft Crankcase AssyEnquire
0010-021005DOWEL PINLeft Crankcase AssyEnquire
0800-0111B0-00001PLAIN BEARING KIT, MAIN SHAFT, BLUE Replacing: 0800-0111B0 - PLAIN BEARING KIT, MAIN SHAFT, BLUELeft Crankcase AssyEnquire
0800-011009OIL STRAINERLeft Crankcase AssyEnquire
0180-014003-0010WIRE CLAMPLeft Crankcase Cover AssyEnquire
30107-060012440SCREW M6X12Lock KitEnquire
0180-334005-0010INNER HEX SCREW M8X45Rear AxleEnquire
30800-05505CIRCLIP D55 BLACKRear SuspensionEnquire
0800-011101-30010LH CRANKCASE SMALL RED Replacing: 0800-011101-20010 - LH CRANKCASERight Crankcase AssyEnquire
0800-061007CIRCLIP 29Transmission System(1)Enquire
30102-050012810SCREWTransmission System(2)Enquire
30400-02501BEARINGTransmission System(2)Enquire
30406-00402ROLLER NEEDLE P4x21.8Water Pump AssyEnquire
0800-080004SEAL RING, WATER PUMP COVERWater Pump AssyEnquire
0800-053001CIRCLIP40Clutch Crust AssyEnquire
30001-060012830BOLTCooling System(Oil)Enquire
30601-116010CLAMP D16Cvt Air Pipe & Side CoverEnquire
30400-01702BEARING 6003Cvt Cover AssyEnquire
0800-022600-1000SWING ARM, EXHAUSTCylinder Head No.1 AssyEnquire
0180-022003-00001STUDCylinder Head No.1 AssyEnquire
30132-480130030SELF-TAPPING SCREW ST4.8X13Cylinder Head No.1 AssyEnquire
0180-021008-00001BOLTFront AxleEnquire
0181-314000MOTOR ASSY, FRONT GEAR CASE, ORDINARY PLUGFront AxleEnquire
30801-03405CIRCLIPS FOR SHAFT 34Front SuspensionEnquire
0110-013019T-JOINT, EXHAUST GASFuel Tank (Metal)Enquire
30601-107010CLAMP A7Fuel Vaporization SystemEnquire
0130-011114-00001BOLTIntake Manifold AssyEnquire
0010-080008DOWEL PINLeft Crankcase AssyEnquire
30400-01701BEARING 6303Left Crankcase AssyEnquire
0800-011200BREATHER ASSYLeft Crankcase AssyEnquire
0800-014011-10000PLUGLeft Crankcase Cover AssyEnquire
0800-014003O-RING 63X2.5Left Crankcase Cover AssyEnquire
9010-280102-00001WIRE CIRCLIPRear WheelEnquire
30499-03000BEARING 5206Right Crankcase AssyEnquire
0800-012100-20010RH CRANKCASE ASSYRight Crankcase AssyEnquire
0180-062205O-RING 88X2.5Transmission System(2)Enquire
0180-060008BEARING RETAINER, FRONT OUTPUT SHAFTTransmission System(2)Enquire
30801-01205CIRCLIPS FOR SHAFTTransmission System(3)Enquire
0180-040007WOODRUFF KEYCrankshaft & Connecting Rod & Piston AssyEnquire
0800-042004BOLT, CONNECTING RODCrankshaft & Connecting Rod & Piston AssyEnquire
0GSV-013004-3000BOLT 1, CVT COVER Replacing: 0800-021101-1000 - BOLT, CYLINDER HEAD COVERCylinder Head Cover AssyEnquire
30006-103020810BOLT M10X20 Replacing: 30006-103020840 - BOLT M10X20Frame 1Enquire
30102-080020840INNER HEX SCREW, M8X20Front AxleEnquire
30601-110010CLAMPFuel Vaporization SystemEnquire
6100-050074CLIP 2, CLUTCH CABLEGear ShiftingEnquire
0180-022400-0050CLAMPIntake Manifold AssyEnquire
0110-013030O-RINGLeft Crankcase AssyEnquire
30400-01704BEARINGLeft Crankcase AssyEnquire
0180-332002-0020BOLT M8X12.5, FLANGELeft Crankcase AssyEnquire
0800-011105SEAT, BREATHERLeft Crankcase AssyEnquire
0180-030001-00001BOLTMagneto AssyEnquire
30406-00400ROLLER PINOil Pump AssyEnquire
9010-060900ANTI-DUST CAPRear SuspensionEnquire
0800-012200GEAR SENSOR ASSY, ORDINARY PLUGRight Crankcase AssyEnquire
0800-012100-20020RH CRANKCASE ASSYRight Crankcase AssyEnquire
30402-02500NEEDLE BEARING, K25X29X10Transmission System(1)Enquire
0800-062204OIL SEAL 35X50X6Transmission System(2)Enquire
0800-062103BEARING SEAT, DRIVE BEVEL GEARTransmission System(2)Enquire
30408-01000BEARINGWater Pump AssyEnquire

Exploded diagrams — Engine

CFMOTO X8 2013 Left Crankcase Assy exploded diagram
Left Crankcase Assy · 30
CFMOTO X8 2013 Cylinder Head No.1 Assy exploded diagram
Cylinder Head No.1 Assy · 21
CFMOTO X8 2013 Right Crankcase Assy exploded diagram
Right Crankcase Assy · 21
CFMOTO X8 2013 Cylinder Head No.2 Assy exploded diagram
Cylinder Head No.2 Assy · 20
CFMOTO X8 2013 Front Axle exploded diagram
Front Axle · 13
CFMOTO X8 2013 Transmission System(2) exploded diagram
Transmission System(2) · 12
CFMOTO X8 2013 Cvt Case Assy exploded diagram
Cvt Case Assy · 7
CFMOTO X8 2013 Rear Axle exploded diagram
Rear Axle · 7
CFMOTO X8 2013 Camshaft Of Cylinder 1 Assy exploded diagram
Camshaft Of Cylinder 1 Assy · 6
CFMOTO X8 2013 Camshaft Of Cylinder 2 Assy exploded diagram
Camshaft Of Cylinder 2 Assy · 6
CFMOTO X8 2013 Cooling System(Water) exploded diagram
Cooling System(Water) · 6
CFMOTO X8 2013 Cooling System(Water)(Russia) exploded diagram
Cooling System(Water)(Russia) · 6

Browse the catalogue interactively

Open Engine in the interactive CFMOTO X8 2013 catalogue to drill into diagrams, check availability and add parts to your cart.

Other assembly groups on this vehicle

Body · 212Gearbox · 125Electrical System · 62Wheels & Tyres · 50Brake System · 31Cooling System · 28Filters · 28Fuel Supply System · 22Exhaust System · 18Steering System · 15Suspension · 14Clutch & Parts · 13Fuel Preparation · 4Final Drive · 2Unclassified · 586
