ZFORCE 800 2016 — Filters parts

UK market23 genuine parts9 diagrams

Subgroups

Air Filter · 23

Part numbers

Every genuine filters part fitted to the ZFORCE 800 2016. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
0800-110007CLASPAir Filter AssyEnquire
0800-110004-20001SEAL RING,AIR FILTER Replacing: 0800-110004-2000 - SEAL RING, AIR FILTERAir Filter AssyEnquire
7000-180012-10000ALUM. WATER PIPE 2Cooling SystemEnquire
9060-180006-00001JOINT PIPECooling SystemEnquire
7000-000204JOINT,AIR OUTLET PIPECvt Air Pipe & Side CoverEnquire
0800-112000-20010FILTER ELEMENT Replacing: 0800-112000 - FILTER ELEMENTAir Filter AssyEnquire
9060-180029RADIATOR SLEEVE TUBECooling SystemEnquire
7000-180001-10000WATER OUTLET PIPE,ENGINE Replacing: 7000-180001 - WATER OUTLET HOSE,ENGINE NLA USE 7000-180001-10000Cooling SystemEnquire
7000-000202AIR OUTLET PIPE,CVTCvt Air Pipe & Side CoverEnquire
0180-332006PIPE JOINTRear AxleEnquire
0800-1110B0-20000INLET PIPE, AIR FILTERAir Filter AssyEnquire
0180-311004-0020JOINT, BREATHER PIPEFornt AxleEnquire
0800-025005JOINT PIPE, THROTTLEIntake Manifold AssyEnquire
01A0-022102Pipe JointLeft Crankcase Cover AssyEnquire
7000-041901-10000GUARD, AIR FILTERRear Plastics 1Enquire
0800-110005-1000CONNECT PIPE, FILER ELEMENTAir Filter AssyEnquire
9010-120310RUBBER LINER, FUEL TANKEngine Mounting PartsEnquire
0800-110002-2000COVER, AIR FILTERAir Filter AssyEnquire
9060-180023OVERFLOW PIPE?RESERVOIR TANKCooling SystemEnquire
9060-180005-00001TRANSITION WATERPIPECooling SystemEnquire
7030-000203JOINT,AIR INLET PIPE,CVTCvt Air Pipe & Side CoverEnquire
9010-120007REAR CUSHION SLEEVE, FUEL TANKEngine Mounting PartsEnquire
7000-180011ALUM. WATER PIPE 1Cooling SystemEnquire

Exploded diagrams — Filters

ZFORCE 800 2016 Cooling System exploded diagram
Cooling System · 7

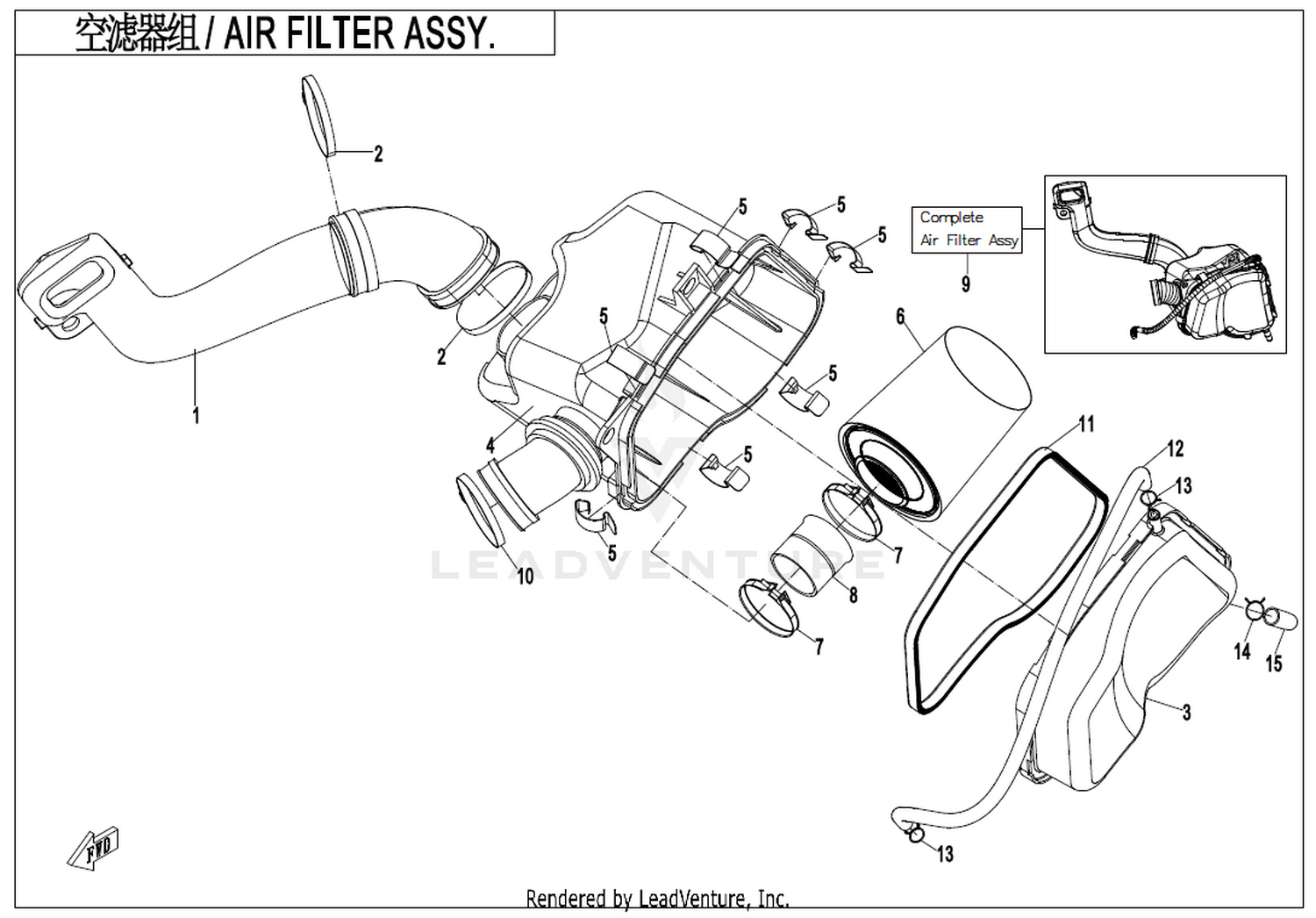

ZFORCE 800 2016 Air Filter Assy exploded diagram
Air Filter Assy · 6

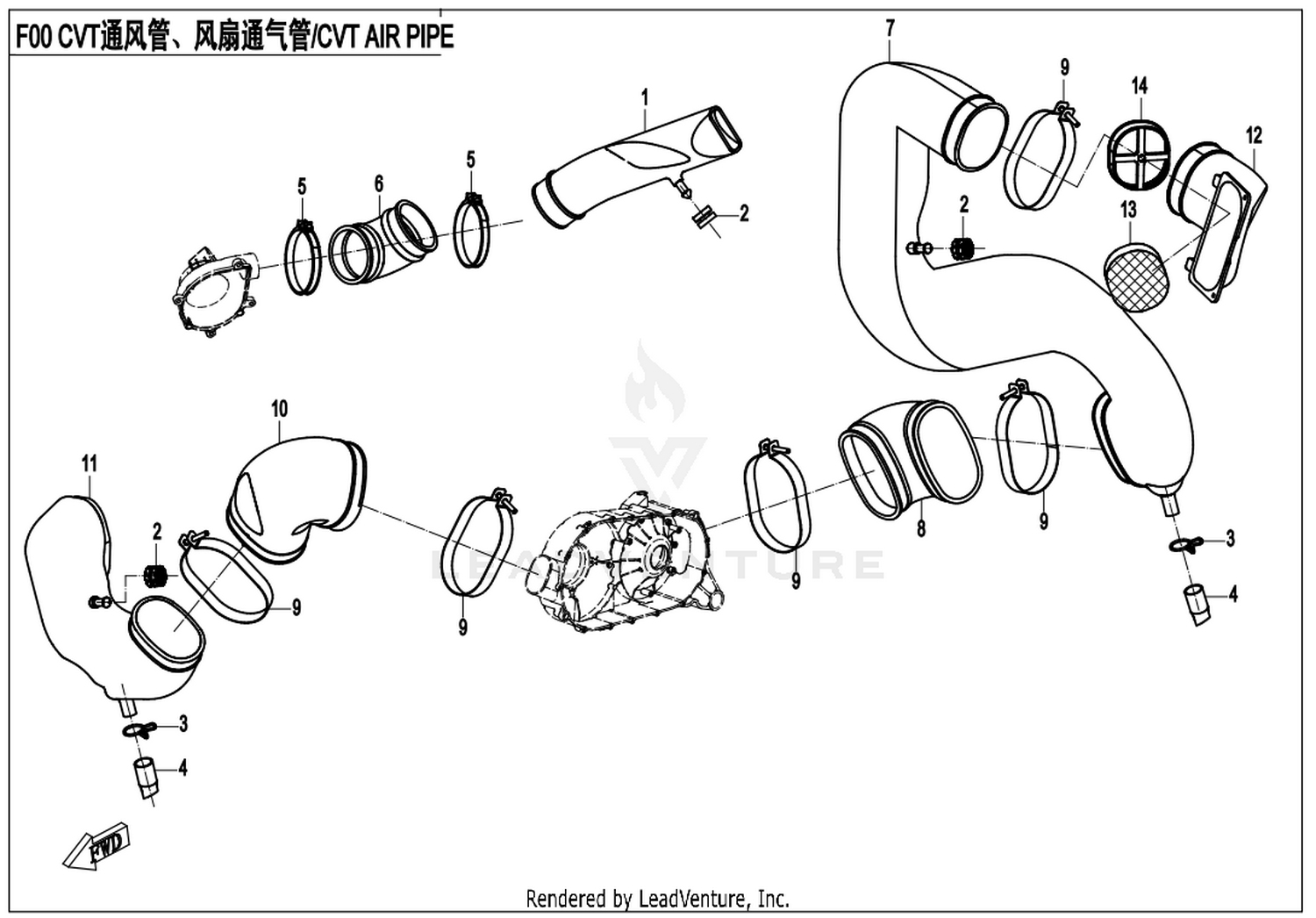

ZFORCE 800 2016 Cvt Air Pipe & Side Cover exploded diagram
Cvt Air Pipe & Side Cover · 3

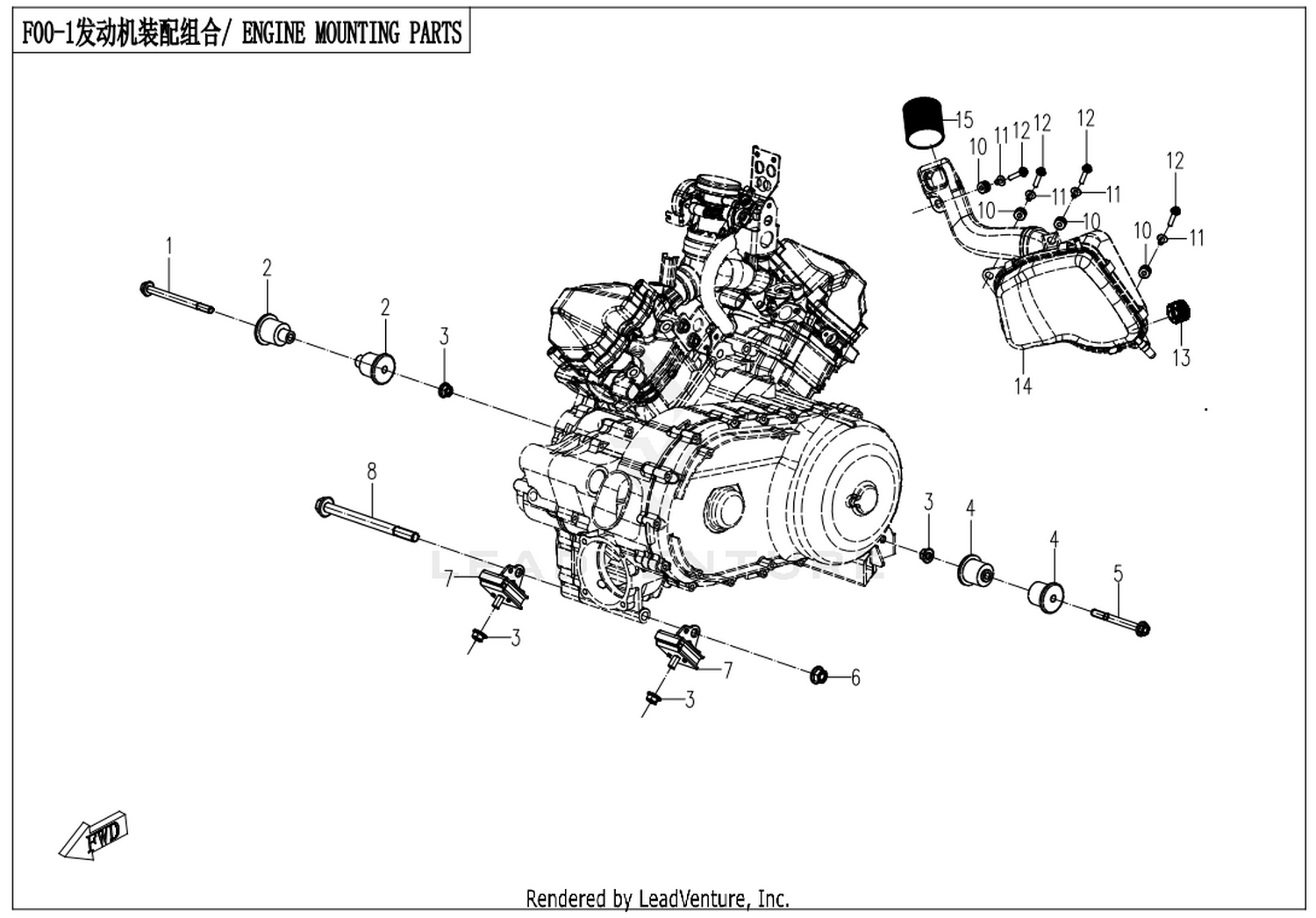

ZFORCE 800 2016 Engine Mounting Parts exploded diagram
Engine Mounting Parts · 2
ZFORCE 800 2016 Rear Axle exploded diagram
Rear Axle · 1

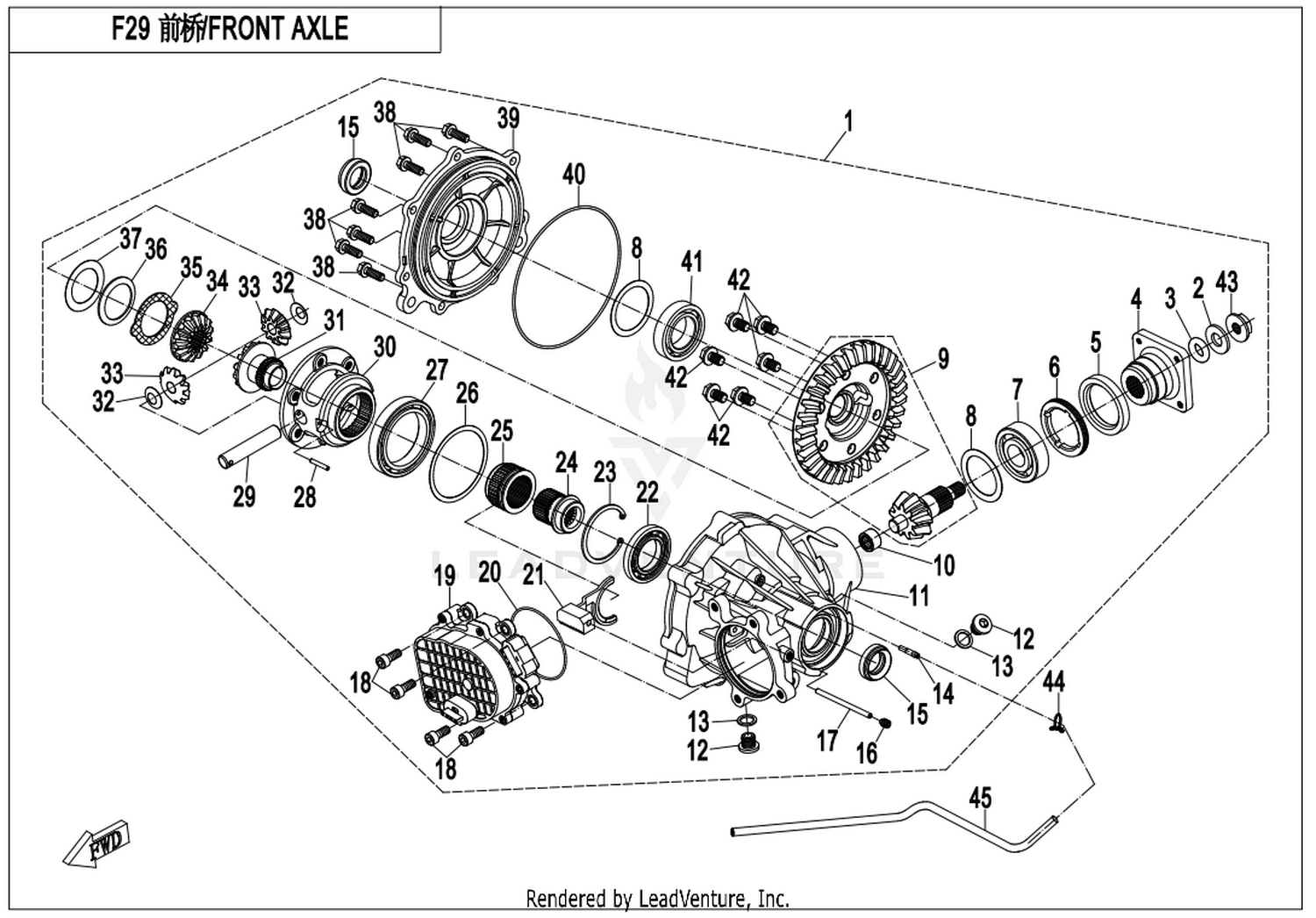

ZFORCE 800 2016 Fornt Axle exploded diagram
Fornt Axle · 1

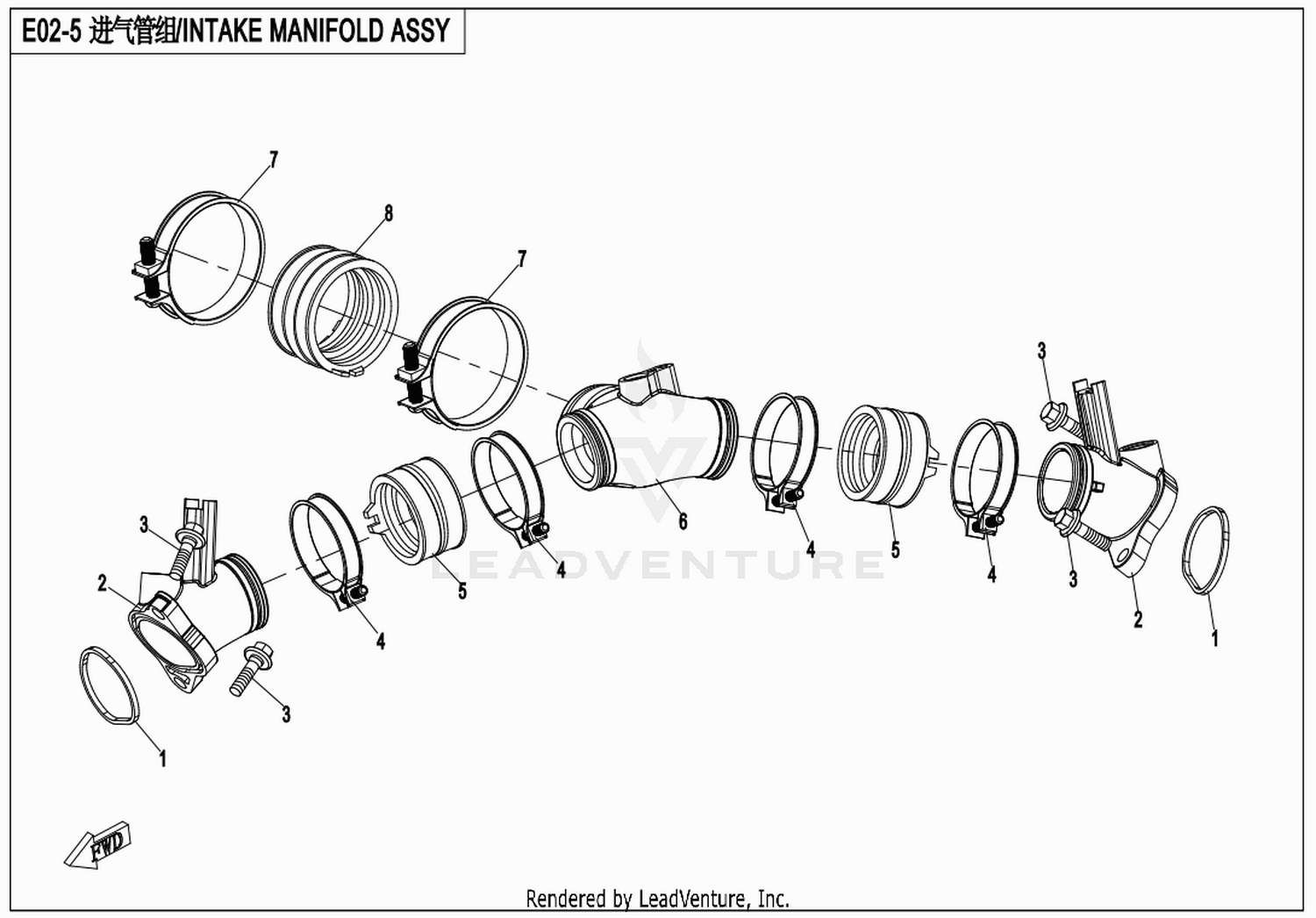

ZFORCE 800 2016 Intake Manifold Assy exploded diagram
Intake Manifold Assy · 1

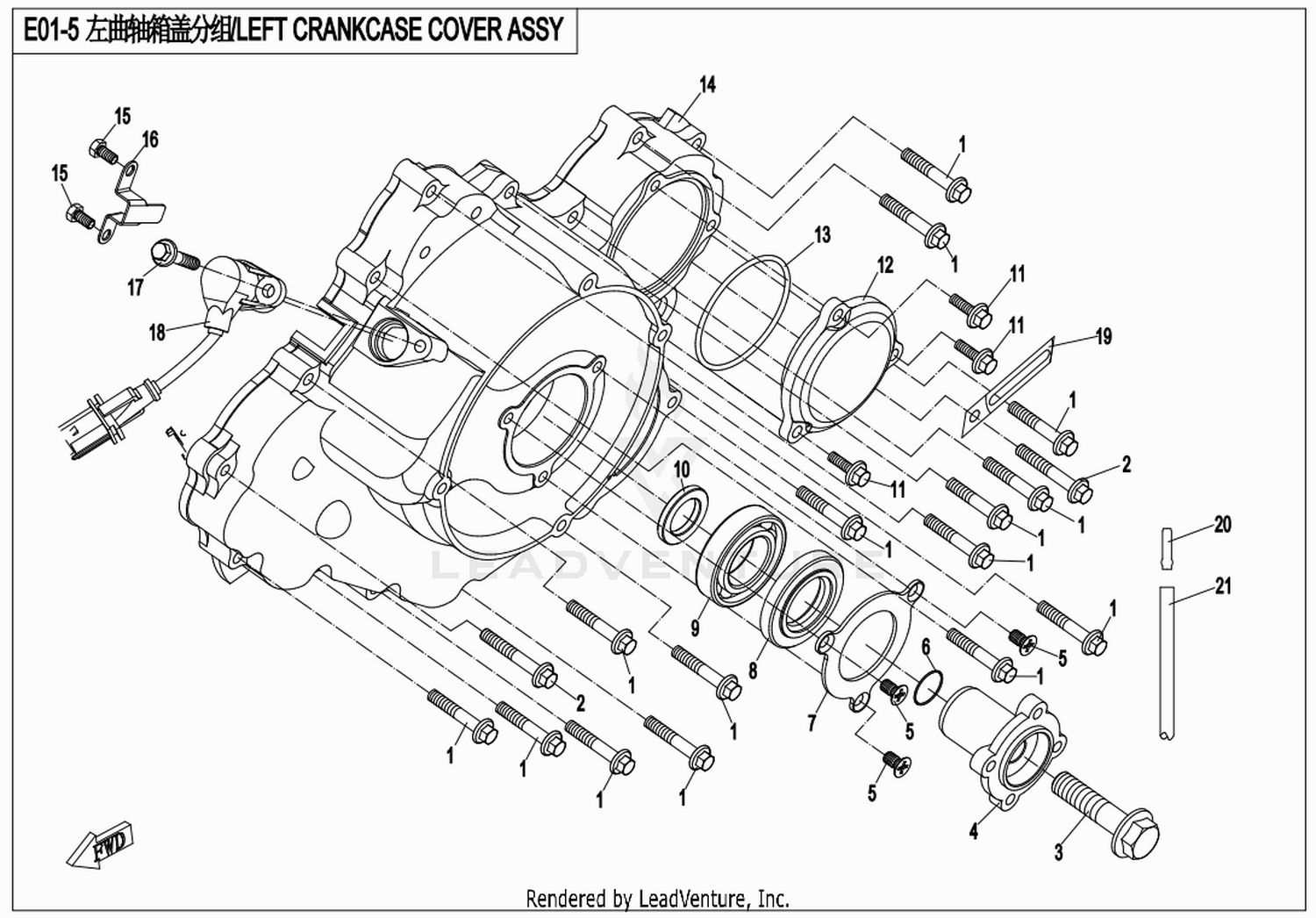

ZFORCE 800 2016 Left Crankcase Cover Assy exploded diagram
Left Crankcase Cover Assy · 1
ZFORCE 800 2016 Rear Plastics 1 exploded diagram
Rear Plastics 1 · 1
