CFORCE 550 2018 — Filters parts
UK market16 genuine parts9 diagrams
Subgroups
Part numbers
Every genuine filters part fitted to the CFORCE 550 2018. Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|

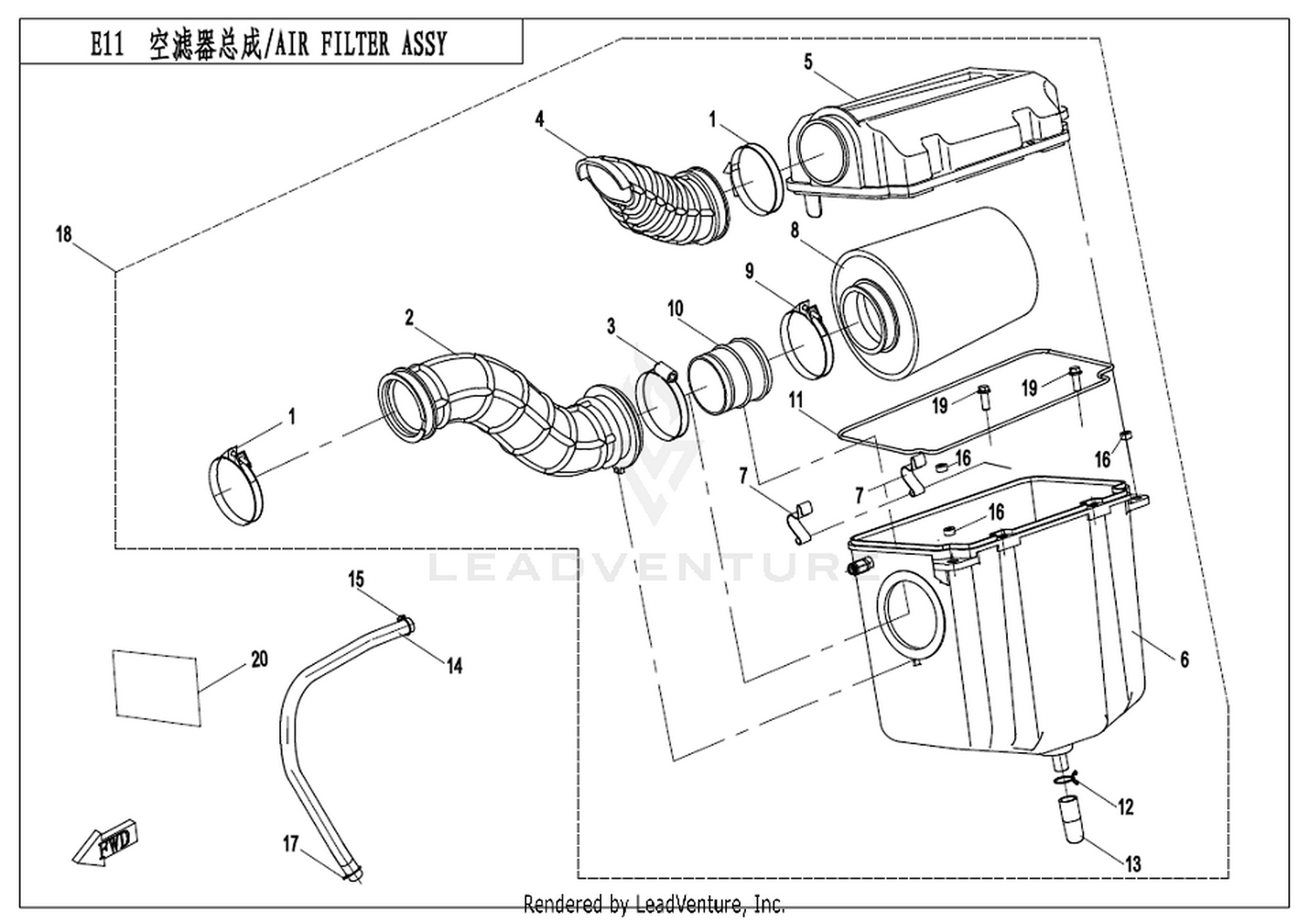

| 0180-110003 | CLASP | Air Filter Assy | Enquire | |

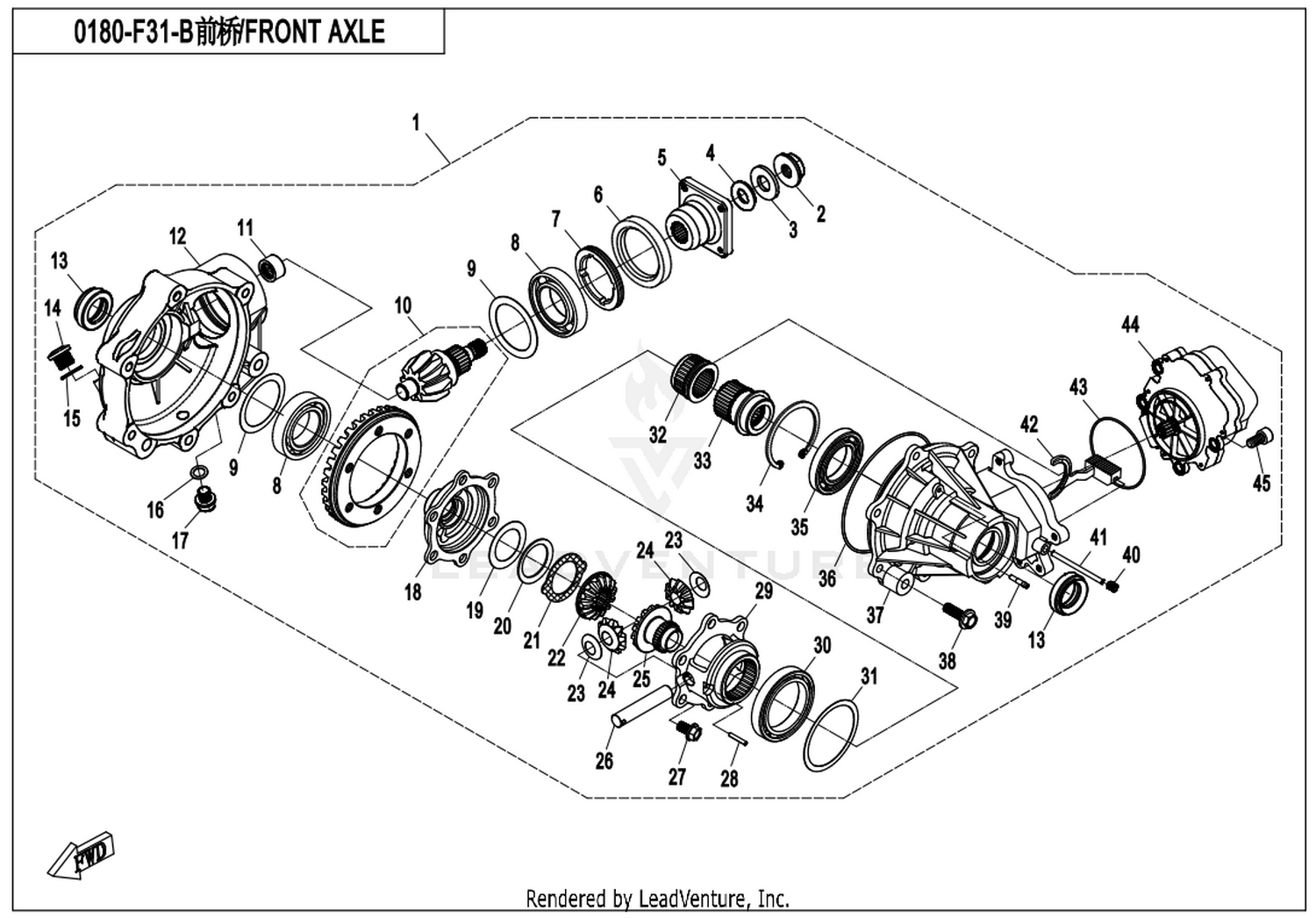

| 0180-311004-0020 | JOINT, BREATHER PIPE | Front Axle | Enquire | |
| 9010-120310 | RUBBER LINER, FUEL TANK | Fuel Tank | Enquire | |
| 9CR6-401200-00002 | TUBE, 2" | Towbar(Split Type) | Enquire | |
| 0GR0-110003 | PIPE,AIR INTAKE | Air Filter Assy | Enquire | |
| 9CR6-042027 | HEAT INSULATOR, AIR FILTER | Air Filter Assy | Enquire | |

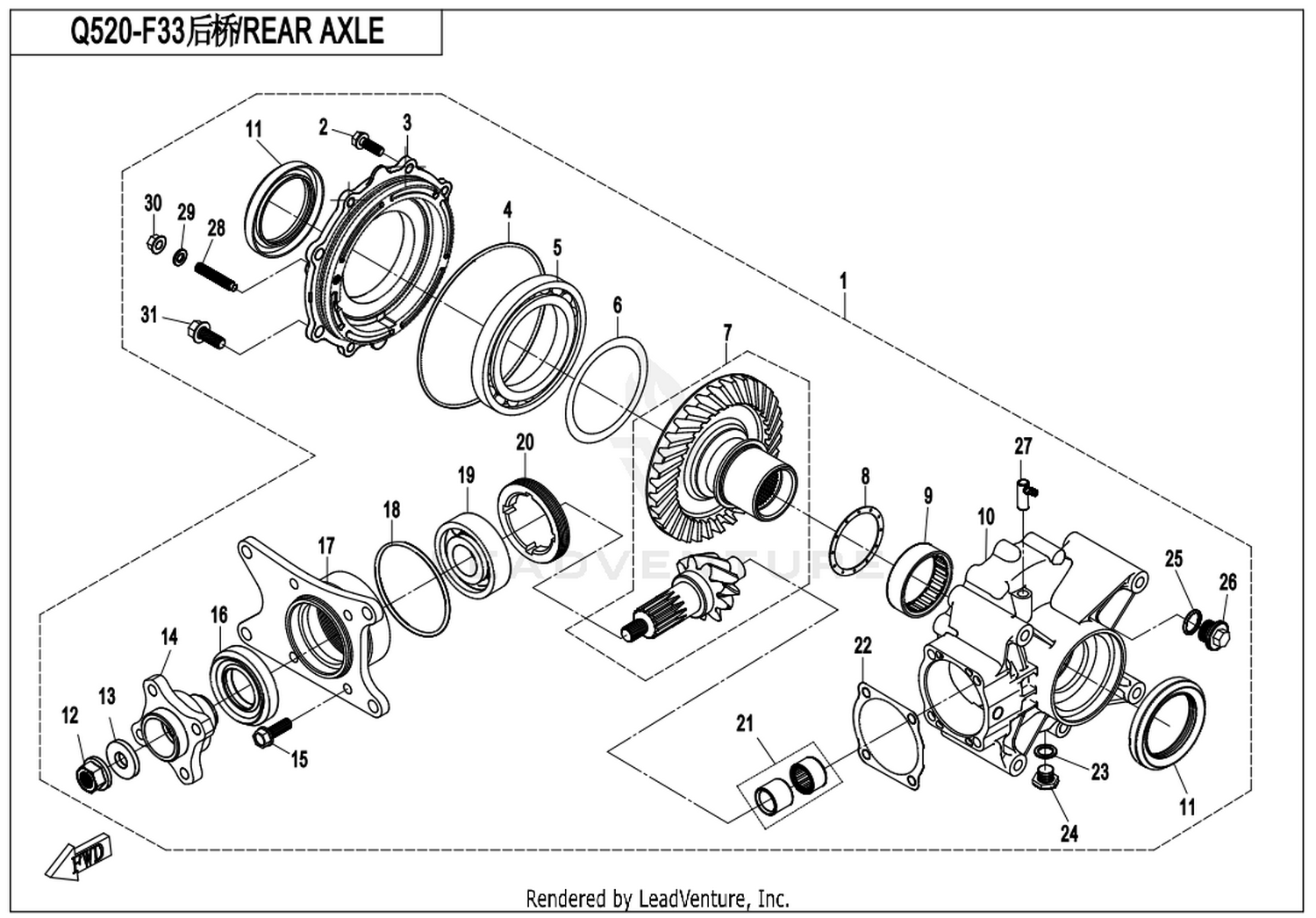

| 0180-332006 | PIPE JOINT | Rear Axle | Enquire | |
| 0GR0-110002-10000 | UPPER HOUSING, AIR FILTER Replacing: 0GR0-110002 - UPPER HOUSING, AIR FILTER | Air Filter Assy | Enquire | |
| 0GR0-110004 | CONNECT PIPE, FILER ELEMENT | Air Filter Assy | Enquire | |
| 0GR0-110009 | BUSHING | Air Filter Assy | Enquire | |
| 01A0-022102 | Pipe Joint | Left Crankcase Cover Assy.(Without Recoil Start) | Enquire | |
| 0GR0-110001-10000 | LOWER HOUSING, AIR FILTER | Air Filter Assy | Enquire | |
| 0GR0-110006 | SEAL RING, AIR FILTER | Air Filter Assy | Enquire | |

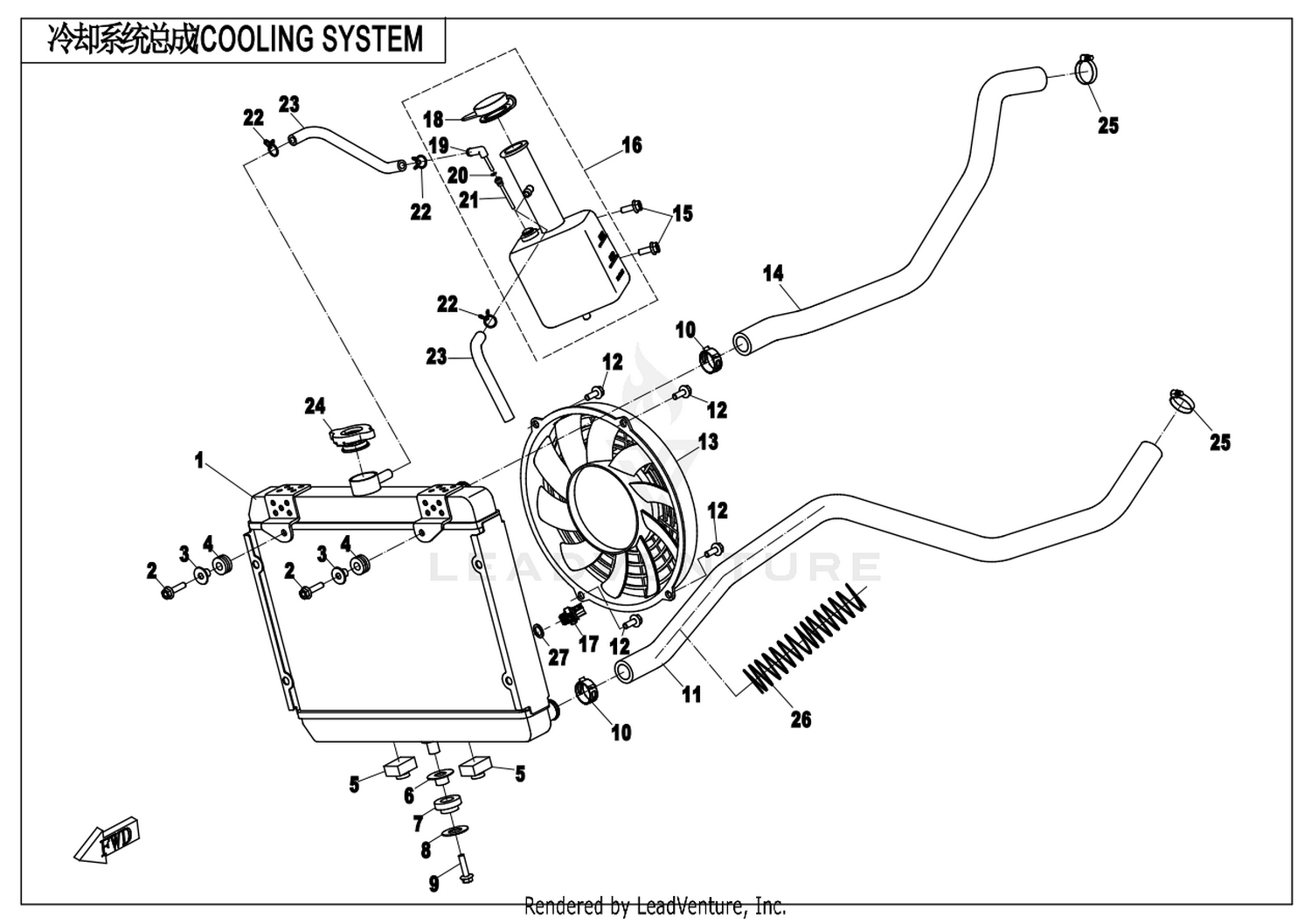

| 9CR6-180002 | WATER OUTLET PIPE | Cooling System | Enquire | |

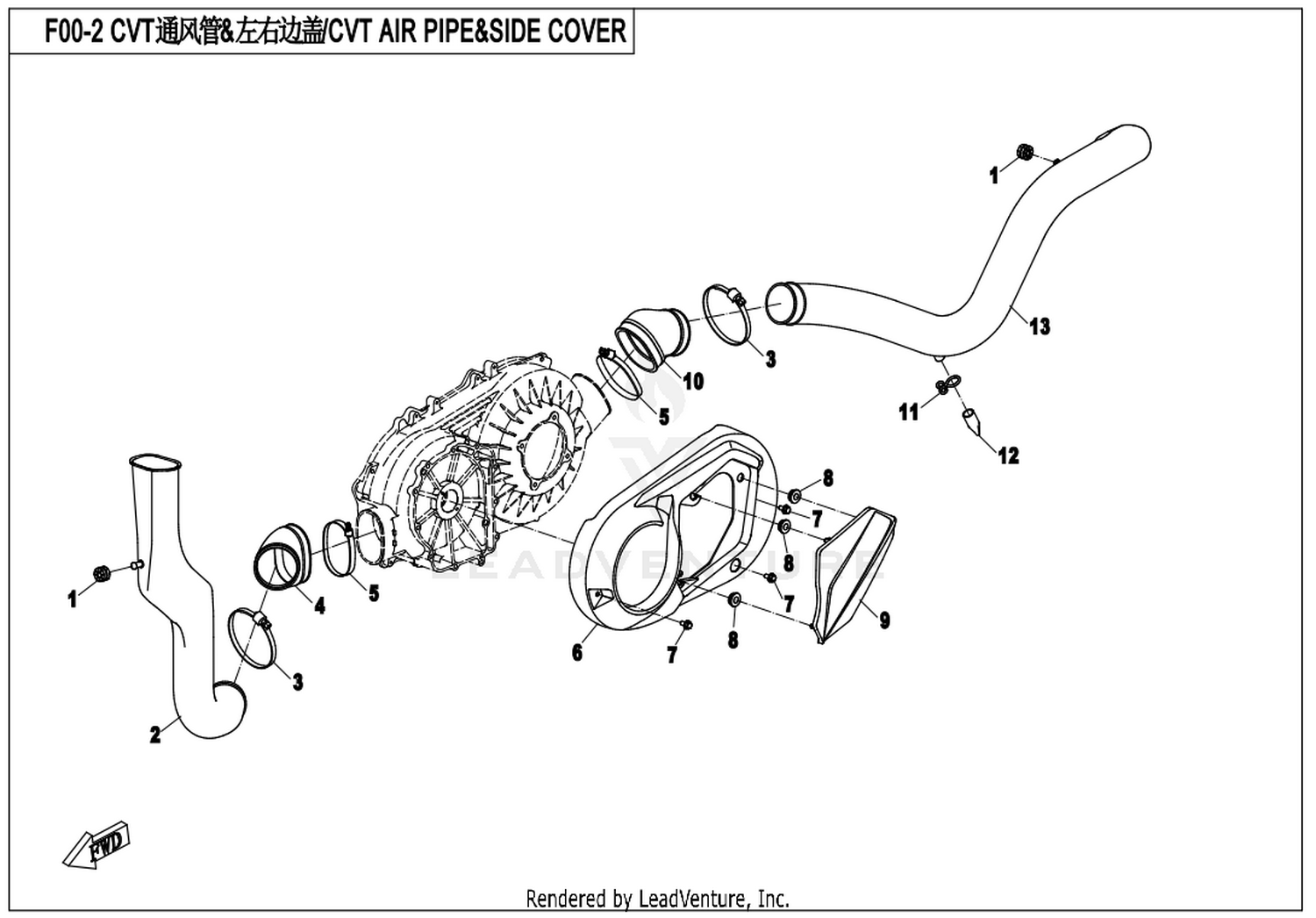

| 7020-000304 | JOINT, AIR OUTLET PIPE | Cvt Air Pipe & Side Cover | Enquire | |
| 9010-120007 | REAR CUSHION SLEEVE, FUEL TANK | Fuel Tank | Enquire |
Exploded diagrams — Filters
Browse the catalogue interactively
Open Filters in the interactive CFORCE 550 2018 catalogue to drill into diagrams, check availability and add parts to your cart.
