CFORCE 1000 2019 — Cooling System parts

UK market35 genuine parts12 diagrams

Subgroups

Radiator · 57Water Pump · 5

Part numbers

Every genuine cooling system part fitted to the CFORCE 1000 2019. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
0JWA-111001OIL STORAGE HOSEAir Filter Assy. 1Enquire
9AWA-181001SLEEVECooling System 1Enquire
9AWA-181200FAN MOTOR ASSYCooling System 1Enquire
9060-180025-1000WATER FILLING PORTCooling System 1Enquire
9AWA-181002RADITOR PROTECTORCooling SystemEnquire
9AWA-180003OVERFLOW HOSE, RADIATORCooling SystemEnquire
0180-110005OIL STORAGE HOSECvt Air Pipe 1Enquire
0JWA-080008WATER PUMP SHAFTWater Pump AssyEnquire
0GRB-111008JOINT,OIL STORAGE HOSEAir Filter Assy. 1Enquire
9060-180027RUBBER CUSHION, RADIATORCooling System 1Enquire
9DSV-180004-6K00OVERFLOW HOSE, RESERVOIRCooling SystemEnquire
9AWA-180002WATER OUTLET HOSE, ENGINECooling SystemEnquire
9AWV-180004-2B00WATER HOSE, RESERVOIR TANKCooling SystemEnquire
5190-001003RUBBER CUSHION?MIAN BRACKETFrame 3Enquire
0JYA-071401WATER OUTLET BIPASSOil Cooling SystemEnquire
0JWA-080002GEAR, WATER PUMPWater Pump AssyEnquire
9AWA-180001WATER INLET HOSE, ENGINECooling System 1Enquire
9AY0-181100RADIATORCooling SystemEnquire
9AWA-181200-30000FAN MOTOR ASSY Replacing: 9AWA-181200-10000 - FAN MOTOR ASSYCooling SystemEnquire
9AWA-180010RESERVOIR WATER TANKCooling SystemEnquire
0JWA-014404BREATHER HOSE, AIR BAGLeft Crankcase Cover AssyEnquire
0JWA-071001BASE SEAT, OIL COOLEROil Cooling SystemEnquire
0JWA-080003IMPELLER, WATER PUMPWater Pump AssyEnquire
0800-111007RUBBER HOSEAir Filter Assy. 2Enquire
0010-013006-0010JOINT, BREATHER HOSELeft Crankcase AssyEnquire
0JWA-071400BRACKET, WATER PIPEOil Cooling SystemEnquire
0JWA-080007-00001BOLT M6X17 Replacing: 0JWA-080007 - BOLT M6X17Water Pump AssyEnquire
0180-080003-10000HOSE, OVERFILLINGLeft Crankcase Cover AssyEnquire
0JYA-071000OIL COOLEROil Cooling SystemEnquire
30406-00404ROLLER NEEDLEWater Pump AssyEnquire
0JWA-071300OIL COOLEROil Cooling SystemEnquire
0JWA-071002WATER INLET HOSE, OIL COOLEROil Cooling SystemEnquire
0JWA-081000WATER SEAL ASSYWater Pump AssyEnquire
0JWA-080006WATER PUMP COVERWater Pump AssyEnquire
0JWA-080001IDLE GEAR, WATER PUMPWater Pump AssyEnquire

Exploded diagrams — Cooling System

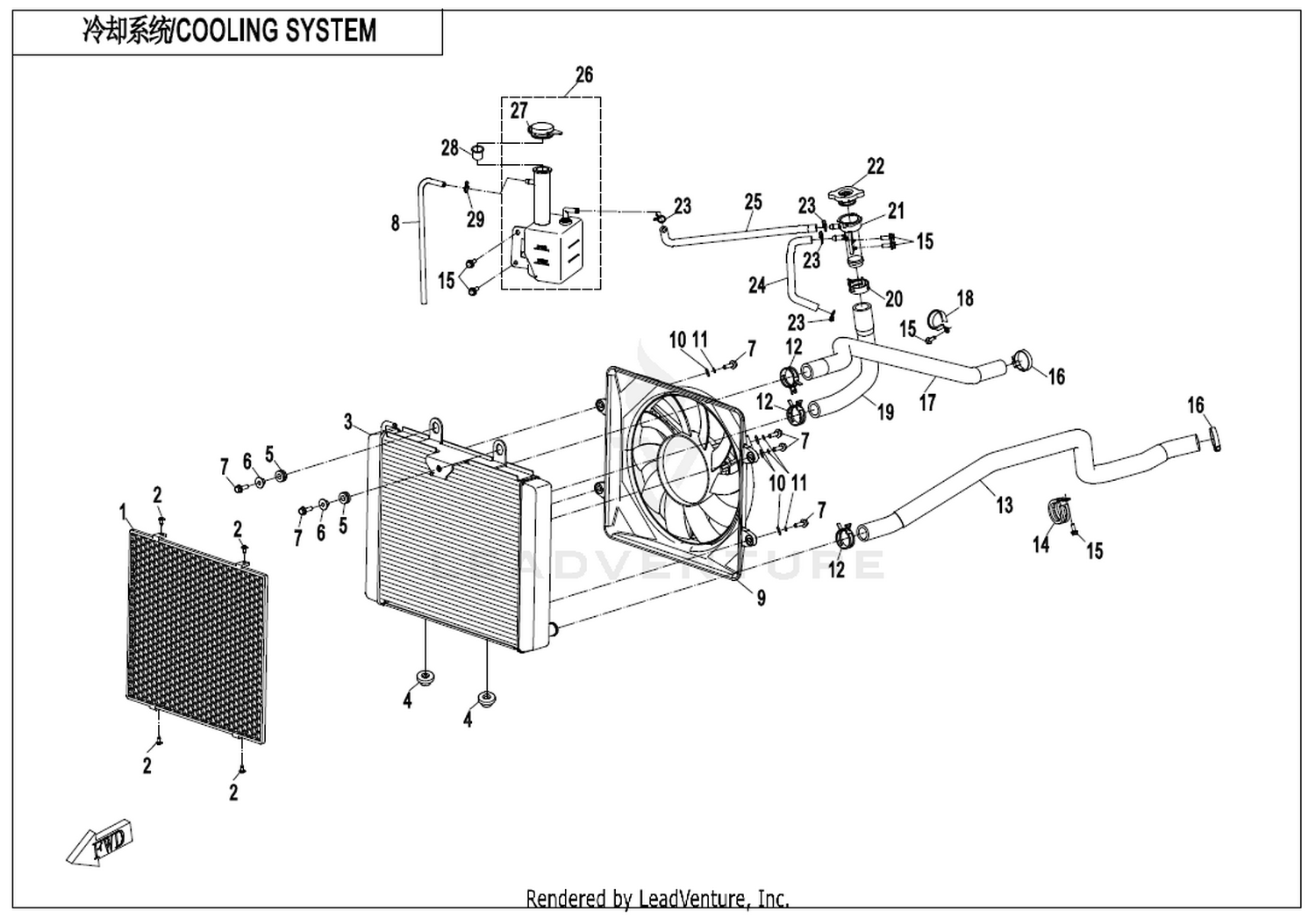

CFORCE 1000 2019 Cooling System 1 exploded diagram
Cooling System 1 · 13
CFORCE 1000 2019 Cooling System exploded diagram
Cooling System · 13

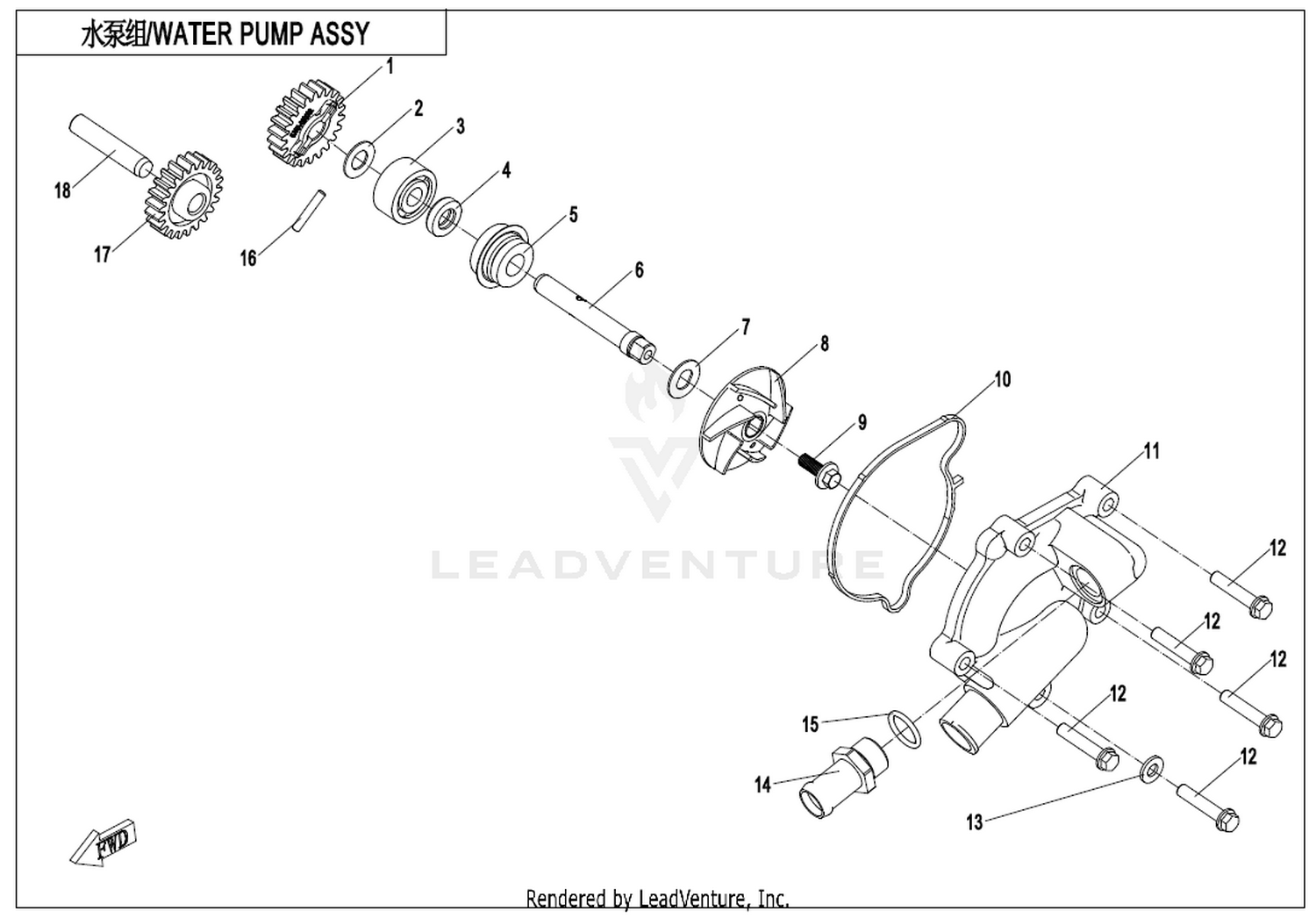

CFORCE 1000 2019 Water Pump Assy exploded diagram
Water Pump Assy · 8

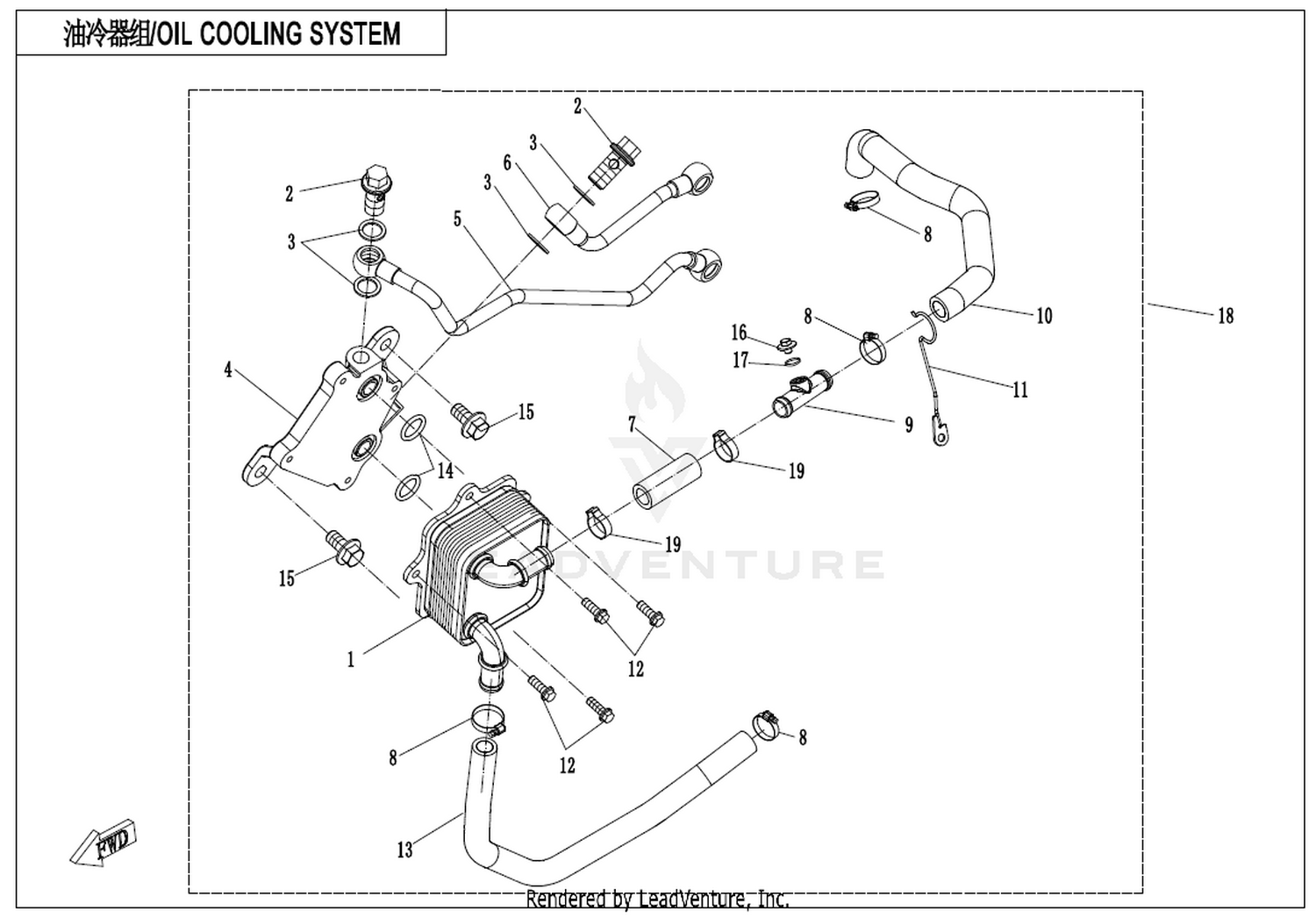

CFORCE 1000 2019 Oil Cooling System exploded diagram
Oil Cooling System · 6

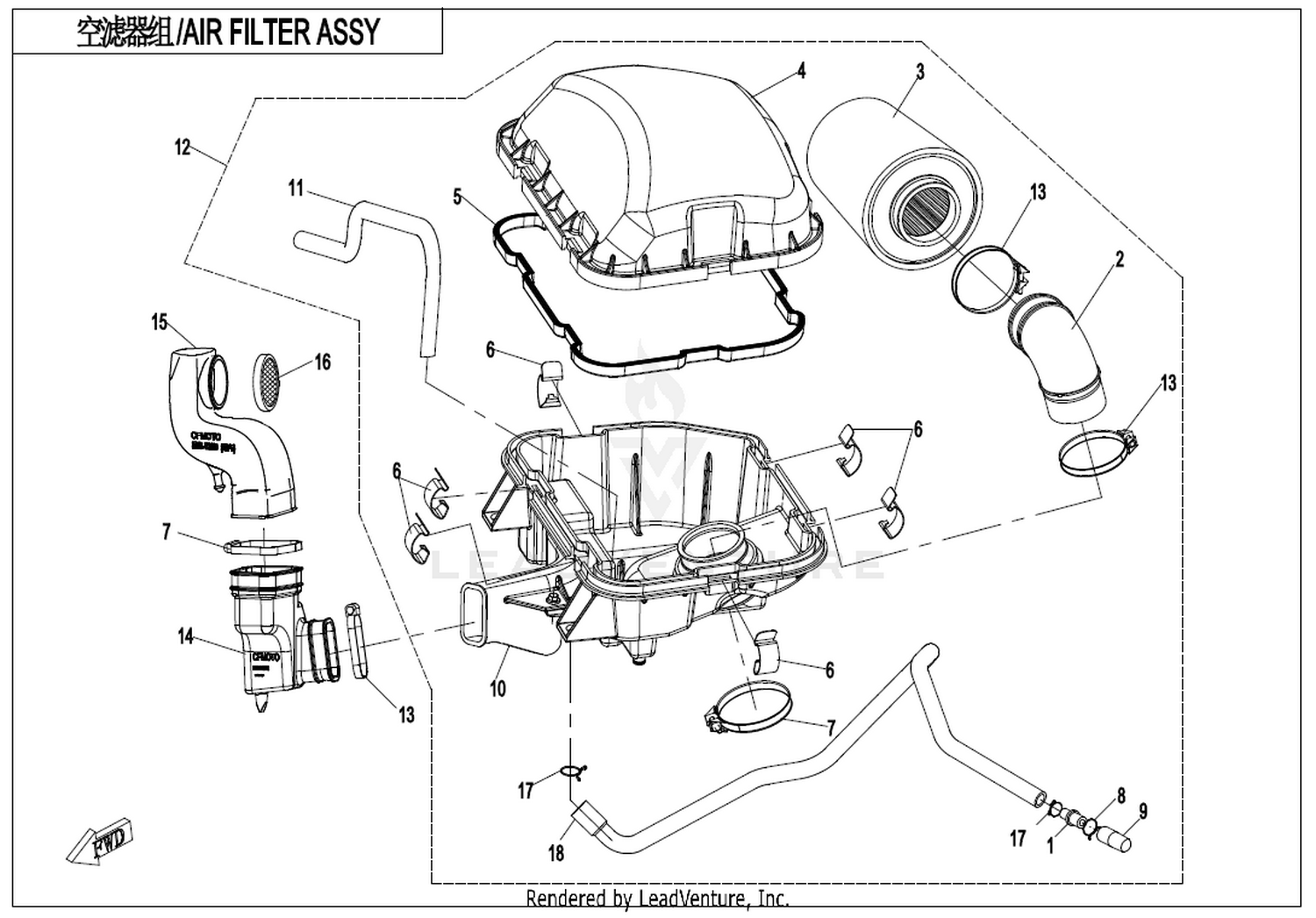

CFORCE 1000 2019 Air Filter Assy. 1 exploded diagram
Air Filter Assy. 1 · 4
CFORCE 1000 2019 Air Filter Assy exploded diagram
Air Filter Assy · 4
CFORCE 1000 2019 Air Filter Assy. 2 exploded diagram
Air Filter Assy. 2 · 4

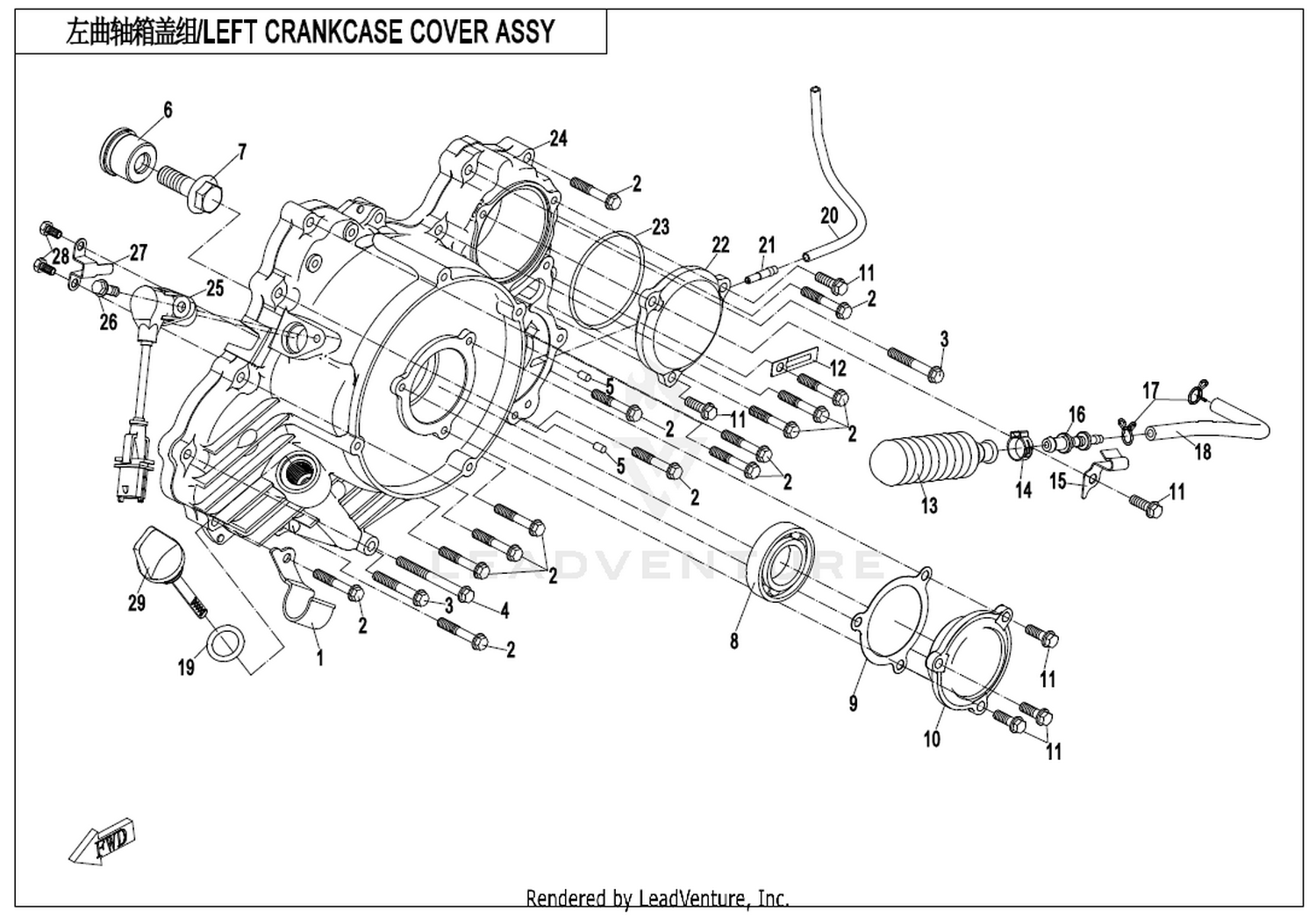

CFORCE 1000 2019 Left Crankcase Cover Assy exploded diagram
Left Crankcase Cover Assy · 2

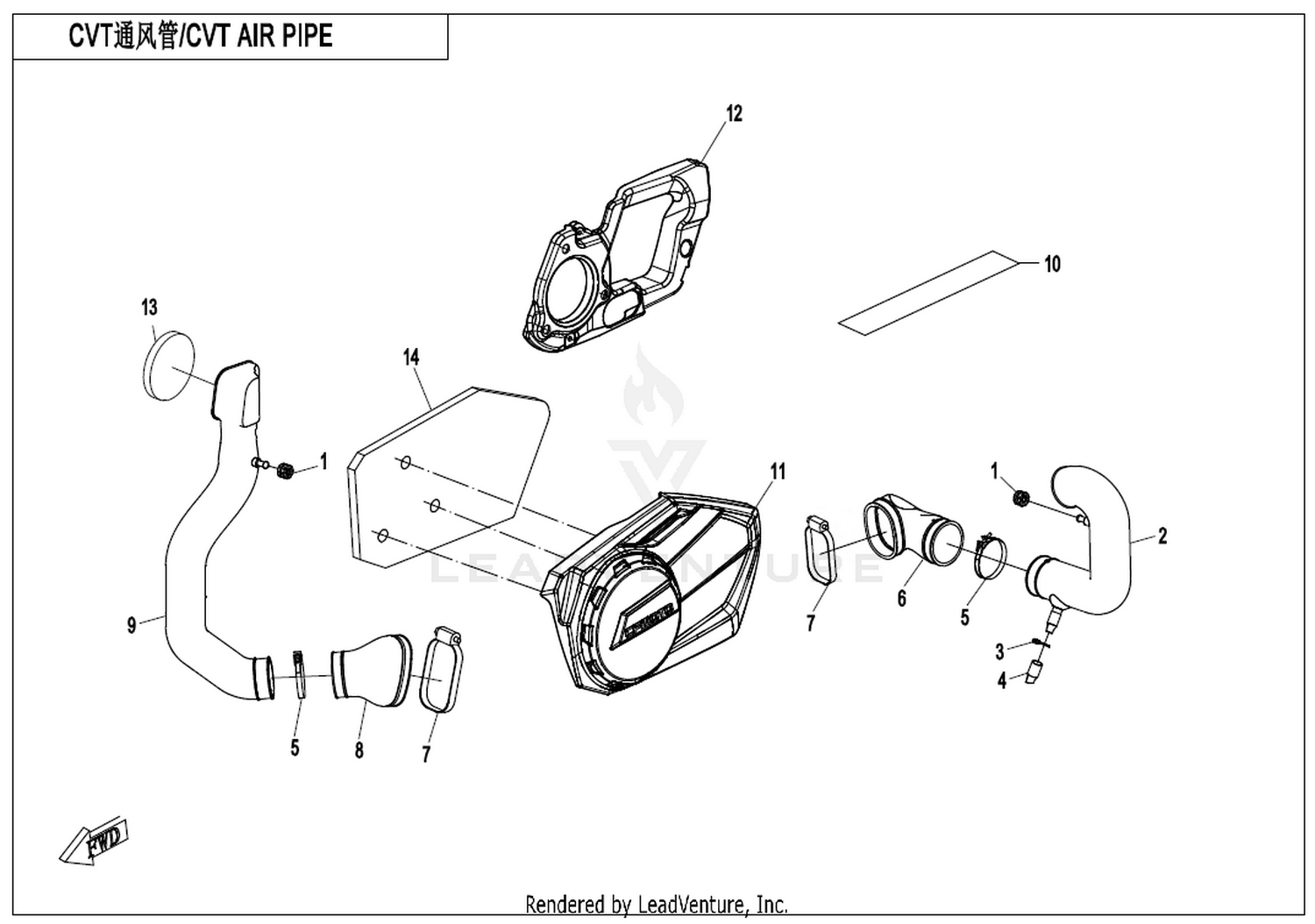

CFORCE 1000 2019 Cvt Air Pipe 1 exploded diagram
Cvt Air Pipe 1 · 1

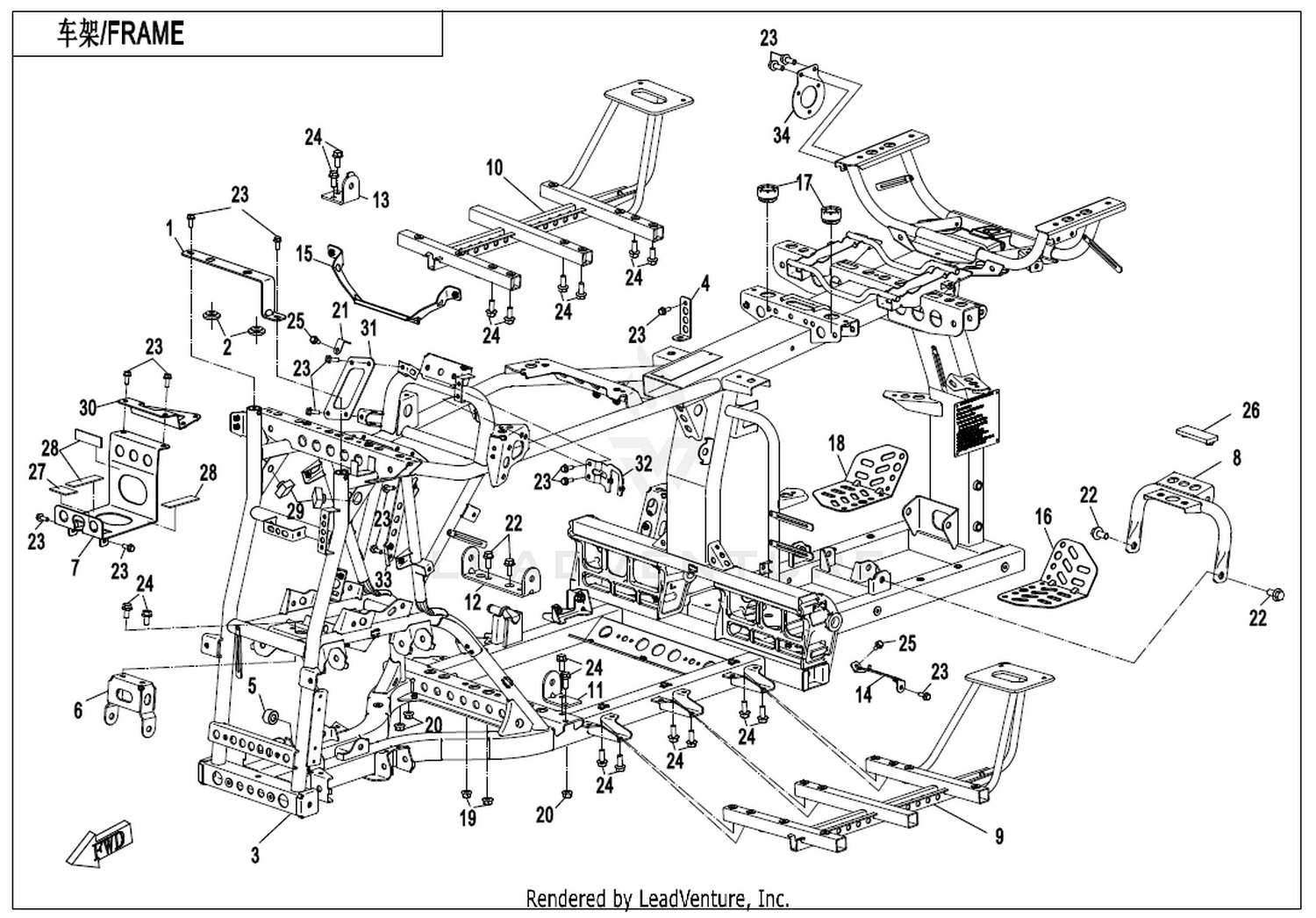

CFORCE 1000 2019 Frame 3 exploded diagram
Frame 3 · 1

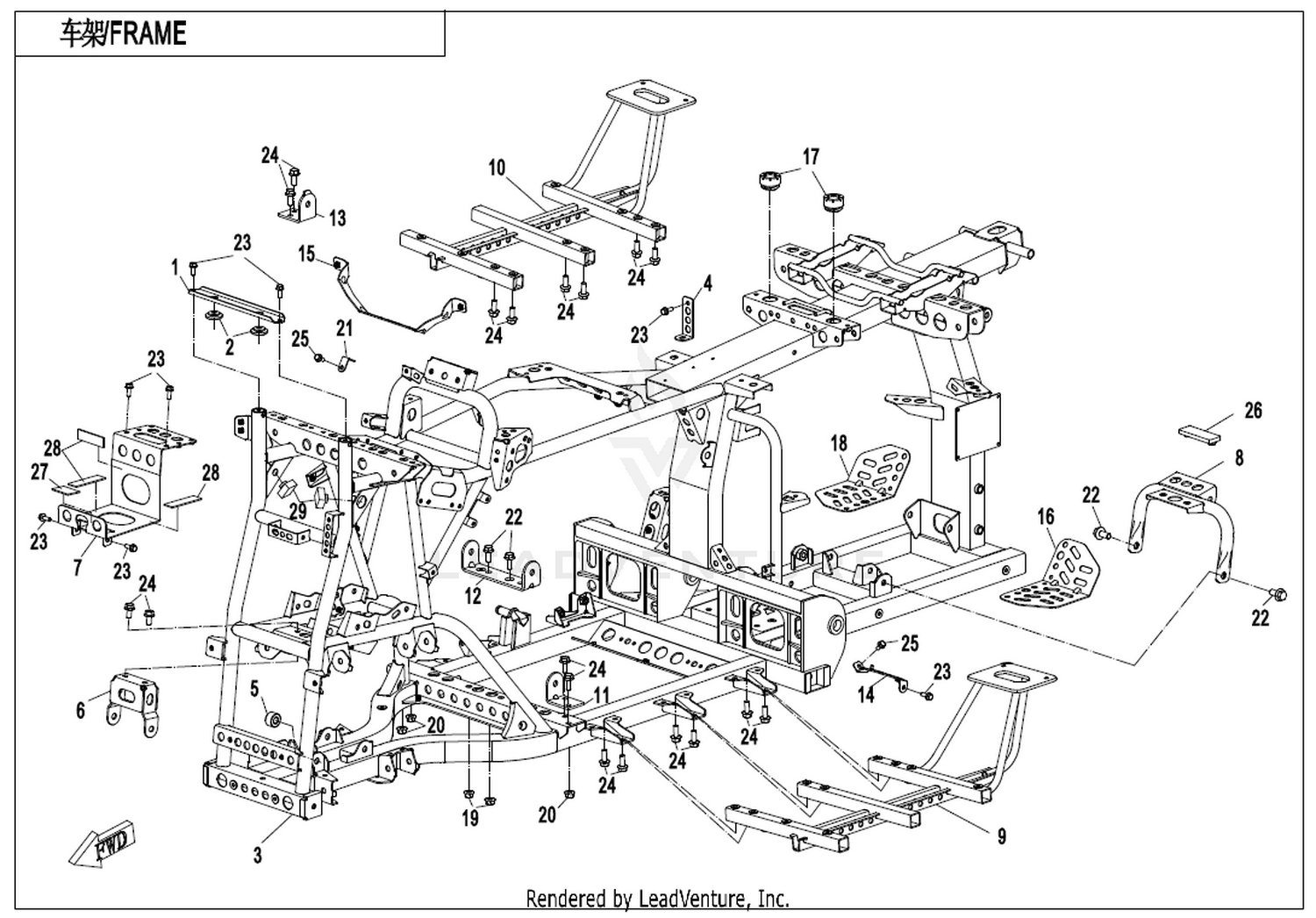

CFORCE 1000 2019 Frame exploded diagram
Frame · 1

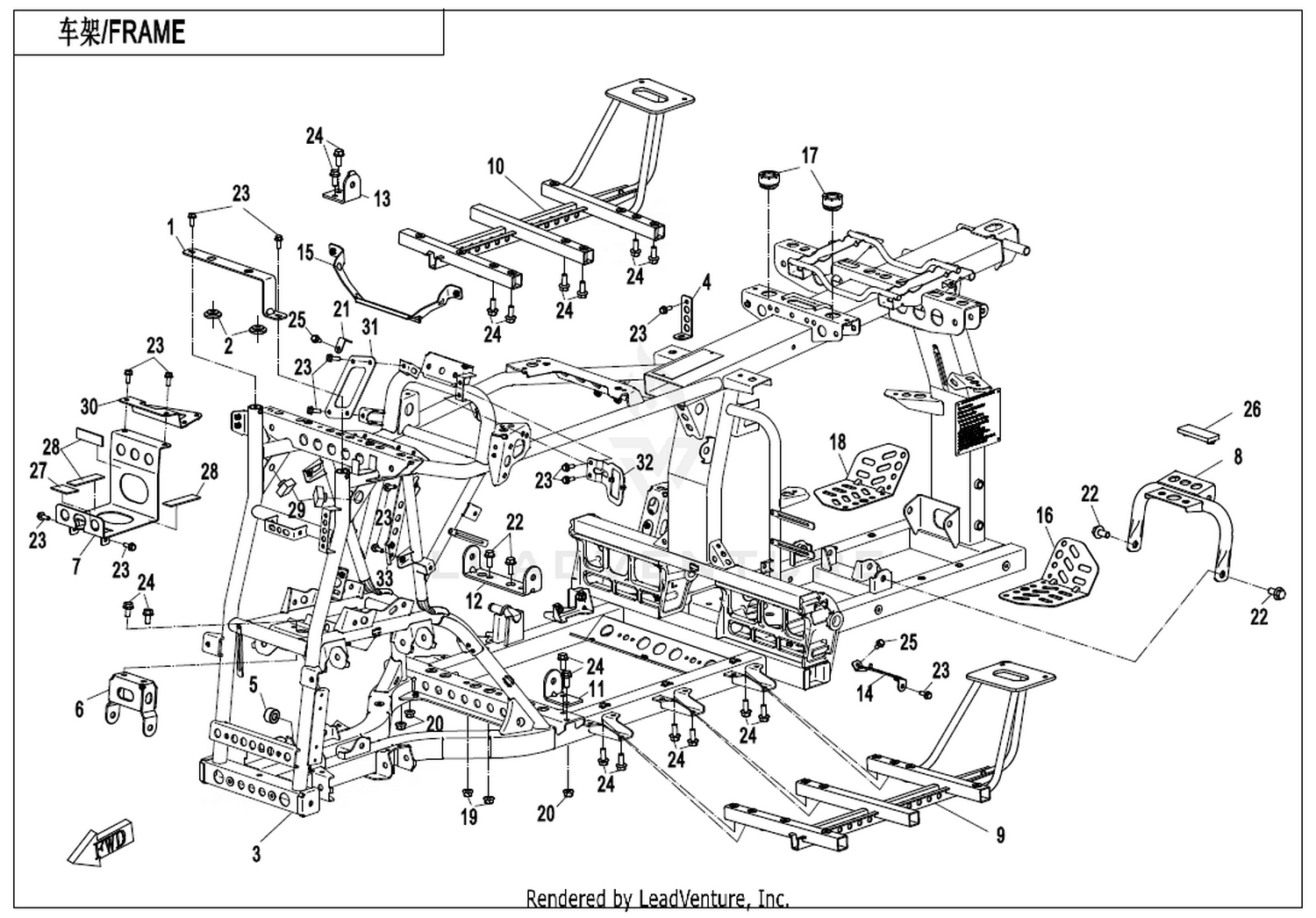

CFORCE 1000 2019 Frame 2 exploded diagram
Frame 2 · 1

Browse the catalogue interactively

Open Cooling System in the interactive CFORCE 1000 2019 catalogue to drill into diagrams, check availability and add parts to your cart.

Other assembly groups on this vehicle

Body · 994Engine · 567Gearbox · 483Electrical System · 242Suspension · 176Steering System · 141Wheels & Tyres · 125Exhaust System · 104Brake System · 94Clutch & Parts · 82Final Drive · 76Filters · 66Fuel Supply System · 29Fuel Preparation · 6Unclassified · 348
