CFORCE 1000 2018 — Engine parts

UK market216 genuine parts12 diagrams

Subgroups

Crankcase & Crankshaft · 46Cylinder Head & Parts · 33Air Supply System · 1Seals & Gaskets · 54Lubrication System · 6Belt/Chain Drive · 9Engine Hardware · 235

Part numbers

Every genuine engine part fitted to the CFORCE 1000 2018. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
9CR6-120300CAP, FUEL TANKFuel Tank(Usa)Enquire
0700-011202O-SEAL RINGOil Cooling SystemEnquire
9030-000109SCREW CLAMP, A-TYPE, 70~90Air Filter Assy. 2Enquire
9010-020007A-TYPE SCREW CLAMPAir Filter Assy. 2Enquire
9060-040310CLAMP ASSYBottom PlasticsEnquire
A000-100002CLUTCH CABLE CLIPBrake System-Lh,ParkingEnquire
30110-480160010SELF-TAPPING SCREWBrake System-Rh,ParkingEnquire
0010-021019-0010BOLT M6x12Camshaft Of Cylinder 1 AssyEnquire
0JY0-024100TIMING CHAIN Replacing: 0JY0-024100-10000 - TIMING CHAIN ASSYCamshaft Of Cylinder 2 AssyEnquire
9AWA-180030WATER HOSE CLIP 1Cooling SystemEnquire
7000-180007-00001STEEL BAND CLAMP 34Cooling SystemEnquire
0JY0-040003-00022PLAIN BEARING, CONNECTING ROD, BLACK Replacing: 0JY0-040003-00020 - PLAIN BEARING, CONNECTING ROD BLACK@MIDDLECrankshaft & Connecting Rod & Piston AssyEnquire
0GR0-052004CIRCLIPCvt AssyEnquire
0JY0-013201-00003BOLT, CVT CASE COVER Replacing: 0JY0-013201 - BOLT,CVT CASE COVER NLA USE 0JY0-013201-00003Cvt Case AssyEnquire
0JWA-013204INSULATED SPONGE (1)Cvt Case AssyEnquire
0JY0-023200-10011SECOND CYLINDER BODY ASSY, MARK 1 Replacing: 0JY0-023200-10010 - SECOND CYLINDER BODY ASSYCylinder BodyEnquire
0JY0-022003-00001BOLT, CYLINDERCylinder Head No.1 AssyEnquire
0800-022013-10000THERMOSTAT CAP Replacing: 0800-022013 - THERMOSTAT CAPCylinder Head No.1 AssyEnquire
30502-028000NO-RING 28X265Cylinder Head No.1 AssyEnquire
0180-022003-00001STUDCylinder Head No.2 AssyEnquire
30102-102025810SCREWDrivetrain SystemEnquire
30105-040008410SCREW M4X8Front AxleEnquire
30800-05505CIRCLIP D55 BLACKFront AxleEnquire
30110-421130010SELF-TAPPING SCREWFront Plastics-Pearl BlackEnquire
30110-420095010SELF-TAPPING SCREWFront Plastics-Timber Camo 1Enquire
7020-051610-30000BEARING COMPFront Shock Absorber(Gas)-BlackEnquire
7020-051603-30000CIRCLIPFront Shock Absorber(Gas)-Coral BlueEnquire
0JYA-170001ClaspFuel Injection System(No Fuel Vaporization System)Enquire
30601-110010CLAMPFuel Tank(Usa)Enquire
7020-120006CLAMP D16.6AFuel Tank(Usa)Enquire
30102-060020810SCREWHandlebarEnquire
0800-011300-0004OIL FILTER ELEMENT Replacing: 0800-011300-00030 - OIL FILTER, ENGINELeft Crankcase AssyEnquire
0180-011007-0010BOLT M14X1.5X32Left Crankcase AssyEnquire
30499-01700BEARING 6303Left Crankcase AssyEnquire
0030-011006-0010BOLT M6X105Left Crankcase AssyEnquire
30105-050012410SCREWLights(Euro)Enquire
30102-080020810SCREWMagneto AssyEnquire
0JYA-023001-00001HEX FLANGE BOLT M6x6Oil Cooling SystemEnquire
0800-062204OIL SEAL 35X50X6Rear Axle(With Automatic Differential Lock)Enquire
Q830-310006-10000O-RING 55X2.5Rear Axle(With Automatic Differential Lock)Enquire
5BWB-280302CIRCLIPRear Cv ShaftEnquire
30903-0162010COTTER PINRear Plastics -Crystal OrangeEnquire
9AWA-061602O-RINGRear Shock Absorber(Gas)-BlackEnquire
9AWA-061610BEARING COMPRear Shock Absorber(Gas)-Crystal OrangeEnquire
9AWA-061604O-RINGRear Shock Absorber(Gas,Russia)Enquire
9AWA-060106OIL SEAL 24X38X8Rear Suspension 1Enquire
30122-040010850SCREW M4X10Right Crankcase AssyEnquire
0010-021005DOWEL PINRight Crankcase AssyEnquire
0GR0-014003SCREW PLUG ,DECOMPRESSORRight Crankcase AssyEnquire
0800-061007CIRCLIP 29Transmission System(1) 1Enquire
0800-062205O-RINGTransmission System(2)Enquire
30400-03500BEARING 6207C3Transmission System(2)Enquire
0180-061007-0050CIRCLIP 25Transmission System(2)Enquire
30124-080025810SCREW M8X25Transmission System(2)Enquire
30601-113010CLAMPAir Filter Assy. 2Enquire
30601-115020CLAMP D15 Replacing: 30601-115010 - CLAMP D15Air Filter AssyEnquire
0800-024002-00001DOWEL PIN, SPROCKET Replacing: 0800-024002 - DOWEL PIN, SPROCKETCamshaft Of Cylinder 1 AssyEnquire
0800-024004-10000HOLDING STRIP, CAMSHAFTCamshaft Of Cylinder 2 AssyEnquire
8010-180023CAP, RESERVOIR TANKCooling SystemEnquire
0JYA-041000-10024CRANKSHAFT ASSYCrankshaft & Connecting Rod & Piston AssyEnquire
0JY0-040003-00012PLAIN BEARING, CONNECTING ROD, REDCrankshaft & Connecting Rod & Piston AssyEnquire
30601-117010CLAMPCvt Air PipeEnquire
0JY0-013103OIL SEAL 32X55X10Cvt Case AssyEnquire
0800-023001-00002SCREW, TENSIONER PLATE Replacing: 0800-023001 - SCREW, TENSIONER PLATE NLA USE 0800-023001-00002Cylinder BodyEnquire
0JY0-023200-10021SECOND CYLINDER BODY ASSY, MARK 2 Replacing: 0JY0-023200-10020 - SECOND CYLINDER BODY ASSYCylinder BodyEnquire
0800-021002-00001SEAL RING, CYLINDER HEAD COVERCylinder Head Cover AssyEnquire
0060-013021-00001BOLT M6X85Cylinder Head No.1 AssyEnquire
0010-022802SEAL RINGCylinder Head No.1 AssyEnquire
0800-022800SPARK PLUG DCPR8E (NGK)Cylinder Head No.2 AssyEnquire
30601-108010CLAMPDrivetrain System 1Enquire
0180-021008-00001BOLTFront AxleEnquire
30110-420160010SELF-TAPPING SCREWFront Plastics-Timber Camo 1Enquire
0JYA-025010Clamp 54Intake Manifold AssyEnquire
0010-080008DOWEL PINLeft Crankcase AssyEnquire
0JWA-011009OIL STRAINERLeft Crankcase AssyEnquire
0JWA-011004-30000GASKET, LEFT CRANKCASE GASKET Replacing: 0JWA-011004 - GASKET,LEFT CRANKCASE COVERLeft Crankcase AssyEnquire
0800-011200BREATHER ASSYLeft Crankcase AssyEnquire
0010-011017-0010Bolt M6X60 Galvanized Trivalent ChromiumLeft Crankcase Cover AssyEnquire
0800-014011-10000PLUGLeft Crankcase Cover AssyEnquire
9AWA-160210-20000TAIL LIGHT, LH, SUMITOMO PLUGLights(Euro)Enquire
0180-334002O-RING 151X3Rear Axle(With Automatic Differential Lock)Enquire
9AWA-061603CIRCLIPRear Shock Absorber(Gas)-Crystal OrangeEnquire
0GR0-0140A0SCREW PLUG,RELIEF VALVE ASSYRight Crankcase AssyEnquire
01A0-012010-00001SCREWRight Crankcase AssyEnquire
0010-011008O-RING 15.8X2.4Right Crankcase AssyEnquire
30903-0161610COTTER PIN 1.6X16Seat -BlackEnquire
30801-01205CIRCLIPS FOR SHAFTTransmission System(3)Enquire
30801-01405CIRCLIPS FOR SHAFTBrake System-Lh,ParkingEnquire
0800-024003-00002BOLT, TIMING SPROCKET Replacing: 0800-024003 - BOLT, TIMING CHAINCamshaft Of Cylinder 2 AssyEnquire
9010-180007CLAMP, WATER HOSECooling SystemEnquire
8010-180024Water Filling Port Cap AssyCooling SystemEnquire
0JY0-041000-00021CONNECTING ROD, MARK 2Crankshaft & Connecting Rod & Piston AssyEnquire
0800-042004BOLT, CONNECTING RODCrankshaft & Connecting Rod & Piston AssyEnquire
0GR0-052006SCREWCvt AssyEnquire
0010-021018-0010BOLT M6x55Cvt Case AssyEnquire
0800-023002-00001GASKET, CYLINDERCylinder BodyEnquire
0800-021001CYLINDER HEAD COVERCylinder Head Cover AssyEnquire
0800-022700THERMOSTATCylinder Head No.1 AssyEnquire
0800-022015-00001SCREW PLUG M12X1.5 Replacing: 0800-022015 - SCREW PLUG M12X1.5Cylinder Head No.1 AssyEnquire
0JY0-022100-20000CYLINDER HEAD Replacing: 0JY0-022100-10000 - CYLINDER HEADCylinder Head No.2 AssyEnquire
30130-080010810SCREWFront AxleEnquire
0180-311001OIL SEAL 24X38X8Front AxleEnquire
Q830-310011O-RING 130X2Front AxleEnquire
9GQ0-050710BEARING, HUB Replacing: 30499-03080 - BEARING HUB DAC3055WFront SuspensionEnquire
0010-022020-00002BOLTGear ShiftingEnquire
6NQ#-000206-6001INNER HEX SCREW M6x16Handlebar(Na)Enquire
A000-040703INNER HEX SCREWHandlebar(Na)Enquire
0040-012006-0010BOLT M8X50 Replacing: 0040-012006-0030 - BOLT M8X50Left Crankcase AssyEnquire
0110-013030O-RINGLeft Crankcase AssyEnquire
30400-01704BEARINGLeft Crankcase AssyEnquire
30017-060022110BOLTLeft Crankcase AssyEnquire
0800-011105SEAT, BREATHERLeft Crankcase AssyEnquire
0130-011109-0010BOLT M8X60Left Crankcase AssyEnquire
30406-00500ROLLER NEEDLE P5X11.8Left Crankcase Cover AssyEnquire
0800-014003O-RING 63X2.5Left Crankcase Cover AssyEnquire
9AWA-160220-20000TAIL LIGHT, RH, SUMITOMO PLUGLights(Euro)Enquire
30406-00402ROLLER NEEDLE P4x21.8Oil Pump AssyEnquire
30406-00400ROLLER PINOil Pump AssyEnquire
7020-100600BEARING, OUTER SPHERICAL 205Steering SystemEnquire
30502-032800NO-RING 32X18Steering System(Eps,Acdelco)Enquire
30402-02500NEEDLE BEARING, K25X29X10Transmission System(1) 1Enquire
30402-02402NEEDLE BEARING, K24X29X13Transmission System(1) 1Enquire
30102-050012810SCREWTransmission System(2)Enquire
30400-02501BEARINGTransmission System(2)Enquire
30601-111010CLAMPCooling SystemEnquire
9AWA-044051PLUG, TUBEBottom PlasticsEnquire
0JY0-024001-00003CAMSHAFT, FIRST CYLINDER Replacing: 0JY0-024001 - CAMSHAFT, FRONT CYLINDERCamshaft Of Cylinder 1 AssyEnquire
0800-024006TIMING SPROCKETCamshaft Of Cylinder 2 AssyEnquire
0180-040007WOODRUFF KEYCrankshaft & Connecting Rod & Piston AssyEnquire
0JWA-013202FRONT HEAT INSULATORCvt Case AssyEnquire
0GR0-023400-00001TENSIONER ASSY Replacing: 0GR0-023400 - TENSIONERCylinder BodyEnquire
0JY0-023100-10011FIRST CYLINDER BODY ASSY, MARK 1 Replacing: 0JY0-023100-10010 - FIRST CYLINDER BODY ASSYCylinder BodyEnquire
0800-022600-20000ROCKER ARM ASSY, AIR EXHAUSTCylinder Head No.1 AssyEnquire
30132-480130010SELF-TAPPING SCREWCylinder Head No.1 AssyEnquire
0800-022012SEAT,THERMOSTATCylinder Head No.1 AssyEnquire
0800-022003-00001BOLT, CYLINDER Replacing: 0800-022003 - BOLT, CYLINDERCylinder Head No.2 AssyEnquire
9CR6-300202BIG CLAMPDrivetrain System 1Enquire
9GQ0-290104BIG CLAMPDrivetrain System 1Enquire
0JWA-0000A1ENGINE OIL SEAL AND O-RINGEngine Oil Seal & O-RingEnquire
9010-270203-00001WIRE CIRCLIP Replacing: 9010-270203 - WIRE CIRCLIPFront Cv ShaftEnquire
6070-120400CLAMP(Φ14.5)Fuel Tank(Usa)Enquire
30118-480160010SELF-TAPPING SCREW ST4.8X16Heat Insulation PlateEnquire
0JYA-025002-10000AUXILIARY AIR INLET MANIFOLDIntake Manifold AssyEnquire
30601-114010CLAMP D14Left Crankcase AssyEnquire
0700-022018SOLID PIN 8x14Left Crankcase AssyEnquire
30801-01005Circlips For Shaft 10Left Crankcase AssyEnquire
0800-011203-10000OIL SEALLeft Crankcase AssyEnquire
0180-011500MAGNETIC DRAIN BOLTLeft Crankcase AssyEnquire
0180-014010WIRE CLAMPLeft Crankcase Cover AssyEnquire
C3H0-073002CLAMPOil Cooling SystemEnquire
0010-030002-00001BOLTOil Pump AssyEnquire
0010-011002OIL SEALRight Crankcase AssyEnquire
30499-03000BEARING 5206Right Crankcase AssyEnquire
0180-023002O-SEAL RINGRight Crankcase AssyEnquire
30121-080045170SCREW 80X45Seat -BlackEnquire
0180-062205O-RING 88X2.5Transmission System(2)Enquire
0180-060008BEARING RETAINER, FRONT OUTPUT SHAFTTransmission System(2)Enquire
0110-041007BEARING 28X68X18 Replacing: 30499-02800 - BEARINGTransmission System(2)Enquire
0010-021017-0010BOLT M6x25Transmission System(3)Enquire
30408-01000BEARINGWater Pump AssyEnquire
A000-180006CLAMP B30Cooling SystemEnquire
9AWA-180020CLIP,WATER HOSECooling SystemEnquire
0800-040005CIRCLIP, PISTON PINCrankshaft & Connecting Rod & Piston AssyEnquire
0JY0-013002SEAL RING,CVT CASE COVERCvt Case AssyEnquire
0JWA-013203REAR HEAT INSULATORCvt Case AssyEnquire
0JY0-023100-10021FIRST CYLINDER BODY ASSY MARK 2 Replacing: 0JY0-023100-10020 - FIRST CYLINDER BODY ASSYCylinder BodyEnquire
018B-022810COOLANT TEMP. SENSORCylinder Head No.2 AssyEnquire
0800-022510ADJUST SCREWCylinder Head No.2 AssyEnquire
9AWA-150600OUTPUT SEAT, USB, SUMITOMO PLUGElectric SystemEnquire
9010-050800-20000LOWER BALL PIN ASSY Replacing: 9010-050800-1000 - LOWER BALL PIN ASSYFront SuspensionEnquire
080V-025002-1000SEAL RING, MANIFOLD Replacing: 0800-025002 - SEAL RING, MANIFOLDIntake Manifold AssyEnquire
0130-011400PLUG, SEALLeft Crankcase AssyEnquire
0800-011006-00001SCREW PLUGLeft Crankcase AssyEnquire
0180-332002-0010BOLT M8X12.5, FLANGELeft Crankcase AssyEnquire
0800-011201GEAR, BREATHERLeft Crankcase AssyEnquire
0JWA-014007CLIP,WATER HOSELeft Crankcase Cover AssyEnquire
30603-125020Clamp D25Oil Cooling SystemEnquire
30502-017000FO-RINGOil Cooling SystemEnquire
0800-012200-1000GEAR SENSOR, SUMITOMO PLUGRight Crankcase AssyEnquire
30401-03000NEEDLE BEARING NK30/20Starting SystemEnquire
9010-400102-10000COTTER PIN Replacing: 9010-400102 - COTTER PINTowbarEnquire
30801-02905CIRCLIPS FOR SHAFT 29Transmission System(1) 1Enquire
0110-080005Oil Seal 10X20X5Water Pump AssyEnquire
0JY0-027001CAMSHAFT, REAR CYLINDERCamshaft Of Cylinder 2 AssyEnquire
30110-481130010SELF-TAPPING SCREWCooling SystemEnquire
0JY0-040003-00030PLAIN BEARING, CONNECTING ROD BLUECrankshaft & Connecting Rod & Piston AssyEnquire
9010-000105A-TYPE SCREW CLAMP 78-101Cvt Air PipeEnquire
9GQ0-000204PRE FILTERCvt Air PipeEnquire
0JWA-013205INSULATED SPONGE (2)Cvt Case AssyEnquire
0GSV-013004-3000BOLT 1, CVT COVER Replacing: 0800-021101-1000 - BOLT, CYLINDER HEAD COVERCylinder Head Cover AssyEnquire
0800-022500-20000ROCKER ARM ASSY, AIR INTAKECylinder Head No.1 AssyEnquire
30105-050030410SCREW M5X30 Replacing: 30105-050030440 - SCREW M5X30Electric SystemEnquire
Q830-310012-10000O-RING 67.5X2Front AxleEnquire
30906-0503000PINFront AxleEnquire
30801-03405CIRCLIPS FOR SHAFT 34Front SuspensionEnquire
30601-112010CLAMPFuel Vaporization SystemEnquire
30102-060025810SCREW M6X25Handlebar(Na)Enquire
0130-011114-00001BOLTIntake Manifold AssyEnquire
0800-011013-00001RESTRICTION PLUGLeft Crankcase AssyEnquire
0JWA-011100-20001LH CRANKCASE ASSY Replacing: 0JWA-011100-20000 - LH CRANKCASE ASSYLeft Crankcase AssyEnquire
0800-011004IDLE GEAR, BREATHERLeft Crankcase AssyEnquire
30400-01003BEARING 6200-RS/P6Left Crankcase AssyEnquire
30400-02800BEARINGLeft Crankcase Cover AssyEnquire
0180-030001-00001BOLTMagneto AssyEnquire
30006-103020810BOLT M10X20 Replacing: 30006-103020840 - BOLT M10X20Oil Cooling SystemEnquire
9AWA-060109BEARING, REAR SWINGARMRear Suspension 1Enquire
30800-06005CIRCLIP FOR HOLERear Suspension 1Enquire
0JWA-012100-20004RH CRANKCASE ASSY Replacing: 0JWA-012100-20001 - RH CRANKCASE ASSYRight Crankcase AssyEnquire
0JWA-012004MIDDLE BEARING RETAINER, FRONT OUTPUT SHAFTRight Crankcase AssyEnquire
0800-012200GEAR SENSOR ASSY, ORDINARY PLUGRight Crankcase AssyEnquire
0700-012003-00002BOLTRight Crankcase AssyEnquire
0180-332004O-RING 19X2.5Right Crankcase AssyEnquire
9CR6-103300-20000EPS DRIVER - RECTANGULAR PLUGSteering System(Eps,Acdelco)Enquire
0180-062104-0010LIMITATOR, BEARINGTransmission System(2)Enquire
0180-065002OIL SEAL SD15X25X5Transmission System(3)Enquire
0180-064002-00001LOCK SCREW T25Transmission System(3)Enquire

Exploded diagrams — Engine

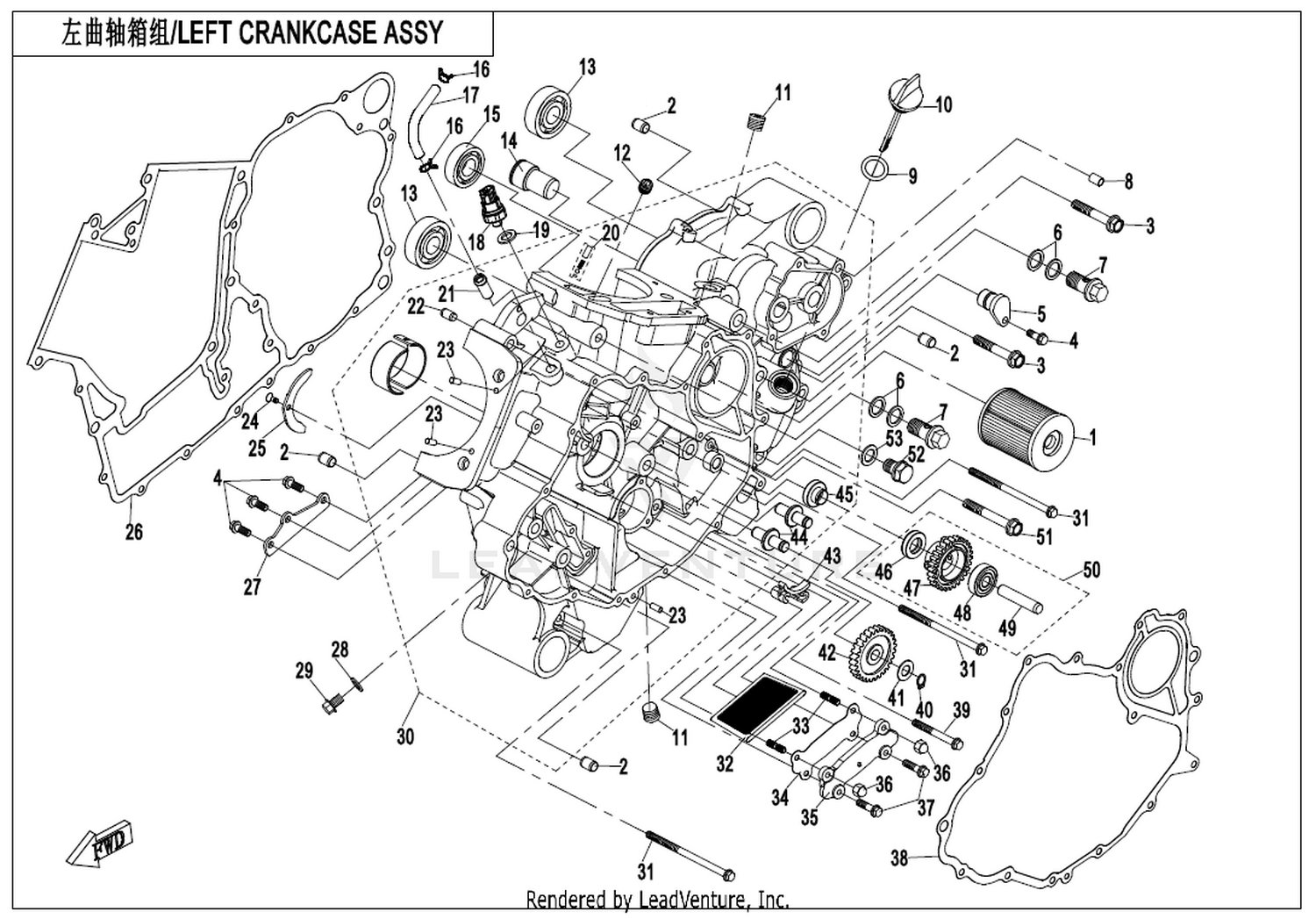

CFORCE 1000 2018 Left Crankcase Assy exploded diagram
Left Crankcase Assy · 30

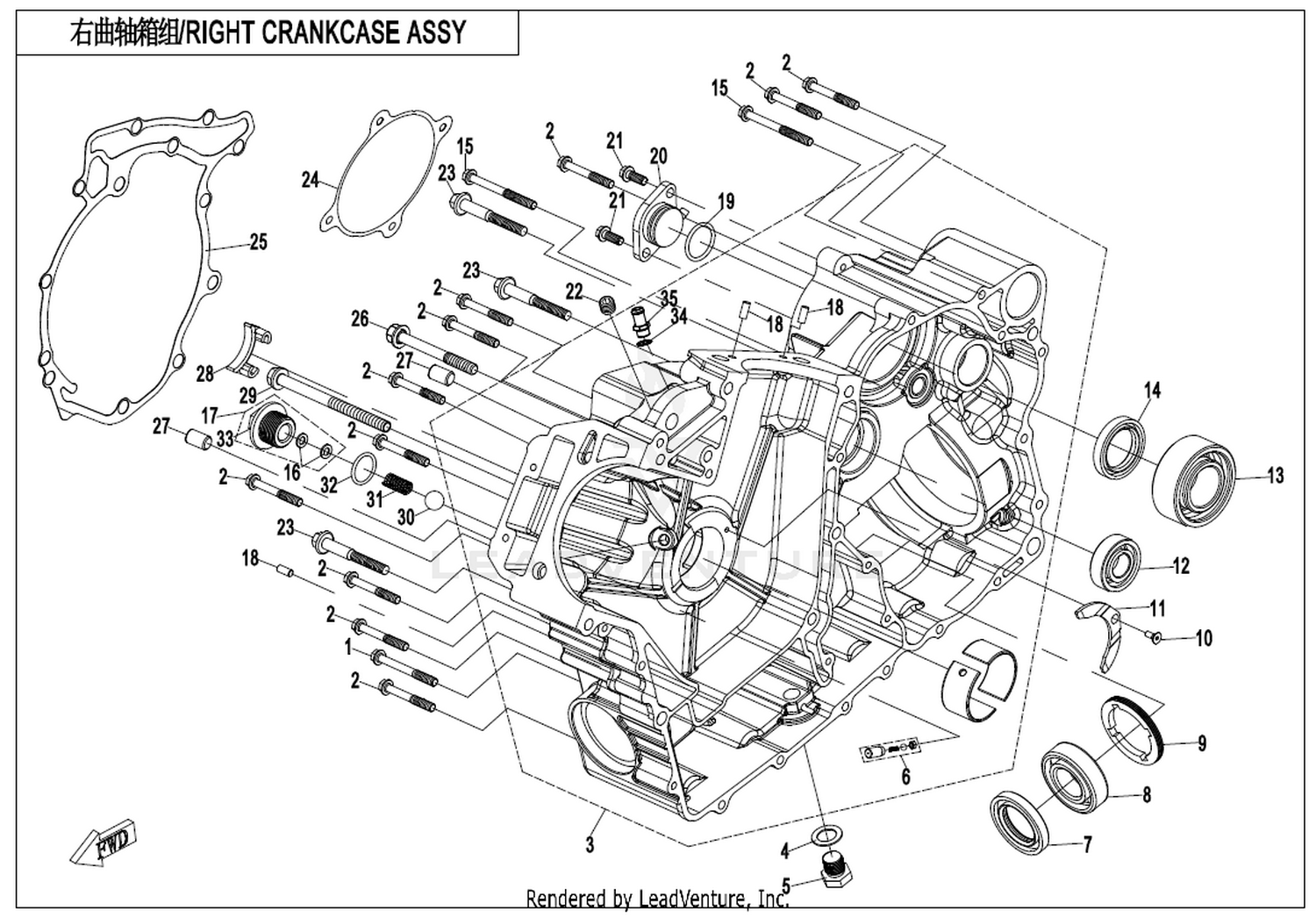

CFORCE 1000 2018 Right Crankcase Assy exploded diagram
Right Crankcase Assy · 20

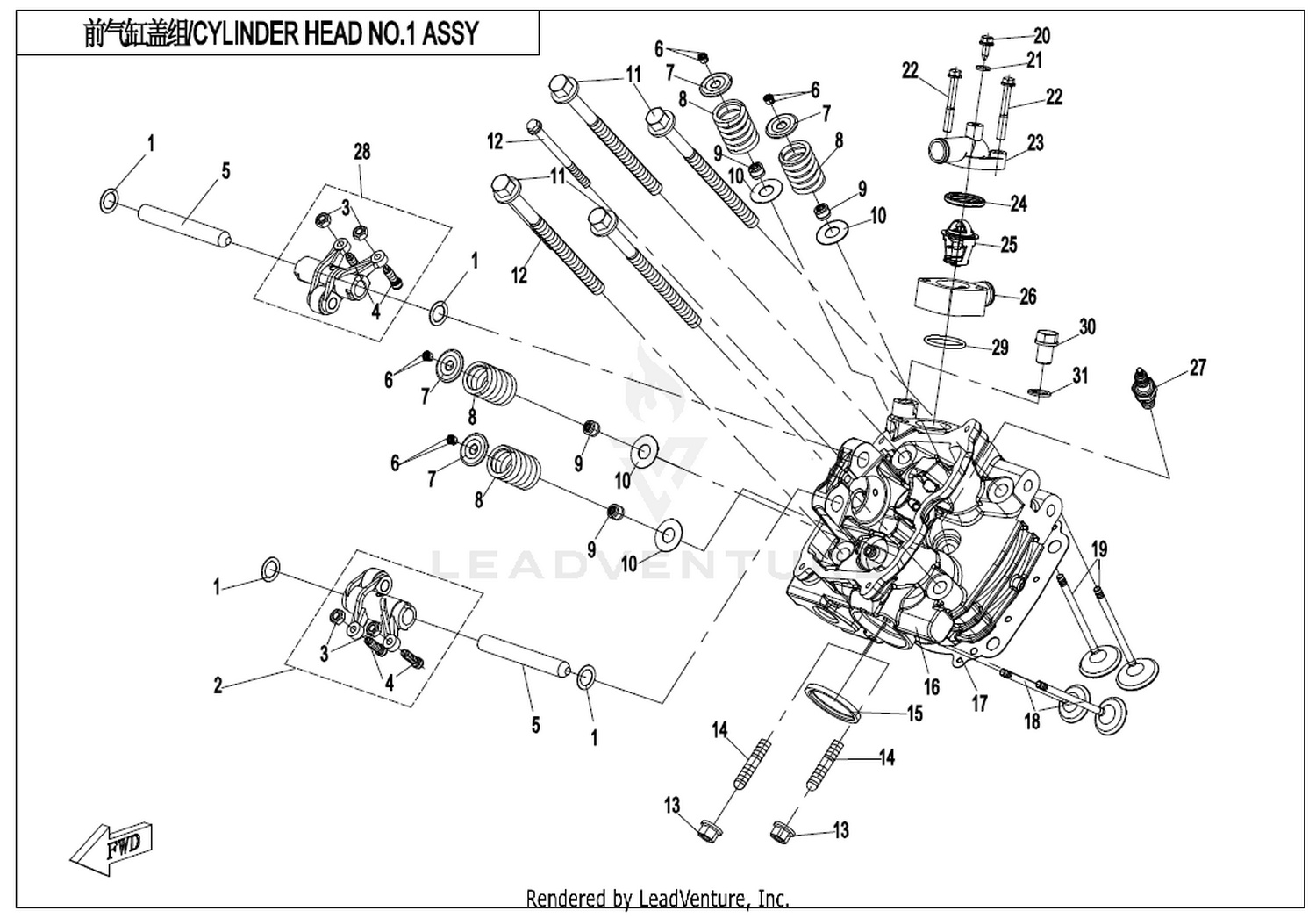

CFORCE 1000 2018 Cylinder Head No.1 Assy exploded diagram
Cylinder Head No.1 Assy · 15

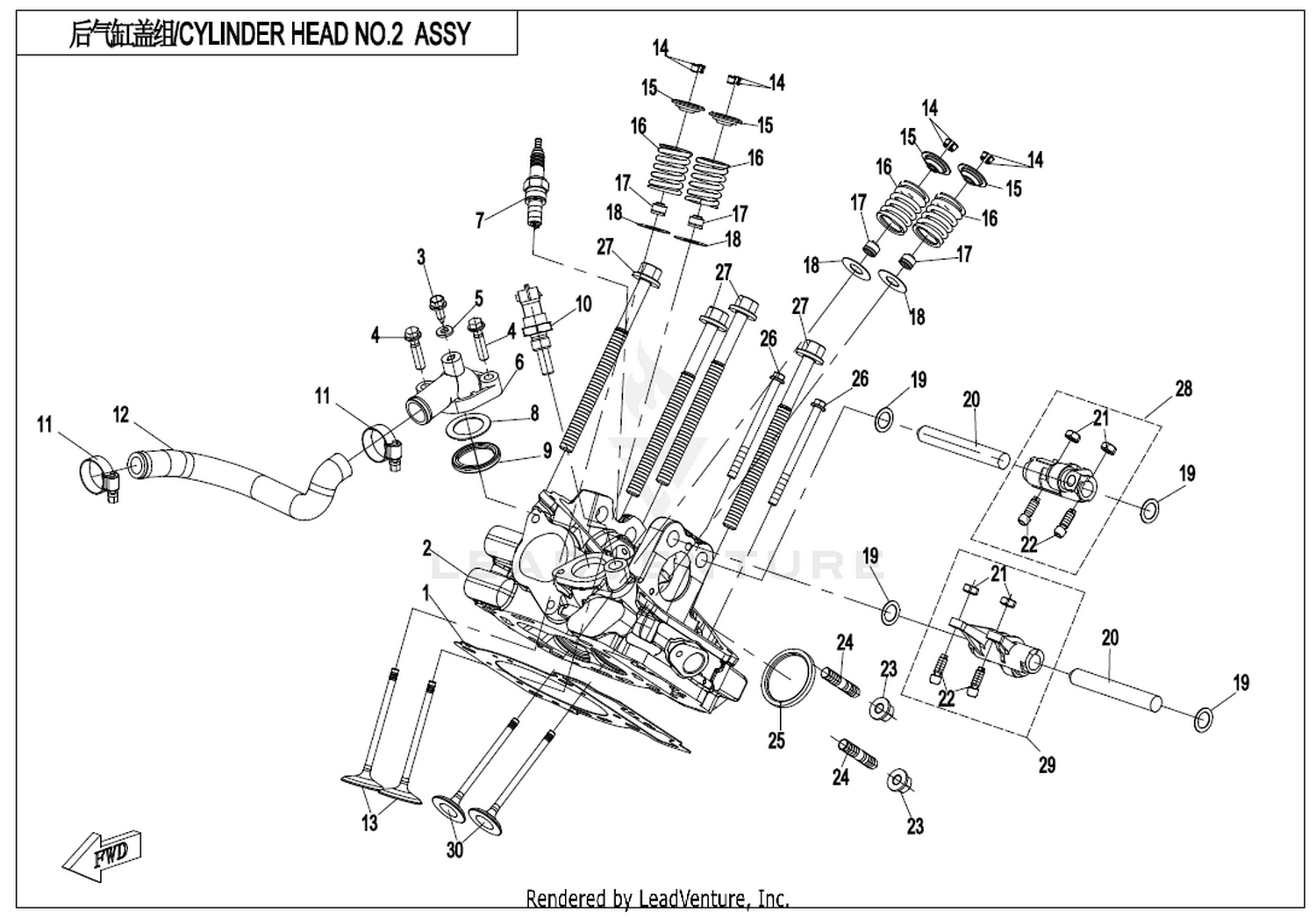

CFORCE 1000 2018 Cylinder Head No.2 Assy exploded diagram
Cylinder Head No.2 Assy · 13

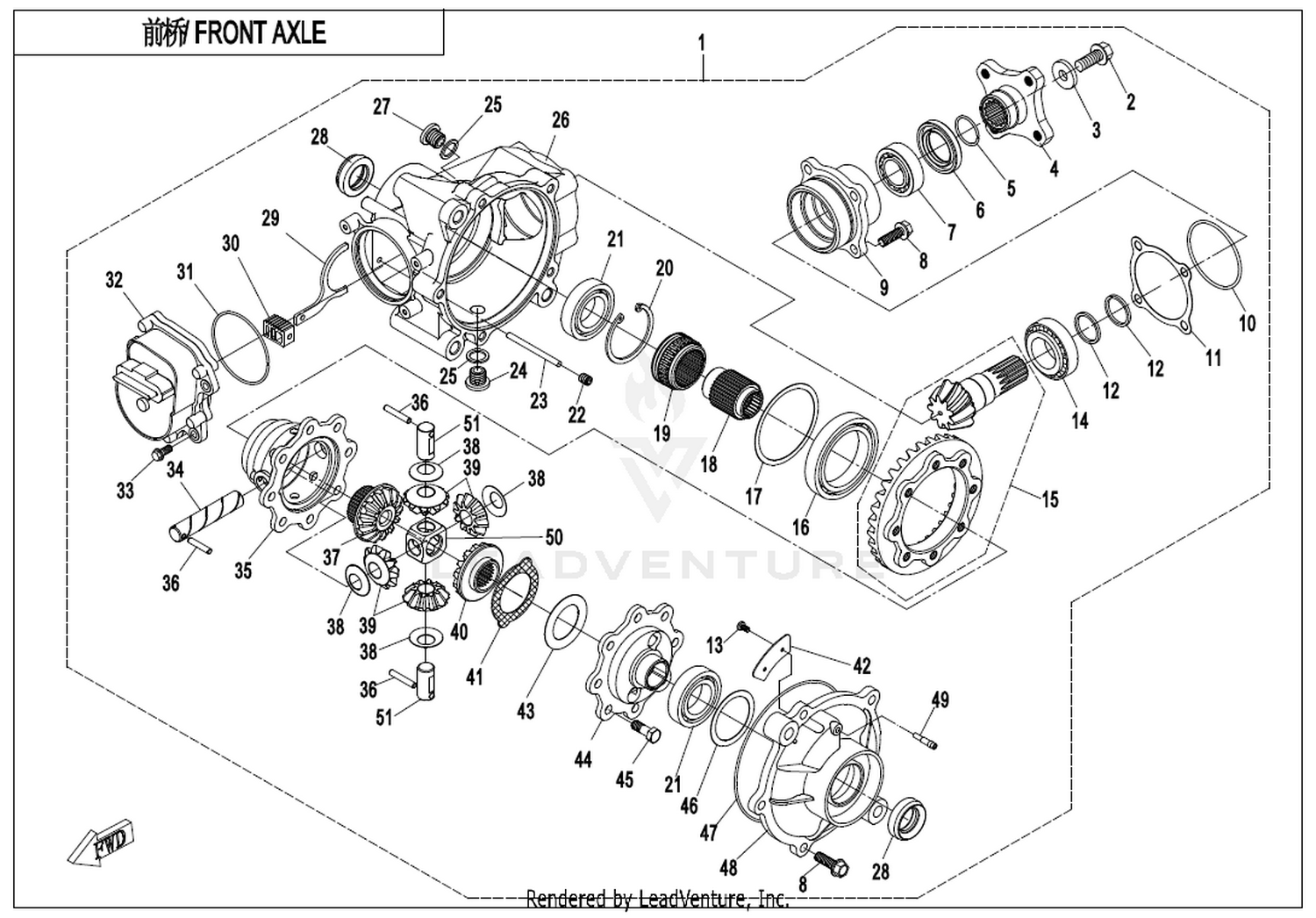

CFORCE 1000 2018 Front Axle exploded diagram
Front Axle · 11

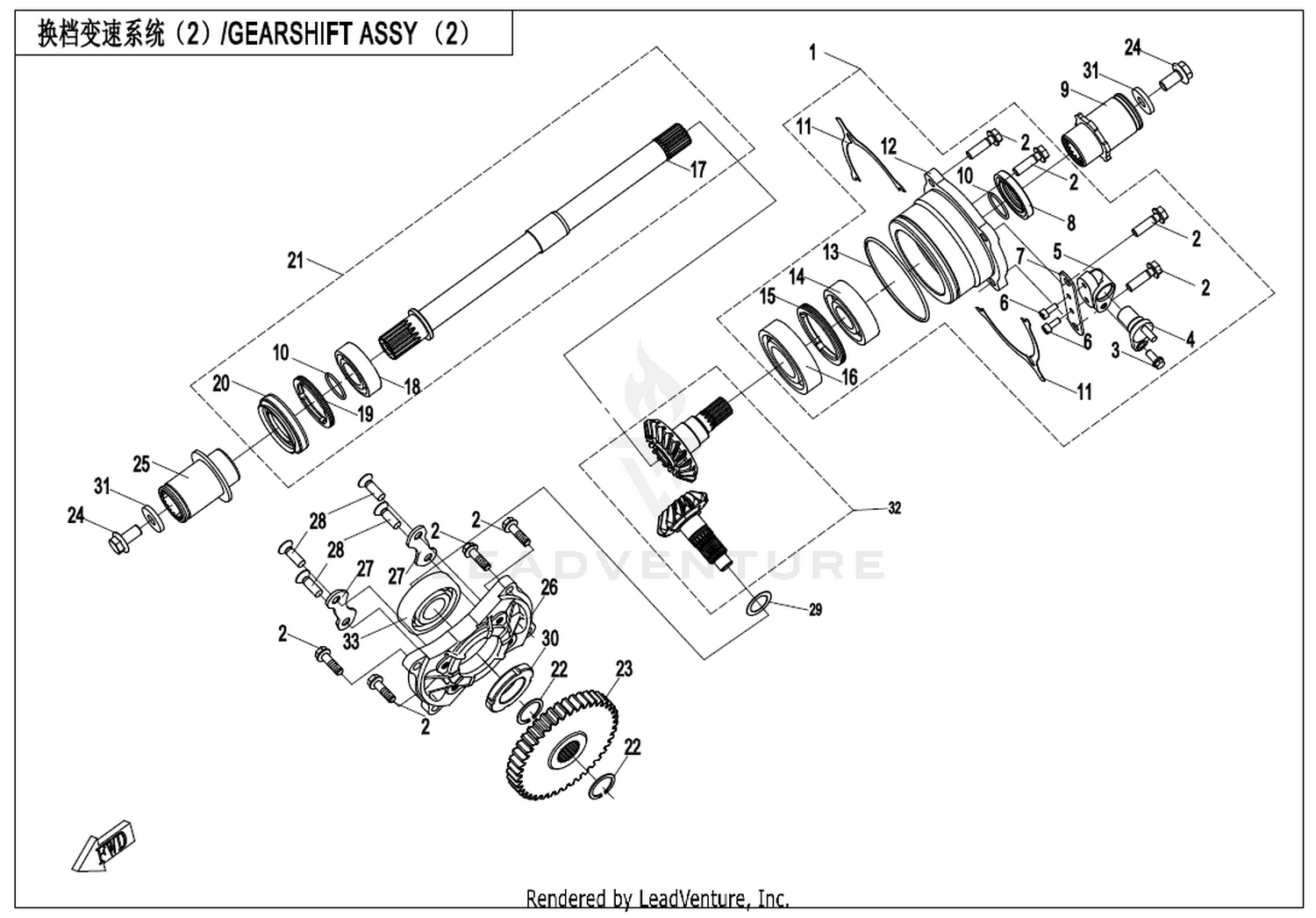

CFORCE 1000 2018 Transmission System(2) exploded diagram
Transmission System(2) · 11

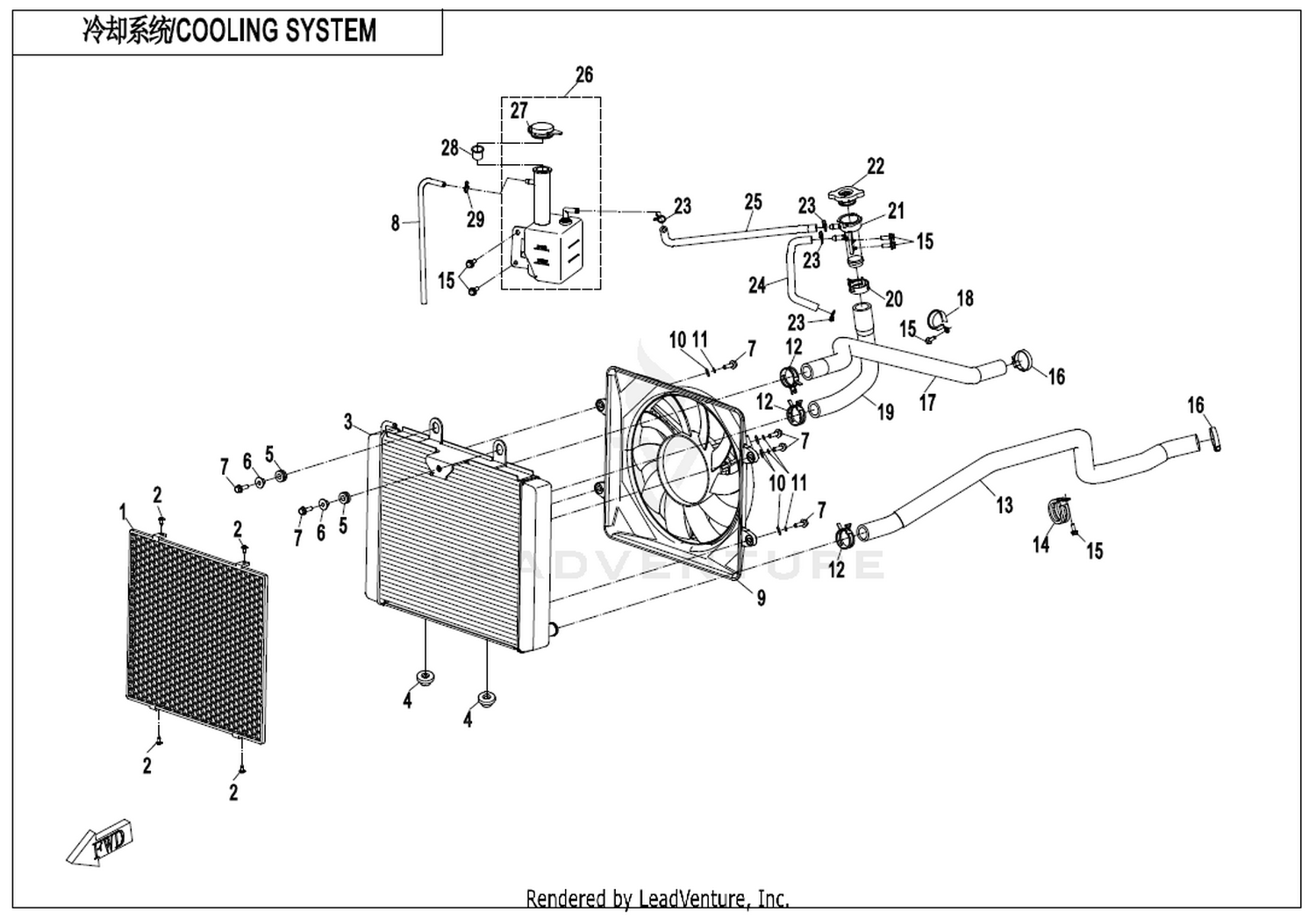

CFORCE 1000 2018 Cooling System exploded diagram
Cooling System · 10

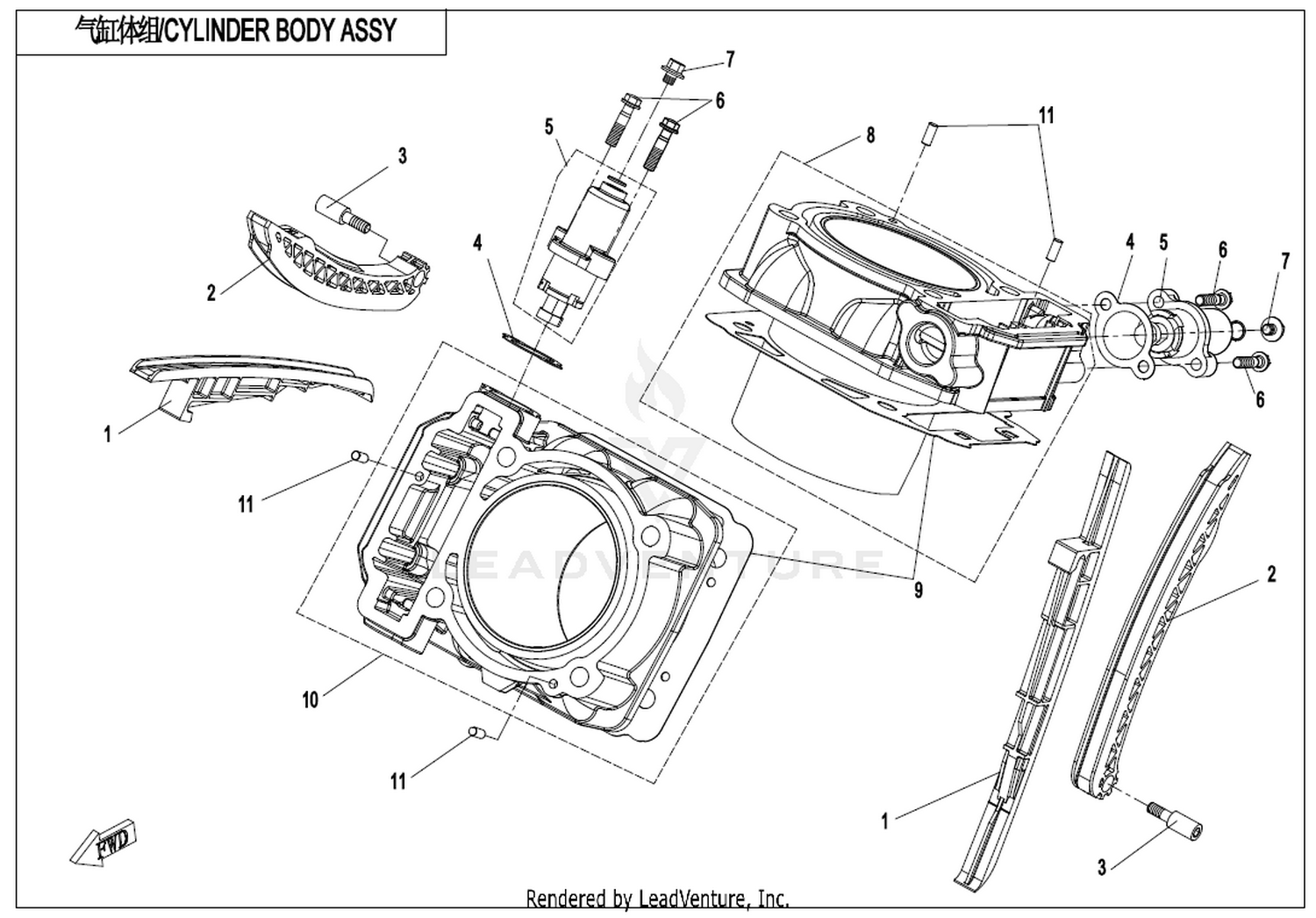

CFORCE 1000 2018 Cylinder Body exploded diagram
Cylinder Body · 10

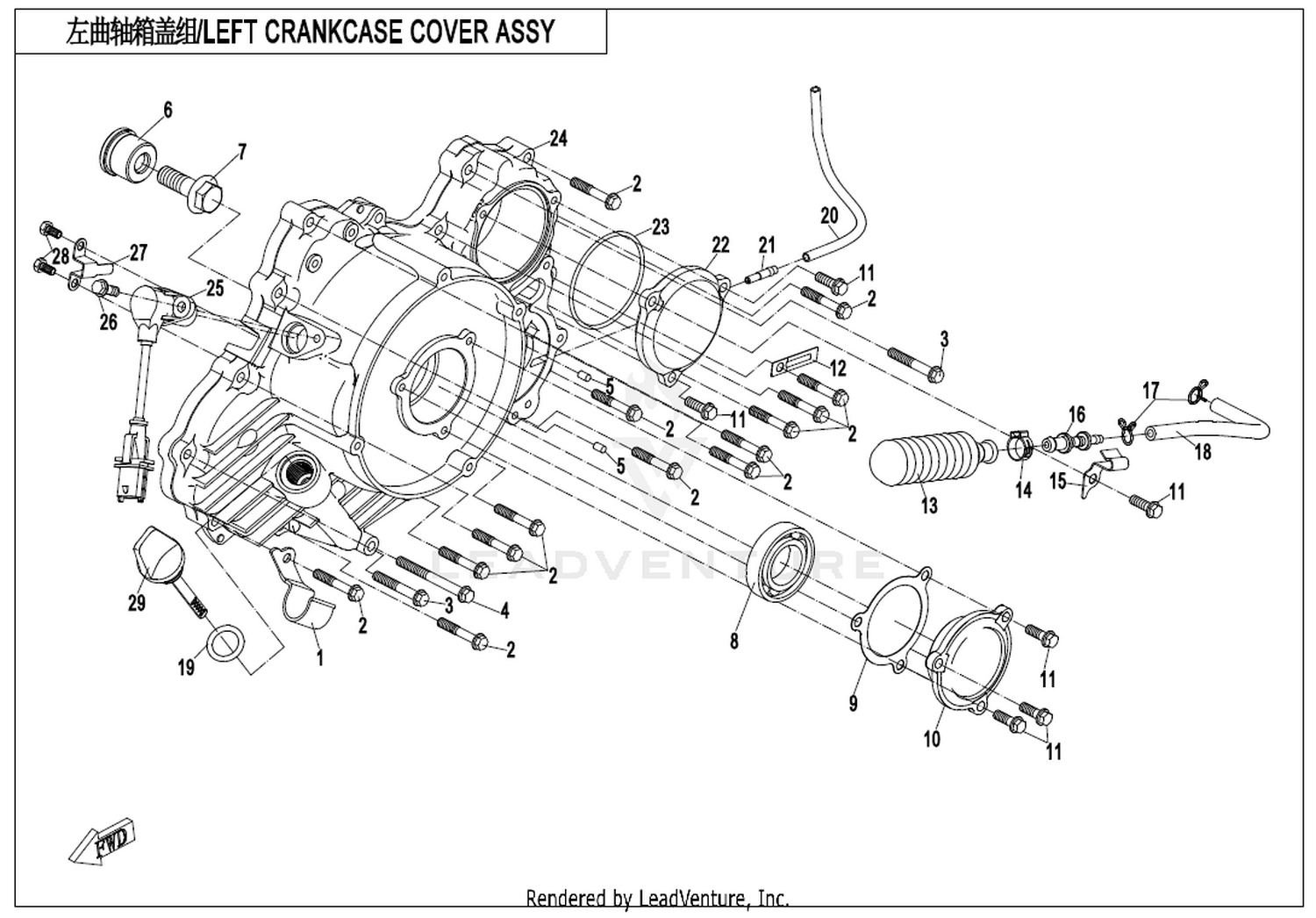

CFORCE 1000 2018 Left Crankcase Cover Assy exploded diagram
Left Crankcase Cover Assy · 10
CFORCE 1000 2018 Cvt Case Assy exploded diagram
Cvt Case Assy · 9

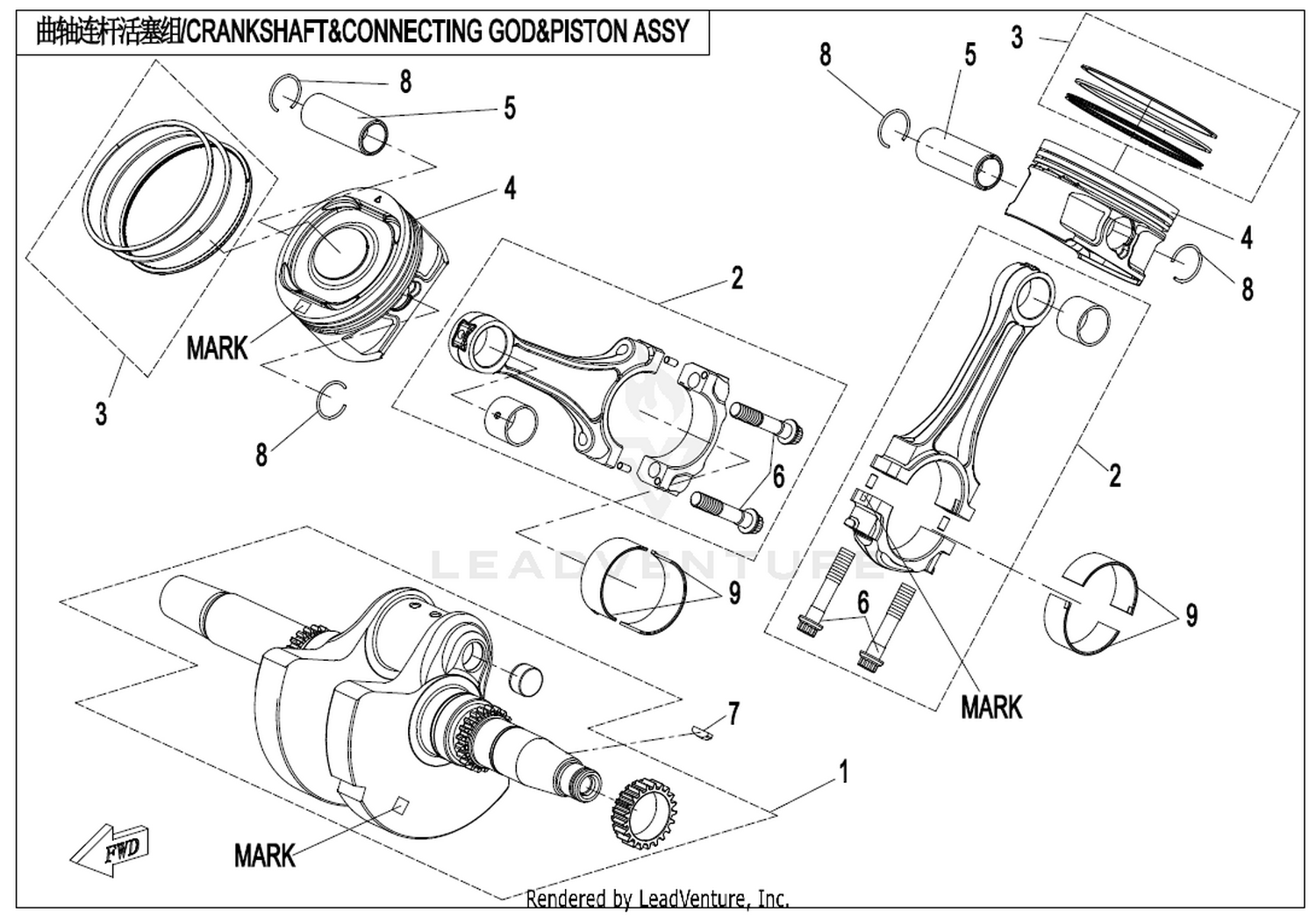

CFORCE 1000 2018 Crankshaft & Connecting Rod & Piston Assy exploded diagram
Crankshaft & Connecting Rod & Piston Assy · 8

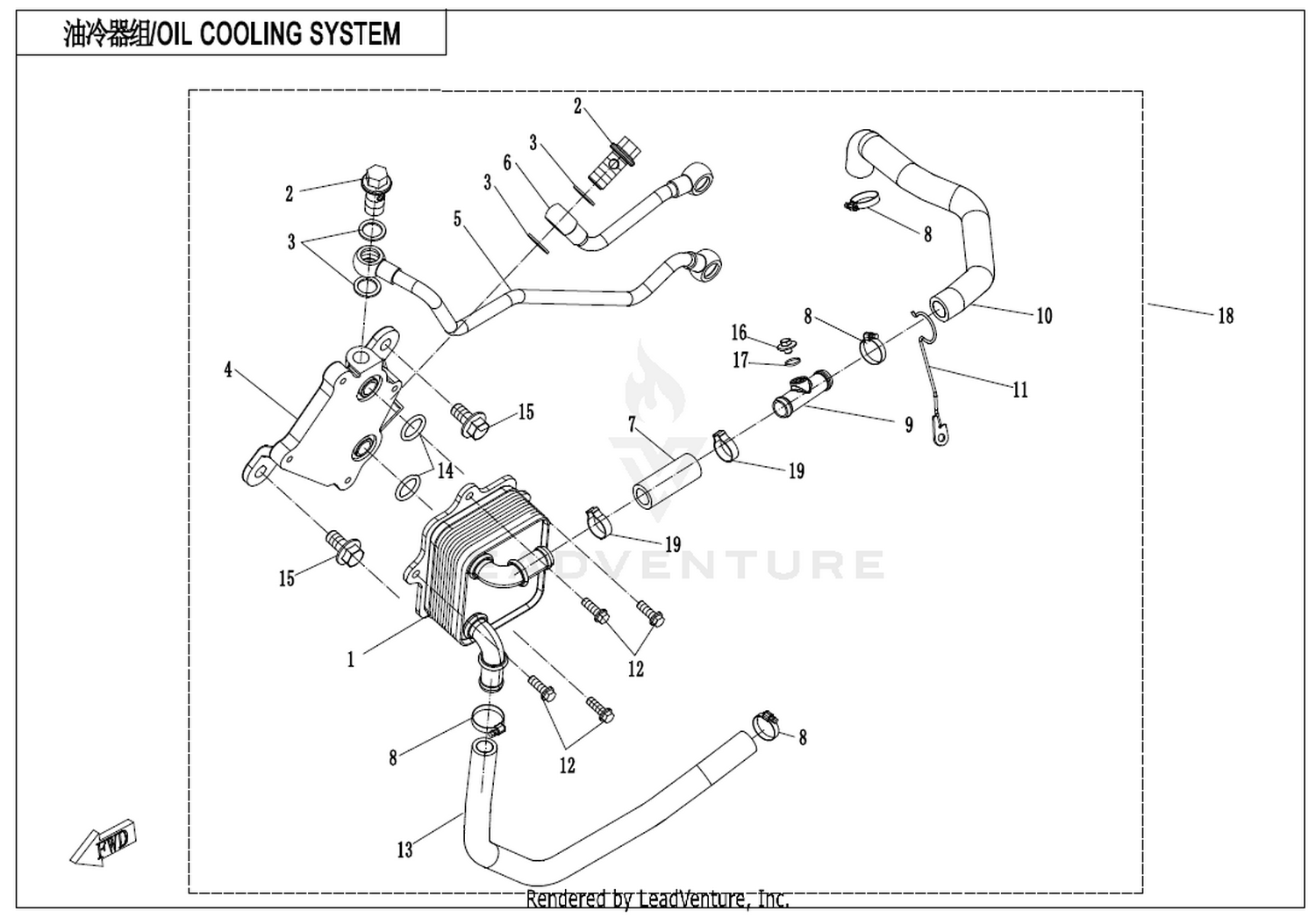

CFORCE 1000 2018 Oil Cooling System exploded diagram
Oil Cooling System · 7

Browse the catalogue interactively

Open Engine in the interactive CFORCE 1000 2018 catalogue to drill into diagrams, check availability and add parts to your cart.

Other assembly groups on this vehicle

Body · 687Gearbox · 291Suspension · 92Wheels & Tyres · 87Electrical System · 71Brake System · 65Steering System · 61Filters · 55Exhaust System · 46Cooling System · 44Fuel Supply System · 26Clutch & Parts · 16Final Drive · 10Fuel Preparation · 6Unclassified · 159
