ZFORCE 1000 2020 — Engine Hardware parts

UK market129 genuine parts12 diagrams

Part numbers

Every genuine engine hardware part fitted to the ZFORCE 1000 2020. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
30102-060016810SCREWBumperEnquire
0800-024002-00001DOWEL PIN, SPROCKET Replacing: 0800-024002 - DOWEL PIN, SPROCKETCamshaft Of Cylinder 2 AssyEnquire
30105-060016410SCREWCooling SystemEnquire
7000-180007-00001STEEL BAND CLAMP 34Cooling SystemEnquire
30601-117010CLAMPCvt Air PipeEnquire
9010-000105A-TYPE SCREW CLAMP 78-101Cvt Air PipeEnquire
0JY0-022003-00001BOLT, CYLINDERCylinder Head No.1 AssyEnquire
30603-125020Clamp D25Cylinder Head No.2 AssyEnquire
30102-102025810SCREWDrivetrain SystemEnquire
30110-480160010SELF-TAPPING SCREWElectric System(Lof) 1Enquire
30102-102035810SCREWFrame 1Enquire
30906-0503000PINFront Axle 1Enquire
0181-314000MOTOR ASSY, FRONT GEAR CASE, ORDINARY PLUGFront AxleEnquire
5BY0-000303SCREW M6X17.5, SOUNDBOX COVERFront Plastic 2Enquire
9060-040310CLAMP ASSYFront Plastic 2Enquire
30800-05505CIRCLIP D55 BLACKFront SuspensionEnquire
9060-050900-10000BALL PIN COMPFront Suspension(Oil Shock Absorber)Enquire
7030-120060CAP, FUEL TANKFuel TankEnquire
0010-021005DOWEL PINLeft Crankcase AssyEnquire
0010-021019-0010BOLT M6x12Left Crankcase AssyEnquire
0180-011500MAGNETIC DRAIN BOLTLeft Crankcase AssyEnquire
0010-011017-0010Bolt M6X60 Galvanized Trivalent ChromiumLeft Crankcase Cover AssyEnquire
30102-080020810SCREWMagneto AssyEnquire
7000-041602-0V10CAP, GEARSHIFT, SILVER WHITEMiddle Plastic 2Enquire
30006-103020810BOLT M10X20 Replacing: 30006-103020840 - BOLT M10X20Oil Cooling System 1Enquire
0JYA-071007CLIP, WATER PIPEOil Cooling SystemEnquire
30801-01005Circlips For Shaft 10Oil Pump AssyEnquire
0180-021008-00001BOLTRear Axle(Automatic Differential Lock)Enquire
30105-040008410SCREW M4X8Rear Axle(No Differential) 1Enquire
7020-051603-30000CIRCLIPRear Suspension(Oil Shock Absorber)Enquire
30112-060012410SCREW COMP M6X12Steering System(Eps)Enquire
9010-020007A-TYPE SCREW CLAMPSteering System(Eps)Enquire
30903-0252010COTTER PIN. 2.5X20Steering System(Eps)Enquire
30801-02905CIRCLIPS FOR SHAFT 29Transmission System(1)Enquire
0010-021017-0010BOLT M6x25Transmission System(3) 1Enquire
0130-011400PLUG, SEALLeft Crankcase AssyEnquire
9030-000109SCREW CLAMP, A-TYPE, 70~90Air Filter AssyEnquire
30903-0322210COTTER PINBrake System(Standard)Enquire
0800-042004BOLT, CONNECTING RODCrankshaft & Connecting Rod & Piston AssyEnquire
0GR0-052004CIRCLIPCvt Assy(Non Speed Limited & Die Thrust Collar)Enquire
0060-013021-00001BOLT M6X85Cylinder Head No.1 AssyEnquire
0800-022510ADJUST SCREWCylinder Head No.2 AssyEnquire
30601-108010CLAMPDrivetrain SystemEnquire
30804-02215CIRCLIPS FOR SHAFTDrivetrain SystemEnquire
9060-038122PLUGFrame 1Enquire
30130-080010810SCREWFront Axle 1Enquire
9030-050600-10000MAIN PIN COMP Replacing: 9030-050600 - MAIN PIN ASSYFront Suspension(Oil Shock Absorber)Enquire
30801-03405CIRCLIPS FOR SHAFT 34Front Suspension(Oil Shock Absorber)Enquire
30601-112010CLAMPFuel TankEnquire
0130-011109-0010BOLT M8X60Left Crankcase AssyEnquire
0800-011006-00001SCREW PLUGLeft Crankcase AssyEnquire
0JYA-023001-00001HEX FLANGE BOLT M6x6Oil Cooling System 1Enquire
30110-420095010SELF-TAPPING SCREWRear Plastic 1 1Enquire
9060-060002PLUG, REAR SUSPENSIONRear Suspension(Oil Shock Absorber)Enquire
0700-012003-00002BOLTRight Crankcase Assy 1Enquire
30102-080050870INNER HEX SCREW M8X50Side DoorsEnquire
30124-080025810SCREW M8X25Transmission System(2)Enquire
0800-110011-1000CLAMP, AIR INTAKEAir Filter AssyEnquire
0800-110008CLAMPAir Filter AssyEnquire
30601-114010CLAMP D14Air Filter AssyEnquire
30132-480130030SELF-TAPPING SCREW ST4.8X13Electric System(Lof) 1Enquire
0180-310002PIN SHAFTFront Axle 1Enquire
30800-06200CIRCLIP FOR HOLE 62Front Axle 1Enquire
7000-050502CIRCLIPFront SuspensionEnquire
30604-380000CLAMPIntake Manifold AssyEnquire
0010-080008DOWEL PINLeft Crankcase AssyEnquire
C3H0-073002CLAMPOil Cooling SystemEnquire
5BWB-280302CIRCLIPRear Cv ShaftEnquire
0010-021018-0010BOLT M6x55Right Crankcase Assy 1Enquire
01A0-012010-00001SCREWRight Crankcase Assy 1Enquire
0800-012200-1000GEAR SENSOR, SUMITOMO PLUGRight Crankcase Assy 1Enquire
30110-421130010SELF-TAPPING SCREWSide DoorsEnquire
9010-400102-10000COTTER PIN Replacing: 9010-400102 - COTTER PINTowbar 1Enquire
0800-061007CIRCLIP 29Transmission System(1)Enquire
0180-061007-0050CIRCLIP 25Transmission System(2)Enquire
0180-064002-00001LOCK SCREW T25Transmission System(3) 1Enquire
30601-110010CLAMPCooling SystemEnquire
0800-040005CIRCLIP, PISTON PINCrankshaft & Connecting Rod & Piston AssyEnquire
0GR0-052006SCREWCvt Assy(Non Speed Limited & Die Thrust Collar)Enquire
0JY0-013201-00003BOLT, CVT CASE COVER Replacing: 0JY0-013201 - BOLT,CVT CASE COVER NLA USE 0JY0-013201-00003Cvt Case AssyEnquire
0180-022003-00001STUDCylinder Head No.1 AssyEnquire
0800-022013-10000THERMOSTAT CAP Replacing: 0800-022013 - THERMOSTAT CAPCylinder Head No.2 AssyEnquire
30105-050030410SCREW M5X30 Replacing: 30105-050030440 - SCREW M5X30Electric SystemEnquire
0180-332002-0010BOLT M8X12.5, FLANGELeft Crankcase AssyEnquire
30122-040010850SCREW M4X10Left Crankcase AssyEnquire
0040-012006-0010BOLT M8X50 Replacing: 0040-012006-0030 - BOLT M8X50Left Crankcase AssyEnquire
30017-060022110BOLTLeft Crankcase AssyEnquire
0180-011007-0010BOLT M14X1.5X32Oil Cooling SystemEnquire
0180-334005-0010INNER HEX SCREW M8X45Rear Axle(No Differential) 1Enquire
30800-06300CIRCLIPRear Suspension(Oil Shock Absorber)Enquire
30011-060020820STUDRight Crankcase Assy 1Enquire
0800-012200GEAR SENSOR ASSY, ORDINARY PLUGRight Crankcase Assy 1Enquire
30102-050012810SCREWTransmission System(2)Enquire
30801-01205CIRCLIPS FOR SHAFTTransmission System(3)Enquire
8010-180023CAP, RESERVOIR TANKCooling SystemEnquire
9010-180007CLAMP, WATER HOSECooling SystemEnquire
0800-023001-00002SCREW, TENSIONER PLATE Replacing: 0800-023001 - SCREW, TENSIONER PLATE NLA USE 0800-023001-00002Cylinder AssyEnquire
0800-022015-00001SCREW PLUG M12X1.5 Replacing: 0800-022015 - SCREW PLUG M12X1.5Cylinder Head No.2 AssyEnquire
30800-05205CIRCLIP FOR HOLEDrivetrain SystemEnquire
30801-03205CIRCLIPS FOR SHAFT32 Replacing: 30804-03205 - CIRCLIPS FOR SHAFT32Front Suspension(Oil Shock Absorber)Enquire
7020-120006CLAMP D16.6AFuel TankEnquire
0130-011114-00001BOLTIntake Manifold AssyEnquire
0JYA-025006BUSHING 6.2X14X10Intake Manifold AssyEnquire
0700-022018SOLID PIN 8x14Left Crankcase AssyEnquire
0800-011013-00001RESTRICTION PLUGLeft Crankcase AssyEnquire
0030-011006-0010BOLT M6X105Left Crankcase AssyEnquire
30110-420160010SELF-TAPPING SCREWLightEnquire
7030-021305A-TYPE SCREW CLAMPMufflerEnquire
30406-00400ROLLER PINOil Pump AssyEnquire
0GR0-0140A0SCREW PLUG,RELIEF VALVE ASSYRight Crankcase Assy 1Enquire
30121-080025700SCREWSide DoorsEnquire
30107-060012410Screw M6X12@Color Zinc-PlatedSteering SystemEnquire
30903-0202010COTTER PIN. 2X20 Replacing: 30903-0202040 - COTTER PIN. 2X20Steering SystemEnquire
0JYA-110002-20000CLAMP D79Air Filter AssyEnquire
30102-060020810SCREWBumperEnquire
8010-180024Water Filling Port Cap AssyCooling SystemEnquire
9060-180031PLUG, WATER OVERFLOWCooling SystemEnquire
30800-02205CIRCLIP FOR HOLEDrivetrain SystemEnquire
9010-270203-00001WIRE CIRCLIP Replacing: 9010-270203 - WIRE CIRCLIPFront Cv ShaftEnquire
6070-120400CLAMP(Φ14.5)Fuel TankEnquire
0JYA-025010Clamp 54Intake Manifold AssyEnquire
0180-014010WIRE CLAMPLeft Crankcase AssyEnquire
0800-014011-10000PLUGLeft Crankcase Cover AssyEnquire
30105-050012410SCREWLightEnquire
0180-030001-00001BOLTMagneto AssyEnquire
30112-060016410SCREW COMP M6X16 Replacing: 30112-060016440 - SCREW COMP M6X16Middle Plastic 2Enquire
6NQ#-000206-6001INNER HEX SCREW M6x16MufflerEnquire
0010-030002-00001BOLTOil Pump AssyEnquire
30121-060016700SCREWSide DoorsEnquire

Exploded diagrams — Engine Hardware

ZFORCE 1000 2020 Left Crankcase Assy exploded diagram
Left Crankcase Assy · 17
ZFORCE 1000 2020 Right Crankcase Assy 1 exploded diagram
Right Crankcase Assy 1 · 11
ZFORCE 1000 2020 Right Crankcase Assy exploded diagram
Right Crankcase Assy · 11
ZFORCE 1000 2020 Front Axle 1 exploded diagram
Front Axle 1 · 8

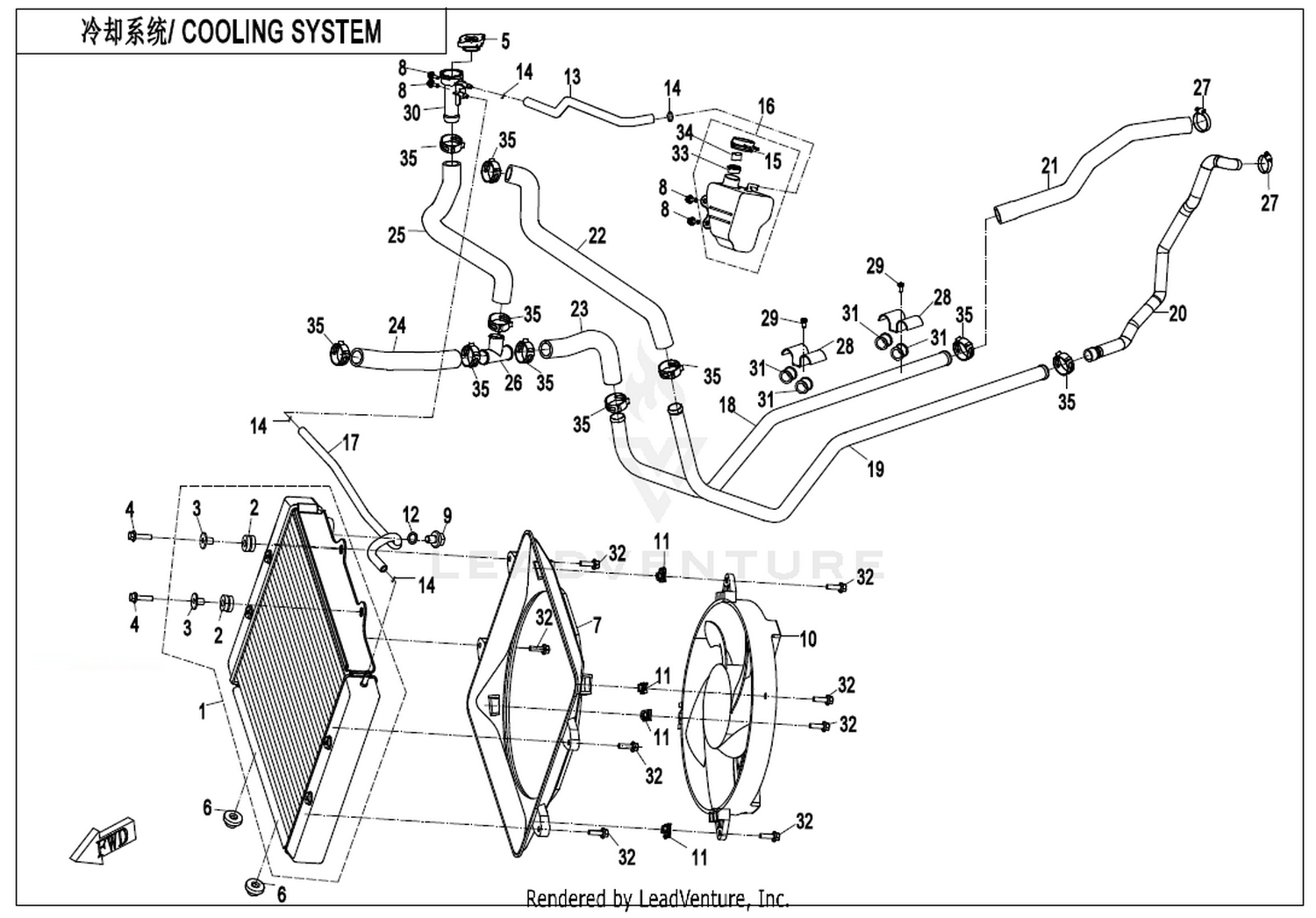

ZFORCE 1000 2020 Cooling System exploded diagram
Cooling System · 7
ZFORCE 1000 2020 Cylinder Head No.2 Assy exploded diagram
Cylinder Head No.2 Assy · 7
ZFORCE 1000 2020 Front Axle exploded diagram
Front Axle · 7
ZFORCE 1000 2020 Front Suspension exploded diagram
Front Suspension · 7
ZFORCE 1000 2020 Front Suspension(Oil Shock Absorber) exploded diagram
Front Suspension(Oil Shock Absorber) · 7
ZFORCE 1000 2020 Cylinder Head No.1 Assy exploded diagram
Cylinder Head No.1 Assy · 6
ZFORCE 1000 2020 Left Crankcase Cover Assy exploded diagram
Left Crankcase Cover Assy · 6

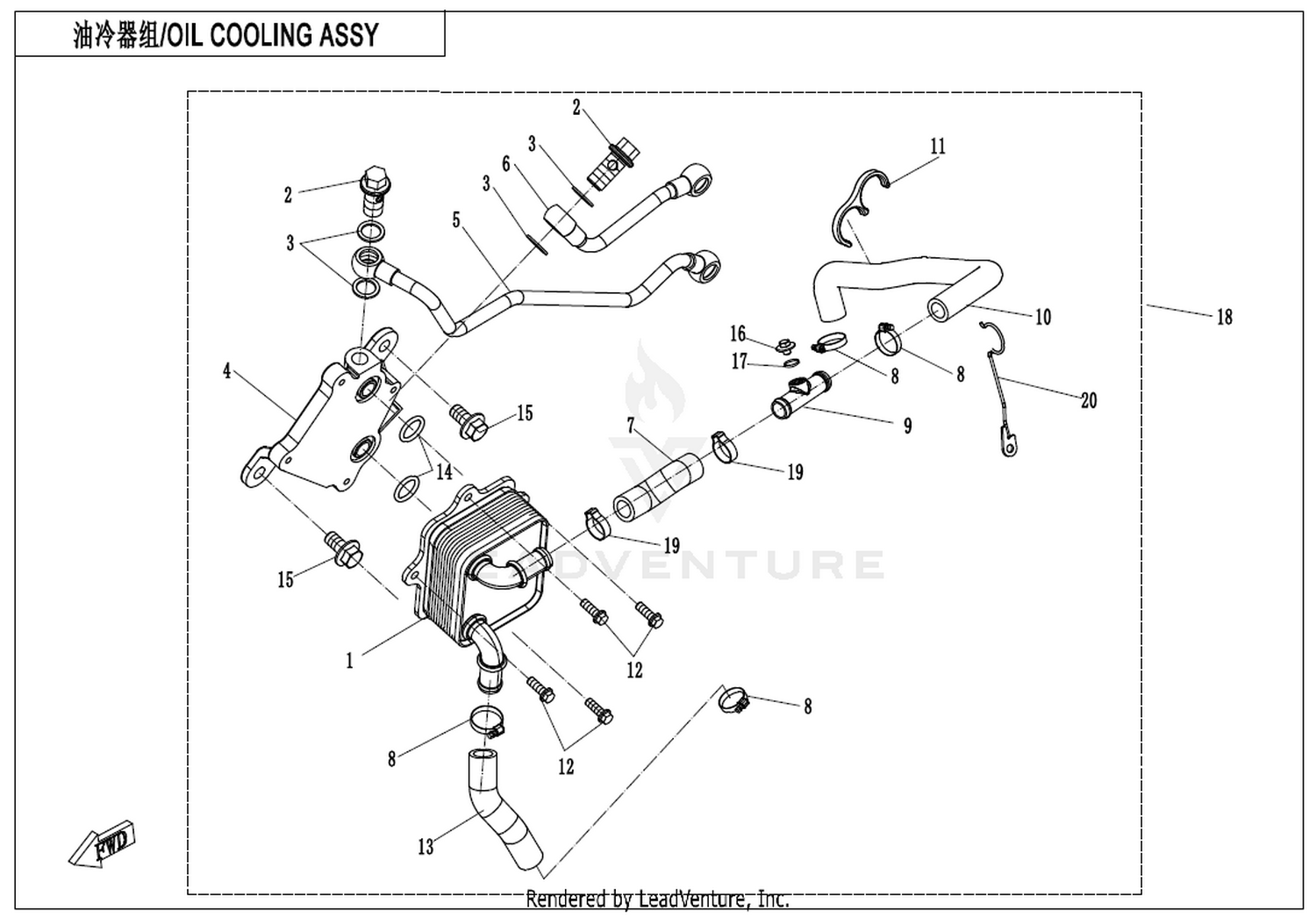

ZFORCE 1000 2020 Oil Cooling System 1 exploded diagram
