CFORCE 520 2024 — Engine parts

UK market203 genuine parts12 diagrams

Subgroups

Crankcase & Crankshaft · 41Cylinder Head & Parts · 26Seals & Gaskets · 61Lubrication System · 8Belt/Chain Drive · 5Engine Hardware · 179

Part numbers

Every genuine engine part fitted to the CFORCE 520 2024. Each number opens its cross-reference & fitment page.

Part numberDescriptionDiagramPrice
7020-120006CLAMP D16.6AFuel TankEnquire
30802-00605SPLIT WASHERGear Shifting 1Enquire

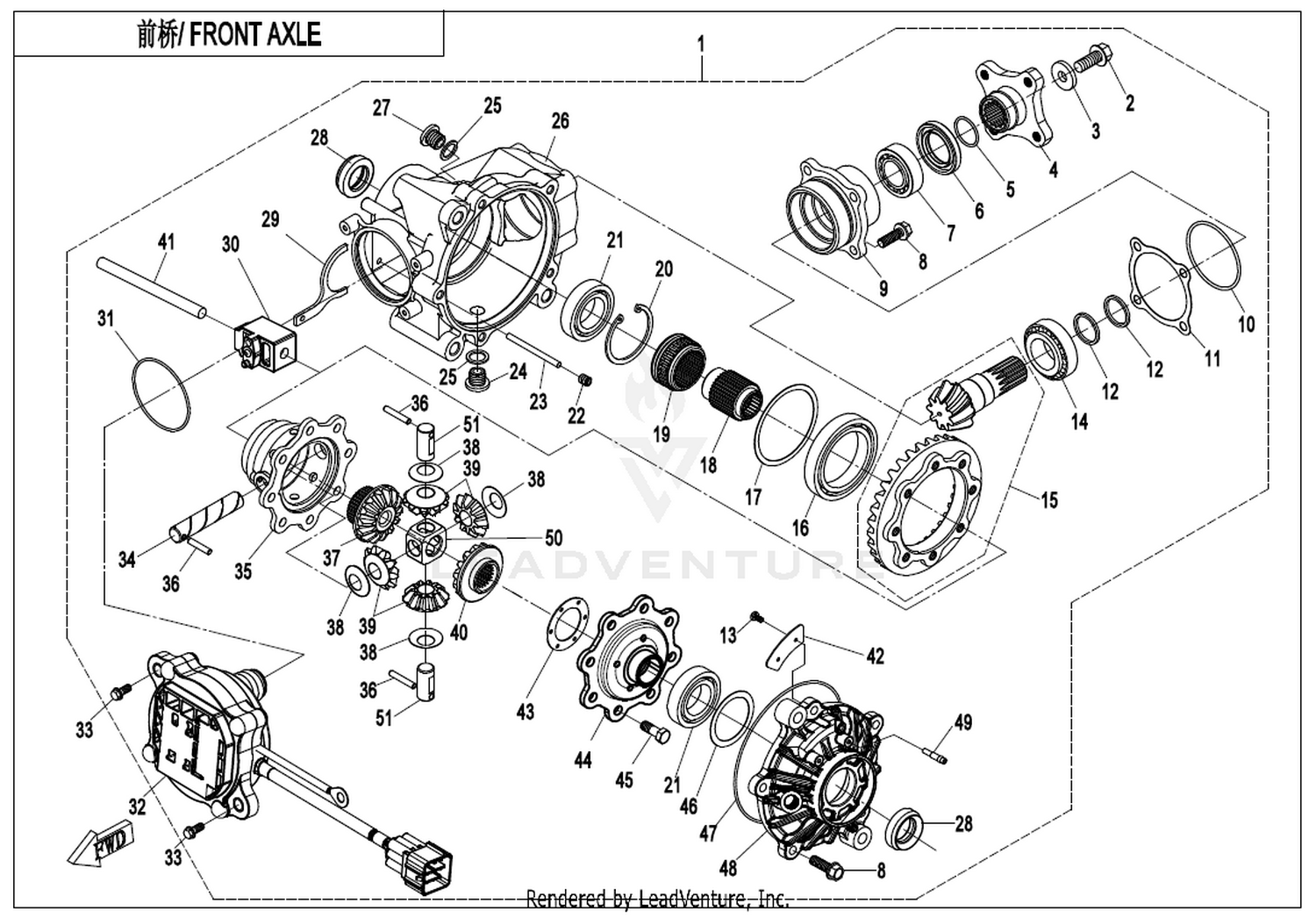

Q830-310011O-RING 130X2Front AxleEnquire
9010-050800-20000LOWER BALL PIN ASSY Replacing: 9010-050800-1000 - LOWER BALL PIN ASSYFront SuspensionEnquire
0GQV-110000-1000-20HOSE CLIPAir Filter AssyEnquire
0800-024004-10000HOLDING STRIP, CAMSHAFTCamshaft Of Cylinder AssyEnquire
A000-180006CLAMP B30Cooling SystemEnquire
0GR0-041000-10024CONNECTING ROD ASSY MARK BCrankshaft & Connecting Rod & Piston AssyEnquire
9060-040310CLAMP ASSYCvt Air PipeEnquire
0700-012701O-SEAL RINGCvt Case Assy. 1Enquire
0JY0-013103OIL SEAL 32X55X10Cvt Case Assy. 1Enquire
0JY0-013102-00021PLAIN BEARING, CVT (BLUE)Cvt Case Assy. 1Enquire
0GSV-013002-3001BOLT, CVT COVERCvt Case AssyEnquire
0JY0-013102-00011PLAIN BEARING, CVT (RED) Replacing: 0JY0-013102-00010 - PLAIN BEARING, CVT REDCvt Case AssyEnquire

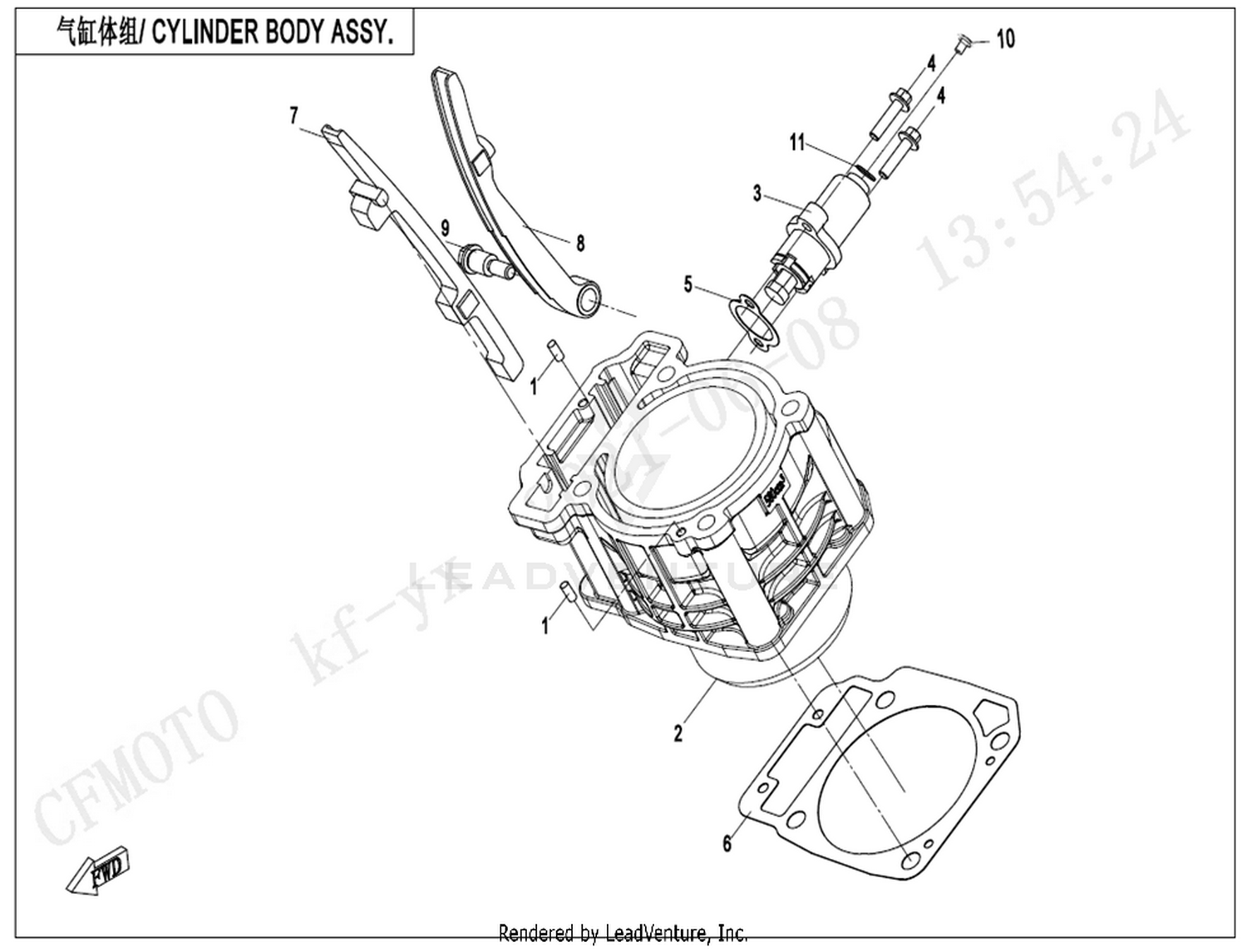

30406-00500ROLLER NEEDLE P5X11.8Cylinder Body AssyEnquire
0GR0-023001GASKET WASHER CYLINDER BODYCylinder Body AssyEnquire
0GR0-022002-00001BOLT M6X132 Replacing: 0GR0-022002 - BOLT M6X132Cylinder Head Assy(Without Fuel Vaporization System)Enquire

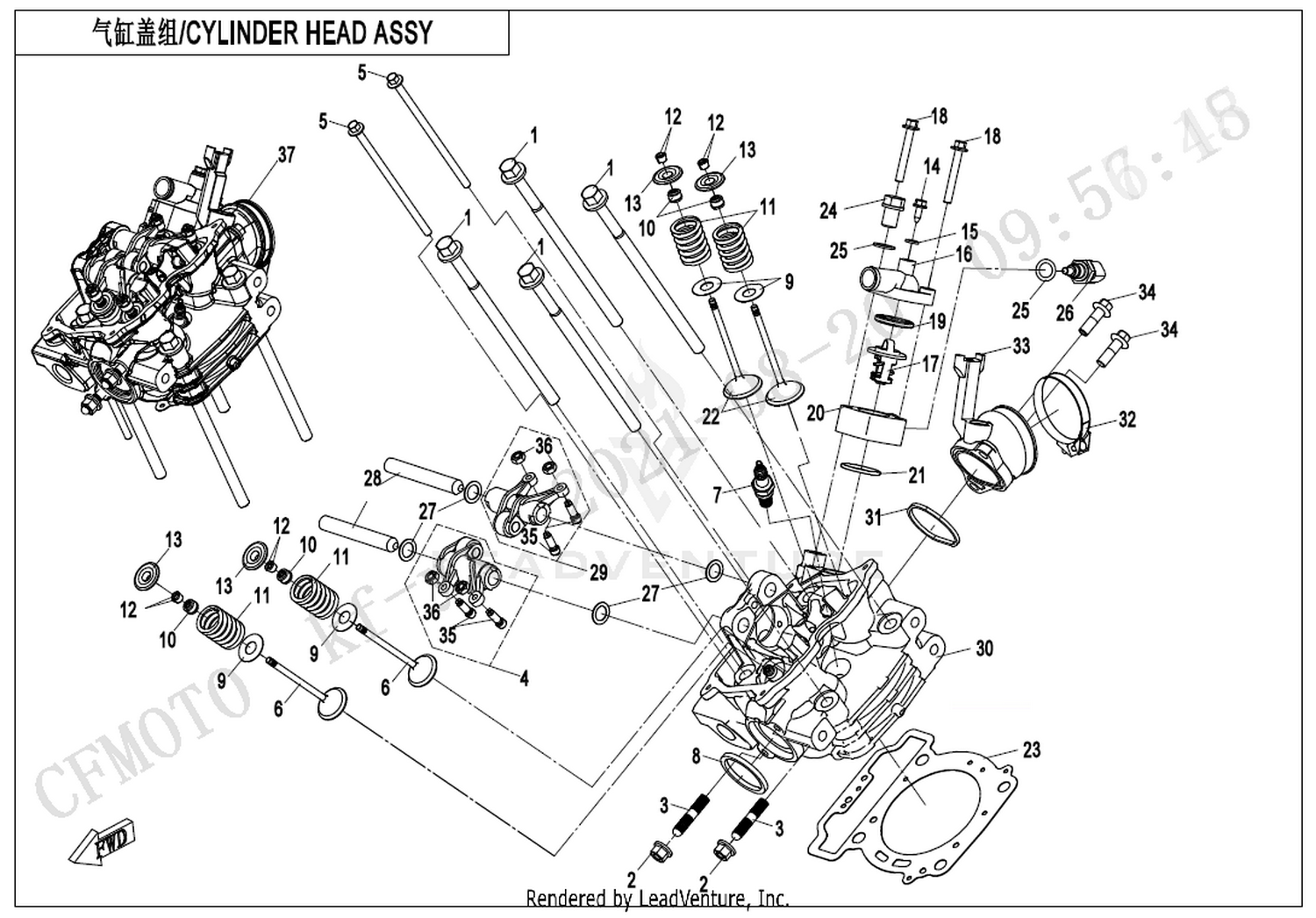

0800-022700THERMOSTATCylinder Head Assy(Without Fuel Vaporization System)Enquire
0800-022500-20000ROCKER ARM ASSY, AIR INTAKECylinder Head Assy(Without Fuel Vaporization System)Enquire
0800-022510ADJUST SCREWCylinder Head Assy(Without Fuel Vaporization System)Enquire
30102-102025810SCREWDrivetrain SystemEnquire
9GQ0-290104BIG CLAMPDrivetrain SystemEnquire
9CR6-300202BIG CLAMPDrivetrain SystemEnquire
0800-062204OIL SEAL 35X50X6Front AxleEnquire
30601-112010CLAMPFuel TankEnquire

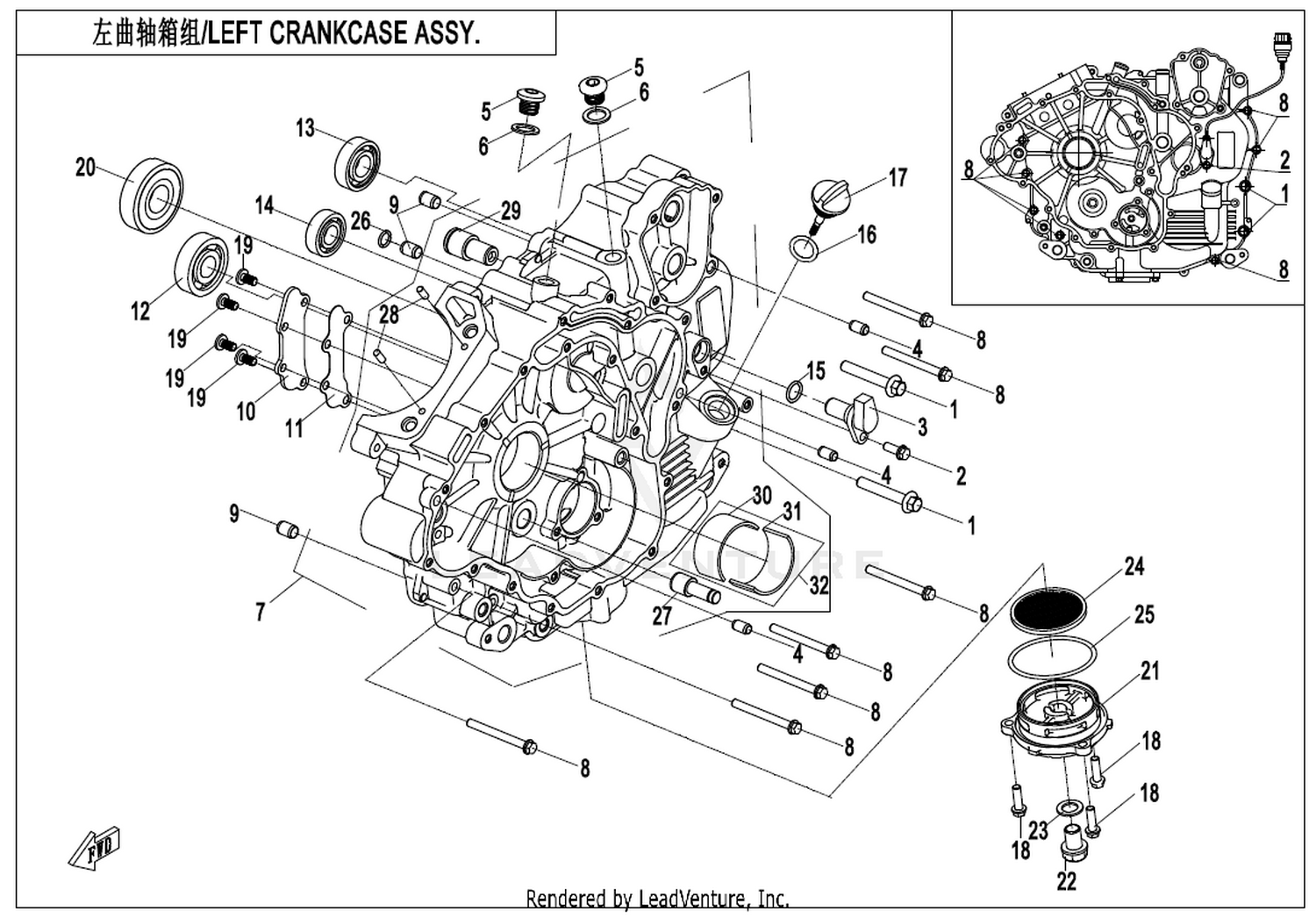

0010-011017-0010Bolt M6X60 Galvanized Trivalent ChromiumLeft Crankcase AssyEnquire
30499-01500BEARING 6202Left Crankcase AssyEnquire
30400-02201BEARINGLeft Crankcase AssyEnquire
30502-010000NO-RING 10X18Left Crankcase AssyEnquire
0800-011103-00011PLAIN BEARING 2, REDLeft Crankcase AssyEnquire
30132-480130030SELF-TAPPING SCREW ST4.8X13LightsEnquire
7030-021305A-TYPE SCREW CLAMPMufflerEnquire
6KM#-040702-8000SCREWMufflerEnquire
30406-00400ROLLER PINOil Pump AssyEnquire
0GR0-070006OIL GUARDOil Pump AssyEnquire

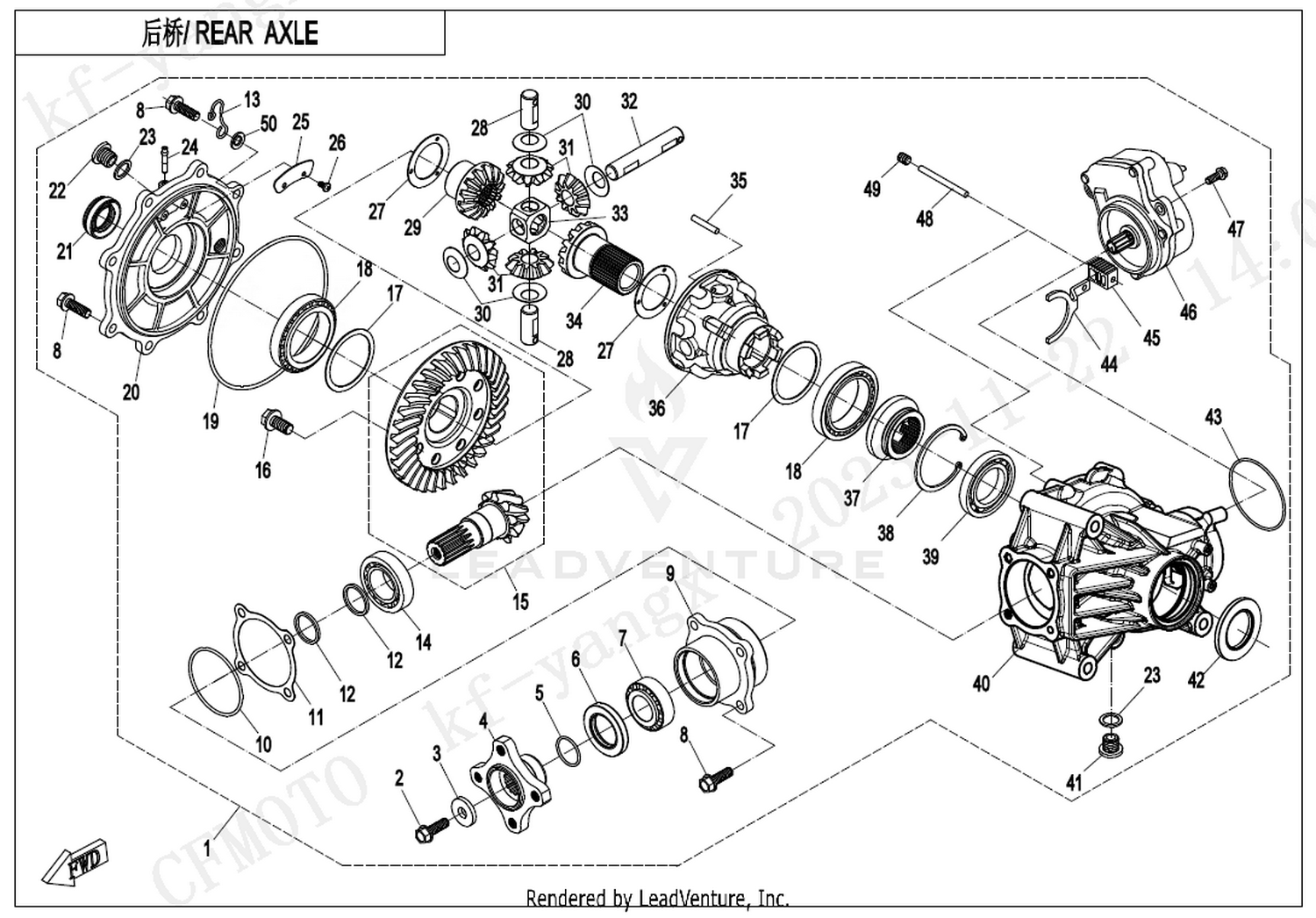

30105-040008410SCREW M4X8Rear Axle(With Differential) 1Enquire
0120-061000OIL SEAL 35X58X5Rear Axle(With Differential) 1Enquire

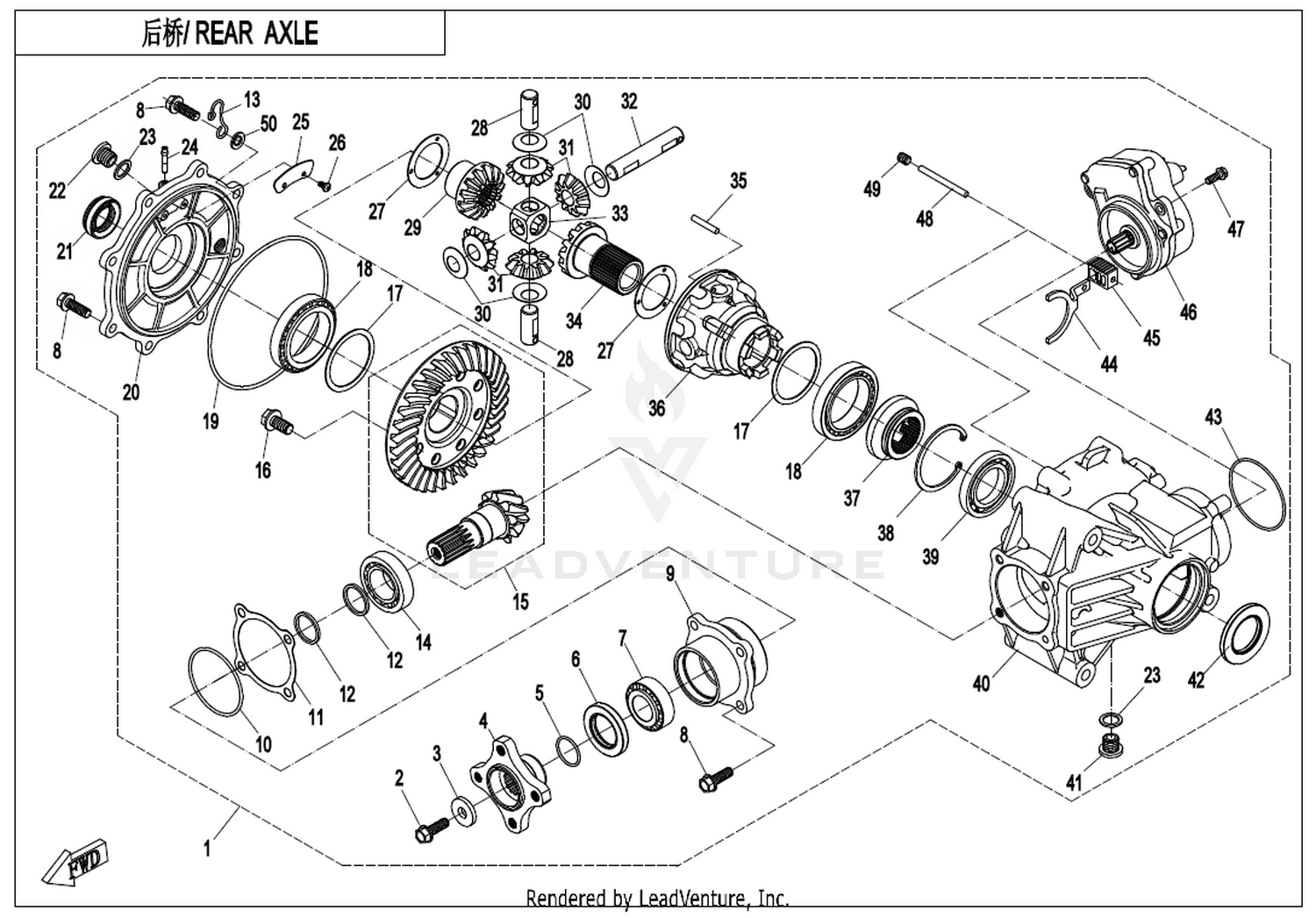

0180-311001OIL SEAL 24X38X8Rear Axle(With Differential)Enquire
30800-06200CIRCLIP FOR HOLE 62Rear Axle(With Differential)Enquire

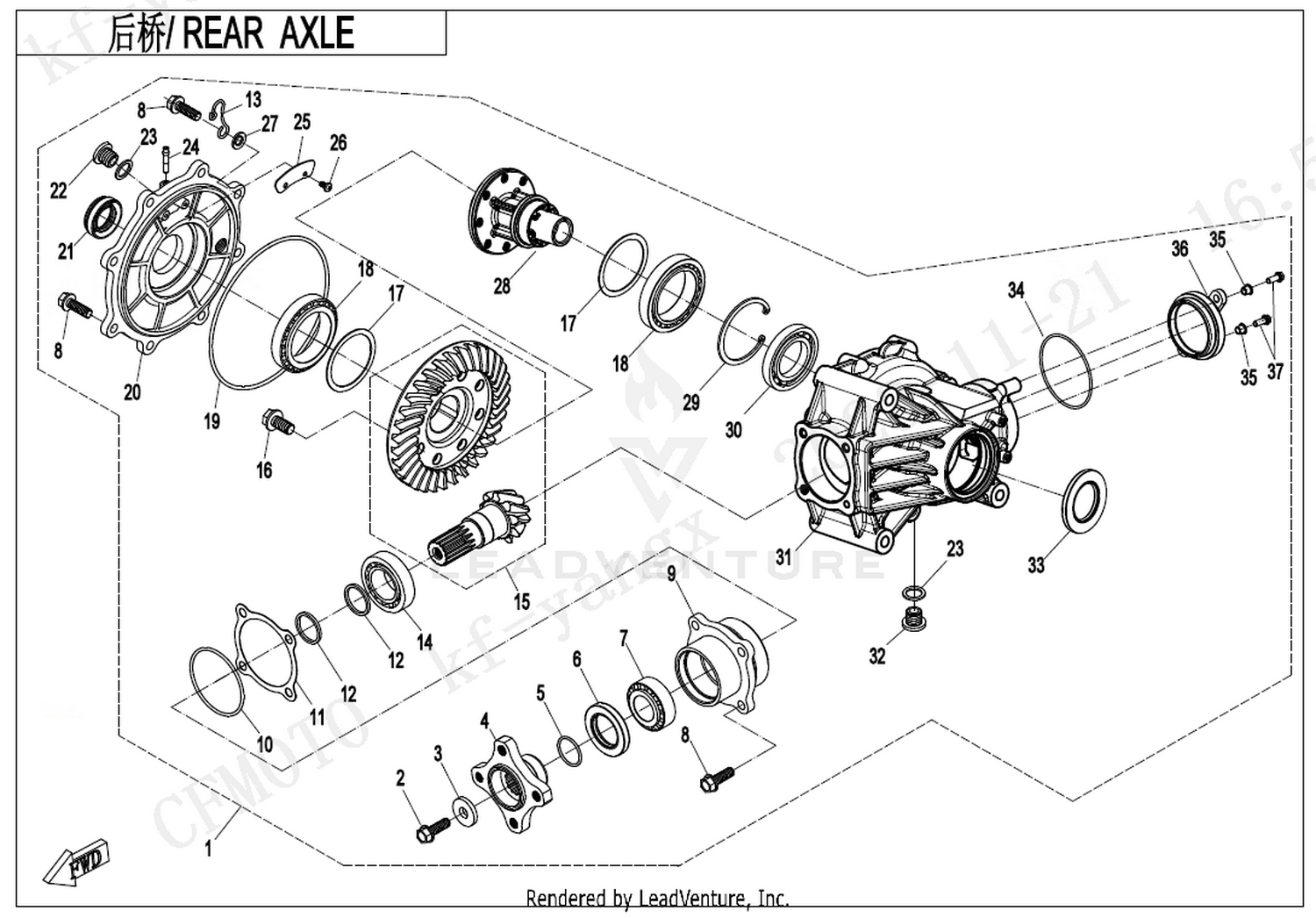

9CRB-082001CLIP, REAR PARKING CABLE(RH)Rear Axle(Without Differential) 1Enquire

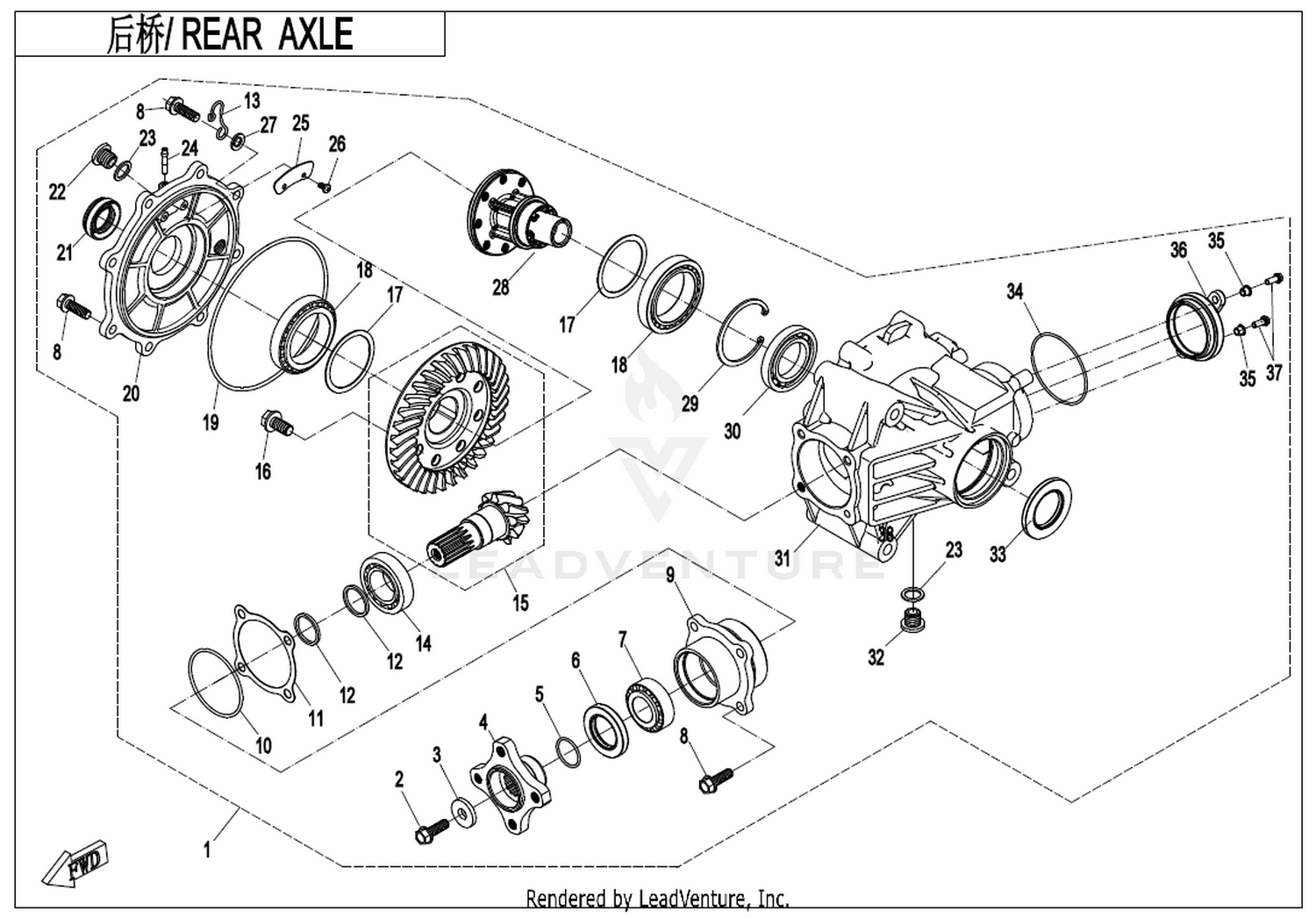

Q830-310012-10000O-RING 67.5X2Rear Axle(Without Differential) 1Enquire
9010-270203-00001WIRE CIRCLIP Replacing: 9010-270203 - WIRE CIRCLIPRear Cv ShaftEnquire
9DQV-060800-3000-M2RH BALL PIN ASSY Replacing: 9010-060800-20000 - BALL PIN, RHRear SuspensionEnquire

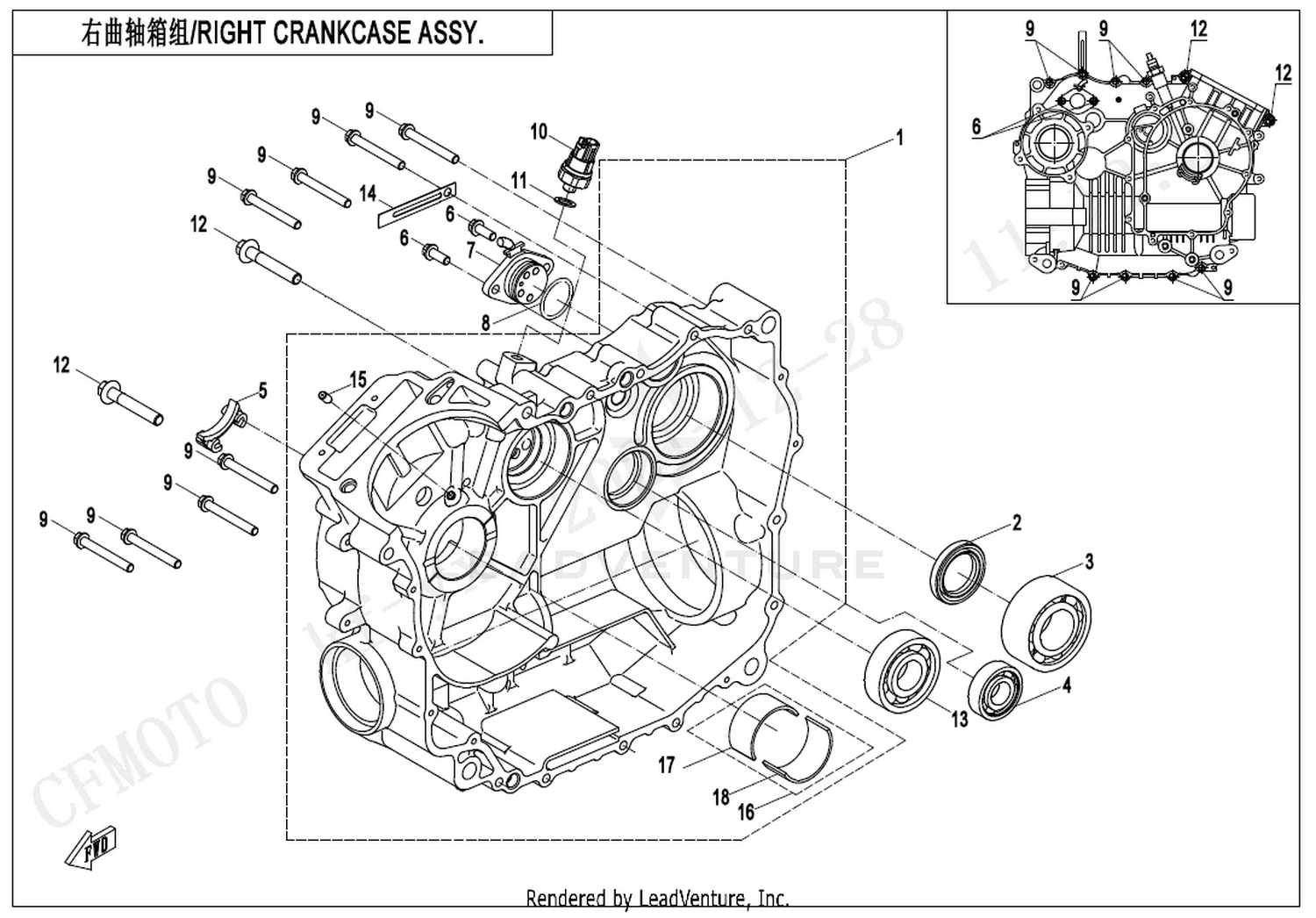

0GR0-012100-10001RH CRANKCASE ASSYRight Crankcase AssyEnquire
0800-0111B0-00001PLAIN BEARING KIT, MAIN SHAFT, BLUE Replacing: 0800-0111B0 - PLAIN BEARING KIT, MAIN SHAFT, BLUERight Crankcase AssyEnquire
30102-080020810SCREWStatering SystemEnquire
30502-032800NO-RING 32X18Steering SystemEnquire
9010-400102-10000COTTER PIN Replacing: 9010-400102 - COTTER PINTowbar(Bolt Connection)Enquire

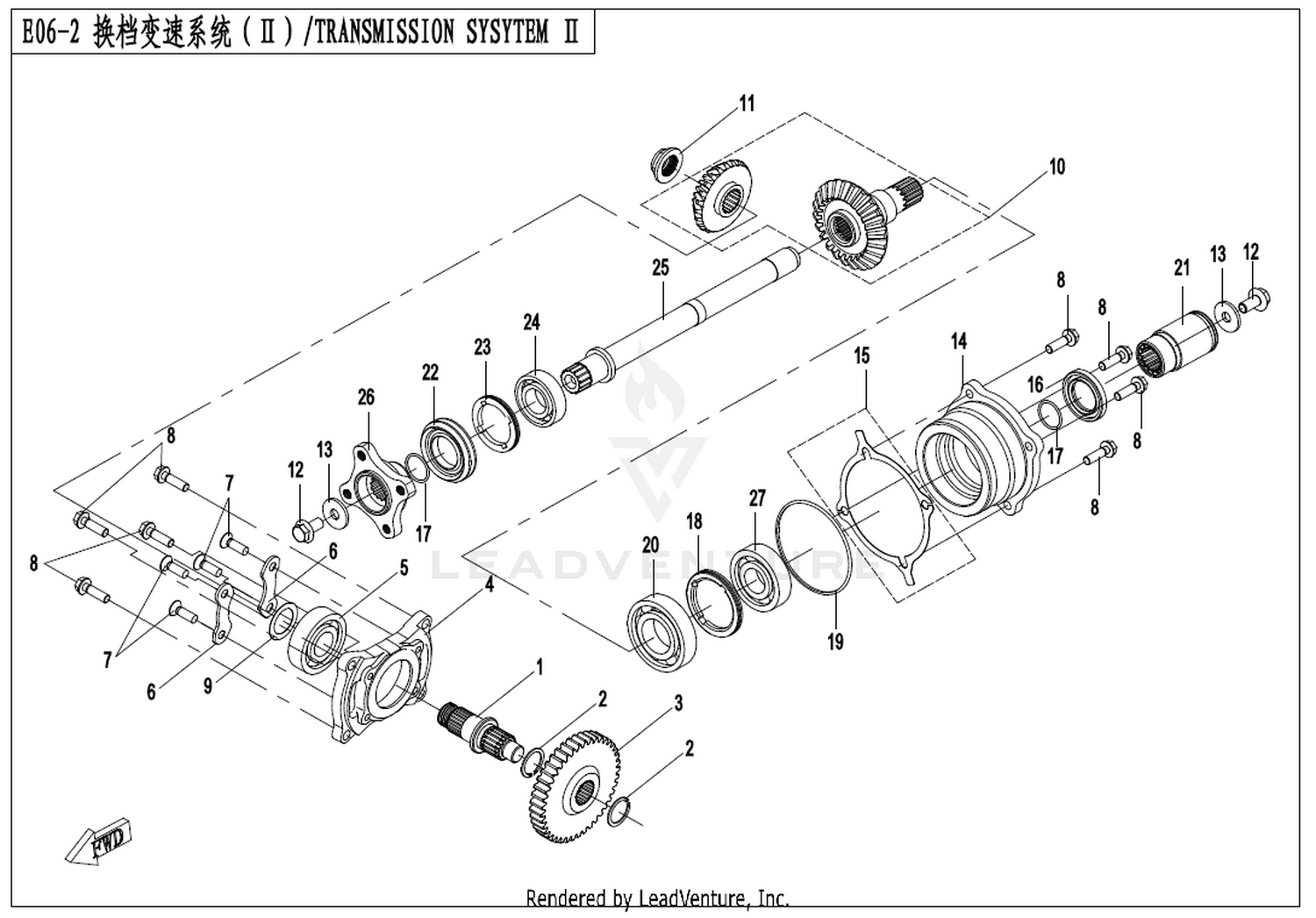

0180-062205O-RING 88X2.5Transmission System(2)Enquire
30400-02501BEARINGTransmission System(2)Enquire
0180-065002OIL SEAL SD15X25X5Transmission System(3)Enquire
30400-01000Bearing 10×26×8Water Pump AssyEnquire
0GQV-110000-1000-22HOSE CLIPAir Filter AssyEnquire
30801-01405CIRCLIPS FOR SHAFTBrake System 1Enquire
30004-060010150BOLT M6x10Camshaft Of Cylinder AssyEnquire
8010-180023CAP, RESERVOIR TANKCooling SystemEnquire
5ASV-180008-6000HOSE CLIPCooling SystemEnquire
0GR0-041000-10014CONNECTING ROD ASSY MARK A Replacing: 0GR0-041000-00020 - CRANK SHAFT COMPCrankshaft & Connecting Rod & Piston AssyEnquire
9010-000105A-TYPE SCREW CLAMP 78-101Cvt Air Pipe 1Enquire
0JYV-112000-5000-22CLAMPCvt Air Pipe 1Enquire
9030-000109SCREW CLAMP, A-TYPE, 70~90Cvt Air PipeEnquire
0JWV-013202-6000DRAIN BOLTCvt Case Assy. 1Enquire
01A0-012010-00001SCREWCvt Case Assy. 1Enquire
0GR0-023100-20011CYLINDER BODY ASSY Replacing: 0GR0-023100-00030 - CYLINDER BODY MARK 1Cylinder Body AssyEnquire
0GR0-023300UPPER GUIDE, CHAINCylinder Body AssyEnquire
0800-022015-00001SCREW PLUG M12X1.5 Replacing: 0800-022015 - SCREW PLUG M12X1.5Cylinder Head Assy(Without Fuel Vaporization System)Enquire
0JY0-022100-20000CYLINDER HEAD Replacing: 0JY0-022100-10000 - CYLINDER HEADCylinder Head Assy(Without Fuel Vaporization System)Enquire
0GSV-013004-3000BOLT 1, CVT COVER Replacing: 0800-021101-1000 - BOLT, CYLINDER HEAD COVERCylinder Head Cover AssyEnquire
30102-060016810SCREWEngine Mounting PartsEnquire
0GS0-0000A1OIL SEAL & O-RING KIT, ENGINEEngine Oil Seal & O-RingEnquire
30906-0503000PINFront AxleEnquire
30110-480160010SELF-TAPPING SCREWFront PlasticsEnquire
30121-080020870SCREWHandlebarEnquire
0GQV-011020-2600SPEEDOMETER SENSOR Replacing: 0GQV-011020-3100 - SPEED SENSORLeft Crankcase AssyEnquire
0010-021005DOWEL PINLeft Crankcase AssyEnquire
01A0-013005O-SEAL RINGLeft Crankcase AssyEnquire
0800-011103-00021PLAIN BEARING 2, BLUELeft Crankcase AssyEnquire
30400-02800BEARINGLeft Crankcase Cover AssyEnquire
30105-050012410SCREWLightsEnquire
9DQV-044052-3000CAP, OIL FILLERMiddle Plastics 1Enquire
0GR0-070100NEEDLE BEAR HK10X22X16Oil Pump AssyEnquire
30130-080010810SCREWRear Axle(With Differential) 1Enquire
0180-021008-00001BOLTRear Axle(With Differential)Enquire
Q830-310006-10000O-RING 55X2.5Rear Axle(Without Differential) 1Enquire
018A-180001SLEEVERear Axle(Without Differential) 1Enquire
7020-0608B0RH REAR BEARING CARRIER ASSYRear SuspensionEnquire
9DQV-050900-3000DAMPING SLEEVE ASSYRear SuspensionEnquire
9GQ0-050710BEARING, HUB Replacing: 30499-03080 - BEARING HUB DAC3055WRear SuspensionEnquire
0040-012006-0010BOLT M8X50 Replacing: 0040-012006-0030 - BOLT M8X50Right Crankcase AssyEnquire
30401-02800NEEDLE BEARINGStatering SystemEnquire
30102-080065810SCREWSteering System(Eps)Enquire
30400-03500BEARING 6207C3Transmission System(2)Enquire
30801-01205CIRCLIPS FOR SHAFTTransmission System(3)Enquire
0010-021017-0010BOLT M6x25Transmission System(3)Enquire
30801-01005Circlips For Shaft 10Water Pump AssyEnquire
30102-060020870INNER HEX SCREW M6x20Brake System 1Enquire
0GR0-024002TIMING DRIVEN SPROCKETCamshaft Of Cylinder AssyEnquire
30601-108010CLAMPCooling SystemEnquire
9030-180071ADAPTOR, CLIPCooling SystemEnquire
30601-117010CLAMPCvt Air PipeEnquire
0GSV-013102-3000HEAT INSULATOR, CVTCvt Case Assy. 1Enquire
0GR0-023100-20021CYLINDER BODY ASSY Replacing: 0GR0-023100-00040 - CYLINDER BODY MARK 2Cylinder Body AssyEnquire
0GR0-023200TENSIONER, CHAINCylinder Body AssyEnquire
0GR0-022001-10000BOLT,CYLINDER Replacing: 0GR0-022001 - BOLT, CYLINDERCylinder Head Assy(Without Fuel Vaporization System)Enquire
0800-022800SPARK PLUG DCPR8E (NGK)Cylinder Head Assy(Without Fuel Vaporization System)Enquire
0010-022802SEAL RINGCylinder Head Assy(Without Fuel Vaporization System)Enquire
080V-025002-1000SEAL RING, MANIFOLD Replacing: 0800-025002 - SEAL RING, MANIFOLDCylinder Head Assy(Without Fuel Vaporization System)Enquire
0GR0-0220A0-10000CYLINDER HEADCylinder Head Assy(Without Fuel Vaporization System)Enquire
30800-02205CIRCLIP FOR HOLEDrivetrain SystemEnquire
0180-014010WIRE CLAMPElectric SystemEnquire
30102-102020810SCREW M10X1.25X20Frame 1Enquire
6NQ#-000203-6001INNER HEX SCREW M6x20Hand GuardEnquire
0010-080008DOWEL PINLeft Crankcase AssyEnquire
0110-013030O-RINGLeft Crankcase AssyEnquire
0110-013005-00002DRAIN BOLT M12X1.5X15 Replacing: 0110-013005-0030 - DRAIN BOLT M12X1.5Left Crankcase AssyEnquire
0800-0111A0-00001PLAIN BEARING KIT, MAIN SHAFT, RED Replacing: 0800-0111A0 - PLAIN BEARING KIT, MAIN SHAFT, REDLeft Crankcase AssyEnquire
30118-480160010SELF-TAPPING SCREW ST4.8X16Middle PlasticsEnquire
30406-00402ROLLER NEEDLE P4x21.8Oil Pump AssyEnquire
0800-062205O-RINGRear Axle(Without Differential) 1Enquire
0180-310005O-RING 141X2.4Rear Axle(Without Differential) 1Enquire
Q820-330009PLUG, MOTORRear Axle(Without Differential) 1Enquire
30800-05505CIRCLIP D55 BLACKRear SuspensionEnquire
0180-012006-10000OIL SEAL Replacing: 0180-012006 - OIL SEAL 30X45X7Right Crankcase AssyEnquire
0800-011102-00021PLAIN BEARING 1, BLUE Replacing: 0800-011102-0002 - PLAIN BEARING 1 BLUE THICKRight Crankcase AssyEnquire
0180-061007-0050CIRCLIP 25Transmission System(1)Enquire
0180-064002-00001LOCK SCREW T25Transmission System(3) 1Enquire
30110-420095010SELF-TAPPING SCREWBottom PlasticsEnquire
0GR0-024100TIMING CHAINCamshaft Of Cylinder AssyEnquire
0GR0-024200-10000STARTER DECOMPRESSORCamshaft Of Cylinder AssyEnquire
0GR0-052006SCREWClutch & Cvt Assy.(16G Weight Roller)Enquire
9010-180007CLAMP, WATER HOSECooling SystemEnquire
0800-040002-00001PISTON PIN Replacing: 0800-040002 - PISTON PINCrankshaft & Connecting Rod & Piston AssyEnquire
0GSV-013103-3000WIND GUARDCvt Case Assy. 1Enquire
0GS0-023200-00001TENSIONER ASSYCylinder Body AssyEnquire
0GR0-022003SEAT,THERMOSTATCylinder Head Assy(Without Fuel Vaporization System)Enquire
018B-022810COOLANT TEMP. SENSORCylinder Head Assy(Without Fuel Vaporization System)Enquire
01A0-110005CLAMP D58Cylinder Head Assy(Without Fuel Vaporization System)Enquire
0800-021002-00001SEAL RING, CYLINDER HEAD COVERCylinder Head Cover AssyEnquire
30105-050030410SCREW M5X30 Replacing: 30105-050030440 - SCREW M5X30Electric SystemEnquire
9GQA-001002EXHAUST PIPE,STEEPING MOTORElectric SystemEnquire
CFCV-156103-2000PLUG, T-BOX CONNECTORElectric SystemEnquire
Q890-314000-10000FRONT GEAR CASE MOTOR ASSY GRAY PLUGFront AxleEnquire
0110-090008-0030BOLT M6X14Fuel Injection SystemEnquire
6NQ#-000206-6001INNER HEX SCREW M6x16Hand GuardEnquire
0GR0-011003-00001BOLTLeft Crankcase AssyEnquire
0GR0-011005DIPSTICK, ENGINE OIL Replacing: 0110-013001 - DIPSTICK, ENGINE OILLeft Crankcase AssyEnquire
0GRA-014001PLUG SUZUKI REDLeft Crankcase Cover AssyEnquire
0GR0-014003SCREW PLUG ,DECOMPRESSORLeft Crankcase Cover AssyEnquire
9DQV-060700-3000-M2LH BALL PIN ASSY Replacing: 9010-060700-20000 - BALL PIN, LHRear SuspensionEnquire
30499-03000BEARING 5206Right Crankcase AssyEnquire
0180-023002O-SEAL RINGRight Crankcase AssyEnquire
0GR0-060100NEEDLE BEARING 20X25X12Transmission System(1)Enquire
0180-062104-0010LIMITATOR, BEARINGTransmission System(2)Enquire
0GQV-115000-1000-24RUBBER DAMPING LINER, FUEL TANKAir Filter AssyEnquire
0GQV-115000-1000-27CLAMPAir Filter AssyEnquire
30102-060012810SCREWBrake System 1Enquire
0GR0-024001-00002CAMSHAFT Replacing: 0GR0-024001 - CAMSHAFTCamshaft Of Cylinder AssyEnquire
0GR0-024003-00001BOLT M8X32Camshaft Of Cylinder AssyEnquire
30601-111010CLAMPCooling SystemEnquire
8010-180024Water Filling Port Cap AssyCooling SystemEnquire
0800-040005CIRCLIP, PISTON PINCrankshaft & Connecting Rod & Piston AssyEnquire
0010-021019-0010BOLT M6x12Cvt Case Assy. 1Enquire
0010-023010-0010BOLT M6x20Cvt Case Assy. 1Enquire
0JYA-023001-00001HEX FLANGE BOLT M6x6Cylinder Body AssyEnquire
0180-022003-00001STUDCylinder Head Assy(Without Fuel Vaporization System)Enquire
30502-028000NO-RING 28X265Cylinder Head Assy(Without Fuel Vaporization System)Enquire
0GR0-022900INJECTOR SEATCylinder Head Assy(Without Fuel Vaporization System)Enquire
0800-021001CYLINDER HEAD COVERCylinder Head Cover AssyEnquire
30601-118010CLAMPElectric SystemEnquire
9DQV-000200-3000DAMPING BLOCK, ENGINEEngine Mounting PartsEnquire
30107-060012410Screw M6X12@Color Zinc-PlatedGear ShiftingEnquire
30499-01700BEARING 6303Left Crankcase AssyEnquire
0GR0-011010OIL STRAINERLeft Crankcase AssyEnquire
0GRA-014003O-RING 48X2.5Left Crankcase Cover AssyEnquire
0800-011300-0004OIL FILTER ELEMENT Replacing: 0800-011300-00030 - OIL FILTER, ENGINELeft Crankcase Cover AssyEnquire
0180-332004O-RING 19X2.5Left Crankcase Cover AssyEnquire
30110-421130010SELF-TAPPING SCREWMiddle Plastics 1Enquire
0010-030002-00001BOLTOil Pump AssyEnquire
30400-01704BEARINGRight Crankcase AssyEnquire
30124-080025810SCREW M8X25Transmission System(2)Enquire
0JWA-062302-00001OIL SEAL Replacing: 0JWA-062302 - OIL SEAL 35X61X9 (14)Transmission System(2)Enquire
30801-03405CIRCLIPS FOR SHAFT 34Front SuspensionEnquire
0800-024002-00001DOWEL PIN, SPROCKET Replacing: 0800-024002 - DOWEL PIN, SPROCKETCamshaft Of Cylinder AssyEnquire
0GR0-052004CIRCLIPClutch & Cvt Assy.(16G Weight Roller)Enquire
0180-040007WOODRUFF KEYCrankshaft & Connecting Rod & Piston AssyEnquire
0700-011202O-SEAL RINGCylinder Body AssyEnquire
0800-022600-20000ROCKER ARM ASSY, AIR EXHAUSTCylinder Head Assy(Without Fuel Vaporization System)Enquire
0800-022013-10000THERMOSTAT CAP Replacing: 0800-022013 - THERMOSTAT CAPCylinder Head Assy(Without Fuel Vaporization System)Enquire
0130-011114-00001BOLTCylinder Head Assy(Without Fuel Vaporization System)Enquire
CFCV-CBC001-2001-M1CLIPElectric SystemEnquire
9DQV-000300-3000DAMPING BLOCK, ENGINEEngine Mounting PartsEnquire
30118-420095010SELF-TAPPING SCREWFront Plastics 1Enquire
9DS#-120300-6000CAP, FUEL TANKFuel TankEnquire
0GR0-011100-00002LH CRANKCASE ASSY Replacing: 0GR0-011100 - LH CRANKCASE ASSYLeft Crankcase AssyEnquire
0800-014003O-RING 63X2.5Left Crankcase AssyEnquire
0GR0-014002-10000STEEL GASKET, LH CRANKCASE COVER Replacing: 0GR0-014002 - PAPER GASKET, LH CRANKCASE COVERLeft Crankcase Cover AssyEnquire
0180-030001-00001BOLTMagneto AssyEnquire
7020-0607B0LH REAR BEARING CARRIER ASSYRear SuspensionEnquire
7020-100600BEARING, OUTER SPHERICAL 205Steering SystemEnquire
9DQV-150820-4200EPS MOTOR Replacing: 9CR6-103300-30000 - EPS DRIVER - ROUNDED PLUGSteering System(Eps)Enquire
9CR6-404200PIN ASSYTowbar(Bolt Connection)Enquire
0180-060008BEARING RETAINER, FRONT OUTPUT SHAFTTransmission System(2)Enquire
0110-080005Oil Seal 10X20X5Water Pump AssyEnquire

Exploded diagrams — Engine

CFORCE 520 2024 Left Crankcase Assy exploded diagram
Left Crankcase Assy · 26
CFORCE 520 2024 Cylinder Head Assy(Without Fuel Vaporization System) exploded diagram
Cylinder Head Assy(Without Fuel Vaporization System) · 20
CFORCE 520 2024 Cvt Case Assy. 1 exploded diagram
Cvt Case Assy. 1 · 14
CFORCE 520 2024 Cvt Case Assy exploded diagram
Cvt Case Assy · 14
CFORCE 520 2024 Rear Axle(With Differential) 1 exploded diagram
Rear Axle(With Differential) 1 · 13
CFORCE 520 2024 Rear Axle(With Differential) exploded diagram
Rear Axle(With Differential) · 13
CFORCE 520 2024 Rear Axle(Without Differential) 1 exploded diagram
Rear Axle(Without Differential) 1 · 13
CFORCE 520 2024 Rear Axle(Without Differential) exploded diagram
Rear Axle(Without Differential) · 13
CFORCE 520 2024 Right Crankcase Assy exploded diagram
Right Crankcase Assy · 13
CFORCE 520 2024 Front Axle exploded diagram
Front Axle · 12
CFORCE 520 2024 Cylinder Body Assy exploded diagram
Cylinder Body Assy · 10
CFORCE 520 2024 Transmission System(2) exploded diagram
Transmission System(2) · 10

Browse the catalogue interactively

Open Engine in the interactive CFORCE 520 2024 catalogue to drill into diagrams, check availability and add parts to your cart.

Other assembly groups on this vehicle

Body · 308Gearbox · 299Wheels & Tyres · 117Electrical System · 77Brake System · 76Steering System · 42Filters · 36Suspension · 33Cooling System · 23Exhaust System · 19Clutch & Parts · 17Fuel Supply System · 13Final Drive · 9Interior · 4Unclassified · 231
