春风 150AURA — Electrical System parts
CN market18 genuine parts9 diagrams
Subgroups
Part numbers
Every genuine electrical system part fitted to the 春风 150AURA. Each number opens its cross-reference & fitment page.
| Part number | Description | Diagram | Price | |
|---|---|---|---|---|
| 801F-100101 | TIE BAND | BRAKE SYSTEM | Enquire | |

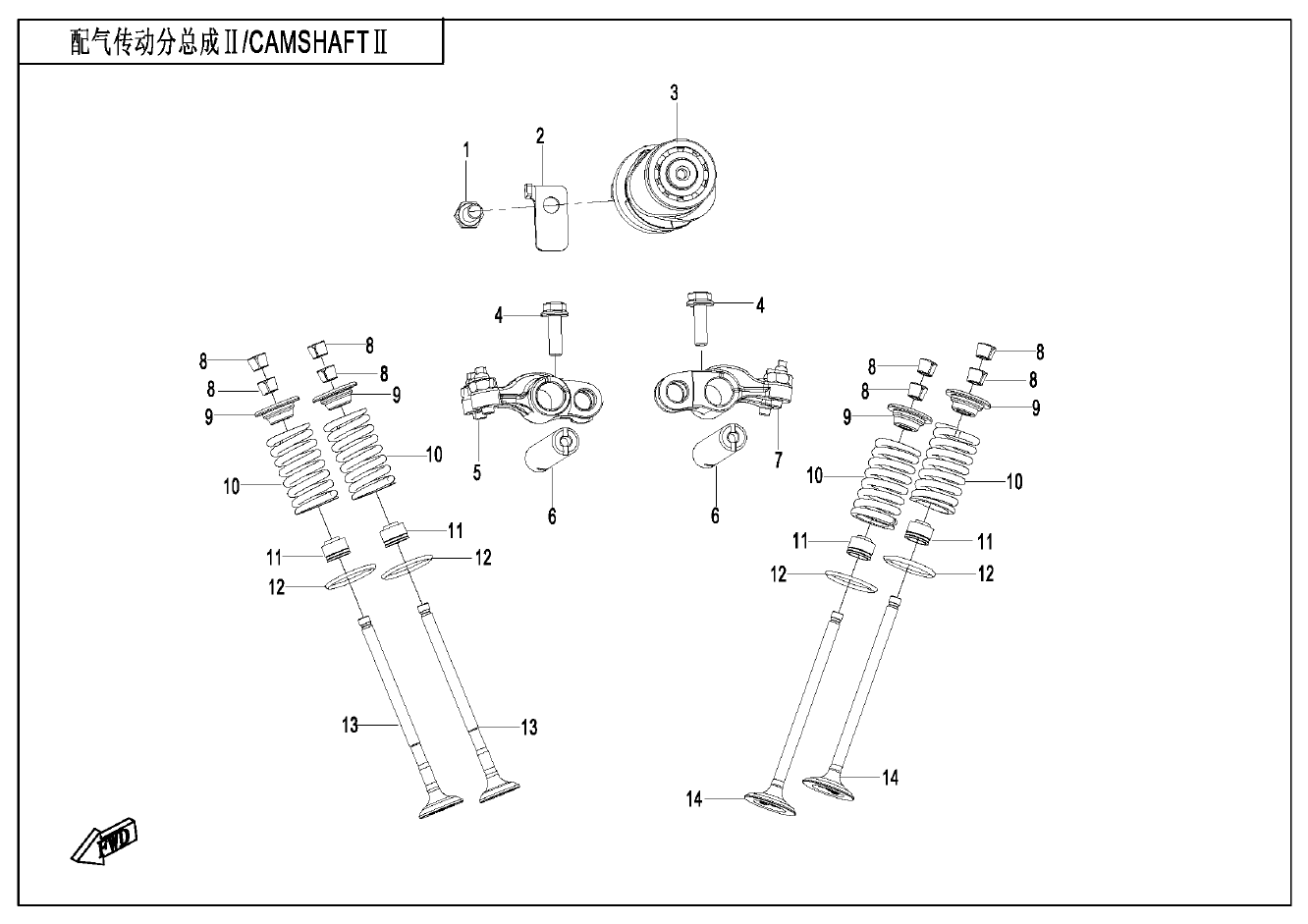

| 30006-050016810 | BOLT | CAMSHAFT2 | Enquire | |

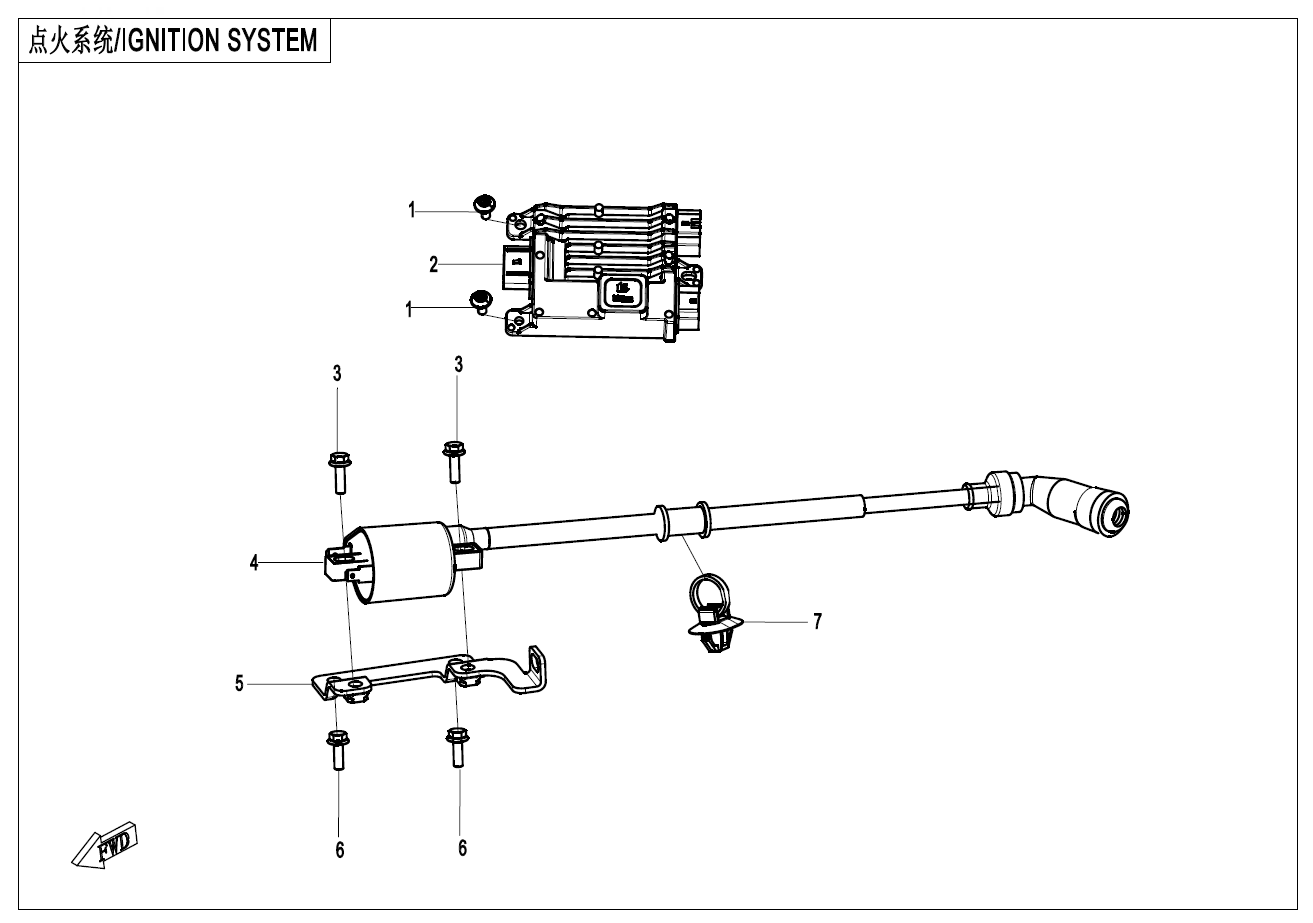

| CFCV-BBC001-2000-M1 | TIE BAND | IGNITION SYSTEM | Enquire | |

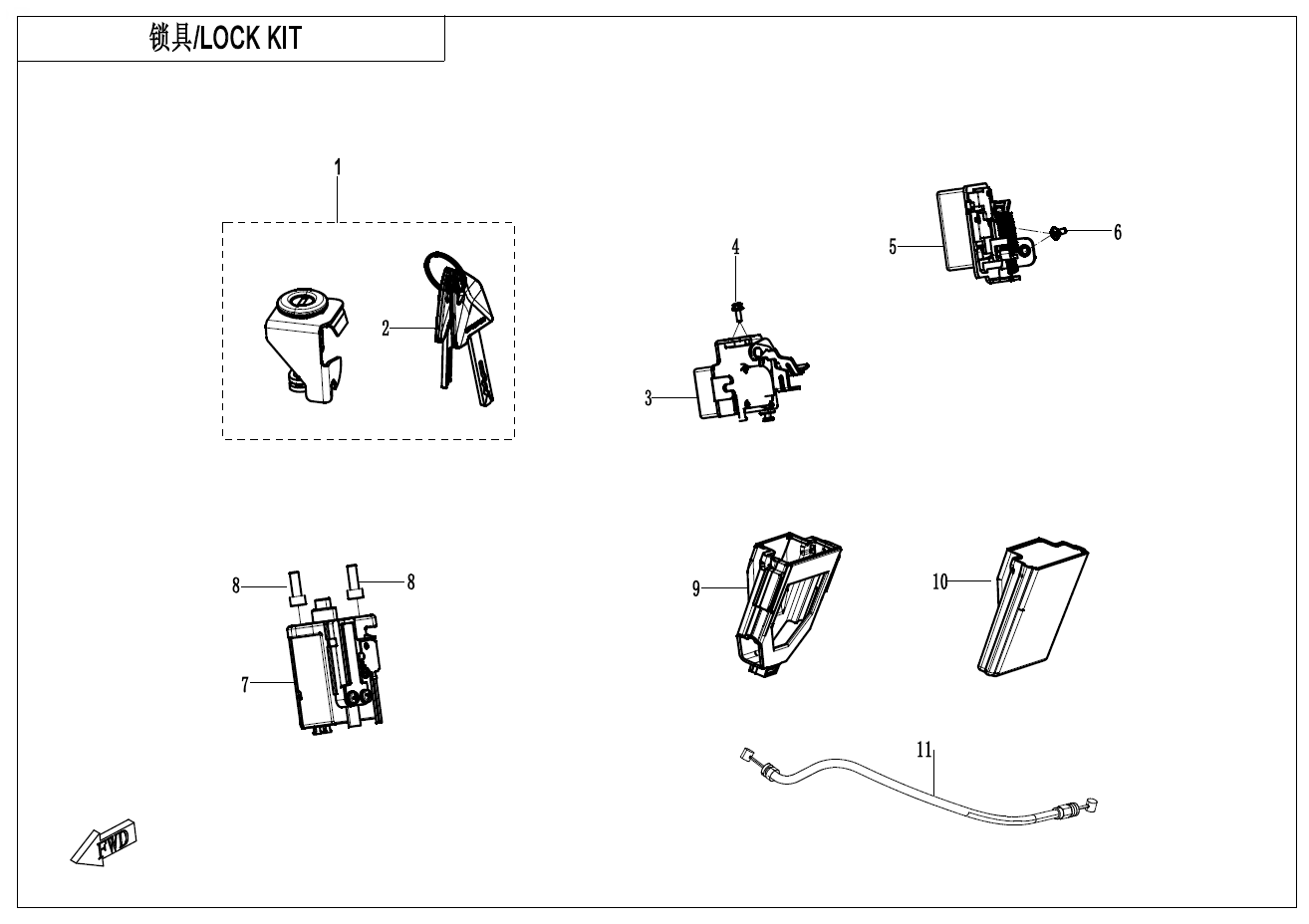

| 6WWV-150420-5000-10 | VEHICLE CONTROL UNIT BUSHING | LOCK KIT | Enquire | |

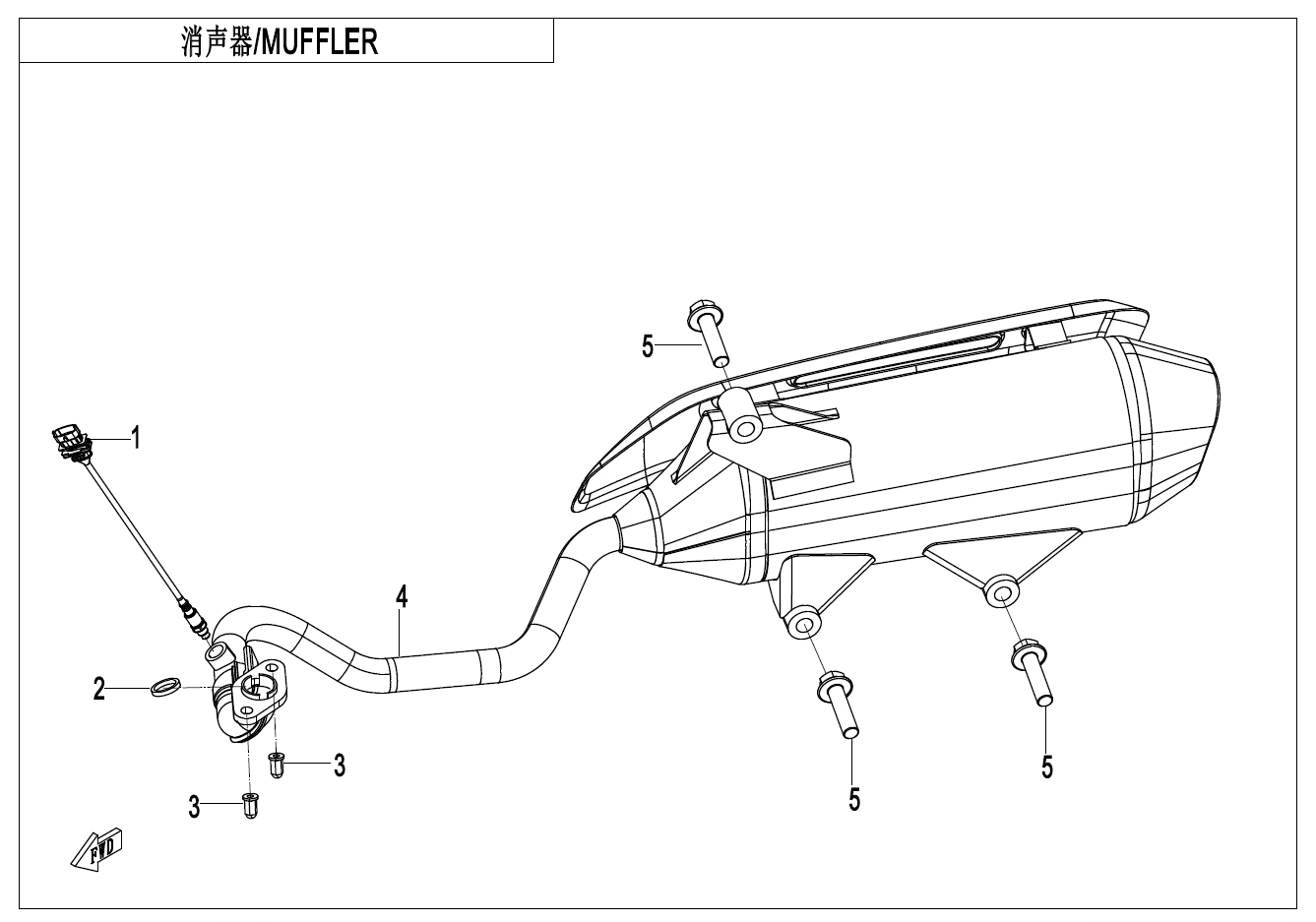

| 8AJV-004100-1000 | OXYGEN SENSOR | MUFFLER | Enquire | |

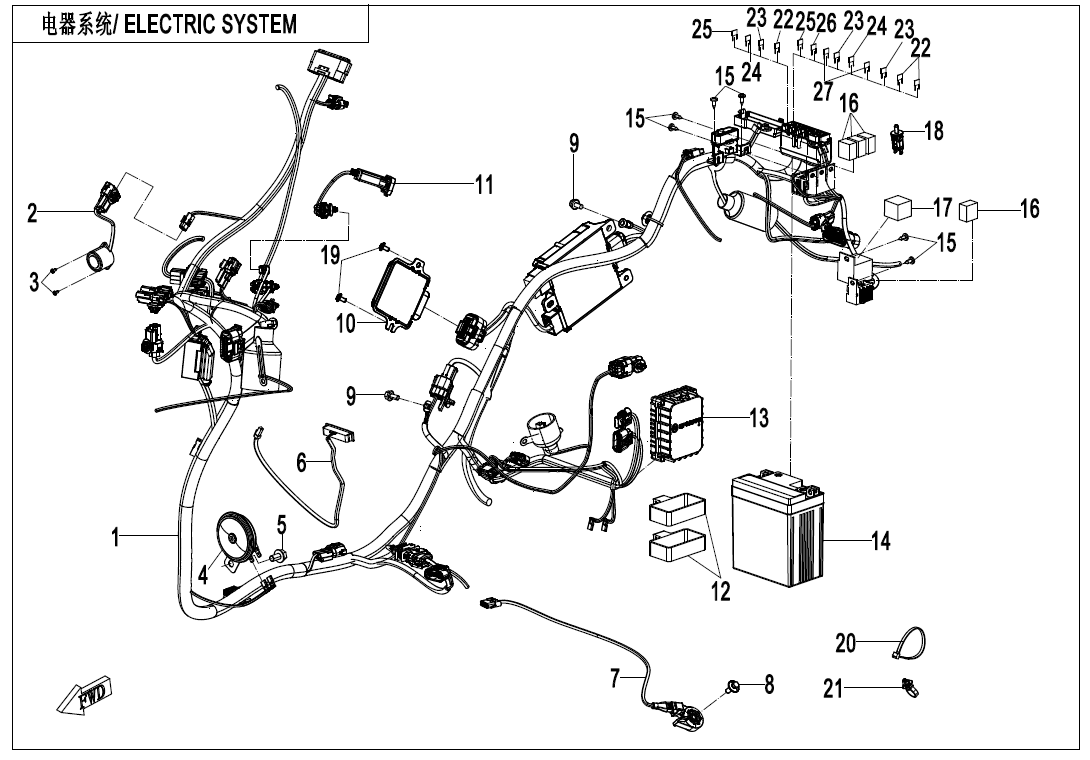

| 6FIV-150600-7000 | HORN | ELECTRIC SYSTEM | Enquire | |
| 30006-080014810 | BOLT | ELECTRIC SYSTEM | Enquire | |
| 6KMV-151500-3000 | SIDE STAND SWITCH | ELECTRIC SYSTEM | Enquire | |
| 8010-090005 | BOLT M6x16 | ELECTRIC SYSTEM | Enquire | |
| 6KMV-150901-B002 | T-BOX RUBBER RING | ELECTRIC SYSTEM | Enquire | |
| SN2V-691100-1100-11 | INTELLIGENT CONTROLLER | ELECTRIC SYSTEM | Enquire | |
| CFCV-150524-2000-M1 | AUXILIARY RELAY | ELECTRIC SYSTEM | Enquire | |
| 806A-151302 | FUSE 10A | ELECTRIC SYSTEM | Enquire | |
| 806A-151305 | FUSE 15A | ELECTRIC SYSTEM | Enquire | |
| 806A-151306 | 20A FUSE | ELECTRIC SYSTEM | Enquire | |
| 806A-151308 | 30A FUSE | ELECTRIC SYSTEM | Enquire | |
| 8010-151301 | FUSE 5A | ELECTRIC SYSTEM | Enquire | |
| 806A-151307 | 25A FUSE | ELECTRIC SYSTEM | Enquire |
Exploded diagrams — Electrical System
Browse the catalogue interactively
Open Electrical System in the interactive 春风 150AURA catalogue to drill into diagrams, check availability and add parts to your cart.
